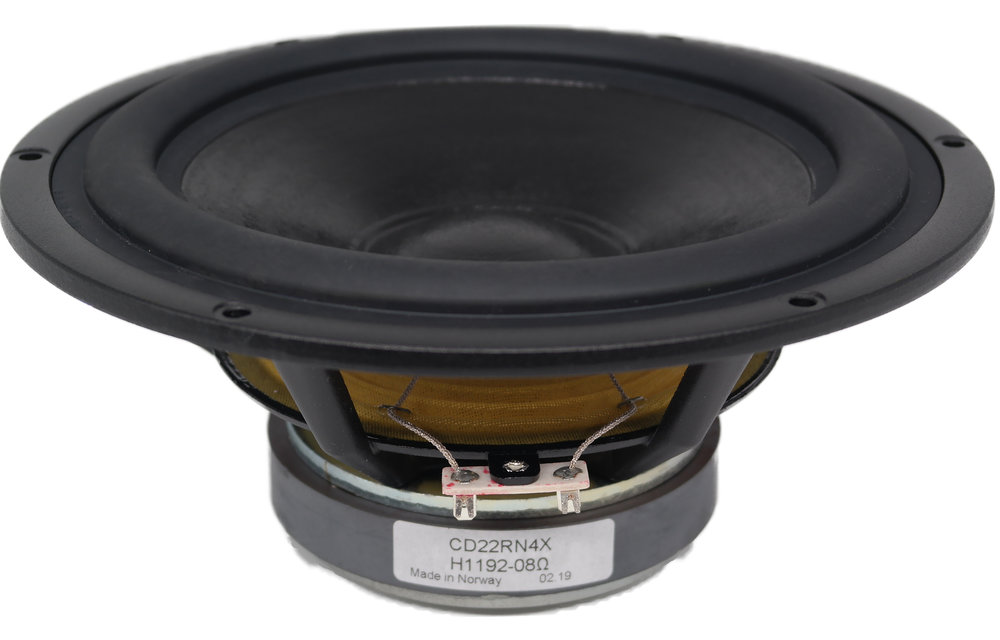

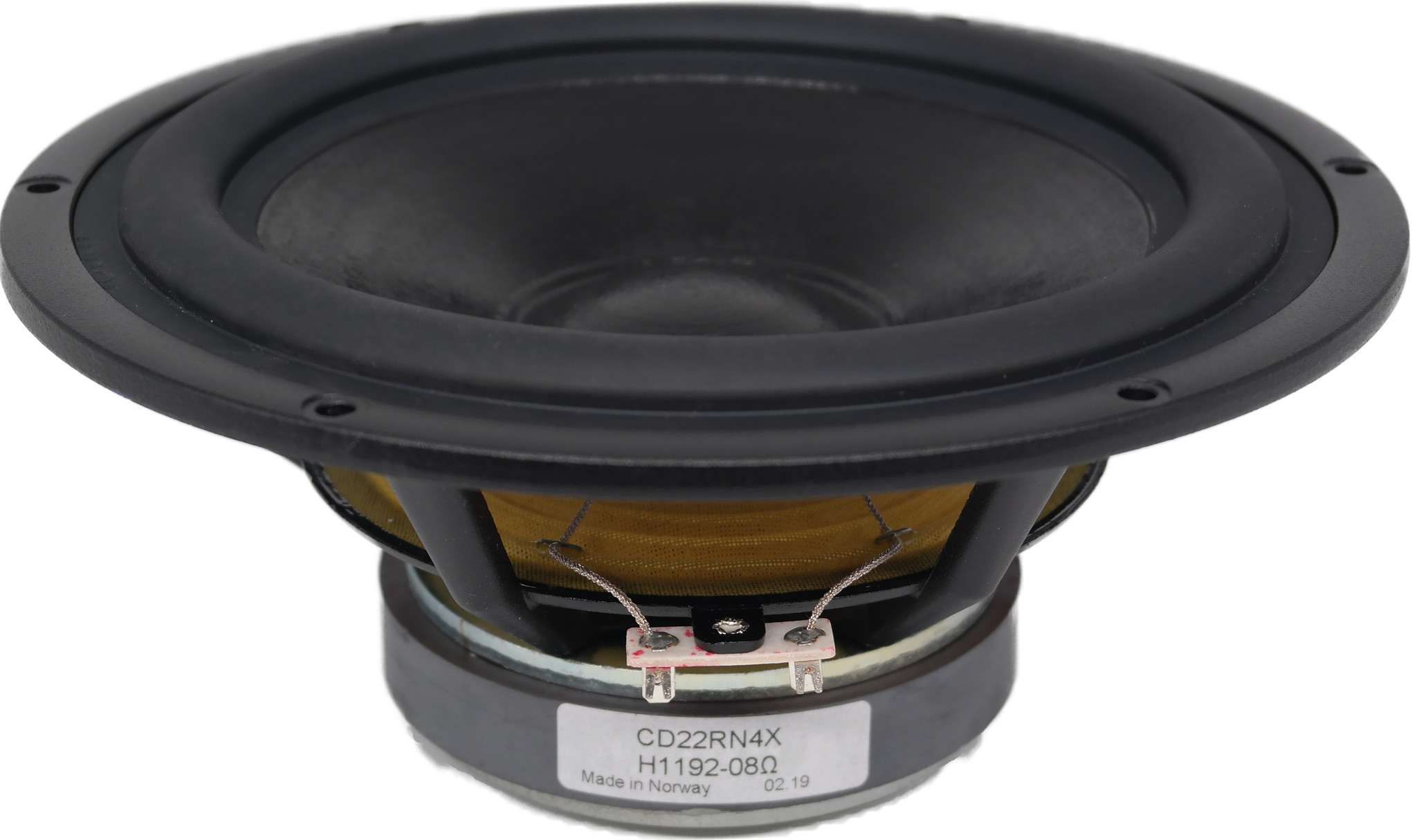

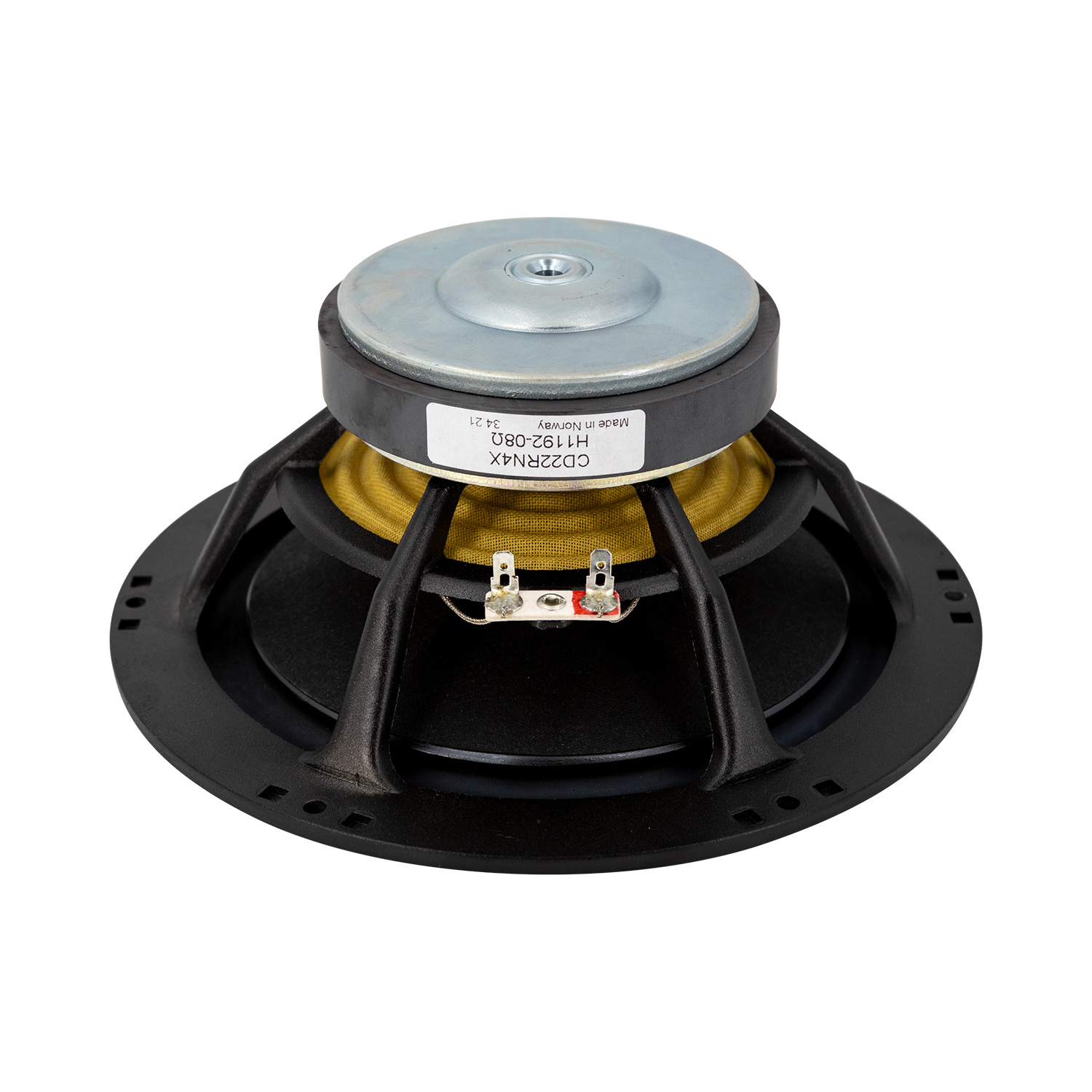

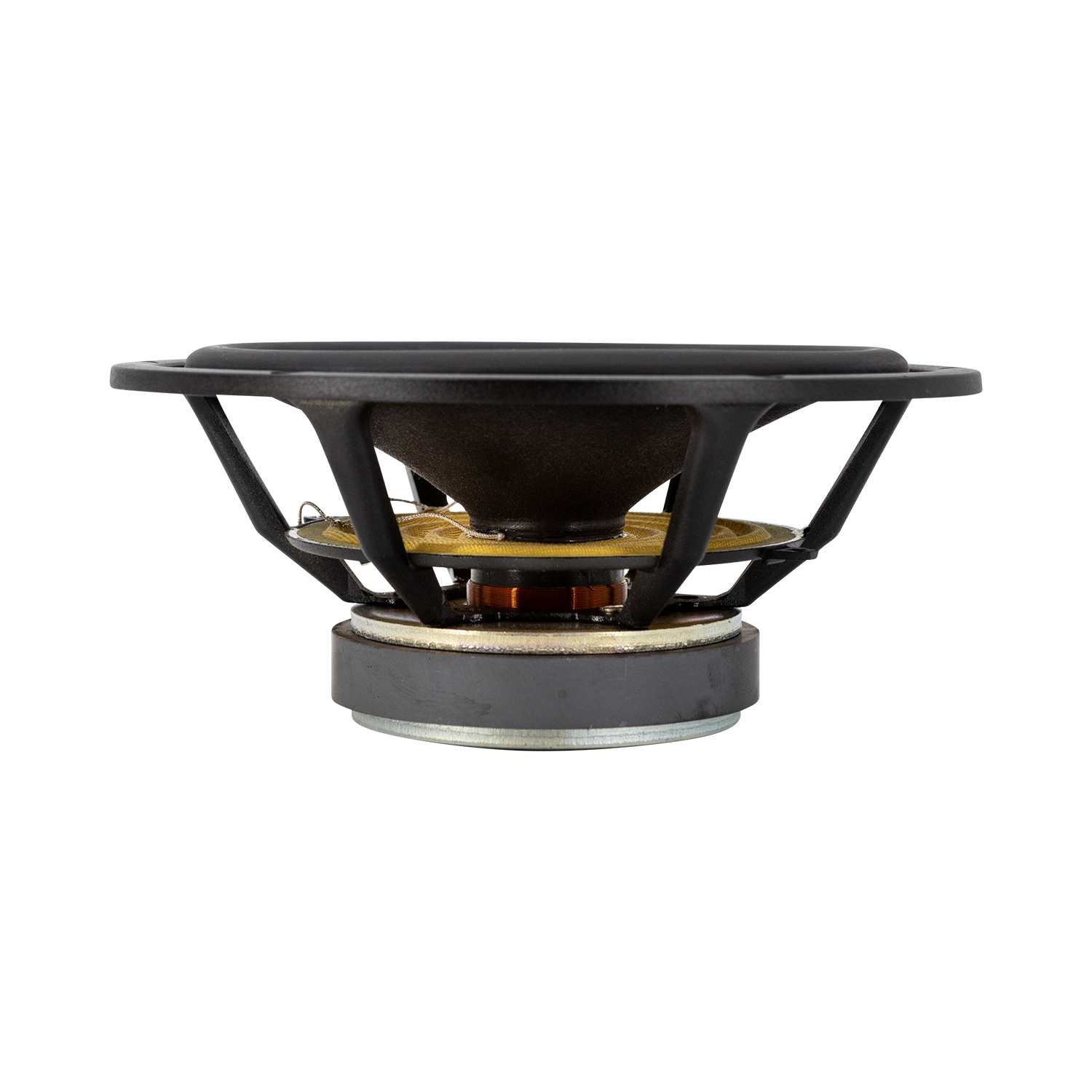

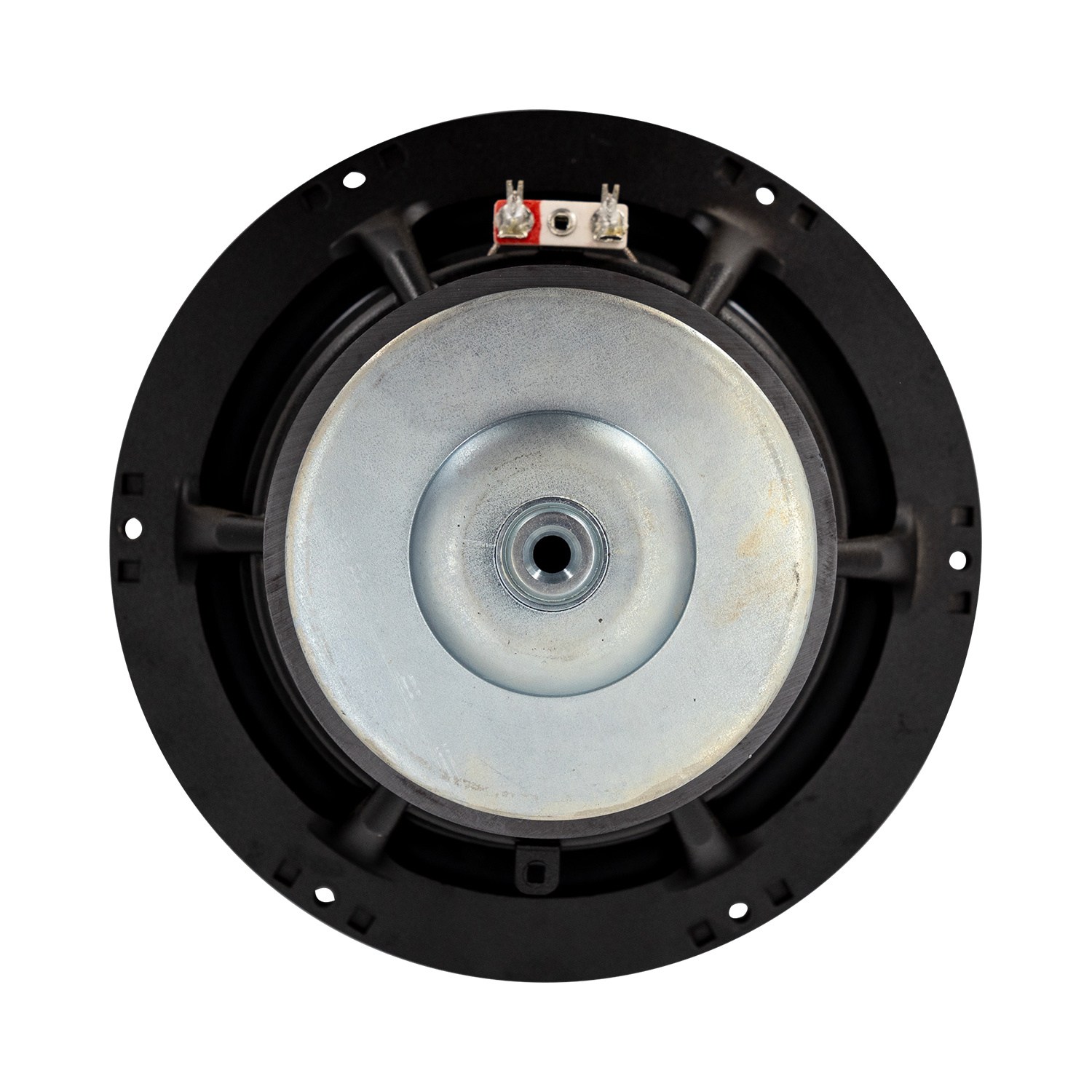

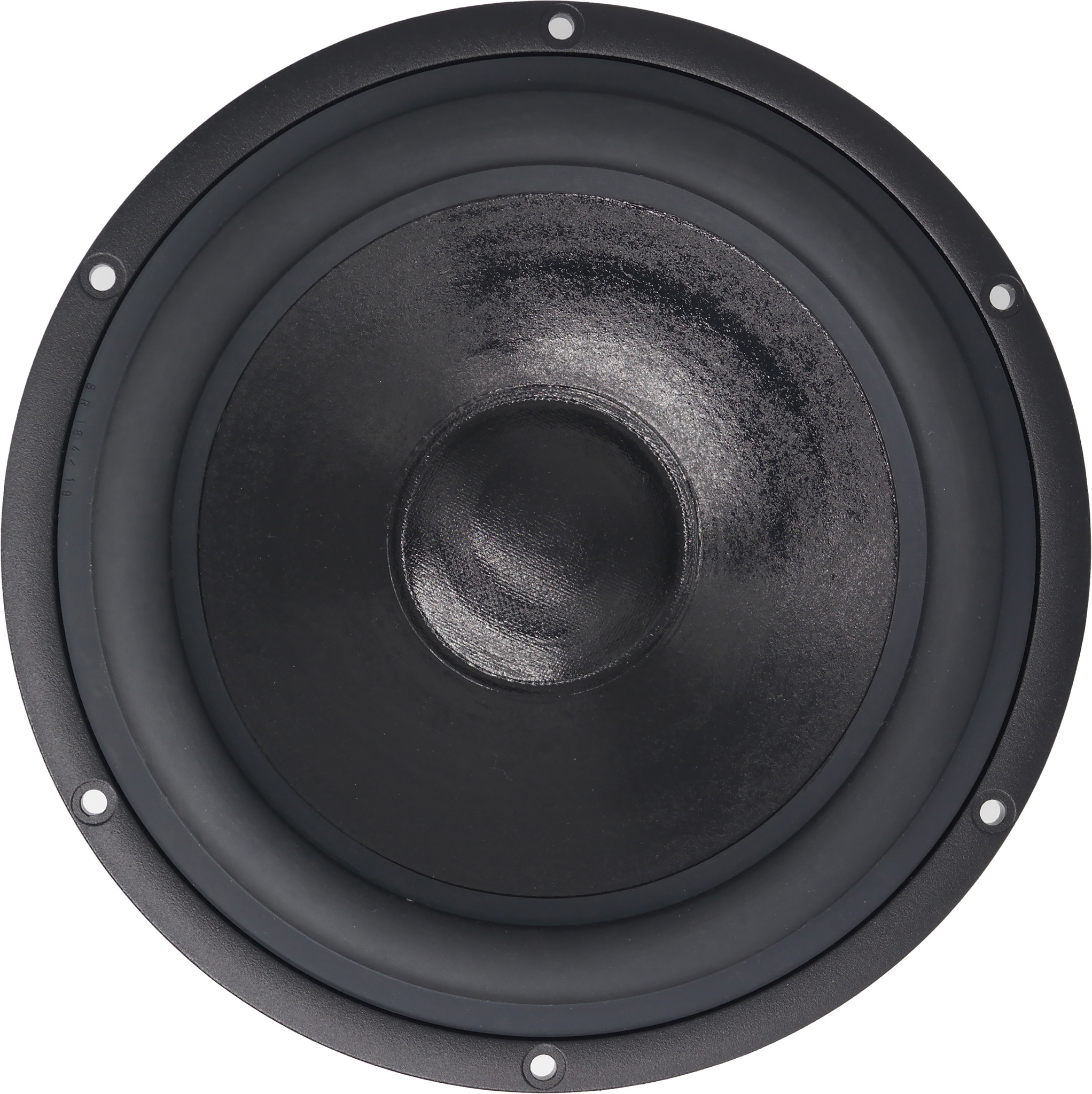

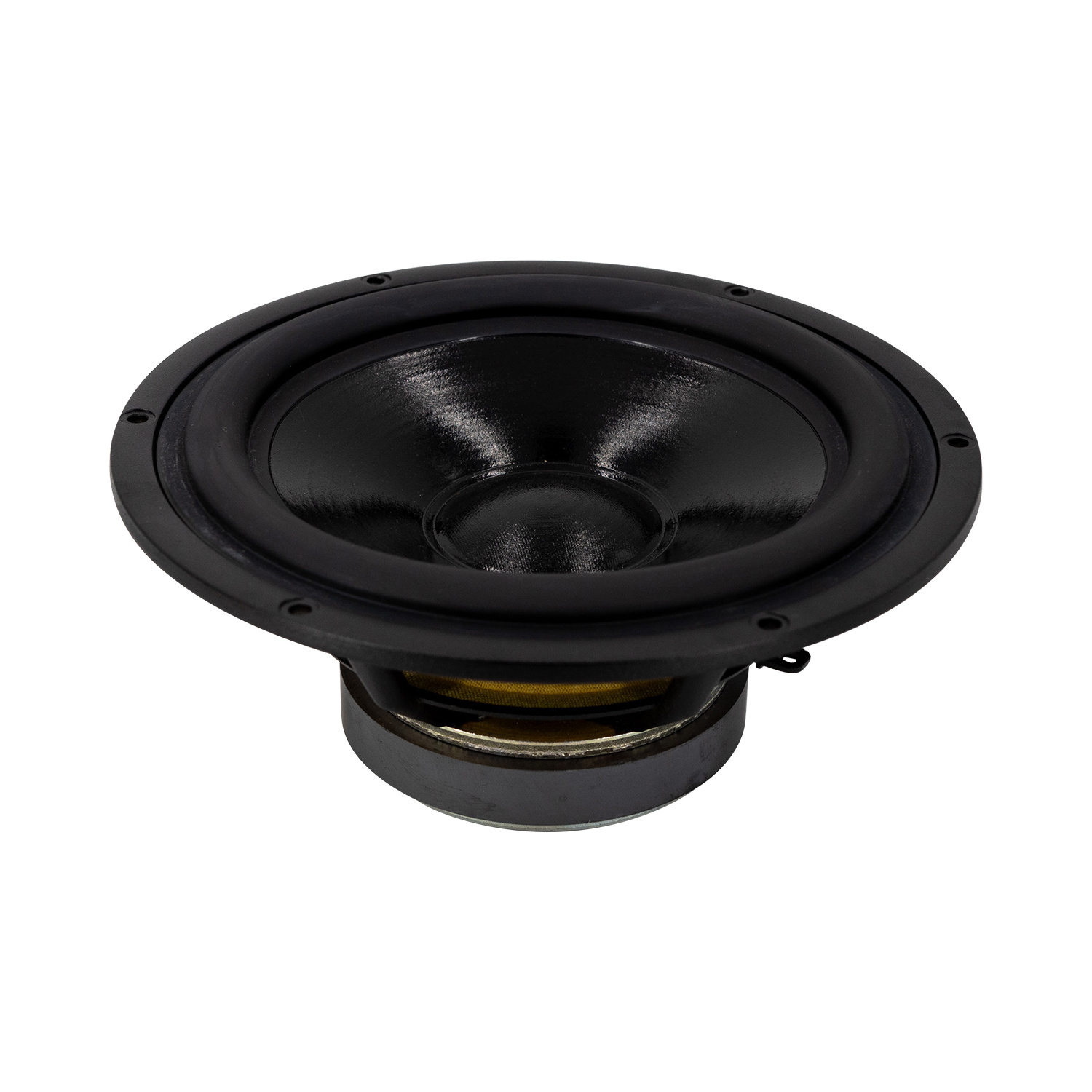

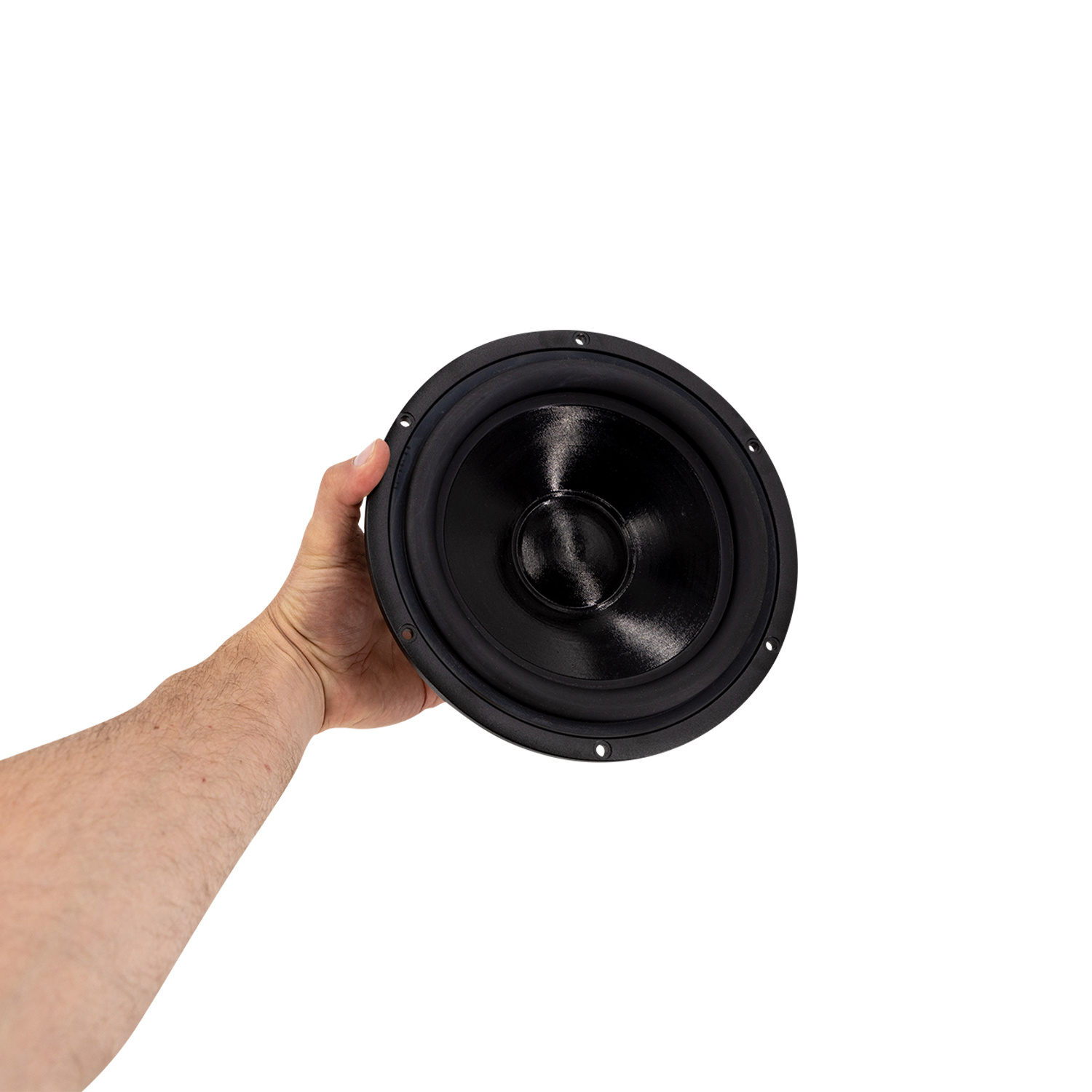

SEAS Prestige CD22RN4X - H1192 8" Treated Paper Cone Woofer

€ 92,93€ 112,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
Double treated, hard paper cone designed to be very stiff without losing the damping capability, together with a natural rubber surround produces a well behaved roll off characteristic and reduces potential resonance problems.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €106,83 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 100 Watts
  • Natural rubber surround produces a well behaved roll off characteristic and reduces potential resonance problems
  • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



Product details

Seas Prestige CD22RN4X - H1192 8" Treated Paper Cone Woofer



Double treated, hard paper cone designed to be very stiff without losing the damping capability, together with a natural rubber surround produces a well behaved roll off characteristic and reduces potential resonance problems.



Large magnet system with bumped back plate together with a long 4 layer voice coil gives long linear excursion. The magnet system has a T-shaped cross section of the pole piece for low modulation distortion. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonances.

Eigenschaften

Artikelnummer:
CD22RN4X
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
8"
Power Handling (RMS)
100 Watts
Power Handling (max)
250 Watts
Impedance
8 ohms
Sensitivity
87 dB 2.83V/1m
Frequency Response
20 to 2,500 Hz
Voice Coil Diameter
1.53"
Magnet Weight
22.5 oz.
DC Resistance (Re)
6.1 ohms
Voice Coil Inductance (Le)
3.47 mH
Resonant Frequency (Fs)
20 Hz
Mechanical Q (Qms)
3.28
Electromagnetic Q (Qes)
0.26
Total Q (Qts)
0.24
Diaphragm Mass Inc. Airload (Mms)
41.6g
Mechanical Compliance of Suspension (Cms)
1.5 mm/N
Compliance Equivalent Volume (Vas)
3.81 ft.³
Maximum Linear Excursion (Xmax)
7 mm
Overall Outside Diameter
8.69"
Overall Depth
3.76"
Baffle Cutout Diameter
7.34"
Bolt Circle Diameter
8.25"
# Mounting Holes
6
