      Produktbeschreibung SEAS CA26RFX - H1305-08 Tieftöner

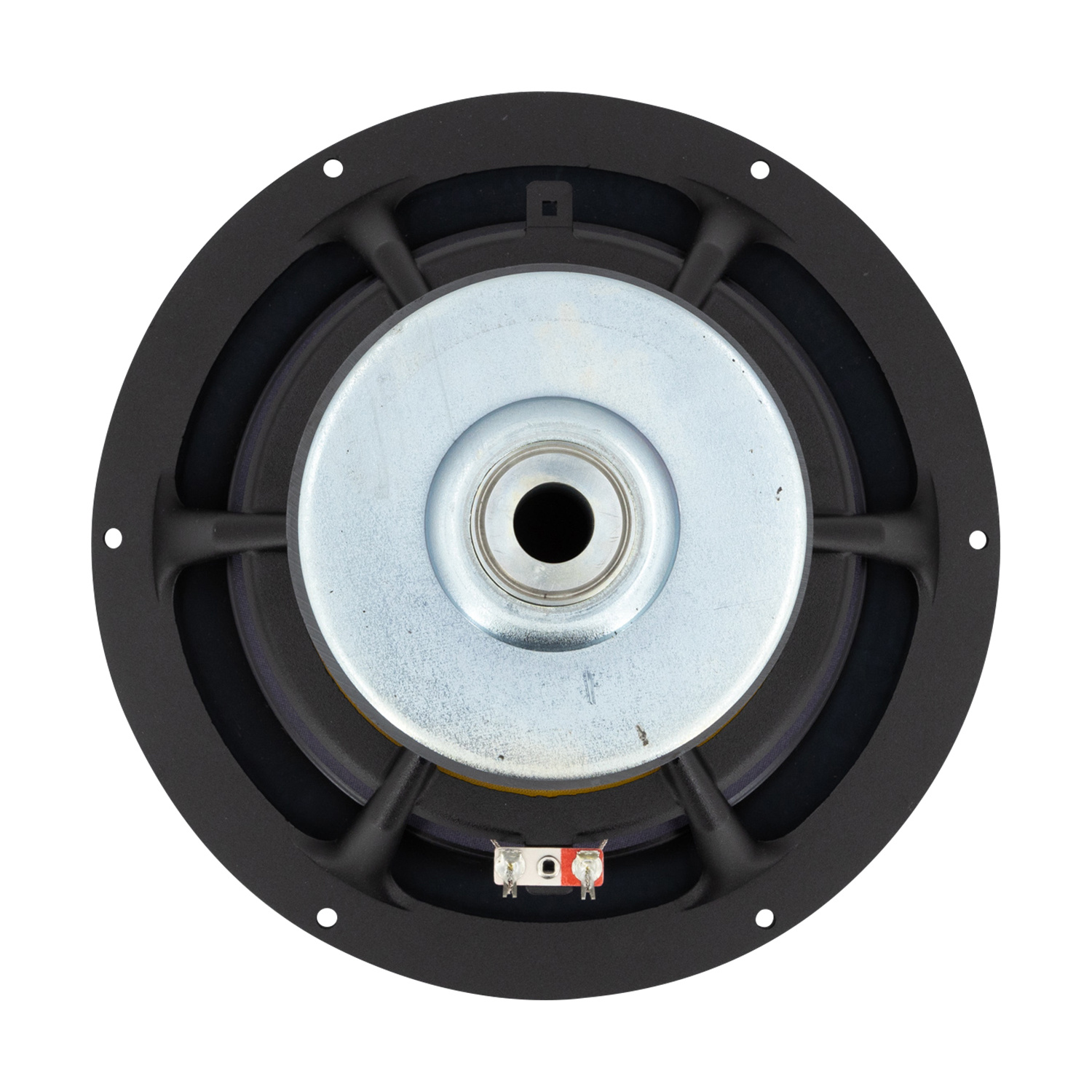

      The SEAS CA26RFX - H1305-08 is a 10-inch woofer that is designed for use in home audio systems. It features a classical handcoated paper cone and matching natural rubber surround, which produce a well-behaved roll-off characteristic and reduce potential resonance problems.



      Highlights

      • Smooth, well-behaved response
      • Good power handling
      • Deep bass frequencies
      • Durable construction



      Product details

      SEAS Prestige CA26RFX - H1305-08 10'' Woofer

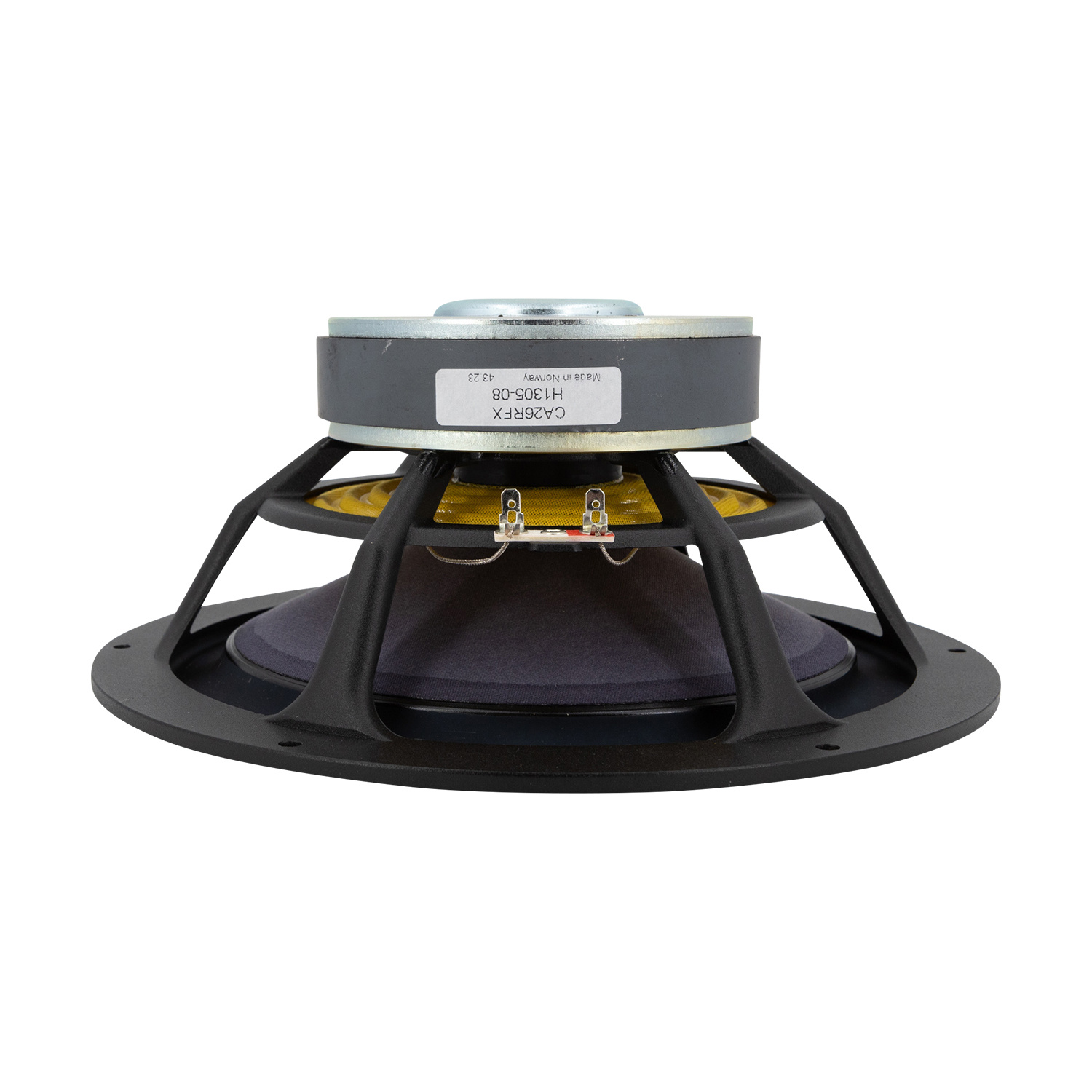

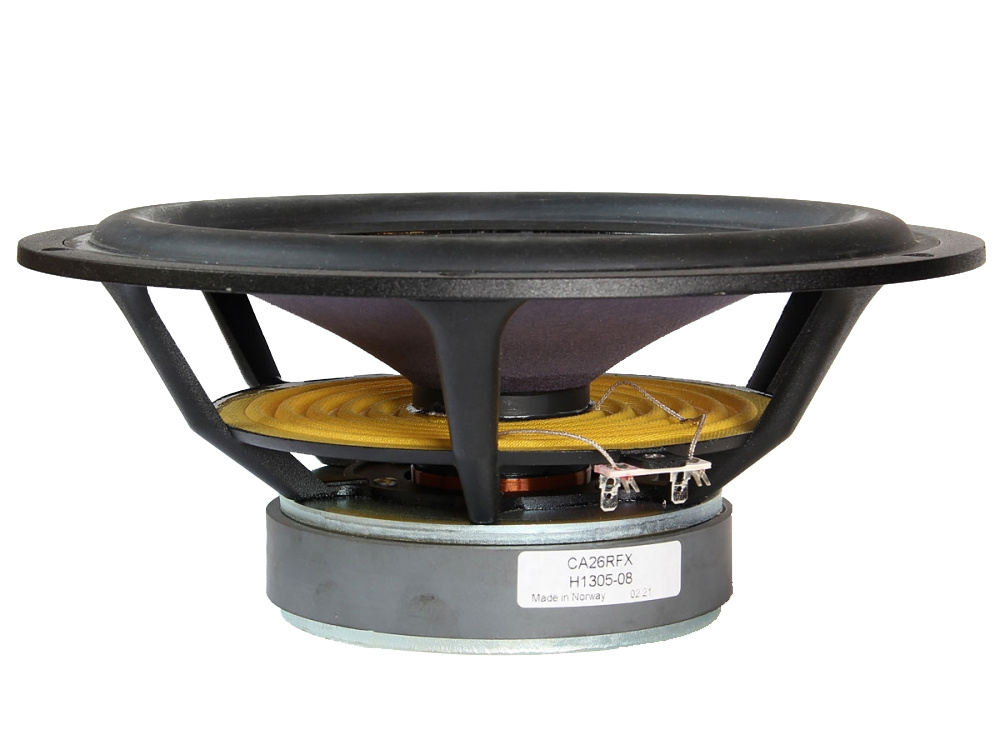

      The woofer also has a 2-inch high temperature voice coil with black anodized aluminium coil former, which gives it high power handling and reduced power compression. The large magnet system provides good sensitivity and transient response, and the bumped backplate in the magnet system allows maximum utilization of the long voice coil without mechanical limitation. The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment, and the large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.



      The SEAS CA26RFX - H1305-08 has a frequency range of 30-1000 Hz, a sensitivity of 90.5 dB, and an impedance of 8 ohms. It is rated for a continuous power handling of 100 watts and a programme power handling of 300 watts.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      CA26RFX
      EAN
      8785256848713
      Tieftöner-Serie
      Prestige
      Nenndurchmesser
      10" | 260 mm
      Belastbarkeit (QMW)
      100 W
      Belastbarkeit (max)
      300 W
      Impedanz (Z)
      8 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      90.5 dB
      Frequenzgang
      30 - 1000 Hz
      Schwingspulendurchmesser
      51 mm
      Gewicht magnet
      1.30 kg
      Gleichstromwiderstand (Re)
      6.3 Ω
      Schwingspuleninduktion (Le)
      1.95 mH
      Resonanzfrequenz (Fs)
      25 Hz
      Mechanische Güte (Qms)
      2.14
      Elektrische Güte (Qes)
      0.40
      Gesamtgüte (Qts)
      0.34
      Bewegliche Masse (Mms)
      36.1 g
      Nachgiebigkeit der Aufhängung (Cms)
      0.8 mm/N
      Membranfläche (Sd)
      350 cm²
      Kraftfaktor (BL)
      10.7 N/A
      Äquivalentvolumen (Vas)
      129 L
      Maximale Auslenkung (Xmax)
      7 mm
      Driver's Mechanical Losses (Rms)
      3.4 Ns/m
      Cone / Diaphragm Material
      Paper
      Sicke-Material
      Rubber
      Schwingspulenformmaterial
      Aluminium
      Korb- / Rahmenmaterial
      Injection moulded metal
      Außendurchmesser
      269 mm
      Gesamttiefe
      107.5 mm
      Ausschnittdurchmesser
      232.2 mm
      Bolt Circle Diameter
      256 mm
      # Befestigungsbohrungen
      6
      Durchmesser Befestigungslochs
      5.0 mm
