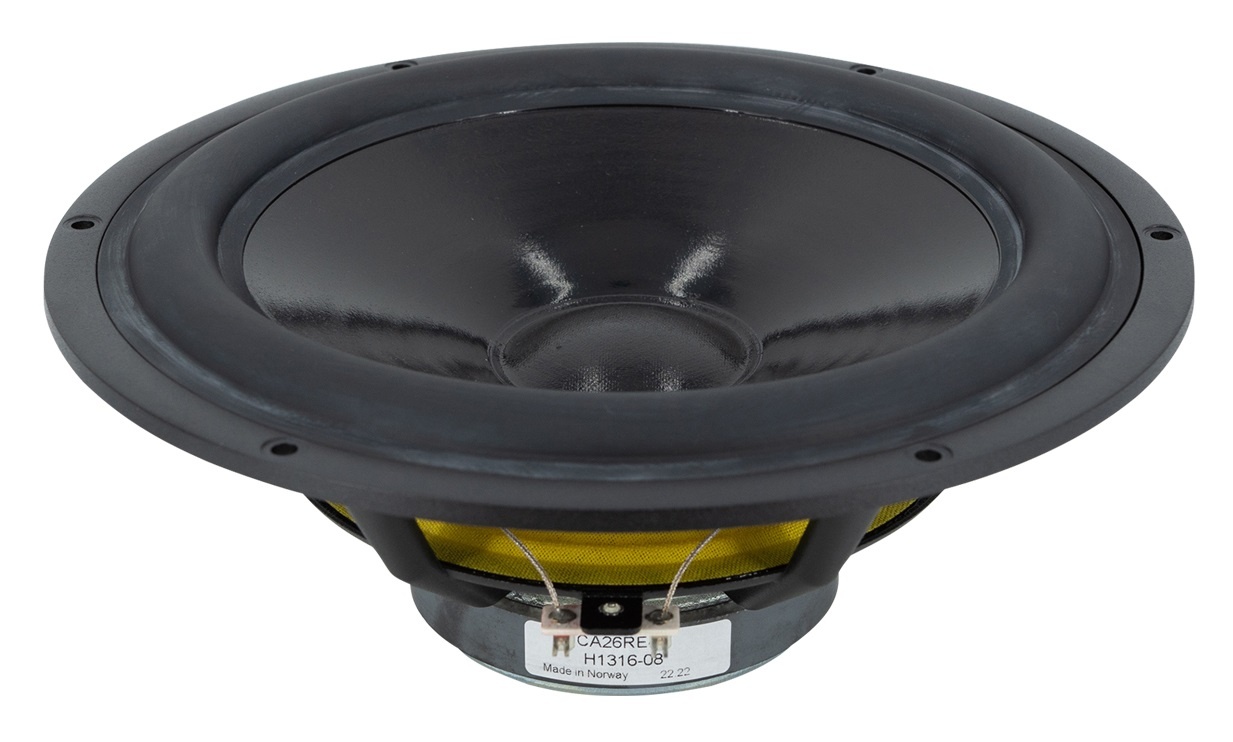

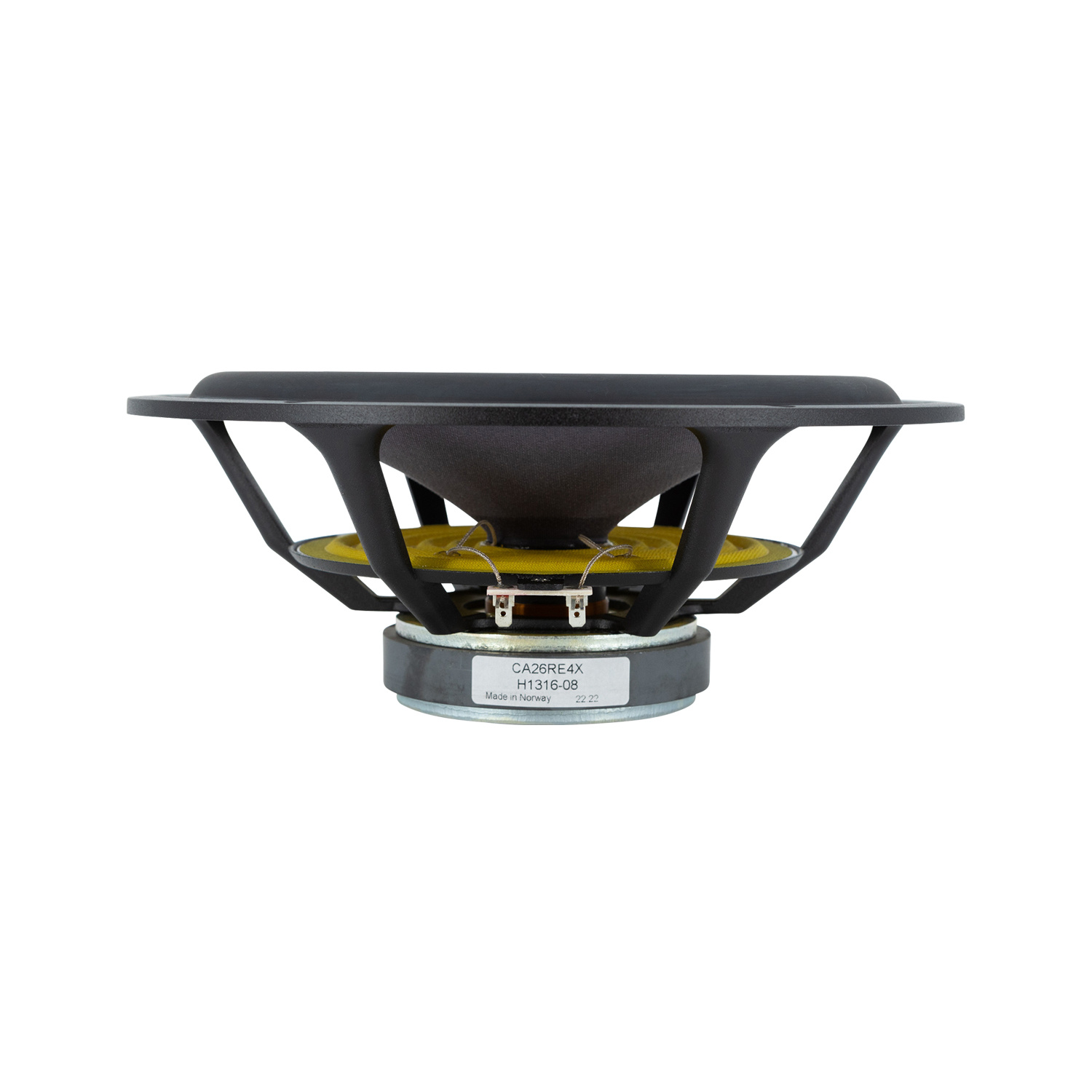

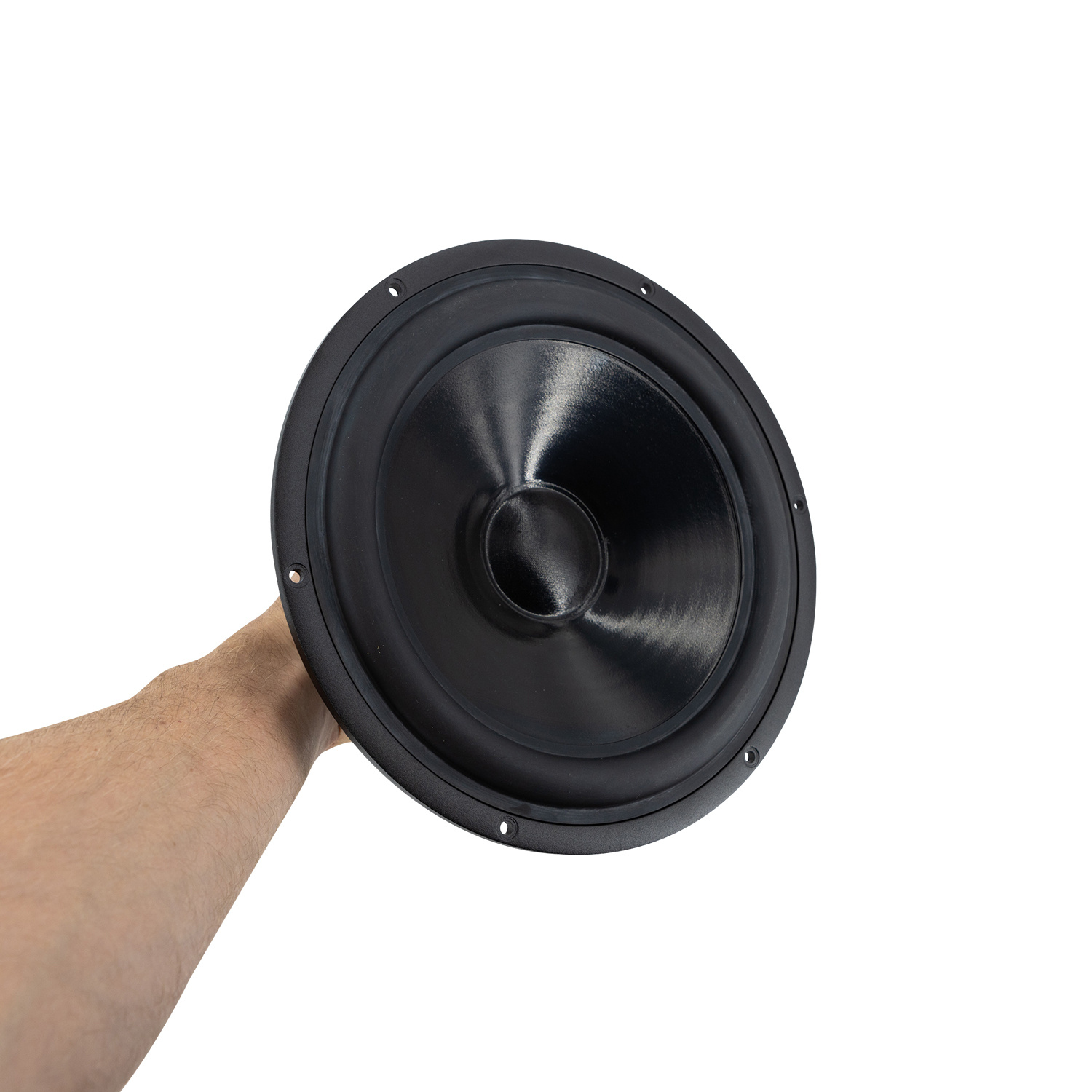

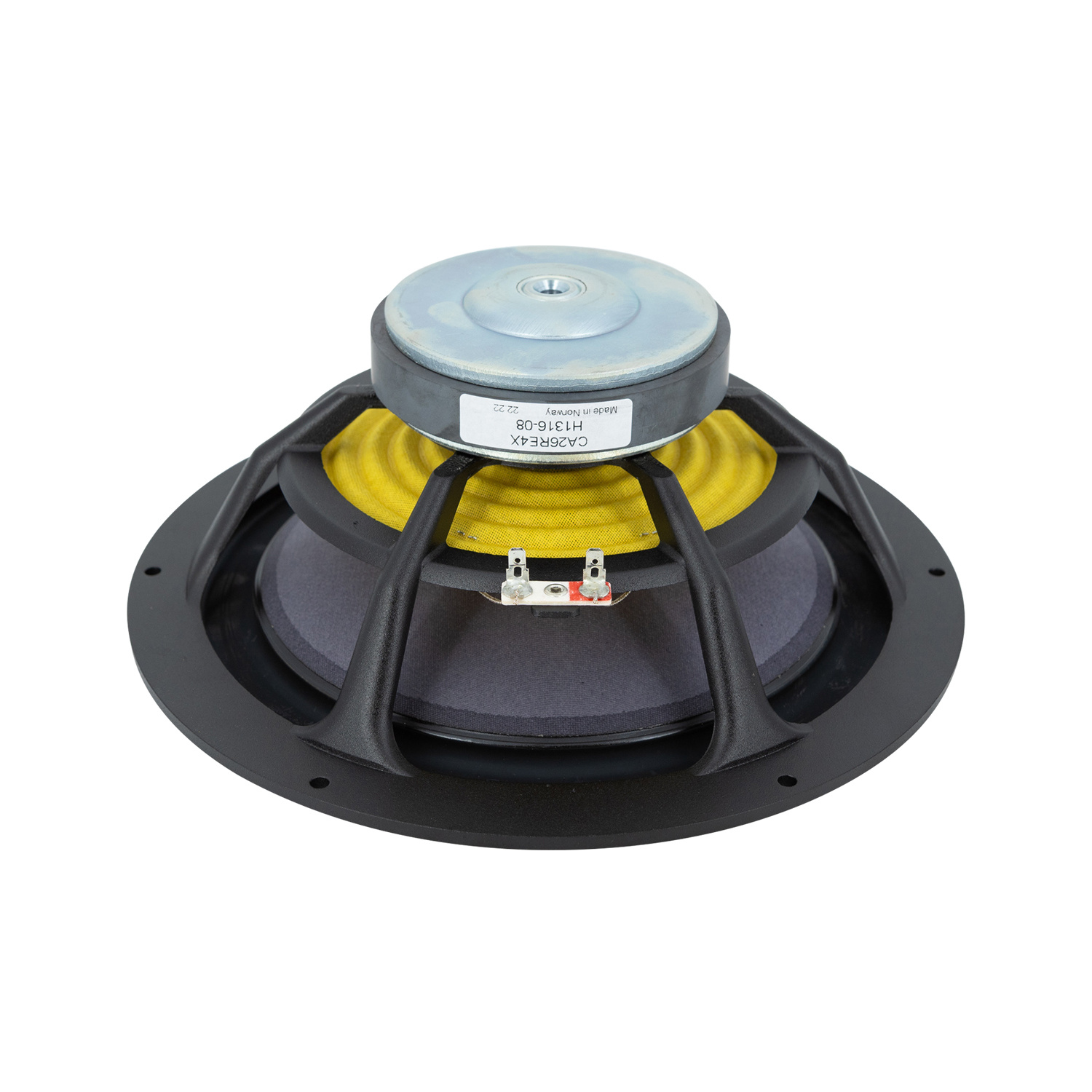

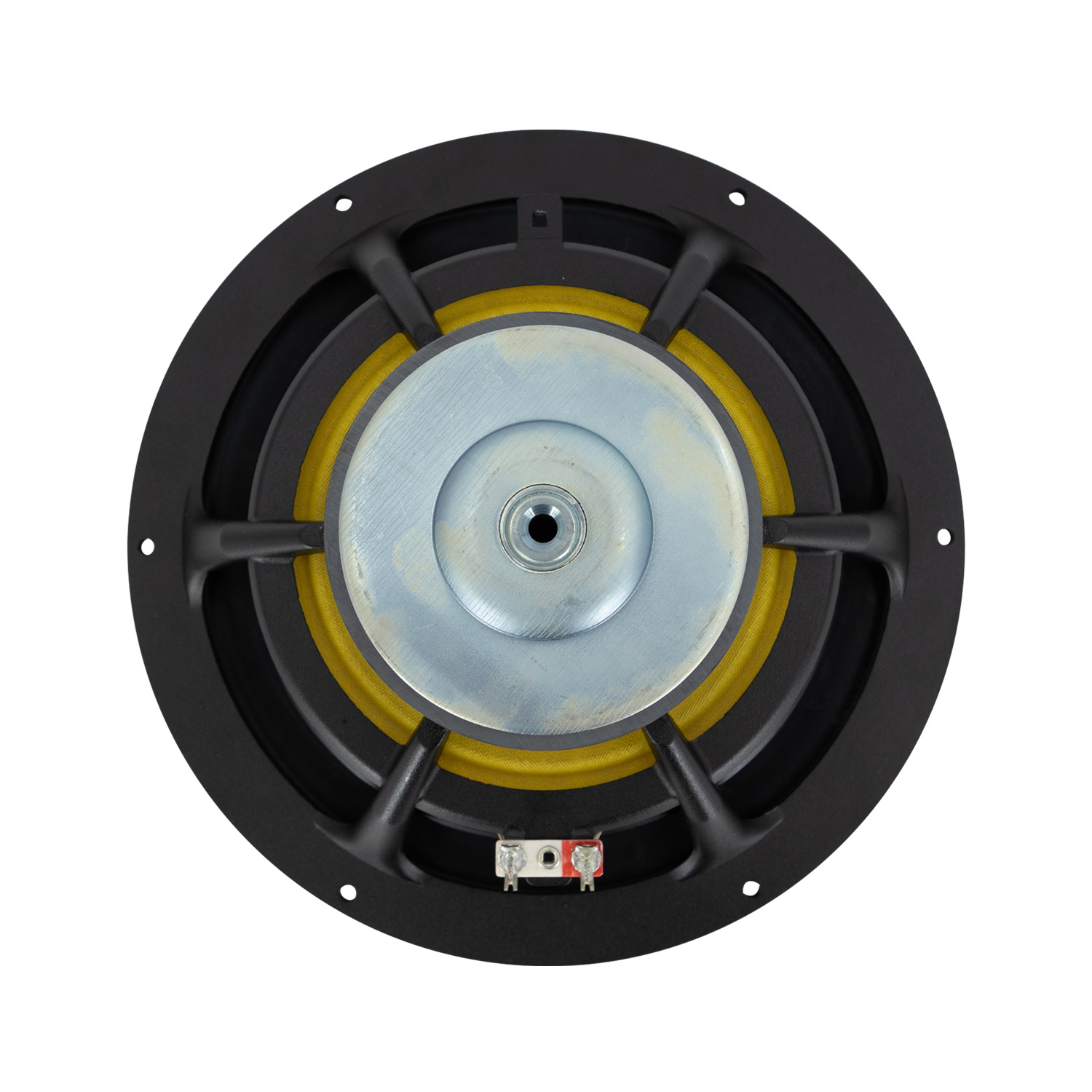

SEAS Prestige CA26RE4X - H1316-08 10" Coated Paper Cone Woofer

Name: SEAS Prestige CA26RE4X - H1316-08 10" Coated Paper Cone Woofer
Brand: SEAS
Price: 149.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1 reviews

Marke: SEAS

Alle anzeigen Audio-Komponenten

Vergleichen

10" | 8 Ω

Prestige CA26RE4X - H1316-08 10" Coated Paper Cone Woofer

€ 123,93€ 149,95 2 Auf Lager: Lieferzeit 1-3 Werktage

Classical manually coated paper cone and matching natural rubber surround produce a smooth response and reduce potential resonance problems. Four layer voice coil provides a well behaved roll off characteristic. Large magnet system gives good sensitivity... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Long term power handling (RMS) is 80 Watts
Four layer voice coil provides a well behaved roll off characteristic
Large magnet system gives good sensitivity and transient response

Product details

Seas Prestige CA26RE4X - H1316-08 10" Coated Paper Cone Woofer

Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:: CA26RE4X
Woofer Series: Prestige Series
Woofer Type: Midwoofer
Nominal Diameter: 10"
Power Handling (RMS): 80 Watts
Power Handling (max): 300 Watts
Impedance: 8 ohms
Sensitivity: 91 dB 2.83V/1m
Frequency Response: 30 to 1,500 Hz
Voice Coil Diameter: 1.53"
Magnet Weight: 22.5 oz.
DC Resistance (Re): 6.1 ohms
Voice Coil Inductance (Le): 3.08 mH
Resonant Frequency (Fs): 25 Hz
Mechanical Q (Qms): 3.99
Electromagnetic Q (Qes): 0.30
Total Q (Qts): 0.28
Diaphragm Mass Inc. Airload (Mms): 38.5g
Mechanical Compliance of Suspension (Cms): 1.1 mm/N
Compliance Equivalent Volume (Vas): 5.79 ft.³
Maximum Linear Excursion (Xmax): 4 mm
Overall Outside Diameter: 10.59"
Overall Depth: 4.19"
Baffle Cutout Diameter: 9.14"
Bolt Circle Diameter: 10.08"
# Mounting Holes: 6
Mounting Hole Diameter: 0.2"

Data sheet

Bewertungen

1 reviews

5 from 5Based on 1 reviews

Produkt bewerten

5 van 5

Great woofer! Clean, warm sound. The paper cone has controlled break up, T/S parameters close to specified. The woofer has very high quality basket. Highly recommended for audiophile use!

Durch Jon Vegar Stensli on 20 April 2021
