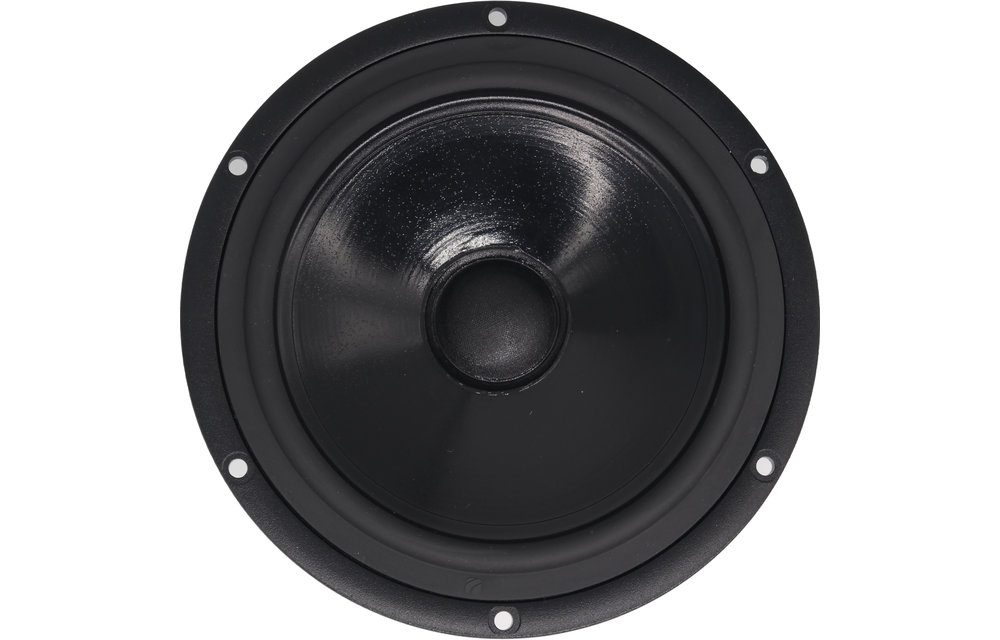

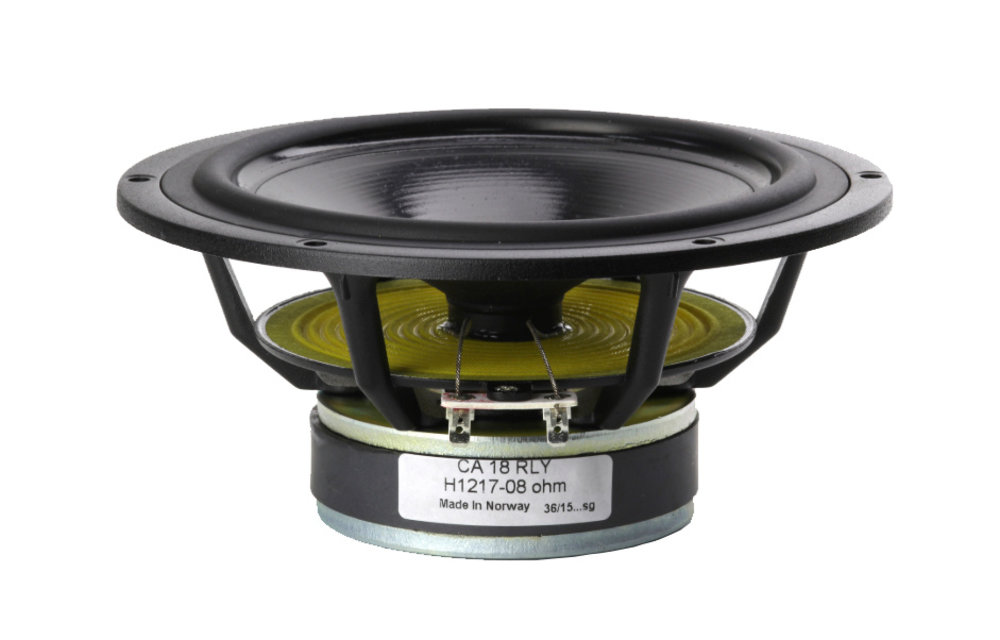

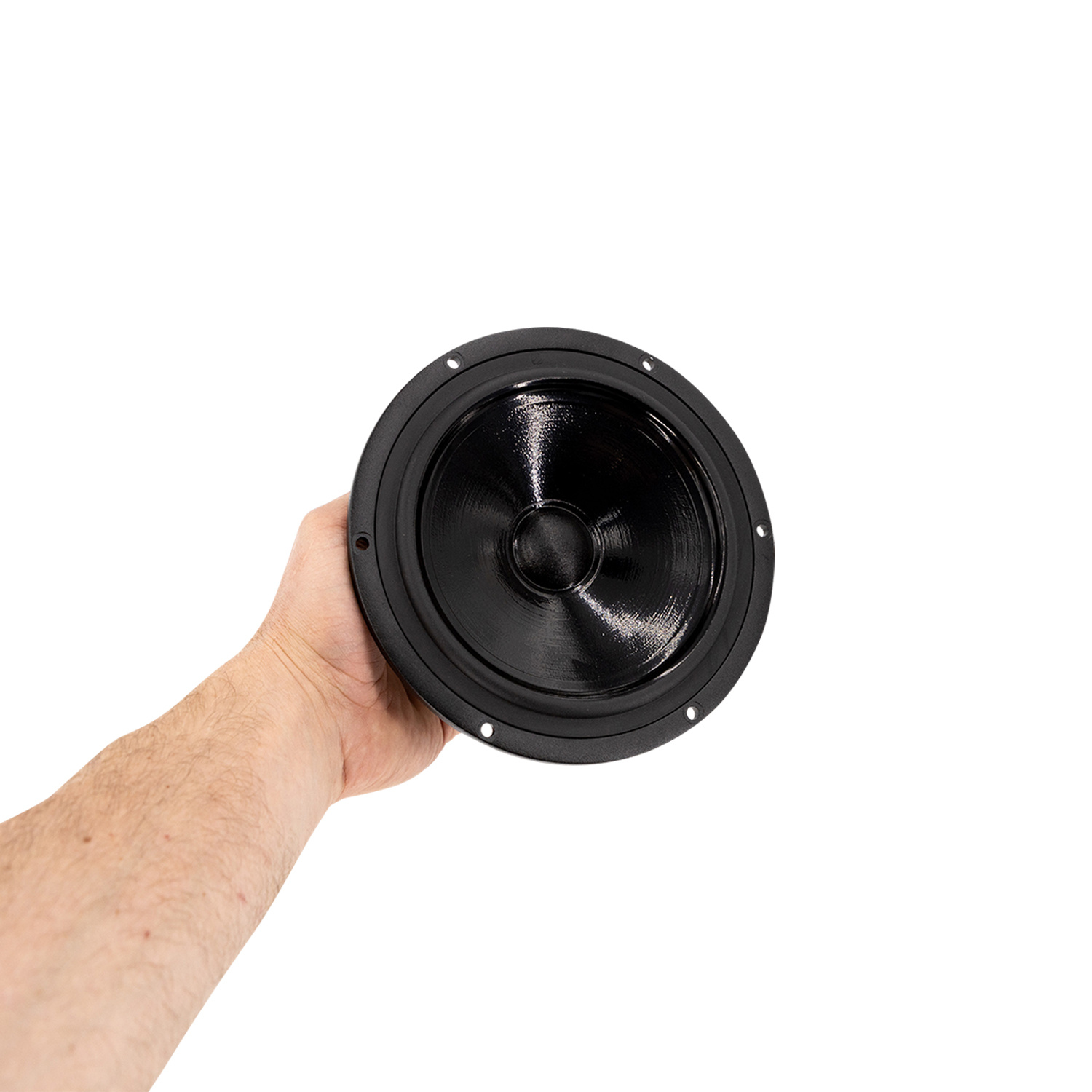

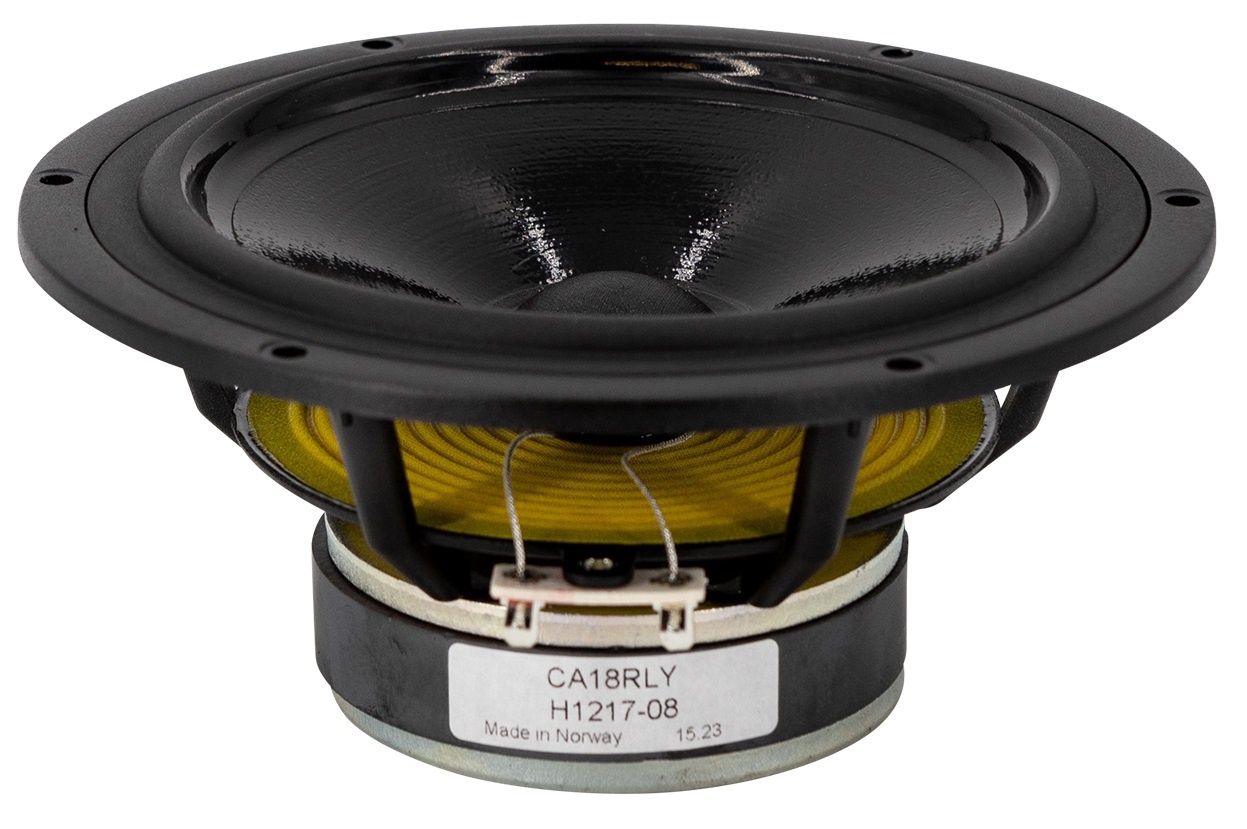

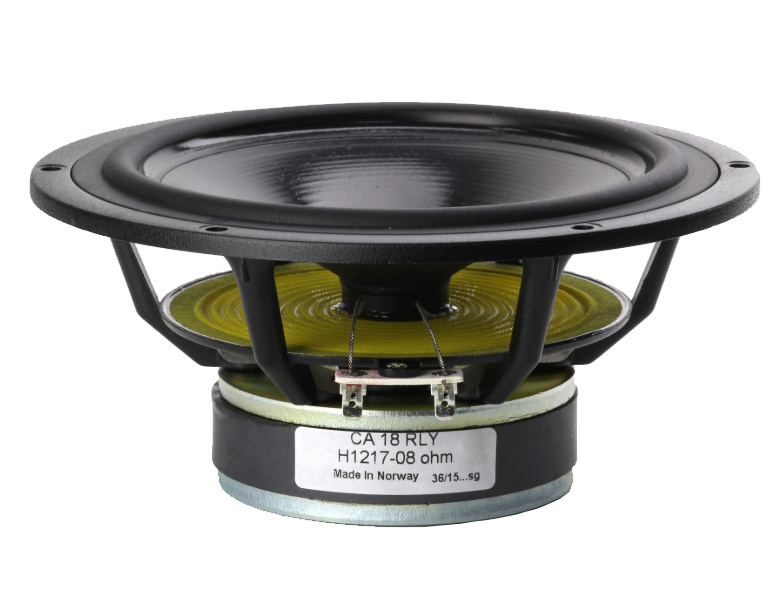

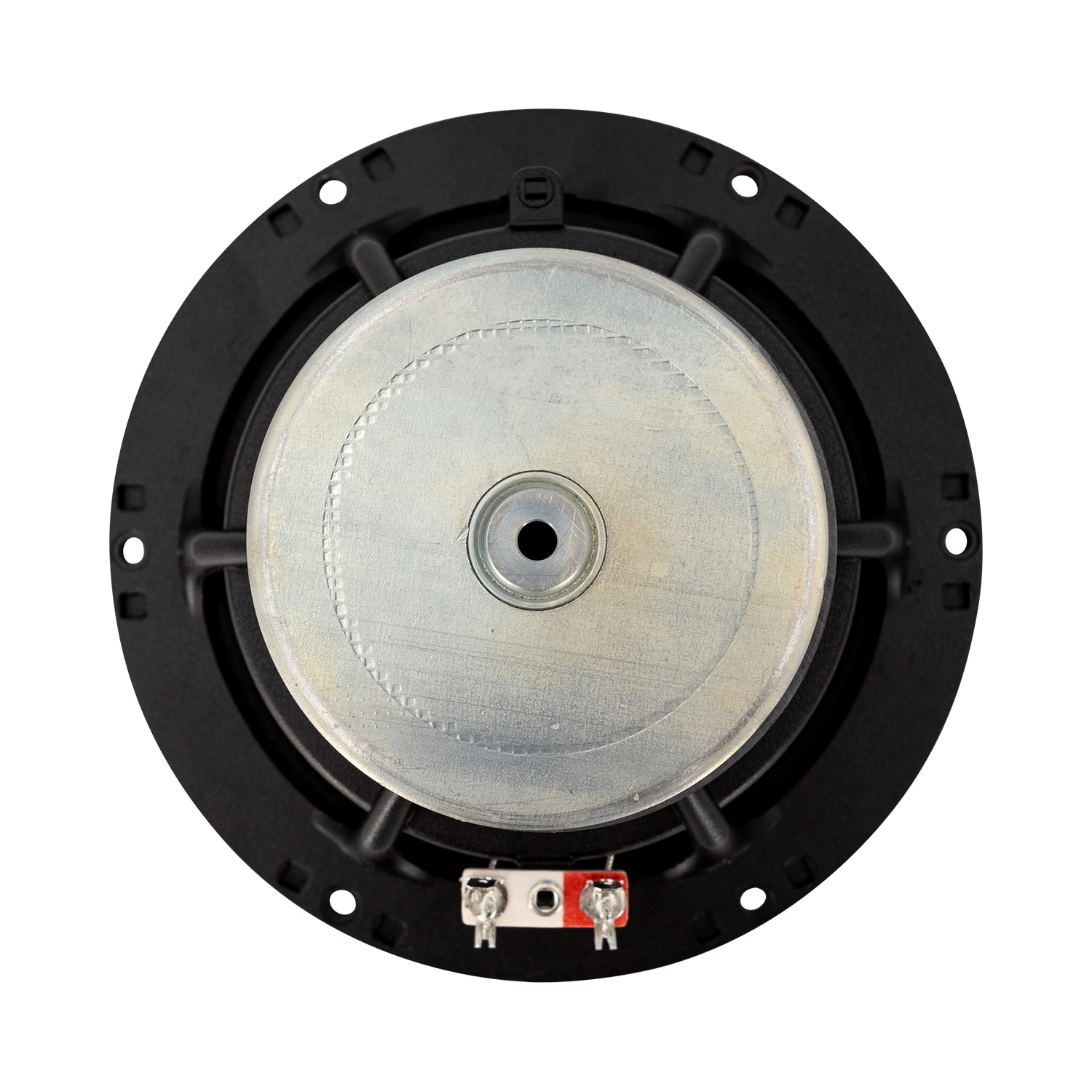

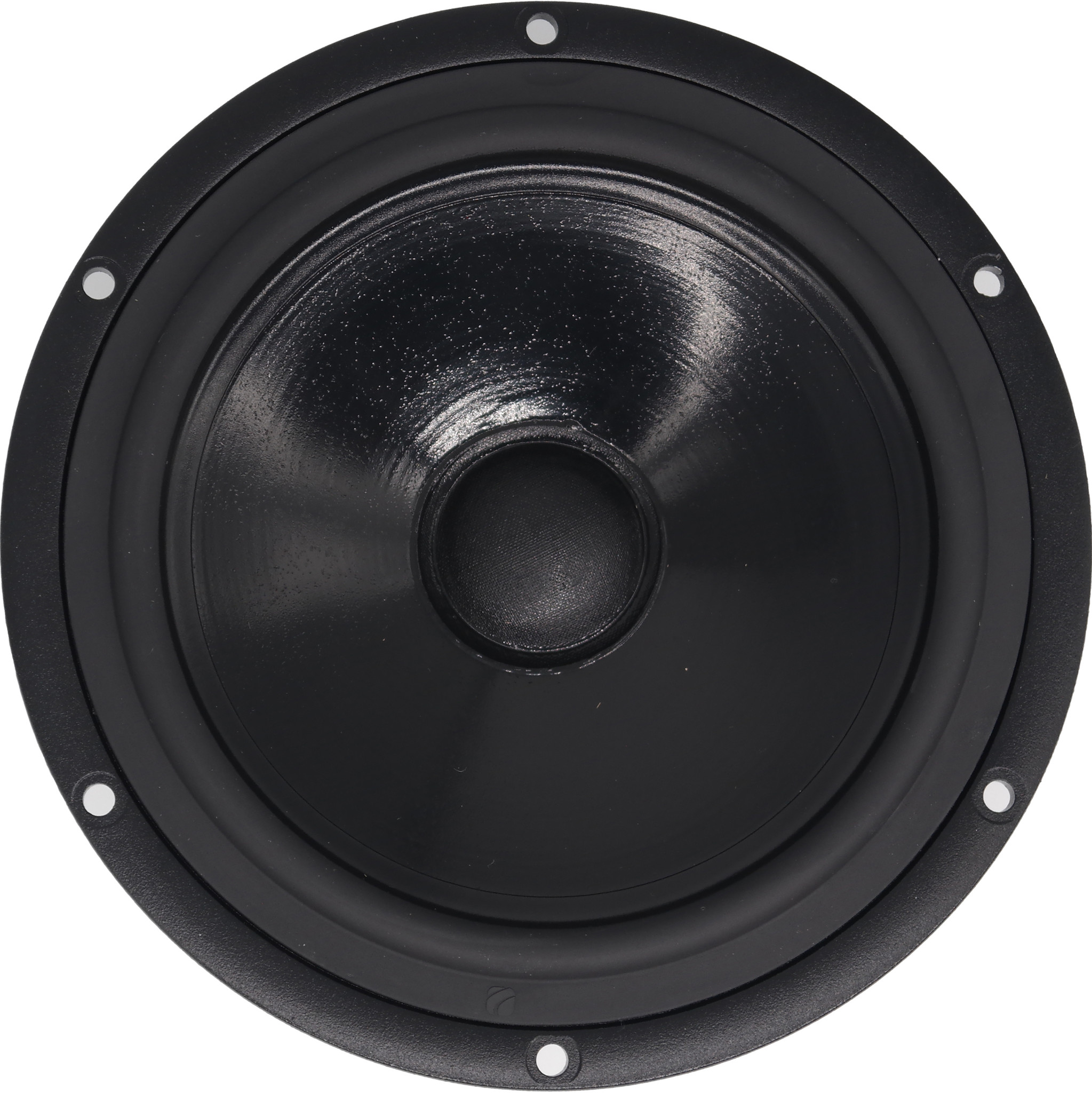

      SEAS Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer

      2 reviews
      Marke: SEAS
      Alle anzeigen Audio-Komponenten
      6.5" | 8 Ω
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      € 64,67€ 78,25 4 Auf Lager: Lieferzeit 1-3 Werktage
      6,5" High Fidelity cone driver, developed for use as a high quality woofer or woofer/midrange unit. Classical coated paper cone gives a smooth extended frequency response with a controlled roll off.... Mehr anzeigen
      Bulk discount Genießen Sie diese tollen Rabattangebote
      • -5% Kauf 4 für nur €74,34 pro stück
      +-
      Zum Warenkorb hinzufügen
      • Versicherter Versand mit Sendungsverfolgung
      • Kostenloser Versand ab 149€ (DE, A)
      • Versand am selben Tag*
      • Hausinterner technischer Support
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer
      Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer

      Produktbeschreibung

      Highlights

      • Long term power handling (RMS) is 80 Watts
      • Classical coated paper cone gives a smooth extended frequency response with a controlled roll off
      • Large magnet system provides high efficiency and low Q



      Product details

      Seas Prestige CA18RLY - H1217-08 7" Coated Paper Cone Woofer



      6,5" High Fidelity cone driver, developed for use as a high quality woofer or woofer/midrange unit. Classical coated paper cone gives a smooth extended frequency response with a controlled roll off.

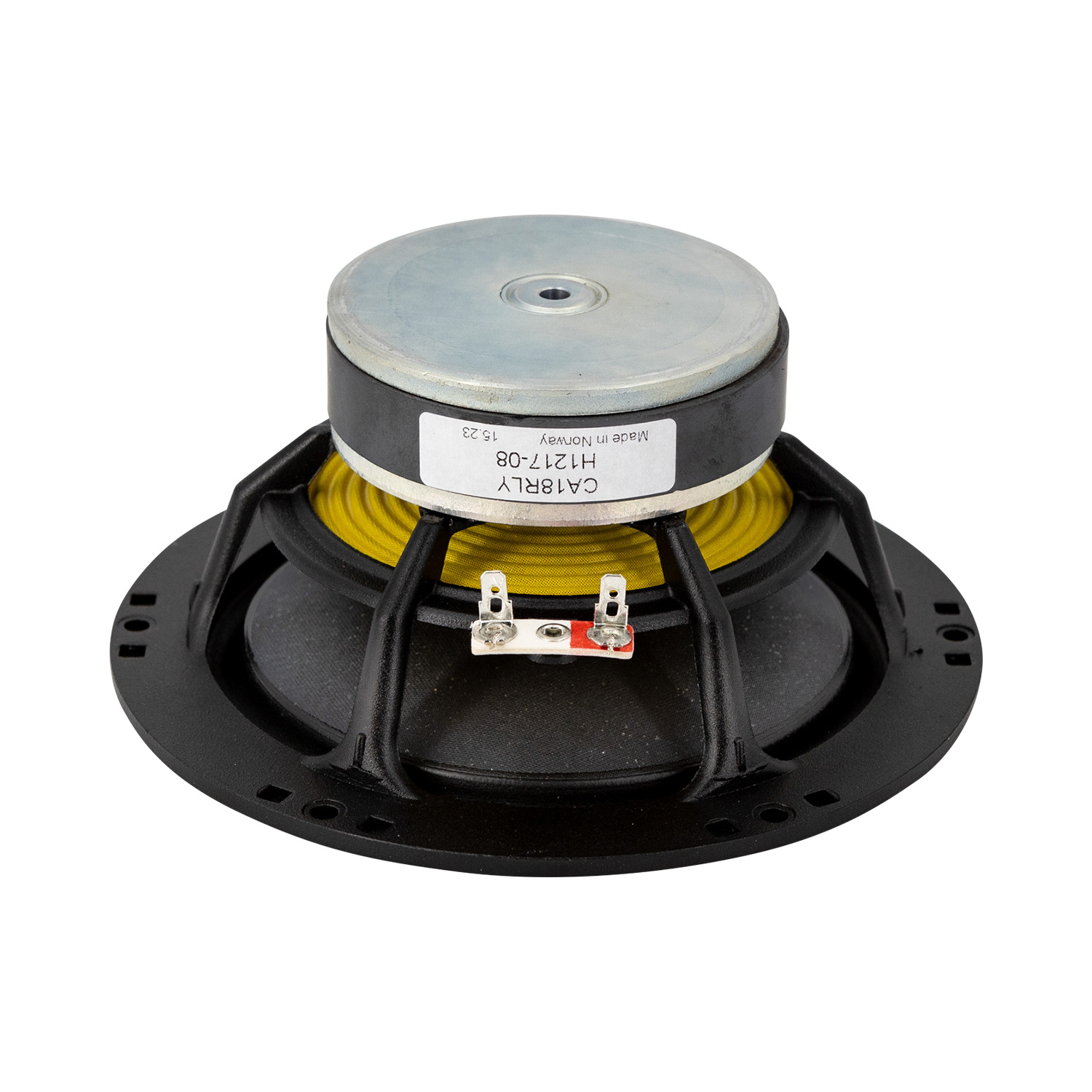

      High temperature, light weight, CCAW voice coil wound on an aluminum voice coil former gives a high power handling capacity. The extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment.

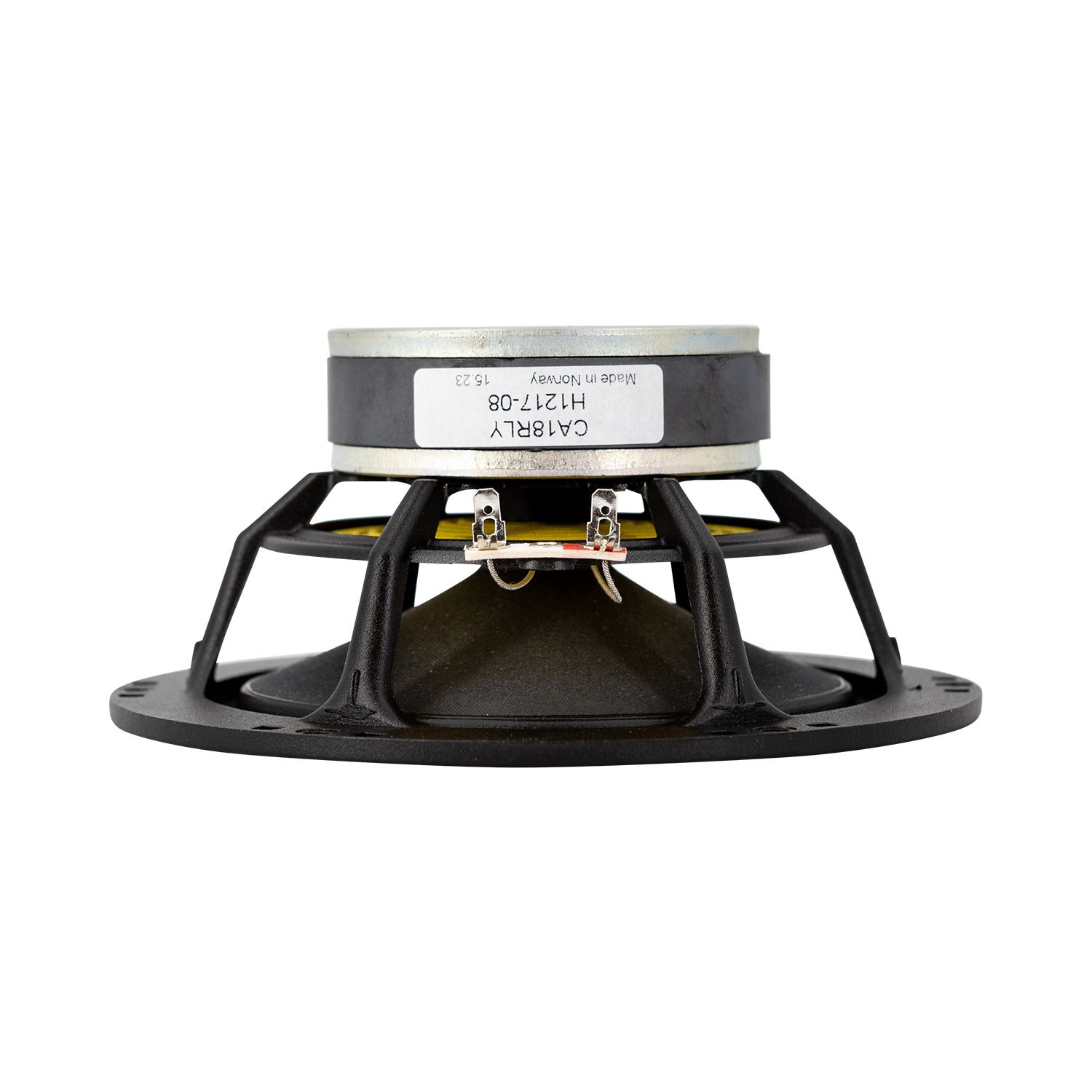

      Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. The large magnet system provides high efficiency and low Q.

      Eigenschaften

      Artikelnummer:
      CA18RLY
      Woofer Series
      Prestige Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      7"
      Power Handling (RMS)
      80 Watts
      Power Handling (max)
      250 Watts
      Impedance
      8 ohms
      Sensitivity
      90 dB 2.83V/1m
      Frequency Response
      35 to 3,000 Hz
      Voice Coil Diameter
      1.02"
      Magnet Weight
      14.8 oz.
      DC Resistance (Re)
      5.8 ohms
      Voice Coil Inductance (Le)
      1.05 mH
      Resonant Frequency (Fs)
      42 Hz
      Mechanical Q (Qms)
      2.92
      Electromagnetic Q (Qes)
      0.56
      Total Q (Qts)
      0.47
      Diaphragm Mass Inc. Airload (Mms)
      10.6g
      Mechanical Compliance of Suspension (Cms)
      1.4 mm/N
      Compliance Equivalent Volume (Vas)
      1.13 ft.³
      Maximum Linear Excursion (Xmax)
      5 mm
      Overall Outside Diameter
      6.93"
      Overall Depth
      3.08"
      Baffle Cutout Diameter
      5.72"
      Bolt Circle Diameter
      6.54"
      # Mounting Holes
      6
      Mounting Hole Diameter
      0.2"

      Bewertungen

      2 reviews
      4 from 5Based on 2 reviews
      Produkt bewerten
      5 van 5
      Super top
      Durch Gaëtan A. on 8 Februar 2021
      2 van 5
      Geluid op zich goed, maar lastige woofer om in een bestaand systeem in te passen.
      Durch Wim v. on 24 November 2020
