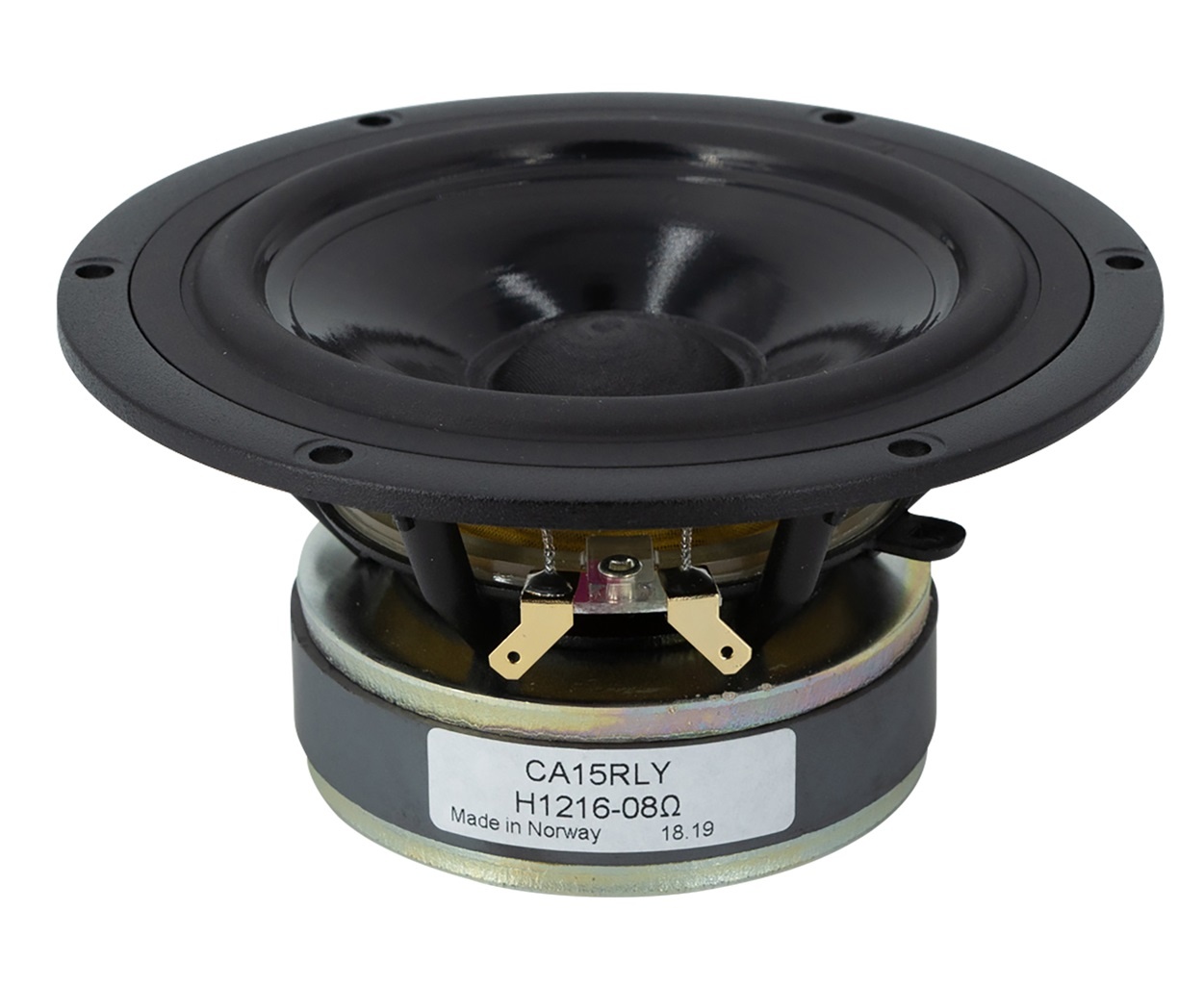

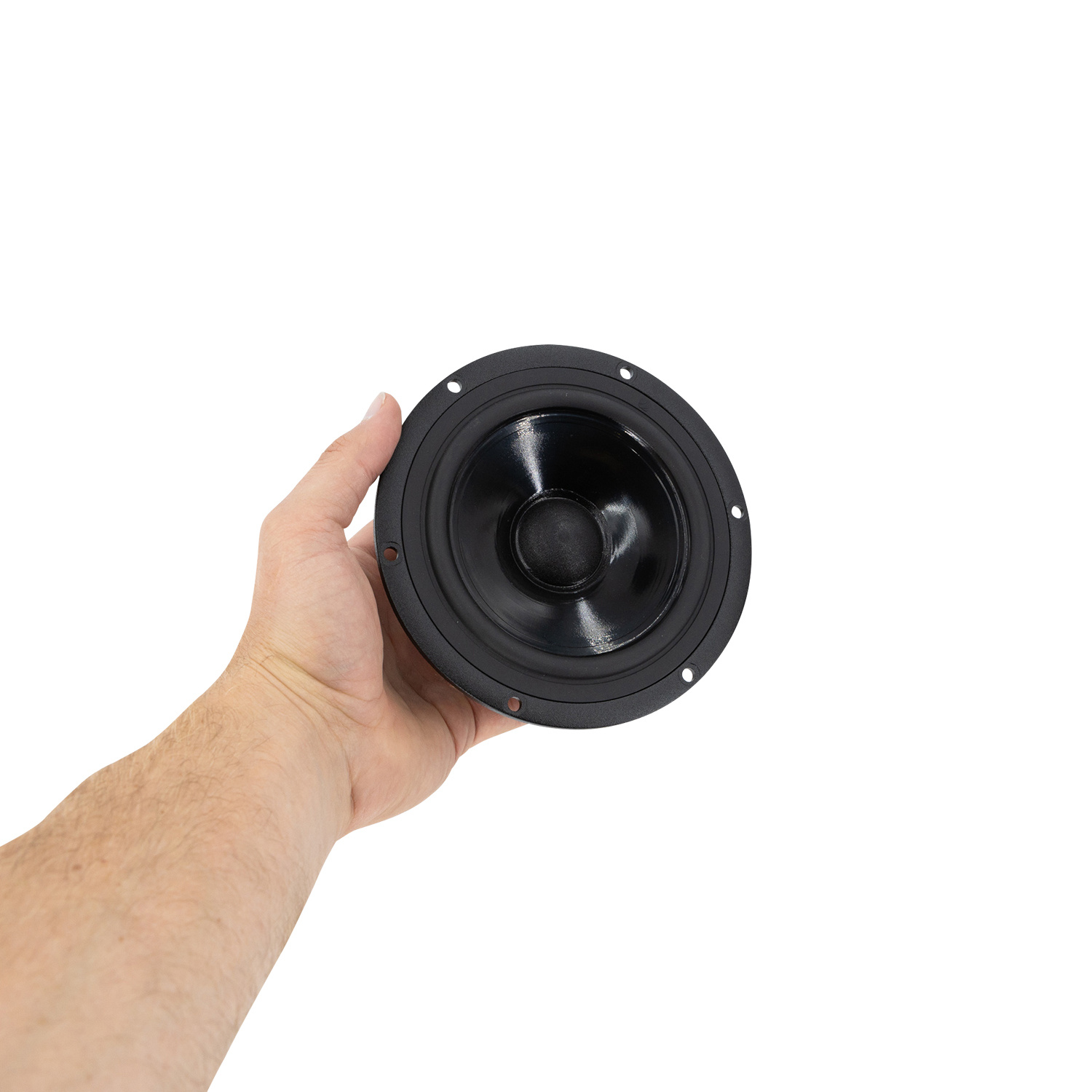

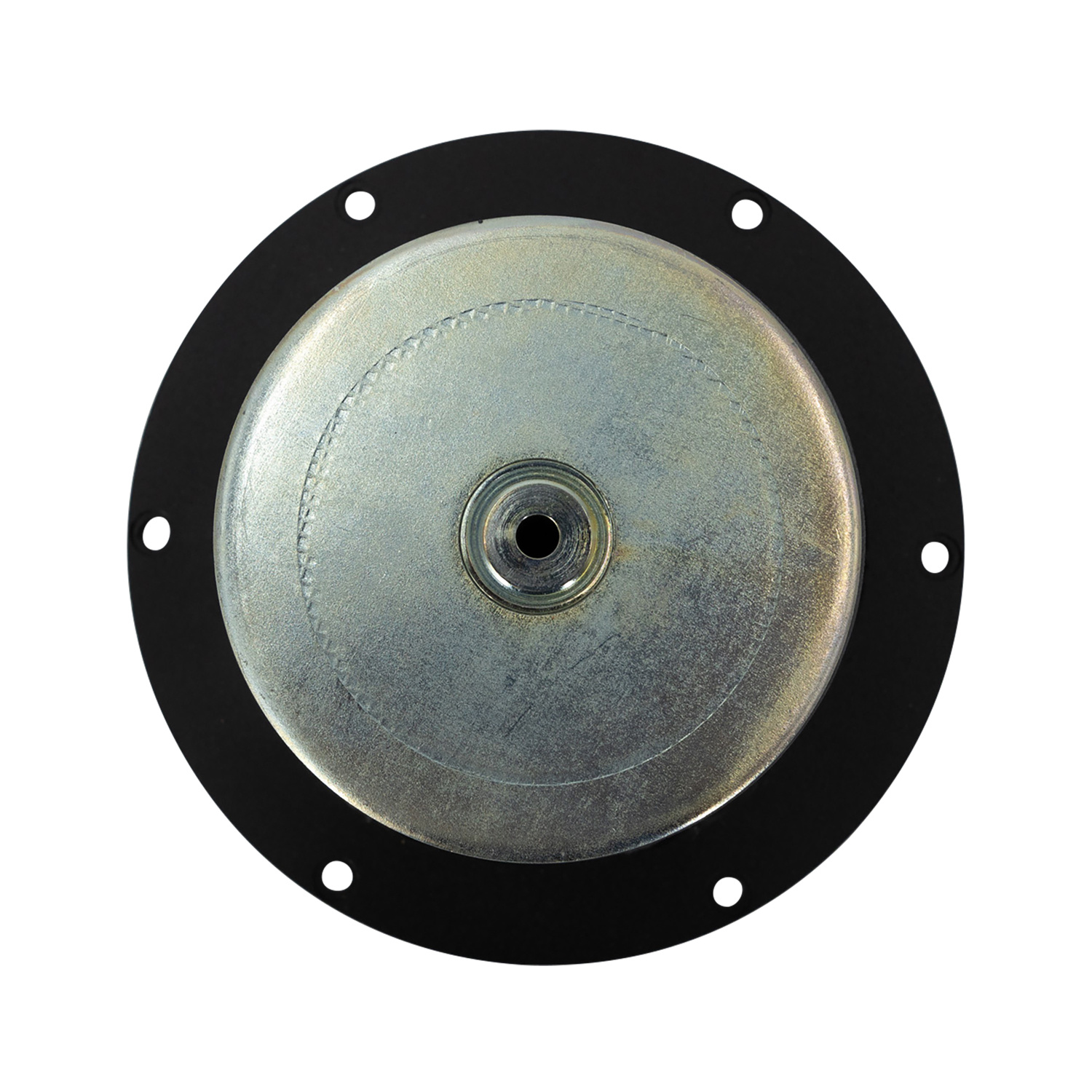

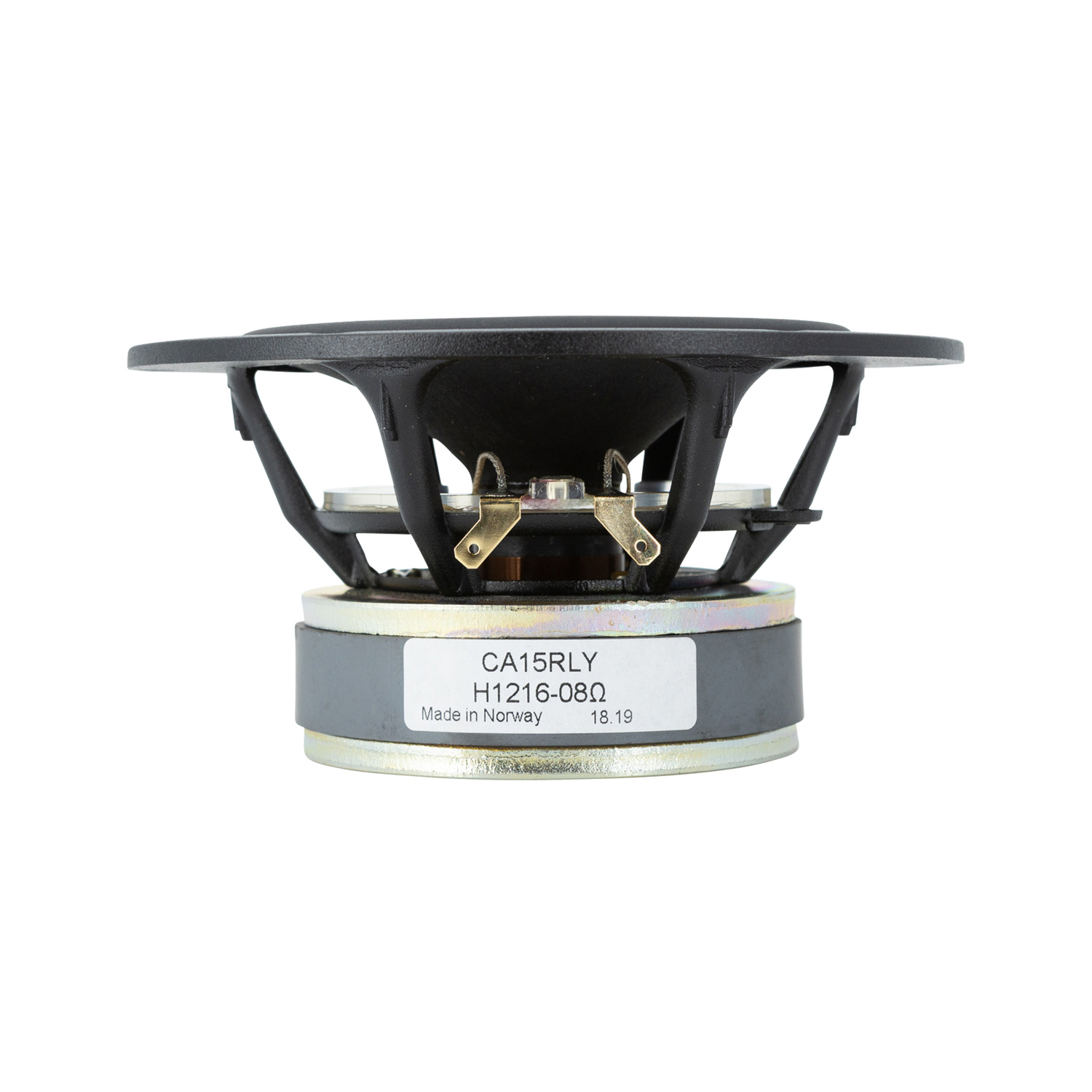

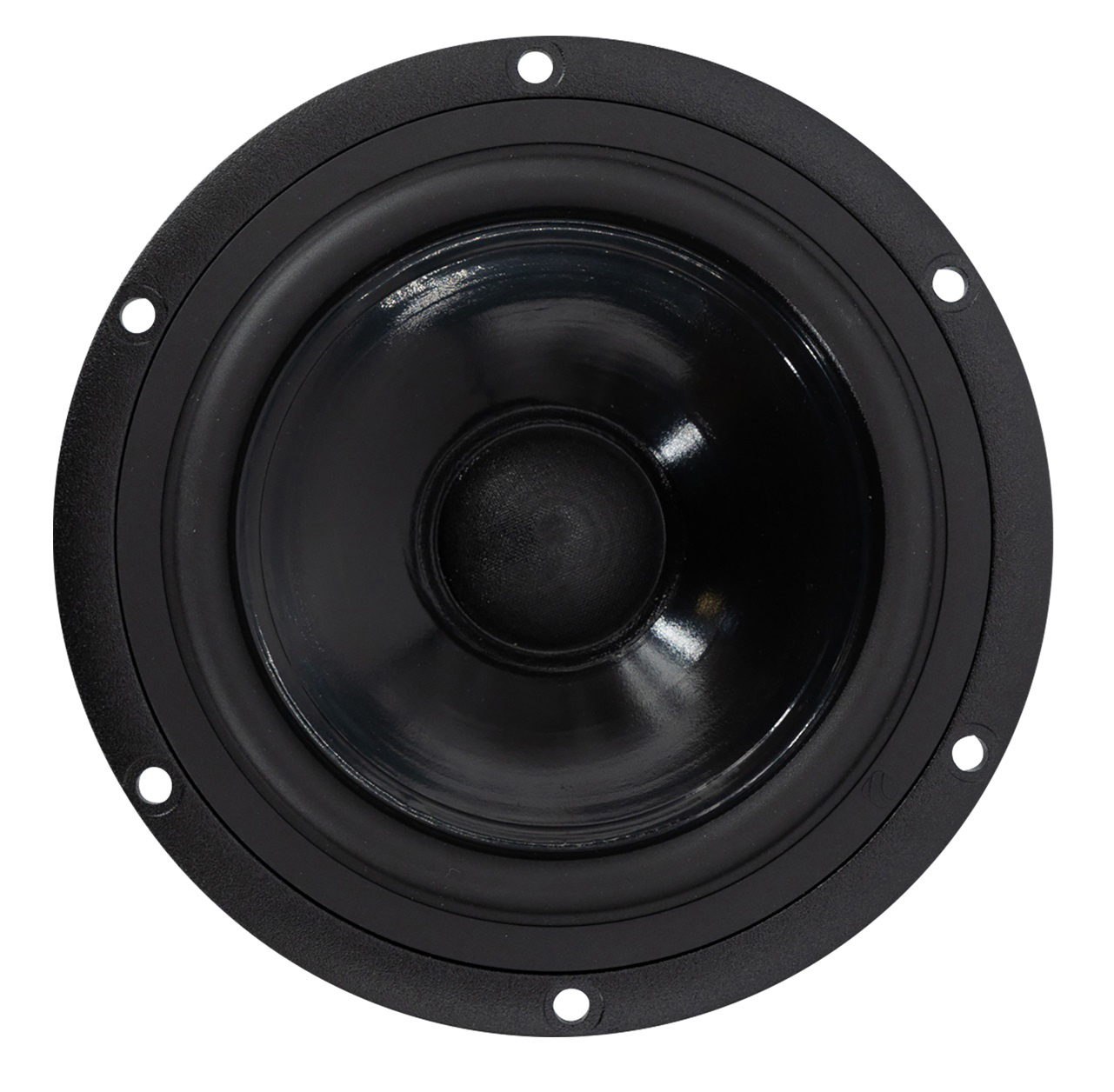

      SEAS Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer

      0 reviews
      Marke: SEAS
      Alle anzeigen Audio-Komponenten
      5.5" | 8 Ω
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      € 66,07€ 79,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
      This 5" cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Classical coated paper cone that gives a smooth extended frequency response with a controlled roll off.... Mehr anzeigen
      Bulk discount Genießen Sie diese tollen Rabattangebote
      • -5% Kauf 4 für nur €75,95 pro stück
      +-
      Zum Warenkorb hinzufügen
      • Versicherter Versand mit Sendungsverfolgung
      • Kostenloser Versand ab 149€ (DE, A)
      • Versand am selben Tag*
      • Hausinterner technischer Support
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer
      Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer

      Produktbeschreibung

      Highlights

      • Developed for use as a long throw high fidelity woofer or woofer/midrange unit
      • Smooth extended frequency response with a controlled roll off thanks to its classical coated paper cone
      • This driver uses SEAS SpiderRing® technology



      Product details

      Seas Prestige CA15RLY - H1216-08 5.5" Coated Paper Cone Woofer



      This 5" cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Classical coated paper cone that gives a smooth extended frequency response with a controlled roll off.



      This driver uses SEAS SpiderRing® technology. Large magnet system together with a very long and light weight CCAW voice coil allow good coil excursion with low distortion and good transient response. Extremely stiff and stable injection molded metal basket, that keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      Eigenschaften

      Artikelnummer:
      CA15RLY
      Woofer Series
      Prestige Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      5.5"
      Power Handling (RMS)
      60 Watts
      Power Handling (max)
      250 Watts
      Impedance
      8 ohms
      Sensitivity
      87.5 dB 2.83V/1m
      Frequency Response
      50 to 4,000 Hz
      Voice Coil Diameter
      1"
      Magnet Weight
      14 oz.
      DC Resistance (Re)
      5.6 ohms
      Voice Coil Inductance (Le)
      0.82 mH
      Resonant Frequency (Fs)
      44 Hz
      Mechanical Q (Qms)
      1.88
      Electromagnetic Q (Qes)
      0.42
      Total Q (Qts)
      0.34
      Diaphragm Mass Inc. Airload (Mms)
      7.7g
      Mechanical Compliance of Suspension (Cms)
      1.7 mm/N
      Compliance Equivalent Volume (Vas)
      0.49 ft.³
      Maximum Linear Excursion (Xmax)
      5 mm
      Overall Outside Diameter
      5.75"
      Overall Depth
      2.82"
      Baffle Cutout Diameter
      4.41"
      Bolt Circle Diameter
      5.37"
      # Mounting Holes
      6
      Mounting Hole Diameter
      0.2"
