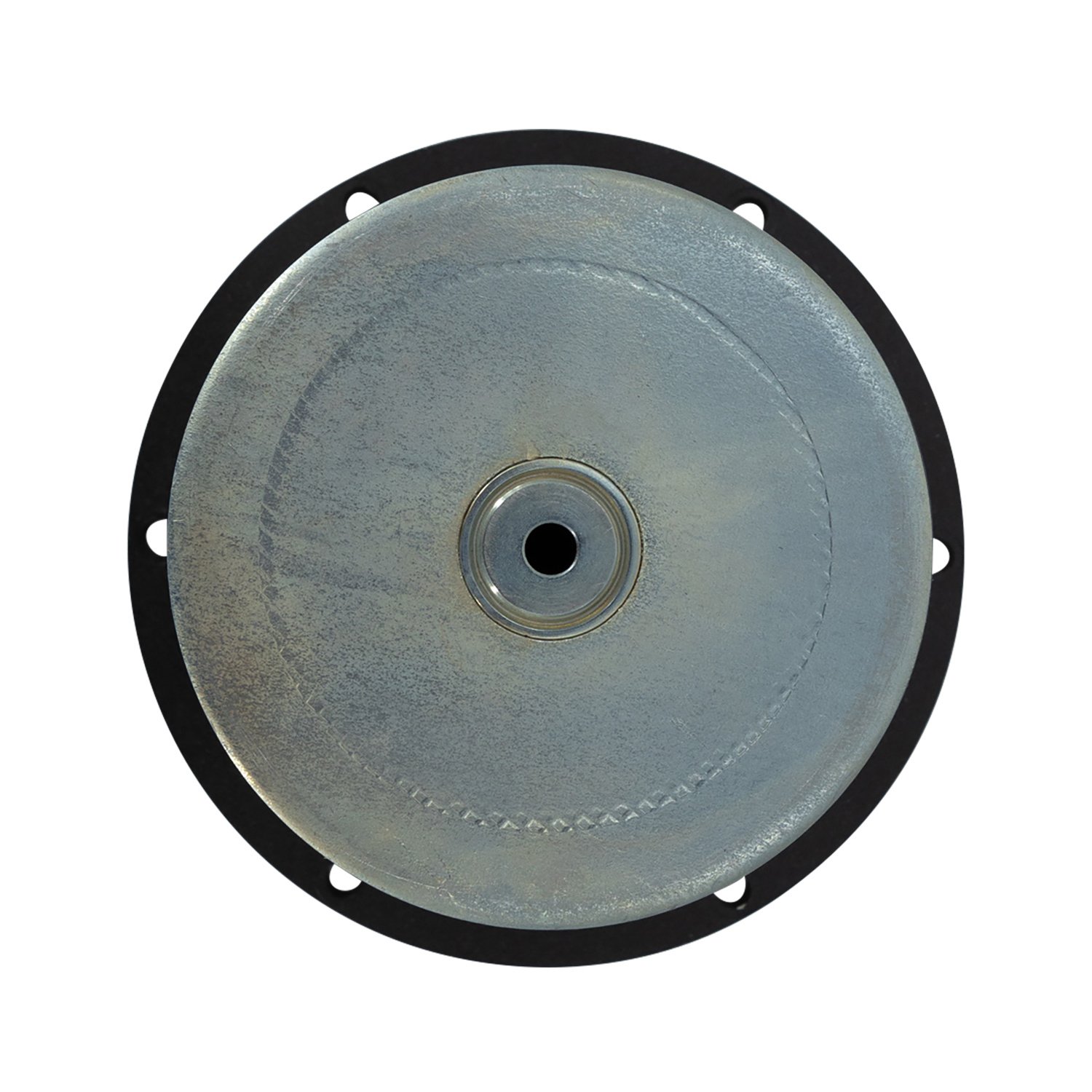

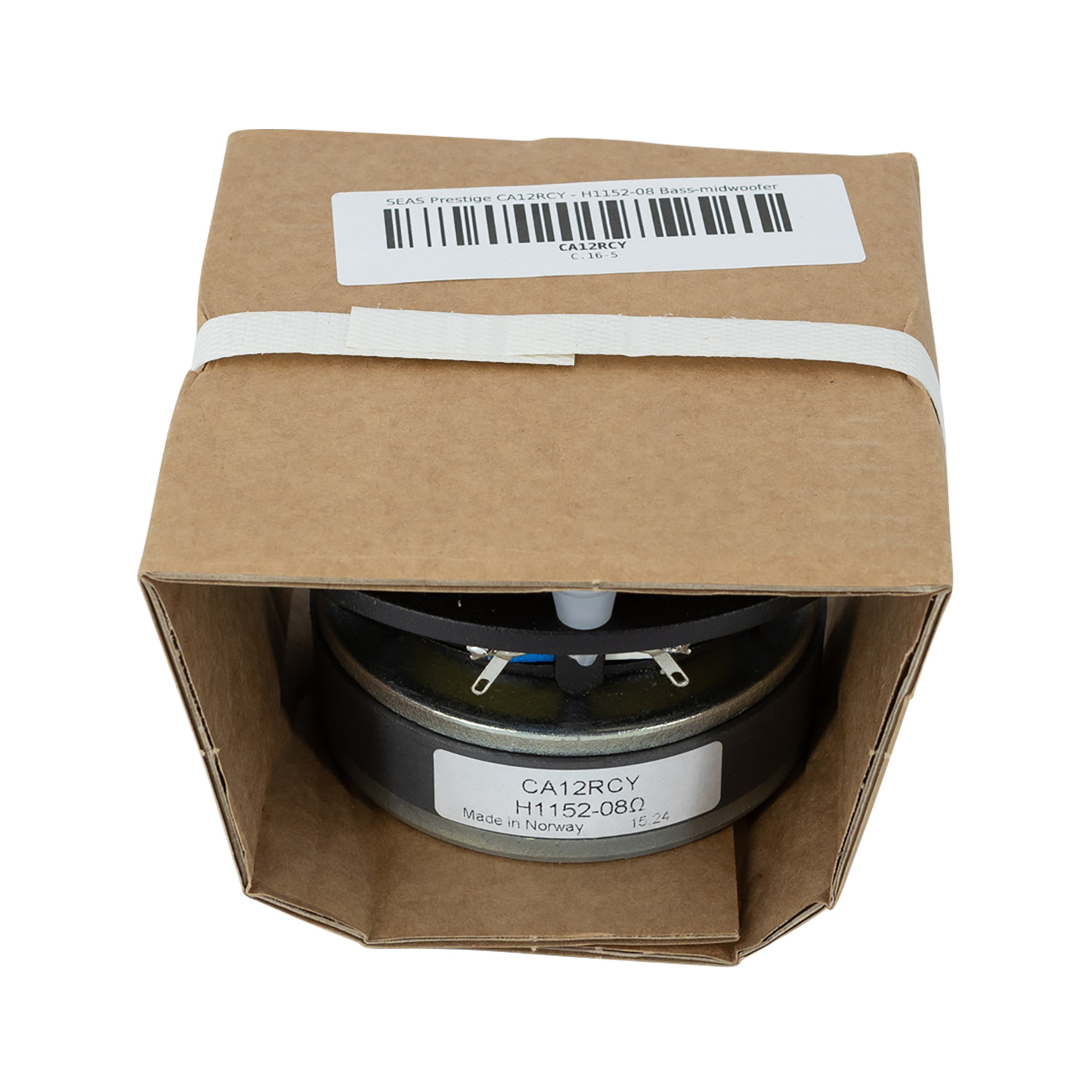

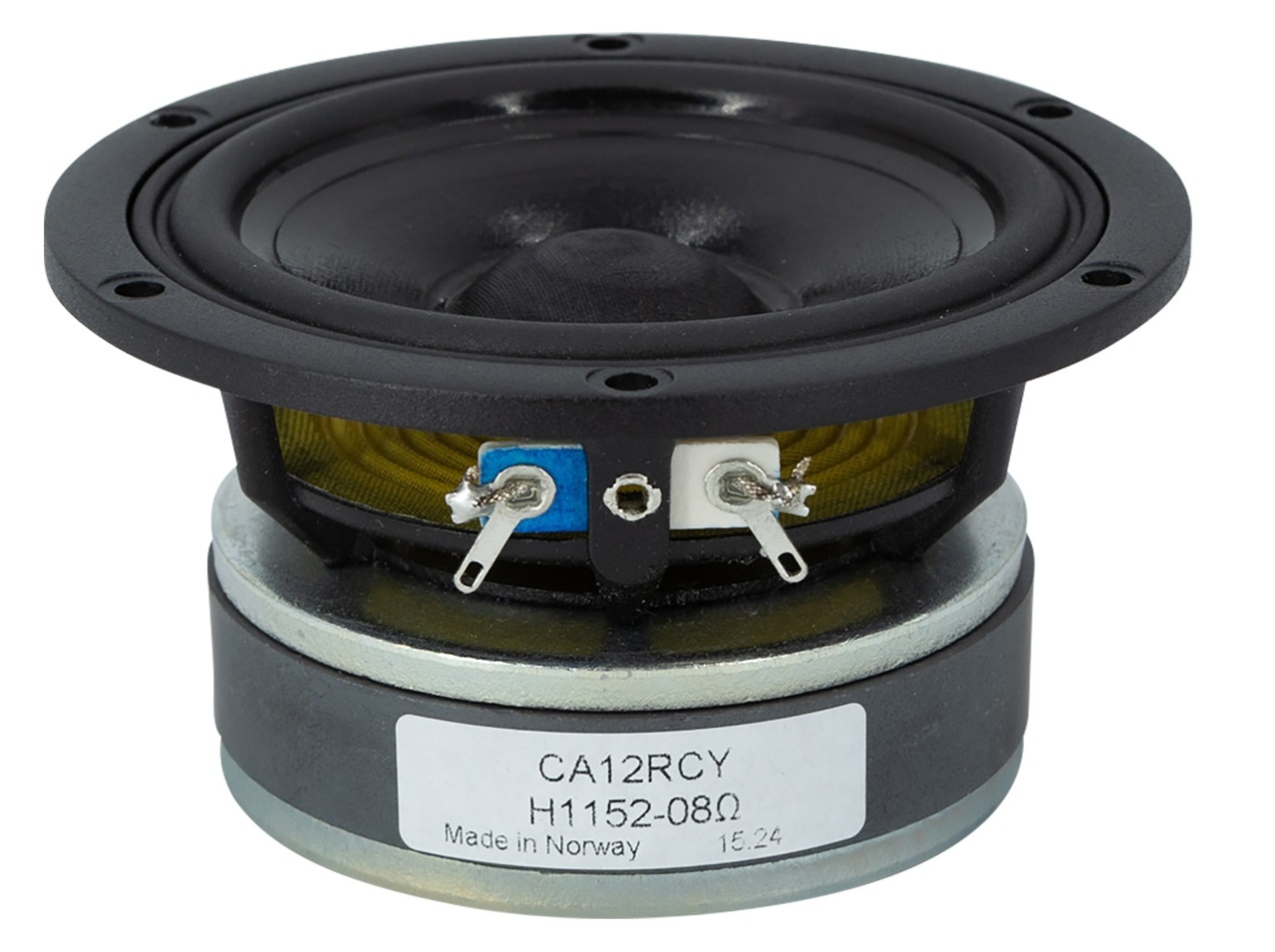

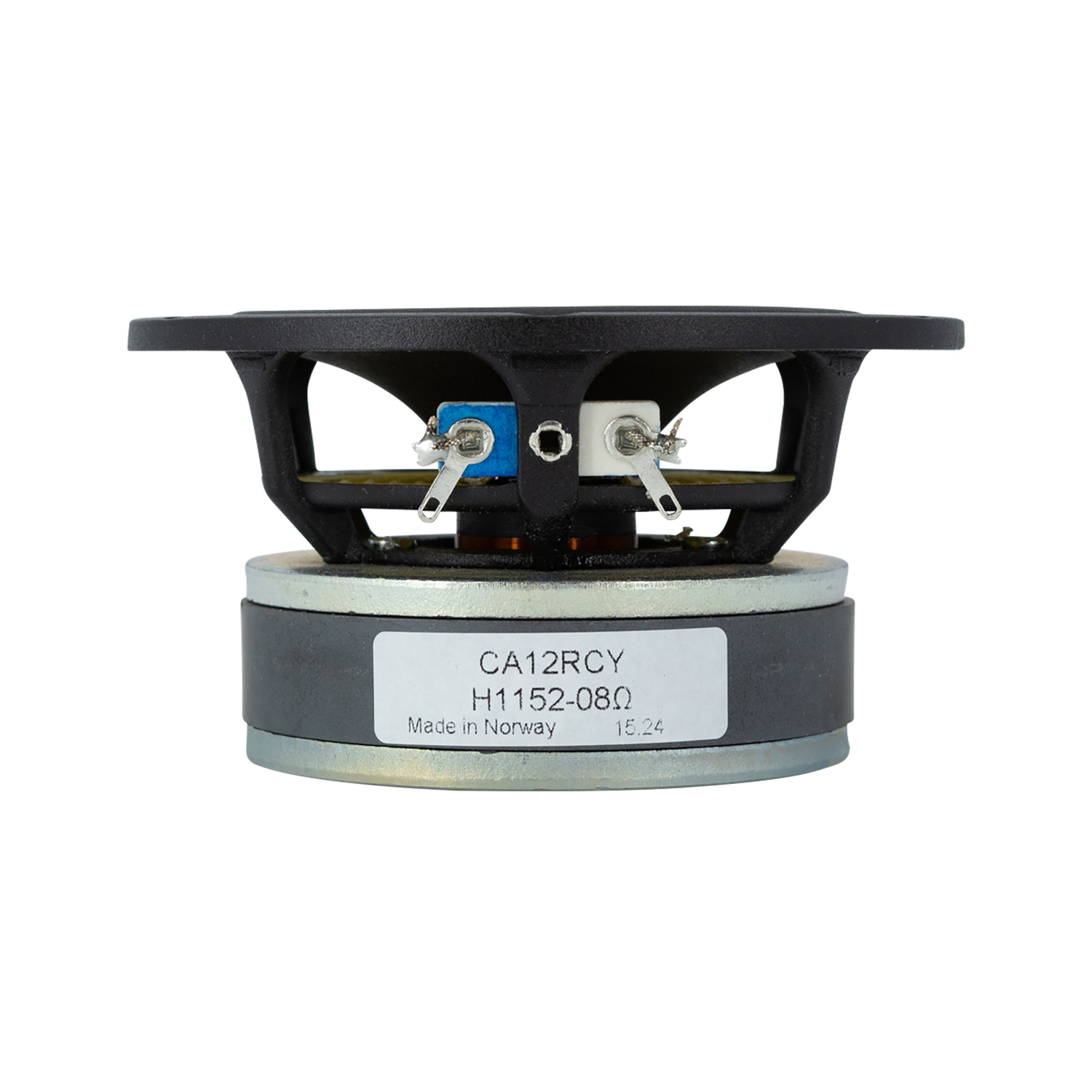

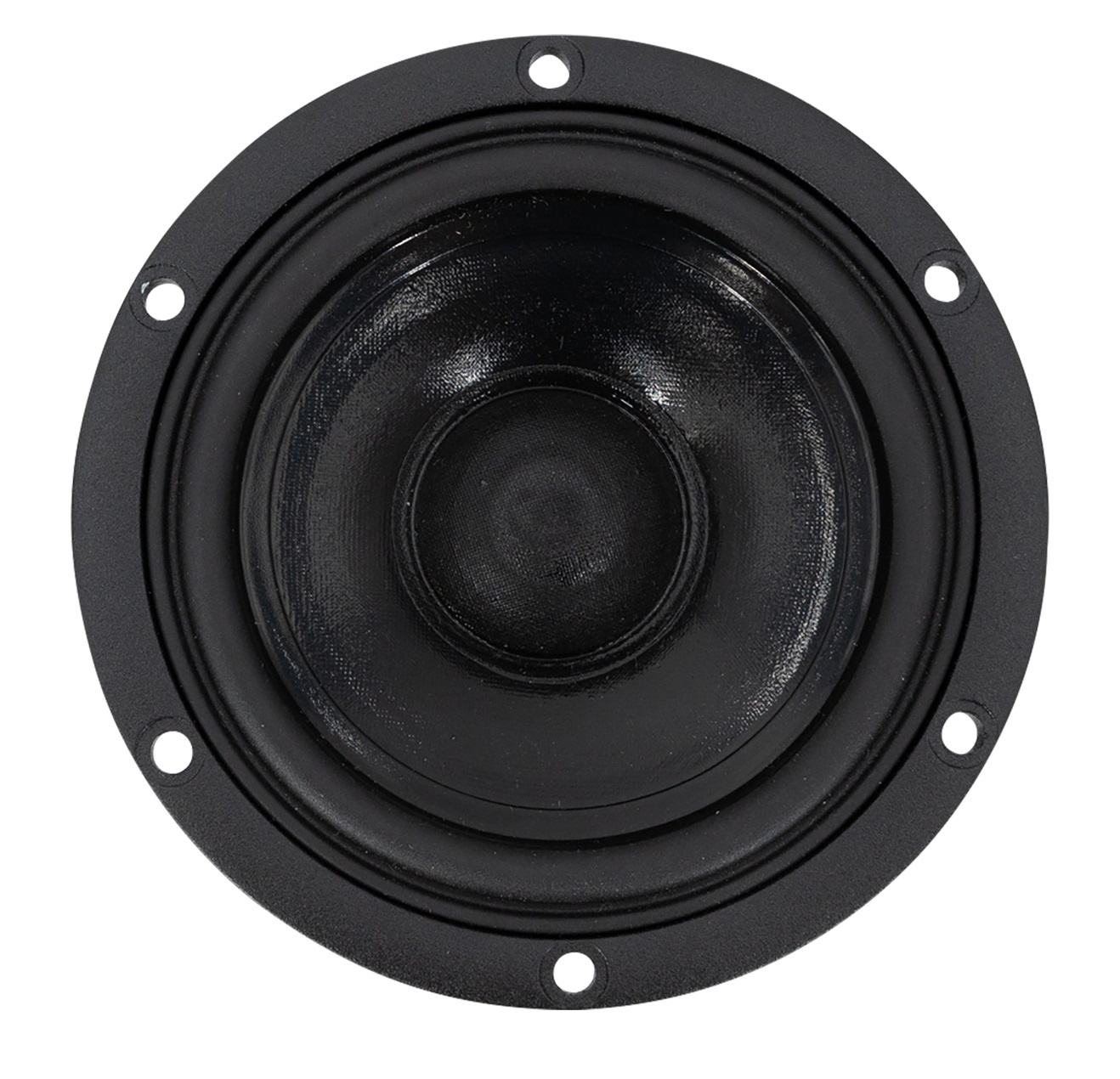

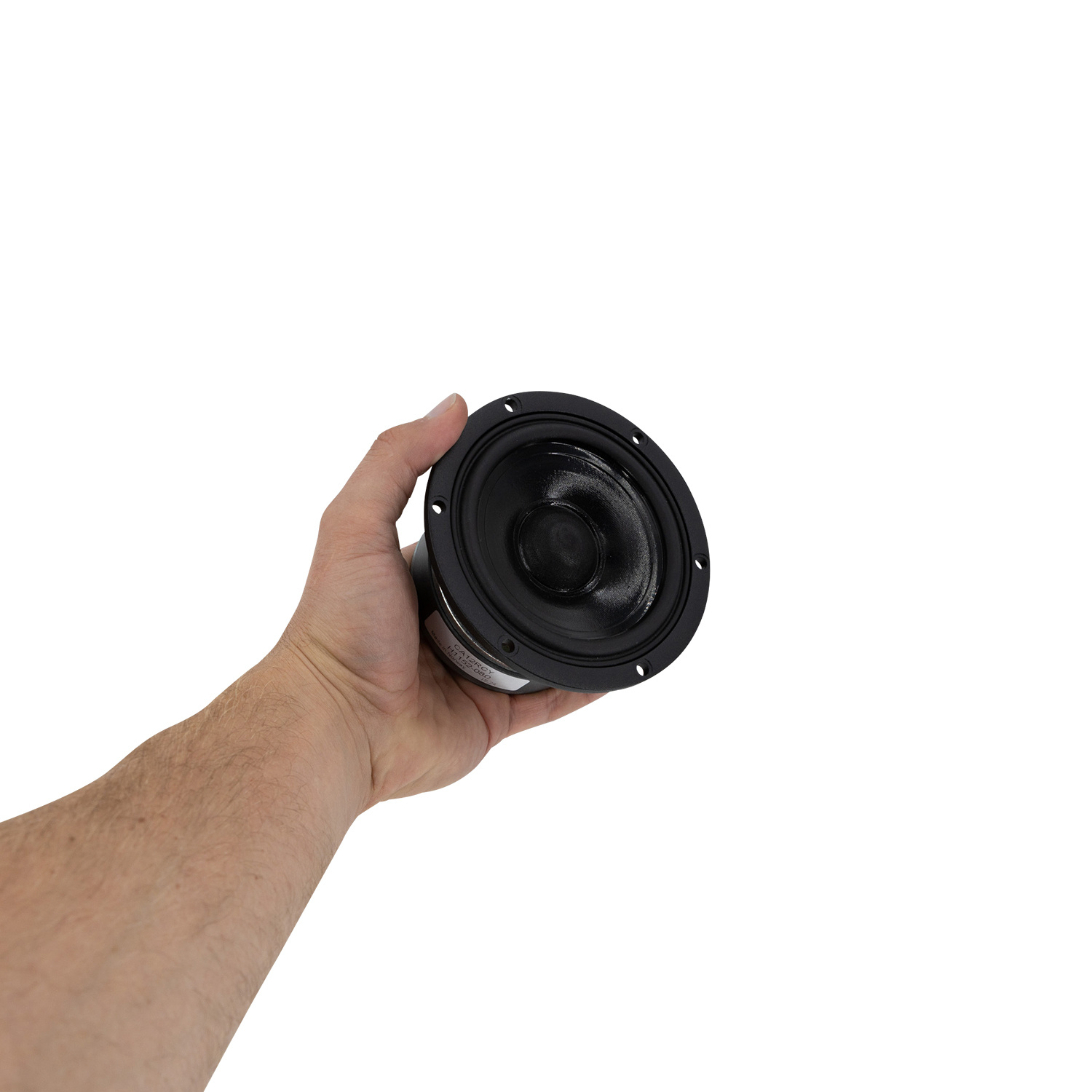

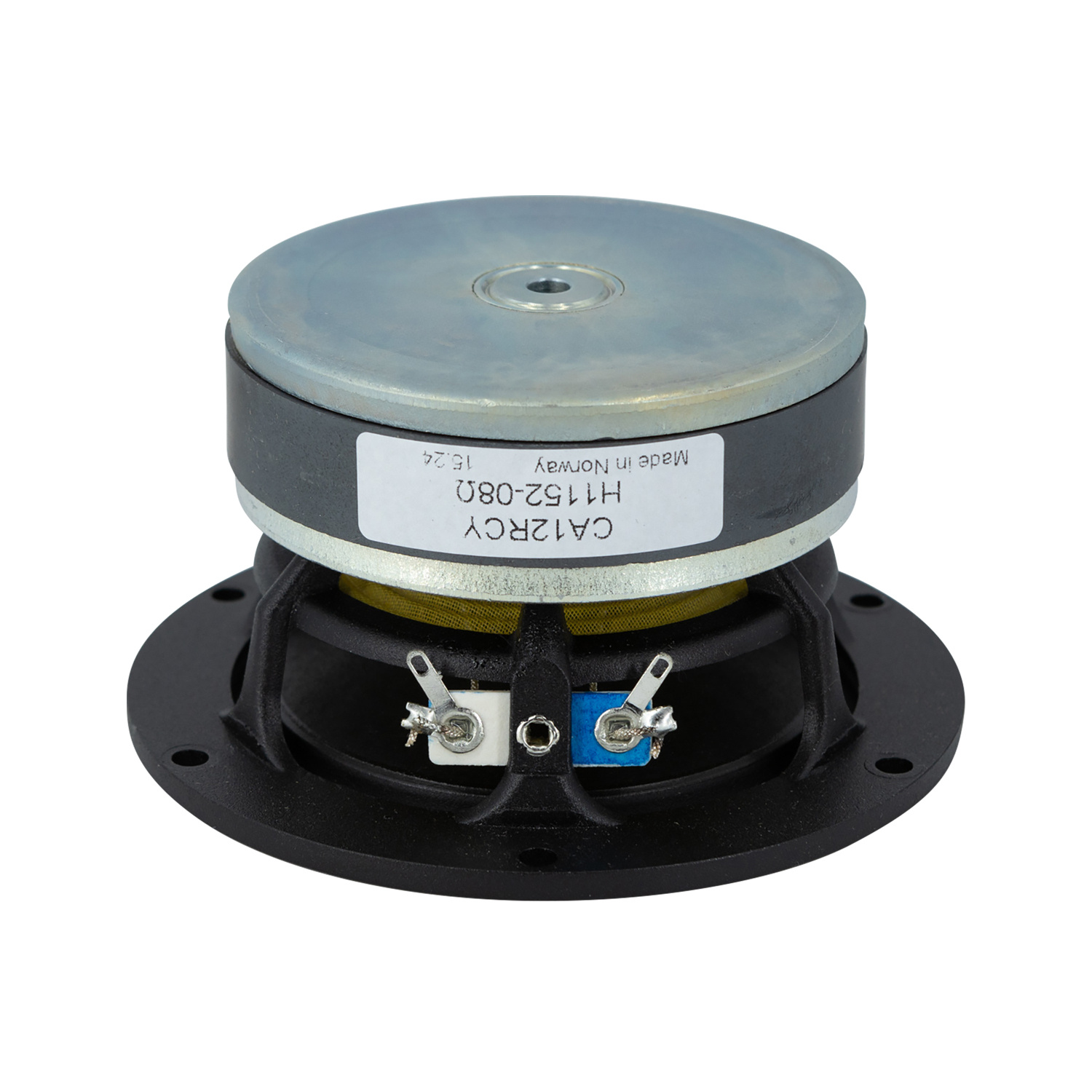

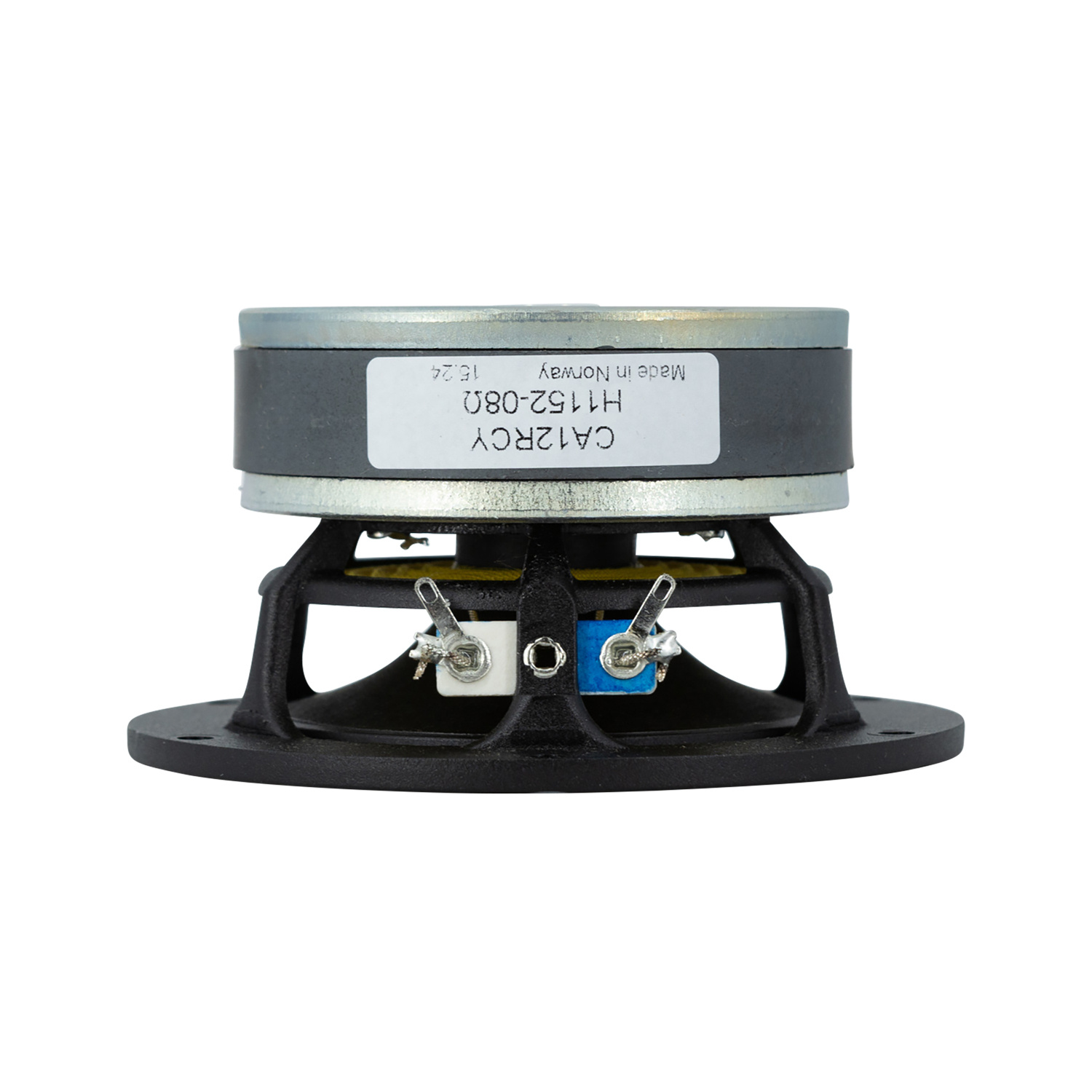

SEAS Prestige CA12RCY - H1152-08 4.5" Coated Paper Cone Woofer

€ 66,45 Nicht auf Lager: Lieferzeit beträgt 1 Woche
Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion. Large magnet system and a symmetrical driving force accomplished through a special coil winding technique for the voice coil gives an excellen... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €63,13 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion
  • Large magnet system and symmetrical driving force
  • Very large magnet system allows a reasonable efficiency and a low Q



Product details

Seas Prestige CA12RCY - H1152-08 4.5" Coated Paper Cone Woofer



Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion. Large magnet system and a symmetrical driving force accomplished through a special coil winding technique for the voice coil gives an excellent linearity. Very large magnet system provides a reasonable efficiency and a low Q.



Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
CA12RCY
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
4.5"
Power Handling (RMS)
60 Watts
Power Handling (max)
200 Watts
Impedance
8 ohms
Sensitivity
86 dB 2.83V/1m
Frequency Response
45 to 5,000 Hz
Voice Coil Diameter
1"
Magnet Weight
14 oz.
DC Resistance (Re)
6.4 ohms
Voice Coil Inductance (Le)
1.05 mH
Resonant Frequency (Fs)
57 Hz
Mechanical Q (Qms)
2.17
Electromagnetic Q (Qes)
0.36
Total Q (Qts)
0.31
Diaphragm Mass Inc. Airload (Mms)
6.1g
Mechanical Compliance of Suspension (Cms)
1.3 mm/N
Compliance Equivalent Volume (Vas)
0.17 ft.³
Maximum Linear Excursion (Xmax)
3 mm
Overall Outside Diameter
4.74"
Overall Depth
2.5"
Baffle Cutout Diameter
3.77"
Bolt Circle Diameter
4.36"
# Mounting Holes
6
Mounting Hole Diameter
0.19"
