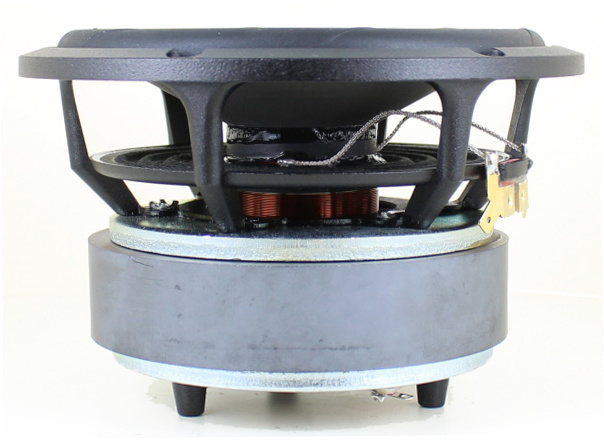

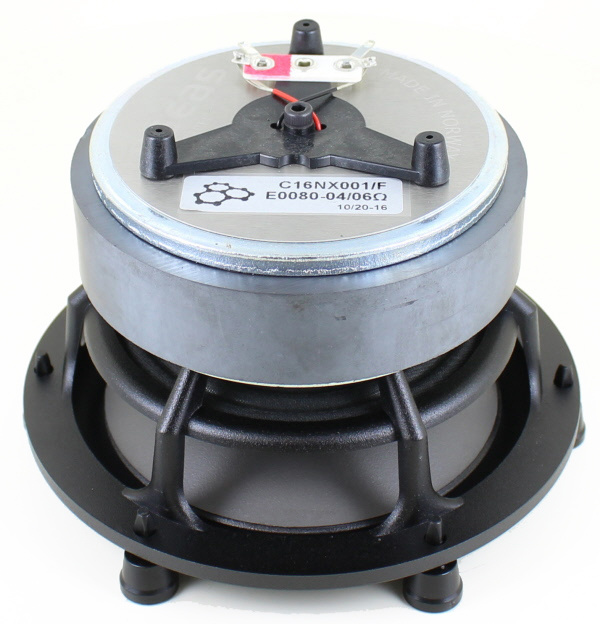

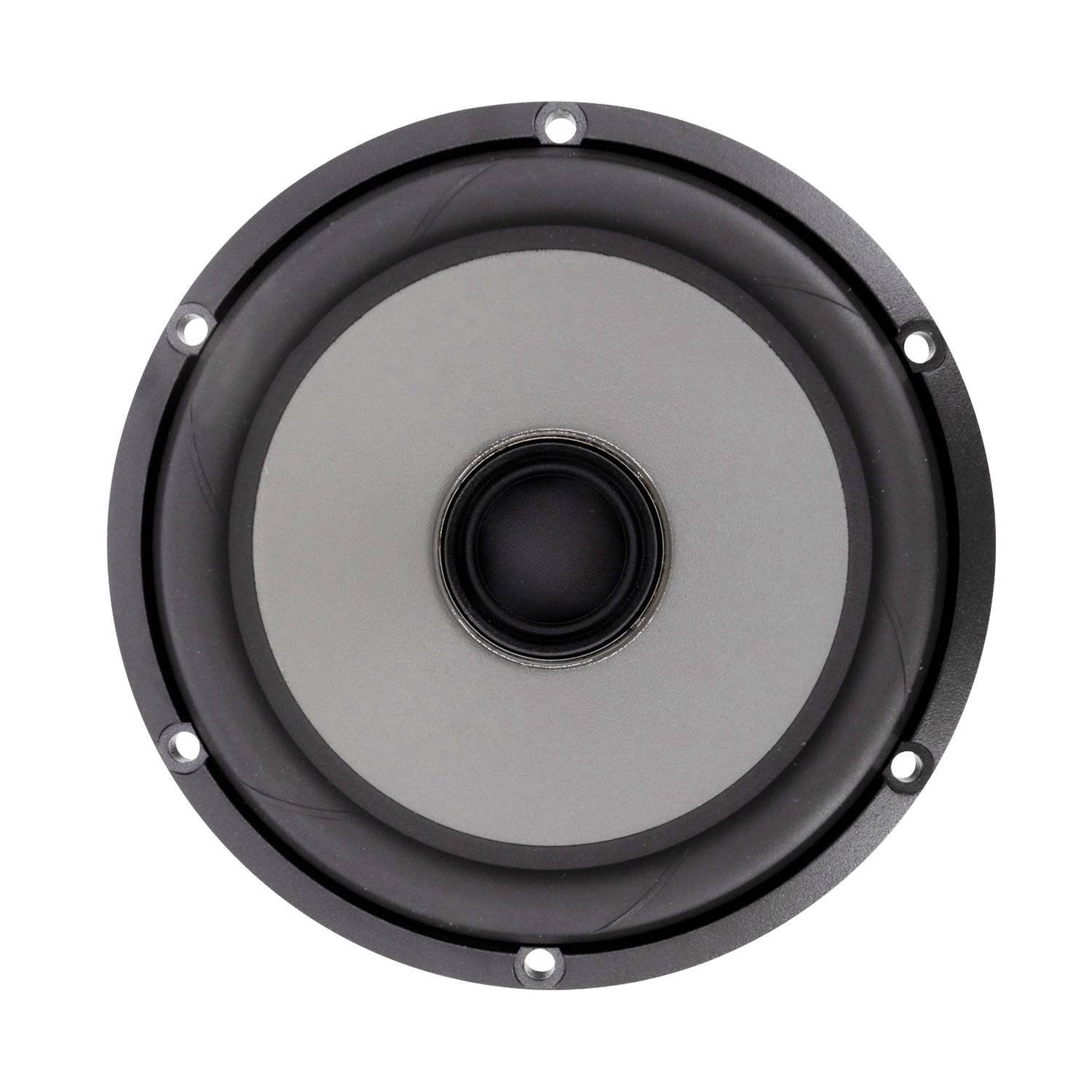

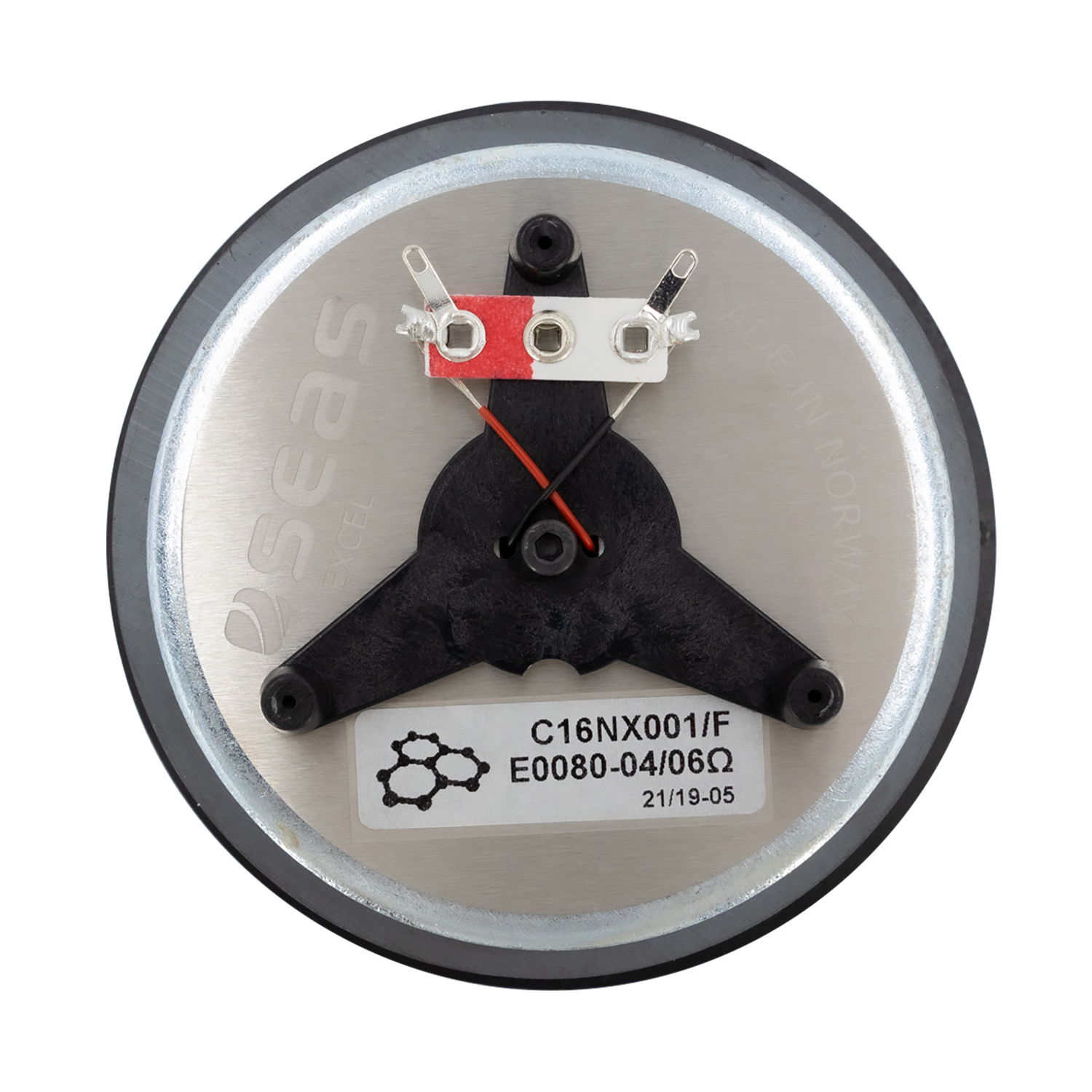

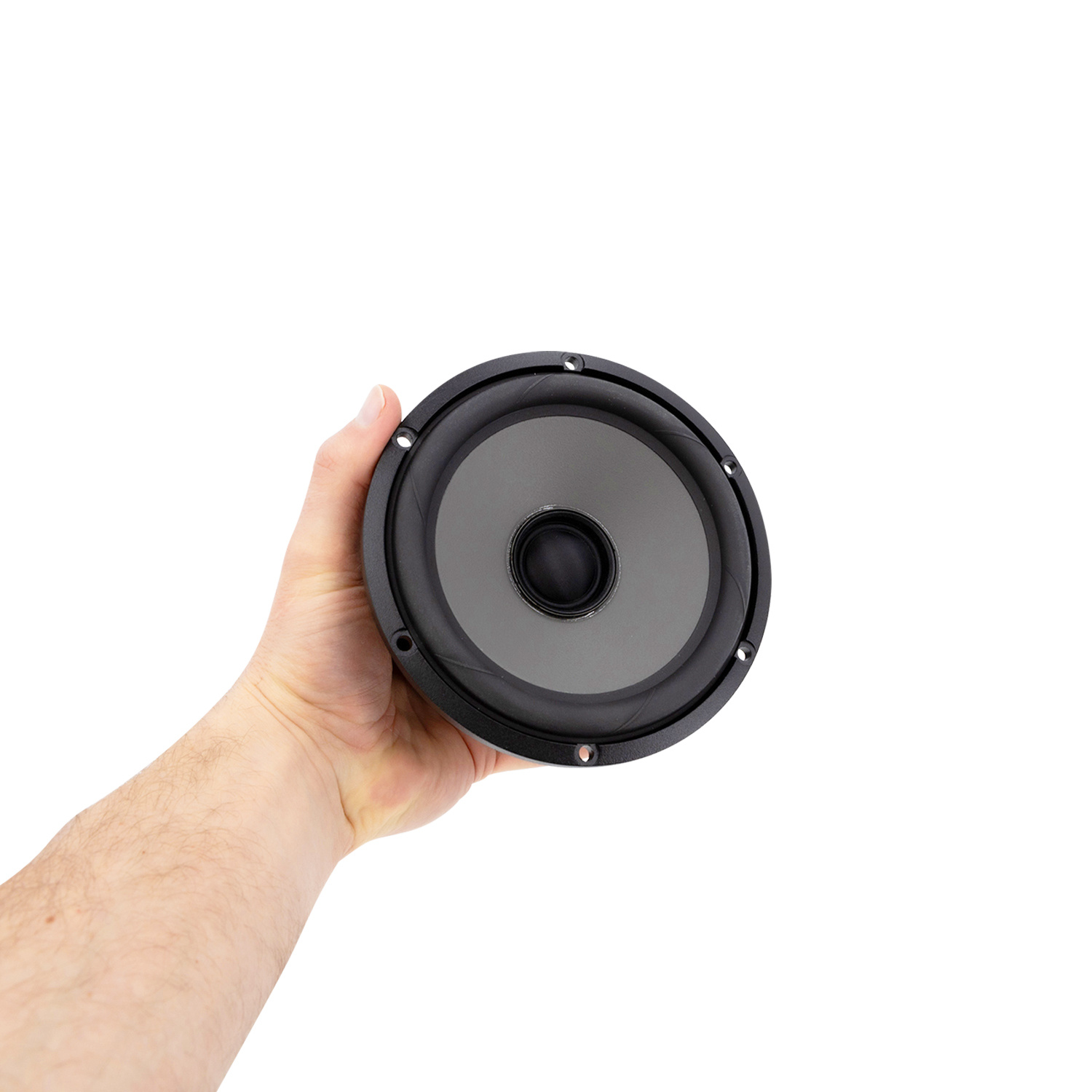

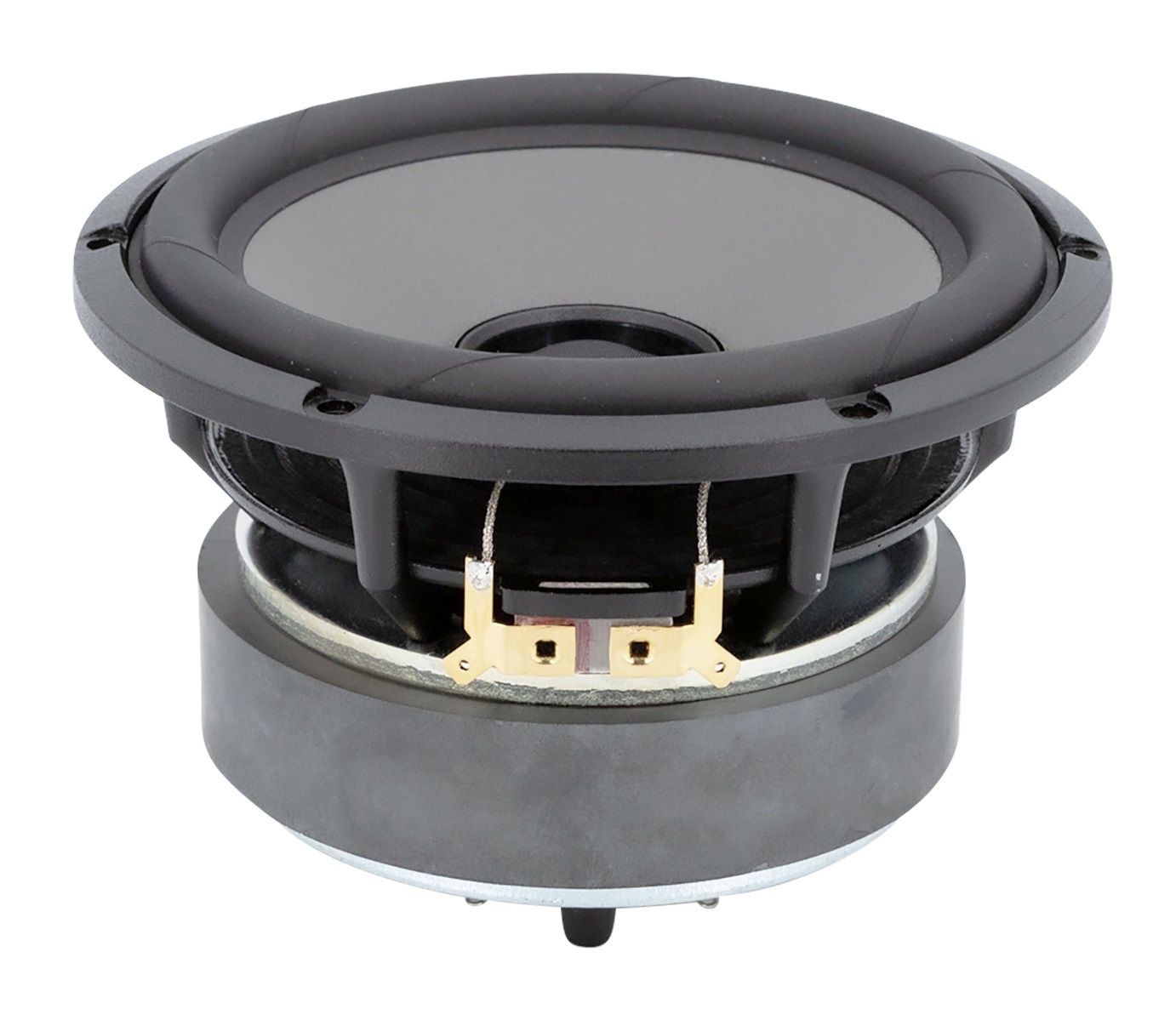

SEAS Excel Graphene C16NX001/F - E0080-04/06 5" Coaxial Woofer 4 Ohms

€ 499,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €474,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • FEA optimised magnet system
  • Graphene treated magnesium cone
  • Titanium former for woofer and tweeter
  • Unique radial reinforced rubber surround
  • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



Product details

Seas Excel Graphene C16NX001/F - E0080-04/06 5" Coaxial Woofer 4 Ohms



The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances.



The woofer has an FEA optimised magnet system with precisely fitted copper parts for excellent linearity, high powerhandling and low distortion. A titanium voice coil former with a long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion. This results in very low mechanical damping for better clarity and brings out the micro details in the music.



The coaxially arranged tweeter with a precoated fabric dome is fitted with a Titanium former, has a low resonance frequency and integrates with the cone driver to form a point source for excellent sound stage imaging.



The extremely stiff and stable injection moulded metal basket designed for smooth air-flow, keeps the critical components in perfect alignment and reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
C16NX001/F
Woofer Series
Excel Graphene
Woofer Type
Coaxial
Nominal Diameter
5"
Power Handling (RMS)
<p>150 watts (woofer)</br>90 watts (tweeter)</p>
Power Handling (max)
<p>250 watts (woofer)</br>220 watts (tweeter)</p>
Continuous Program Power
-
Impedance
<p>4 ohms (woofer)</br>6 ohms (tweeter)</p>
Sensitivity
<p>88.5 dB at 2.83V/1m (woofer)</br>90 dB at 2.83V/1m (tweeter)</p>
Frequency Response
20 - 20,000 Hz
Voice Coil Diameter
<p>39 mm (woofer)</br>26 mm (tweeter)</p>
Magnet Weight
-
DC Resistance (Re)
<p>3 ohms (woofer)</br>4.7 ohms (tweeter)</p>
Voice Coil Inductance (Le)
<p>0.23 mH (woofer)</br>0.05 mH (tweeter)</p>
Resonant Frequency (Fs)
<p>35 Hz (woofer)</br>1165 Hz (tweeter)</p>
Mechanical Q (Qms)
4.85
Electromagnetic Q (Qes)
0.33
Total Q (Qts)
0.31
Diaphragm Mass Inc. Airload (Mms)
16.2g
Mechanical Compliance of Suspension (Cms)
1.26 mm/N
Surface Area of Cone (Sd)
94 cm²
Volume of Displacement (Vd)
65.8 cm³
BL Product (BL)
-
Compliance Equivalent Volume (Vas)
16 liters
Maximum Linear Excursion (Xmax)
7 mm
Driver's Mechanical Losses (Rms)
-
Cone / Diaphragm Material
Graphene treated magnesium
Surround Material
Rubber
Voice Coil Wire Material
Copper-clad aluminum
Voice Coil Former
Titanium
Dual Voice Coil
-
Basket / Frame Material
-
Magnet Material
-
Shielded
-
Overall Outside Diameter
146 mm
Overall Depth
89 mm
Baffle Cutout Diameter
127 mm
# Mounting Holes
6
Mounting Hole Diameter
5 mm
Sealed Volume
-
Sealed F3
-
Vented Volume
-
Vented F3
-
