SEAS Excel C16N001/F - E0051-04/06-6 5" Magnesium Cone Coaxial Woofer

€ 206,57€ 249,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Precision cast, machined and surface treated magnesium cone acts as a piston through the audible frequency band without any sign of midrange resonances. A unique radial reinforced rubber surround reduces resonances and prevents surround break up at large... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €237,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 80 Watts (Woofer) and 90 Watts (Tweeter)
  • Unique radial reinforced rubber surround reduces resonances and prevents surround break up at large excursions
  • Sound reflection, air flow noise and cavity resonances reduced to a minimum



Product details

Seas Excel C16N001/F - E0051-04/06-6 5" Magnesium Cone Coaxial Woofer



Precision cast, machined and surface treated magnesium cone acts as a piston through the audible frequency band without any sign of midrange resonances. A unique radial reinforced rubber surround reduces resonances and prevents surround break up at large excursions.



Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to form a point source.

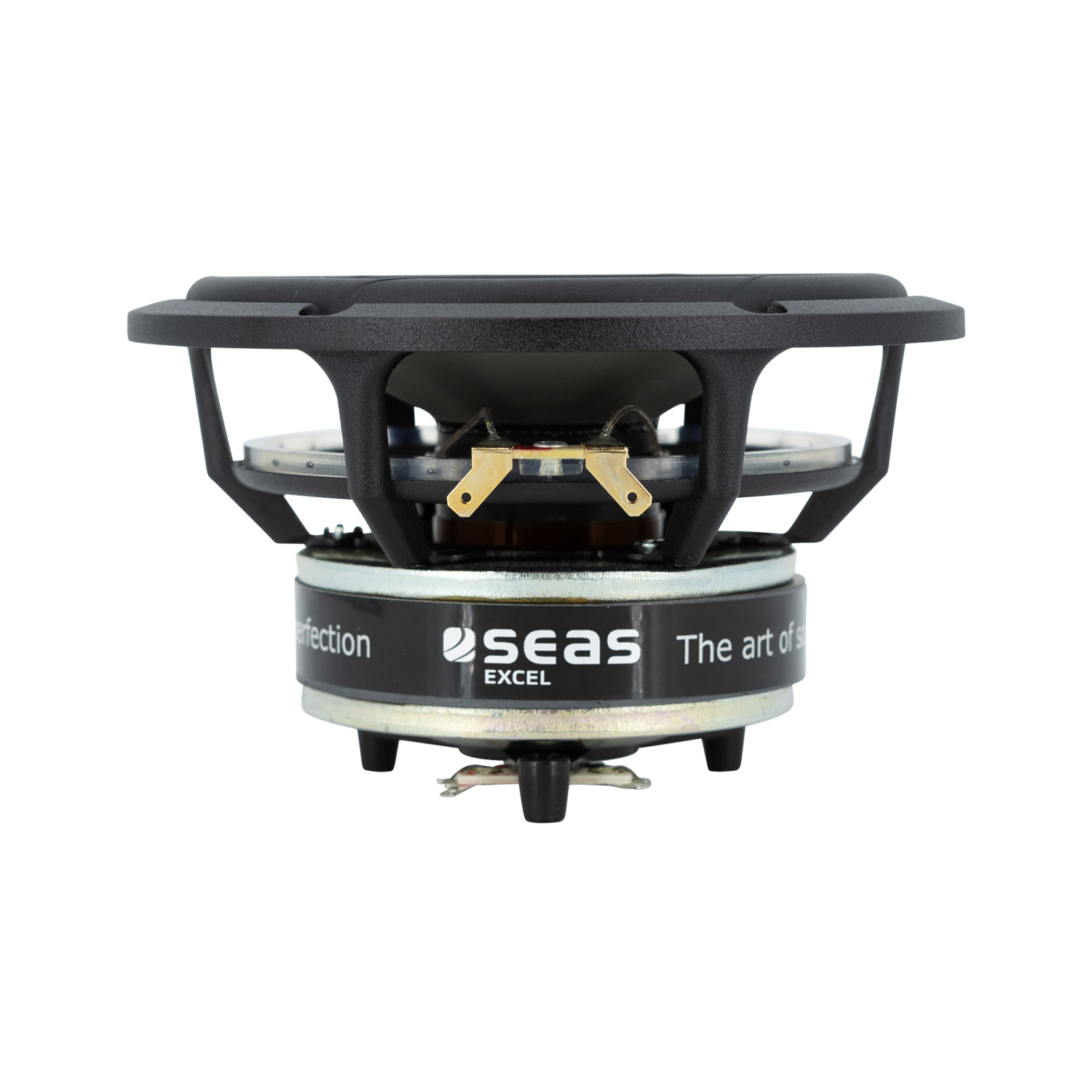

The extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonances to a minimum.

Eigenschaften

Artikelnummer:
C16N001/F
Woofer Series
Excel Series
Woofer Type
Coaxial
Nominal Diameter
5"
Power Handling (RMS)
80 Watts
Power Handling (max)
250 Watts
Impedance
4 ohms
Sensitivity
85 dB 2.83V/1m
Frequency Response
30 - 25,000 Hz
Voice Coil Diameter
1.53"
Magnet Weight
14.8 oz.
DC Resistance (Re)
3.2 ohms
Voice Coil Inductance (Le)
0.27 mH
Resonant Frequency (Fs)
37 Hz
Mechanical Q (Qms)
3.24
Electromagnetic Q (Qes)
0.58
Total Q (Qts)
0.49
Diaphragm Mass Inc. Airload (Mms)
0.56g
Mechanical Compliance of Suspension (Cms)
1.3 mm/N
Compliance Equivalent Volume (Vas)
0.52 ft.³
Maximum Linear Excursion (Xmax)
7 mm
Overall Outside Diameter
5.75"
Overall Depth
3.37"
Baffle Cutout Diameter
4.96"
Bolt Circle Diameter
5.39"
# Mounting Holes
6
