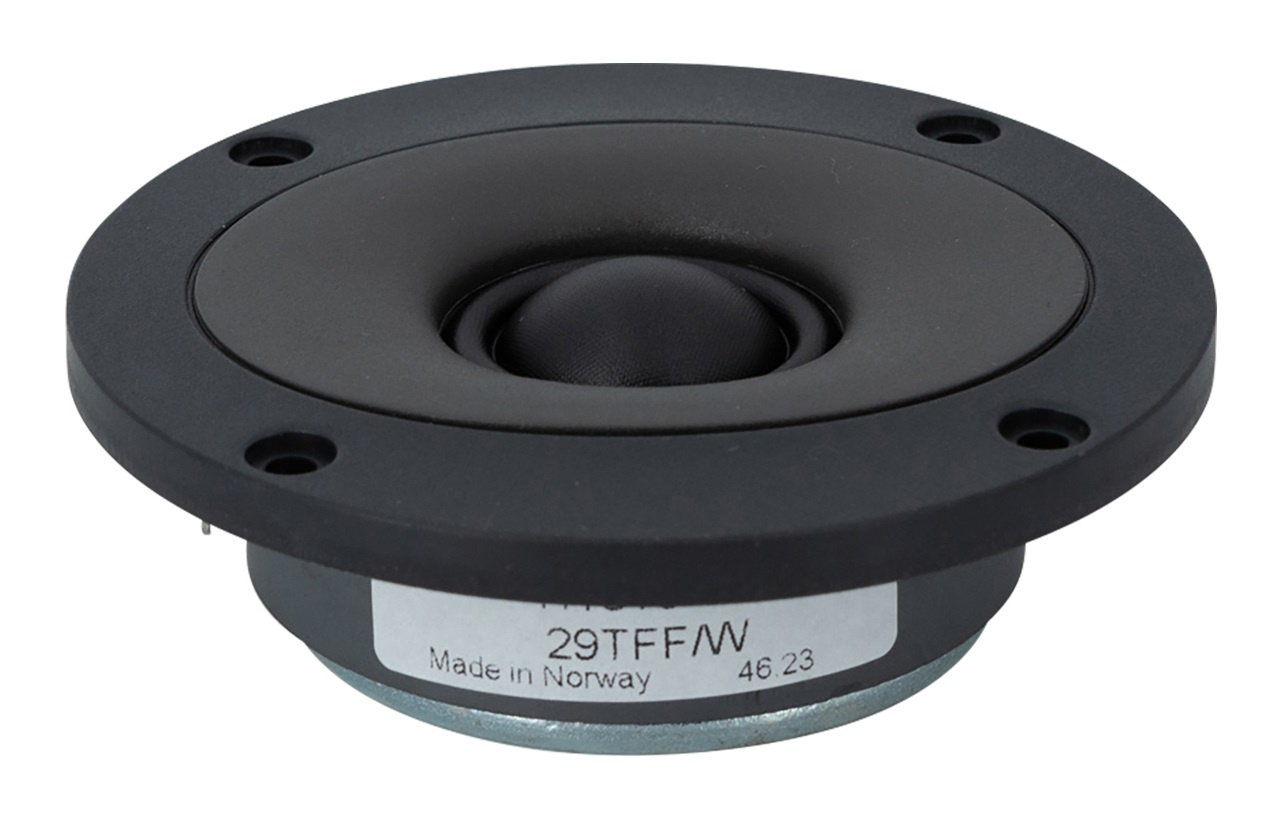

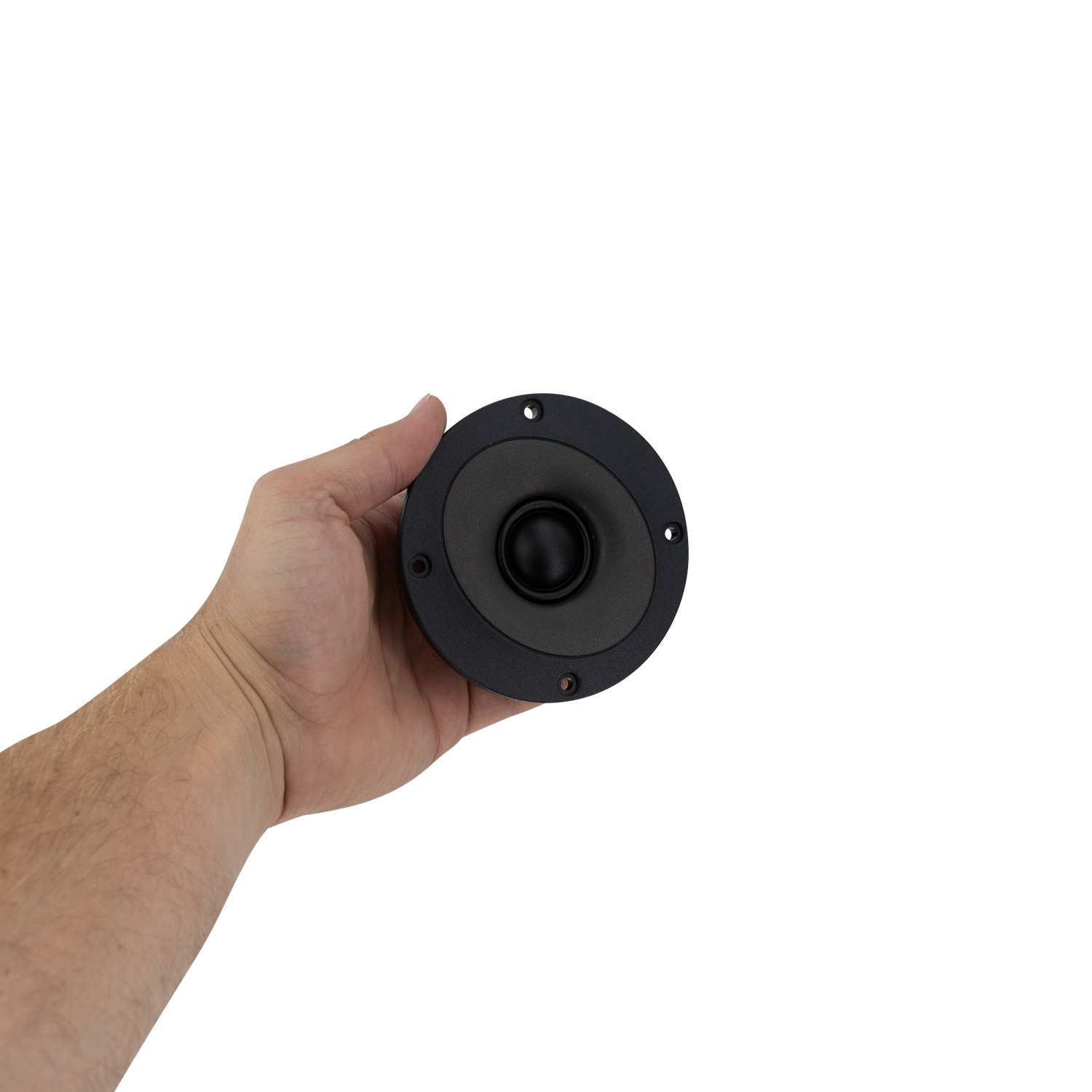

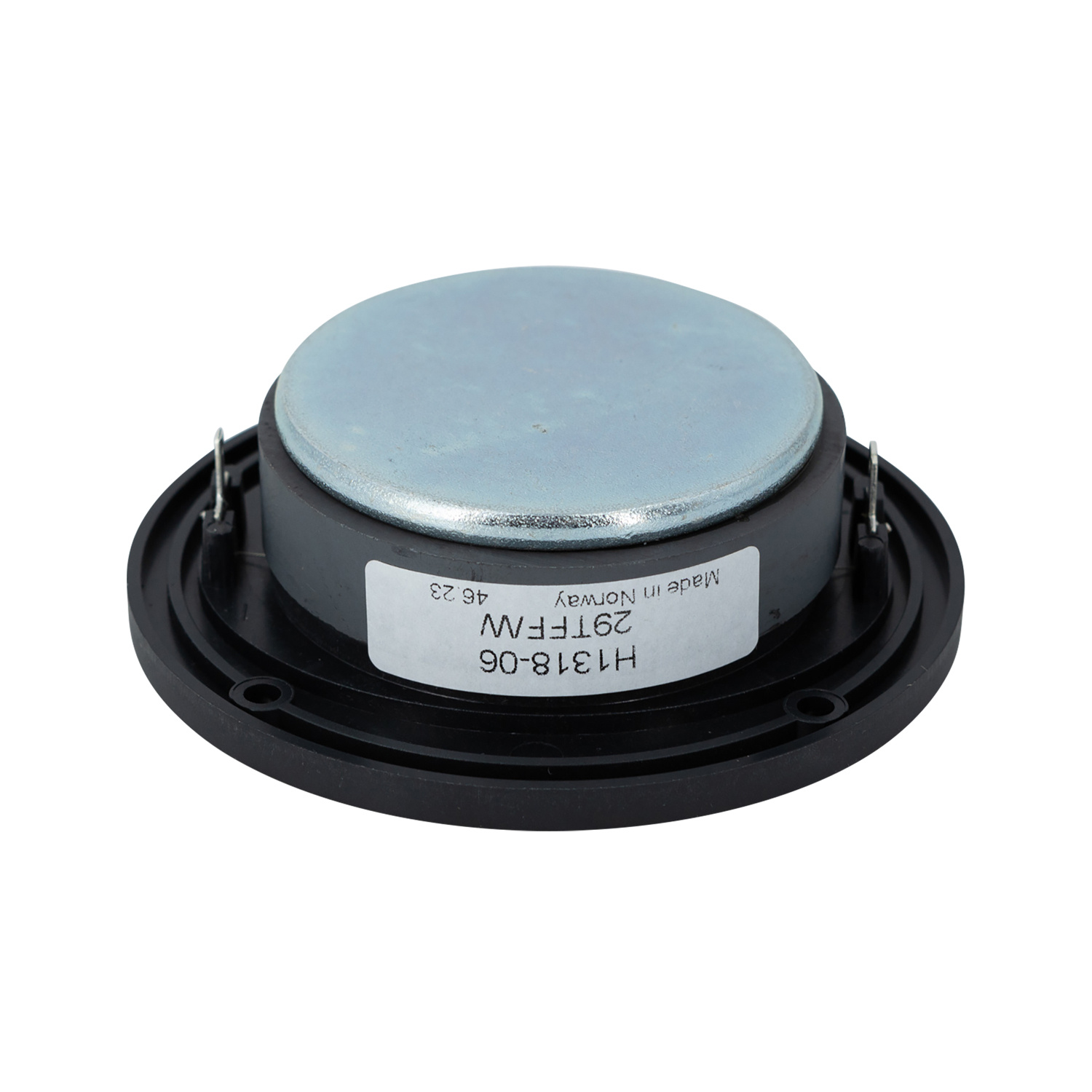

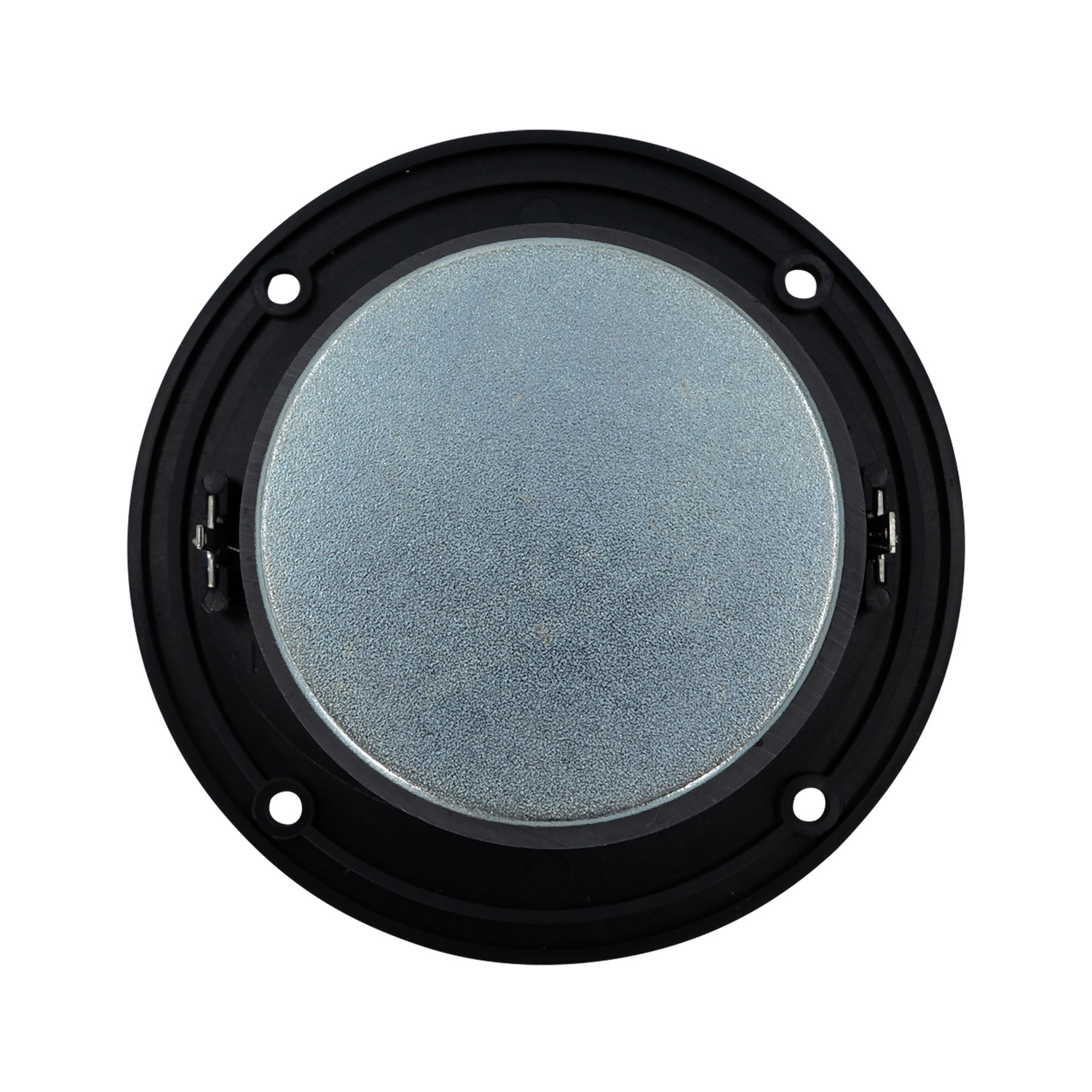

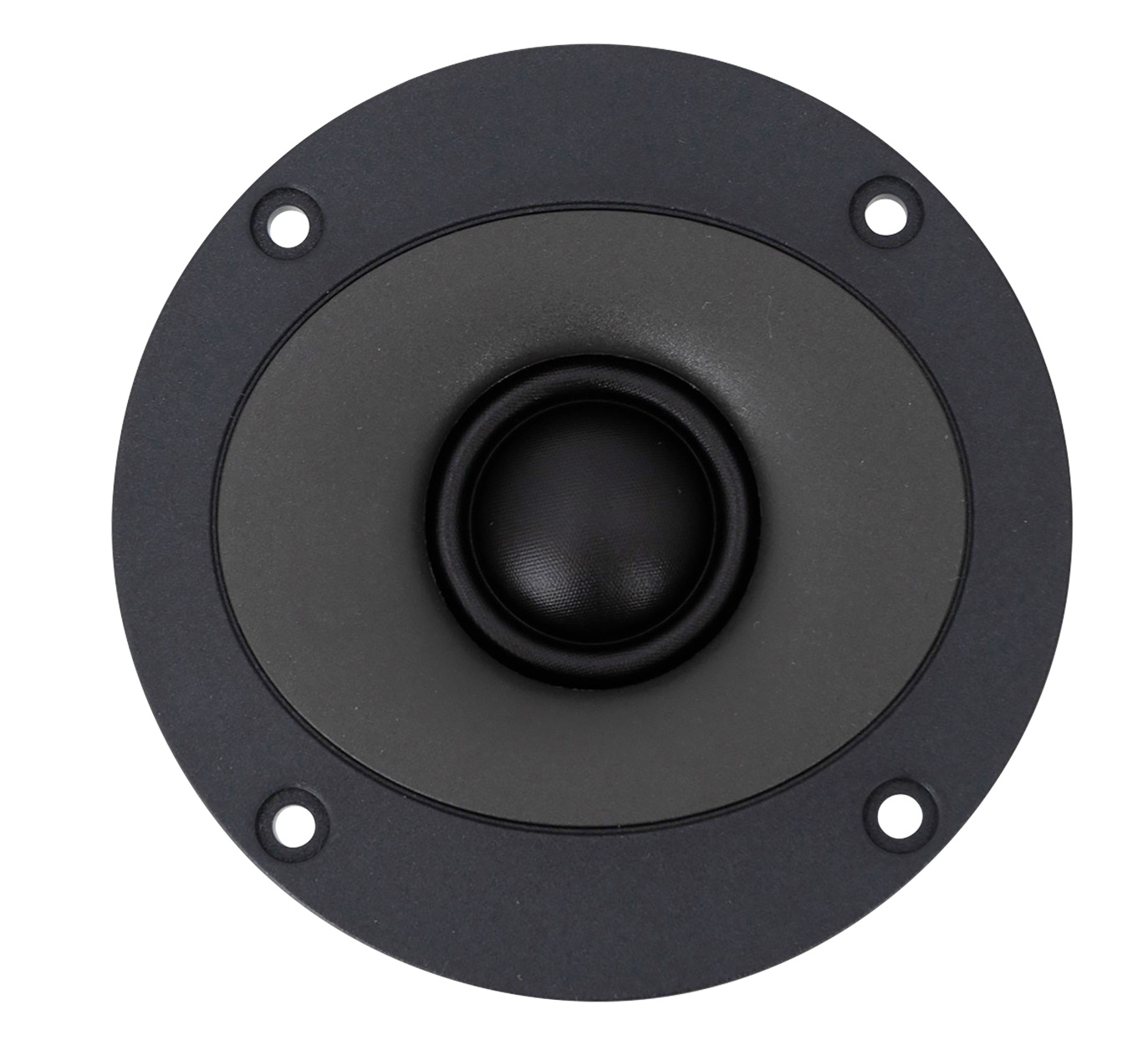

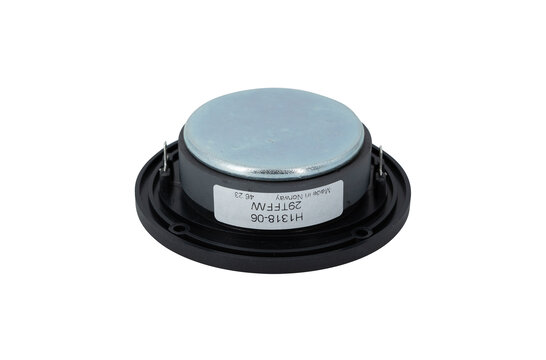

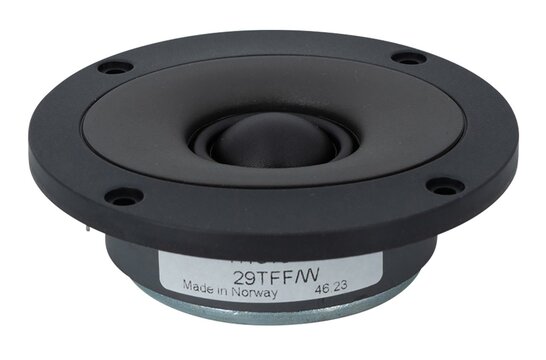

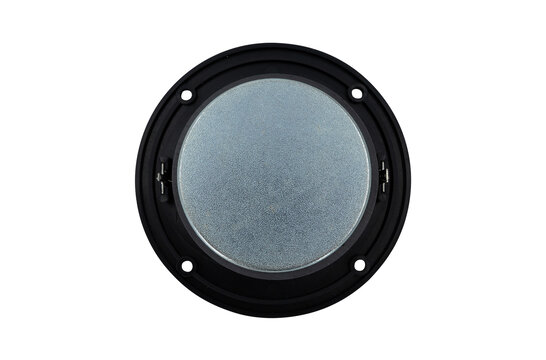

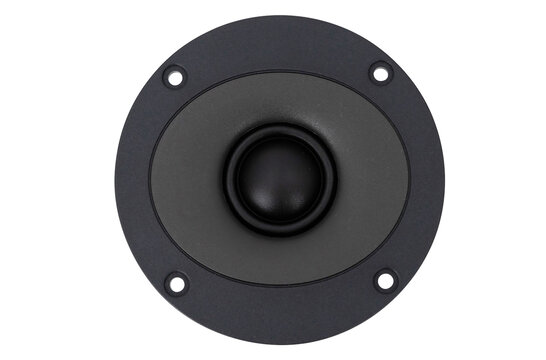

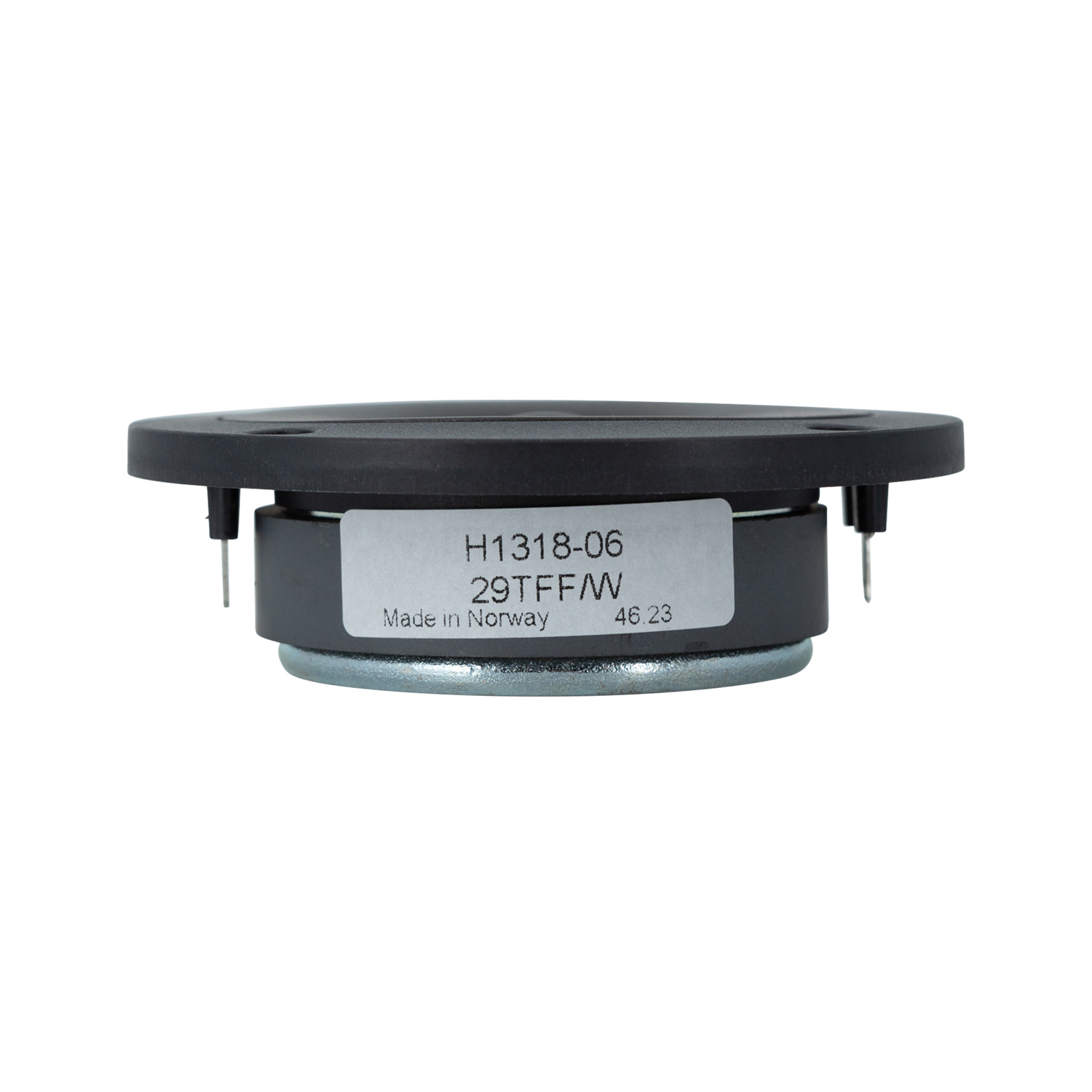

SEAS Prestige 29TFF/W - H1318-06 1-1/8" Silk Dome Tweeter

Marke: SEAS

Alle anzeigen Audio-Komponenten

Vergleichen

1⅛" | 6 Ω

Prestige 29TFF/W - H1318-06 1-1/8" Silk Dome Tweeter

€ 52,45 4 Auf Lager: Lieferzeit 1-3 Werktage

The 29TFF/W is a High Definition precoated fabric dome tweeter with an integrated wide, precoated fabric surround. Precoated Sonomex fabric diaphragm allows very tight production tolerances and high consistency. Wide Sonomex surround for low resonance, ex... Mehr anzeigen

Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Bezahlung mit PayPal, Kreditkarte und mehr
Hausinterner technischer Support

Produktbeschreibung

Highlights

Precoated Sonomex fabric diaphragm allows very tight production tolerances and high consistency
90 Watts RMS Power Handling
92 dB 2.83V/1m Sensitivity

Product details

Seas Prestige 29TFF/W - H1318-06 1-1/8" Silk Dome Tweeter

Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. Flexible lead out wires allow this driver to be used with low crossover frequencies.

Two part front plate with smooth, slightly elliptical wave guide made from elastomer provide excellent high frequency response and dispersion. The wave guide conceals (and thus eliminates acoustic effects from) the magnet system screws.

Eigenschaften

Artikelnummer:: 29TFF/W
Tweeter Type: Dome
Tweeter Series: Prestige Series
Cone / Dome Diameter: 1-1/8"
Power Handling (RMS): 90 Watts
Impedance: 6 ohms
Sensitivity: 92 dB 2.83V/1m
Frequency Response: 2,200 to 25,000 Hz
Resonant Frequency (Fs): 950 Hz
DC Resistance (Re): 4.7 ohms
Voice Coil Inductance (Le): 0.05 mH
Overall Outside Diameter: 4.09”
Cutout Diameter: 2.87"
Depth: 1.2"

Data sheet

Bewertungen

4 from 5Based on 1 reviews

Produkt bewerten

4 van 5

I bought these as replacement for vifa D27 tg16-6 in Chario Syntar 200T Not a perfect fit but with little effort it was settled . I am very pleased so far as it opened a big window to the highs and added quality and detail to these old foggy speakers. The service was wonderful and I will certainly order again from Soundimports for my next upgrades.
Nikos Greece

Durch Nikolaos D. on 21 Mai 2020
