SEAS Prestige 27TBFC/G - H1212-06 1'' Aluminum Dome Tweeter

Marke: SEAS

Alle anzeigen Audio-Komponenten

Vergleichen

1" | 6 Ω

Prestige 27TBFC/G - H1212-06 1'' Aluminum Dome Tweeter

€ 48,45 Nicht auf Lager: Lieferzeit beträgt 1 Woche

Backorder

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Aluminum/magnesium alloy diaphragm with pistonic behavior throughout the audible frequency range, resulting in a good dispersion above 10kHz
90 Watts RMS Power Handling
91.5 dB 2.83V/1m Sensitivity

Product details

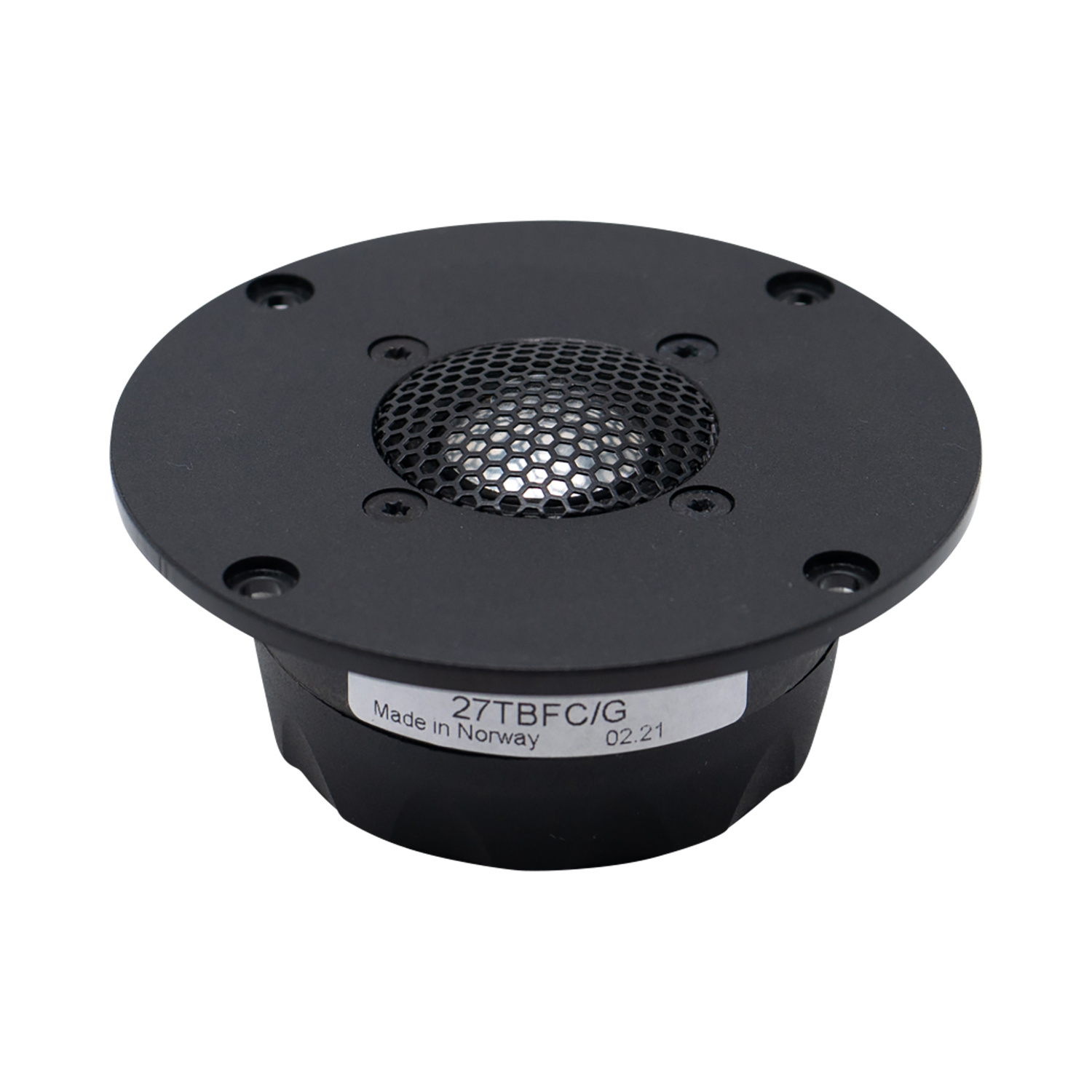

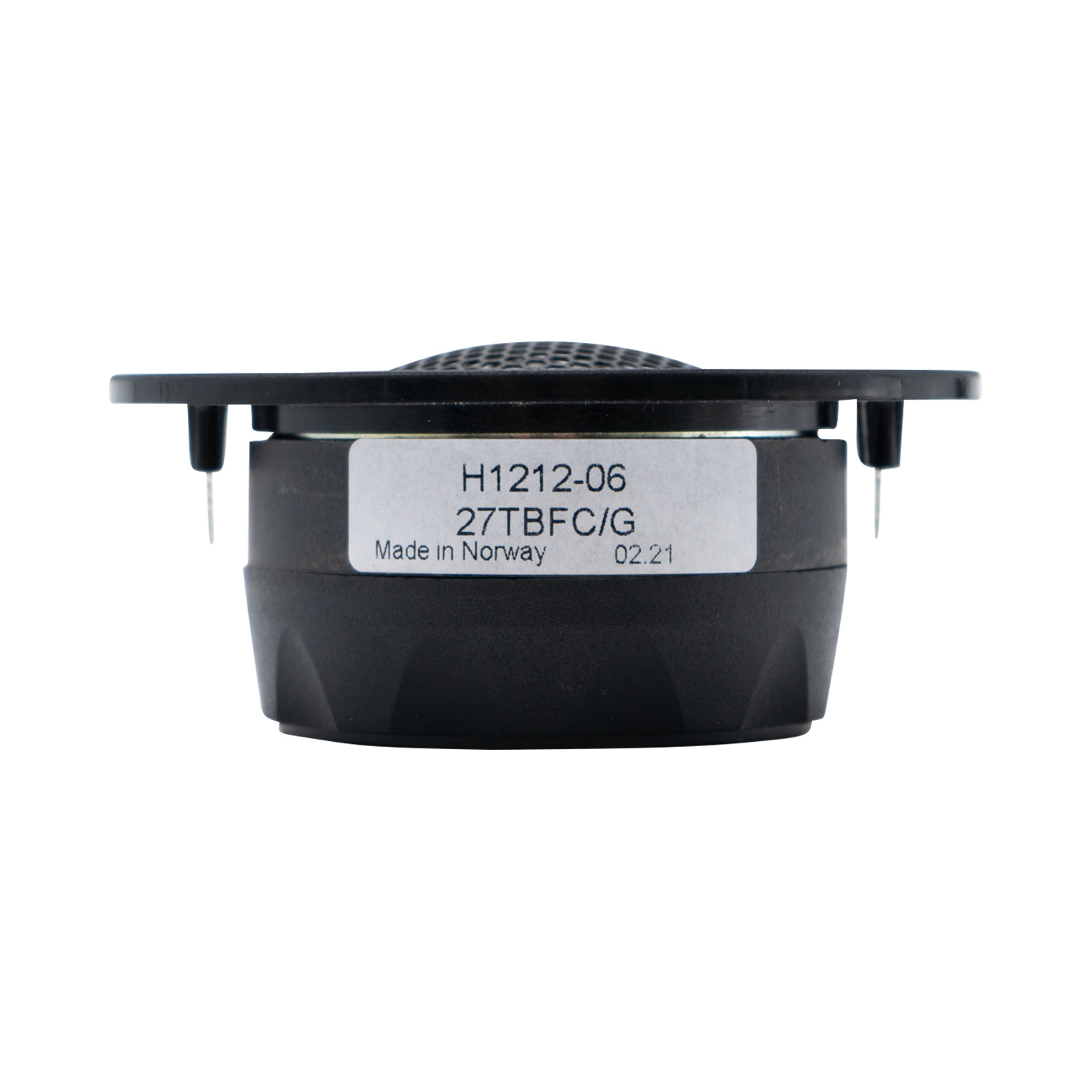

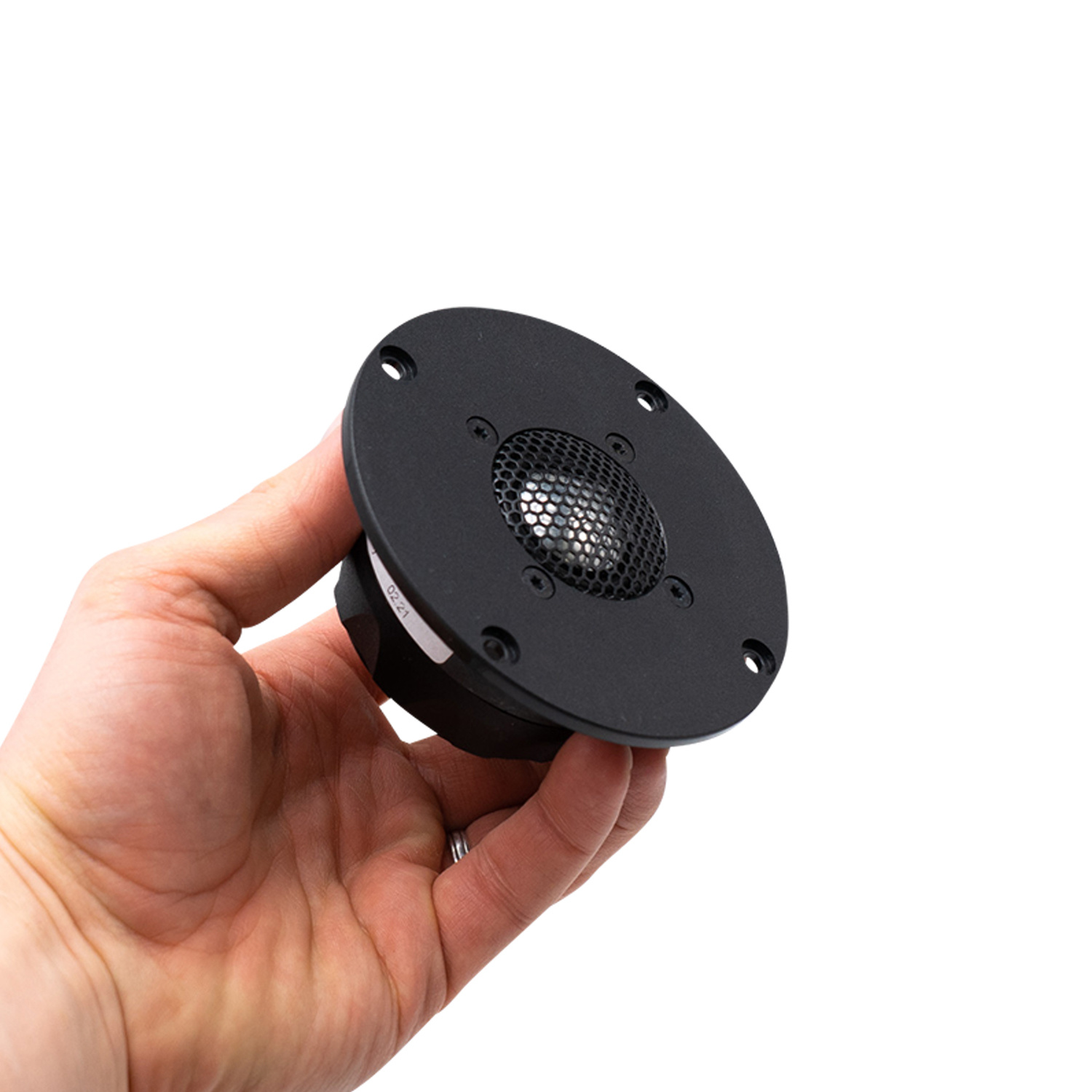

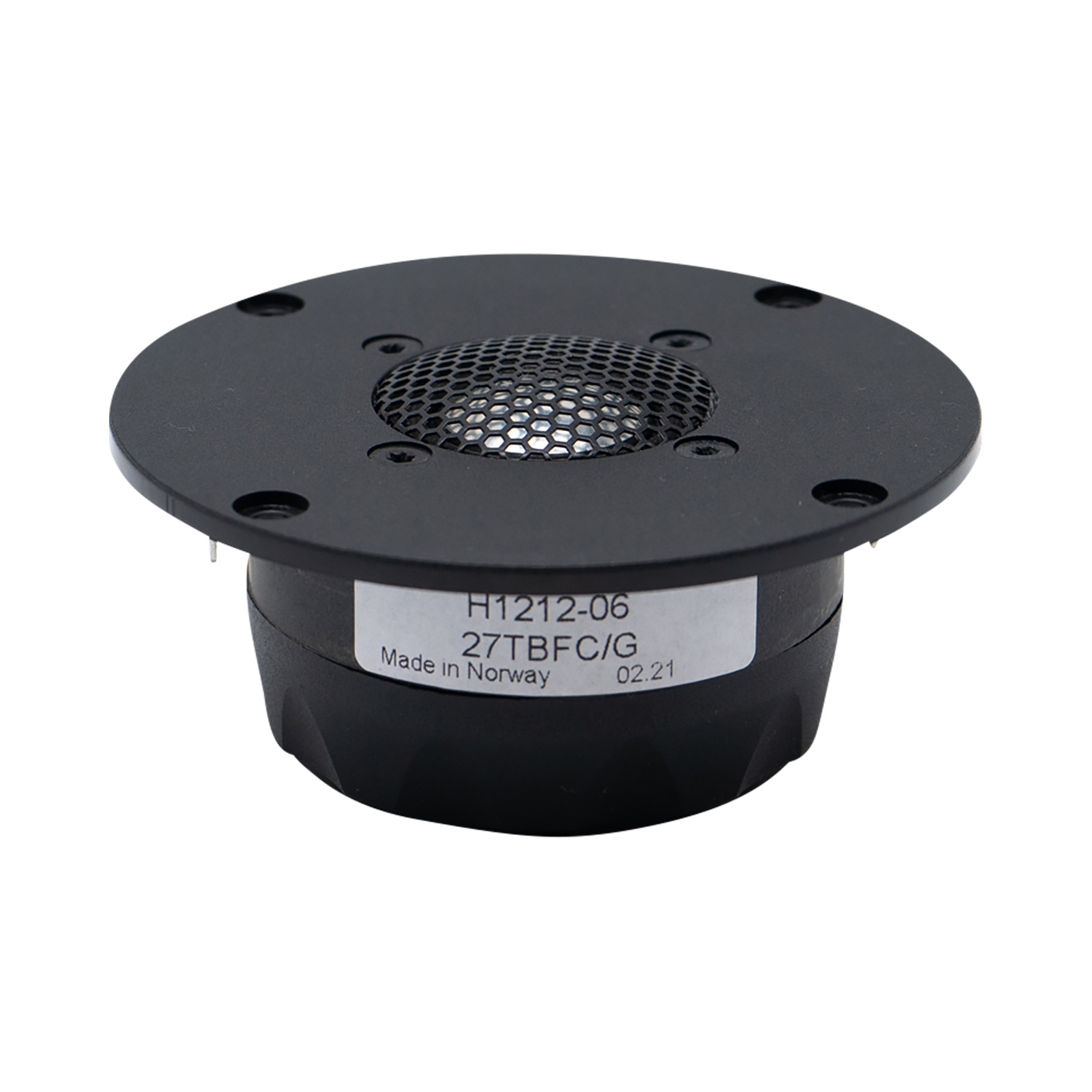

Seas Prestige 27TBFC/G - H1212-06 1'' Aluminum Dome Tweeter

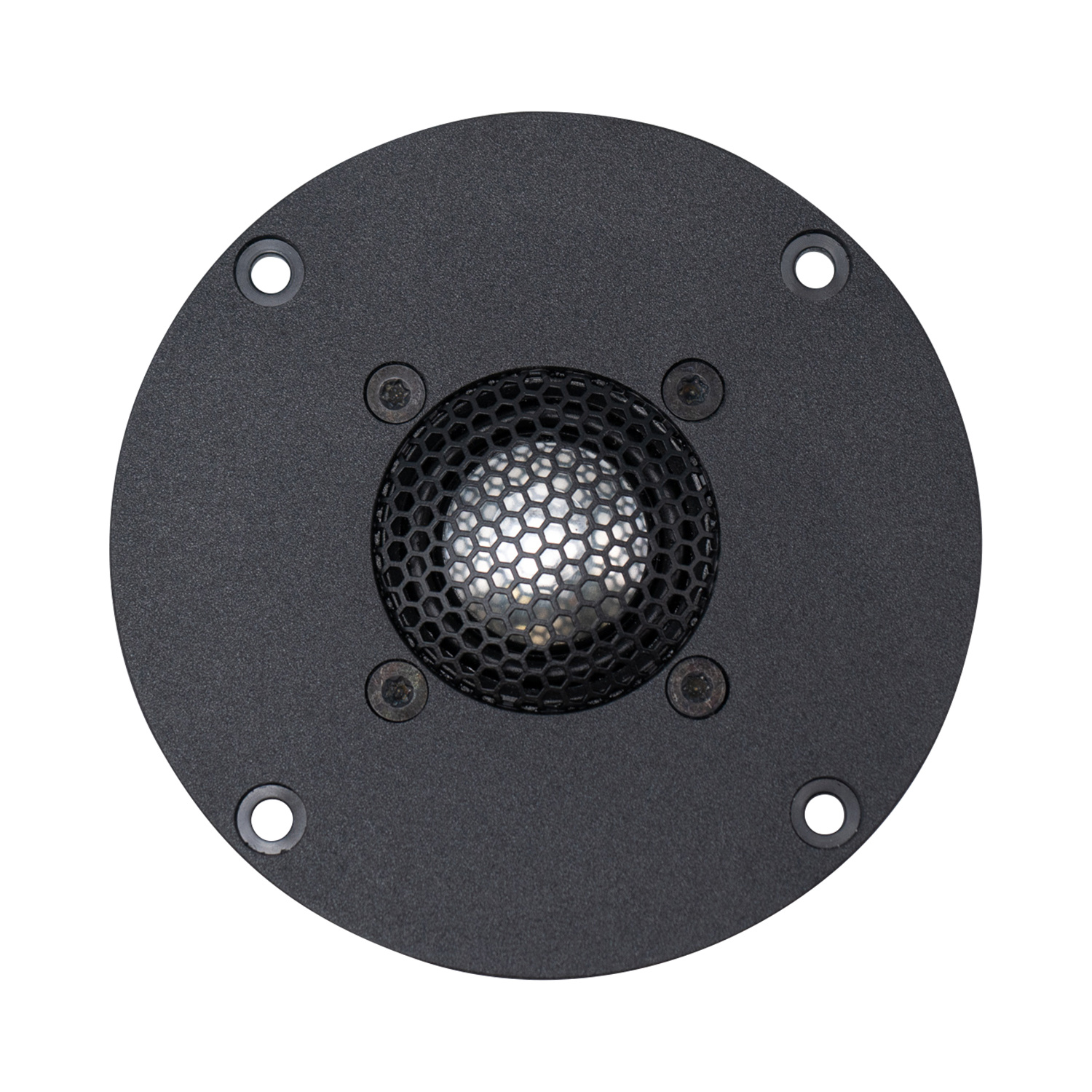

The 27TBFC/G is a High Definition metal dome tweeter with a wide, soft polymer surround and a rear chamber. Aluminum/magnesium alloy diaphragm with pistonic behavior throughout the audible frequency range, resulting in a good dispersion also above 10kHz. A Hexagrid protects the diaphragm and supports a phase plate which compensates for a slight axial roll off towards 20 kHz. Sonomax surround for low resonance and excellent mechanical linearity.

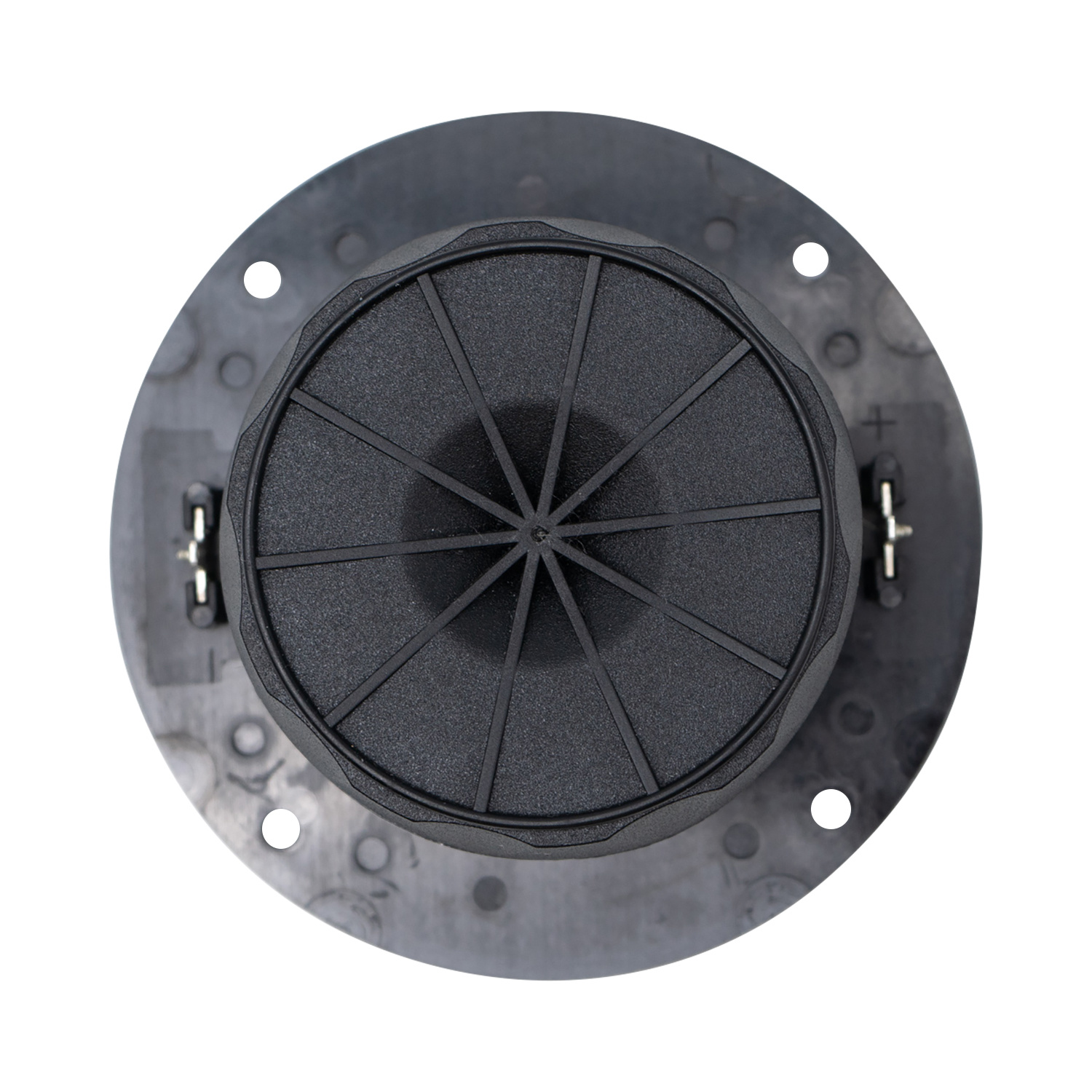

Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.

Precision molded chassis from glass fiber reinforced plastic, and its front design offers optimum radiation conditions.

Eigenschaften

Artikelnummer:: 27TBFC/G
Tweeter Type: Aluminum Dome
Cone / Dome Diameter: 1''
Power Handling (RMS): 90 Watts
Impedance: 6 ohms
Sensitivity: 91.5 dB 2.83V/1m
Frequency Response: 1,500 to 20,000 Hz
Resonant Frequency (Fs): 550 Hz
DC Resistance (Re): 4.8 ohms
Voice Coil Inductance (Le): 0.05 mH
Overall Outside Diameter: 4.09"
Cutout Diameter: 3.35"
Depth: 1.26"

Data sheet

Bewertungen

5 from 5Based on 5 reviews

Produkt bewerten

5 van 5

A set of HF drive units was purchased as part of an upgrade to Audio Physic Tempo loudspeakers. I am delighted with the results and quality which are a significant improvement on the original units, the response is smooth, detailed and articulate and power handling is improved by the use of ferro fluid. My order was handled in a friendly yet professional way, altogether a great post Brexit experience.

Durch Prof. M. J. H. on 19 März 2021

5 van 5

Koper heeft geen omschrijving achtergelaten.

Durch Tibo V. on 18 September 2020
