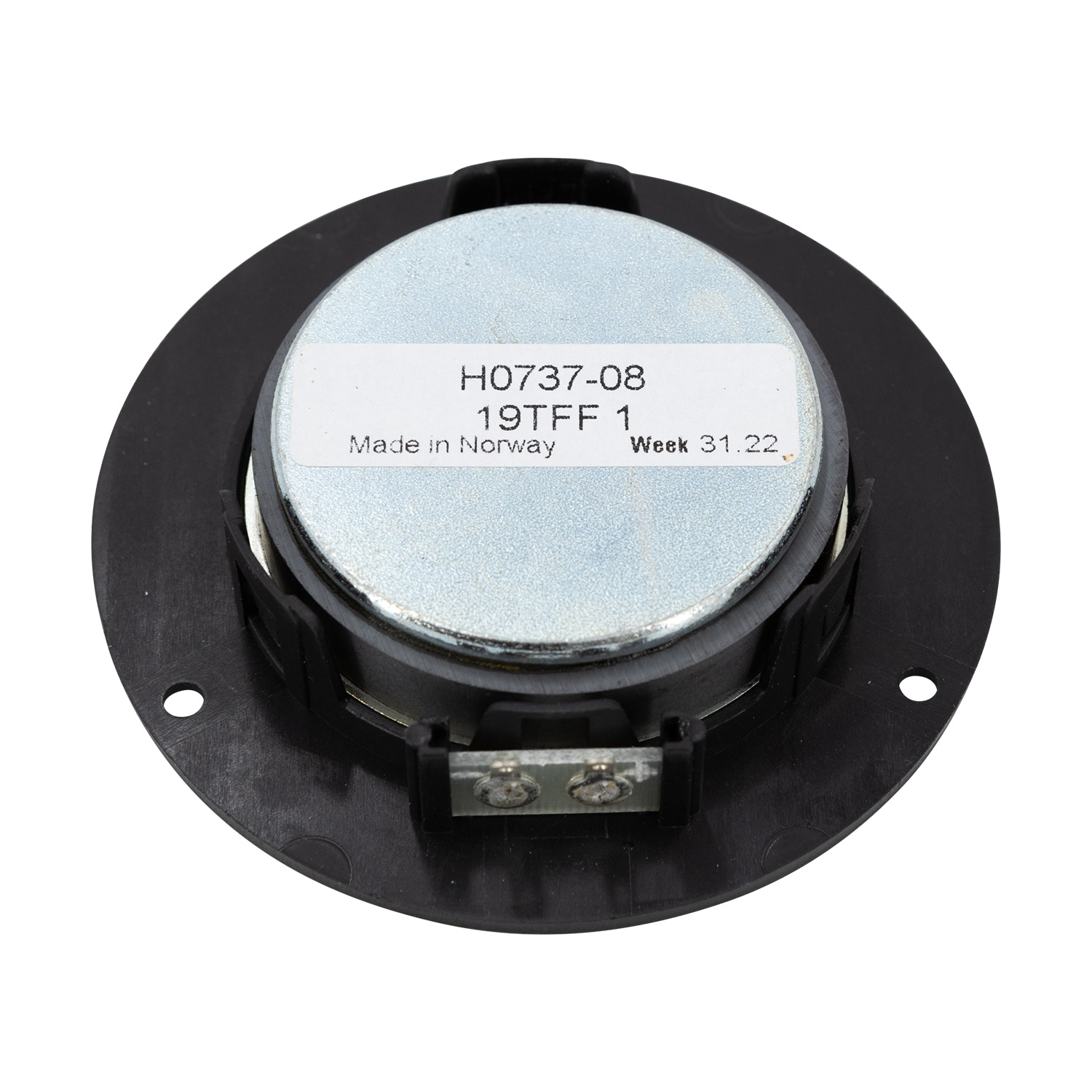

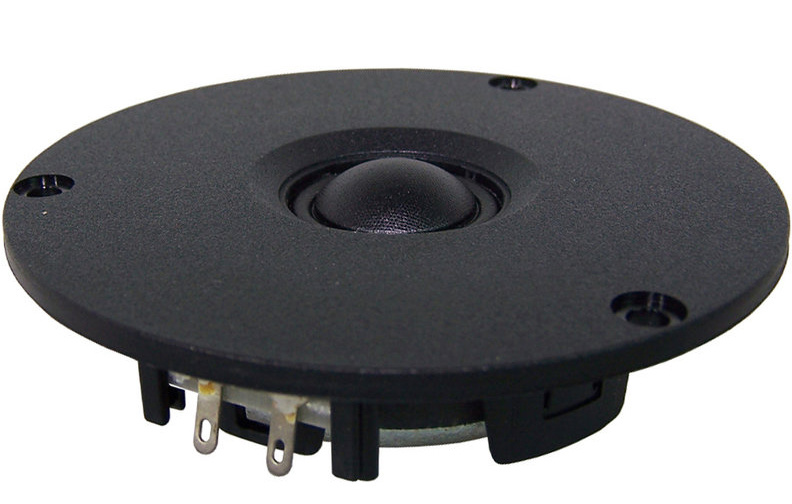

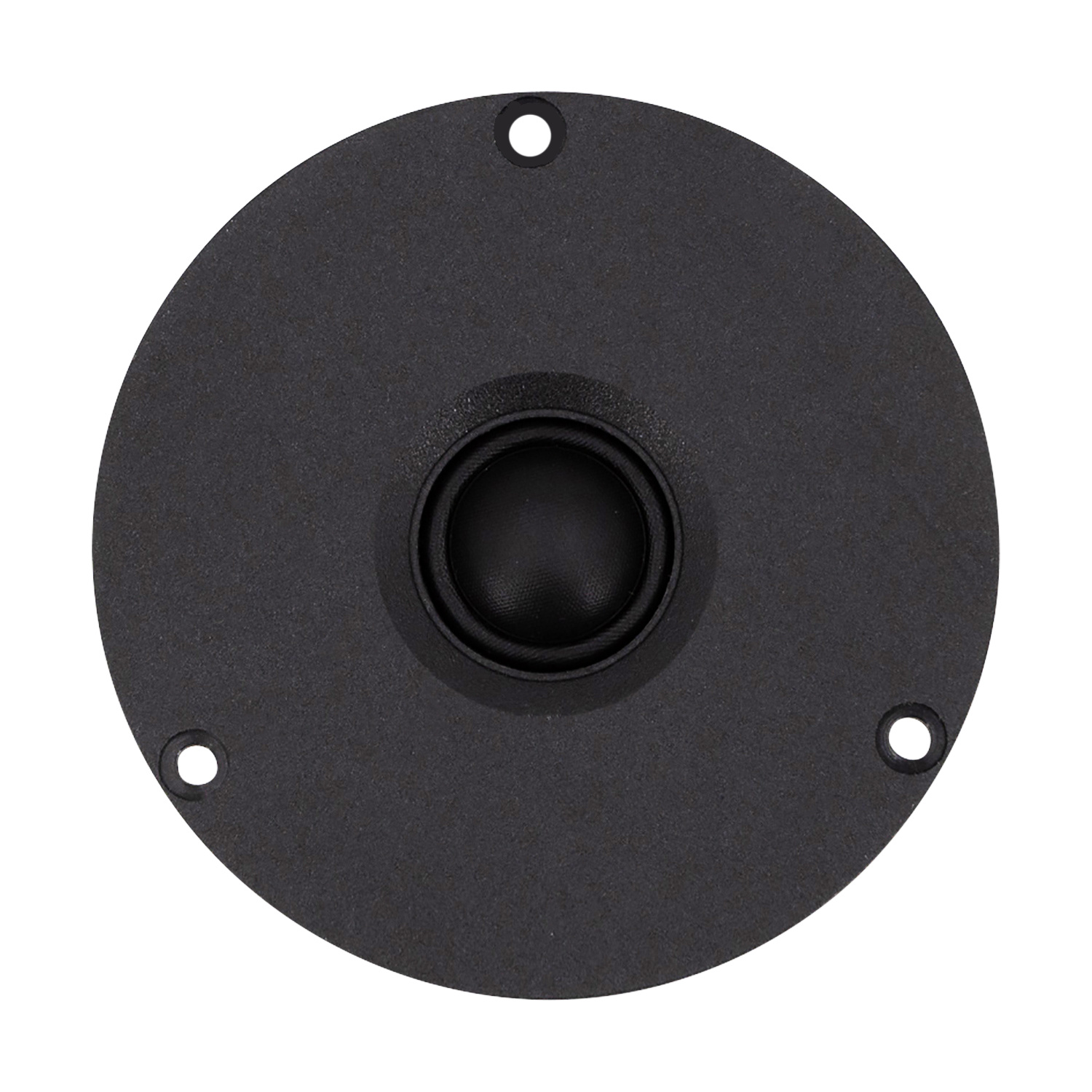

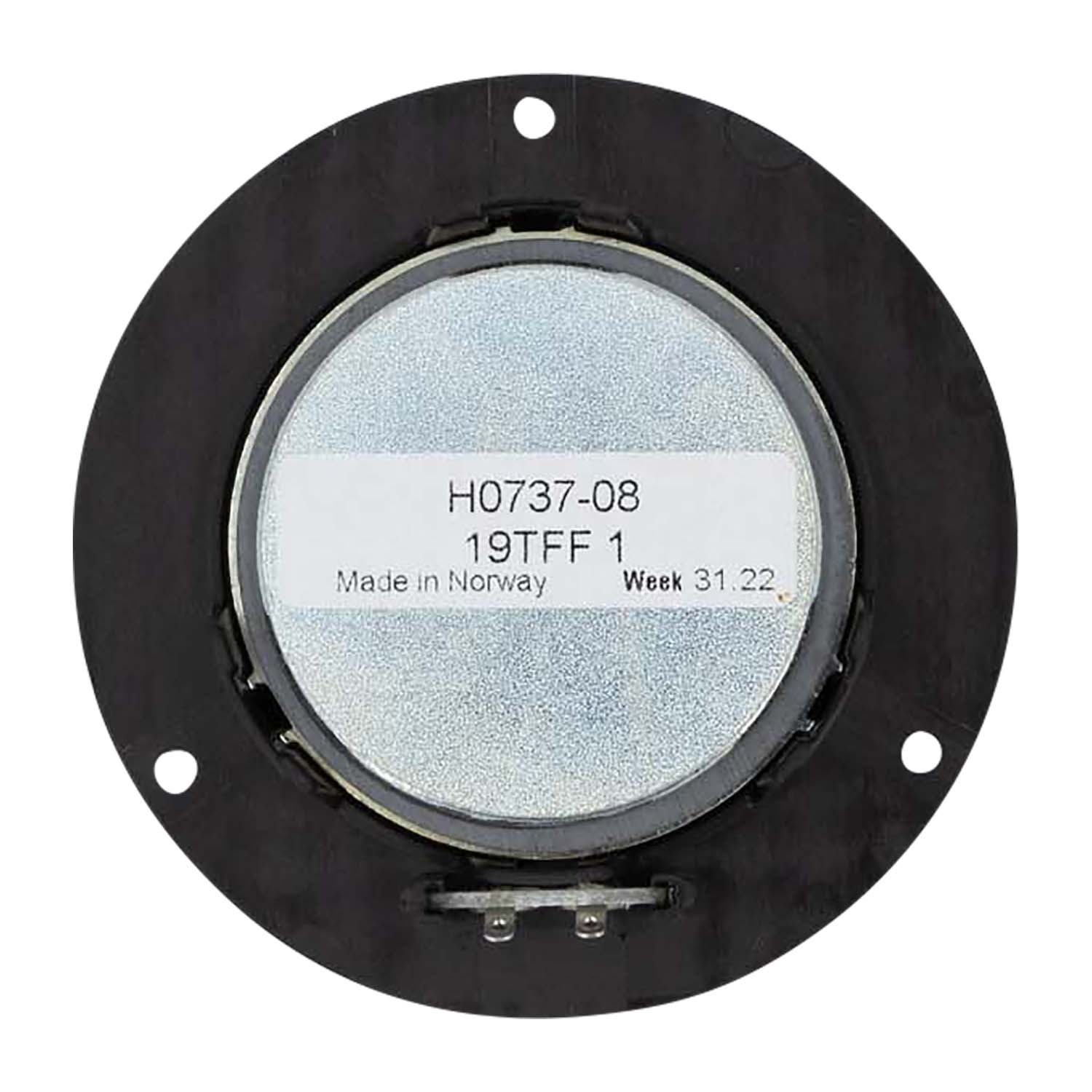

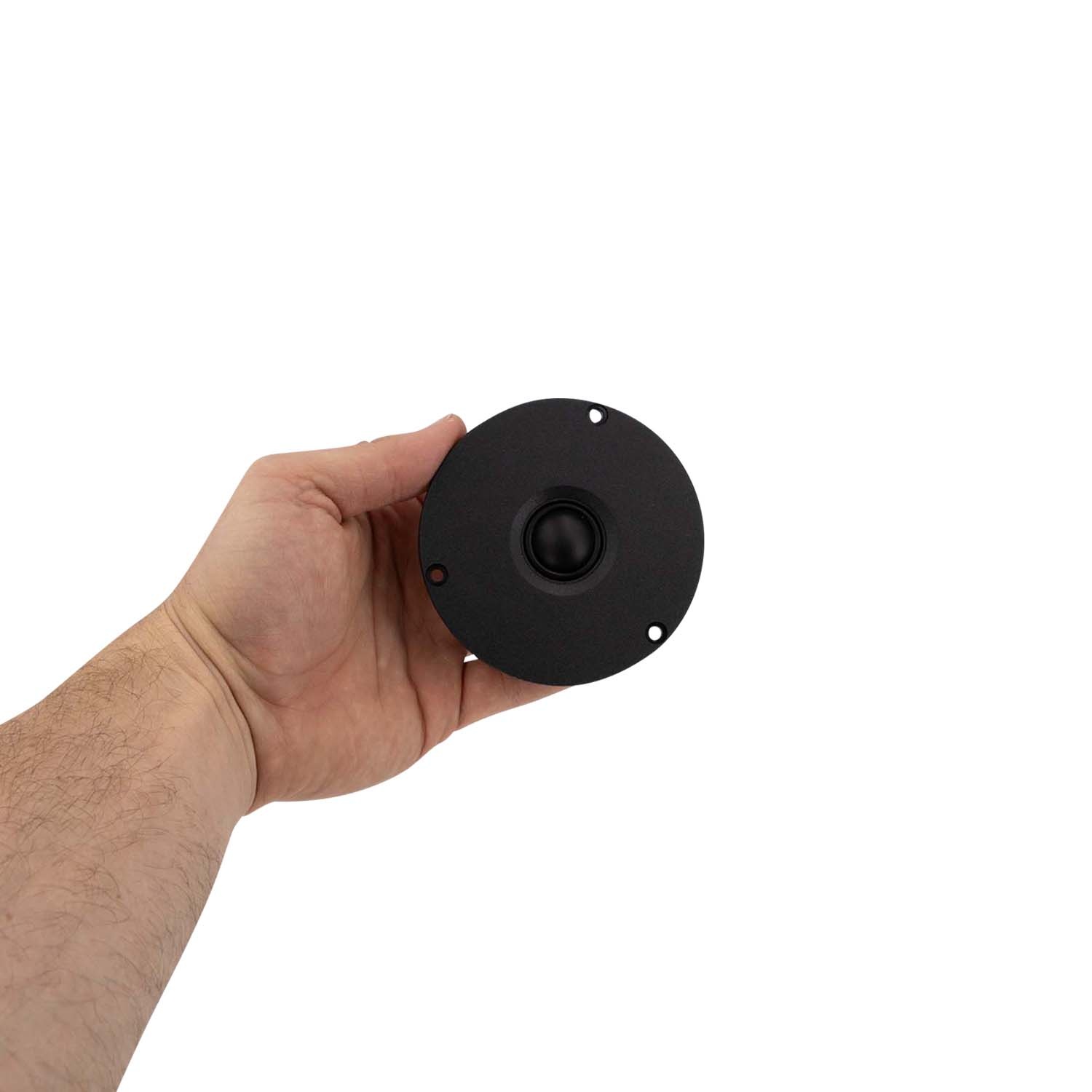

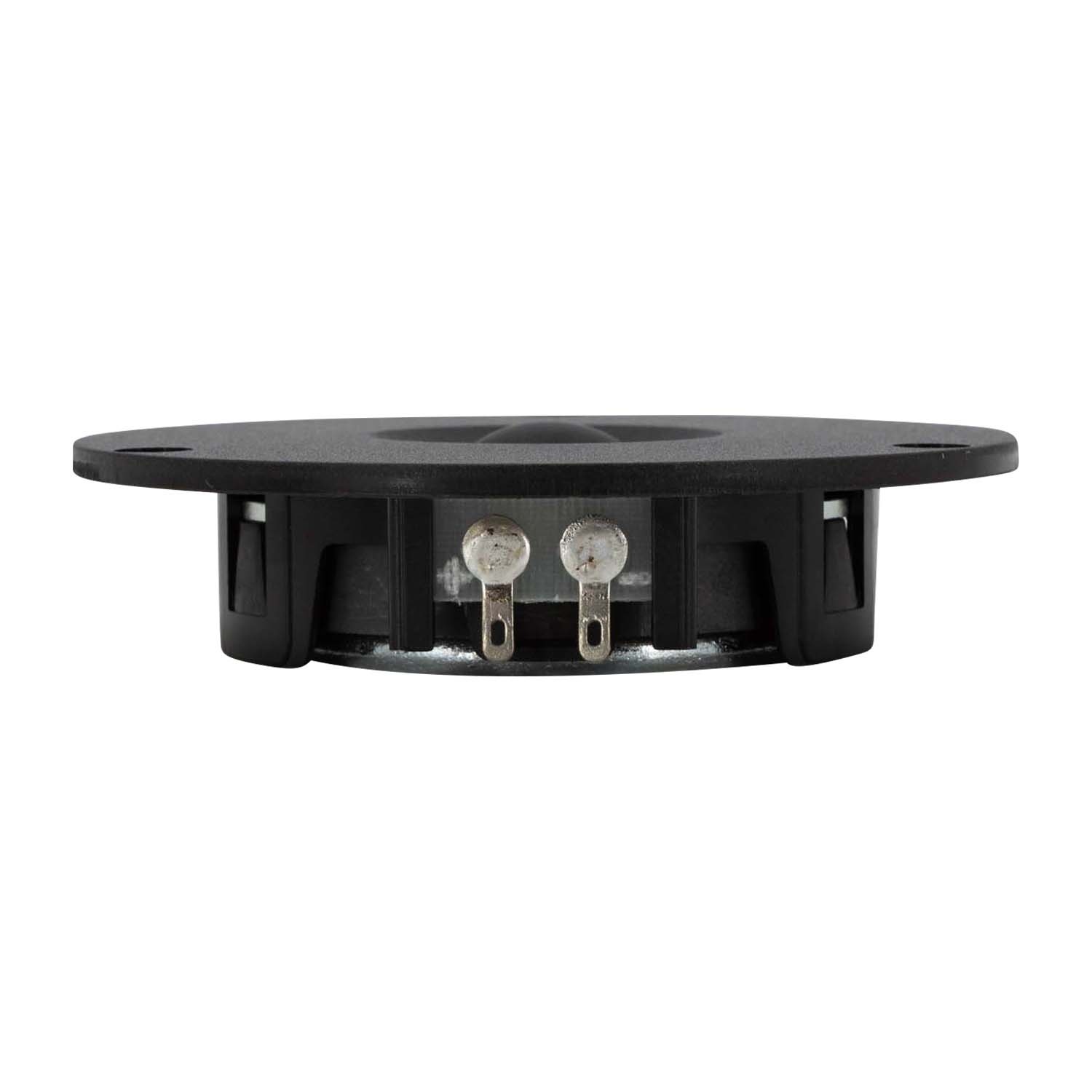

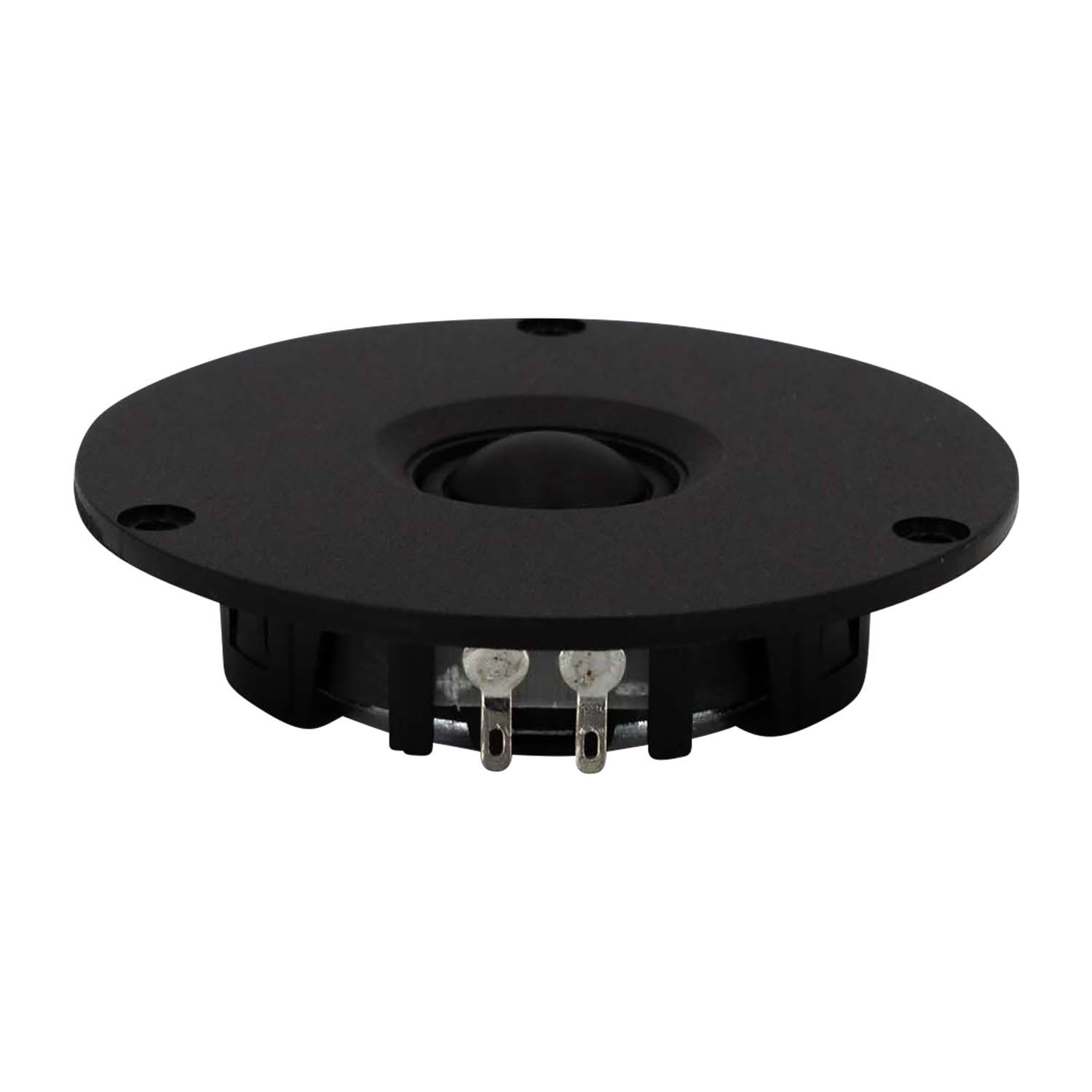

SEAS Prestige 19TFF1 - H0737 3/4" Textile Dome Tweeter

Marke: SEAS

Alle anzeigen Audio-Komponenten

Vergleichen

3/4" | 8 Ω

Prestige 19TFF1 - H0737 3/4" Textile Dome Tweeter

€ 32,45 Nicht auf Lager: Lieferzeit beträgt 1 Woche

Backorder

19mm High Fidelity dome tweeter with extremely smooth and extended frequency response. Precoated Sonotex fabric diaphragm and suspension allows for very tight production tolerances and high consistency.... Mehr anzeigen

Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Bezahlung mit PayPal, Kreditkarte und mehr
Hausinterner technischer Support

Produktbeschreibung

Highlights

Smooth, extended frequency response
Precoated Sonotex fabric diaphragm and suspension allows a fundamental frequency response of 4,000 to 20,000 Hz
90 Watts RMS Power Handling
88 dB 2.83V/1m Sensitivity

Product details

Seas Prestige 19TFF1 - H0737 3/4" Textile Dome Tweeter

Injection molded chassis in high grade glass fiber reinforced plastic keeps the moving parts in perfect alignment and provides good coupling to the cabinet. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels.

Eigenschaften

Artikelnummer:: 19TFF1
Tweeter Type: Dome
Tweeter Series: Prestige Series
Cone / Dome Diameter: 3/4"
Power Handling (max): 90 Watts
Impedance: 8 ohms
Sensitivity: 88 dB 2.83V/1m
Frequency Response: 4,000 to 20,000 Hz
Resonant Frequency (Fs): 1,700 Hz
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le): 0.05 mH
Overall Outside Diameter: 3.69"
Cutout Diameter: 2.62"
Depth: 0.83"

Data sheet

Bewertungen

5 from 5Based on 1 reviews

Produkt bewerten

5 van 5

This tweeter is great value for money. Not only the frequency response is smooth, but also the sound of it, with no sense of harshness.
I have bought a pair of these as replacements for the original ones in a set of Mission 761 speakers. Together with the HiVi D6.8B mid/woofer, they are a good match for my first DIY project of (re)building my own speakers. It would be great, if there were more info on the model, like the T/S parameters Qes, Qms and Vas.

Durch Allex on 17 April 2019
