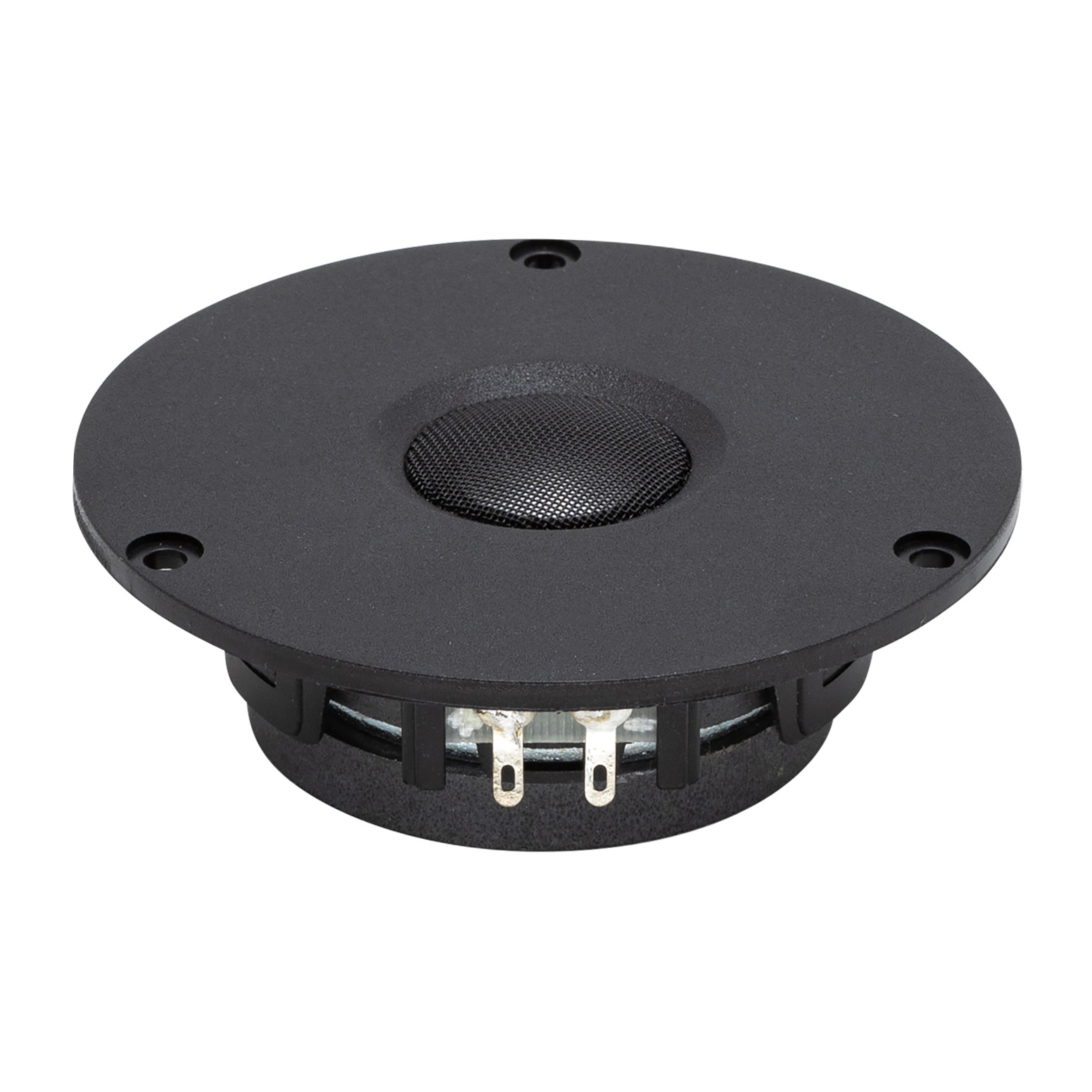

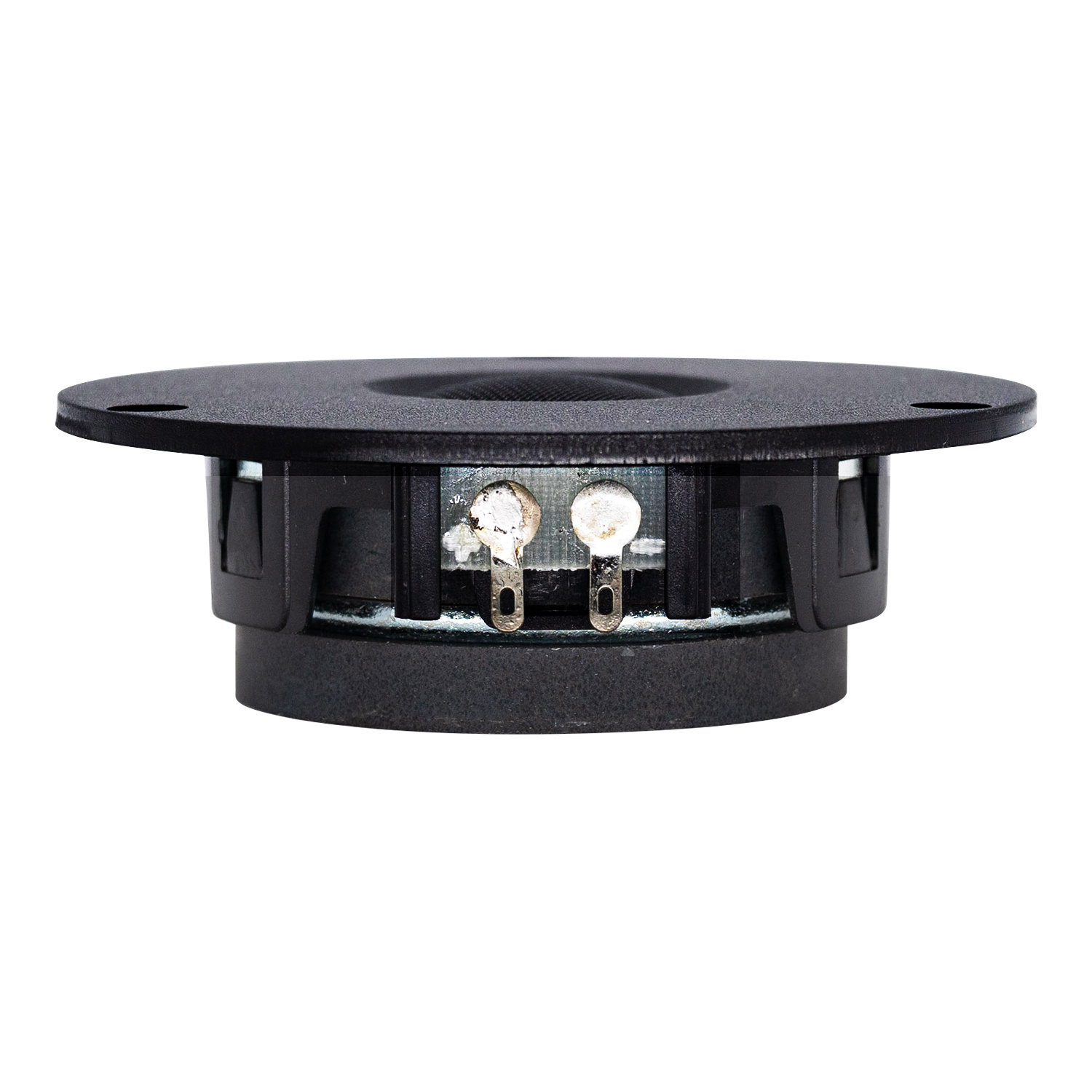

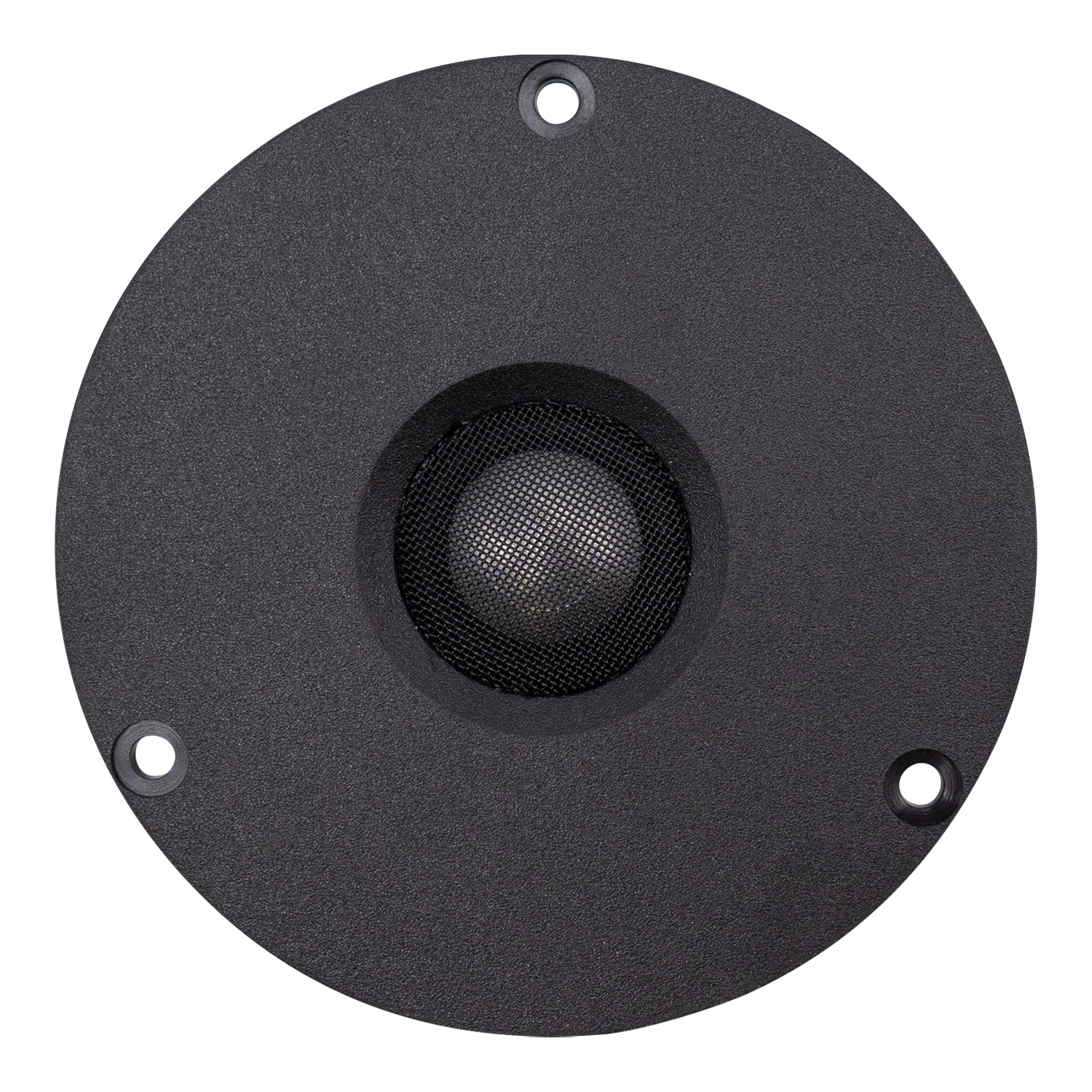

SEAS Prestige 19TAFD/G - H0532-8 3/4" Aluminum Dome Tweeter

Marke: SEAS

Alle anzeigen Audio-Komponenten

Vergleichen

3/4" | 8 Ω

Prestige 19TAFD/G - H0532-8 3/4" Aluminum Dome Tweeter

€ 39,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche

Backorder

19mm High Fidelity dome tweeter with smooth, extended frequencyresponse. Aluminum diaphragm suspended by a specially designed soft Sonotex surround
which allows a low fundamental frequency.... Mehr anzeigen

Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Bezahlung mit PayPal, Kreditkarte und mehr
Hausinterner technischer Support

Produktbeschreibung

Highlights

Smooth, extended frequency response.
Specially designed soft Sonotex surround which allows a low fundamental frequency (4,000 to 20,000 Hz)
90 Watts RMS Power Handling
88 dB 2.83V/1m Sensitivity

Product details
Seas Prestige 19TAFD/G - H0532-8 3/4" Aluminum Dome Tweeter

19mm High Fidelity dome tweeter with smooth, extended frequency response. Aluminum diaphragm suspended by a specially designed soft Sonotex surround which allows a low fundamental frequency.

Double magnet reduces stray fi elds around the magnet system and allows the unit to be used in close proximity to a CRT. The double magnet also gives a higher sensitivity. Fine mesh grid protects the diaphragm and carries a phase plate which compensates for a slight axial roll off towards 20 kHz.

Voice coil windings immersed in magnetic fl uid increase short term power handling capacity and reduce the compression at high power levels.

Eigenschaften

Artikelnummer:: 19TAFD/G
Tweeter Type: Aluminum Dome
Tweeter Series: Prestige Series
Cone / Dome Diameter: 3/4"
Power Handling (RMS): 90 Watts
Impedance: 8 ohms
Sensitivity: 88 dB 2.83V/1m
Frequency Response: 4,000 to 20,000 Hz
Resonant Frequency (Fs): 1,700 Hz
DC Resistance (Re): 6.20 ohms
Voice Coil Inductance (Le): 0.05 mH
Overall Outside Diameter: 3.69"
Cutout Diameter: 2.62"
Depth: 1.23"

Data sheet

Bewertungen

5 from 5Based on 8 reviews

Produkt bewerten

5 van 5

Precies wat opgegeven is
komt in mijn systeem goed tot zijn recht

Durch Peter G. on 9 Februar 2021

5 van 5

As expected, perfect for my Rogers LS6a

Durch Geir S. on 21 Januar 2021

5 van 5

Sounds exactly the same as the original once it’s run in which doesn’t take long.

Durch chris f. on 21 Oktober 2020

5 van 5

The tweeter is for my harbeth p3 replacement, the sound is the same as my old one

Durch Yap C. on 23 Juli 2020

5 van 5

No description was given

Durch Lasse L. on 23 Mai 2020

5 van 5

I have received this item on 27th March 2020. Great job! Thanks so much!

Durch Dang Viet D. on 31 März 2020

4 van 5

Good quality sound at a reasonable price. Used them for my Dali 7 speakers as replacement for the broken original double magnet tweeters. Works great for me.

Durch Soren M. on 22 April 2019

5 van 5

Surprice powerful Tweeter.

Durch Joni H. on 22 Januar 2019
