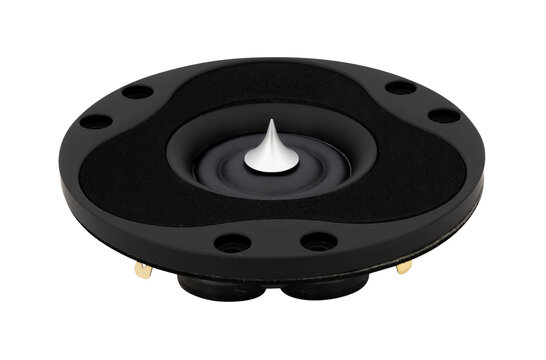

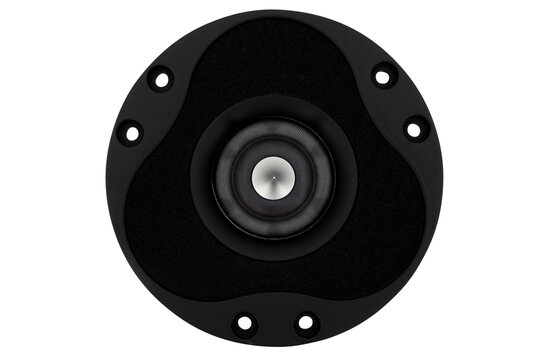

Scan-Speak Illuminator R3004/662000 1" Ring Radiator

€ 244,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The Illuminator tweeters continue with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in al... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €232,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • 1" Ring Dome Diaphragm
  • Patented Symmetrical Drive (SD-2) motor
  • Diffraction Damping Rubber Front
  • Patented Phase Plug Design
  • AirCirc Motor Design with 6 Neo magnets
  • Die Cast Rubber Painted Alu Face Plate



Product details

Scan-Speak Illuminator R3004/662000 1" Ring Radiator



The Illuminator tweeters continue with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.



The R3004 builds on the experience of the one-inch R29 ring radiator, resulting in low resonance frequency, superb vocal rendition and excellent imaging at all listening locations. Scan-speak’s unique AirCirc Magnet System -- named for the way it optimizes air flow within the chamber – rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise the performance of traditional motors.



Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

Eigenschaften

Artikelnummer:
R3004/662000
Tweeter Type
Ring Radiator
Tweeter Series
Illuminator Series
Cone / Dome Diameter
1"
Power Handling (RMS)
90 Watts
Power Handling (max)
150 Watts
Impedance
4 ohms
Sensitivity
90.4 dB 2.83V/1m
Resonant Frequency (Fs)
520 Hz
DC Resistance (Re)
3 ohms
Voice Coil Inductance (Le)
0.03 mH
Mechanical Q (Qms)
3.27
Electromagnetic Q (Qes)
0.56
Total Q (Qts)
0.48
