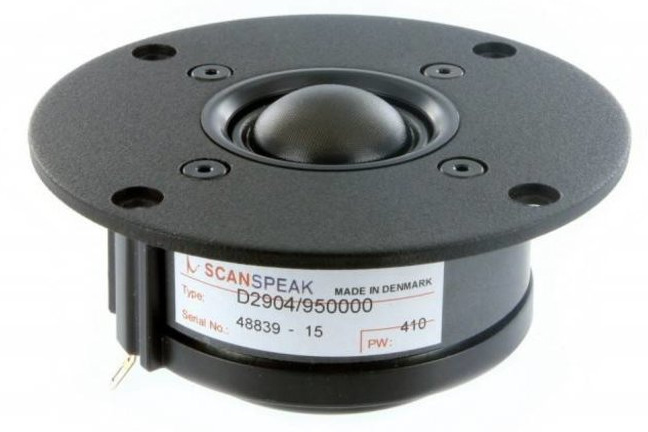

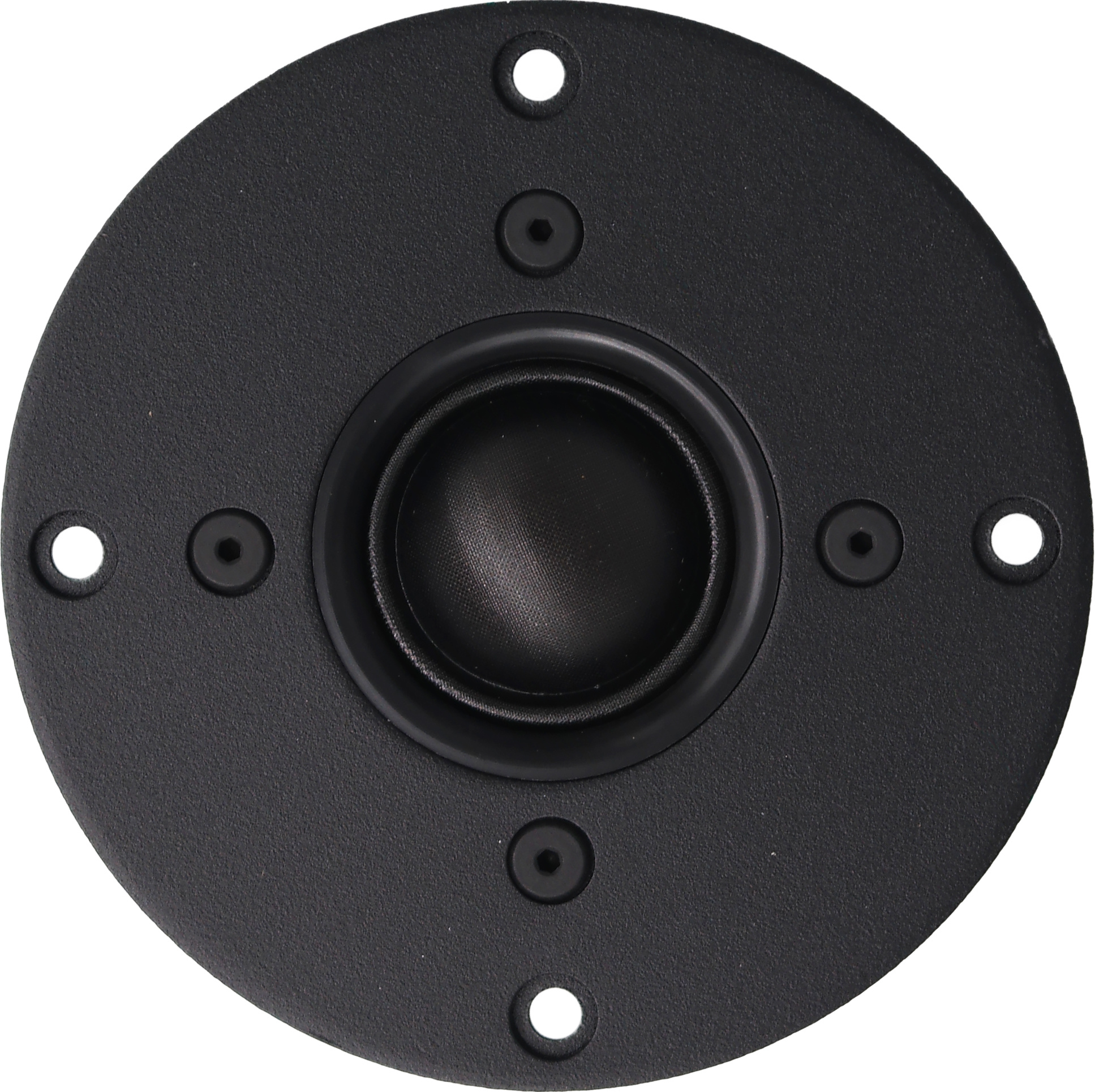

Scan-Speak Classic D2904/950000 1" Textile Dome Tweeter

Name: Scan-Speak Classic D2904/950000 1" Textile Dome Tweeter
Brand: Scan-Speak
Price: 128.45 EUR
Availability: InStock
Rating: 5 (1 reviews)

Marke: Scan-Speak

Alle anzeigen Audio-Komponenten

Vergleichen

1" | 4 Ω

Classic D2904/950000 1" Textile Dome Tweeter

€ 128,45 >10 Auf Lager: Lieferzeit 1-3 Werktage

The D2905/9000 tweeter kick started a new era with a line of very high quality 1" tweeters, today known as -9300, -9500, -9700 and 9800. Despite their many years on the market still used in many top High-End speakers around the world.... Mehr anzeigen

Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Bezahlung mit PayPal, Kreditkarte und mehr
Hausinterner technischer Support

Produktbeschreibung

Highlights

1" Textile Dome Diaphragm
Low Resonant Rear Chamber
4 ohm
Ferro Fluid
Black Painted Alu Face Plate

Product details

Scan-Speak Classic D2904/950000 1" Textile Dome Tweeter

The Classic tweeters are among the many highly praised designs in Classic series. They have enjoyed success over 3 decades. And still among the best tweeters available. The D2905/9000 tweeter kick started a new era with a line of very high quality 1" tweeters, today known as -9300, -9500, -9700 and 9800. Despite their many years on the market still used in many top High-End speakers around the world.

Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 3.2 Tm • Mechanical Compliance of Suspension (Cms): 0.19 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.1 mm • Surface Area of Cone (Sd): 9.5 cm²

Eigenschaften

Artikelnummer:: D2904/950000
Tweeter Type: Dome
Tweeter Series: Classic Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 150 Watts
Power Handling (max): 430 Watts
Impedance: 4 ohms
Sensitivity: 91 dB 2.83V/1m
Resonant Frequency (Fs): 550 Hz
DC Resistance (Re): 3.5 ohms
Voice Coil Inductance (Le): 0.05 mH
Mechanical Q (Qms): 1.47
Electromagnetic Q (Qes): 0.53
Total Q (Qts): 0.39

Data sheet

Bewertungen

5 from 5Based on 1 reviews

Produkt bewerten

5 van 5

Inmiddels heb ik de door u keurig op tijd geleverde scanspeak tweeters, de D2905 / 95000.0 Classic, in mijn Vivache2 boxen geplaatst en beluisterd. Het resultaat is verbluffend ! Zonder filteraanpassing blijkt dit de juiste vervanger voor de Vifa HT-275. Met deze vervanging behoort eindelijk het scherpe randje in t hoog tot t verleden. Het geheel klinkt nu prachtig en geplaatst en bijzonder helder. De al reeds vervangen condensatoren voor Mundorf EVO Alu Mcap's zullen zeer zeker ook hebben bijgedragen. Bij deze dank voor jullie meedenken en adviezen.

Durch Egbert M. on 4 September 2020
