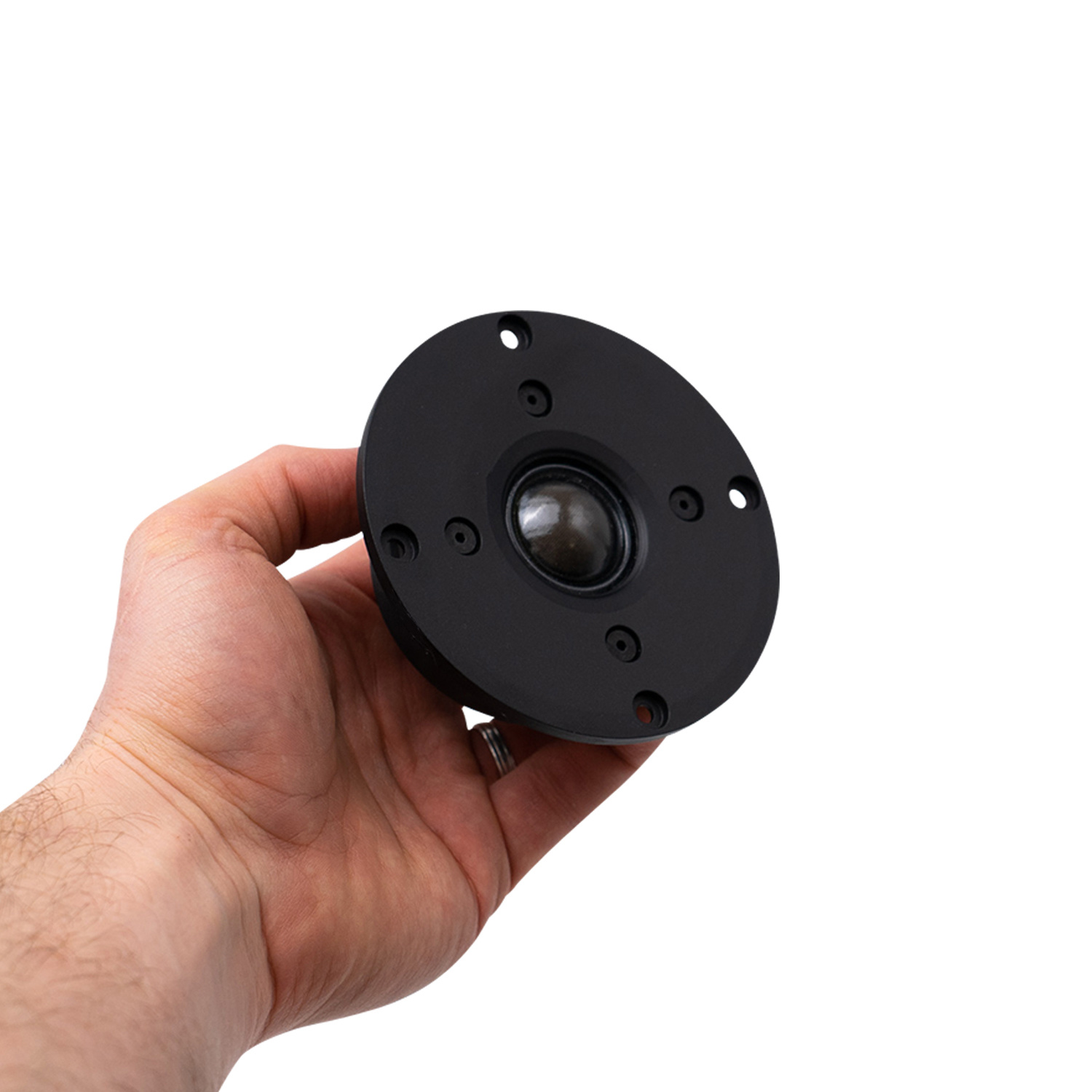

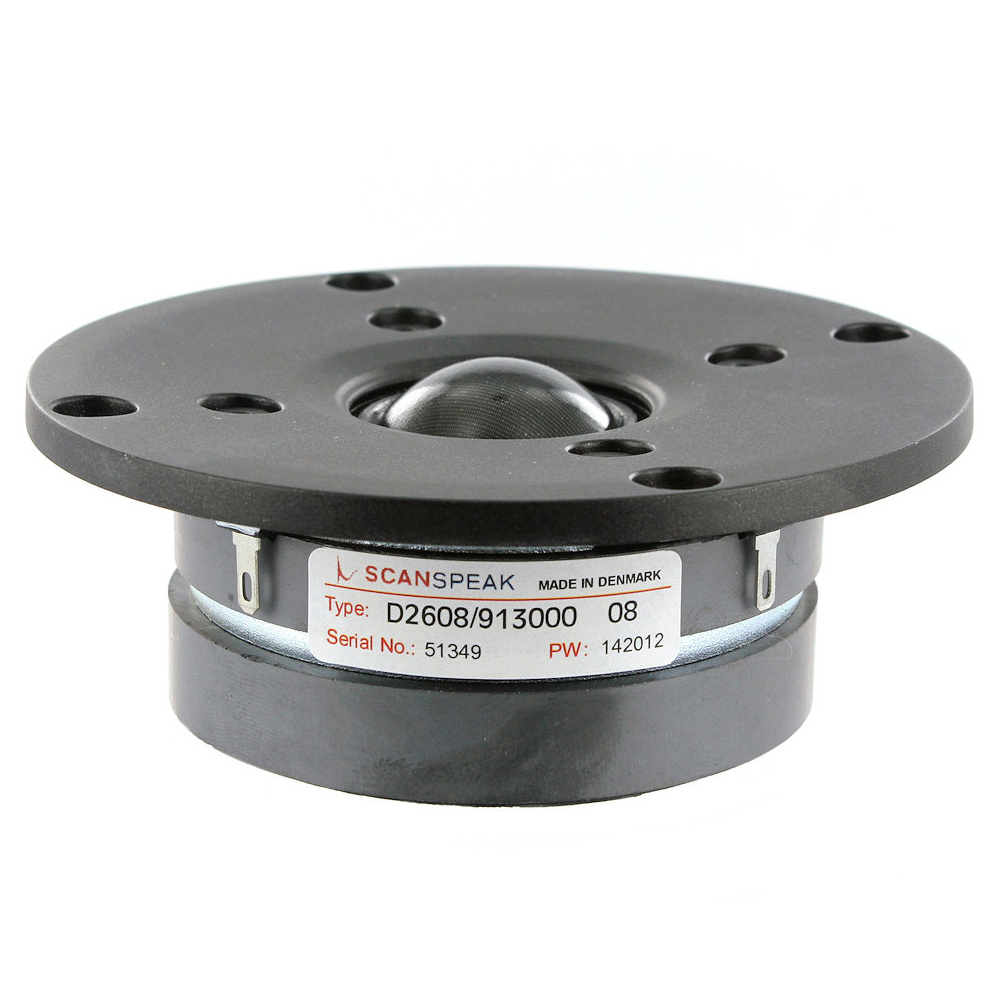

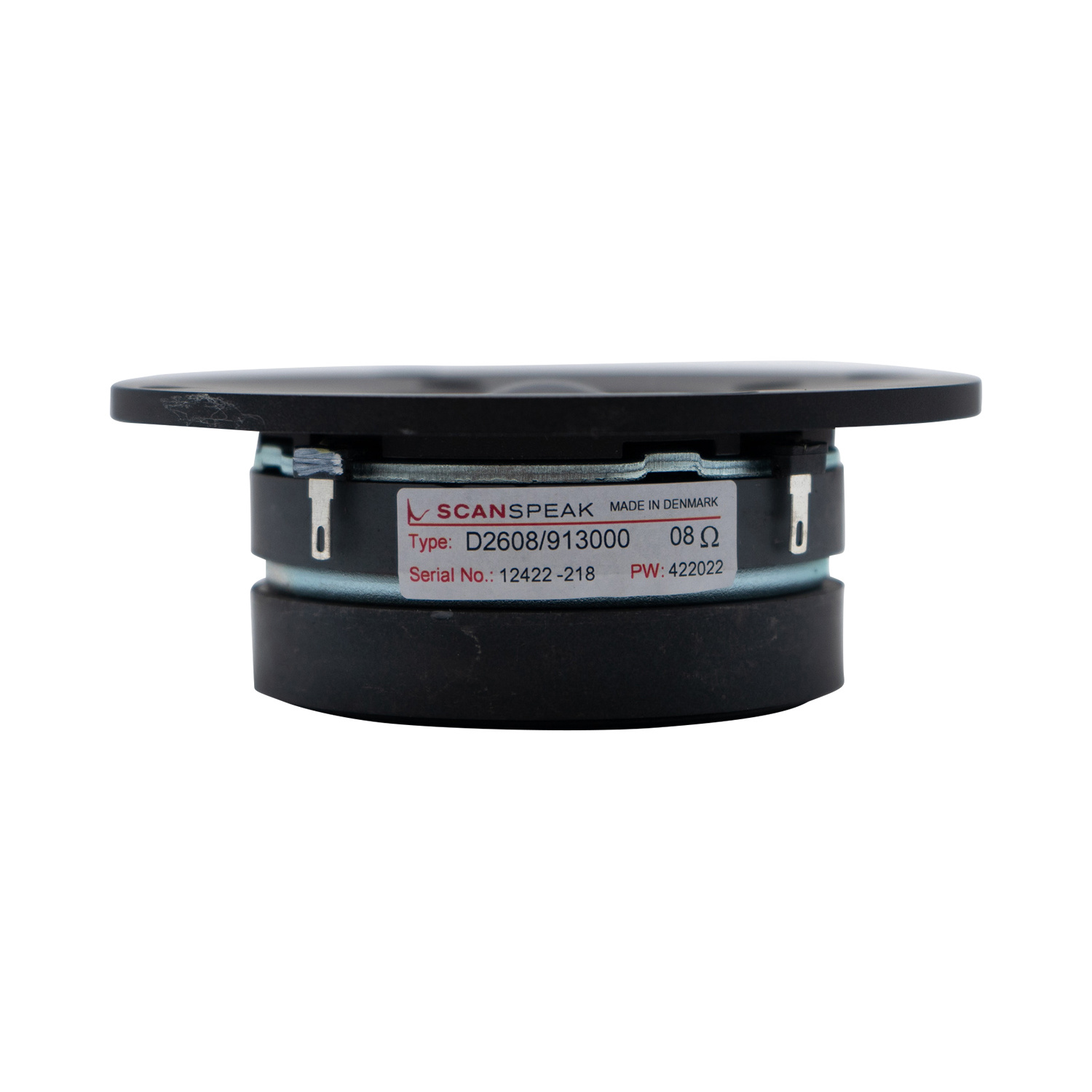

Scan-Speak Discovery D2608/913000 1" Textile Dome Tweeter

€ 72,25 4 Auf Lager: Lieferzeit 1-3 Werktage
The Discovery tweeter uses a very light, low mass “soft dome" with high internal damping, and a highly-optimized, low-compression magnet system, which was designed especially for the low mass dome. The result is a driver that has both good sensitivity and... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €68,64 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Very low mass textile soft dome diaphragm
  • Optimized magnet system with double magnet
  • Low damping magnetic fluid cooling
  • Fully Vented Motor System for Low compression
  • 8 ohm, positive terminal with white paint mark
  • Replaceable voice coil assembly
  • Black Die-Cast Aluminum Face Plate
  • Made in Denmark



Product details

Scan-Speak Discovery D2608/913000 1" Textile Dome Tweeter



The Discovery tweeter uses a very light, low mass “soft dome" with high internal damping, and a highly-optimized, low-compression magnet system, which was designed especially for the low mass dome. The result is a driver that has both good sensitivity and an impressive range into the lower frequencies. The low mass dome, coupled with a fully vented motor system provides non-compressed sound reproduction over the entire frequency response. This combination allows the Discovery tweeter to be used in systems with lower cross-over points than is recommended for most normal tweeters, making this product a powerful tool for any acoustic designer in the process of tuning a system.



Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.6 Tm • Mechanical Compliance of Suspension (Cms): 0.29 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.18 g • Maximum Linear Excursion (Xmax): 0.5 mm • Surface Area of Cone (Sd): 7 cm2

Eigenschaften

Artikelnummer:
D2608/913000
Tweeter Type
Dome
Tweeter Series
Discovery Series
Cone / Dome Diameter
1"
Power Handling (RMS)
80 Watts
Power Handling (max)
400 Watts
Impedance
8 ohms
Sensitivity
91.3 dB 2.83V/1m
Resonant Frequency (Fs)
700 Hz
DC Resistance (Re)
5.6 ohms
Voice Coil Inductance (Le)
0.04 mH
Mechanical Q (Qms)
0.51
Electromagnetic Q (Qes)
0.65
Total Q (Qts)
0.29
