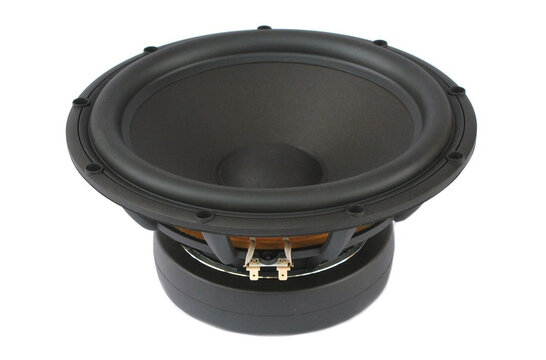

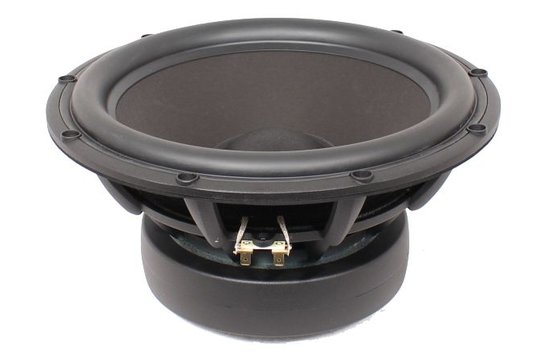

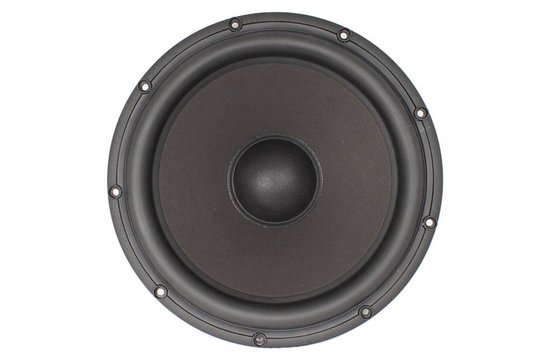

Scan-Speak 32W/4878T00 Revelator 13" Subwoofer

€ 471,03€ 569,95 1 Auf Lager: Lieferzeit 1-3 Werktage
The 32W/4878T00 is the most powerful subwoofer designed by Scan-speak to this date, with its large 3” voice coil, extreme linear excursion and low resonance frequency, it is perfect to reproduce the deepest frequencies. It features a brand new type of pap... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €541,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The 32W/4878T00 is the most powerful subwoofer designed by Scan-speak to this date!

Highlights

  • Paper sandwich cone with Patented foam filling
  • Patented Symmetrical Drive motor
  • Spider with balanced woven in tinsel leads
  • Extreme linear excursion (+/-14 mm)
  • 3” Voice coil, Titanium former and paper reinforced
  • Stiff and strong die cast aluminium chassis



Product details

The 32W/4878T00 is the most powerful subwoofer designed by Scan-speak to this date, with its large 3” voice coil, extreme linear excursion and low resonance frequency, it is perfect to reproduce the deepest frequencies. It features a brand new type of paper-sandwich cone with a special foam filling technology (patented) that gives the cone very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.

Eigenschaften

Artikelnummer:
32W/4878T00
Woofer Series
Revelator Series
Woofer Type
Subwoofer
Nominal Diameter
13"
Power Handling (RMS)
350 Watts
Power Handling (max)
550 Watts
Impedance
4 ohms
Sensitivity
90 dB 2.83V/1m
Frequency Response
20 to 150 Hz
Voice Coil Diameter
3"
DC Resistance (Re)
3.1 ohms
Resonant Frequency (Fs)
18 Hz
Mechanical Q (Qms)
7
Electromagnetic Q (Qes)
0.33
Total Q (Qts)
0.32
Diaphragm Mass Inc. Airload (Mms)
150 g
Mechanical Compliance of Suspension (Cms)
0.52 mm/N
Surface Area of Cone (Sd)
531 cm²
BL Product (BL)
12.5 Tm
Compliance Equivalent Volume (Vas)
207.5 L
Maximum Linear Excursion (Xmax)
14 mm
Cone / Diaphragm Material
Paper
Basket / Frame Material
Die cast aluminum
Magnet Material
Ferrite
Overall Outside Diameter
12.6"
Overall Depth
5.97"
Baffle Cutout Diameter
11.42"
# Mounting Holes
4
Sealed Volume
1.5 ft.³
Sealed F3
45 Hz
Vented Volume
3.5 ft.³
Vented F3
26 Hz
