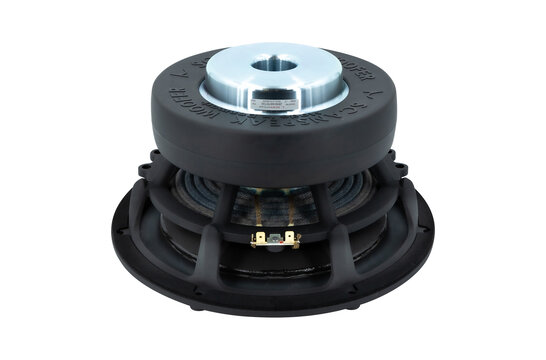

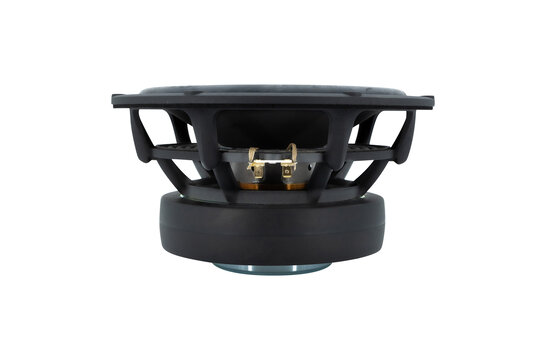

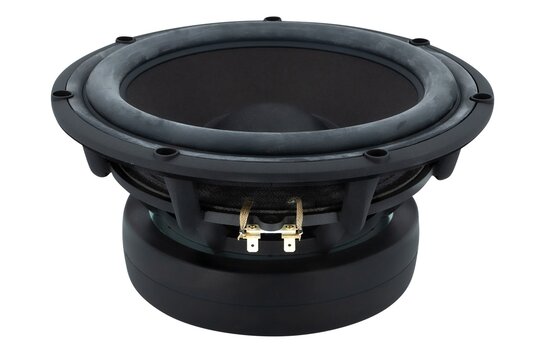

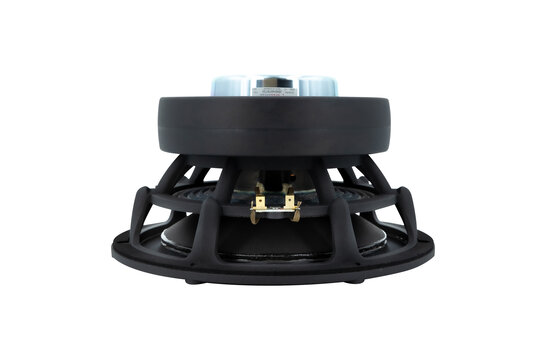

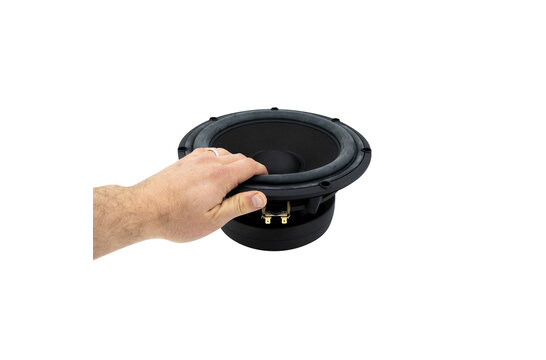

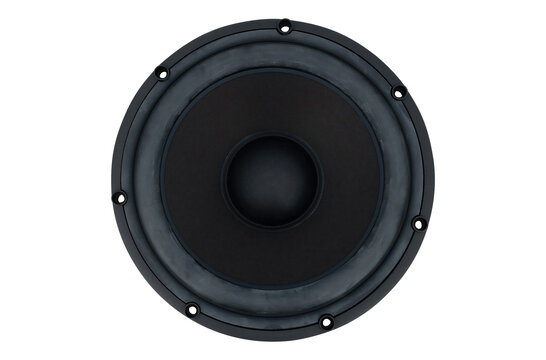

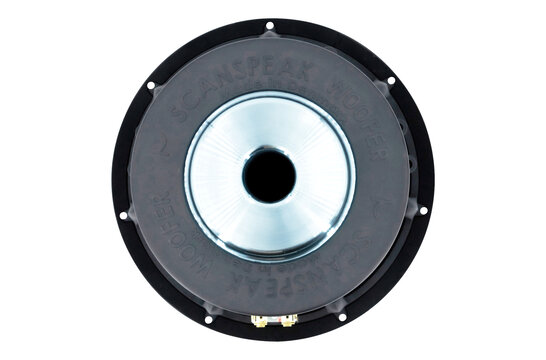

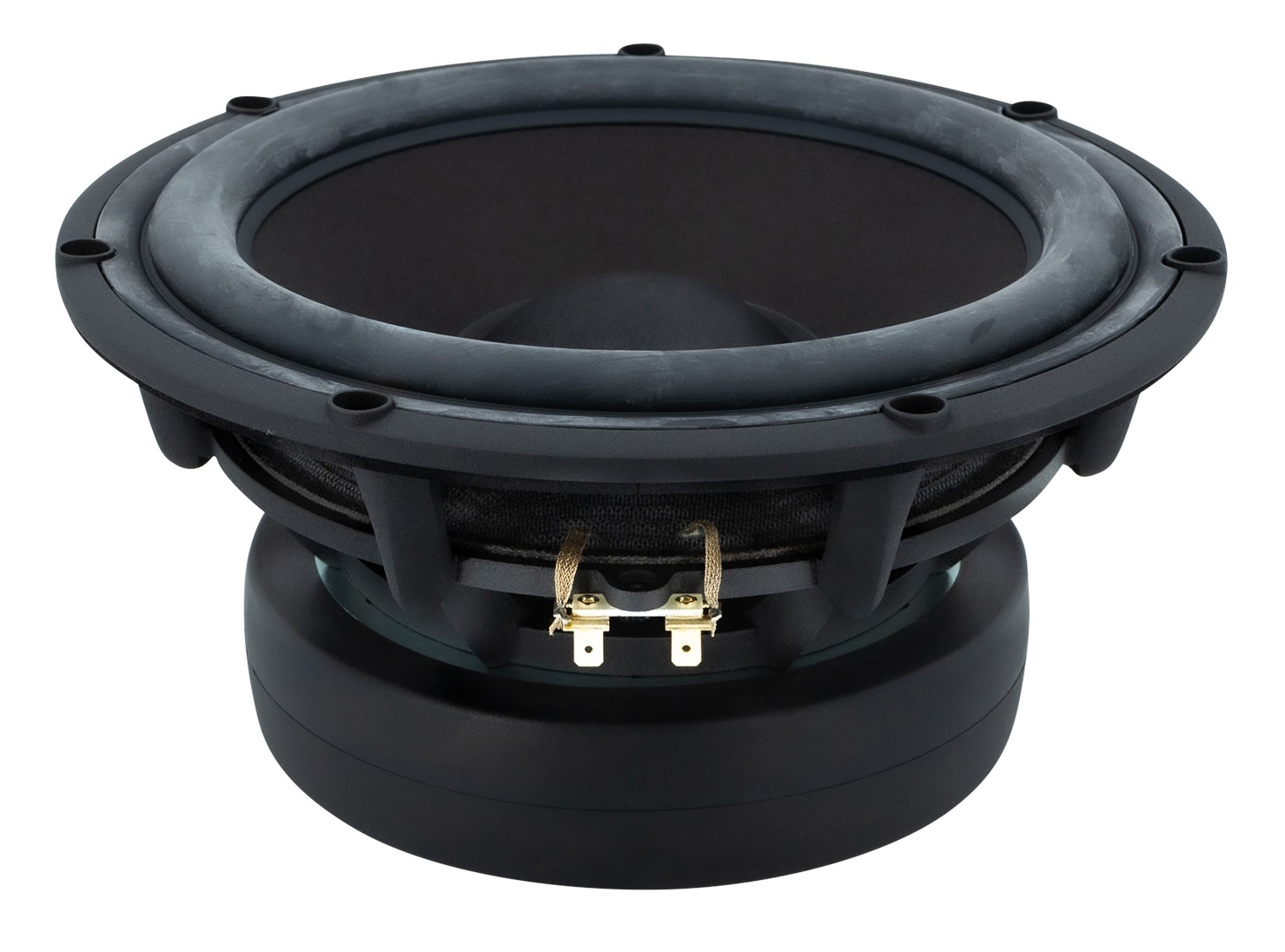

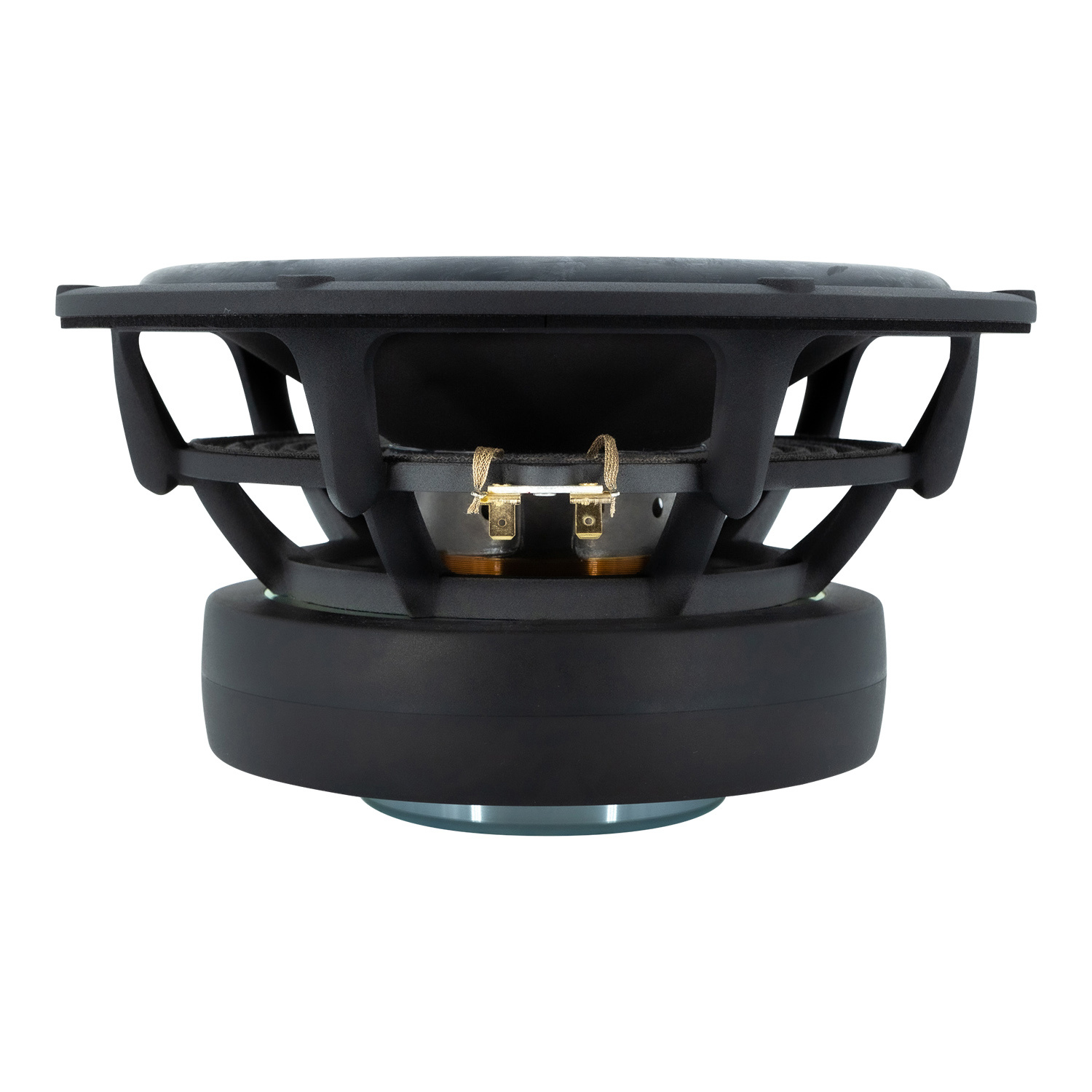

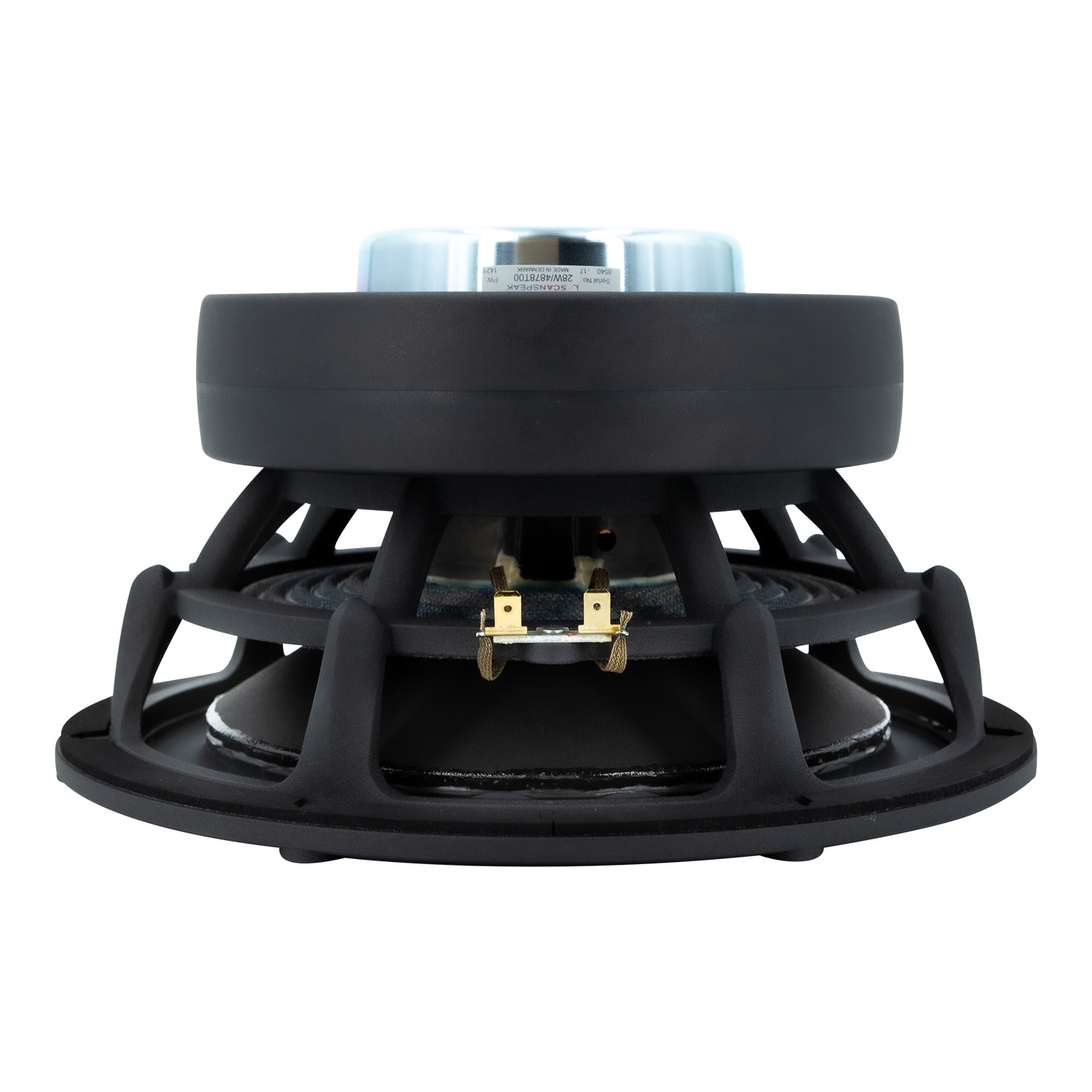

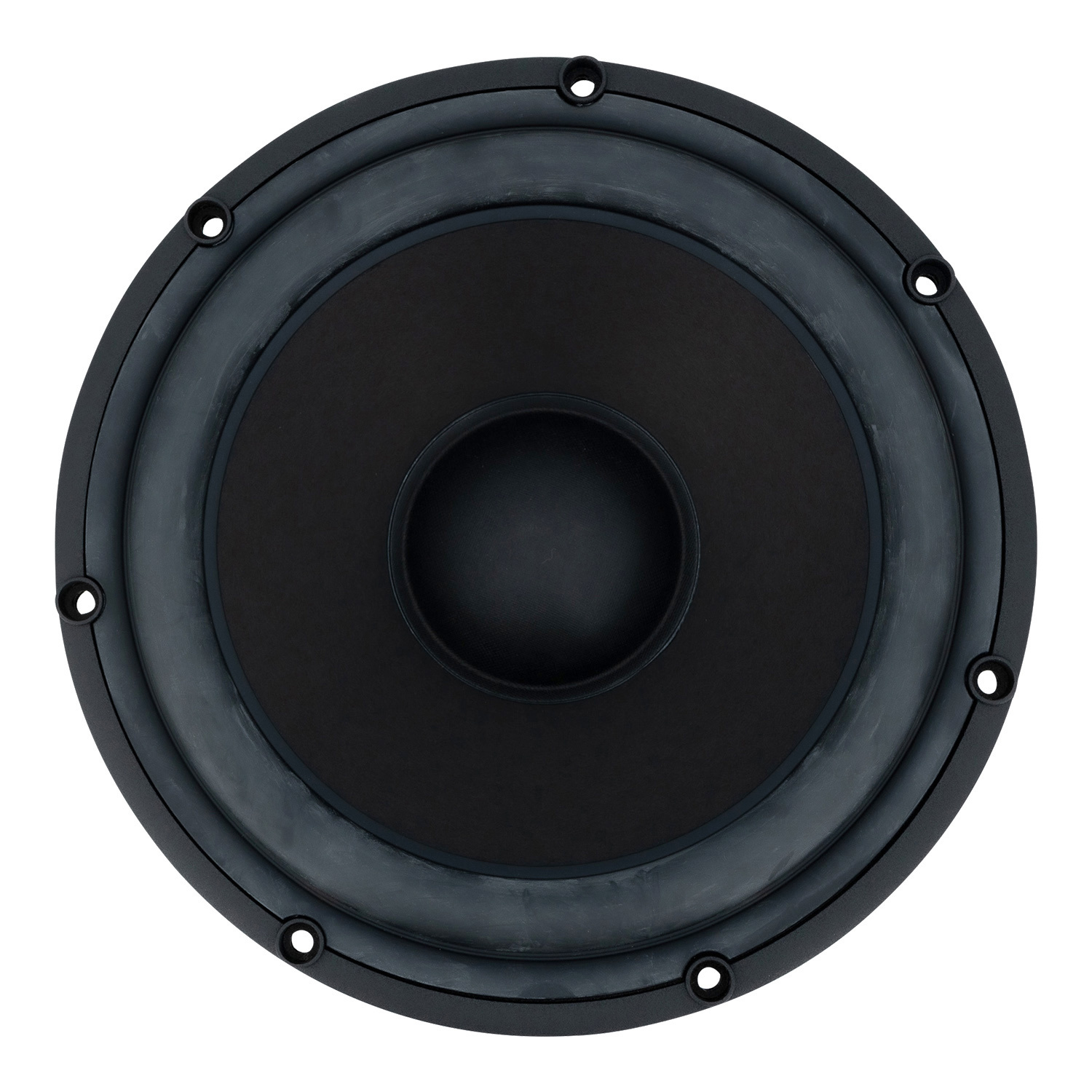

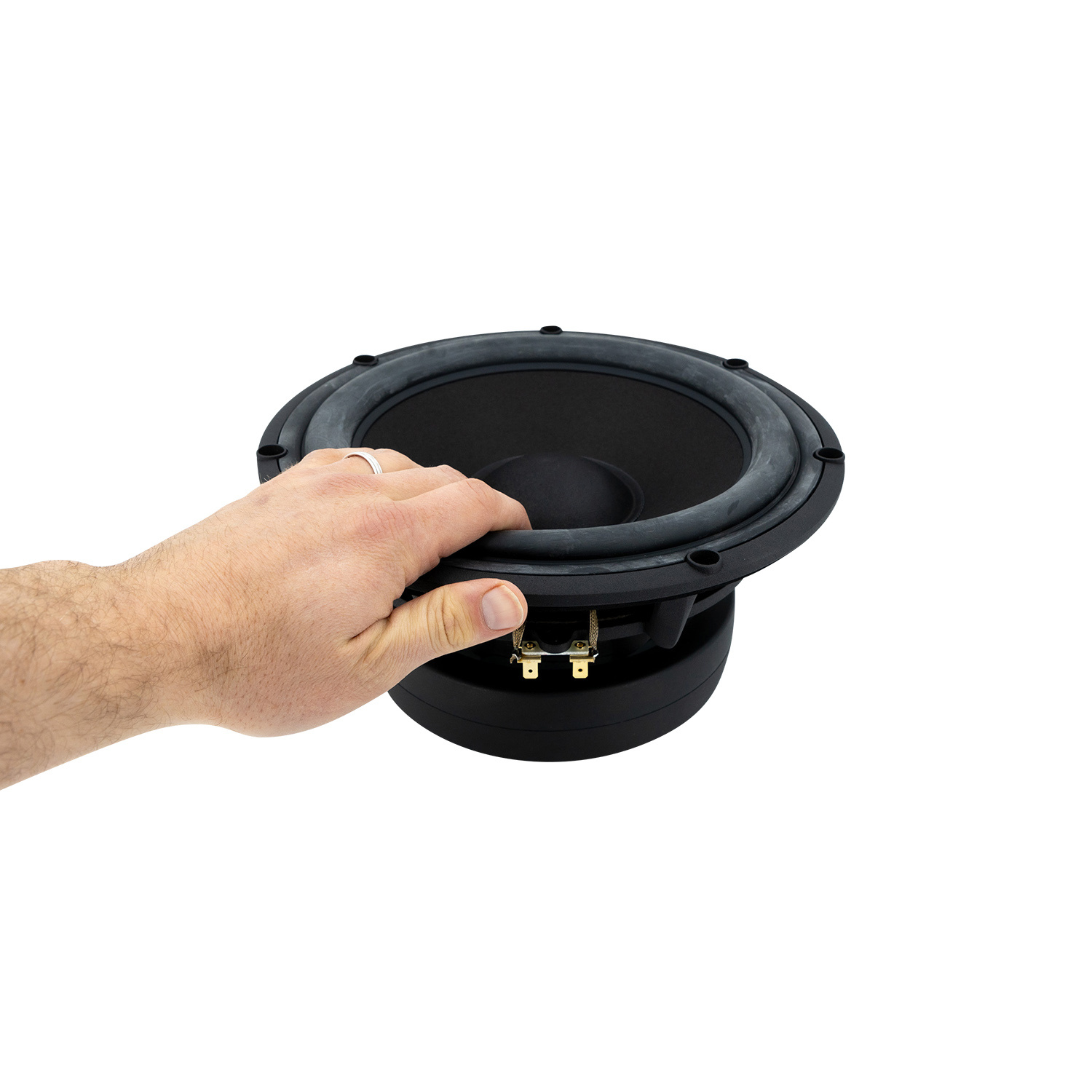

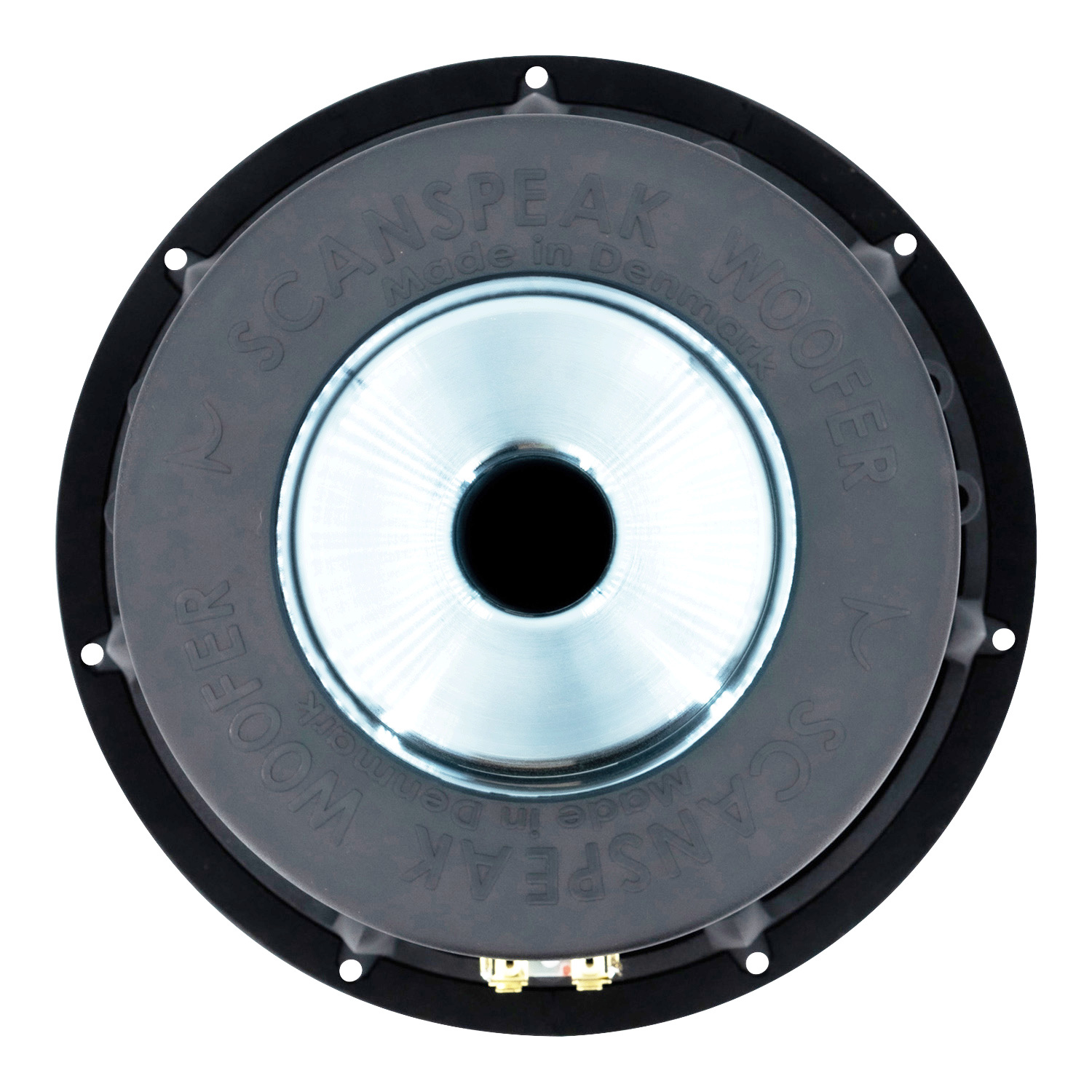

Scan-Speak Revelator 28W/4878T00 11" Subwoofer

€ 544,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The 28W/4878T00 is a very powerful 28cm subwoofer, with its large 3” voice coil, extreme linear excursion and low resonance frequency is it perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relati... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €517,70 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Paper sandwich cone
  • Spider with balanced tinsel leads
  • 3” Voice coil, Titanium former and paper reinforced
  • Patented Symmetrical Drive motor
  • Extreme linear excursion (+/-14 mm)
  • Stiff and strong die cast aluminium chassis



Product details

Scan-Speak Revelator 28W/4878T00 11" Subwoofer



The 28W/4878T00 is a very powerful 28cm subwoofer, with its large 3” voice coil, extreme linear excursion and low resonance frequency is it perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.



Suggested Box Alignments:
1.5 cubic feet sealed box for 3dB down of 48Hz and 6dB down of 32Hz
3.0 cubic feet with 3" vent by 13" long for 3dB down of about 22Hz
2.75 cubic feet with 3" vent by 15" long for f3 of 23Hz
2.5 cubic feet wtih 3" vent by 17" long for f3 of 25Hz

The sealed box used with a plate amplifier with bass boost might be a nice little subwoofer. The port length on the vented boxes is pretty long. Be sure you leave at least 3" to the back wall, preferably more.

Eigenschaften

Artikelnummer:
28W/4878T00
Woofer Series
Revelator series
Woofer Type
Subwoofer
Nominal Diameter
11"
Power Handling (RMS)
200 Watts
Power Handling (max)
500 Watts
Impedance
4 ohms
Sensitivity
88.2 dB 2.83V/1m
Voice Coil Diameter
3"
DC Resistance (Re)
3.1 ohms
Voice Coil Inductance (Le)
0.5 mH
Resonant Frequency (Fs)
18 Hz
Mechanical Q (Qms)
5.6
Electromagnetic Q (Qes)
0.32
Total Q (Qts)
0.3
Diaphragm Mass Inc. Airload (Mms)
114.5 g
Mechanical Compliance of Suspension (Cms)
0.68 mm/N
Surface Area of Cone (Sd)
363 cm2
BL Product (BL)
11.2 Tm
Compliance Equivalent Volume (Vas)
4.49 ft.³
Maximum Linear Excursion (Xmax)
14 mm
