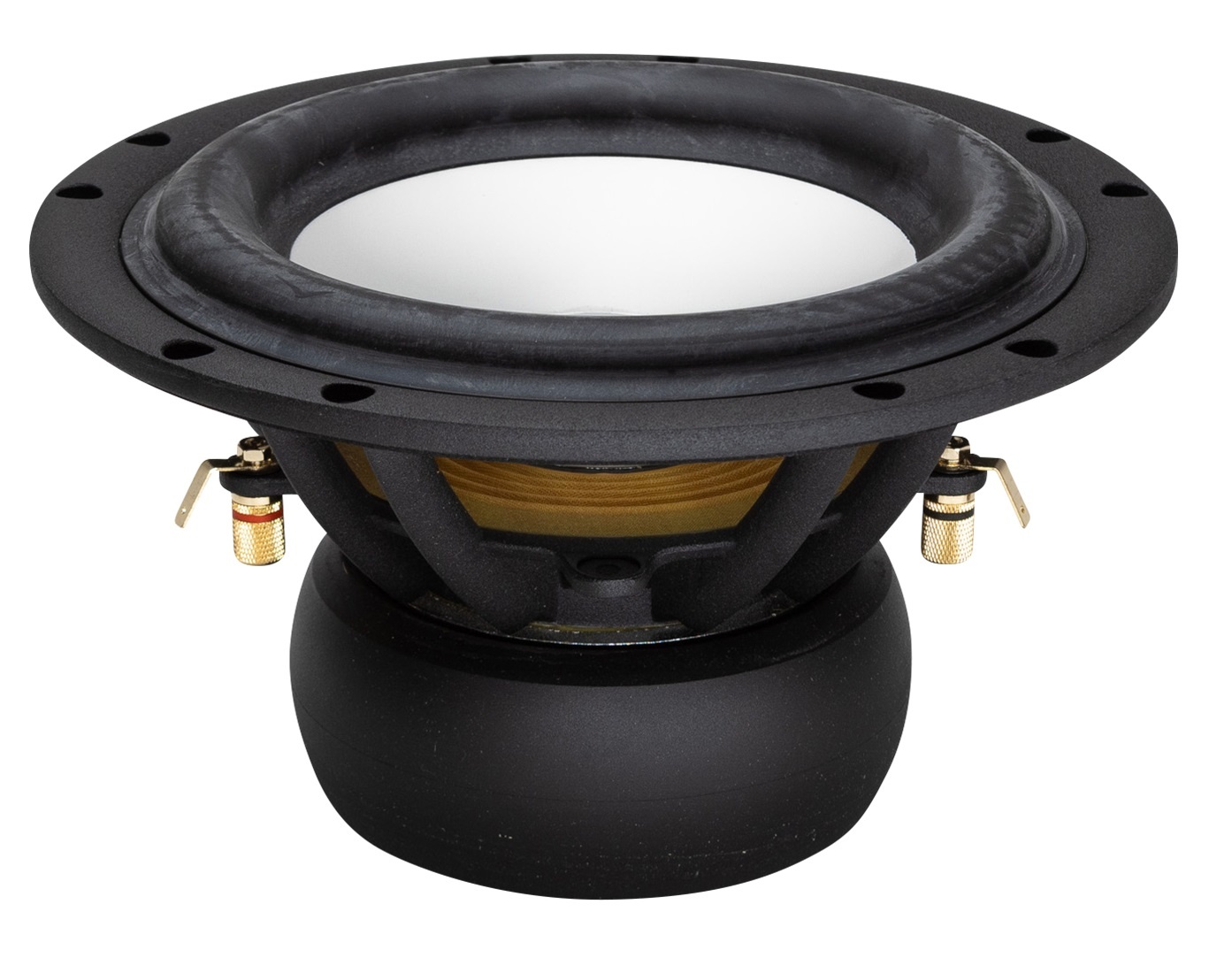

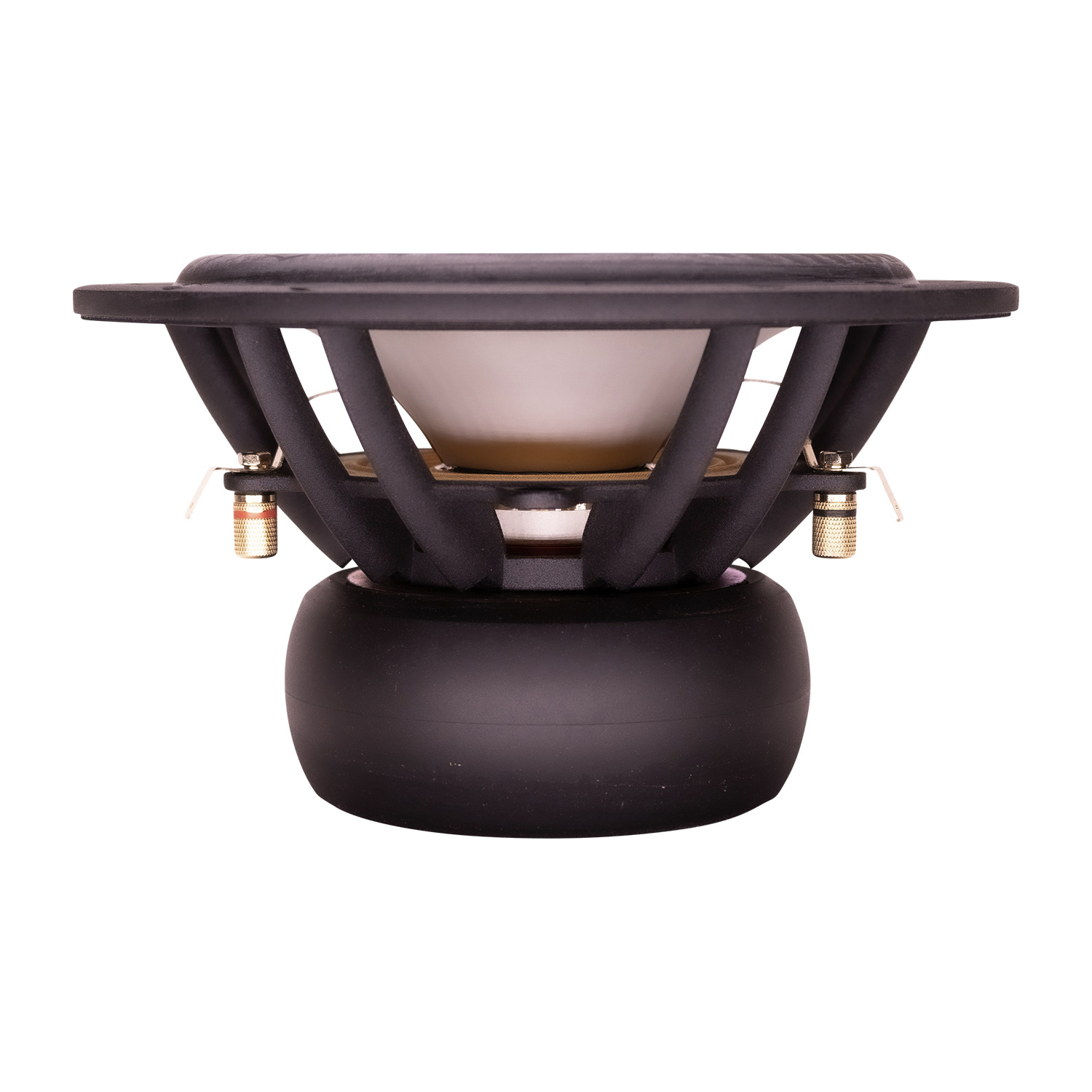

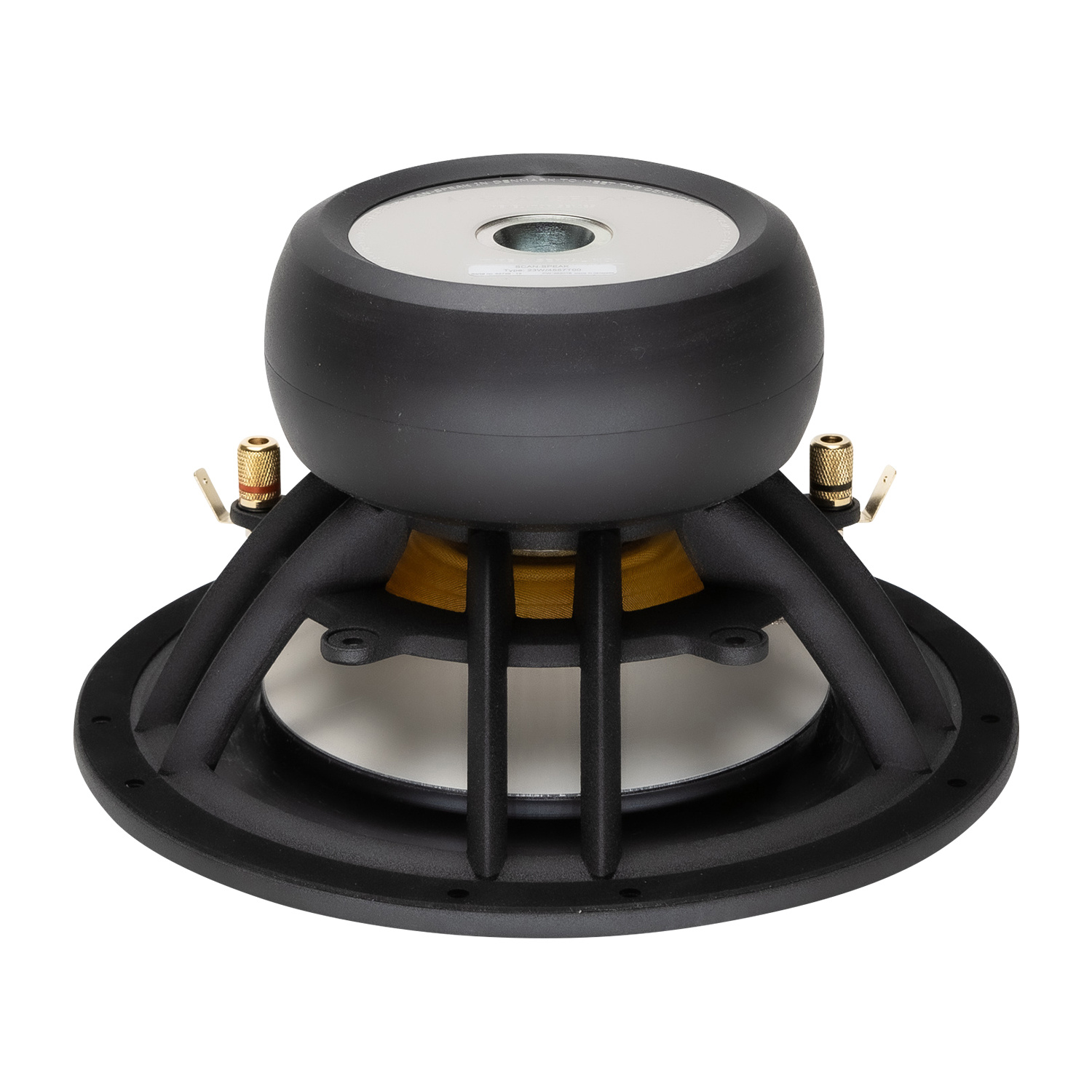

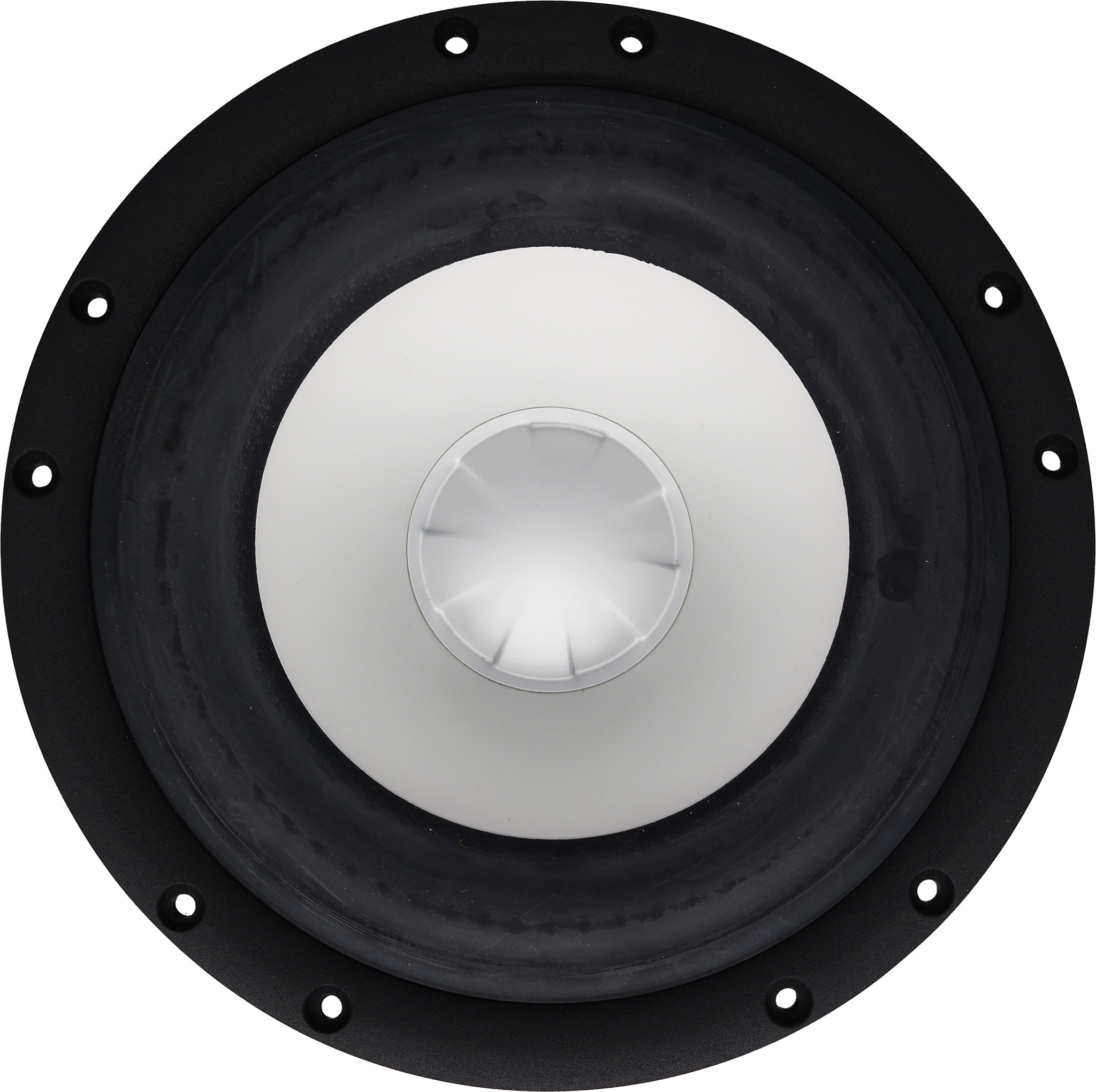

Scan-Speak Revelator 23W/4557T00 9" Aluminum Cone Subwoofer - white

€ 330,54€ 399,95 1 Auf Lager: Lieferzeit 1-3 Werktage
The Scan-speak 23W/4557T is a high end subwoofer featuring a very rigid aluminum cone, low loss rubber surround and cast frame. The 23W/4557T uses the SD-1 motor system. There are gold plated binding posts and the woofer magnet is covered by a decorative... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €379,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Scan-speak 23W/4557T is a high end subwoofer featuring a very rigid aluminum cone, low loss rubber surround and cast frame. The 23W/4557T uses the SD-1 motor system. There are gold plated binding posts and the woofer magnet is covered by a decorative rubber cap.



Highlights

  • Patented Symmetrical Drive Motor Design
  • Long Throw Surround
  • Ferrite Magnet System w. Rubber Boot
  • Black Anodized Rigid Alu Cone
  • Die cast Alu Chassis vented below spider
  • Gold Binding Post Terminals



Product details

The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.



The Scan-speak 23W/4557T is a high end subwoofer featuring a very rigid aluminum cone, low loss rubber surround and cast frame. The 23W/4557T uses the SD-1 motor system. There are gold plated binding posts and the woofer magnet is covered by a decorative rubber cap.

Eigenschaften

Artikelnummer:
23W/4557T00
Woofer Series
Revelator series
Woofer Type
Subwoofer
Nominal Diameter
9"
Power Handling (RMS)
225 Watts
Impedance
4 ohms
Sensitivity
82 dB 2.83V/1m
Voice Coil Diameter
2"
DC Resistance (Re)
3.45 ohms
Resonant Frequency (Fs)
21 Hz
Mechanical Q (Qms)
4.80
Electromagnetic Q (Qes)
0.52
Total Q (Qts)
0.47
Diaphragm Mass Inc. Airload (Mms)
101 g
Mechanical Compliance of Suspension (Cms)
0.60 mm/N
Surface Area of Cone (Sd)
232 cm²
BL Product (BL)
9.3 Tm
Compliance Equivalent Volume (Vas)
45.0 L
Maximum Linear Excursion (Xmax)
13 mm
Cone / Diaphragm Material
Paper
Basket / Frame Material
Die cast aluminum
Magnet Material
Ferrite
Overall Outside Diameter
10.04"
Overall Depth
5.31"
Baffle Cutout Diameter
8.86"
# Mounting Holes
8
