      Gold Series 16W/4538G05 Auto Tiefmitteltöner

      Scan-Speak Gold Series 16W/4538G05 Auto Tiefmitteltöner

      €499,95

      2 Auf Lager

      Scan-Speak Gold Series 16W/4538G05 Auto Tiefmitteltöner

      0 klantbeoordelingen
      0 von 5
      0 klantbeoordelingen
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Scan-Speak
      413,18 €499,95 € 2 Auf Lager
      • -5% Bestelle 4 für nur 474,95 € je Stück

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung Scan-Speak Gold Series 16W/4538G05 Tieftöner

      Our GOLD SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the – TRUE TO LIVE – that they enjoy from their high-end home audio system.



      Highlights

      • Die Cast Housing & Face Plate
      • High Grade Compact Neo magnet System
      • Low Damping SBR Rubber Surround
      • Low-Loss linear suspension
      • Patented Symmetrical Drive Motor Design
      • Robust Die cast Alu Chassis



      Product details

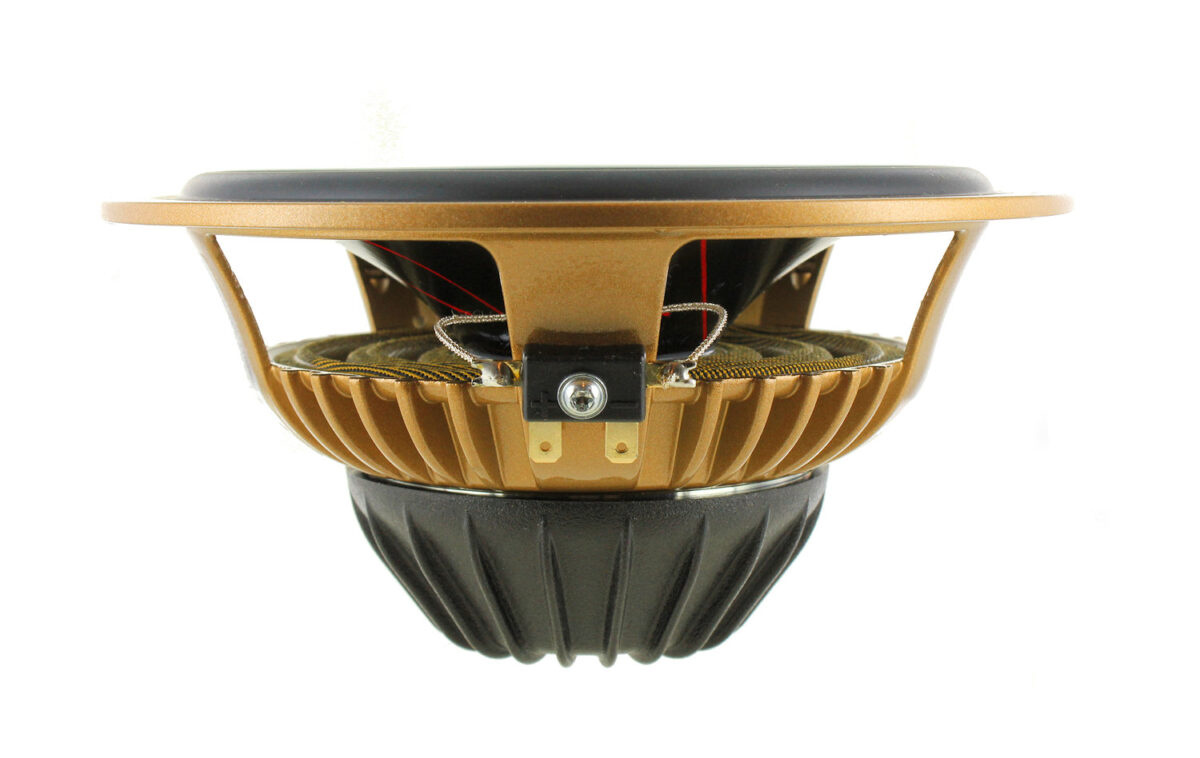

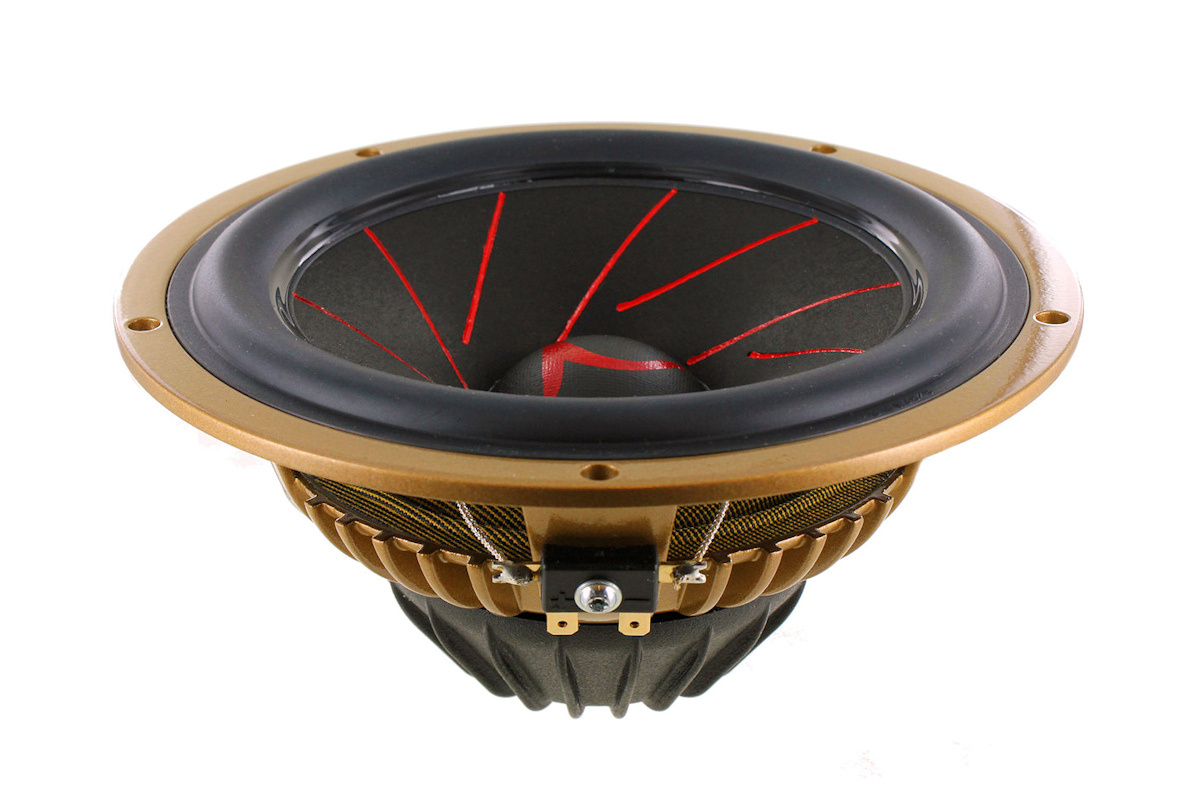

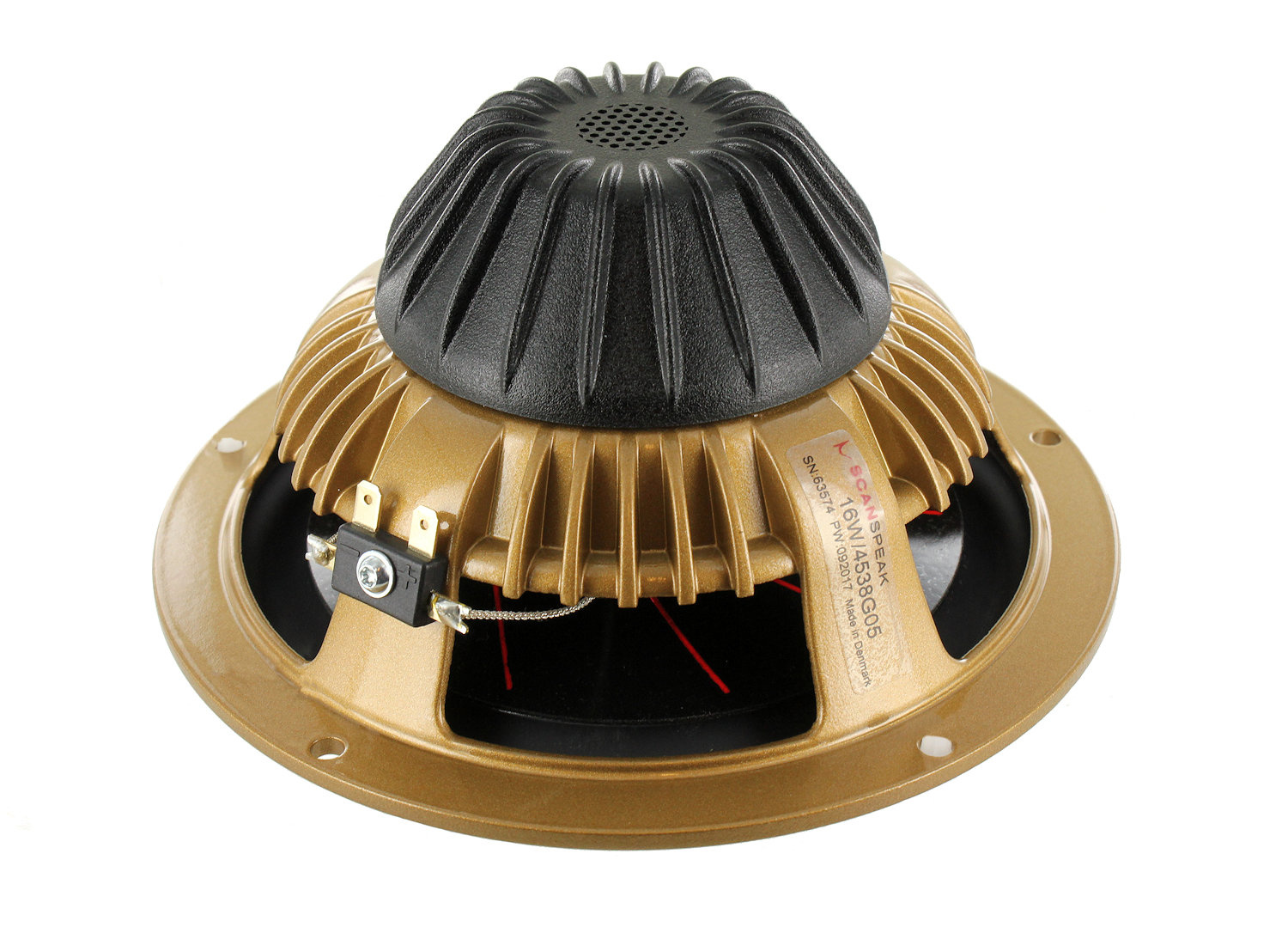

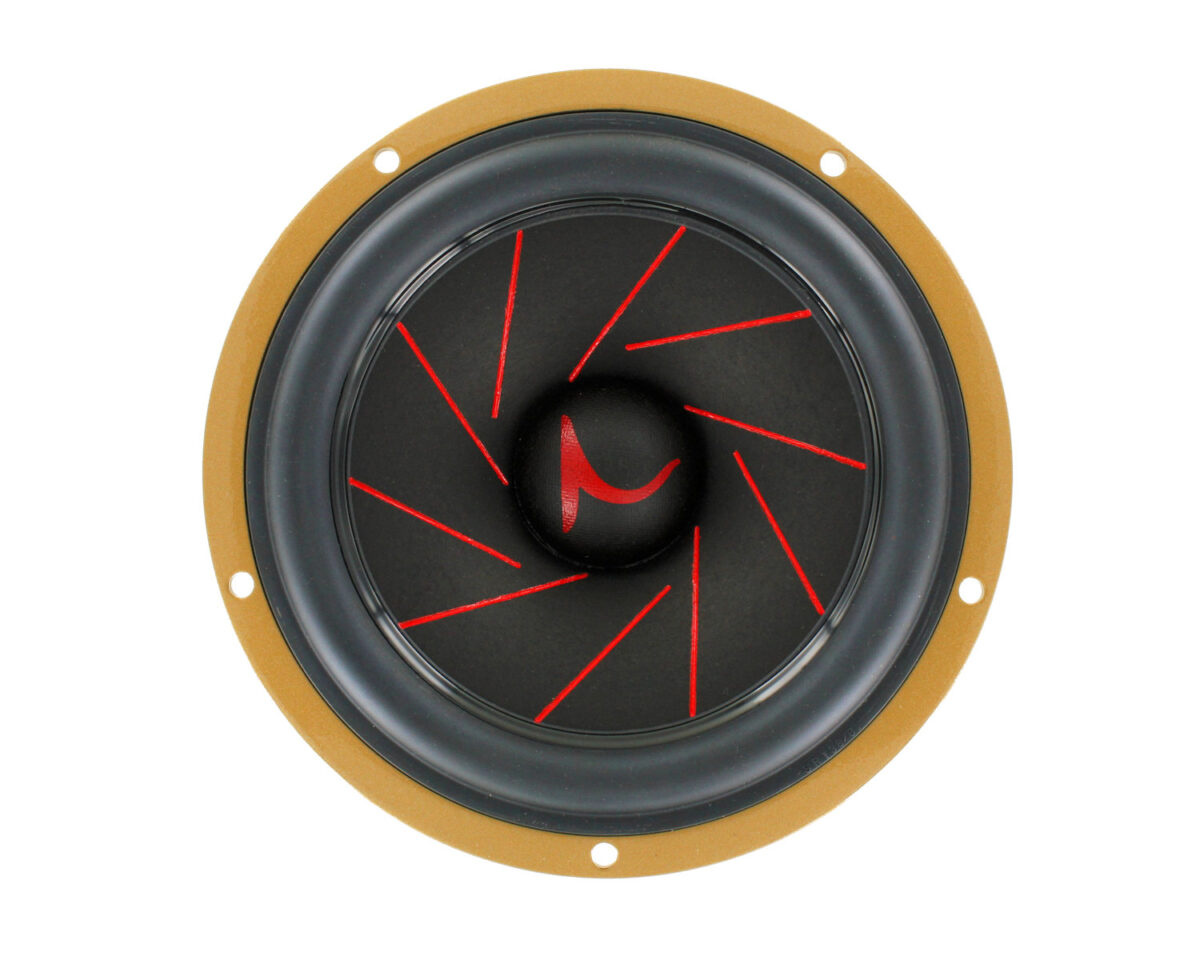

      Scan-Speak Gold Series 16W/4538G05 Car Mid-range Woofer



      The Scan-Speak Gold Series 16W/4538G05 is a high-end 6.5" woofer that is designed for automotive use. It features a number of innovative technologies that make it capable of delivering outstanding sound quality.



      One of the most notable features is its sandwich cone. This cone is made up of a sliced paper membrane that is bonded to a rearside polycarbonate membrane. This unique construction provides the cone with a high degree of rigidity and damping, which helps to suppress cone breakup modes and improve overall sound quality.



      The 16W/4538G05 also features a symmetrical drive motor system. This system uses a pair of magnets that are arranged symmetrically around the voice coil. This helps to improve the woofer's linearity and reduce distortion.



      The Woofer is also equipped with a low-damping SBR rubber surround. This surround provides the woofer with a smooth, linear response and helps to reduce distortion. It's finished in a black anodized aluminium chassis. This chassis is both lightweight and strong, and it helps to protect the woofer from damage.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      16W/4538G05
      EAN
      8785256848287
      Tieftönertyp
      Automotive
      Nenndurchmesser
      6"
      Belastbarkeit (QMW)
      70 Watt
      Belastbarkeit (max)
      125 Watt
      Impedanz (Z)
      4 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      90 dB
      Frequenzgang
      36 - 5000 Hz
      Schwingspulendurchmesser
      38 mm
      Gleichstromwiderstand (Re)
      3.1 Ω
      Schwingspuleninduktion (Le)
      0.18 mH
      Resonanzfrequenz (Fs)
      36 Hz
      Mechanische Güte (Qms)
      3.82
      Elektrische Güte (Qes)
      0.39
      Gesamtgüte (Qts)
      0.35
      Bewegliche Masse (Mms)
      16.9 g
      Nachgiebigkeit der Aufhängung (Cms)
      1.12 mm/N
      Membranfläche (Sd)
      123 cm²
      Kraftfaktor (BL)
      5.5 Tm
      Äquivalentvolumen (Vas)
      24 L
      Maximale Auslenkung (Xmax)
      13.5 mm
      Driver's Mechanical Losses (Rms)
      1 Kg/s
      Außendurchmesser
      165 mm
      Ausschnittdurchmesser
      141 mm
      # Befestigungsbohrungen
      5
      Durchmesser Befestigungslochs
      5.2 mm
      Bassreflex Volumen
      21 L
