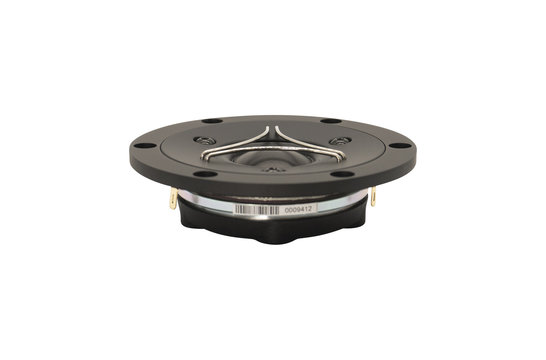

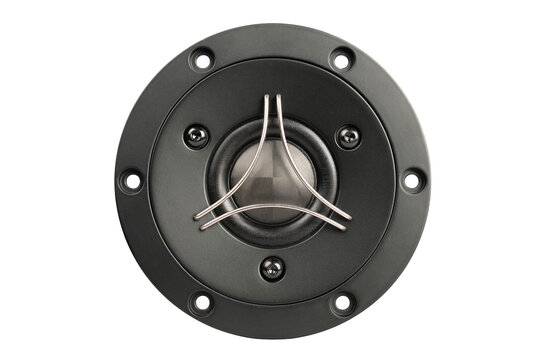

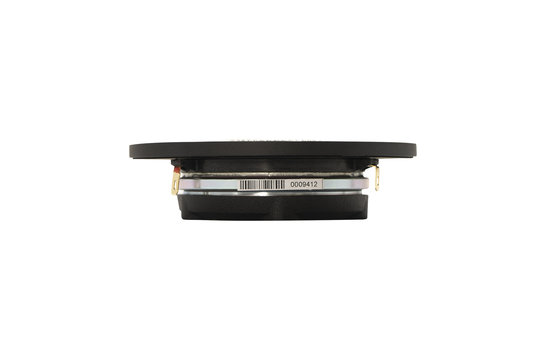

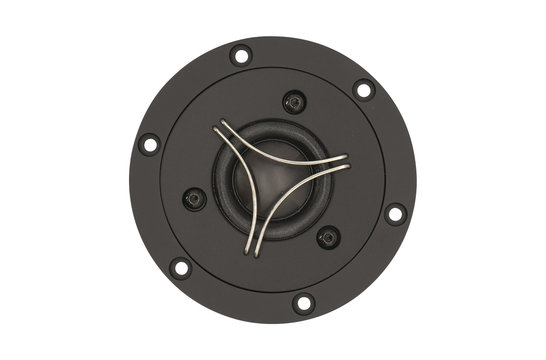

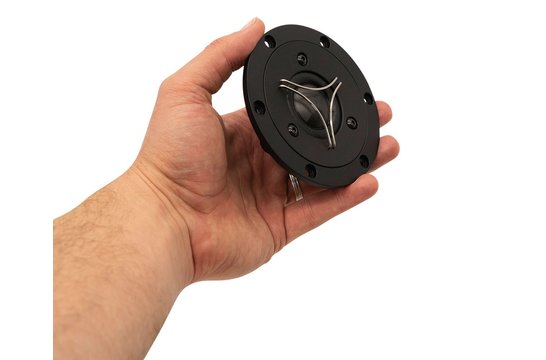

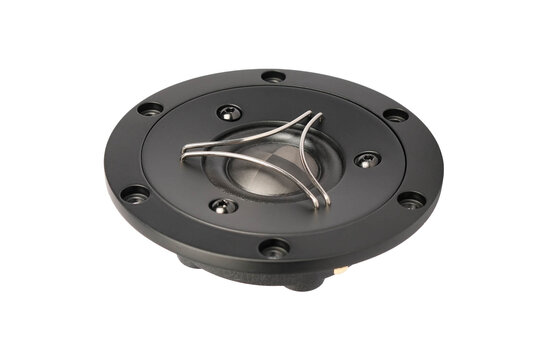

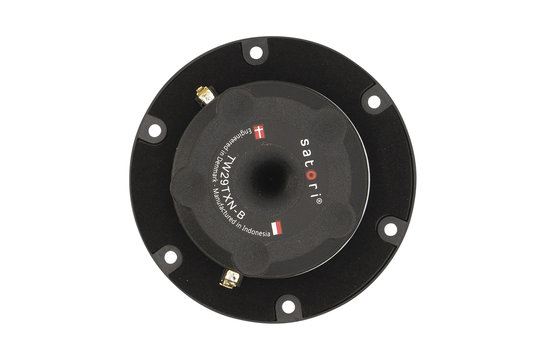

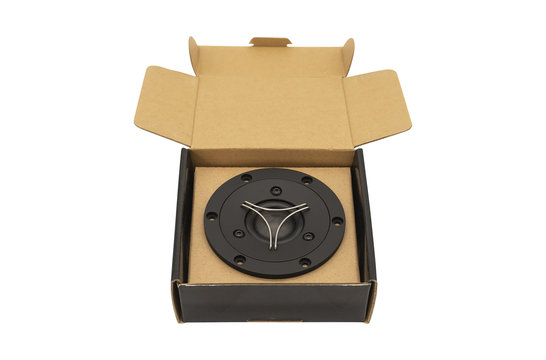

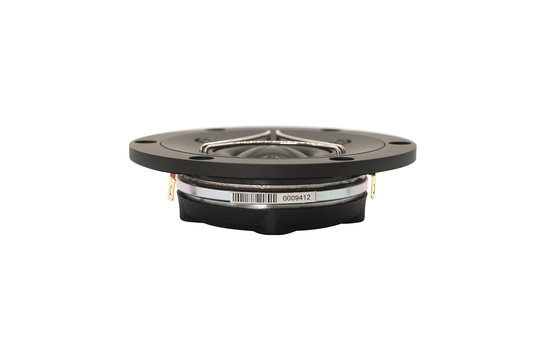

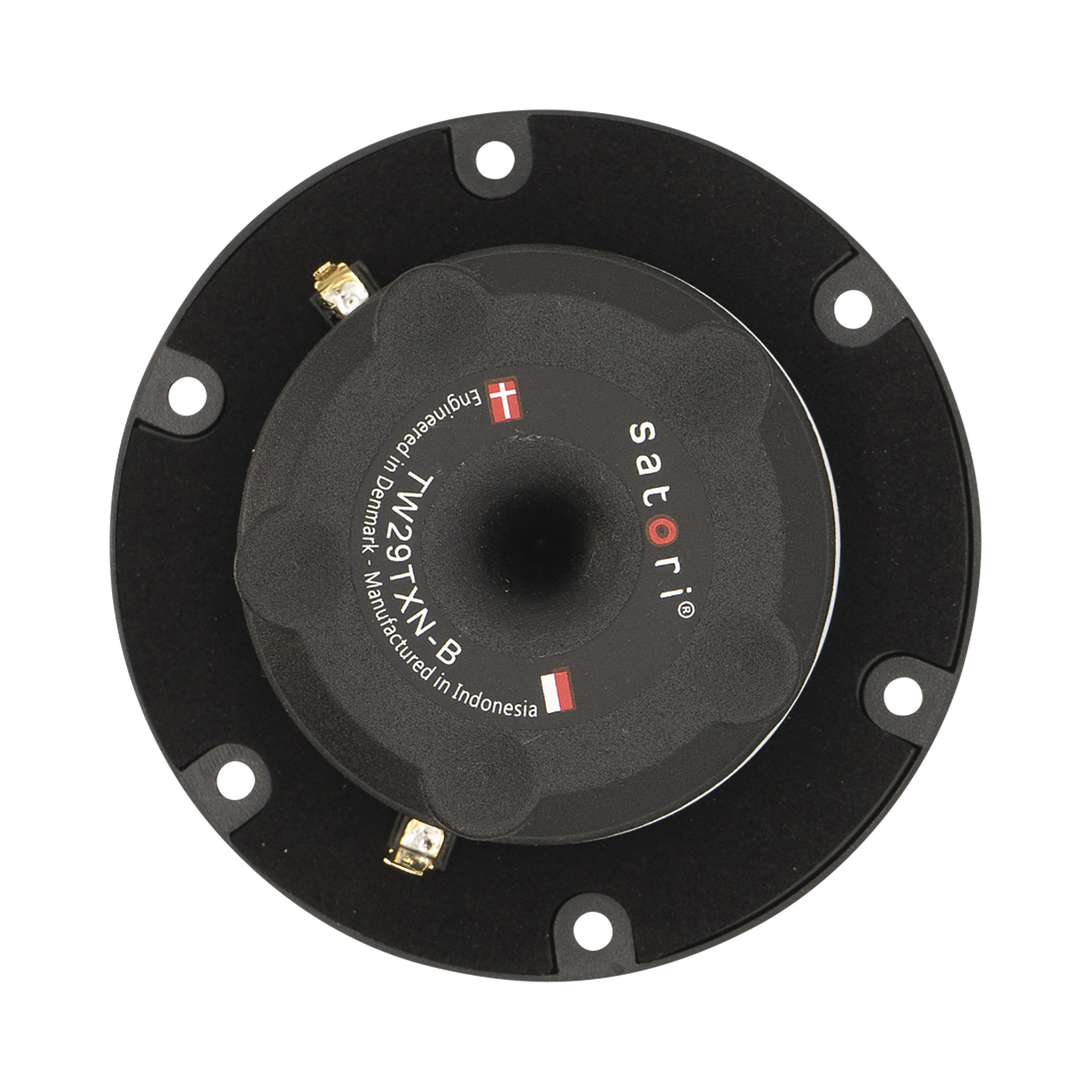

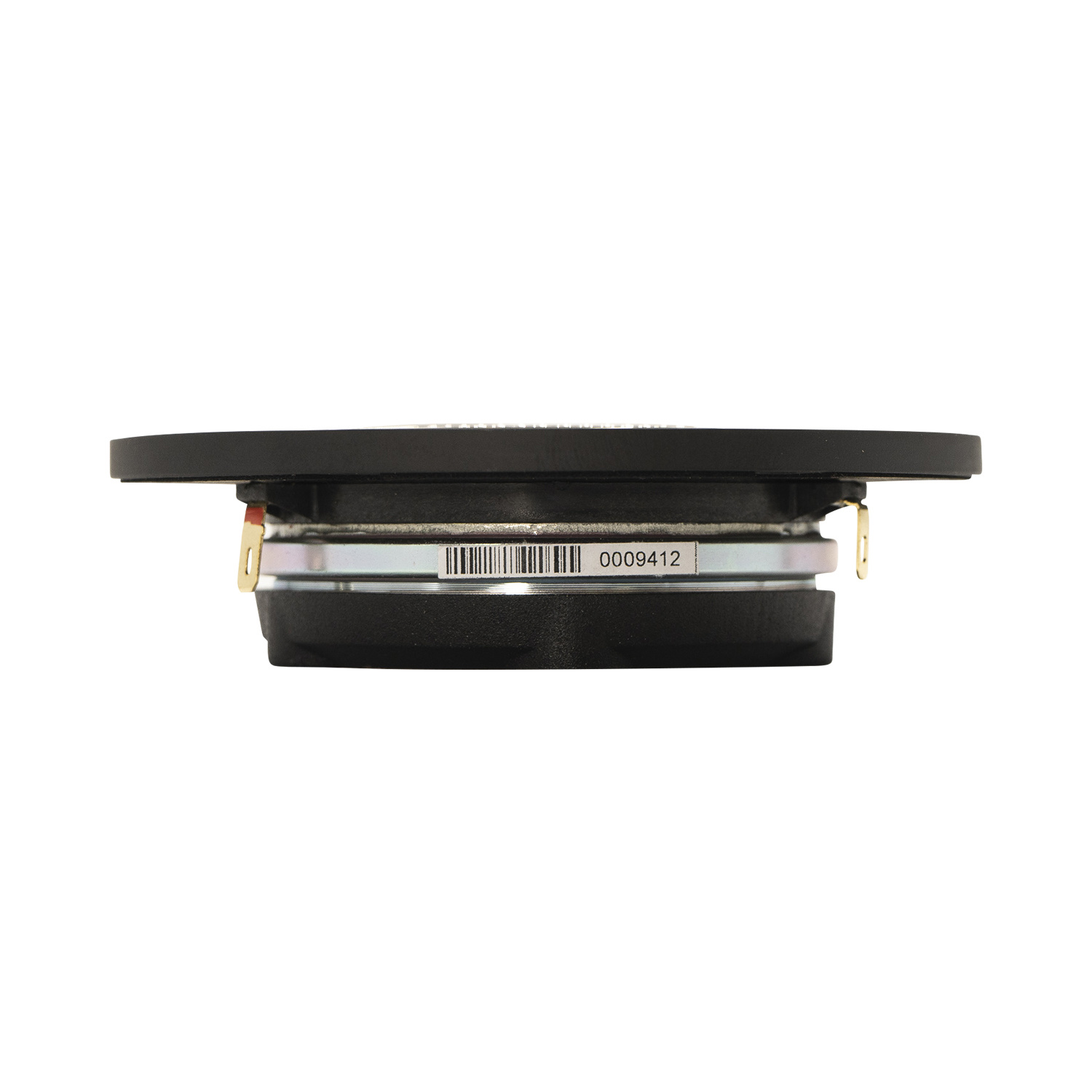

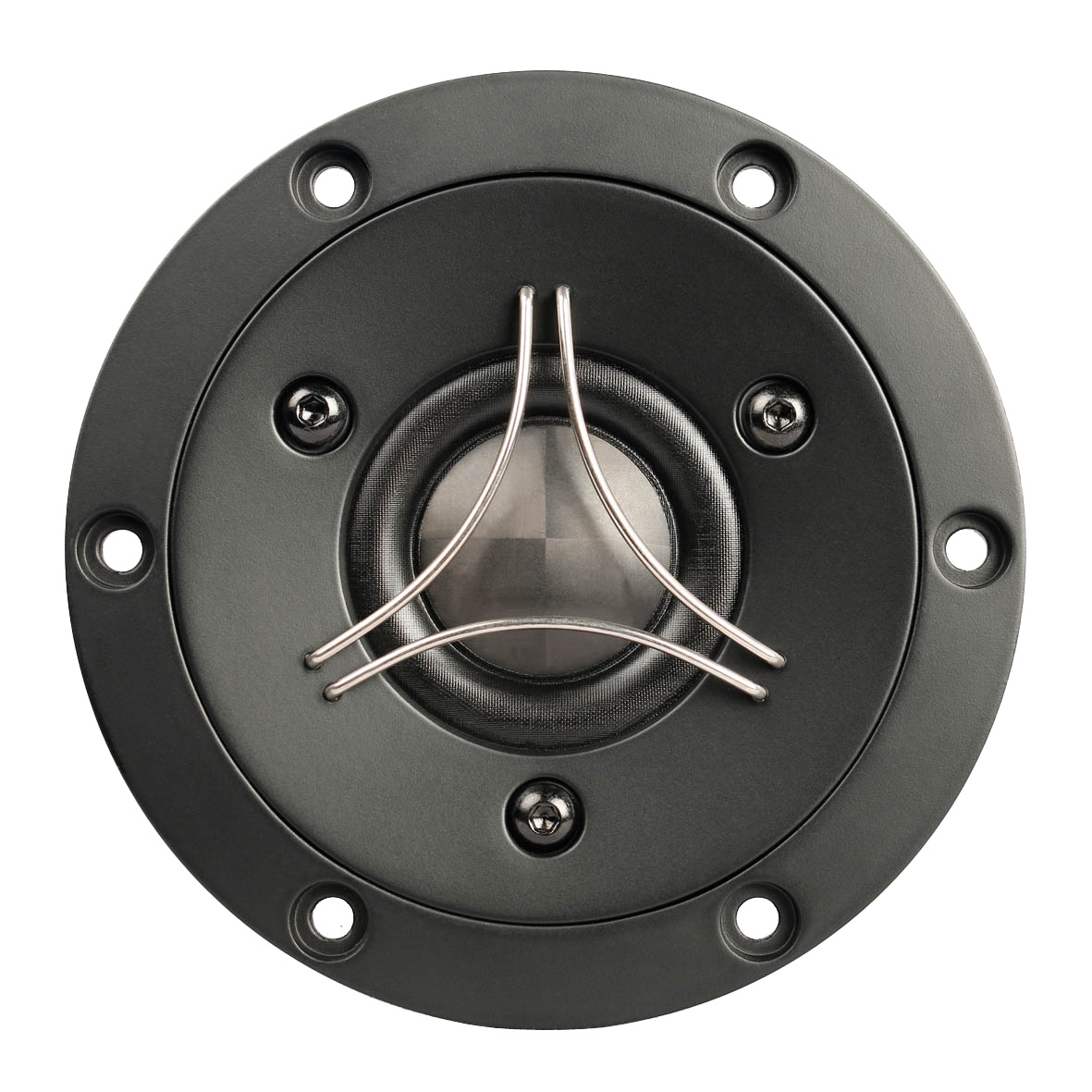

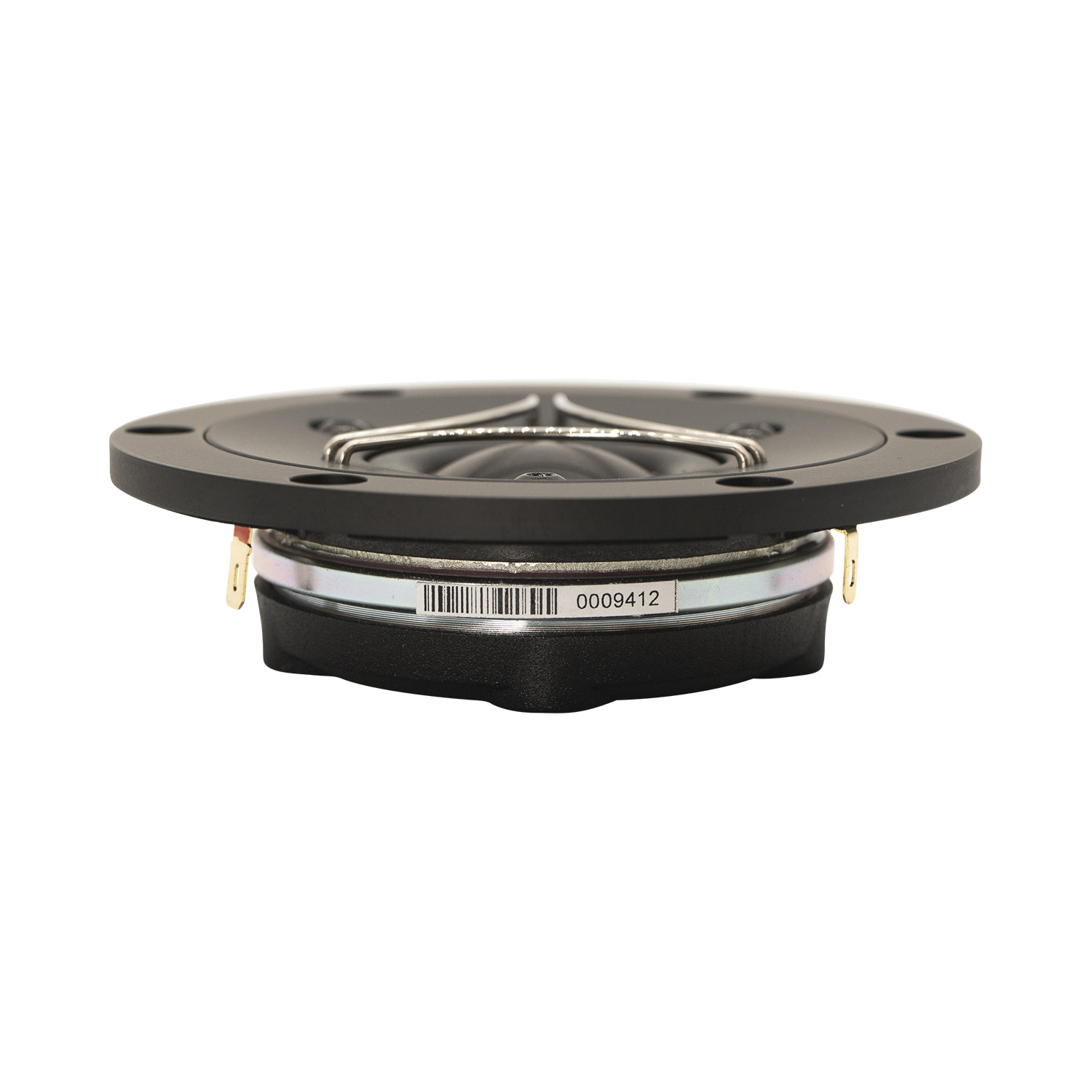

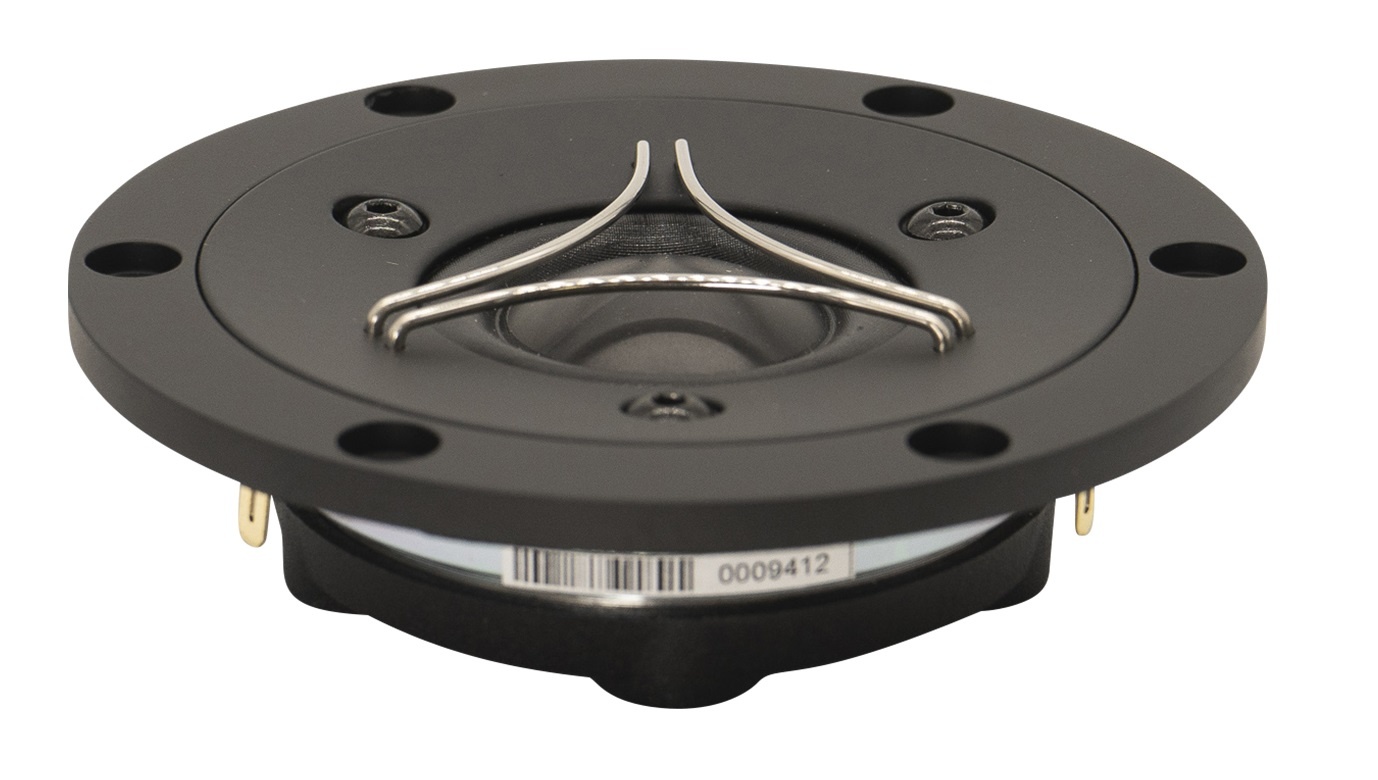

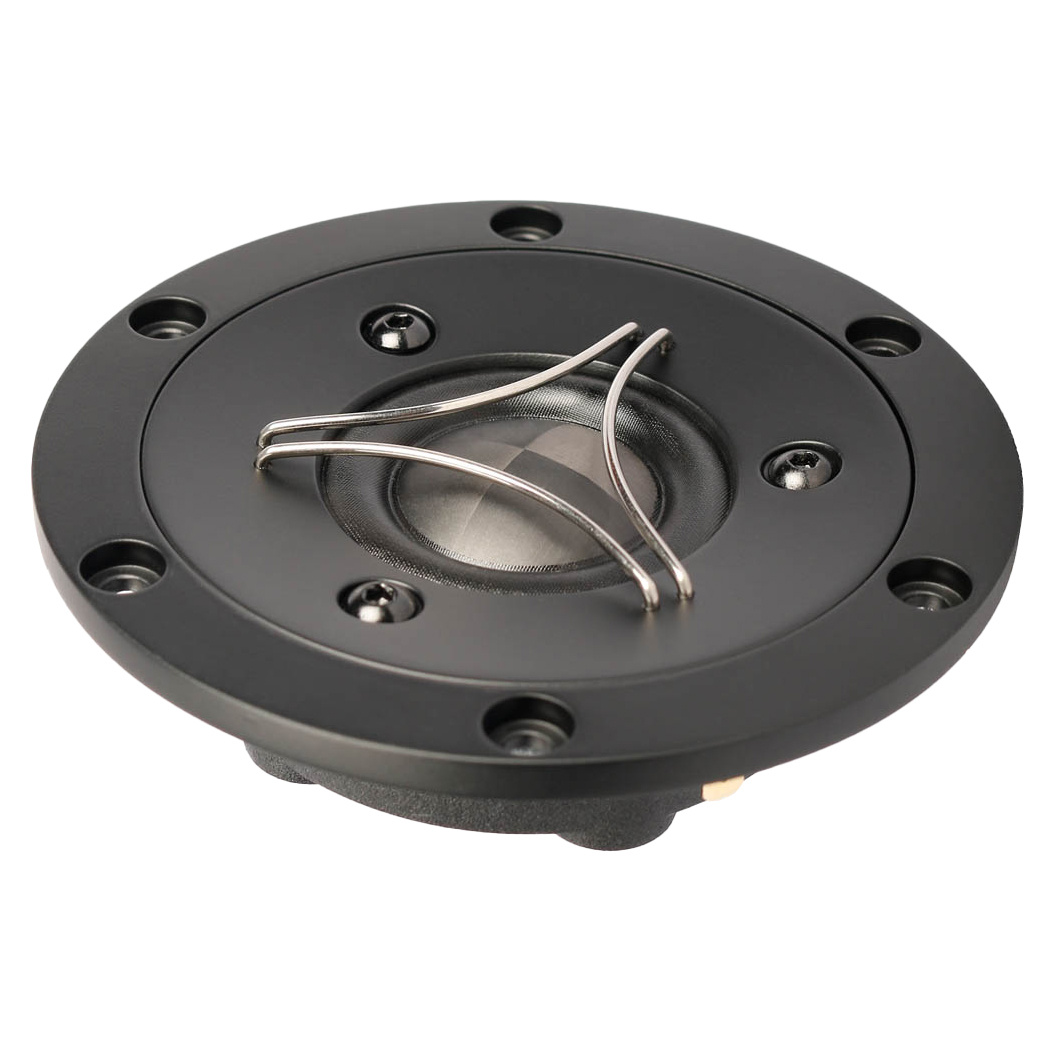

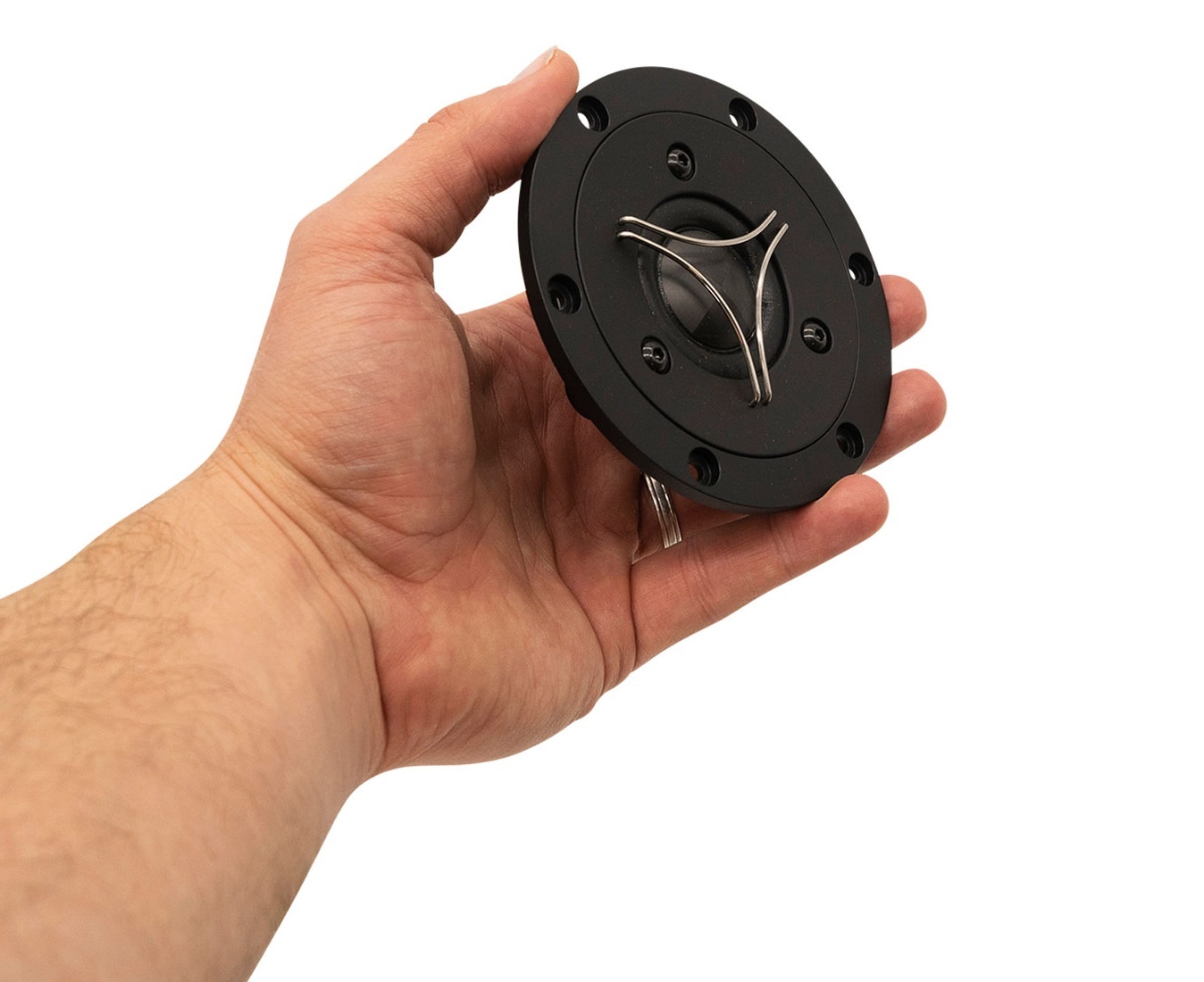

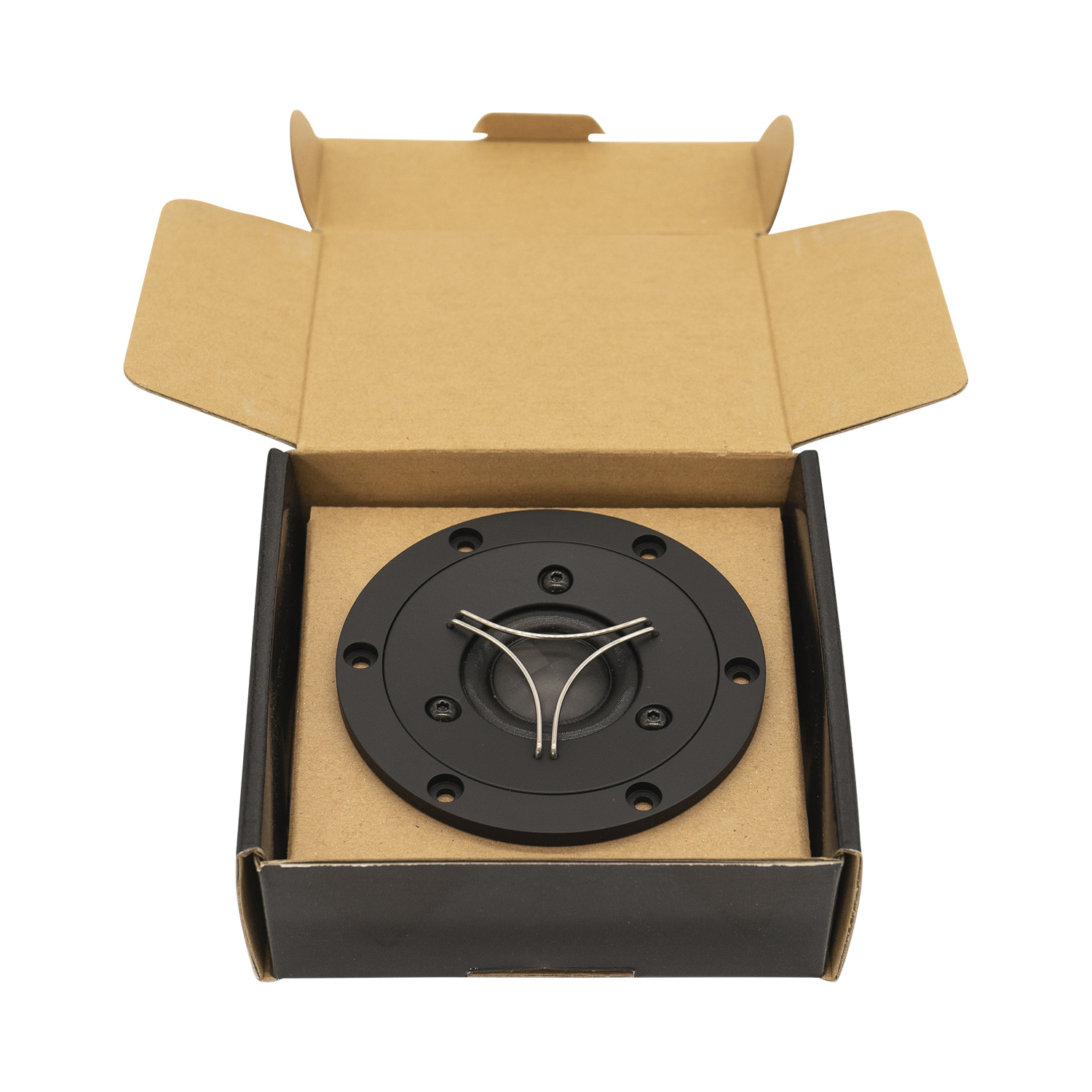

SB Acoustics SATORI TW29TXN-B TeXtreme Kalotten-Hochtöner

€ 219,95 4 Auf Lager: Lieferzeit 1-3 Werktage
The SB Acoustics SATORI TW29TXN-B TeXtreme Dome Tweeter uses unique materials and great design to create low-distortion, dynamic and high efficiency driver... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €208,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Advanced TeXtreme dome
  • Two part alumimium faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling tot rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range



Product details

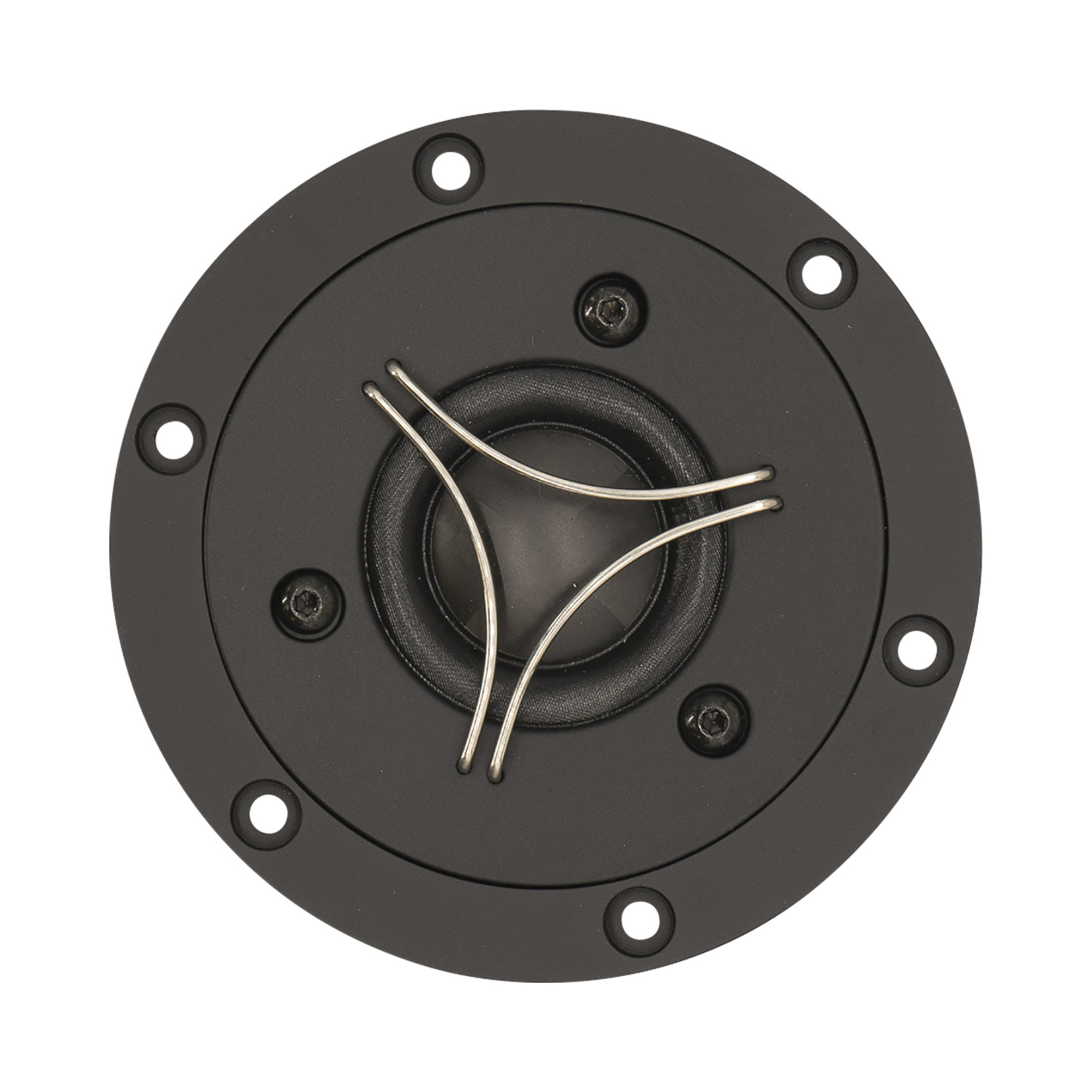

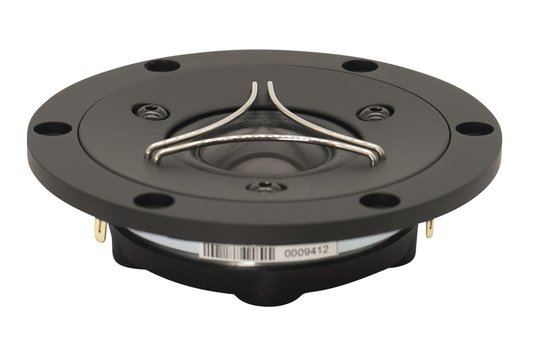

SB Acoustics SATORI TW29TXN-B TeXtreme Dome Tweeter



TeXtreme is a special carbon fiber material, that uses Spread Tow technology to create extremely thin laminar carbon fiber tapes. This minimizes the weight of the material without sacrificing strength. The use of TeXtreme as a dome material allows for a very stiff and lightweight dome. Combined with a copper coated aluminium wire voice coil makes this a smaller moving mass. The added benefit of the Textreme material is its strength to weight ratio. Allowing for a efficient driver that doesn’t distort easily because it maintains optimum pistonic motion for longer.



But new fancy materials mean nothing if they are not combined with a quality design. Which SB-acoustic offers with its SATORI line of product. Creating a unique low-distortion high efficiency driver.

Eigenschaften

Artikelnummer:
TW29TXN-B
Tweeter Type
Dome
Tweeter Series
SATORI
Cone / Dome Diameter
1⅛"
Power Handling (RMS)
80 Watts
Impedance
4 Ohms
Sensitivity
96 dB(2.83V/1m)
Resonant Frequency (Fs)
650 Hz
DC Resistance (Re)
3.0 Ohms
Mechanical Q (Qms)
1.62
Electromagnetic Q (Qes)
0.65
Total Q (Qts)
0.46

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Brilliant tweeters. Smooth, silky, transparent, detailed. All tweeters should be at least as good as this. Most are not.
Durch Master Kenjit on 19 Dezember 2020
