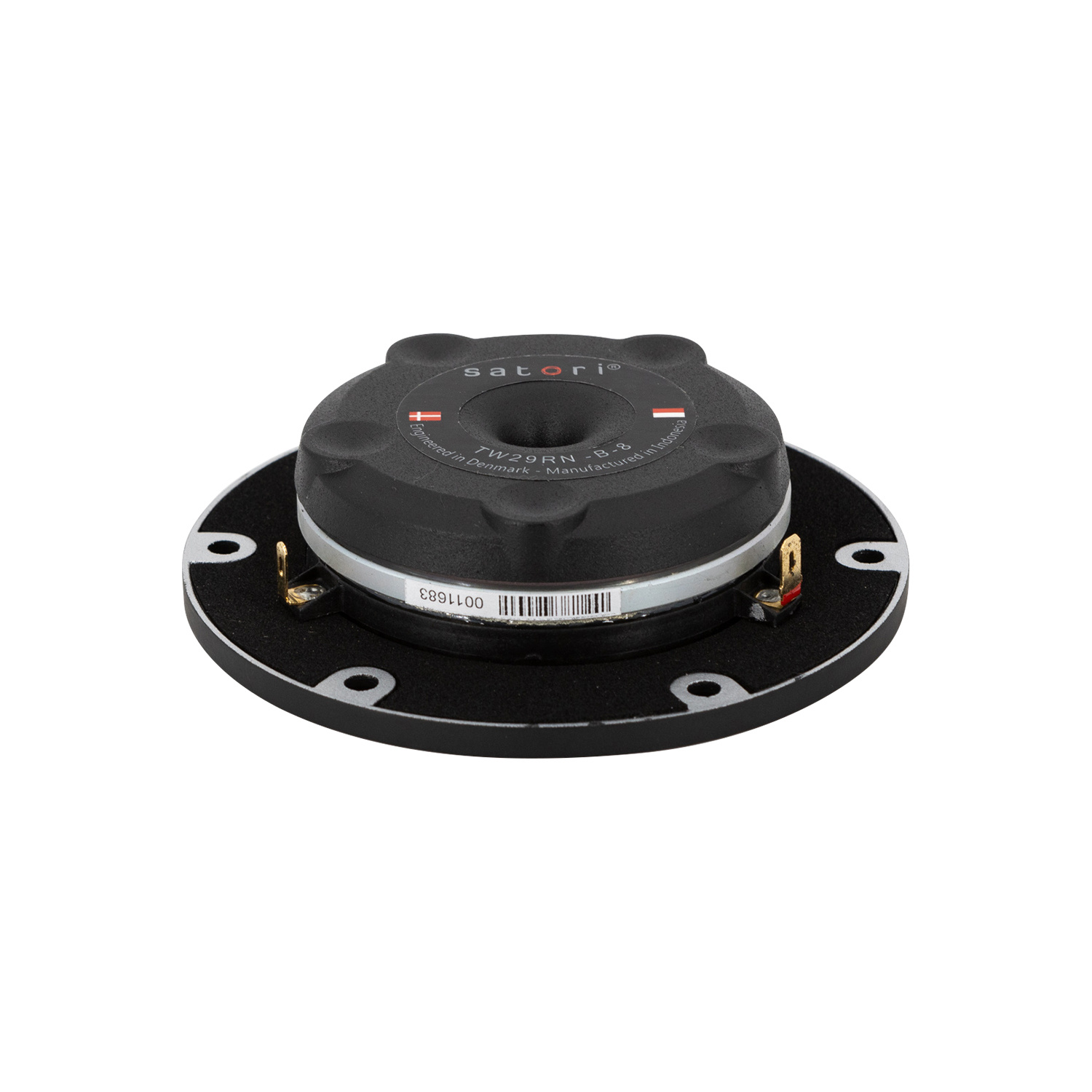

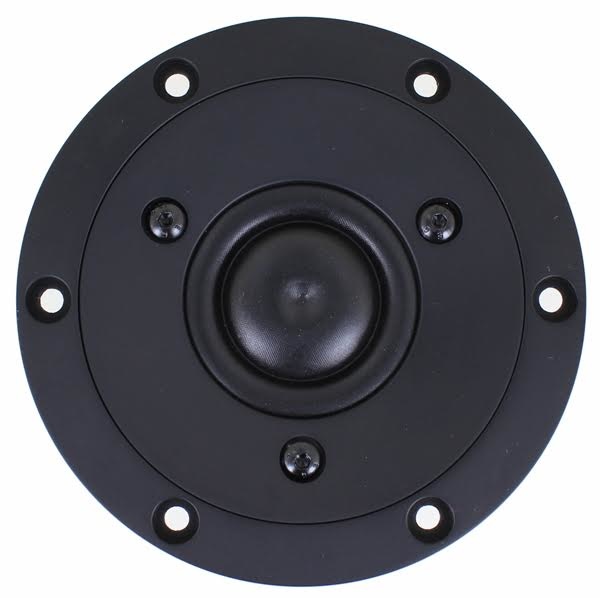

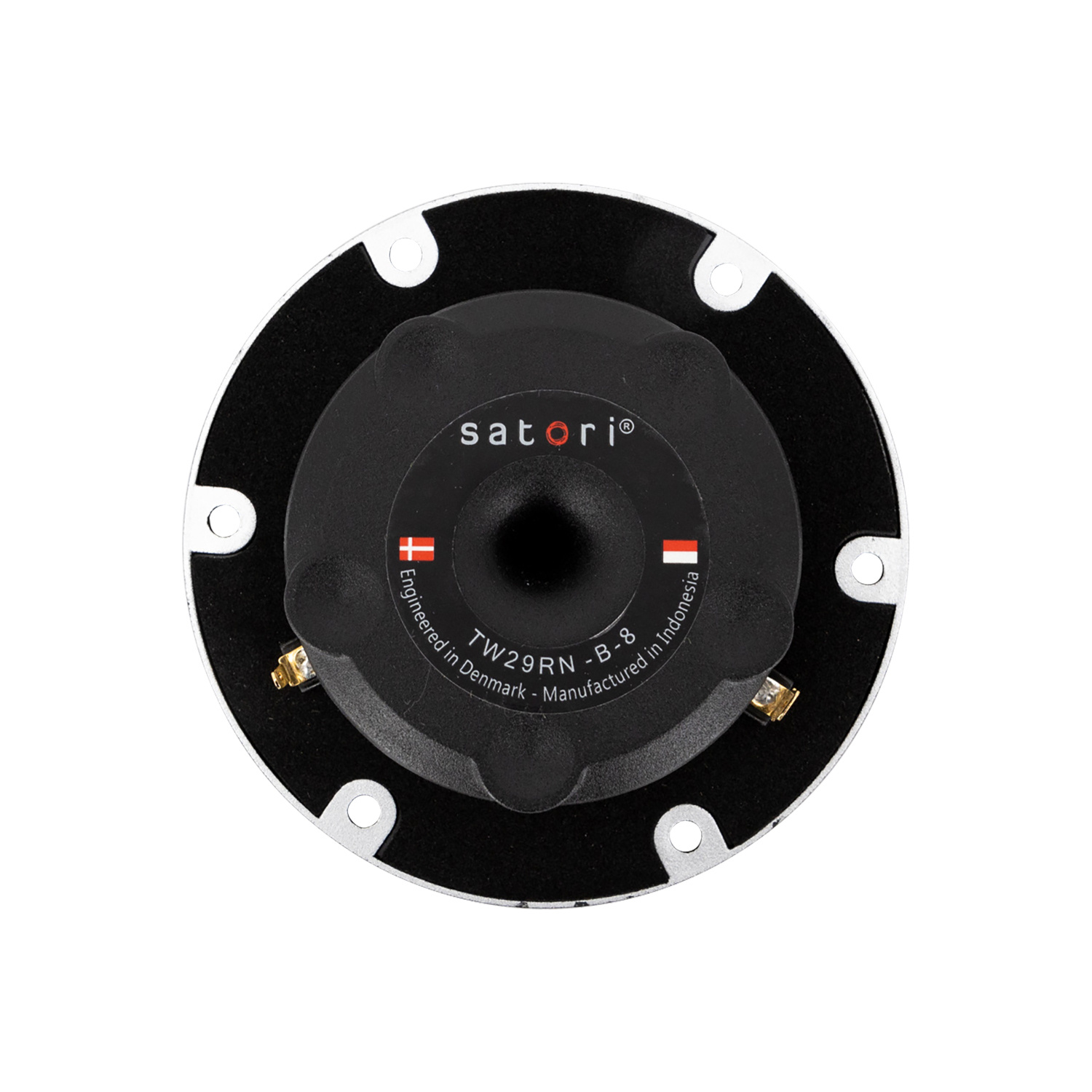

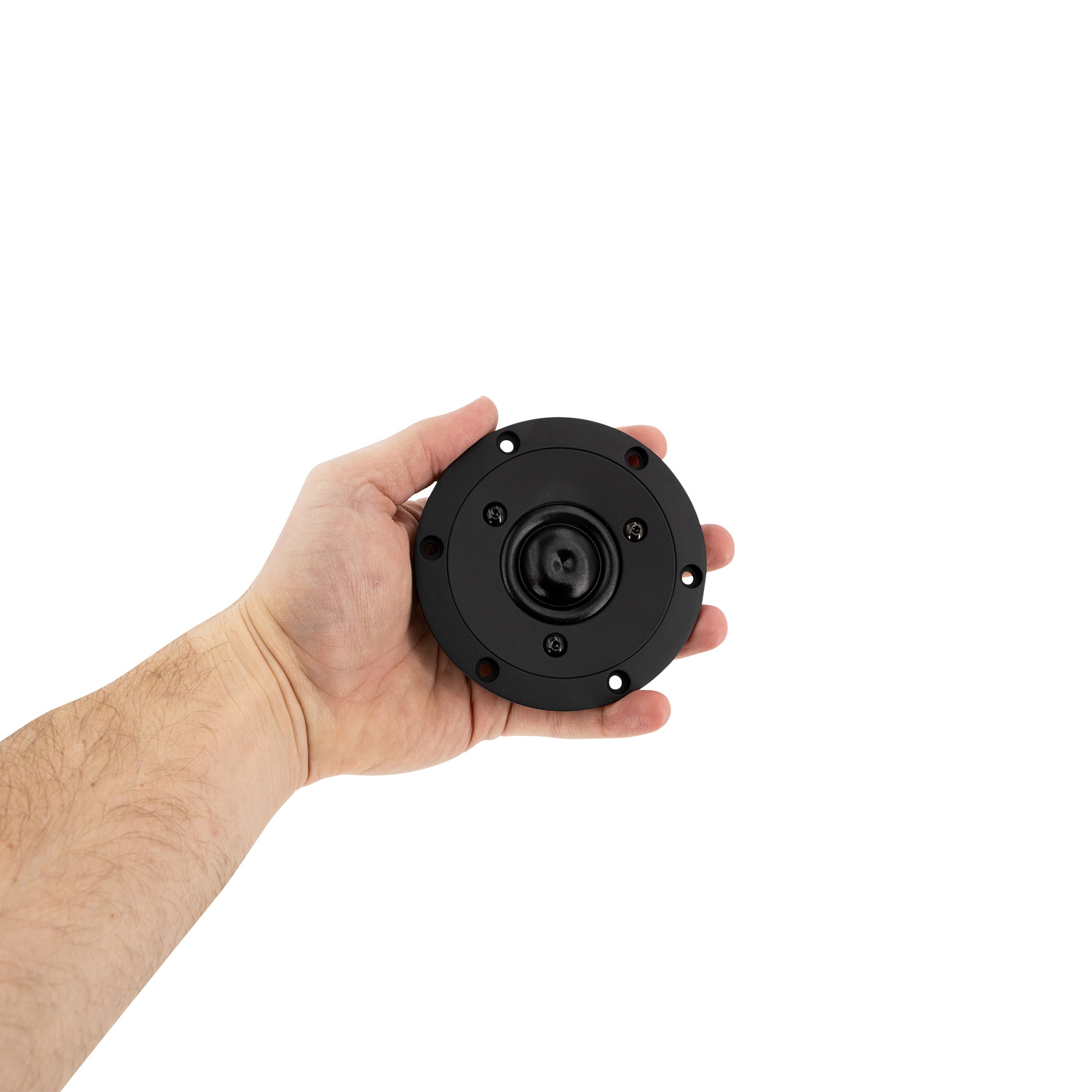

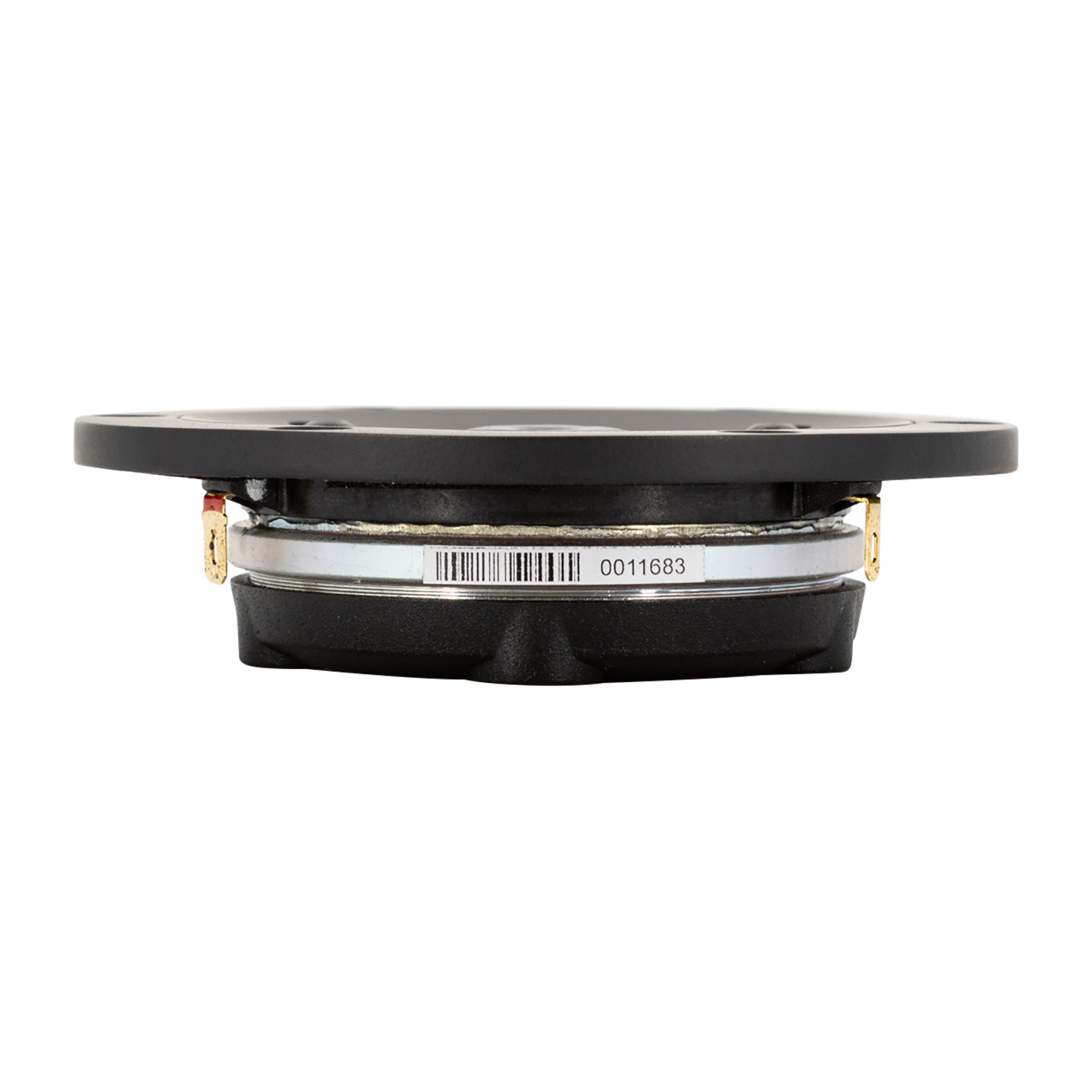

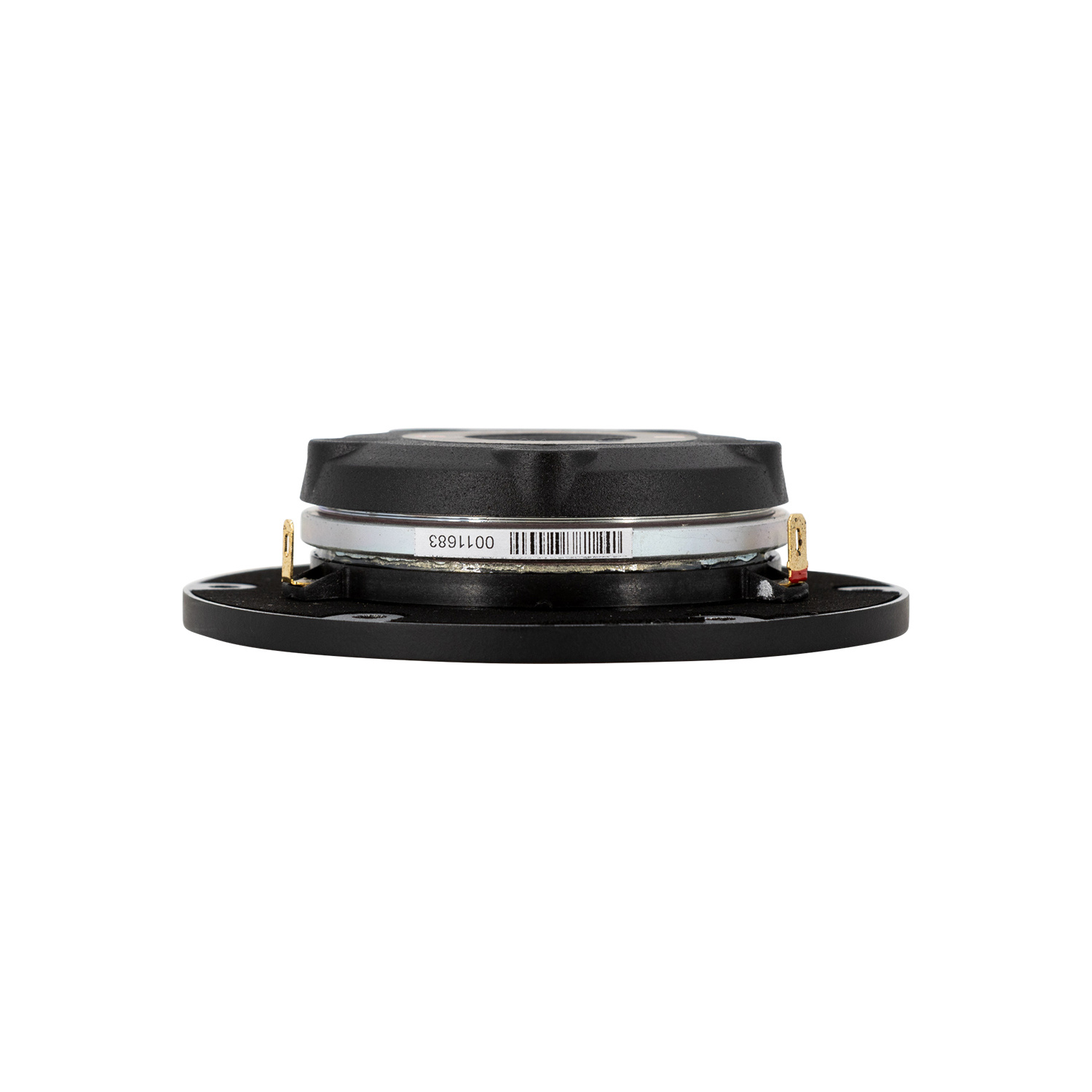

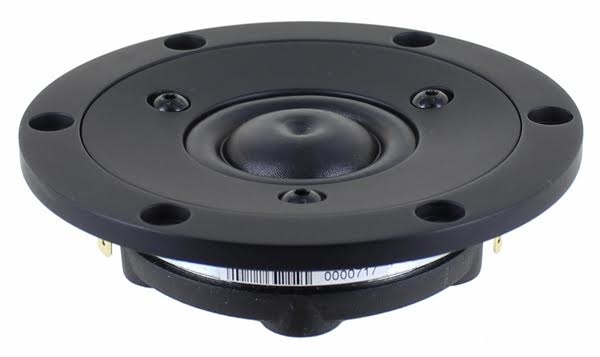

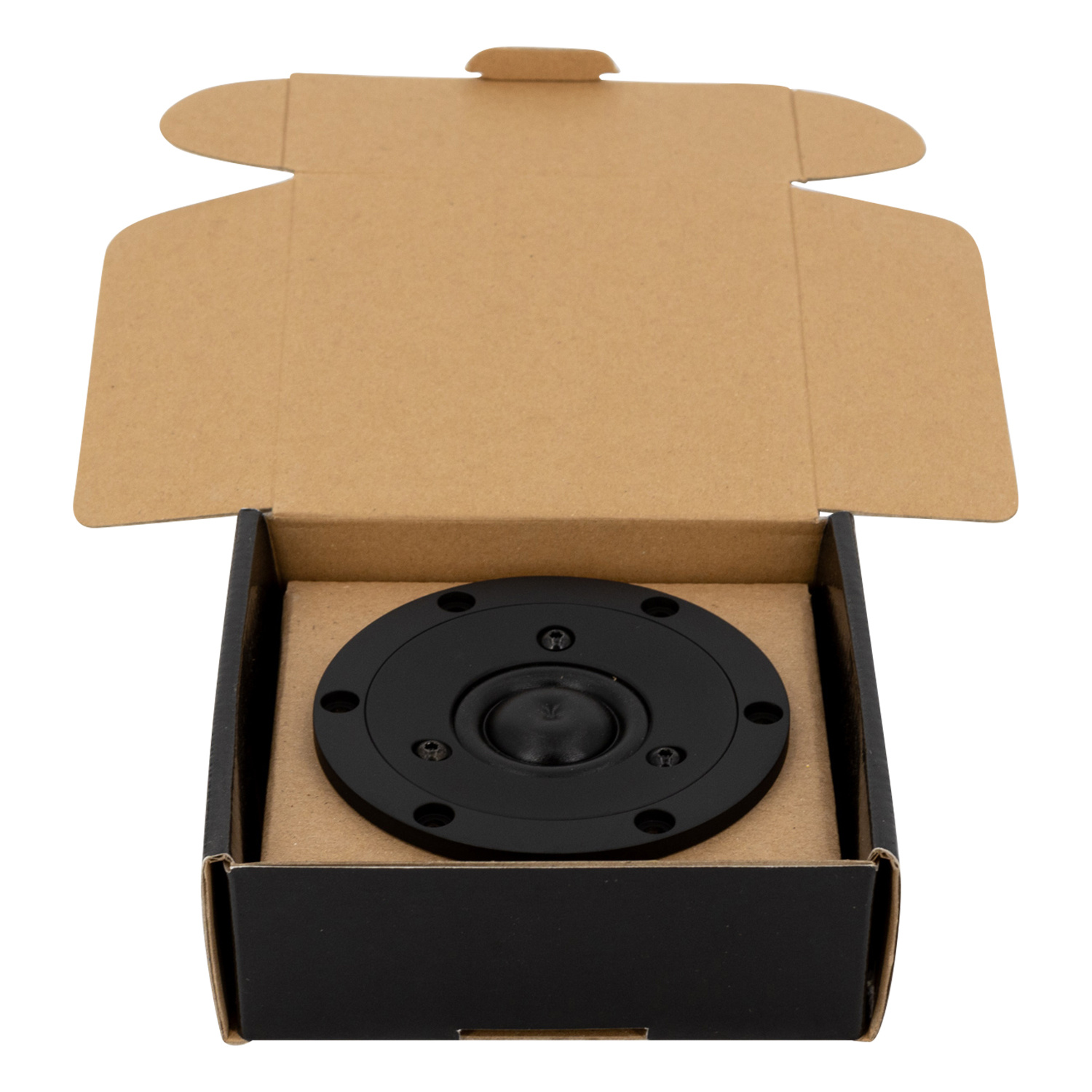

SB Acoustics Satori TW29RN-B-8 Black Ring Dome Tweeter 8 ohm

€ 132,45 6 Auf Lager: Lieferzeit 1-3 Werktage
The TW29RN-B-8 is a premium ring dome tweeter offered in the Satori line by SB Acoustics. This tweeter has many advanced technology features that culminate in very detailed and low distortion output: a perfect choice in any high end system. Compact neodym... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €125,83 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Non-resonant diaphragm design for minimum high frequency break-up
  • Two part aluminum faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion.
  • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range



Product details

SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter



The TW29RN-B-8 is a premium ring dome tweeter offered in the Satori line by SB Acoustics. This tweeter has many advanced technology features that culminate in very detailed and low distortion output: a perfect choice in any high end system. Compact neodymium magnet version (less than 1" depth from back of flange to base). 8 ohm version. Black faceplate.

Eigenschaften

Artikelnummer:
TW29RN-B-8
Tweeter Type
Ring Dome
Tweeter Series
Satori series
Cone / Dome Diameter
1-1/8''
Power Handling (RMS)
80 Watts
Impedance
8 Ohms
Sensitivity
93 dB 2.83 V/m
Frequency Response
1,400 - 40,000 Hz
Resonant Frequency (Fs)
650 Hz
DC Resistance (Re)
6.2 Ohms
Voice Coil Inductance (Le)
0.04 mH
Mechanical Q (Qms)
1.74
Electromagnetic Q (Qes)
0.66
Total Q (Qts)
0.48
Overall Outside Diameter
103.8
Cutout Diameter
70 mm
Depth
26.7 mm
Diaphragm Material
Silk

Bewertungen

4 from 5Based on 1 reviews
Produkt bewerten
4 van 5
Very clean and natural sounding tweeters, great overall product quality.
Nice service from soundimports aswell.
Cheers!
Durch Benjamin M. on 26 November 2020
