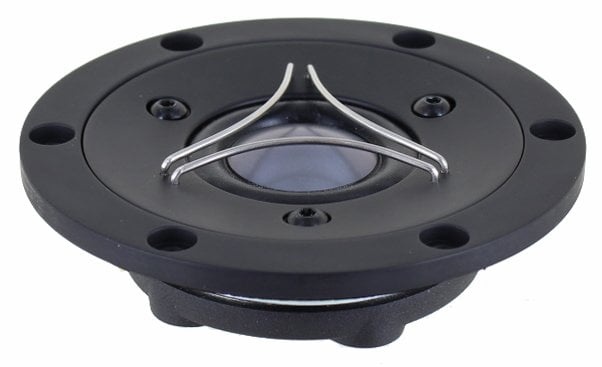

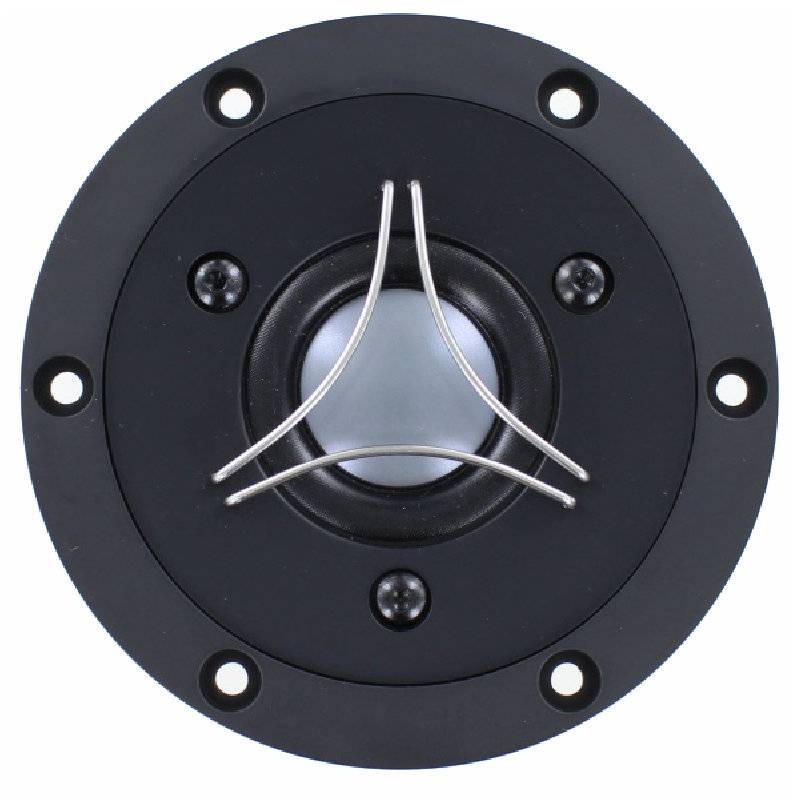

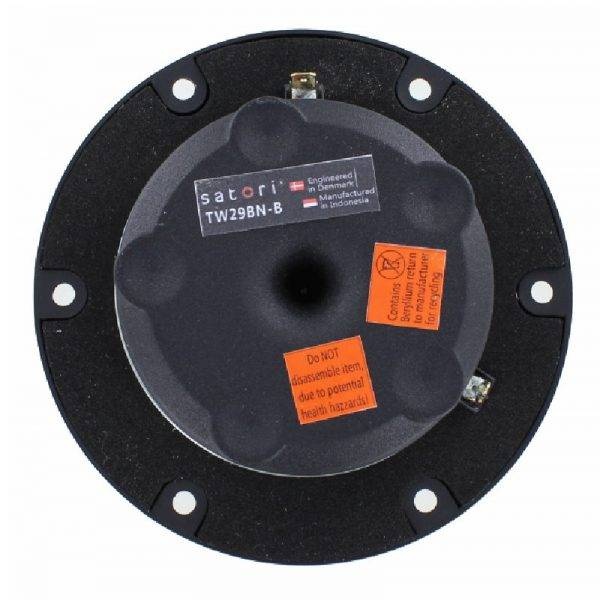

SB Acoustics Satori TW29BN Beryllium Dome Tweeter

€ 329,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The new Satori Beryllium dome tweeter has arrived! Beryllium is known for its open and spatial sound, often described as holographic. The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher... Mehr anzeigen
2 variationen Black
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €313,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Beryllium dome for non-resonant high frequency extension
  • Two part aluminum faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range



Product details

SB Acoustics Satori TW29BN Beryllium Dome Tweeter



The new Satori Beryllium dome tweeter has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  All dome materials have a different tonal and spatial presentation.  Beryllium has a real positive difference, providing an experience unlike all other dome materials.



Specifications: BL Product (BL): 3.1 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

Eigenschaften

Artikelnummer:
TW29BN-B
Tweeter Type
Dome
Tweeter Series
Satori
Power Handling (RMS)
80 Watts
Impedance
4 ohms
Sensitivity
95 dB 2.83V/1m
Resonant Frequency (Fs)
725 Hz
DC Resistance (Re)
3 ohms
Voice Coil Inductance (Le)
0.02 mH
Mechanical Q (Qms)
2.1
Electromagnetic Q (Qes)
0.6
Total Q (Qts)
0.46

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Remarkable improvement compared to the already excellent TW 29 R.
You'll be able to recognize much more details very easily without making you tired especially for long duration listening sessions. bang for the buck if you compare value for money.
Durch Tobias M. on 16 November 2019
