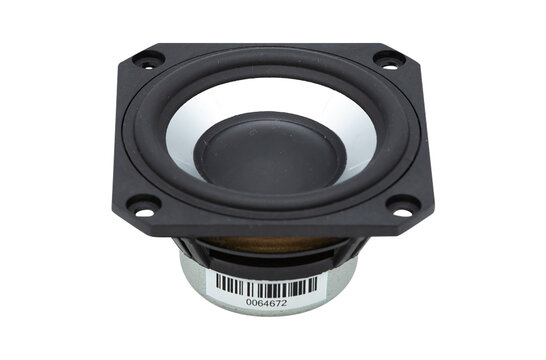

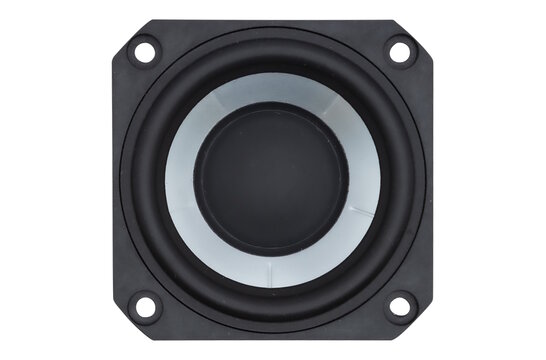

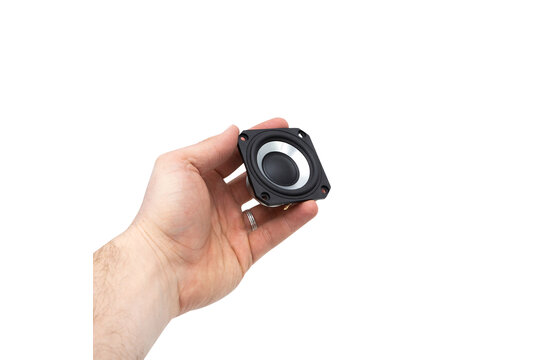

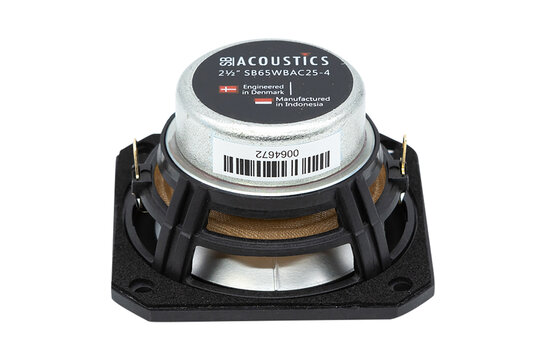

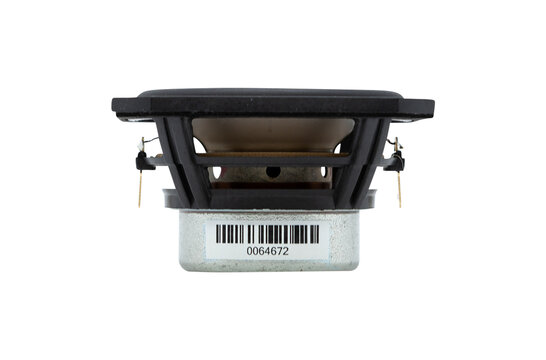

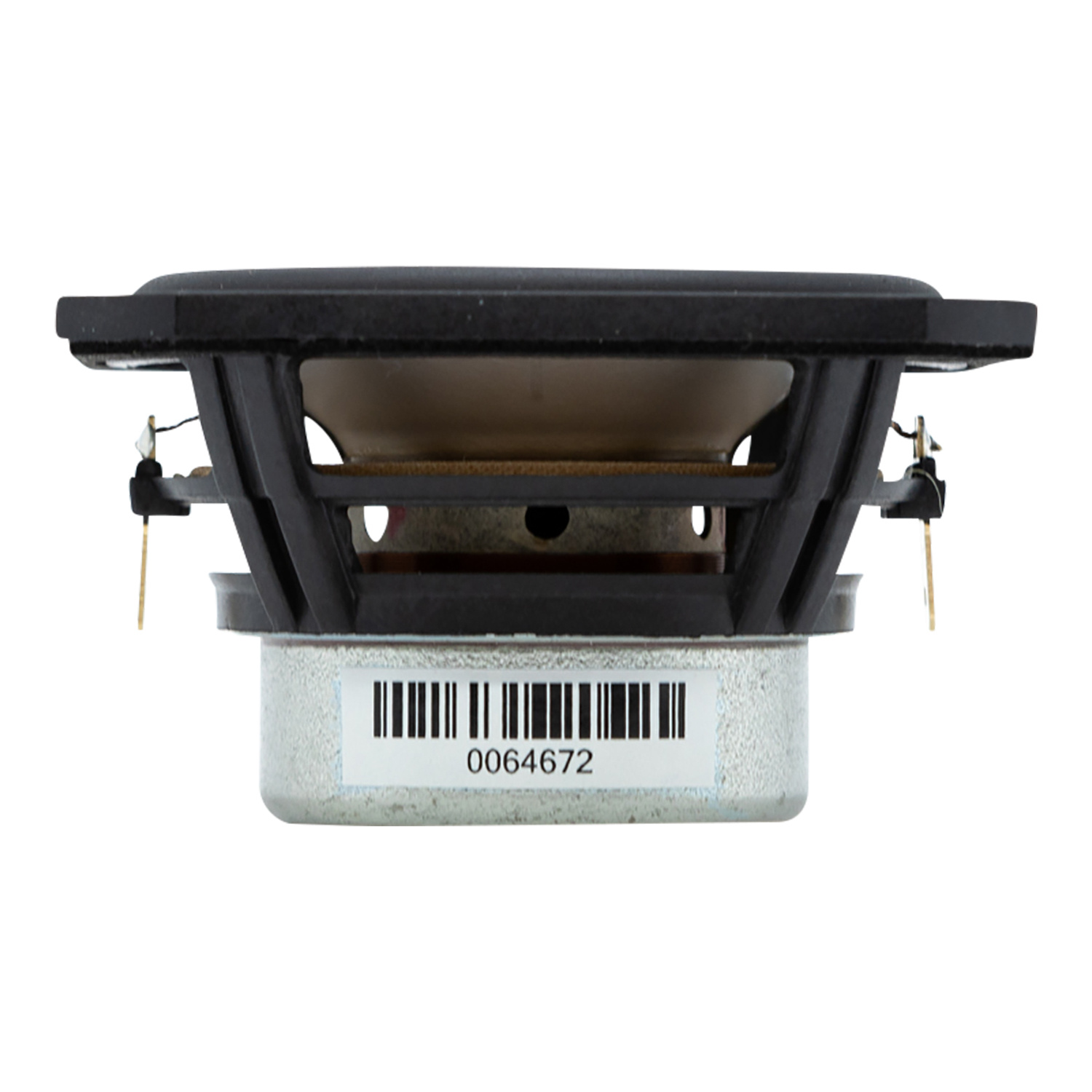

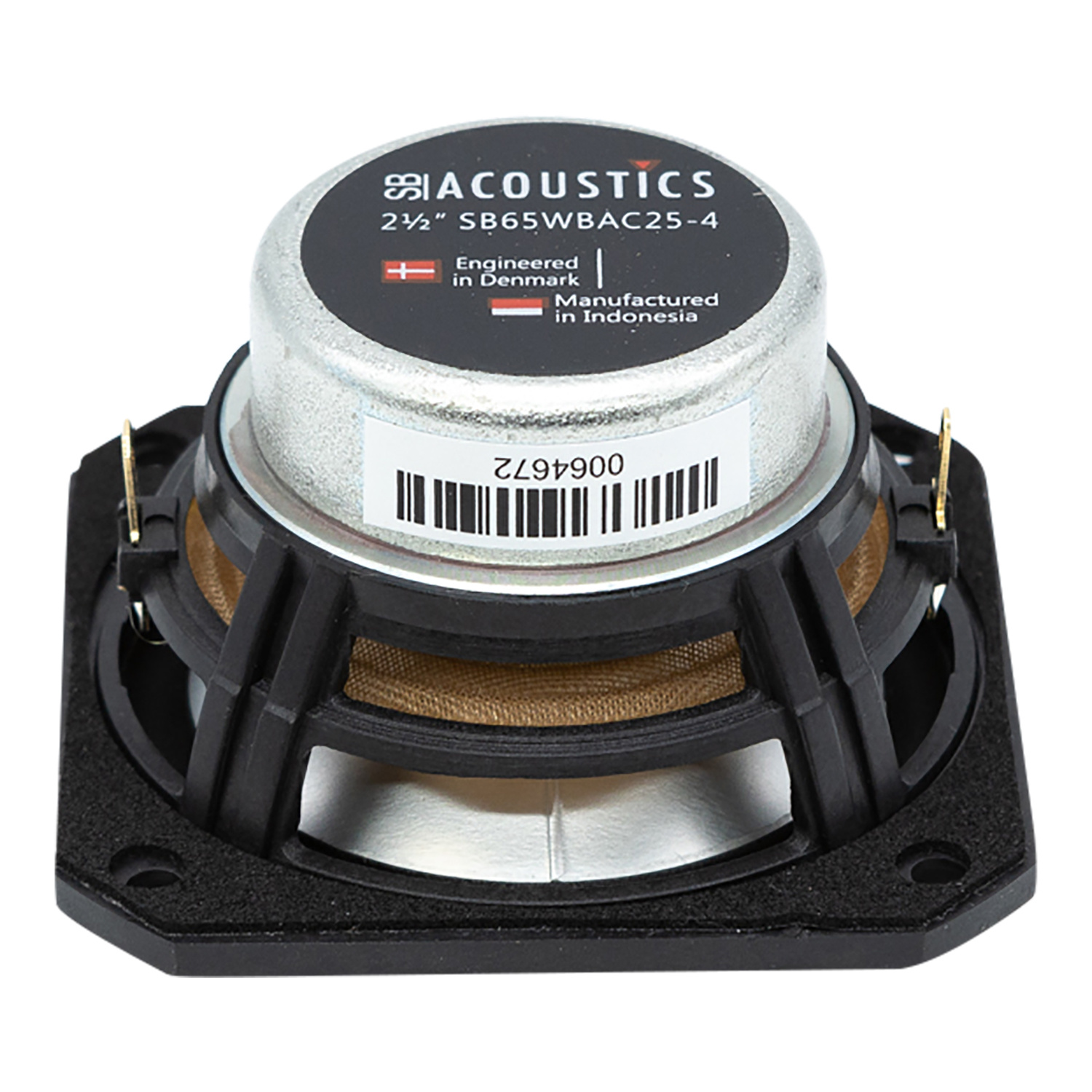

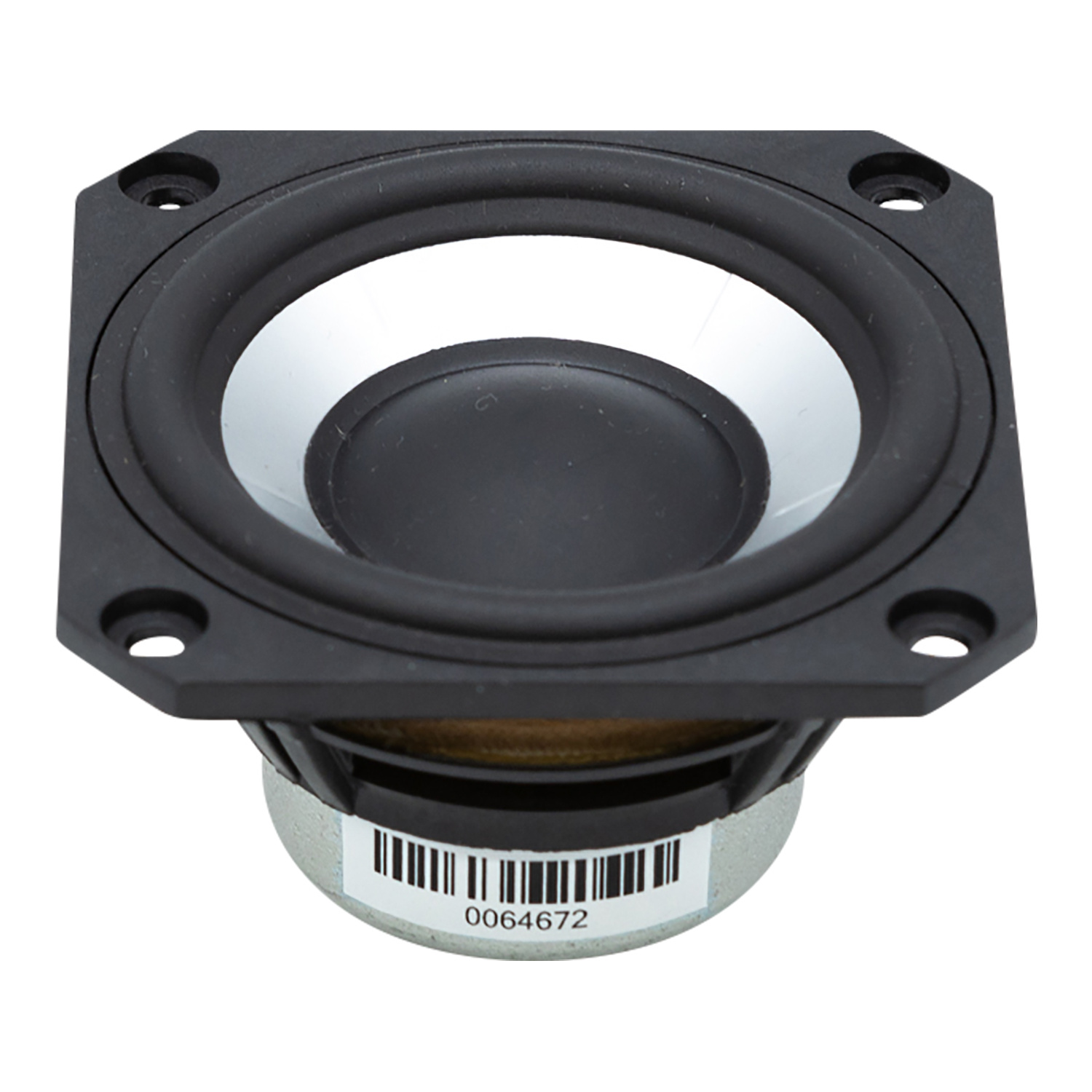

SB Acoustics SB65WBAC25-4 2,5" Full Range Driver 4 Ohm

€ 26,45 4 Auf Lager: Lieferzeit 1-3 Werktage
The SB Acoustics SB65WBAC25-4 is a high-tech little full-range driver, jam-packed with nice features to further improve performance.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €25,13 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Geometrically furrowed aluminum cone
  • Copper cap
  • Low damping surround and non-conductive voice coil former
  • Linear neodymium motor system
  • Vented voice coil former



Product details

SB Acoustics SB65WBAC25-4 2,5" Full Range Driver



The SB Acoustics SB65WBAC25-4 is a high-tech little full-range driver. It has a Geometrically furrowed aluminum cone for extended usable frequency range, Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability. Furthermore it uses a low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution. All of these components are driven by a linear neodymium motor system for reduced distortion and a vented voice coil former for reduced compression.

Eigenschaften

Artikelnummer:
SB65WBAC25-4
Woofer Series
Wideband Series
Woofer Type
Full-Range
Nominal Diameter
2.5"
Power Handling (RMS)
20 Watts
Impedance
4 ohms
Sensitivity
83.5 dB @ 2.83V/1m
Voice Coil Diameter
25.4 mm
Magnet Weight
0.02 kg
DC Resistance (Re)
3.6 ohms
Voice Coil Inductance (Le)
0.15 mH
Resonant Frequency (Fs)
115 Hz
Mechanical Q (Qms)
6.0
Electromagnetic Q (Qes)
0.77
Total Q (Qts)
0.68
Diaphragm Mass Inc. Airload (Mms)
2.5g
Mechanical Compliance of Suspension (Cms)
0.77 mm/N
Surface Area of Cone (Sd)
20 cm2
BL Product (BL)
2.9 Tm
Compliance Equivalent Volume (Vas)
0.43 liters
Maximum Linear Excursion (Xmax)
2.65 mm
Cone / Diaphragm Material
Aluminum
Magnet Material
Neodymium
Overall Depth
38 mm
# Mounting Holes
4
Mounting Hole Diameter
3.3 mm

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Leuke luidspreker voor het geld. Mooi helder geluid. Fantastisch al surround luidspreker.
Durch Daniel v. on 12 März 2020
