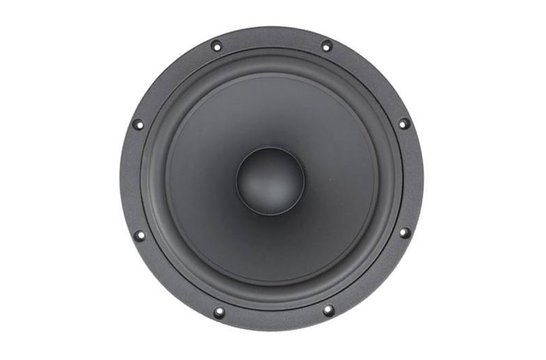

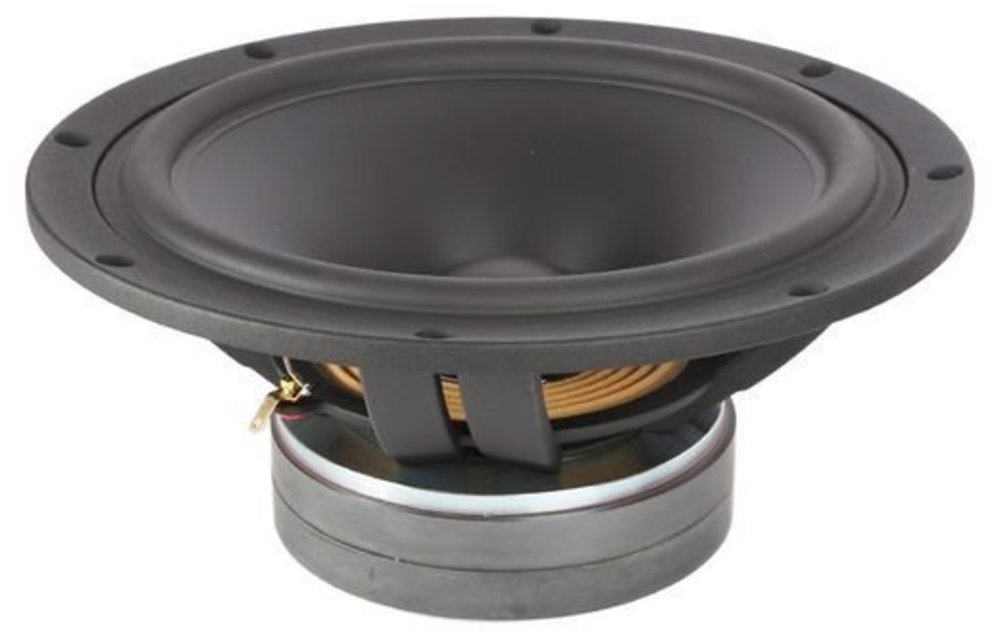

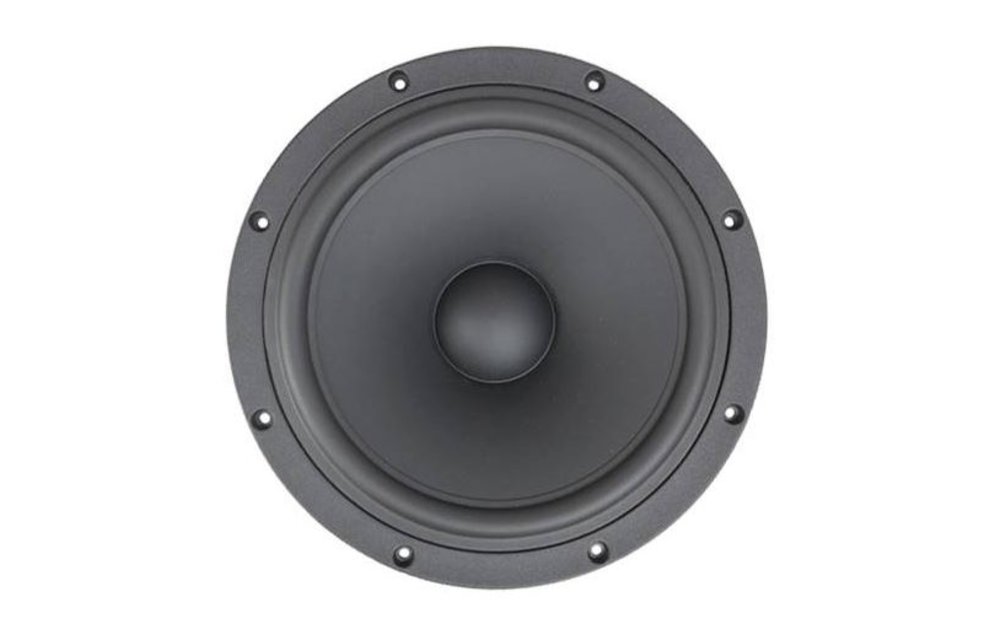

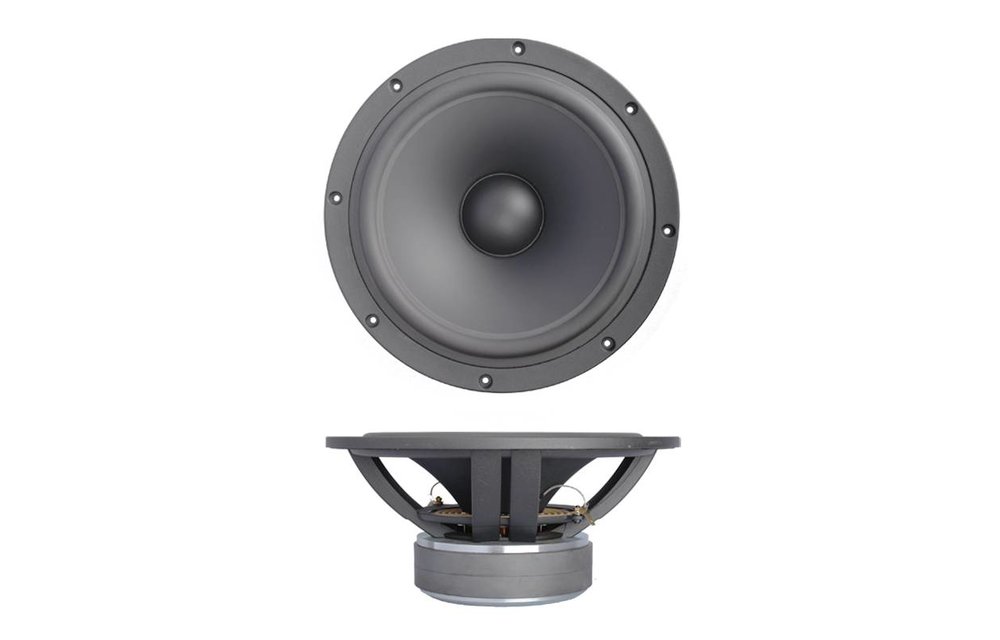

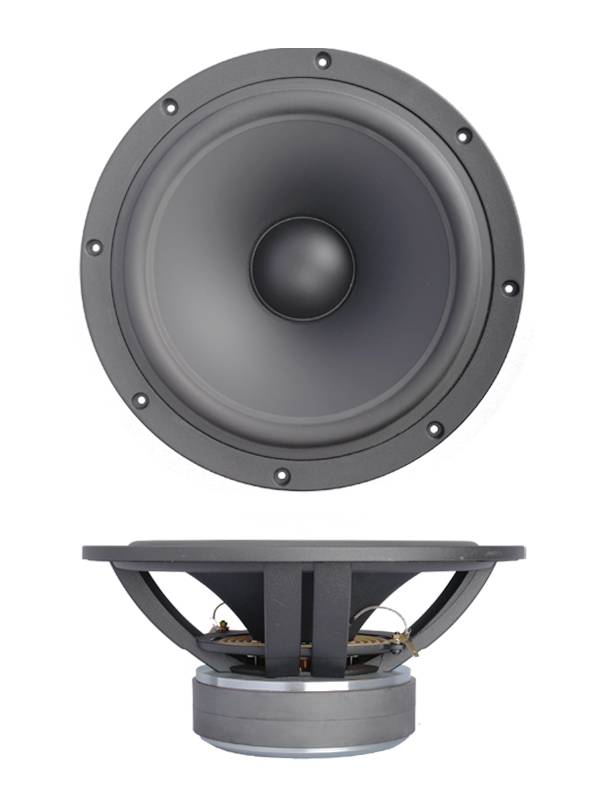

    SB Acoustics SB34NRXL75-8 12" Woofer

    Marke: SB Acoustics
    Alle anzeigen Audio-Komponenten
    12" | 8 Ω
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    € 239,95 4 Auf Lager: Lieferzeit 1-3 Werktage
    The SB34NRXL75-8 12" woofer features a proprietary composition paper cone with a special coating. The rubber surround has been carefully chosen to properly dampen the cone movement. The open structure cast frame has been specially engineered for minimum r... Mehr anzeigen
    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -5% Kauf 4 für nur €227,95 pro stück
    +-
    In den Warenkorb legen
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag*
    • Bezahlung mit PayPal, Kreditkarte und mehr
    • Hausinterner technischer Support
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer
    SB34NRXL75-8 12" Woofer

    Produktbeschreibung

    Highlights

    • Hard paper cone for improved piston operation (made in-house)
    • Large motor system with under-cut pole piece and dual shorting rings
    • Vented pole piece for minimum compression
    • Vented cast aluminum chassis for optimum strength and low compression
    • 3″ copper voice coil for improved power handling
    • Long life silver lead wires
    • Low damping rubber surround for improved dynamic linearity
    • Non-conducting fiber glass voice coil former for minimum damping
    • Optimized for vented enclosure



    Product details

    SB Acoustics SB34NRXL75-8 12" Woofer



    The SB34NRXL75-8 12" woofer features a proprietary composition paper cone with a special coating. The rubber surround has been carefully chosen to properly dampen the cone movement. The open structure cast frame has been specially engineered for minimum reflections good air flow. Extra-large magnet with dual shorting rings and vented pole piece. This woofer could be used in various boxes but will likely require some boost on the low end to extend the lower frequencies.

    Eigenschaften

    Artikelnummer:
    SB34NRXL75-8
    Woofer Series
    NRX Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    12"
    Power Handling (RMS)
    200 Watts
    Impedance
    8 ohms
    Sensitivity
    91 dB 2.83V/1m
    Voice Coil Diameter
    2.97"
    DC Resistance (Re)
    6.2 ohms
    Voice Coil Inductance (Le)
    1.2 mH
    Resonant Frequency (Fs)
    22 Hz
    Mechanical Q (Qms)
    5.5
    Electromagnetic Q (Qes)
    0.29
    Total Q (Qts)
    0.28
    Diaphragm Mass Inc. Airload (Mms)
    93 g
    Mechanical Compliance of Suspension (Cms)
    0.56 mm/N
    Surface Area of Cone (Sd)
    508 cm2
    BL Product (BL)
    16.6 Tm
    Compliance Equivalent Volume (Vas)
    7.23 ft.³
    Maximum Linear Excursion (Xmax)
    10 mm
