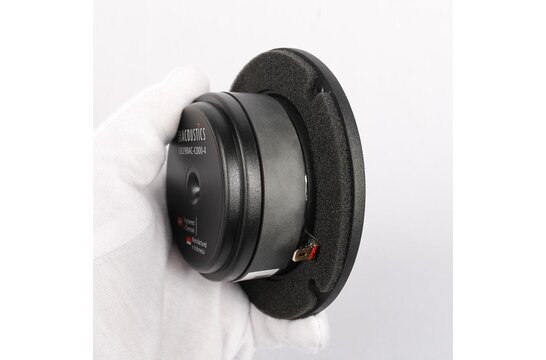

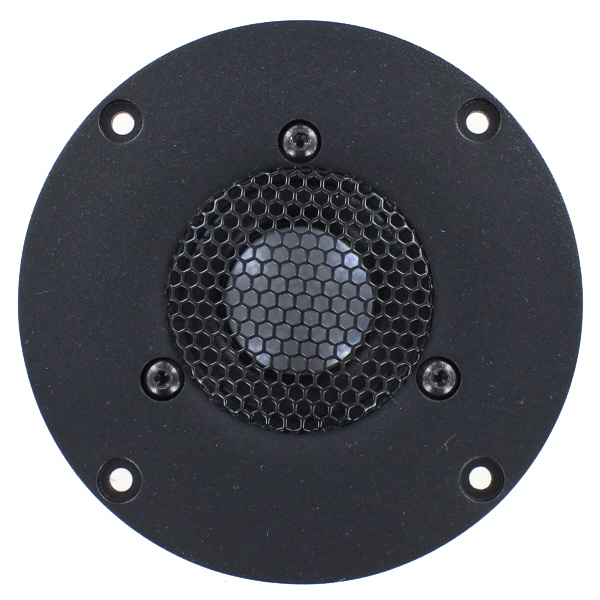

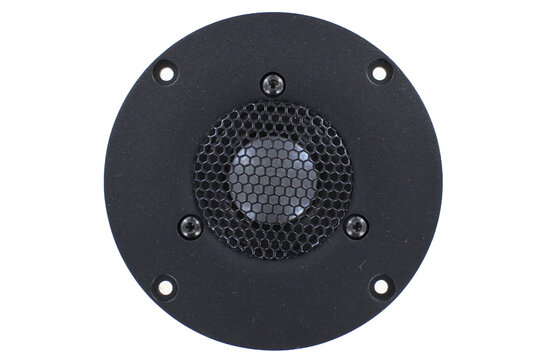

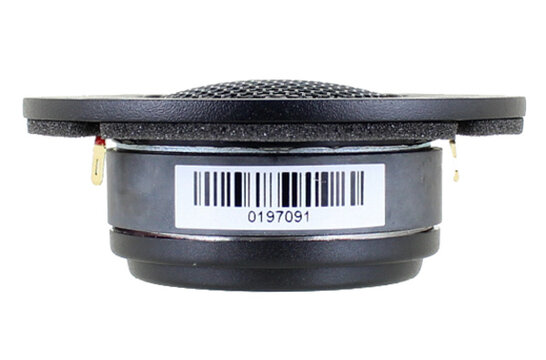

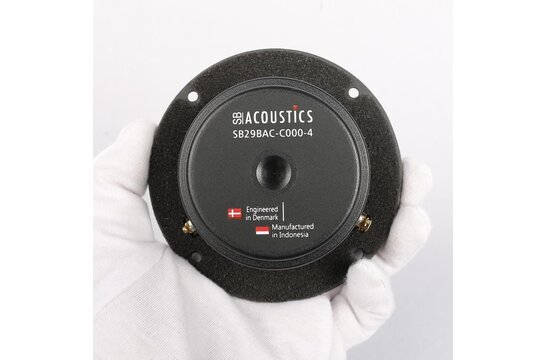

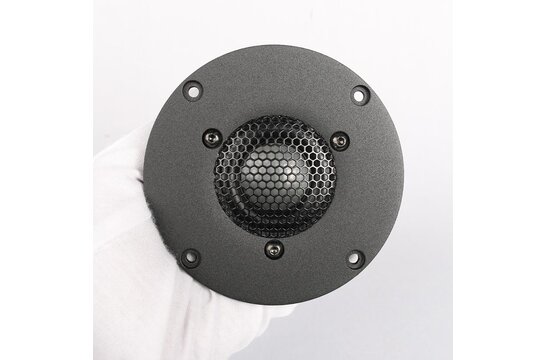

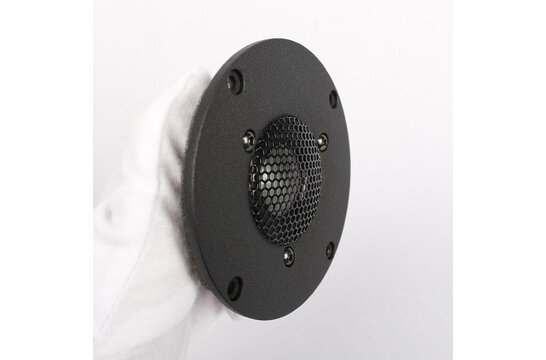

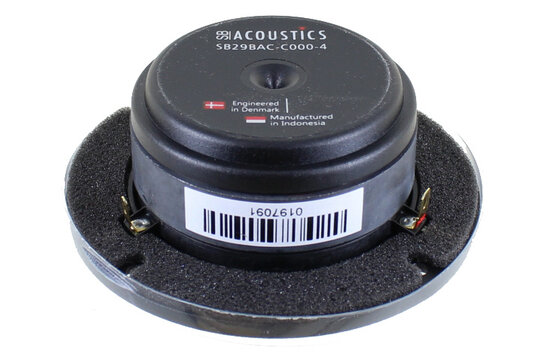

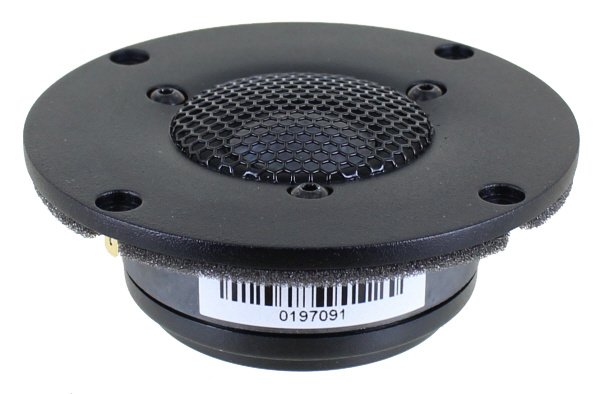

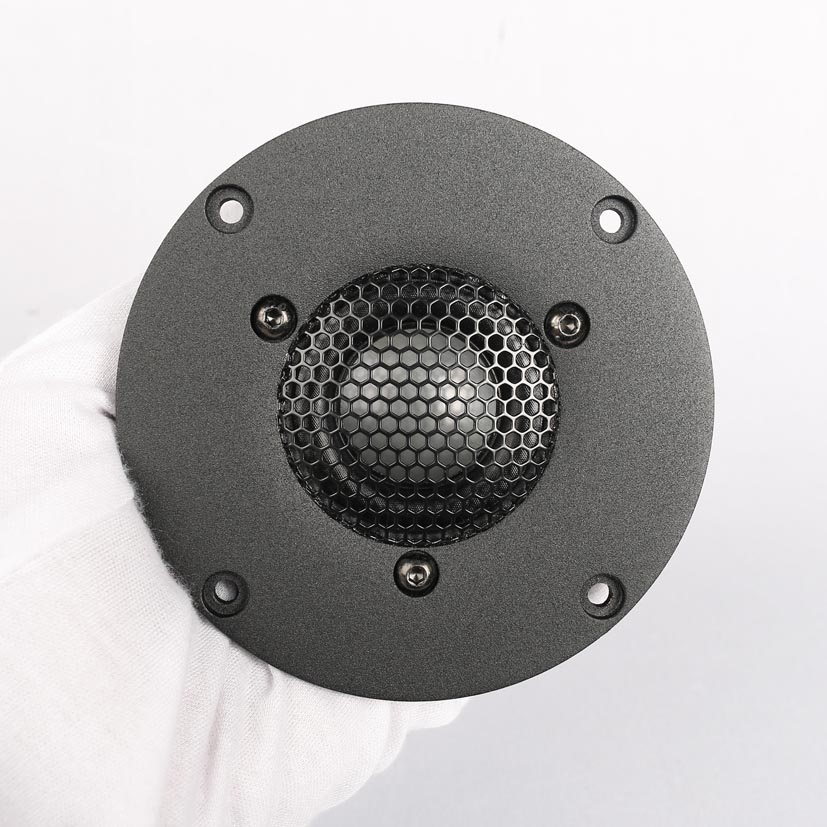

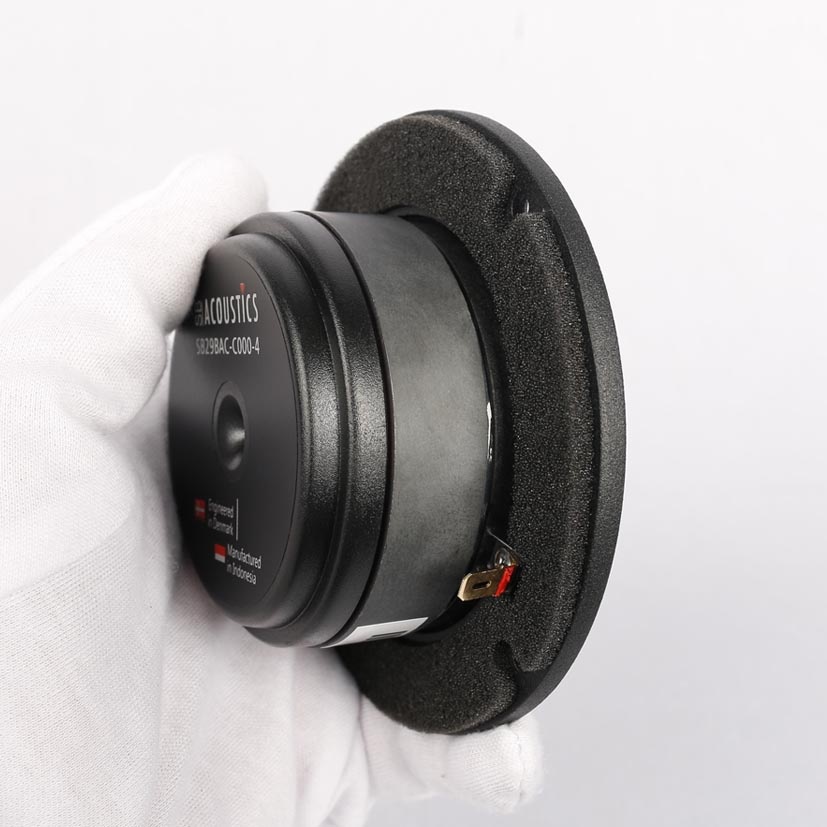

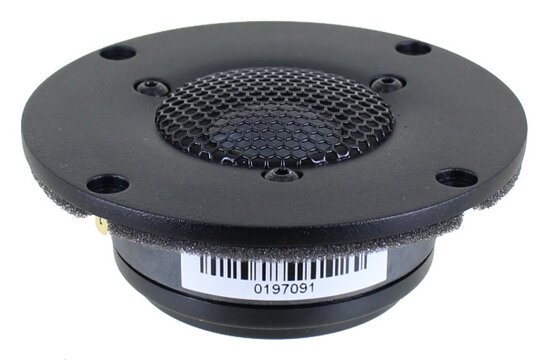

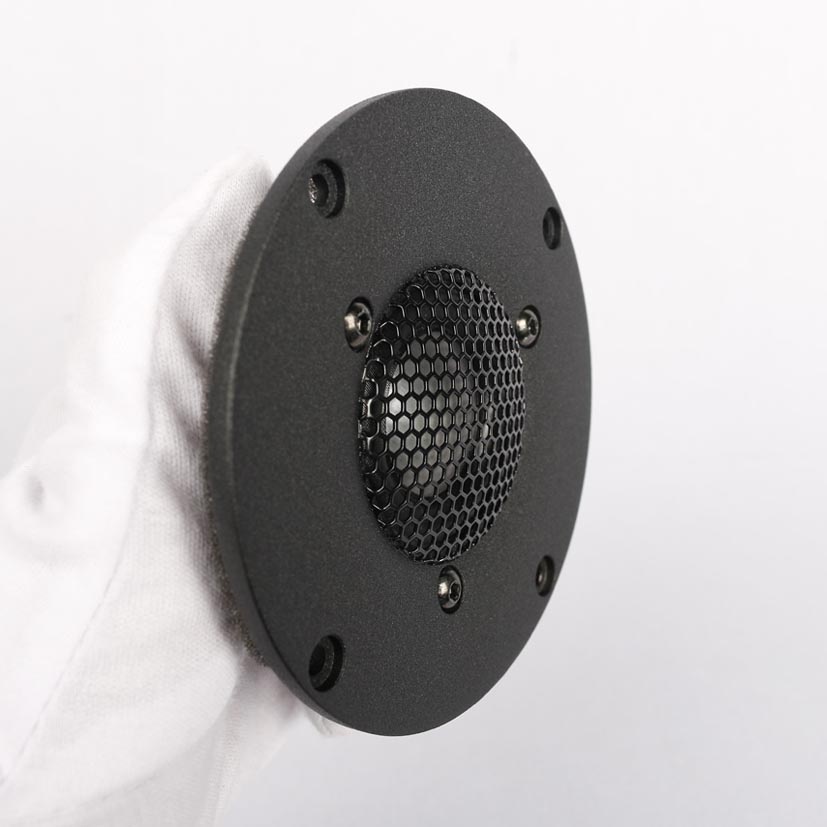

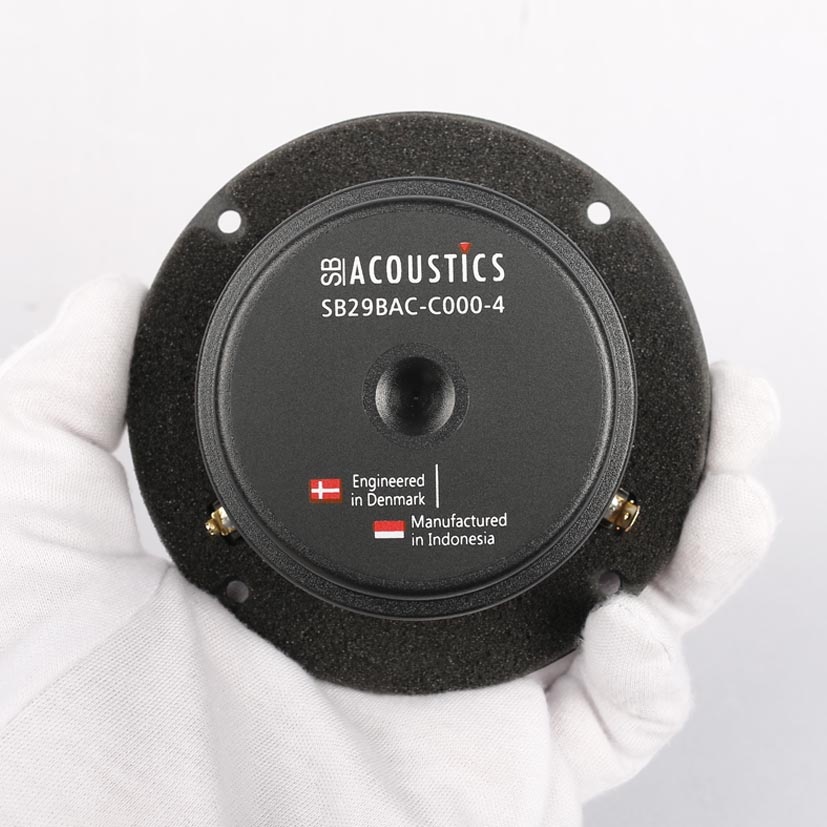

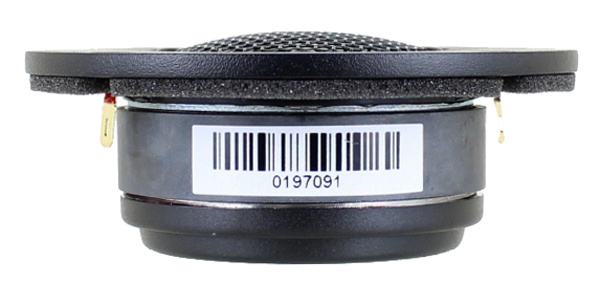

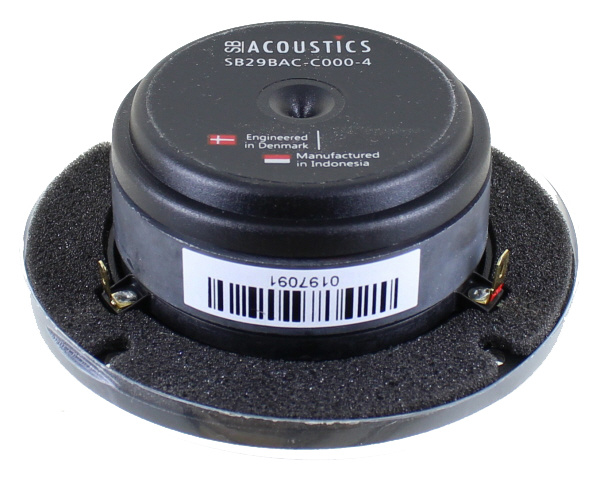

SB29BAC-C000-4 Beryllium Kalotten-Hochtöner

€284,95

Zum Warenkorb hinzufügen

SB Acoustics SB29BAC-C000-4 Beryllium Kalotten-Hochtöner

1 reviews

Marke: SB Acoustics

Zeige alle SB Acoustics Hochtöner

1⅛" | 4 Ω

SB29BAC-C000-4 Beryllium Kalotten-Hochtöner

235,50 €284,95 € 4 Auf Lager

Kostenloser Versand (DE & A)
Jetzt bestellt, heute versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Vor-und Nachteile

Laut unserer Spezialisten

Beryllium dome for non-resonant high frequency extension
Non-reflective rear chamber with optimized damping for improved dynamics

Produktbeschreibung

The SB Acoustics SB29BAC-C000-4 Dome Tweeter is another high-end tweeter that features a beryllium dome for non-resonant high frequency extension, large surround dome for increased acoustic output, copper cap for reduced voice coil inductance and minimum phase shift, saturation controlled motor system for low distortion, and dual balanced compression chambers for improved dynamics. It is part of the SB Acoustics’ dome tweeters product line.

Highlights

Beryllium dome for non-resonant high frequency extension
Large surround dome for increased acoustic output
Copper cap for reduced voice coil inductance and minimum phase shift
Saturation controlled motor system for low distortion
Dual balanced compression chambers for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
Non-reflective rear chamber with optimized damping for improved dynamics
CCAW voice coil for low moving mass
Long life flexible lead wires
Cast aluminium faceplate
Low resonance frequency

Product details

SB29BAC-C000-4 Beryllium Dome Tweeter

The SB Acoustics SB29BAC-C000-4 Dome Tweeter is another high-end tweeter that features a beryllium dome for non-resonant high frequency extension. Beryllium is a very stiff and lightweight material that has a high modulus of elasticity and is used in high-end tweeters because it can produce a very accurate sound. The large surround dome increases the acoustic output of the tweeter, while the copper cap reduces voice coil inductance and minimum phase shift. The saturation controlled motor system is used for low distortion, while the dual balanced compression chambers are used for improved dynamics.

Eigenschaften

Artikelnummer:: SB29BAC-C000-4
Hochtönertyp: Dome
Hochtöner-Serie: Beryllium
Cone / Dome Diameter: 29 mm
Power Handling (max): 80 Watt
Impedanz (Z): 4 Ohm
Empfindlichkeit (SPL bei 1m / 2,83V): 93 dB
Frequenzgang: 400-40000 Hz
Resonanzfrequenz (Fs): 650 Hz
Gleichstromwiderstand (Re): 3 Ohm
Voice Coil Inductance (Le): 0,05 mH
Mechanische Güte (Qms): 2.71
Electromagnetic Q (Qes): 1.22
Gesamtgüte (Qts): 0.84
Ausschnittdurchmesser: 104 mm
Tiefe: 33.3 mm
Empfohlene Übergangsfrequenz: 400-40000 Hz

Bewertungen

1 reviews

Produkt bewerten

5 von 5

These Beryllium-tweeters are just fantastic. Haven’t heard tweeters of this kind of quality before, Totally a new experience. My QUAD 2905`s are now being prepared for sale….!

Durch Erik on 12 März 2024
