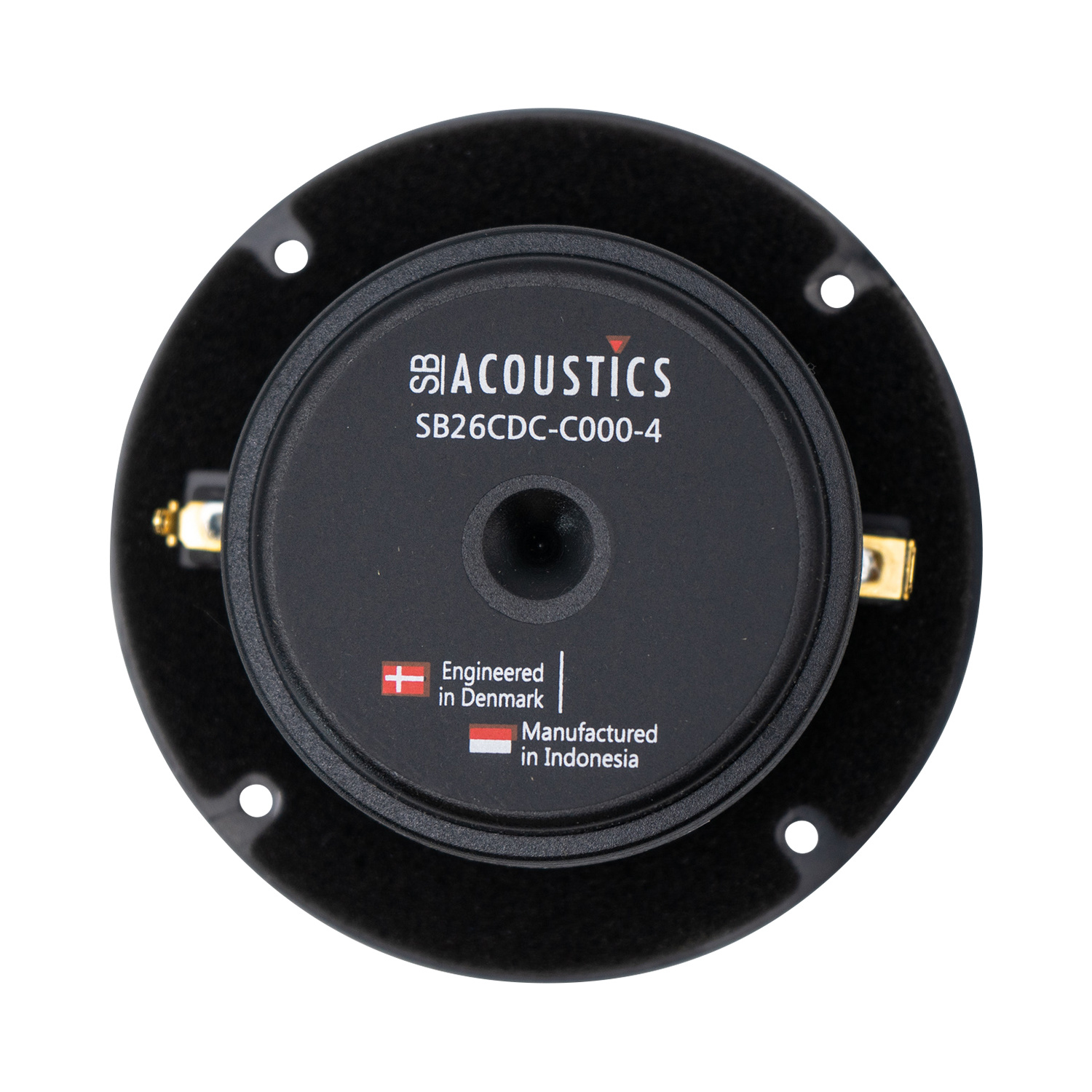

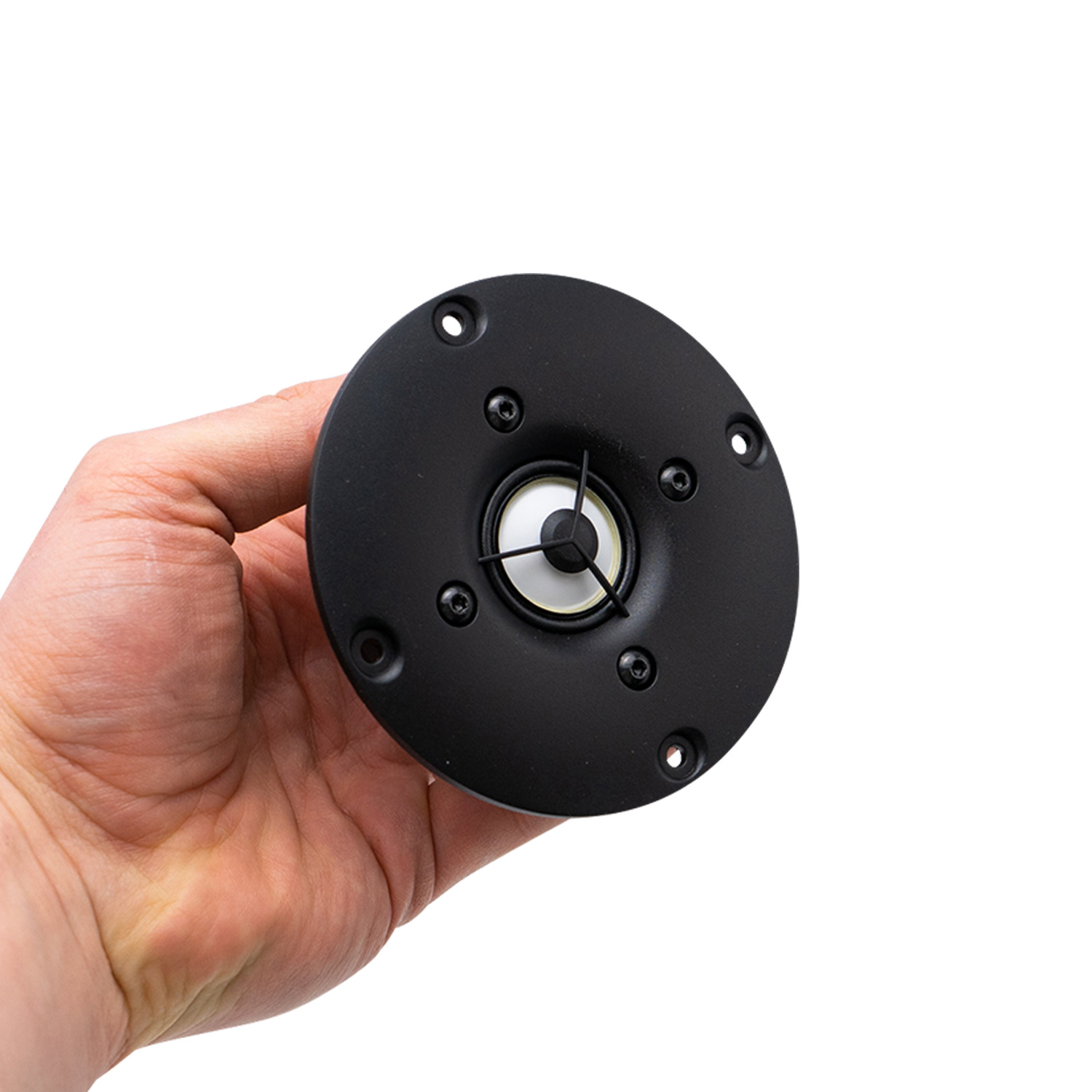

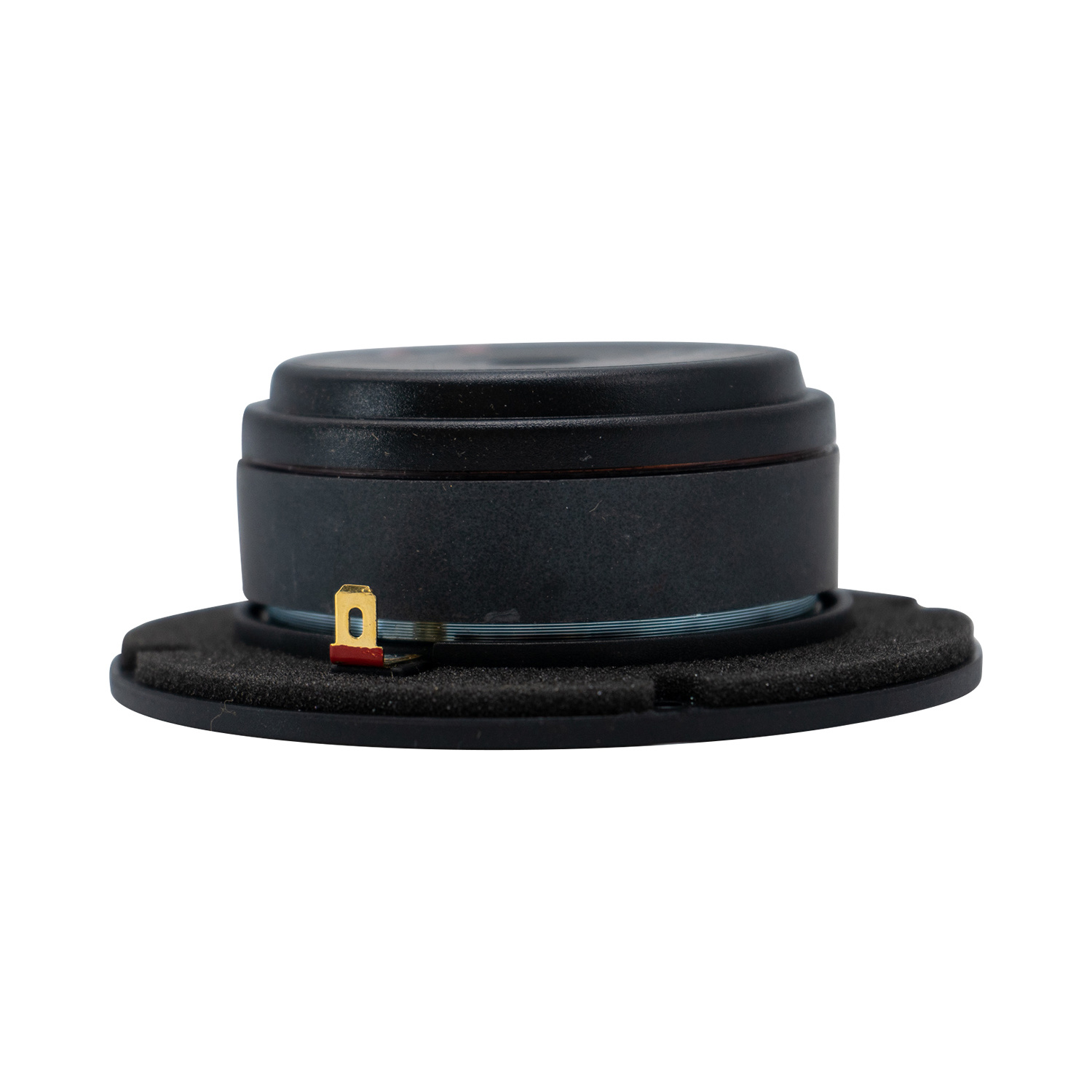

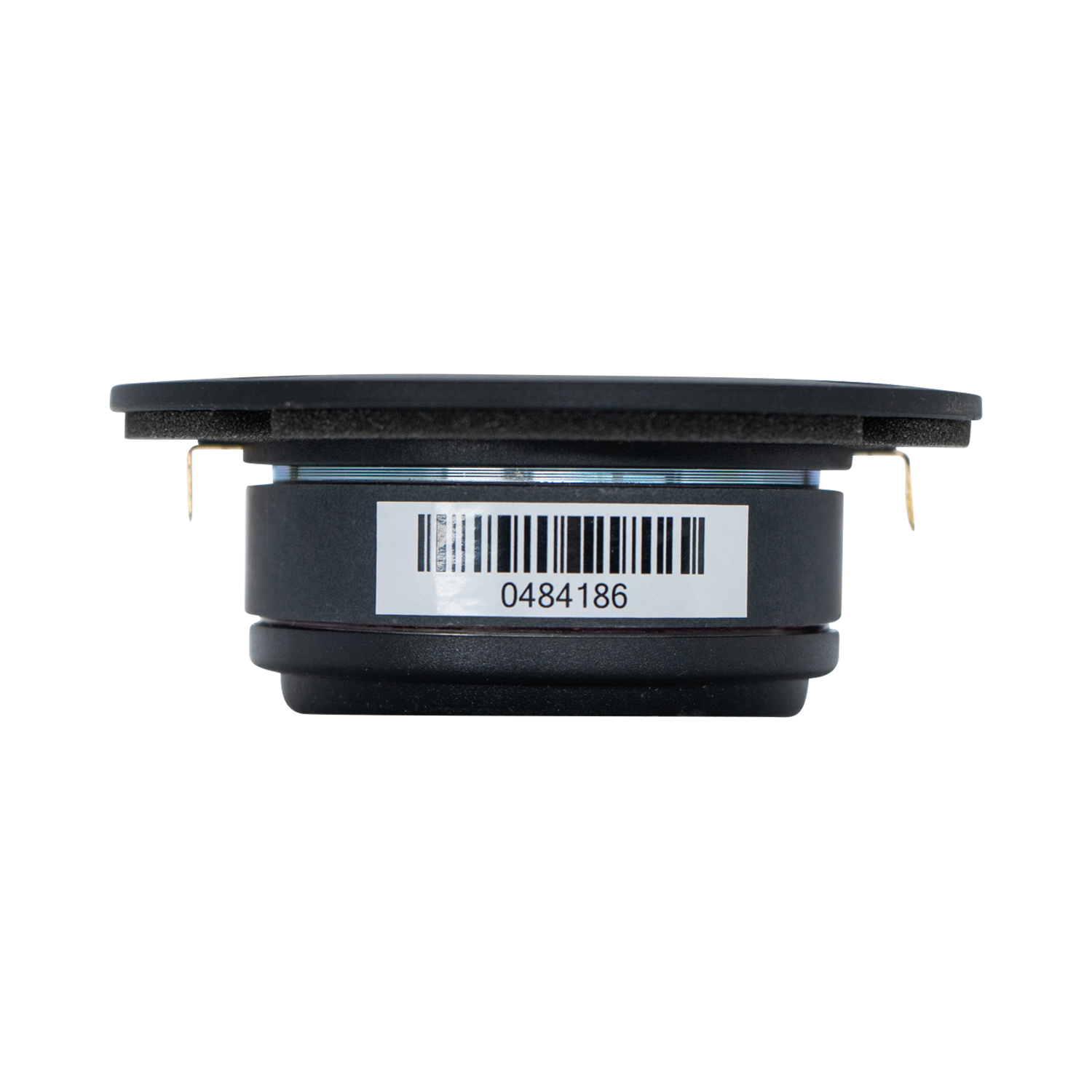

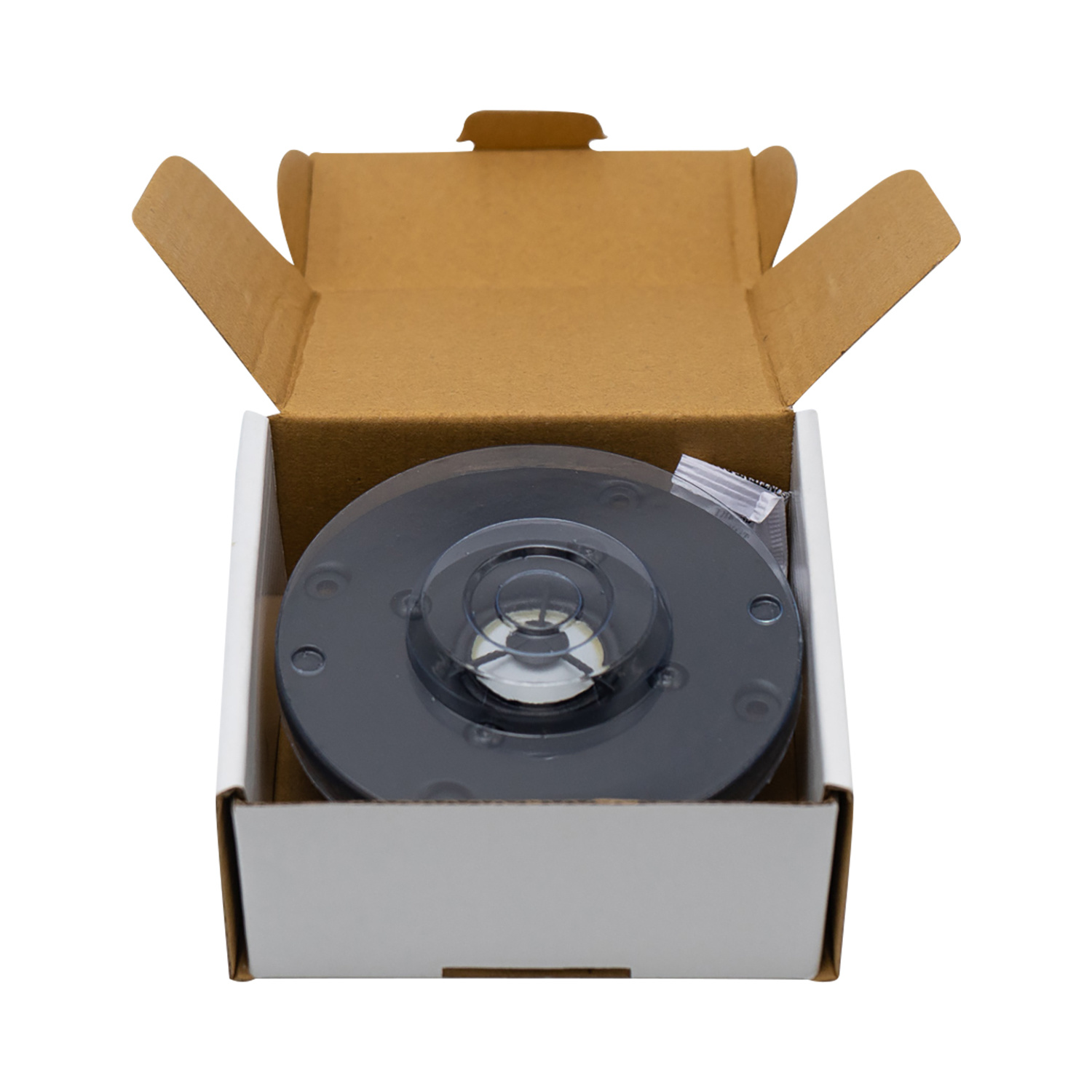

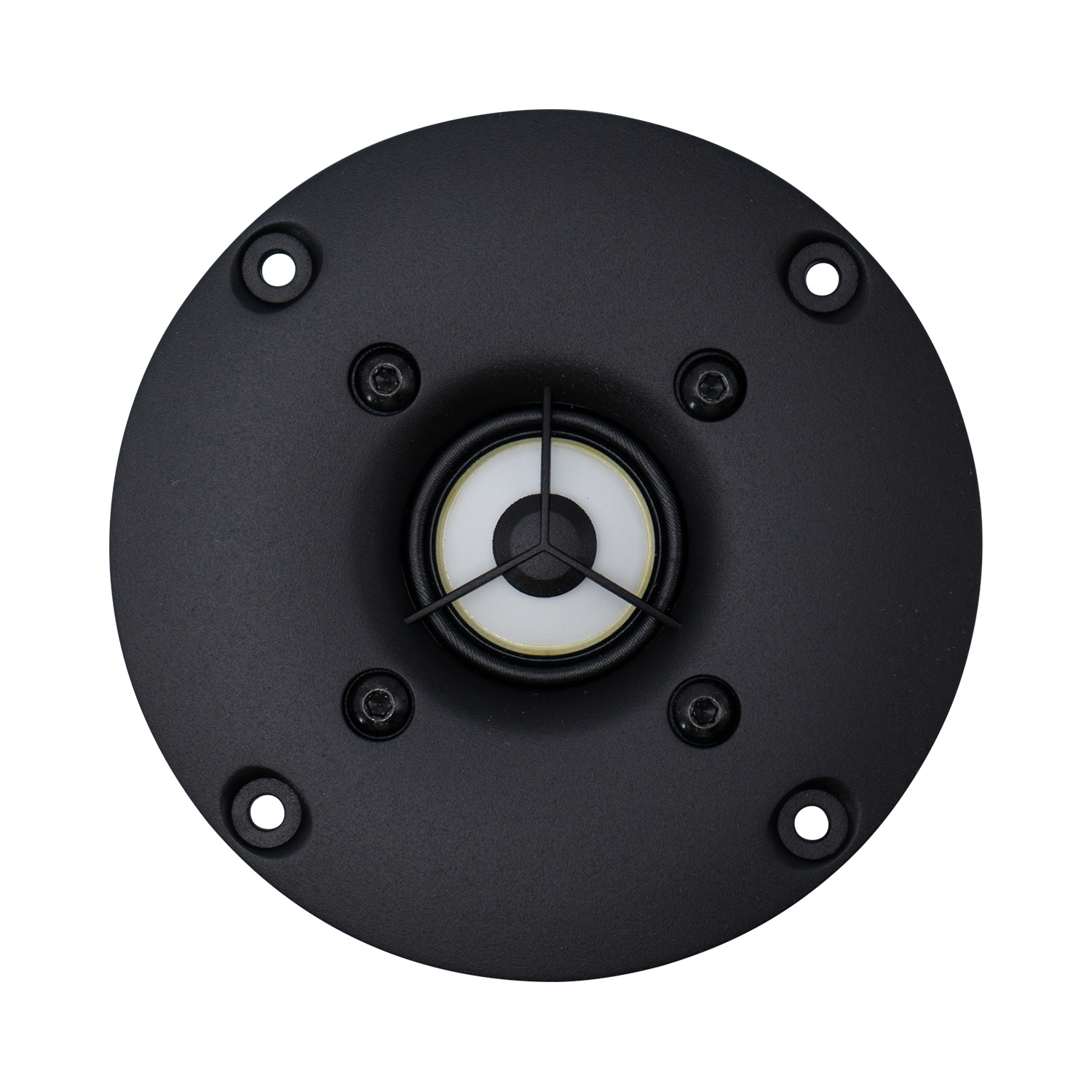

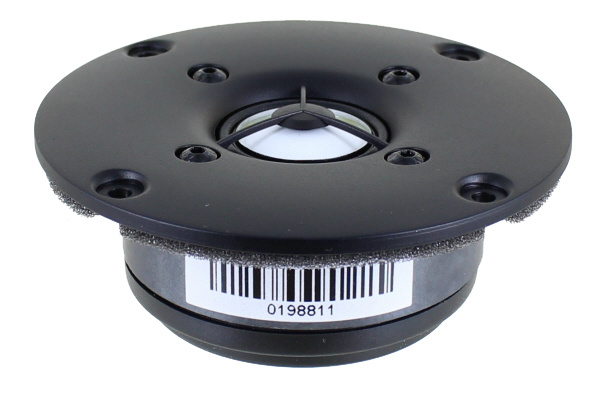

SB Acoustics SB26CDC-C000-4 1'' Ceramic Dome Tweeter

€ 37,15€ 44,95 4 Auf Lager: Lieferzeit 1-3 Werktage
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €42,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The well-designed SB26CDC-C000-4 tweeter not only matches the SB Acoustics Ceramic woofers aesthetically but also technically. Thanks to the low resonance frequency, linear response and high power handling, this tweeter is ideally suited for the more demanding speaker builds where other tweeters would be easily strained.



Highlights

  • Phase optimized diaphragm design for coherent high frequency radiation
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Saturation controlled motor system for low distortion
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency



Product details

SB Acoustics SB26CDC-C000-4 1’’ Aluminium/Ceramic Dome tweeter



The well-designed SB26CDC-C000-4 tweeter not only matches the SB Acoustics Ceramic woofers aesthetically but also technically. Thanks to the low resonance frequency, linear response and high power handling, this tweeter is ideally suited for the more demanding speaker builds where other tweeters would be easily strained.



Other than that, ceramic domes offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.



PRODUCT SPECIFICATIONS

Tweeter Type

Aluminium/Ceramic Dome

Cone / Dome Diameter

1"

Impedance

4 ohms

Power Handling (RMS)

120 Watts

Frequency Response

1,400 to 20,000 Hz

Sensitivity

89 dB 2.83V/1m



THIELE-SMALL PARAMETERS

Resonant Frequency (Fs)

690 Hz

DC Resistance (Re)

3.2 ohms

Voice Coil Inductance (Le)

0.04 mH

Mechanical Q (Qms)

2.55

Electromagnetic Q (Qes)

2.00

Total Q (Qts)

1.12



MOUNTING INFORMATION

Overall Outside Diameter

3.94"

Cutout Diameter

2.76"

Depth

1.37"



Eigenschaften

Artikelnummer:
SB26CDC-C000-4
Hochtönertyp
Aluminium/Ceramic Dome
Cone / Dome Diameter
1"
Belastbarkeit (QMW)
120 Watts
Impedanz (Z)
4 ohms
Empfindlichkeit
89 dB 2.83V/1m
Frequenzgang
1,400 to 20,000 Hz
Resonanzfrequenz (Fs)
690 Hz
Gleichstromwiderstand (Re)
3.2 ohms
Voice Coil Inductance (Le)
0.04 mH
Mechanische Güte (Qms)
2.55
Electromagnetic Q (Qes)
2.00
Gesamtgüte (Qts)
1.12
Außendurchmesser
3.94"
Ausschnittdurchmesser
2.76"
Tiefe
1.37"
