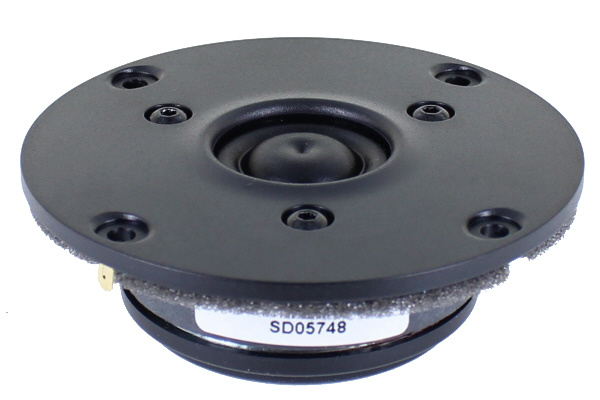

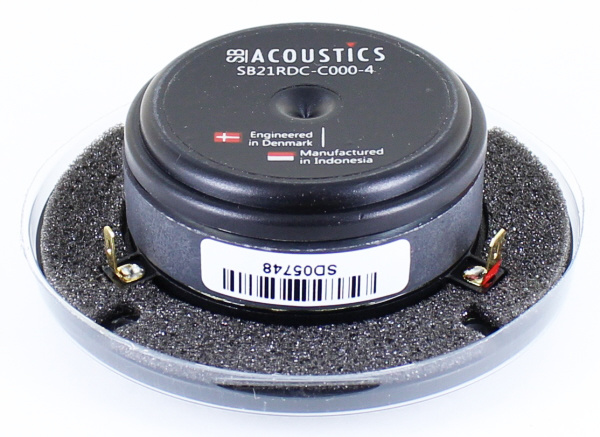

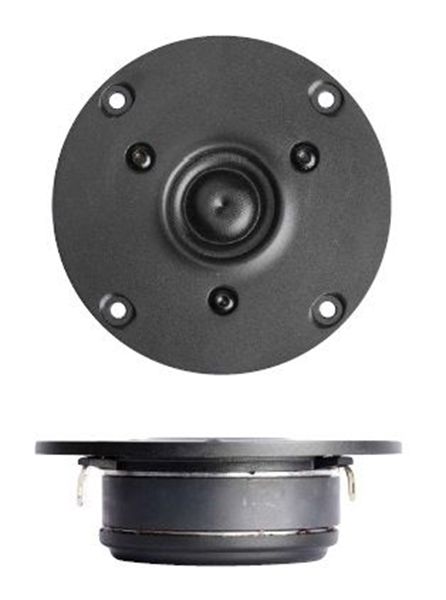

SB Acoustics SB21RDC-C000-4 3/4" Ring Tweeter

Name: SB Acoustics SB21RDC-C000-4 3/4" Ring Tweeter
Brand: SB Acoustics
Price: 39.95 EUR
Availability: InStock

0 reviews

Marke: SB Acoustics

Alle anzeigen Audio-Komponenten

Vergleichen

3/4" | 4 Ω

€ 33,02€ 39,95 1 Auf Lager: Lieferzeit 1-3 Werktage

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Non-resonant diaphragm design for minimum high frequency break-up
Dual balanced compression chamber for improved dynamics
Copper cap for reduced voice coil inductance and minimum phase shift
Saturation controlled motor system for low distortion
Non-reflective rear chamber with optimized damping for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency

Product details

SB Acoustics SB21RDC-C000-4 3/4" Ring Tweeter

Non-resonant diaphragm design for minimum high frequency break-up and dual balanced compression chamber for improved dynamics. Copper cap for reduced voice coil inductance and minimum phase shift. Saturation controlled motor system for low distortion. Non-reflective rear chamber with optimized damping for improved dynamics. Flow optimized vented pole piece for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires and low resonance frequency.

Specifications: BL Product (BL): 1.5 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.25 g • Maximum Linear Excursion (Xmax): 0.5 mm • Surface Area of Cone (Sd): 4.6 cm²
