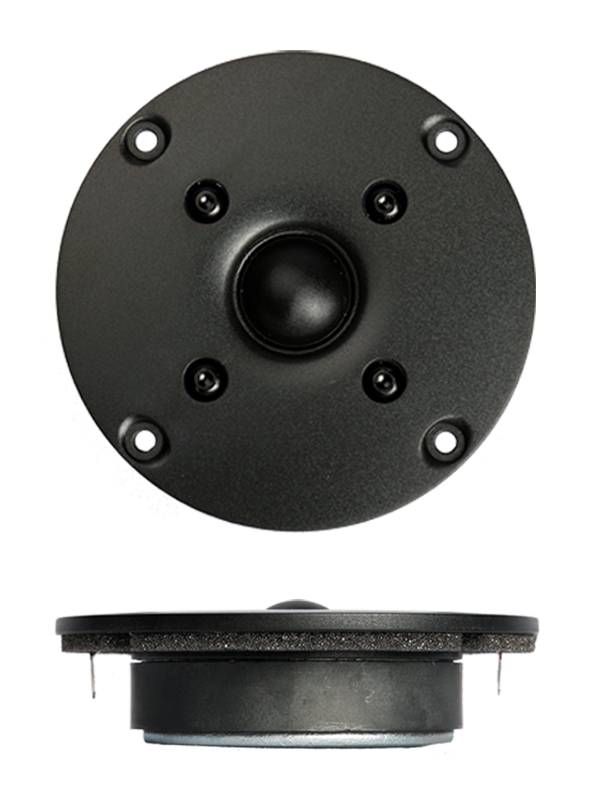

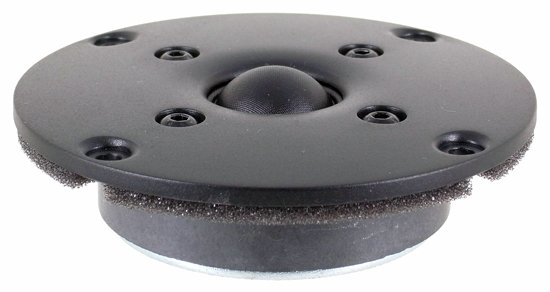

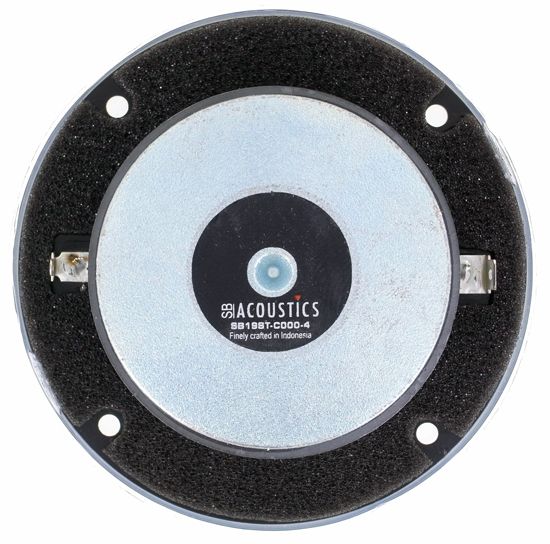

SB Acoustics SB19ST-C000-4 3/4" Dome Tweeter

Name: SB Acoustics SB19ST-C000-4 3/4" Dome Tweeter
Brand: SB Acoustics
Price: 19.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1 reviews

Marke: SB Acoustics

Alle anzeigen Audio-Komponenten

Vergleichen

3/4" | 4 Ω

€ 16,49€ 19,95 4 Auf Lager: Lieferzeit 1-3 Werktage

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Optimized damping in pole cavity to eliminate internal reflection
Fine weave soft fabric dome for smooth frequency response
Saturation controlled motor system for reduced distortion
CCAW voice coil for low moving mass
Long life silver lead wires
88 mm diameter flange (3.46")
Extended frequency response - flat out to 30kHz

Product details

SB Acoustics SB19ST-C000-4 3/4" Dome Tweeter

Optimized damping in pole cavity to eliminate internal reflection. The fine weave soft fabric dome provides a smooth frequency response. Saturation controlled motor system for reduced distortion. CCAW voice coil for low moving mass. Long life silver lead wires.

Specifications: BL Product (BL): 1.75 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.22 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 3.8 cm²

Eigenschaften

Artikelnummer:: SB19ST-C000-4
Hochtönertyp: Dome
Cone / Dome Diameter: 3/4"
Belastbarkeit (QMW): 30 Watts
Impedanz (Z): 4 ohms
Empfindlichkeit: 88.5 dB 2.83V/1m
Resonanzfrequenz (Fs): 980 Hz
Gleichstromwiderstand (Re): 3.4 ohms
Voice Coil Inductance (Le): 0.07 mH
Mechanische Güte (Qms): 6.45
Electromagnetic Q (Qes): 1.50
Gesamtgüte (Qts): 1.22

Data sheet

Bewertungen

1 reviews

5 from 5Based on 1 reviews

Produkt bewerten

5 van 5

Anche se non è tanto costoso e molto preciso.... ottimo per gli progetti fai da te...io per esempio ho fatto una coppia delle buchardt s40 con tuta roba SB acustic che sono prodotti di ottima qualità

Durch Marian C. on 13 Januar 2021
