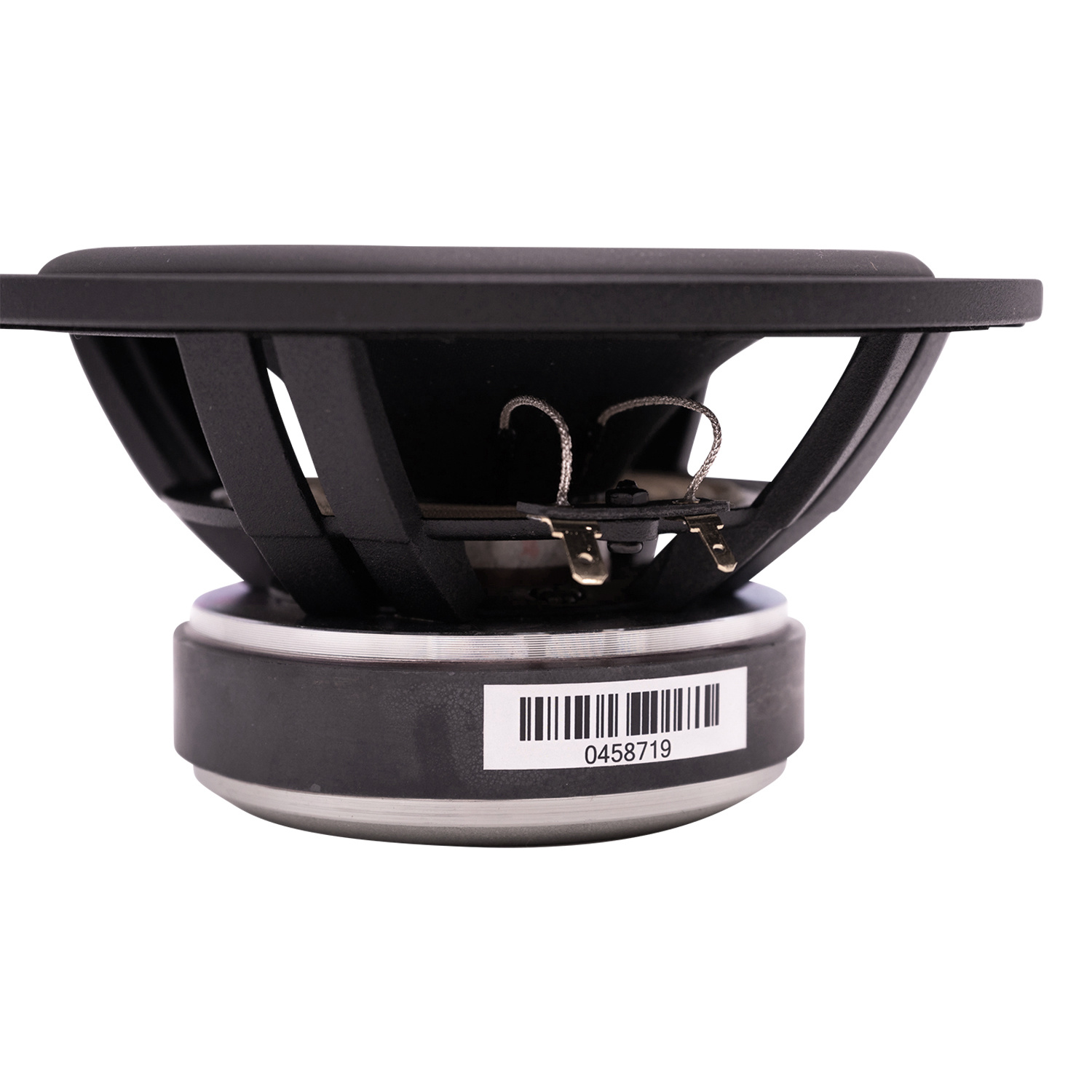

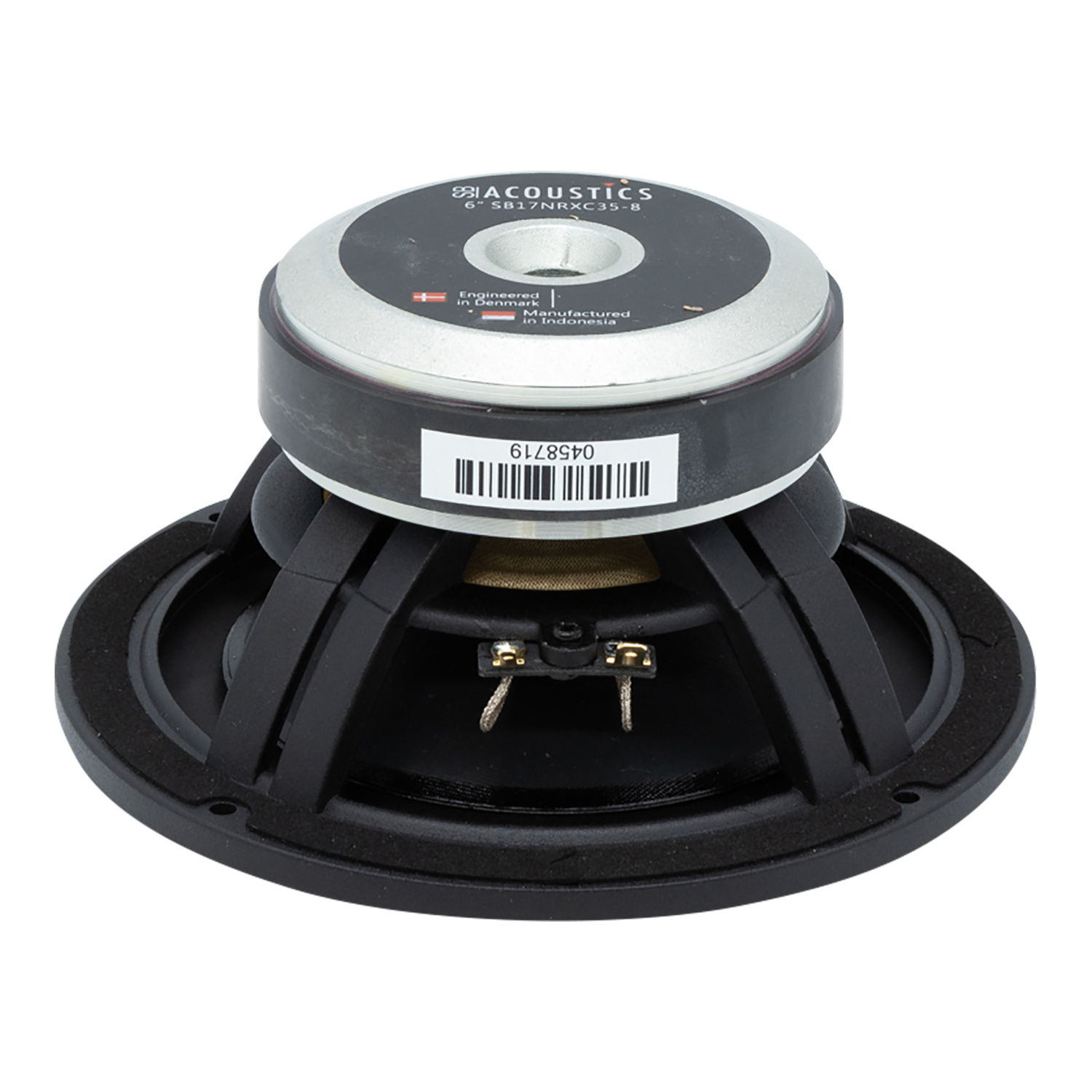

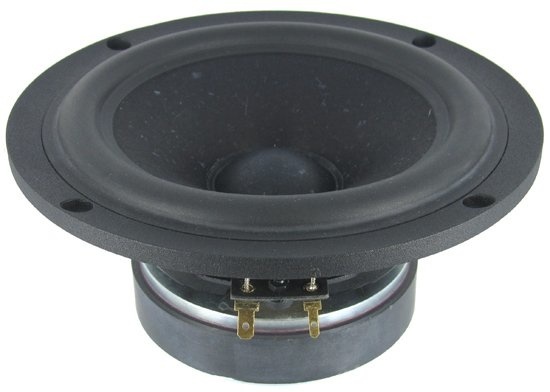

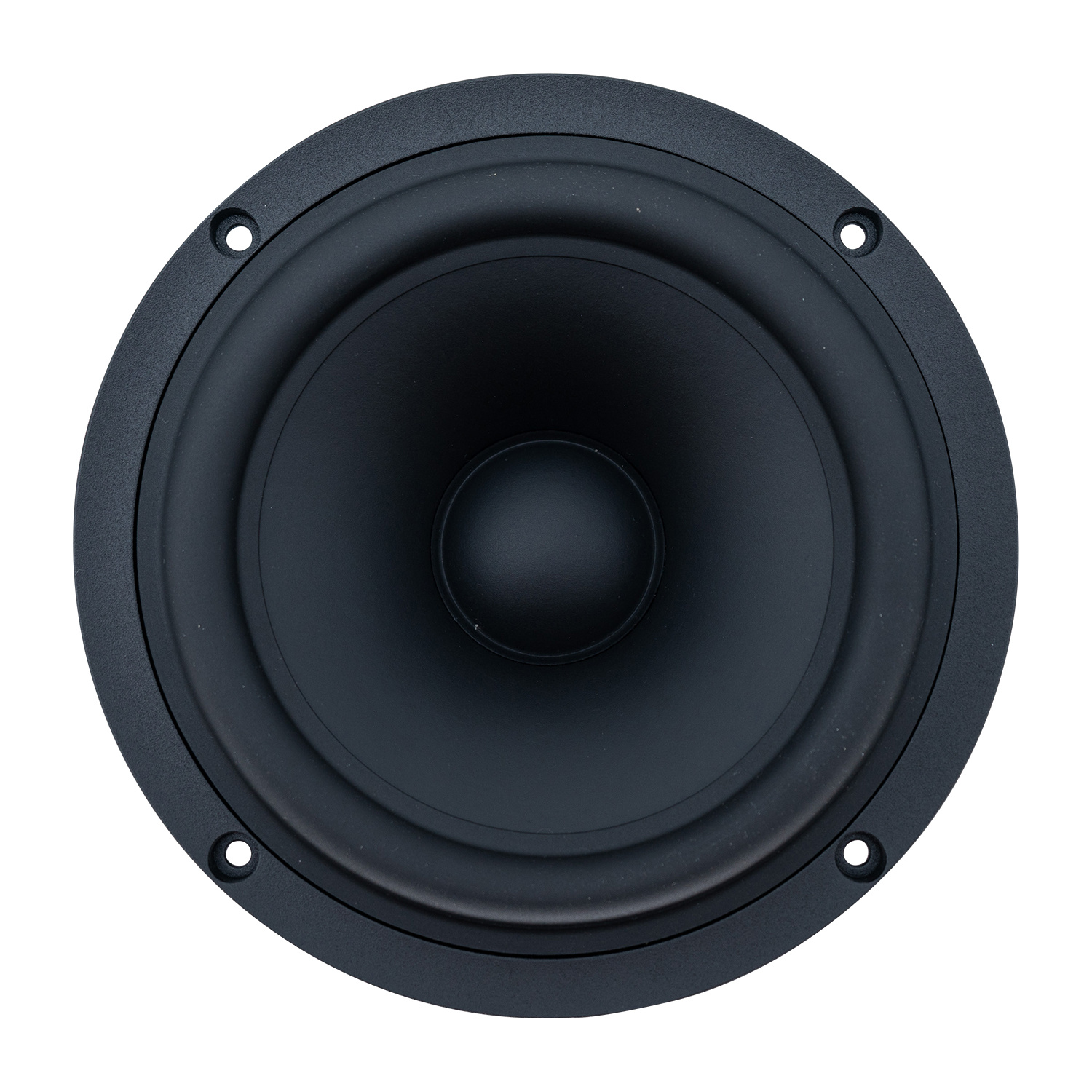

SB Acoustics SB17NRXC35-8 6" Midrange Woofer

€ 59,45 2 Auf Lager: Lieferzeit 1-3 Werktage
The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio. To... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €56,48 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Vented cast aluminum chassis for optimum strength and low compression
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for transient response
  • Non-conducting fiber glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • vented pole piece for reduced compression



Product details

SB Acoustics SB17NRXC35-8 6" Midrange Woofer



Newly developed Norecx non-resonant poly-coated papyrus fiber cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive CCAW fiber glass 300mm coil former. Silver lead wires. Vented pole piece.



The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio. To this end, SBA are proud to present their NRX series where close attention has been payed to design engineering with manufacturing materials and processes to optimize performance.

Eigenschaften

Artikelnummer:
SB17NRXC35-8
Woofer Series
NRX Series
Woofer Type
Midwoofer
Nominal Diameter
6"
Power Handling (RMS)
60 Watts
Impedance
8 ohms
Sensitivity
89 dB 2.83V/1m
Voice Coil Diameter
1.4"
DC Resistance (Re)
5.7 ohms
Voice Coil Inductance (Le)
0.15 mH
Resonant Frequency (Fs)
32 Hz
Mechanical Q (Qms)
5
Electromagnetic Q (Qes)
0.36
Total Q (Qts)
0.34
Diaphragm Mass Inc. Airload (Mms)
11
Mechanical Compliance of Suspension (Cms)
2.25 mm/N
Surface Area of Cone (Sd)
118 cm2
BL Product (BL)
5.9 Tm
Compliance Equivalent Volume (Vas)
1.57 ft.³
Maximum Linear Excursion (Xmax)
5.5 mm
Sealed Volume
14L - 25L (less damped - damped)
Vented Volume
13L @ 35Hz - 17L @ 37Hz (damped - less damped)
