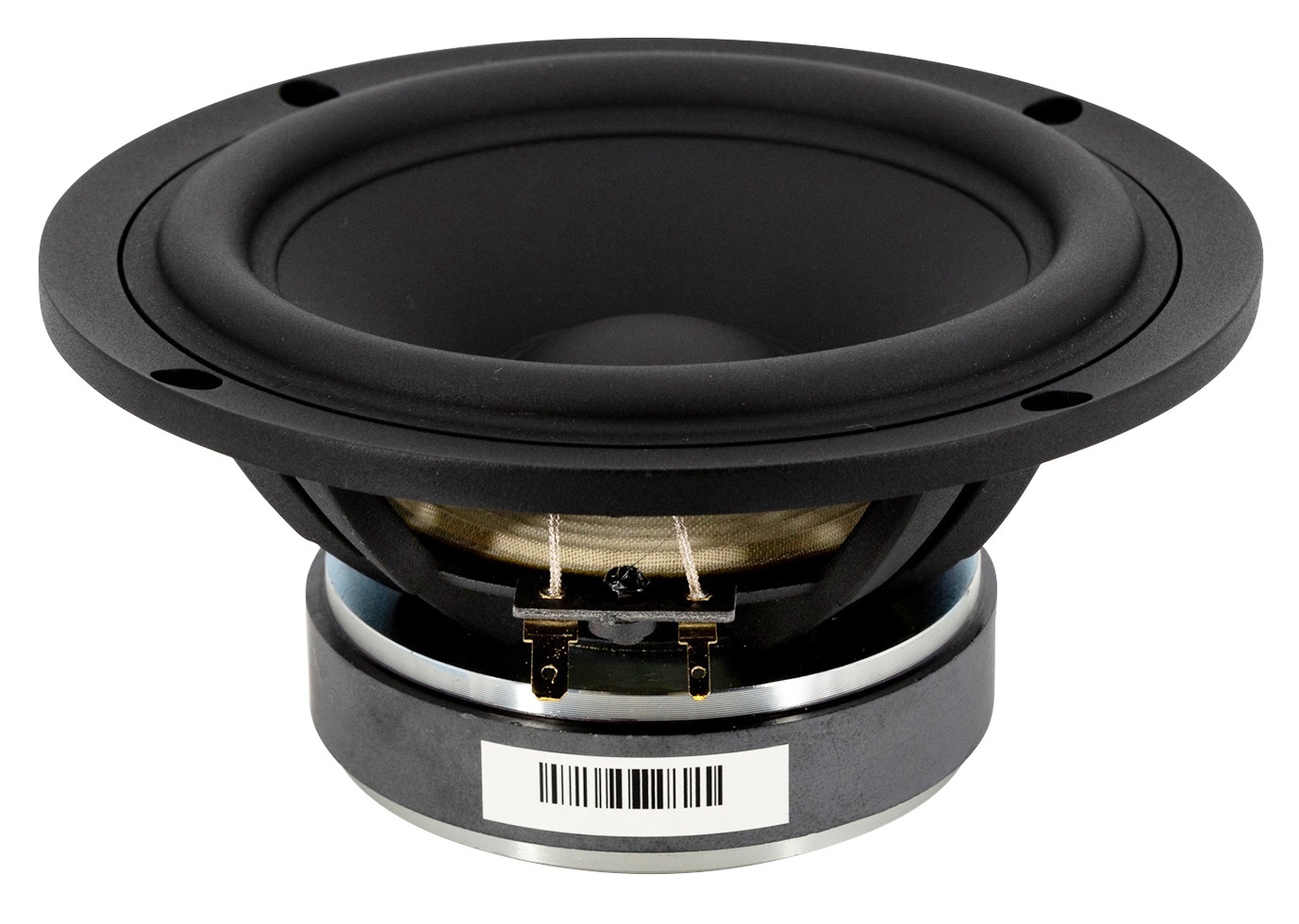

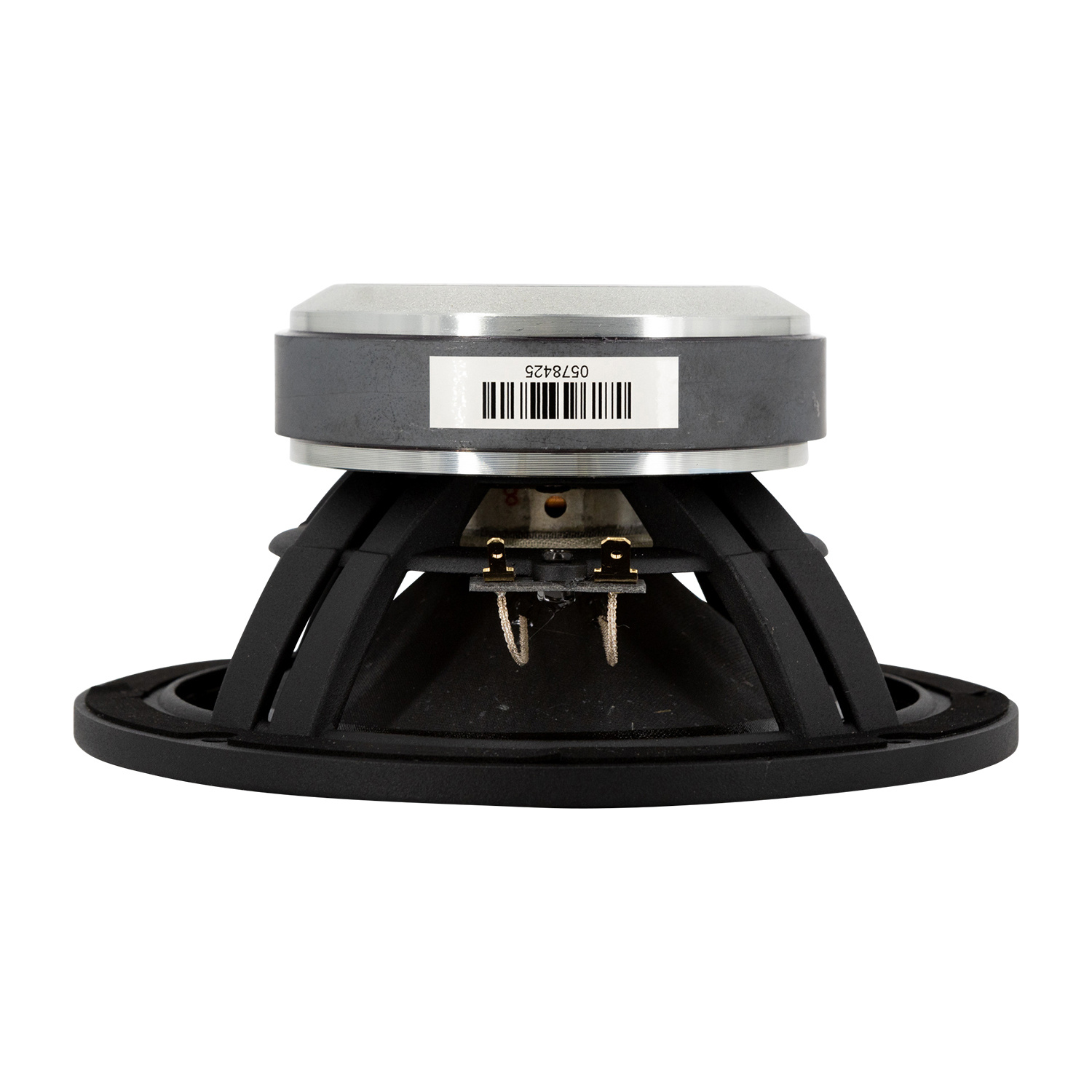

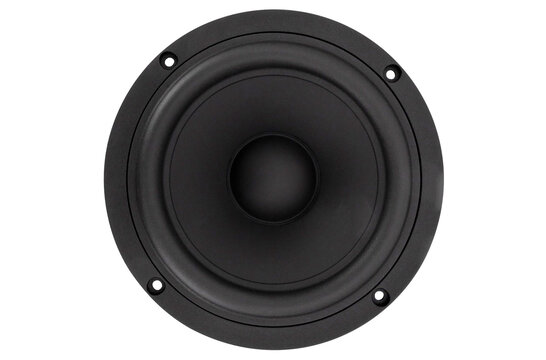

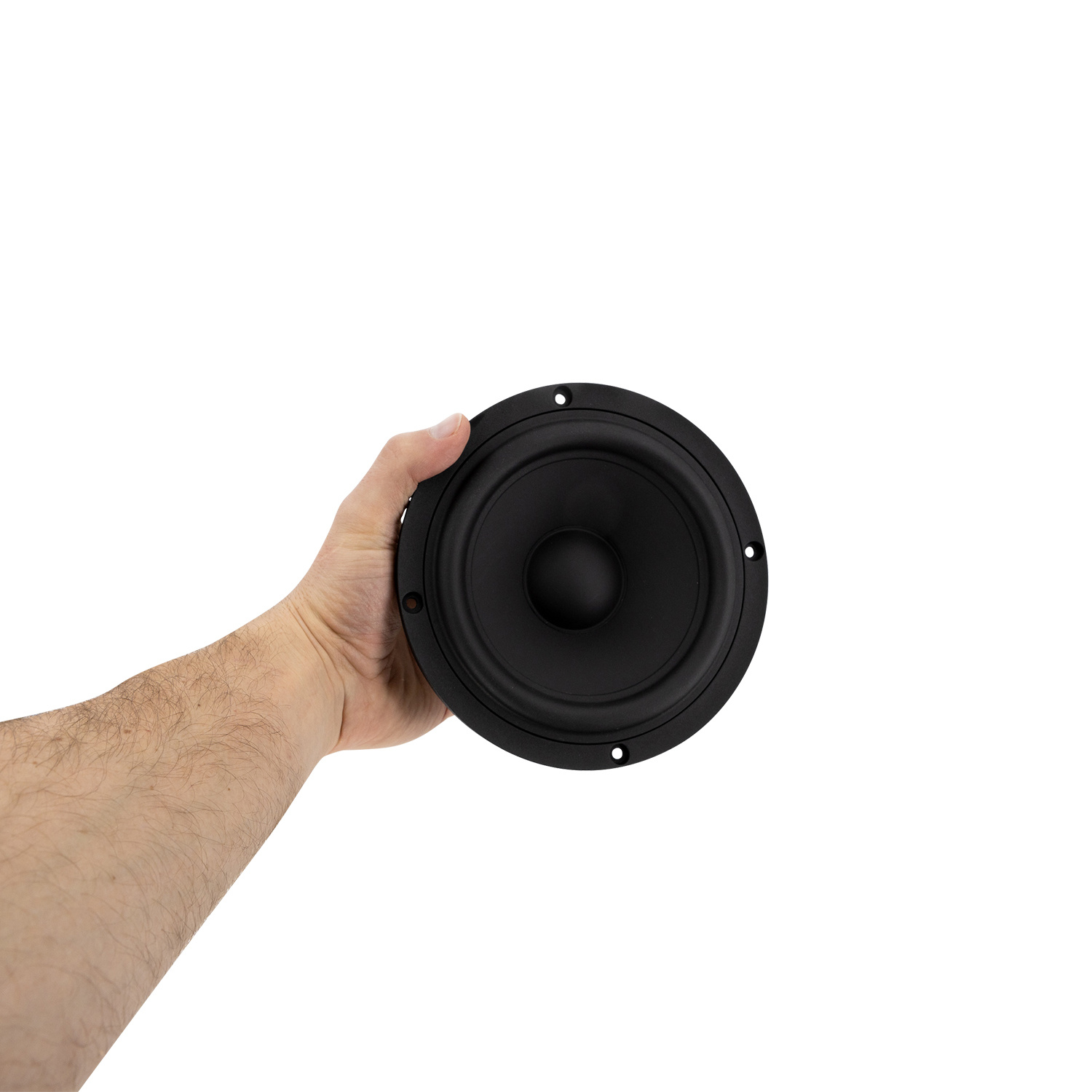

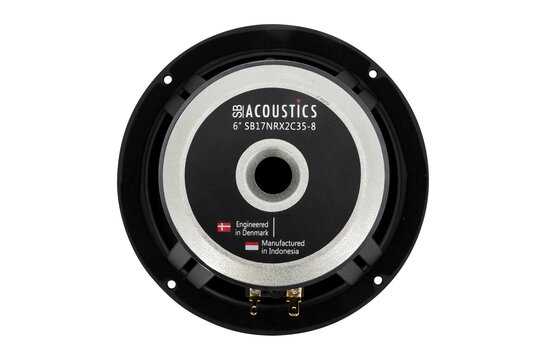

      SB17NRX2C35-8 Norex Tiefmitteltöner

      SB17NRX2C35-8 Norex Tiefmitteltöner

      €75,95

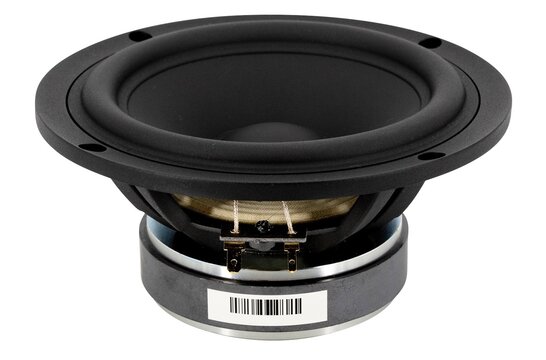

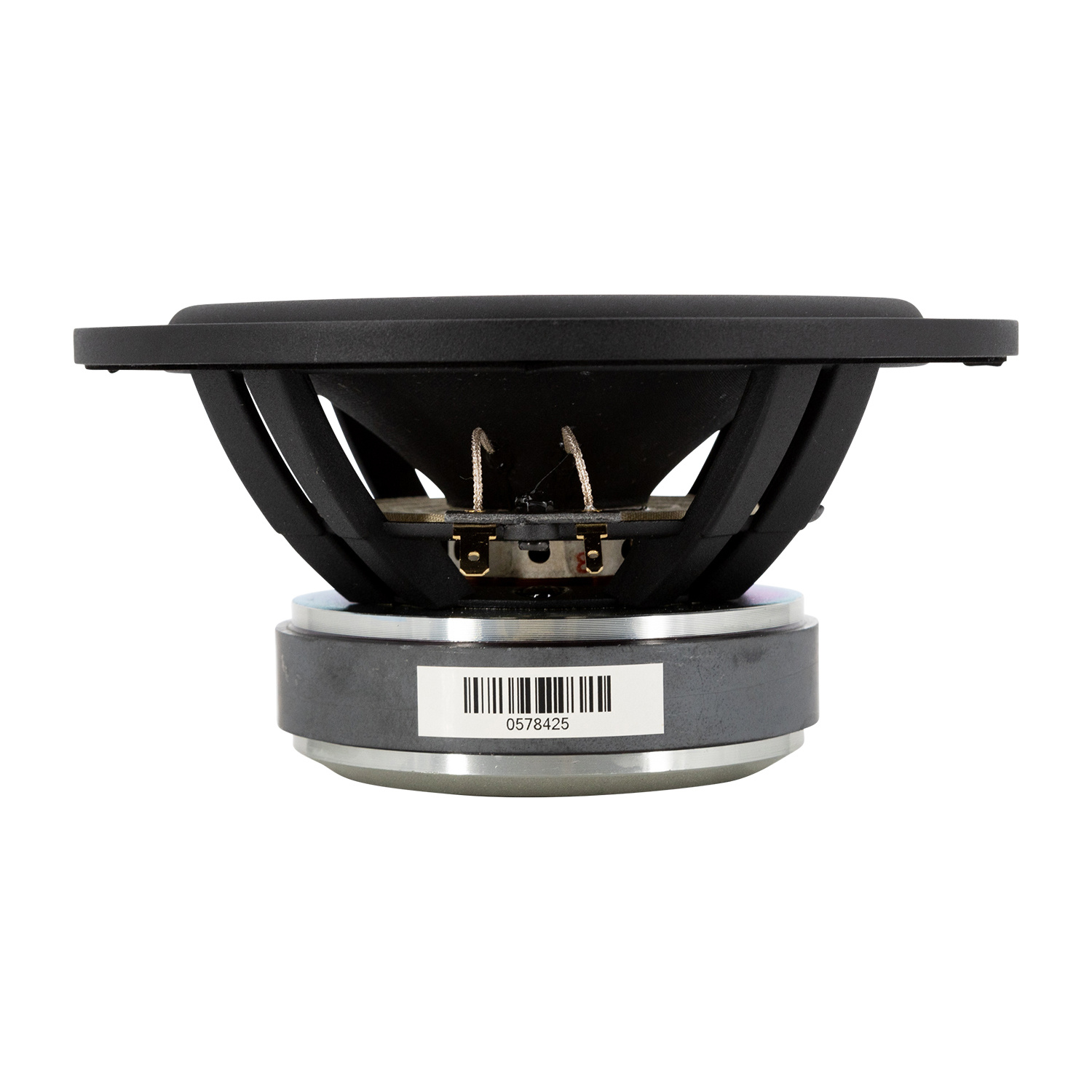

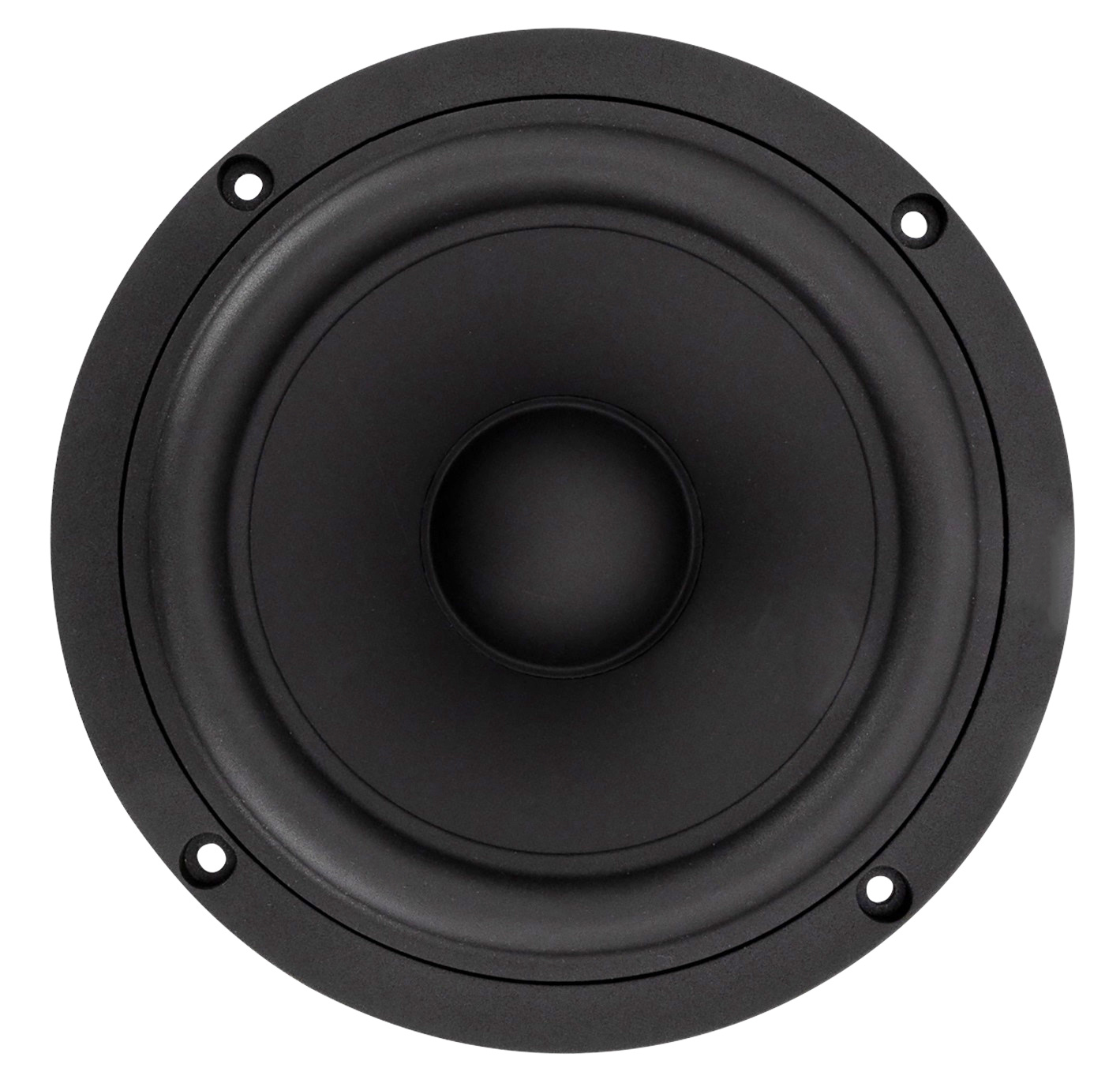

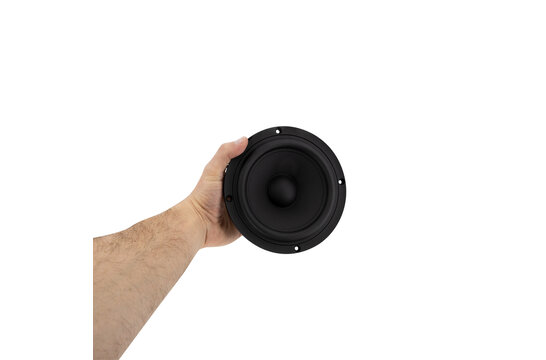

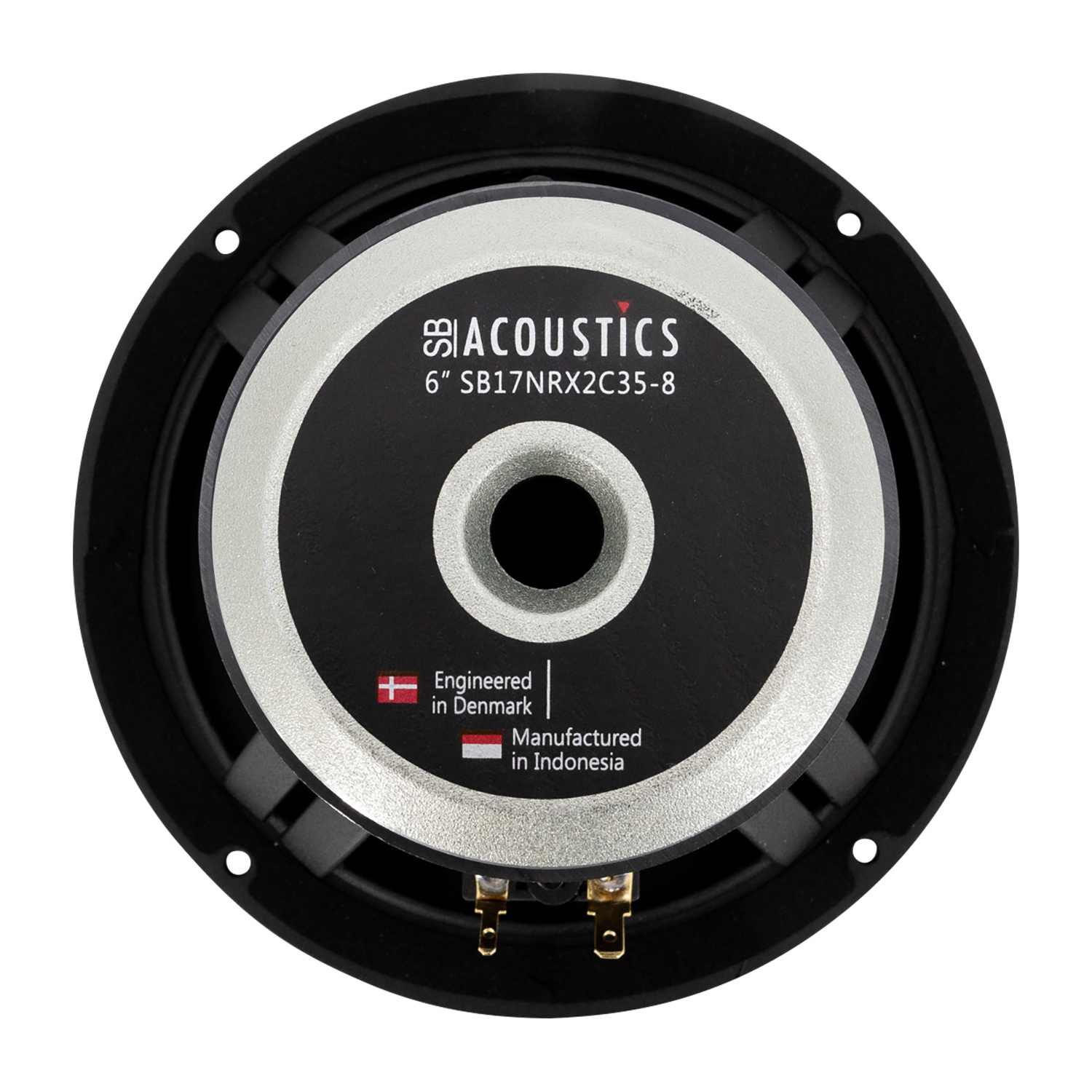

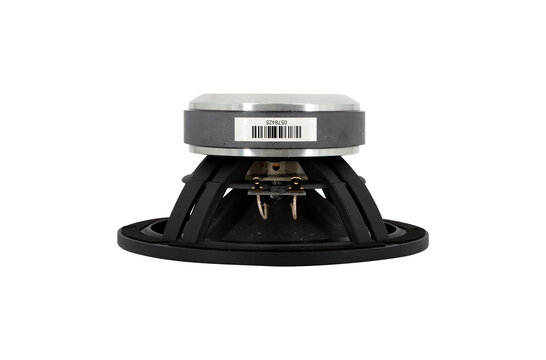

      SB Acoustics SB17NRX2C35-8 Norex Tiefmitteltöner

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      62,77 €75,95 € 10+ Auf Lager
      • -5% Bestelle 4 für nur 72,15 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Non-conducting fiber glass voice coil former for minimum damping
      • · Extended copper sleeve on pole piece for low inductance and low distortion

      Produktbeschreibung

      The SB Acoustics SB17NRX2C35-8 is a 6.5" woofer with a nominal impedance of 8 ohms. It has a frequency response of 35-4000 Hz, a sensitivity of 87 dB, and a rated power handling of 50 watts. The woofer is made with a proprietary cone material with natural fibers, a soft low damping rubber surround, and a non-conducting fiberglass voice coil former. It has a vented cast aluminum chassis and a long life silver lead wires.



      Highlights

      • Vented cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for transient response
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • Vented coil former
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB17NRX2C35-8 Norex Bass-midwoofer



      The SB Acoustics SB17NRX2C35-8 Bass-midwoofer is a 6.5" midrange woofer that features a vented cast aluminum chassis for optimum strength and low compression. The proprietary cone material with natural fibers made in-house is used to produce a very accurate sound. The newly developed Norecx non-resonant poly-coated papyrus fiber cone is used to reduce resonance and improve sound quality. The low damping SBR rubber surround has high exertion and resilience, while the open structure cast frame is used for reduced reflections and compression. The aluminum alloy is used for light weight, non-magnetic and extra rigidity. Finally, the shorting copper cap on pole piece is used to reduce voice coil inductance.



      The SB17NRX2C35-8 is a versatile woofer that can be used in a variety of applications, including home audio, car audio, and professional audio. It is known for its accurate sound reproduction, its smooth frequency response, and its ability to handle high power levels.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SB17NRX2C35-8
      Tieftöner-Serie
      Bass-midwoofer
      Nenndurchmesser
      171 mm
      Belastbarkeit (QMW)
      60 Watt
      Belastbarkeit (max)
      120 Watt
      Impedanz (Z)
      8 Ohm
      Empfindlichkeit (SPL bei 1m / 2,83V)
      87 dB
      Frequenzgang
      35-4000 Hz
      Schwingspulendurchmesser
      35,5 mm
      Gewicht magnet
      0.54 kg
      Gleichstromwiderstand (Re)
      5.7 Ohm
      Schwingspuleninduktion (Le)
      0.15 mH
      Resonanzfrequenz (Fs)
      36.5 Hz
      Mechanische Güte (Qms)
      4.55
      Elektrische Güte (Qes)
      0.47
      Gesamtgüte (Qts)
      0.42
      Bewegliche Masse (Mms)
      13.9 g
      Nachgiebigkeit der Aufhängung (Cms)
      1.37 mm/N
      Membranfläche (Sd)
      118 cm2
      Äquivalentvolumen (Vas)
      27 liters
      Driver's Mechanical Losses (Rms)
      0.7 kg/s
      Korb- / Rahmenmaterial
      Vented cast aluminum chassis
      Außendurchmesser
      171 mm
      Gesamttiefe
      85.9 mm
      Ausschnittdurchmesser
      144.9 mm
      # Befestigungsbohrungen
      4
      Durchmesser Befestigungslochs
      4.3 mm

      Mehr anzeigen
