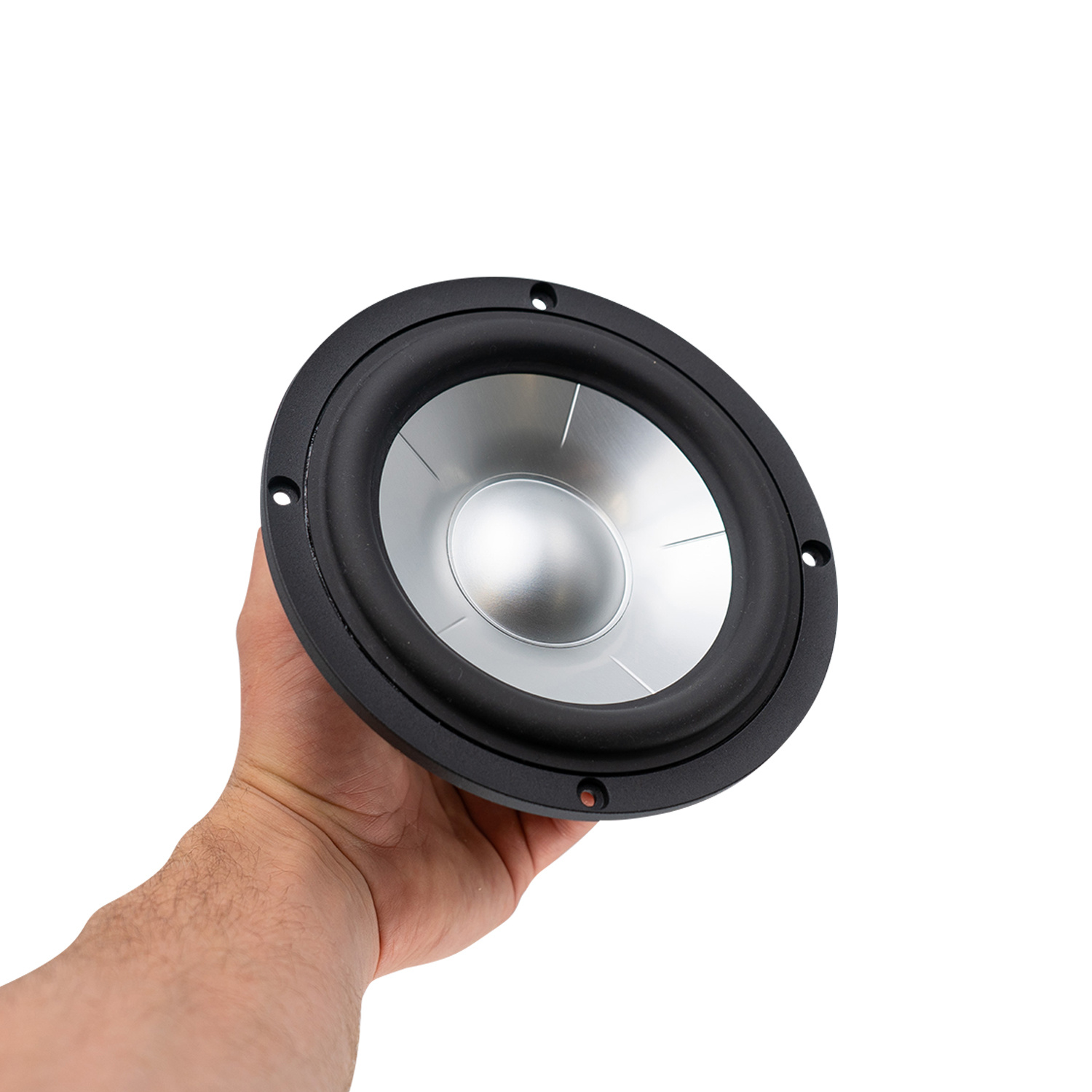

SB Acoustics SB17NAC35-8 6'' Aluminum Cone Mid-Woofer

€ 66,25 2 Auf Lager: Lieferzeit 1-3 Werktage
The SB Acoustics SB17NAC35-8 features a vented cast aluminum chassis for optimum strength and low compression. Its geometrically reinforced aluminum cone allows an optimum piston operation and reduced break-up.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €62,94 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

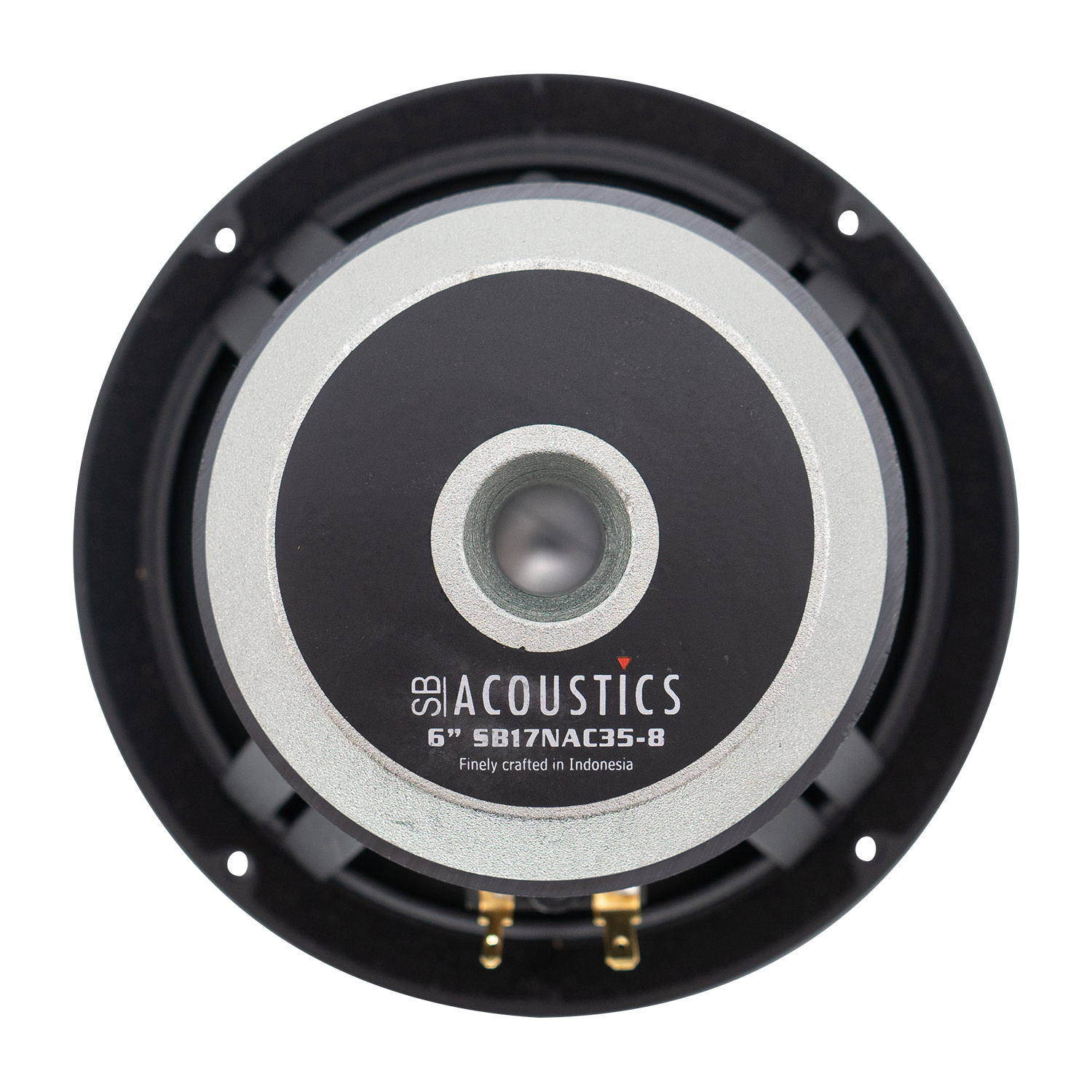

  • Vented cast aluminum chassis for optimum strength and low compression

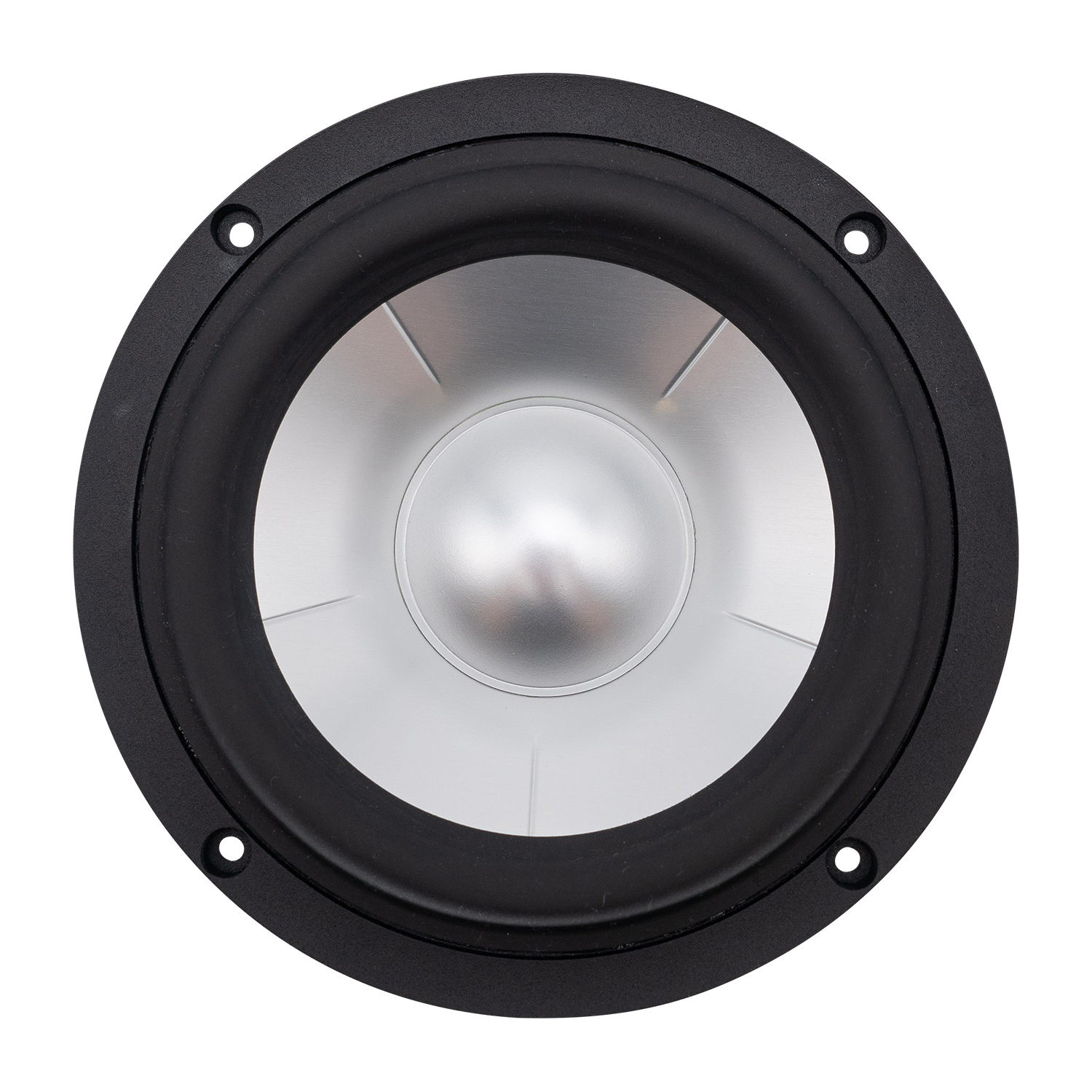

  • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fiber glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression



Product details

SB Acoustics SB17NAC35-8 6'' Aluminum Cone Mid-Woofer



The SB Acoustics SB17NAC35-8 features a vented cast aluminum chassis for optimum strength and low compression. Its geometrically reinforced aluminum cone allows an optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass and long life silver lead wires.

Eigenschaften

Artikelnummer:
SB17NAC35-8
Woofer Series
NAC Series
Woofer Type
Midwoofer
Nominal Diameter
6"
Power Handling (RMS)
60 Watts
Impedance
8 ohms
Sensitivity
86.5 dB 2.83V/1m
Voice Coil Diameter
1.39"
DC Resistance (Re)
5.7 ohms
Voice Coil Inductance (Le)
0.15 mH
Resonant Frequency (Fs)
31.5 Hz
Mechanical Q (Qms)
6
Electromagnetic Q (Qes)
0.45
Total Q (Qts)
0.42
Diaphragm Mass Inc. Airload (Mms)
15.2 g
Mechanical Compliance of Suspension (Cms)
1.68 mm/N
Surface Area of Cone (Sd)
118 cm2
BL Product (BL)
6.2 Tm
Compliance Equivalent Volume (Vas)
1.16 ft.³
Maximum Linear Excursion (Xmax)
5.5 mm
