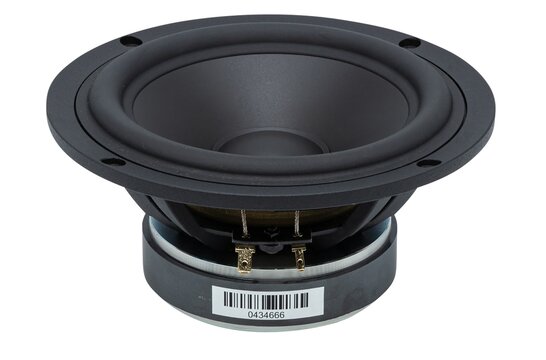

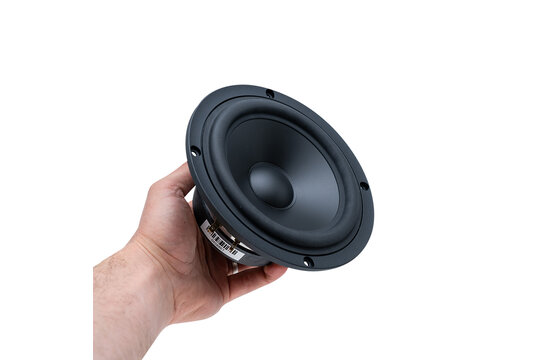

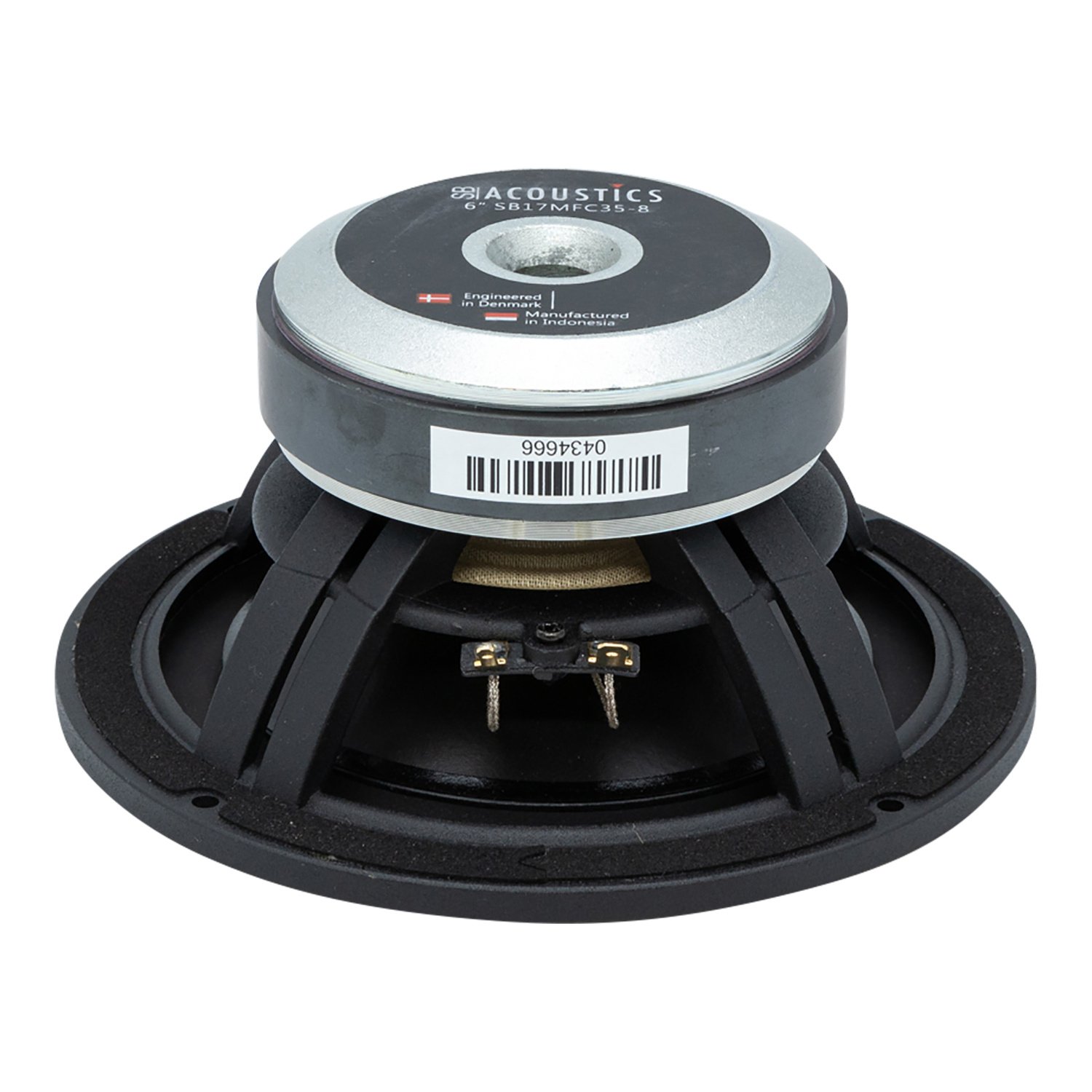

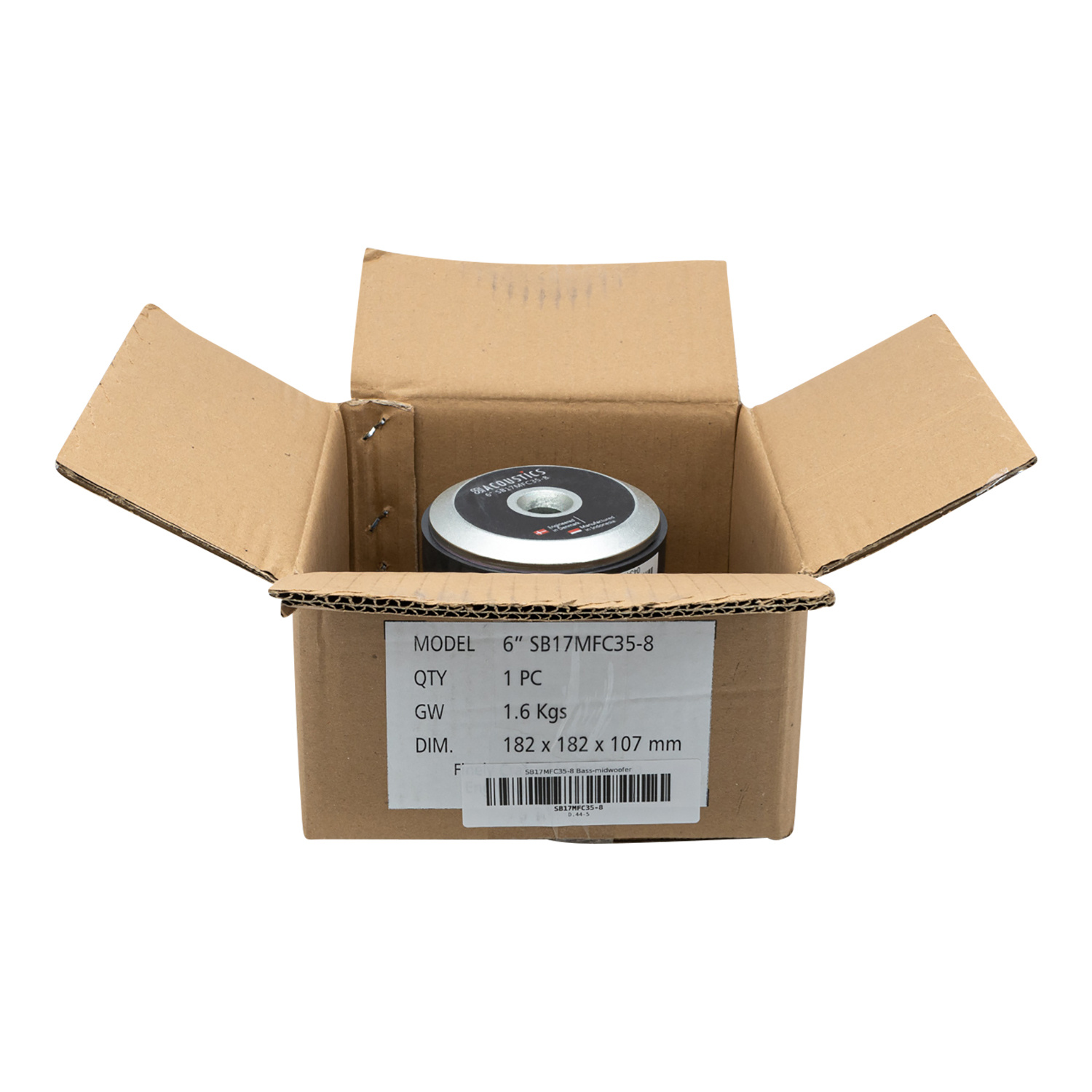

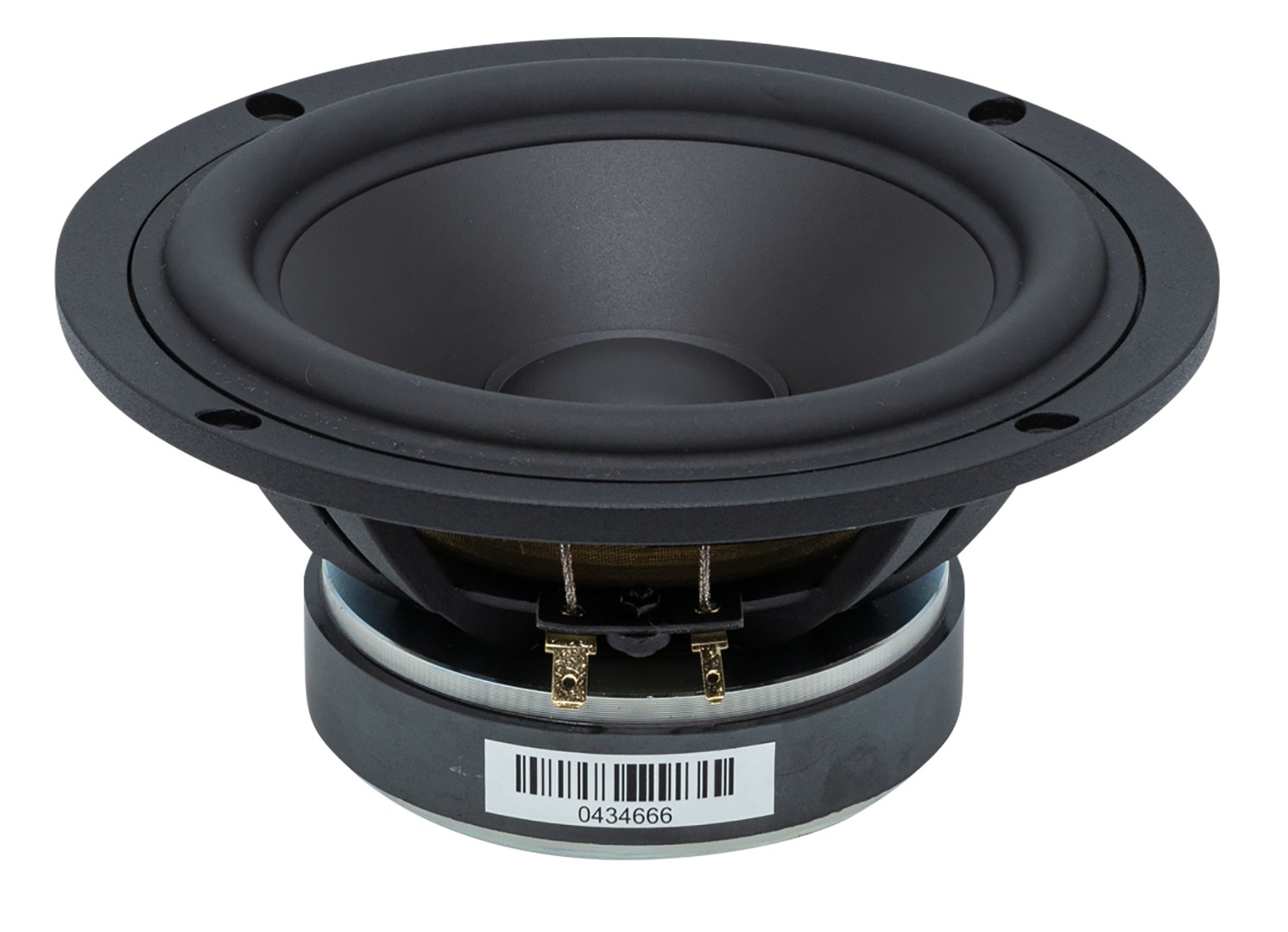

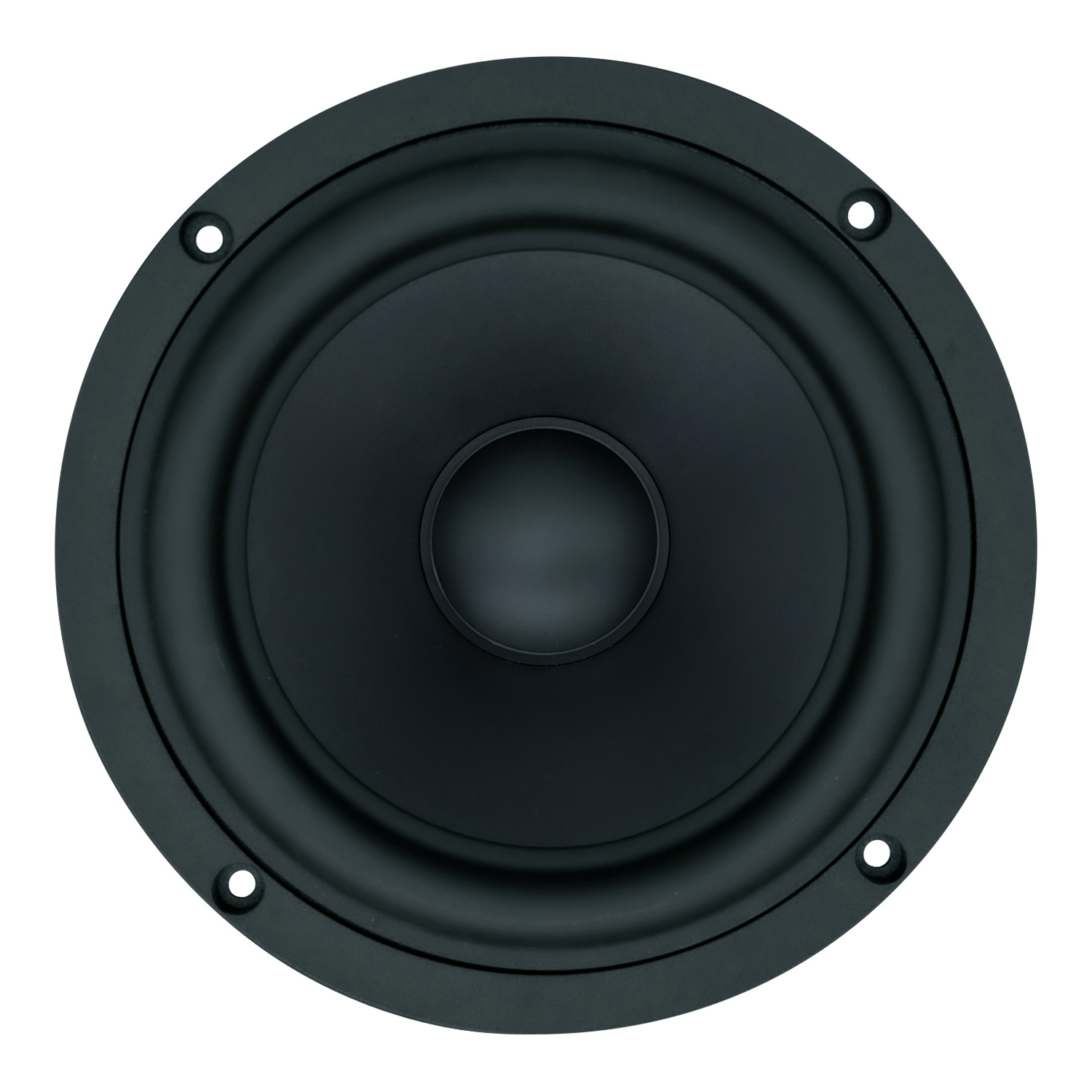

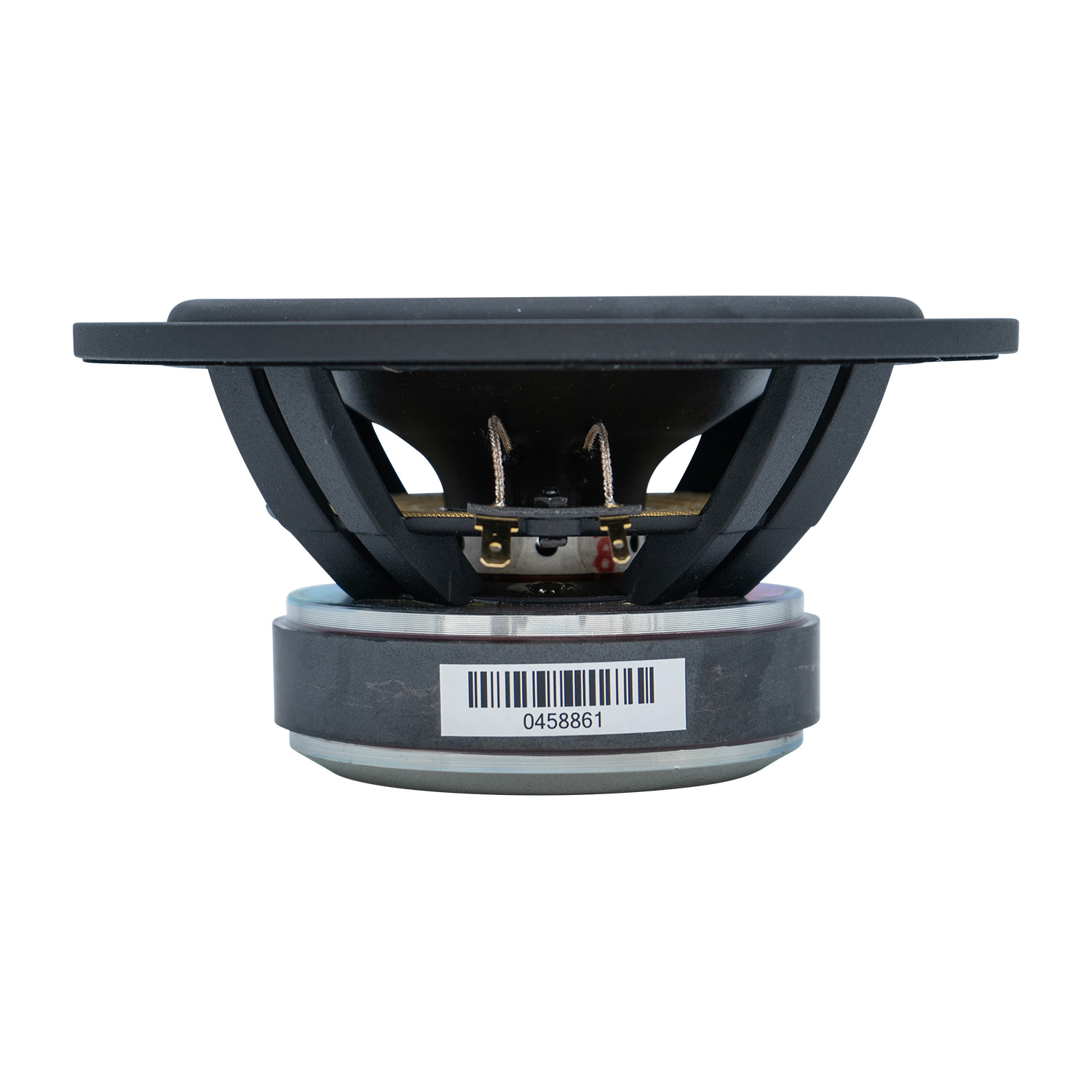

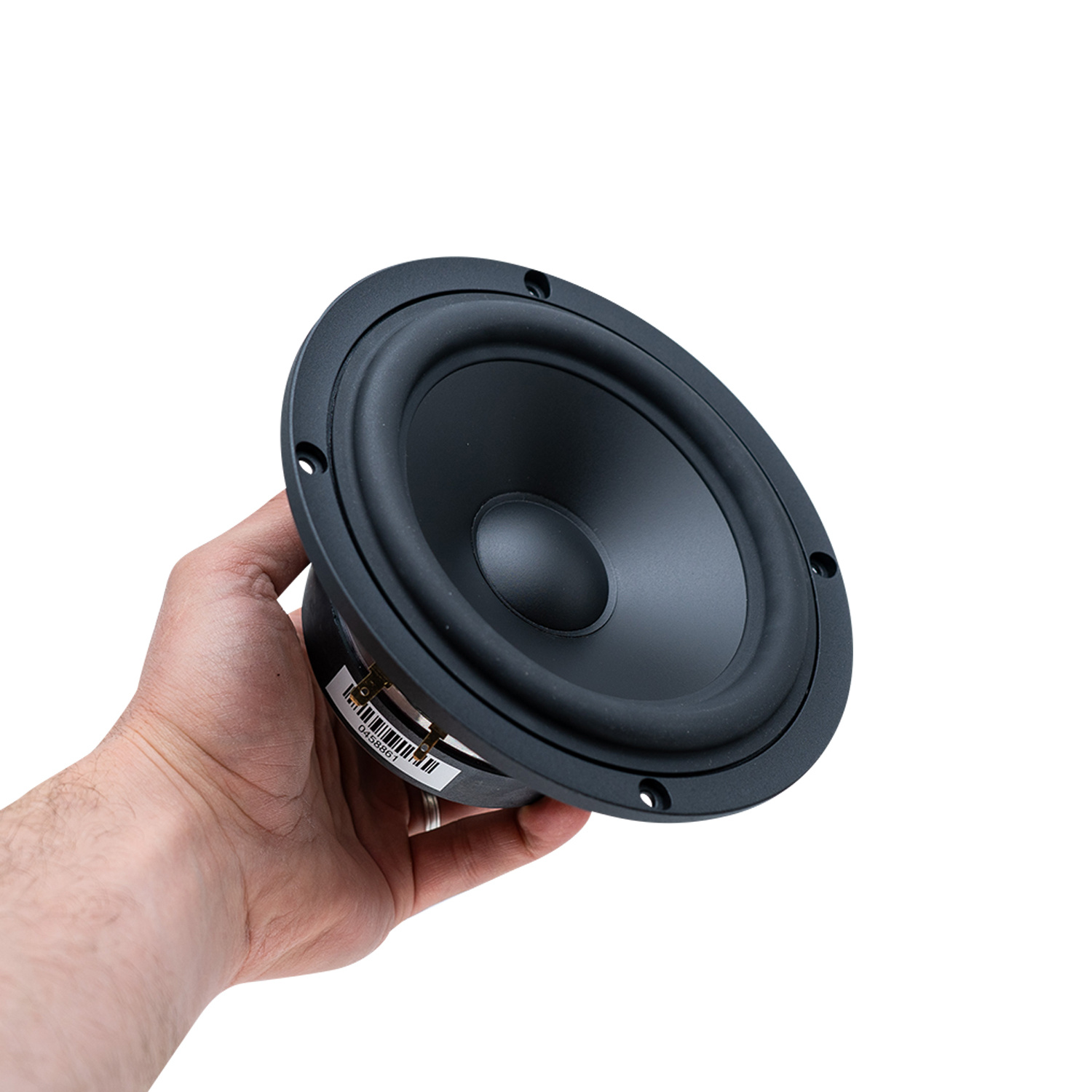

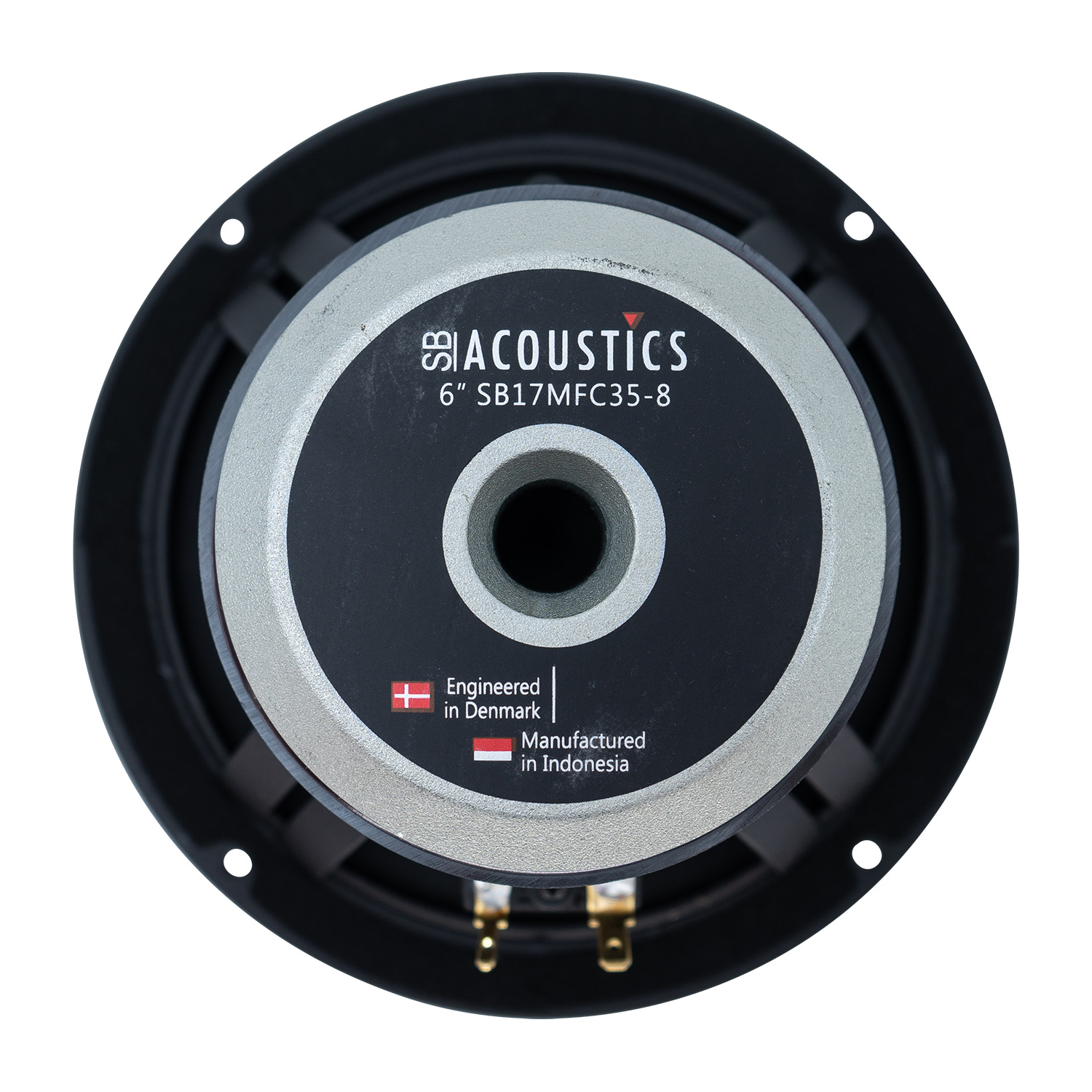

SB Acoustics SB17MFC35-8 6" Poly Cone Woofer 8 ohm

€ 49,55€ 59,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
In-house made mineral filled PP-cone. Low damping rubber surround for improved transient response. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €56,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

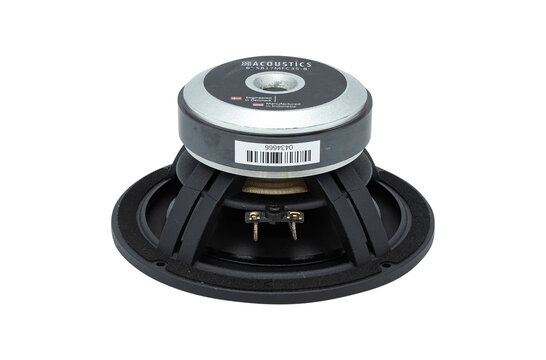

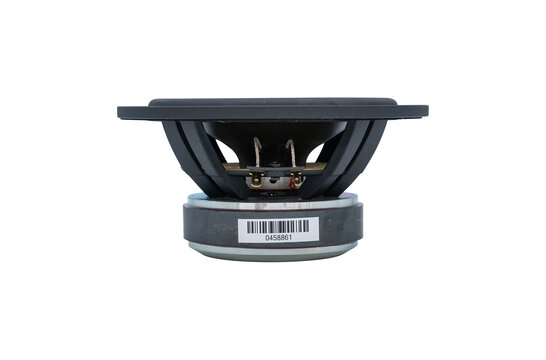

  • Vented cast aluminum chassis for optimum strength and low compression

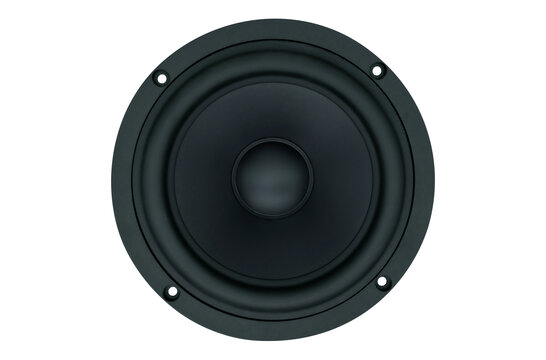

  • Mineral filled PP-cone made in-house
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires

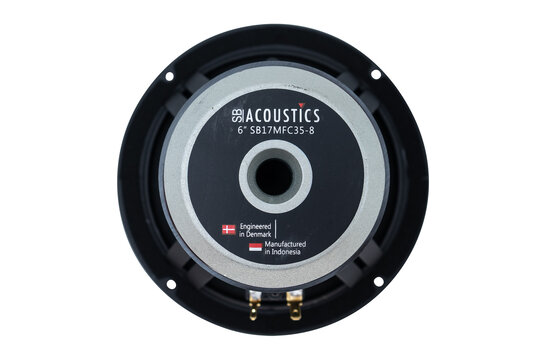

  • Vented pole piece for reduced compression



Product details

SB Acoustics SB17MFC35-8 6" Poly Cone Woofer



In-house made mineral filled PP-cone. Low damping rubber surround for improved transient response. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive 35.5mm coil former.

Eigenschaften

Artikelnummer:
SB17MFC35-8
Woofer Series
MFC Series
Woofer Type
Midwoofer
Nominal Diameter
6"
Power Handling (RMS)
60 Watts
Impedance
8 ohms
Sensitivity
88 dB @ 2.83V/1m
Voice Coil Diameter
35.5 mm
Magnet Weight
0.54 kg
DC Resistance (Re)
5.7 ohms
Voice Coil Inductance (Le)
0.15 mH
Resonant Frequency (Fs)
33 Hz
Mechanical Q (Qms)
4.9
Electromagnetic Q (Qes)
0.40
Total Q (Qts)
0.37
Diaphragm Mass Inc. Airload (Mms)
11.8g
Mechanical Compliance of Suspension (Cms)
1.97 mm/N
Surface Area of Cone (Sd)
118 cm2
BL Product (BL)
5.9 Tm
Compliance Equivalent Volume (Vas)
39 liters
Maximum Linear Excursion (Xmax)
5.5 mm
Driver's Mechanical Losses (Rms)
0.5 kg/s
Cone / Diaphragm Material
Polypropylene
Surround Material
Rubber
Voice Coil Wire Material
Copper-clad aluminum
Voice Coil Former
Fiberglass
Basket / Frame Material
Cast aluminum
Overall Outside Diameter
171 mm
Overall Depth
86 mm
Baffle Cutout Diameter
146 mm
Bolt Circle Diameter
159 mm
# Mounting Holes
4
Mounting Hole Diameter
4.3 mm

Bewertungen

4 from 5Based on 1 reviews
Produkt bewerten
4 van 5
No description was given
Durch Stefan C. on 8 Juli 2020
