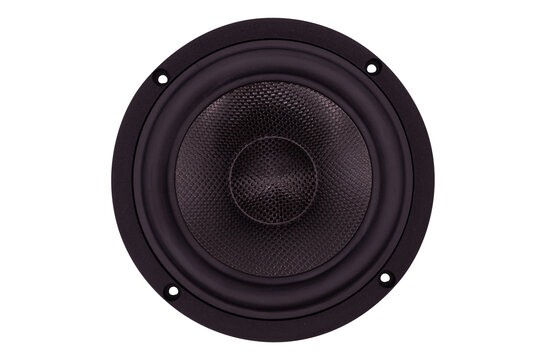

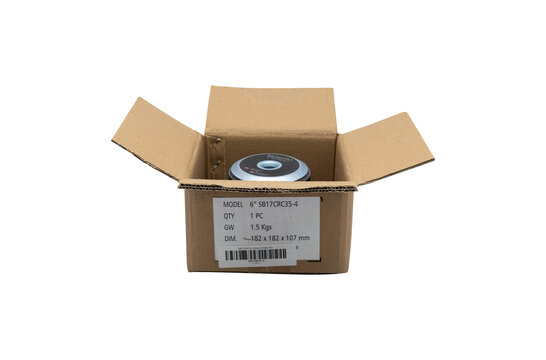

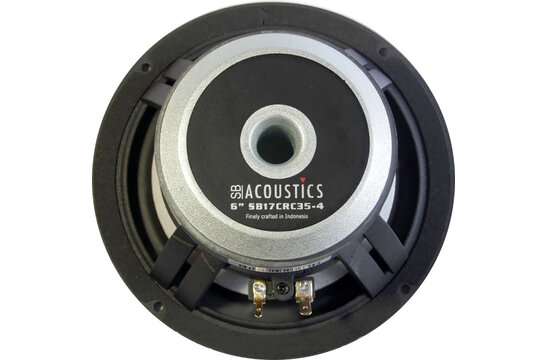

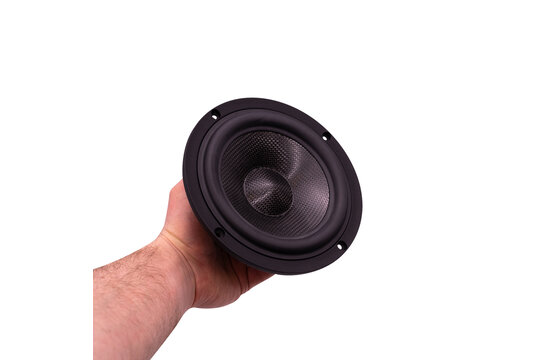

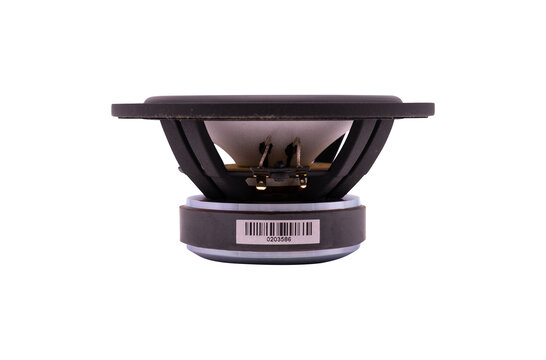

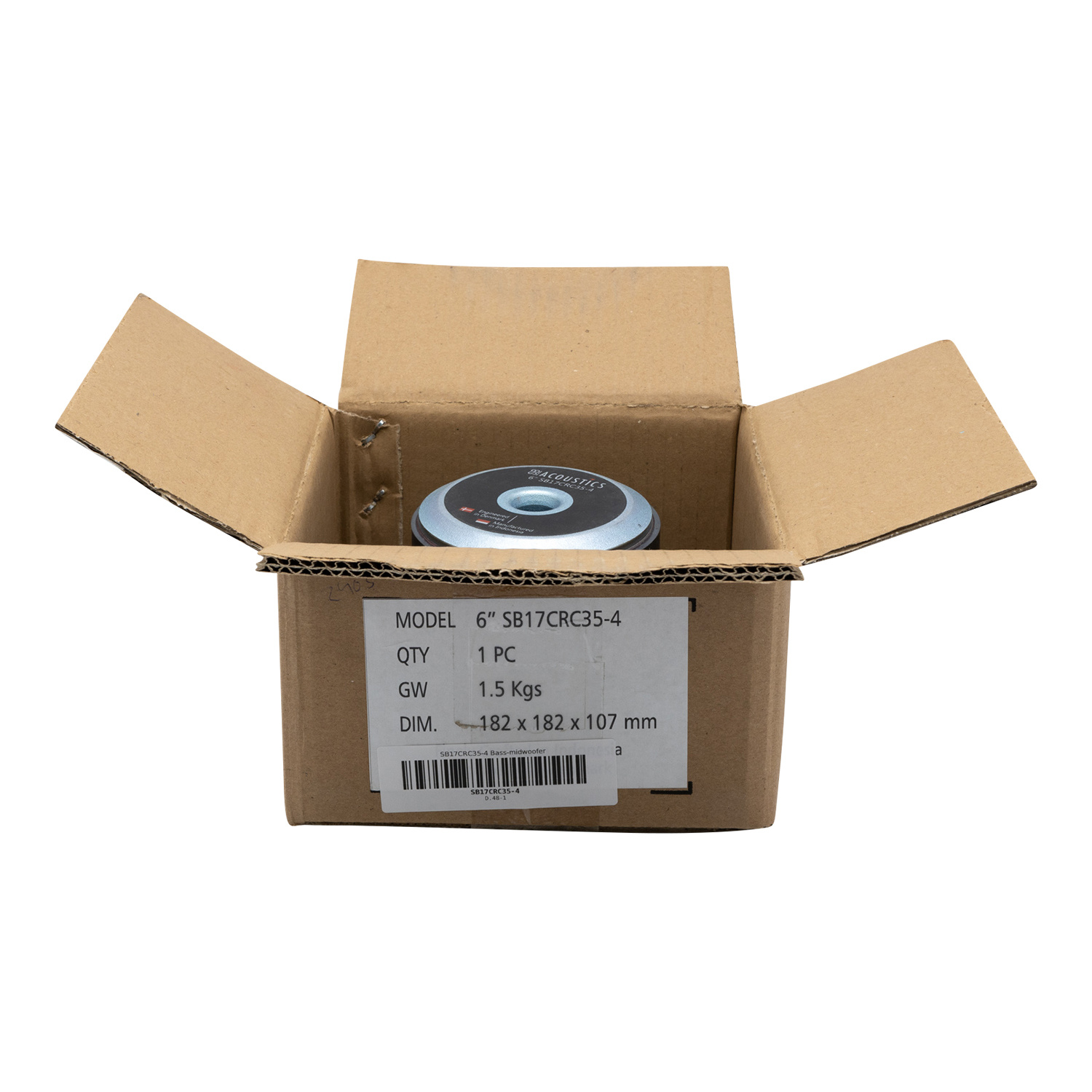

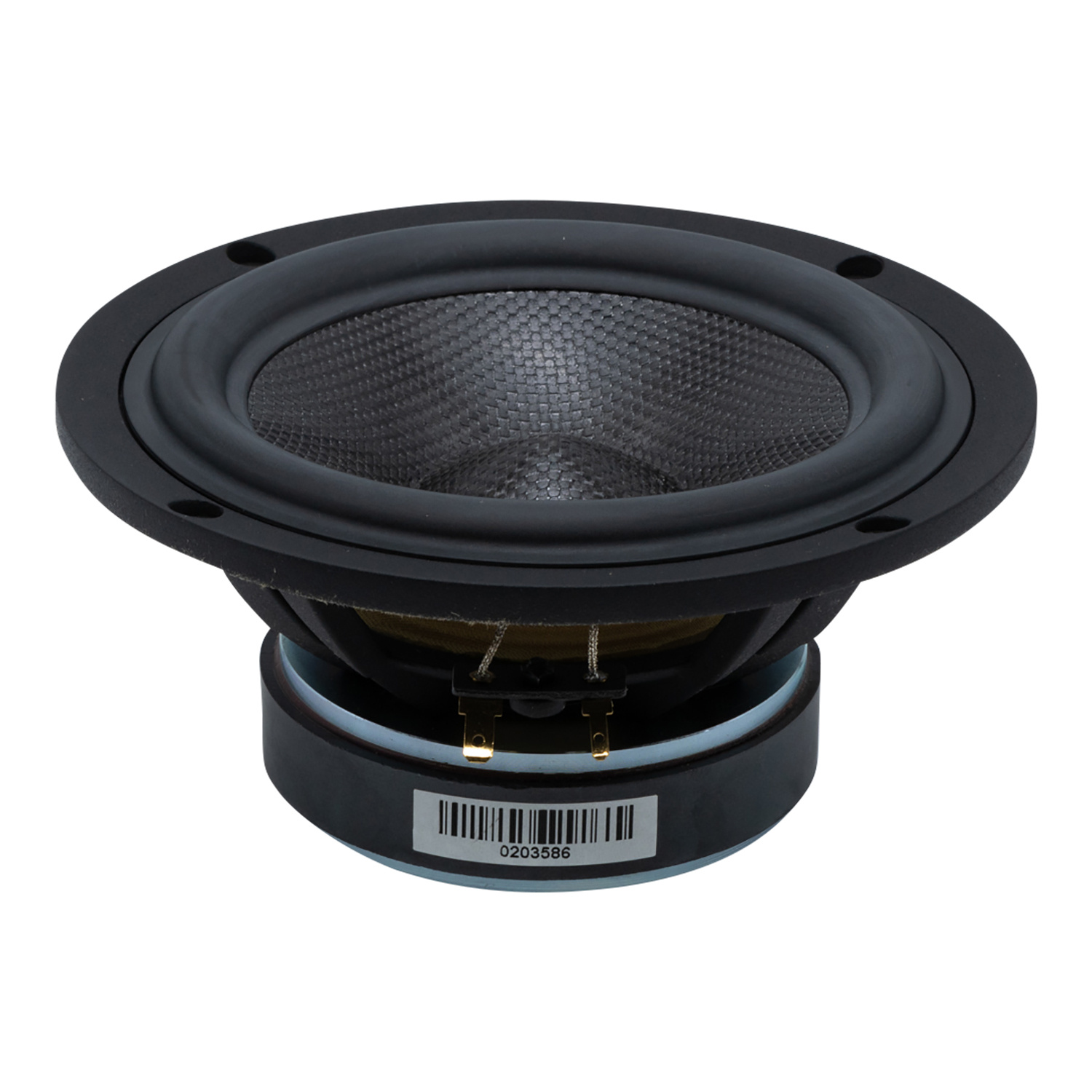

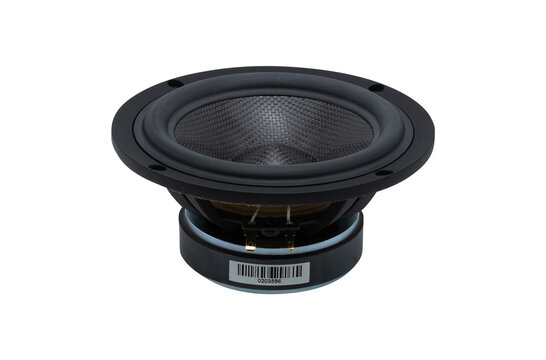

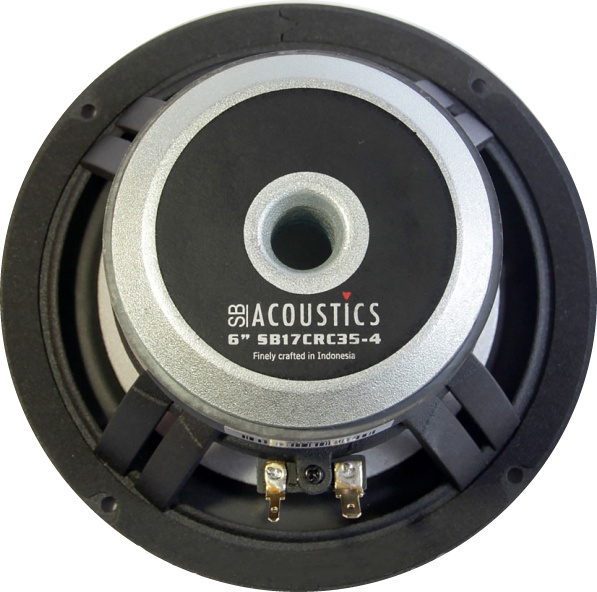

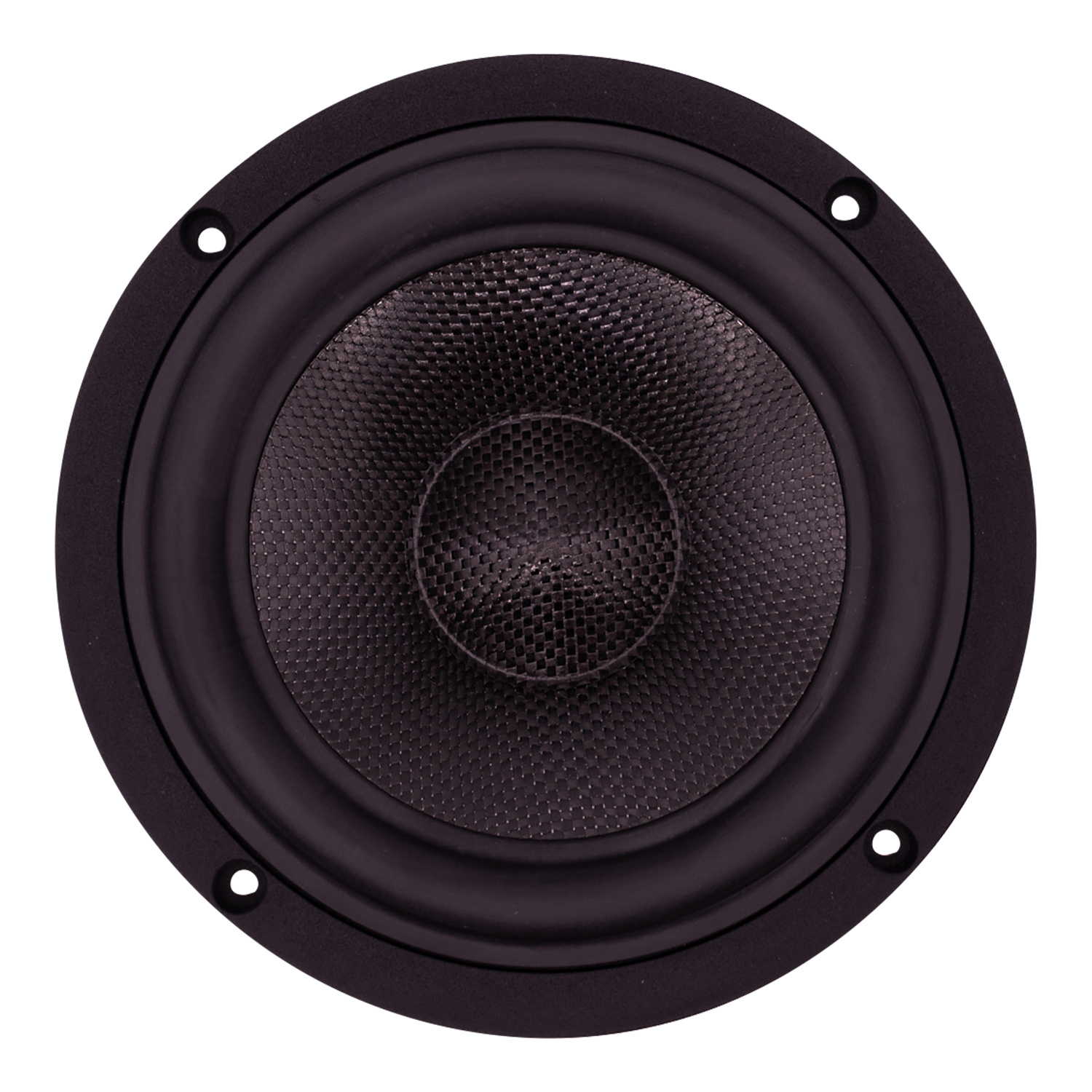

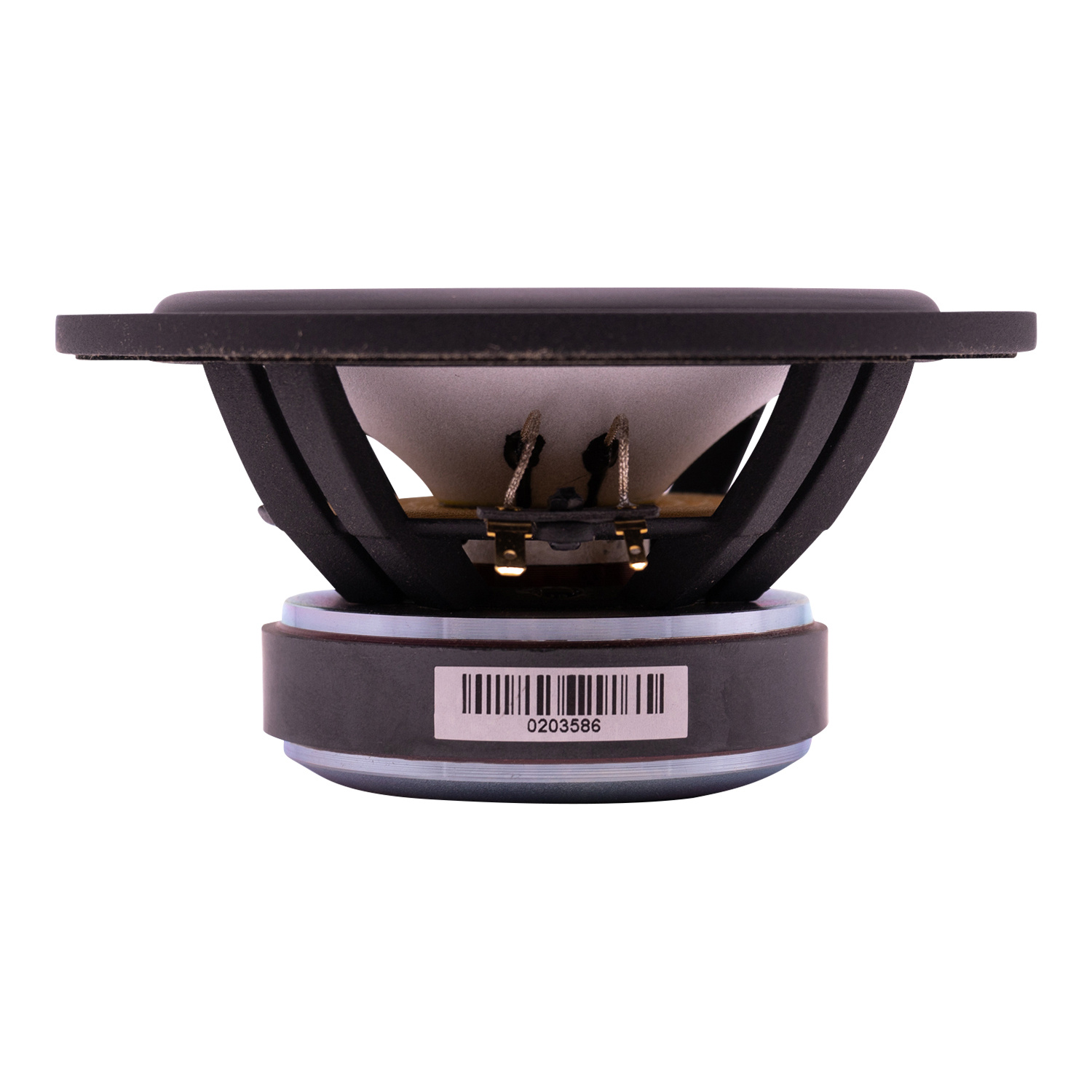

      SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

      1 reviews
      Marke: SB Acoustics
      Alle anzeigen Audio-Komponenten
      6" | 4 Ω
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      € 76,41€ 92,45 2 Auf Lager: Lieferzeit 1-3 Werktage
      Rohacellﾮ/Carbon fibre sandwich cone for optimized stiffness/damping ratio - Vented cast aluminum chassis for optimum strength and low compression - Low damping rubber surround for improved transient response - Non-conducting fibre glass voice coil former... Mehr anzeigen
      Bulk discount Genießen Sie diese tollen Rabattangebote
      • -5% Kauf 4 für nur €87,83 pro stück
      +-
      Zum Warenkorb hinzufügen
      • Versicherter Versand mit Sendungsverfolgung
      • Kostenloser Versand ab 149€ (DE, A)
      • Versand am selben Tag*
      • Hausinterner technischer Support
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
      SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

      Produktbeschreibung

      Highlights

      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms



      Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression. Low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping.

      Eigenschaften

      Artikelnummer:
      SB17CRC35-4
      Woofer Series
      CRC Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6”
      Power Handling (RMS)
      0.65 kg/s
      Impedance
      4 Ohms
      Sensitivity
      (2.83 V / 1 m) 90 dB
      Voice Coil Diameter
      35.5 mm
      Magnet Weight
      0.54 kg
      DC Resistance (Re)
      3.1 Ω
      Voice Coil Inductance (Le)
      0.13 mH
      Resonant Frequency (Fs)
      31.5 Hz
      Mechanical Q (Qms)
      4.32
      Diaphragm Mass Inc. Airload (Mms)
      14.2 g
      Mechanical Compliance of Suspension (Cms)
      1.80 mm/N
      Surface Area of Cone (Sd)
      118 cm2
      BL Product (BL)
      5.0 Tm
      Compliance Equivalent Volume (Vas)
      35.5 liters
      Driver's Mechanical Losses (Rms)
      0.65 kg/s
      Cone / Diaphragm Material
      Rohacell®/Carbon fibre sandwich cone
      # Mounting Holes
      4

      Bewertungen

      1 reviews
      5 from 5Based on 1 reviews
      Produkt bewerten
      5 van 5
      The sb acoustics midwoofers were delivered promptly. And sound simply fantastic. Couldn't b happier ! Thankyou Sound Imports for the swift service
      Durch Richard W. on 24 November 2020
