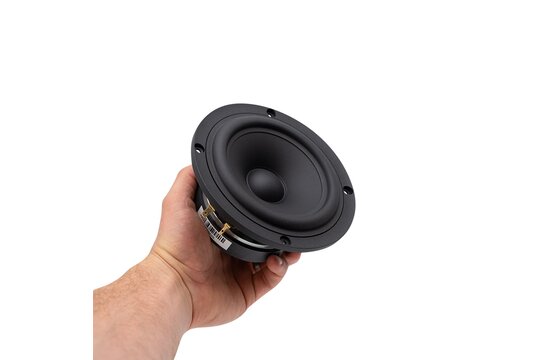

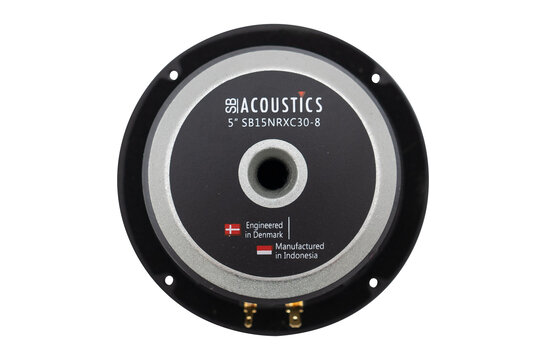

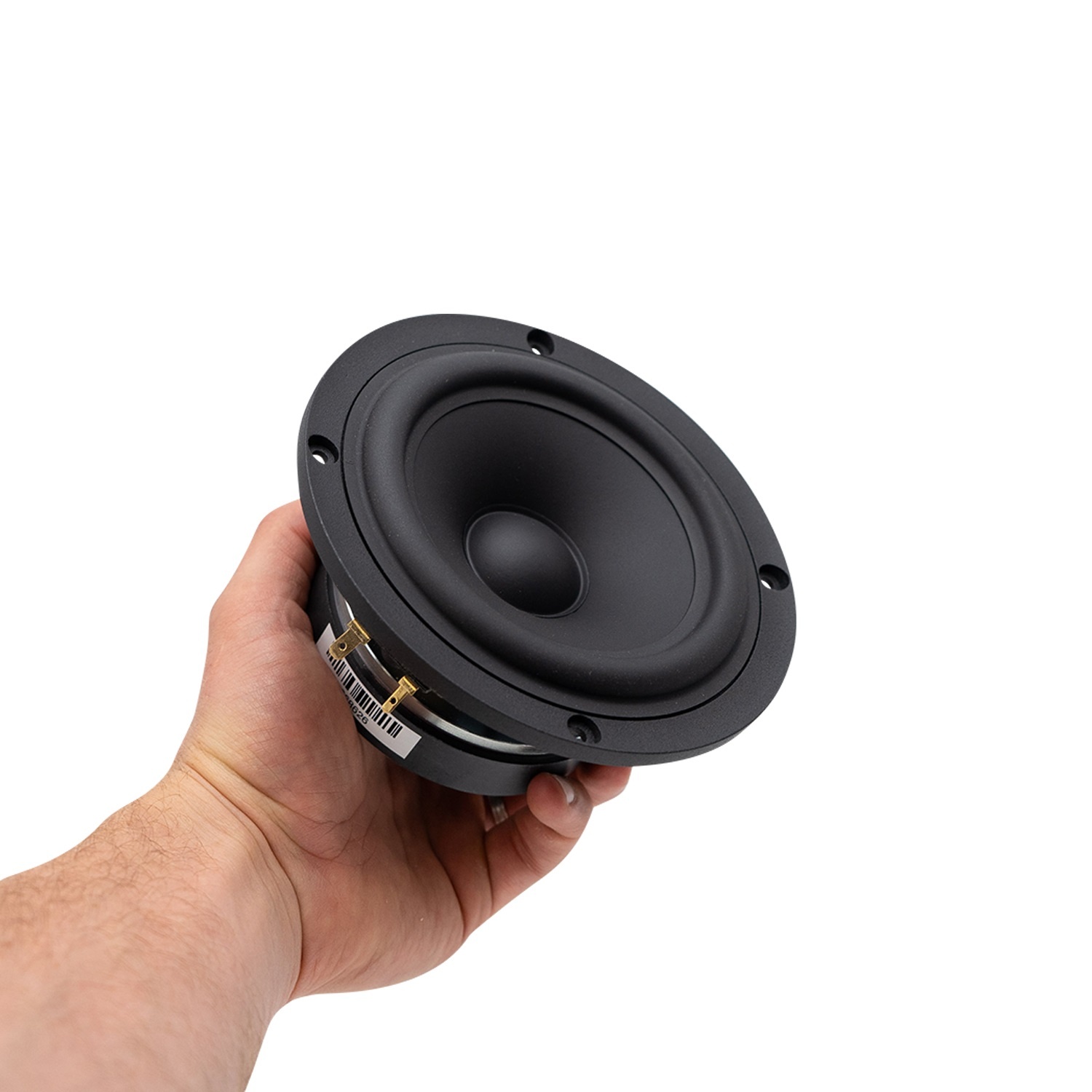

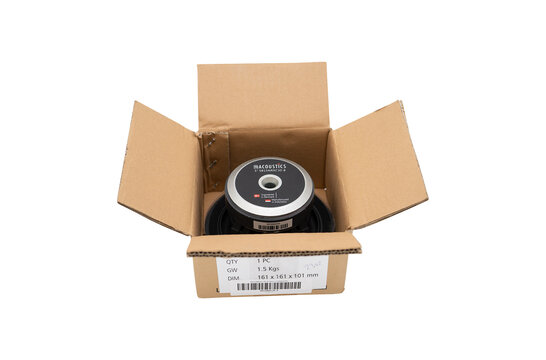

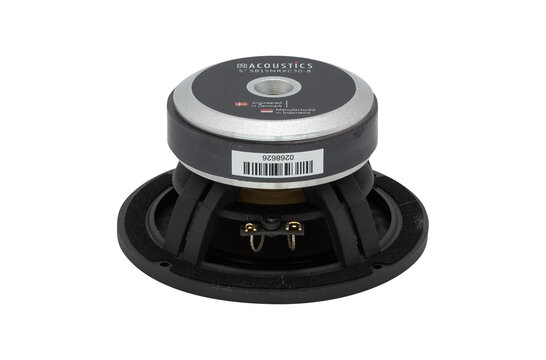

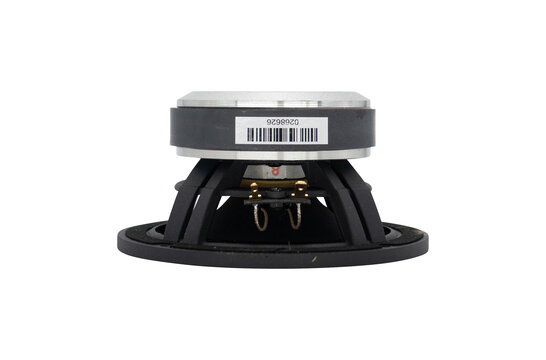

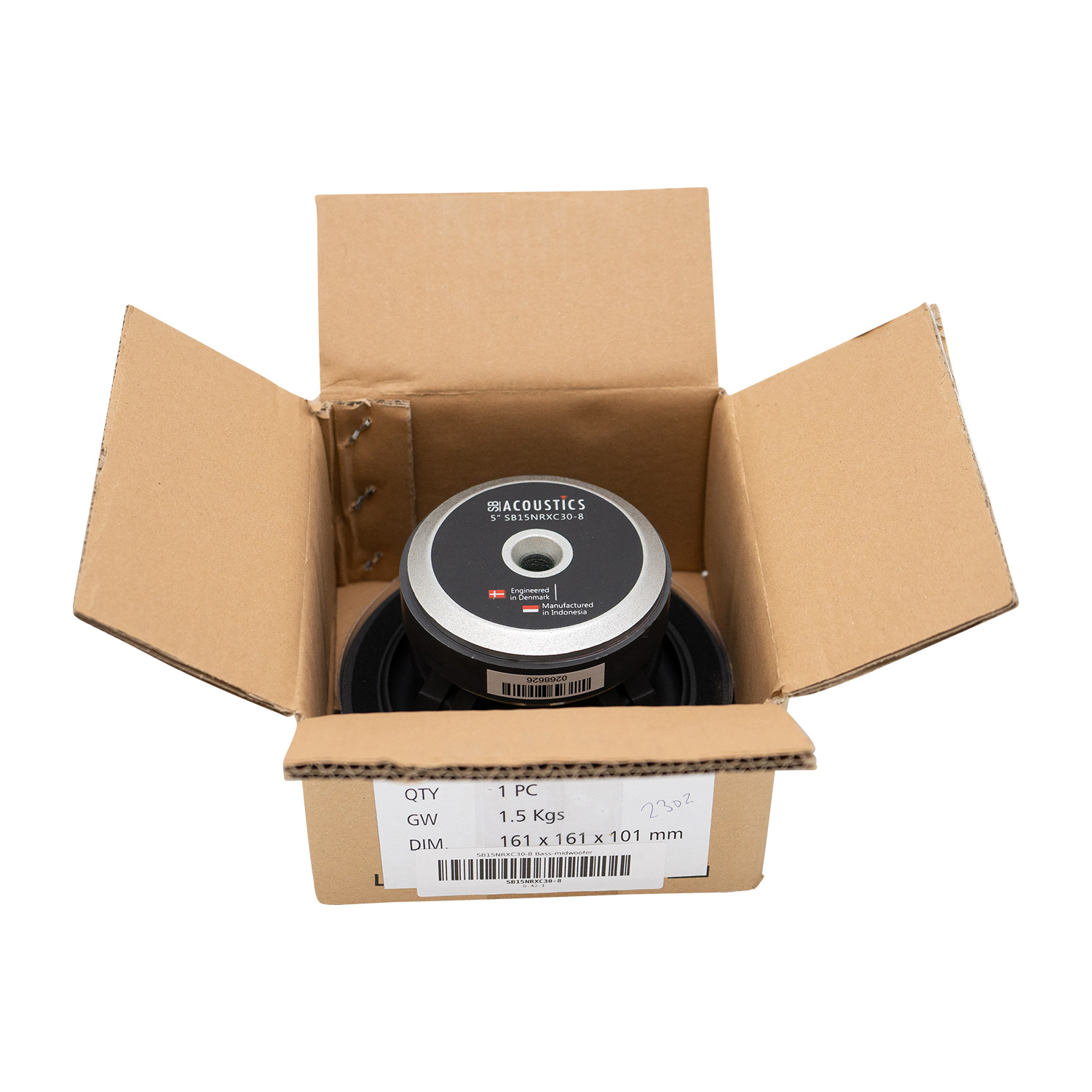

SB Acoustics SB15NRXC30-8 5" Midrange Woofer

€ 45,41€ 54,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio. To... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €52,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Vented cast aluminum chassis for optimum strength and low compression
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fiberglass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression



Product details

SB Acoustics SB15NRXC30-8 5" Midrange Woofer

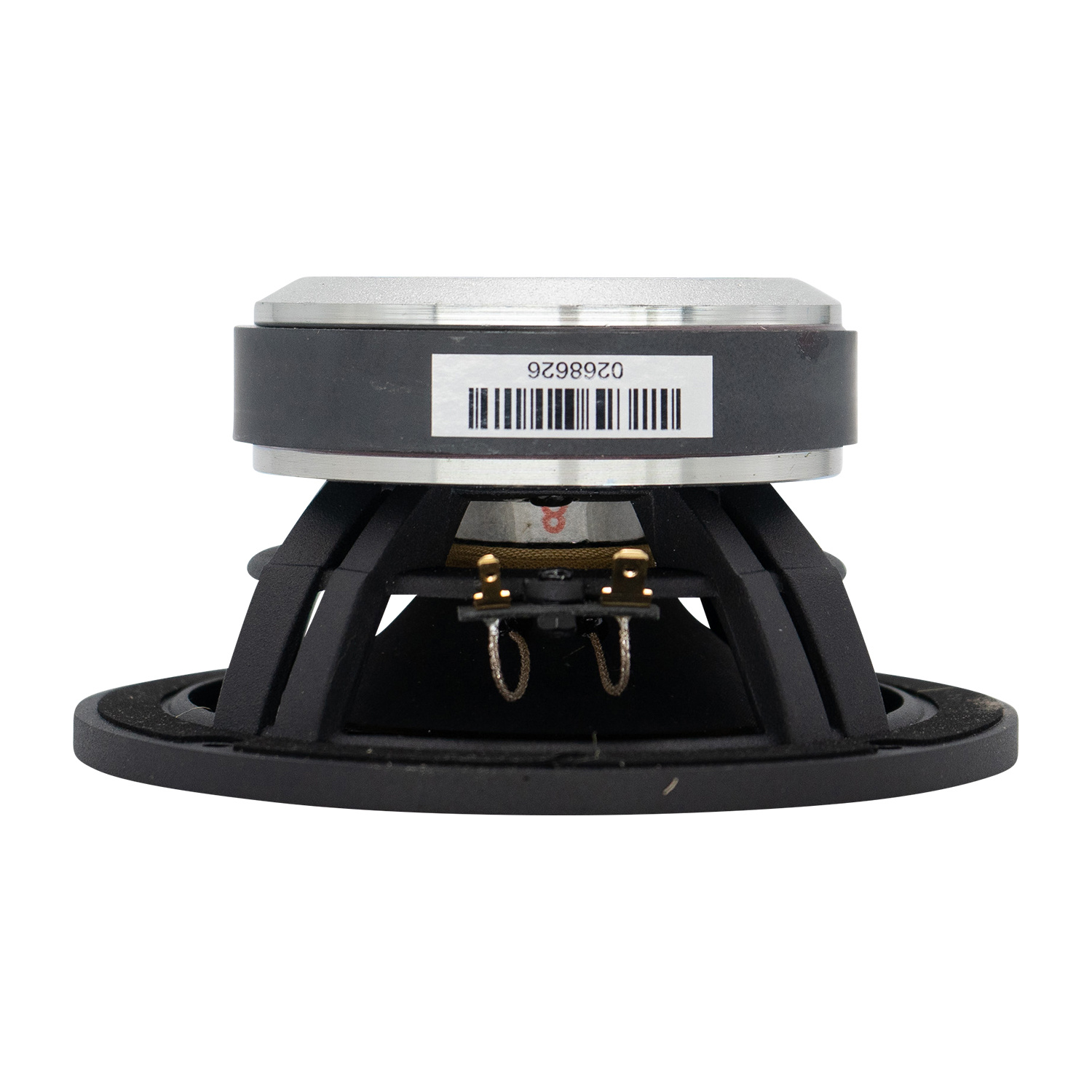

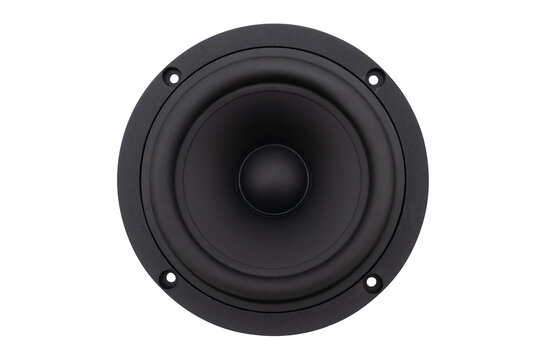

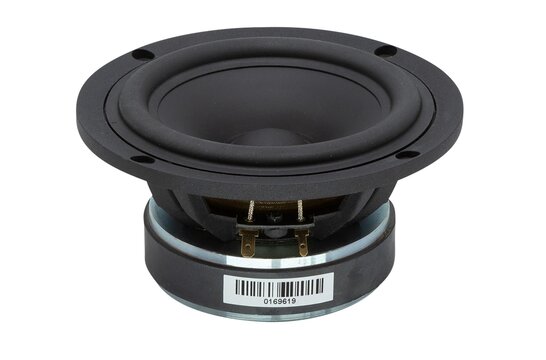

Papyrus cone with an optional thin polyurethane protection coating. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive CCAW fiber glass 30mm coil former. Silver lead wires. Vented pole piece.



The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio. To that end, close attention has been payed to design engineering with manufacturing materials and processes to optimize performance.

Eigenschaften

Artikelnummer:
SB15NRXC30-8
Woofer Series
NRX Series
Woofer Type
Midwoofer
Nominal Diameter
5"
Power Handling (RMS)
50 Watts
Impedance
8 ohms
Sensitivity
88 dB 2.83V/1m
Voice Coil Diameter
1.2"
DC Resistance (Re)
5.7 ohms
Voice Coil Inductance (Le)
0.14 mH
Resonant Frequency (Fs)
38 Hz
Mechanical Q (Qms)
4.8
Electromagnetic Q (Qes)
0.35
Total Q (Qts)
0.33
Diaphragm Mass Inc. Airload (Mms)
8.1 g
Mechanical Compliance of Suspension (Cms)
2.17 mm/N
Surface Area of Cone (Sd)
82 cm2
BL Product (BL)
5.6 Tm
Compliance Equivalent Volume (Vas)
0.73 ft.³
Maximum Linear Excursion (Xmax)
5 mm

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Speaker als full range te gebruiken en klinkt goed voor deze prijsklasse.
Durch crejocon on 21 April 2021
