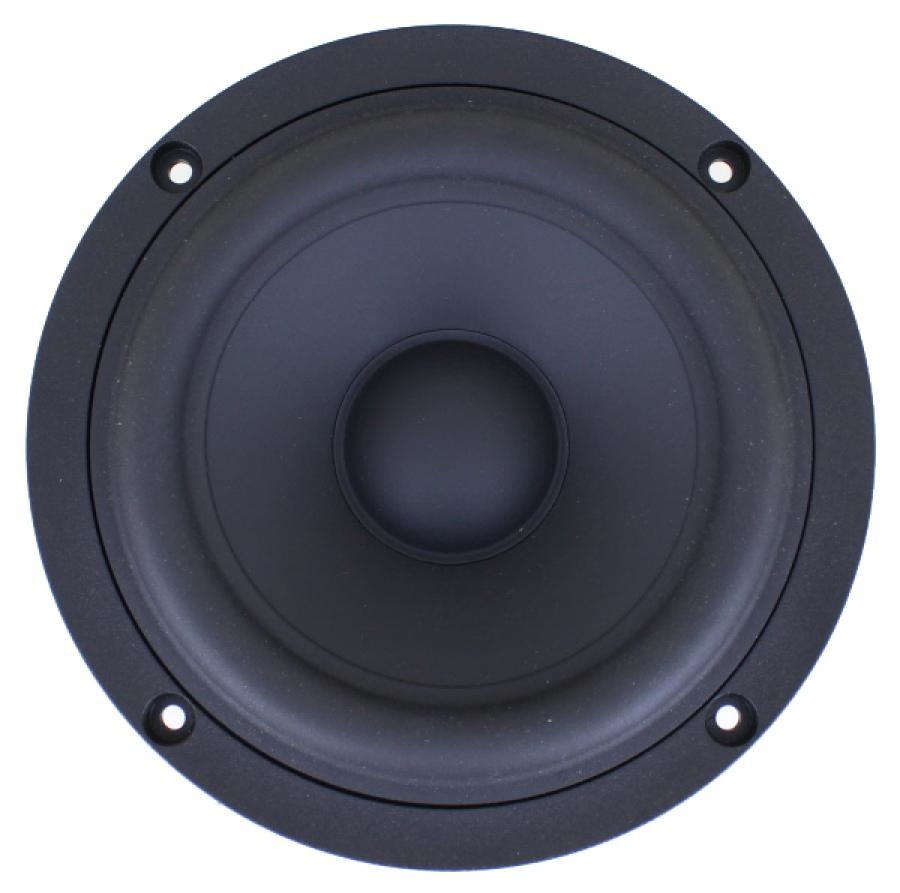

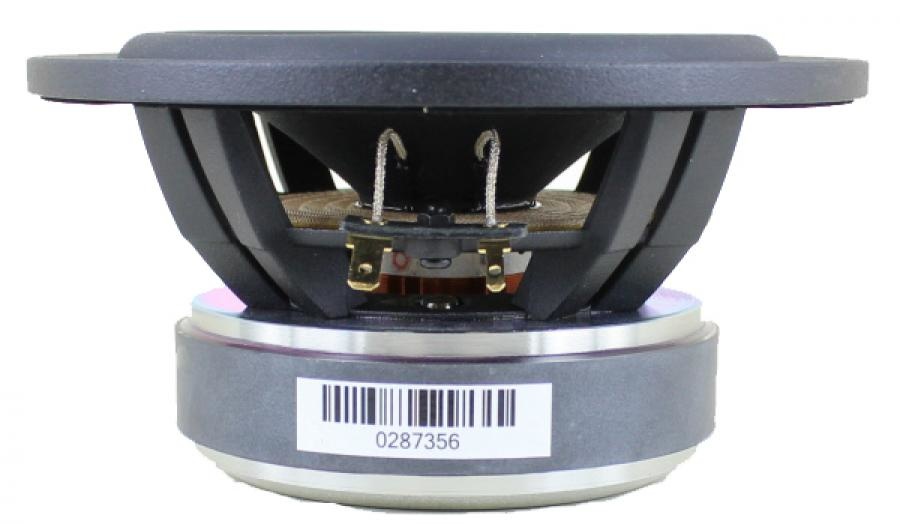

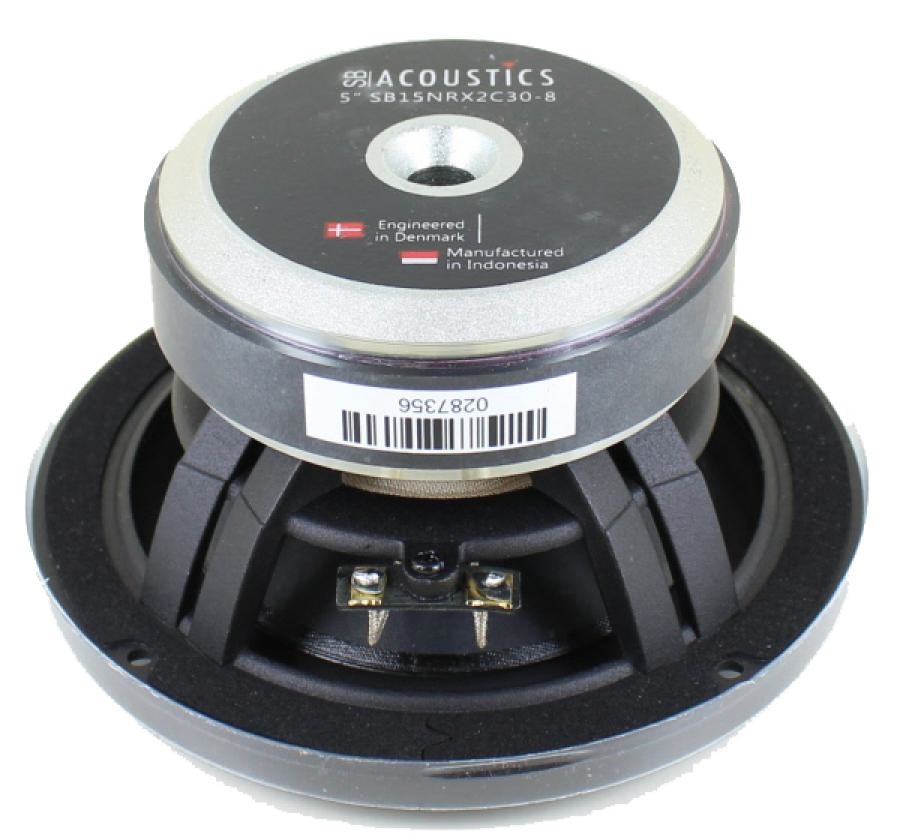

      SB15NRX2C30-8 5" Breitbandlautsprecher

      SB Acoustics SB15NRX2C30-8 5" Breitbandlautsprecher

      €63,95

      10 Auf Lager

      SB Acoustics SB15NRX2C30-8 5" Breitbandlautsprecher

      3 reviews
      5 von 5
      3 reviews
      5 Sterne
      67%
      4 Sterne
      33%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      52,85 €63,95 € 10 Auf Lager
      • -5% Bestelle 4 für nur 60,75 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung SB Acoustics SB15NRX2C30-8 Breitbandlautsprecher

      Vented cast aluminum chassis for optimum strength and low compression.



      Highlights

      • Vented cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB15NRX2C30-8 Bass-mid Woofer


      The SB Acoustics SB15NRX2C30-8 is a 5 inch 8 ohm midwoofer featuring a Norex cone and a vented cast aluminium chassis. Norex is a proprietary paper-based material comprised of wood pulp and selected natural fibers blended for an optimally strong but lightweight cone that gives detailed sound with good midrange extension. It has a soft low damping rubber surround for improved transient response and a non-conducting fiber glass voice coil former for minimum damping

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SB15NRX2C30-8
      EAN
      8785256846894
      Belastbarkeit (QMW)
      50 Watts
      Gleichstromwiderstand (Re)
      5.9 ohms
      Schwingspuleninduktion (Le)
      0.14 mH
      Resonanzfrequenz (Fs)
      36.5 Hz
      Mechanische Güte (Qms)
      3.48
      Elektrische Güte (Qes)
      0.37
      Gesamtgüte (Qts)
      0.34
      Bewegliche Masse (Mms)
      9.1g
      Nachgiebigkeit der Aufhängung (Cms)
      2.1 mm/N
      Membranfläche (Sd)
      82 cm²
      Kraftfaktor (BL)
      5.75 N/A
      Äquivalentvolumen (Vas)
      20 Liters
      Maximale Auslenkung (Xmax)
      5 mm

      Mehr anzeigen

      5 von 5
      Good equivalent to replace the woofer in Bose DS100SE - sounds actually better than the original… BUT, I did have to make an adapter ring as it is slightly smaller than the original.
      Durch Adam on 28 August 2025
      4 von 5
      -
      Durch Valerio on 20 Juli 2025
      Mehr anzeigen
