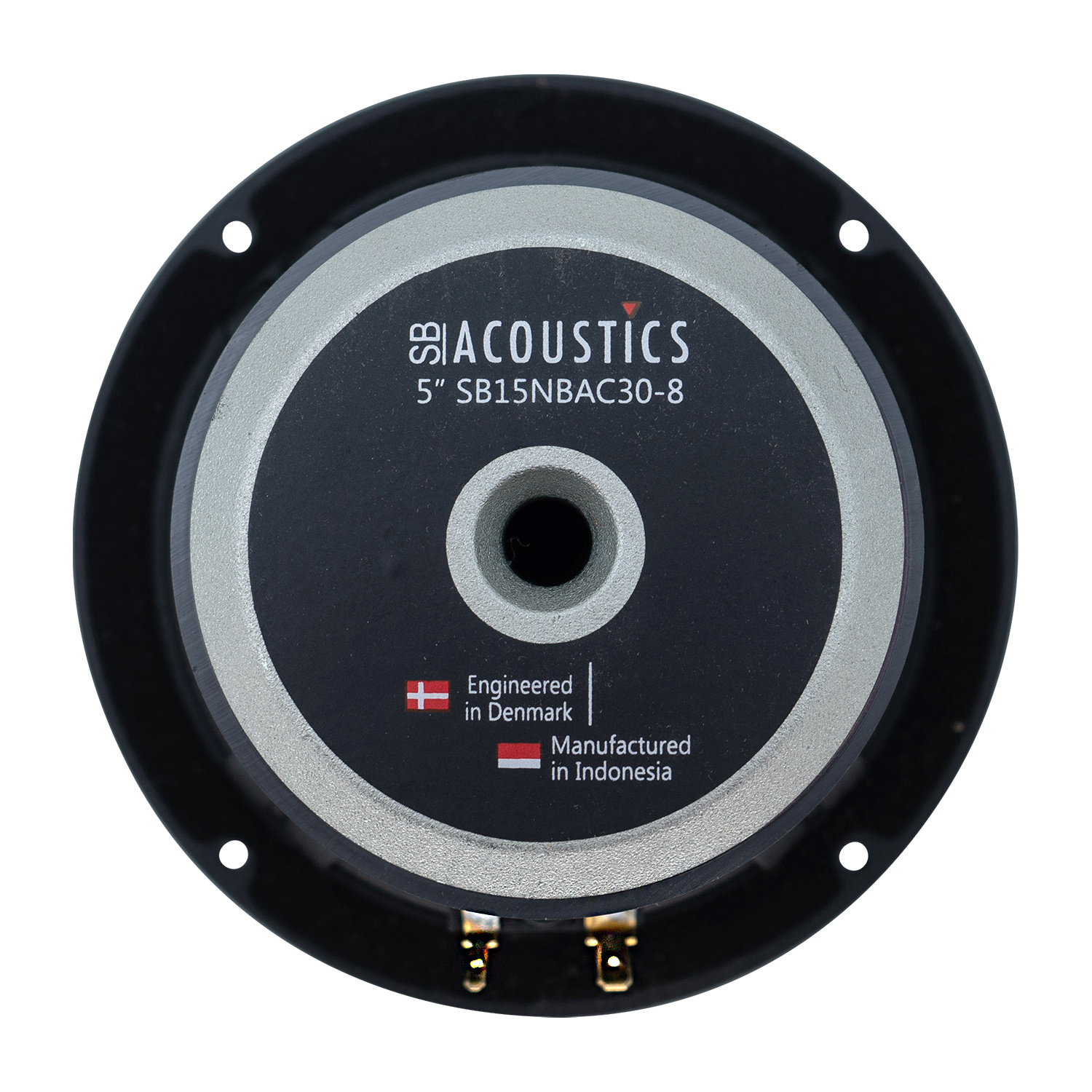

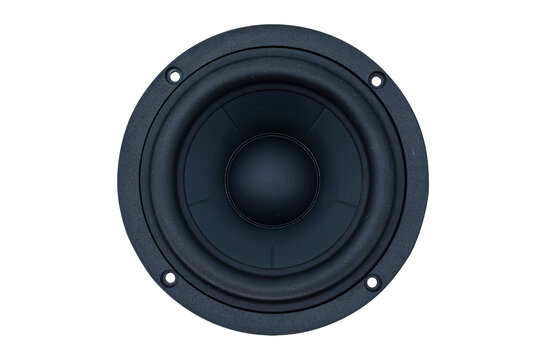

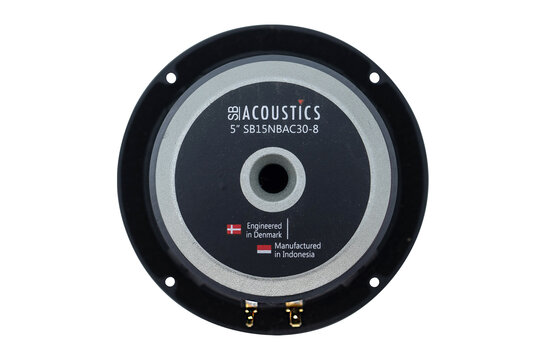

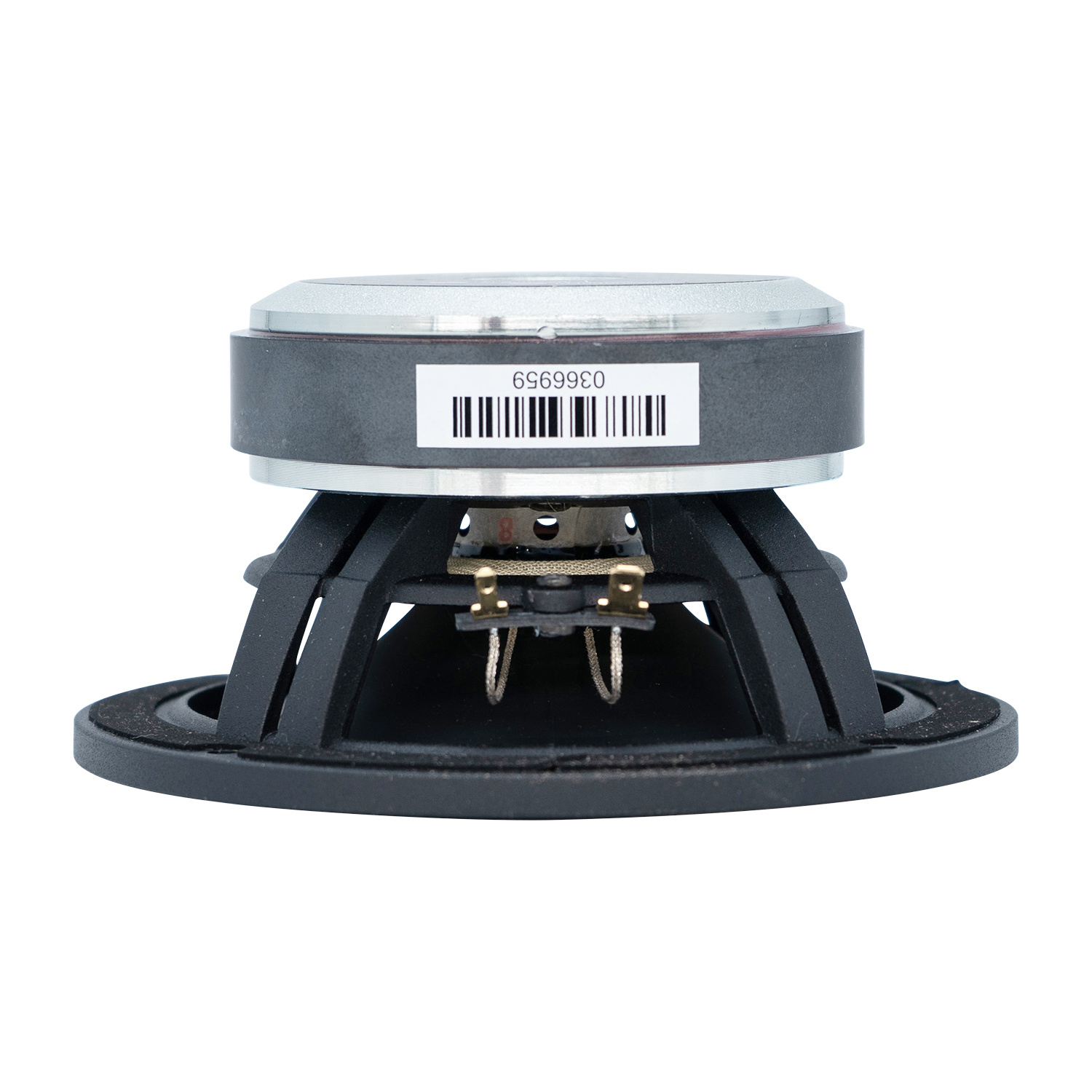

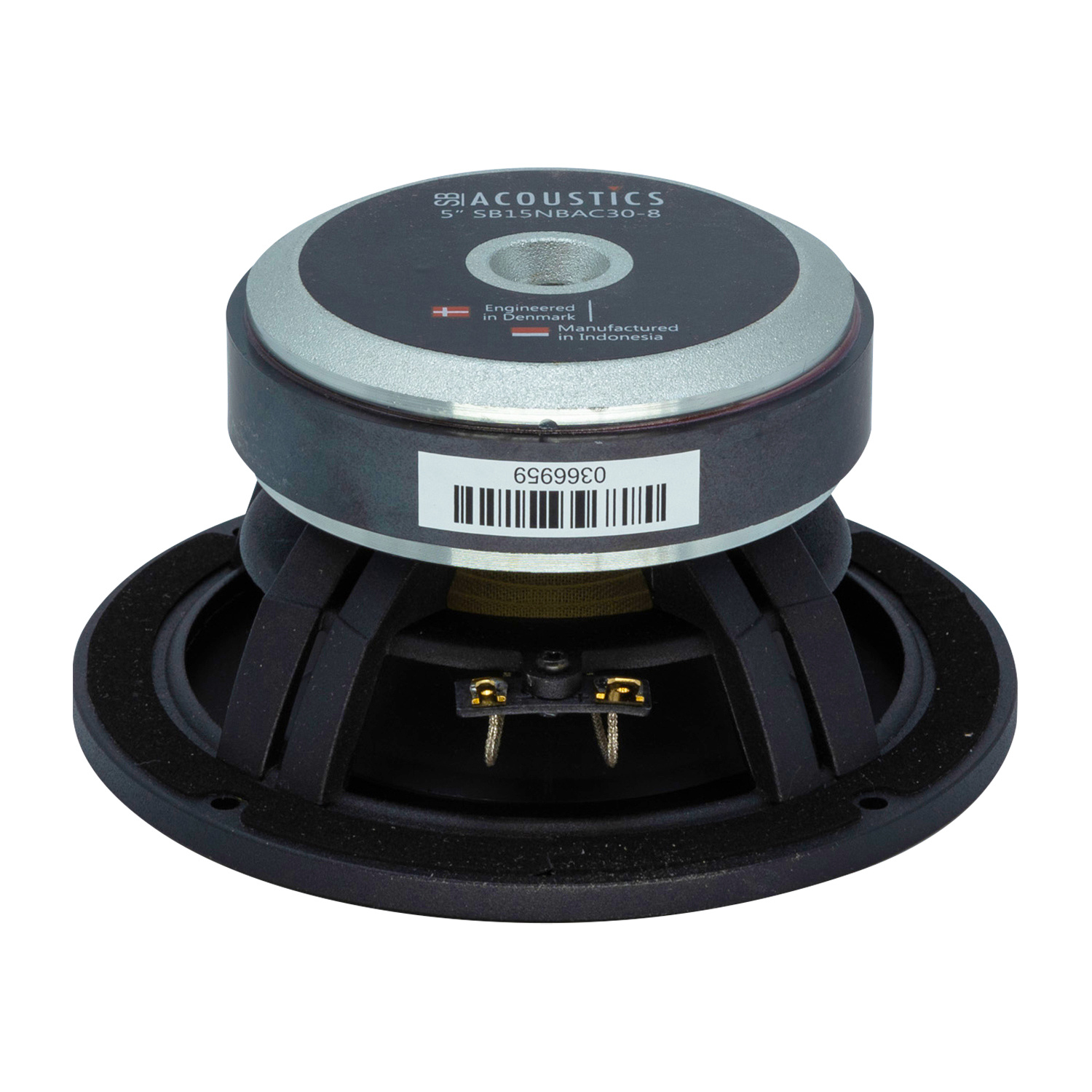

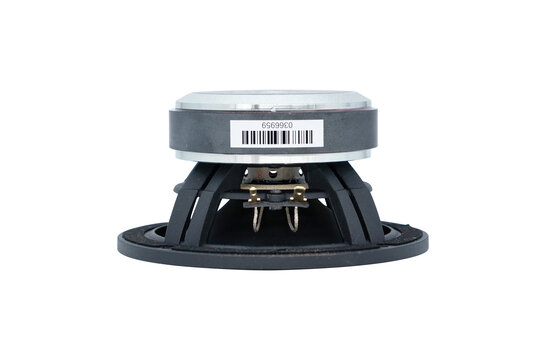

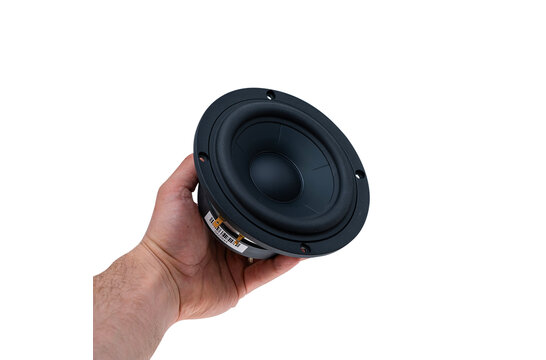

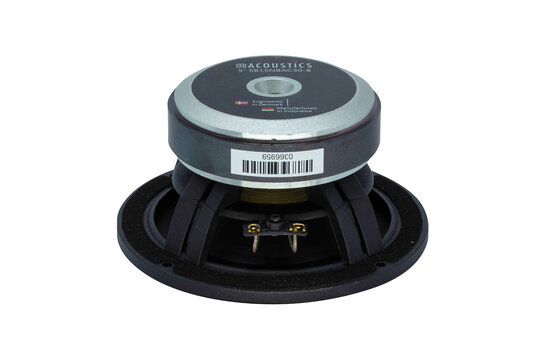

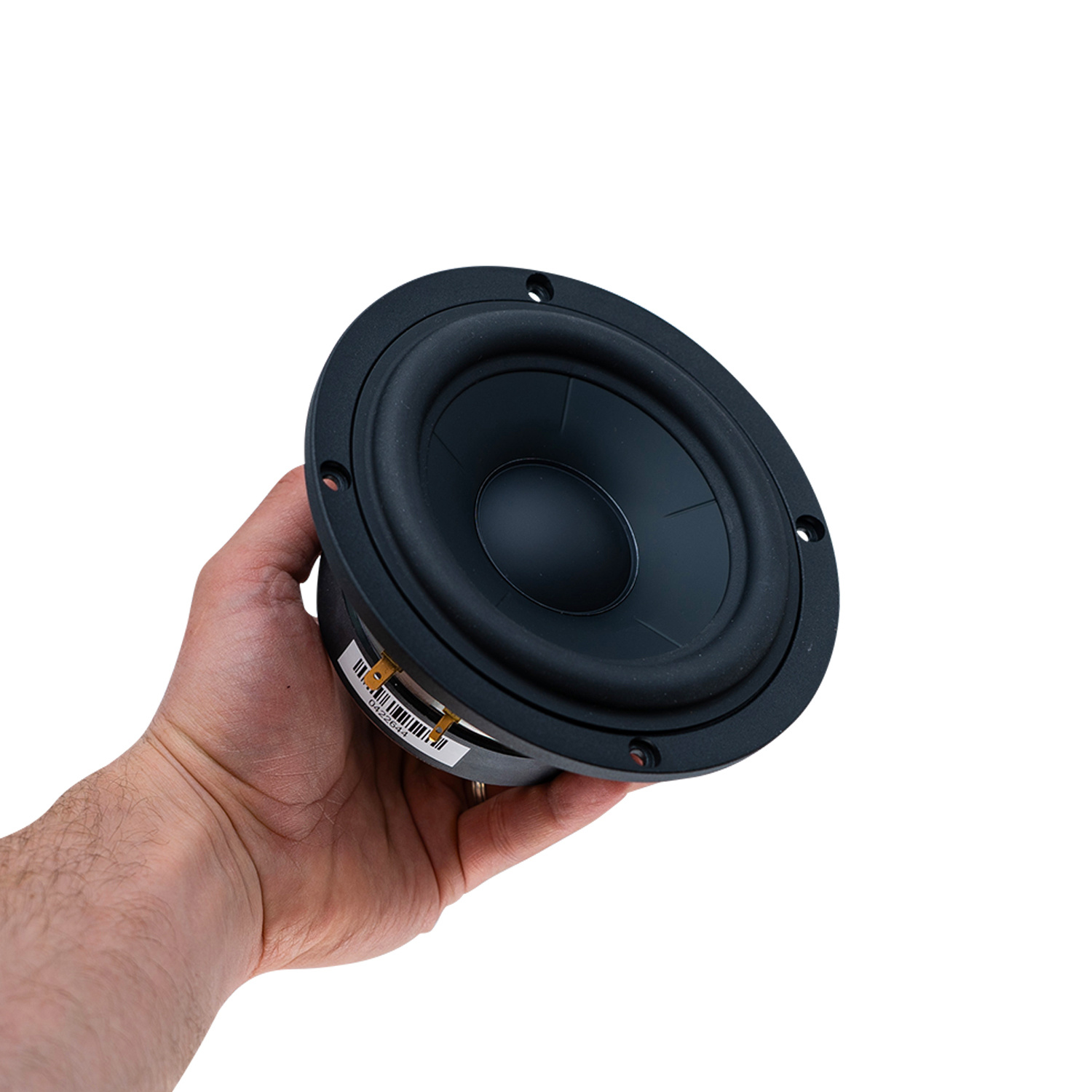

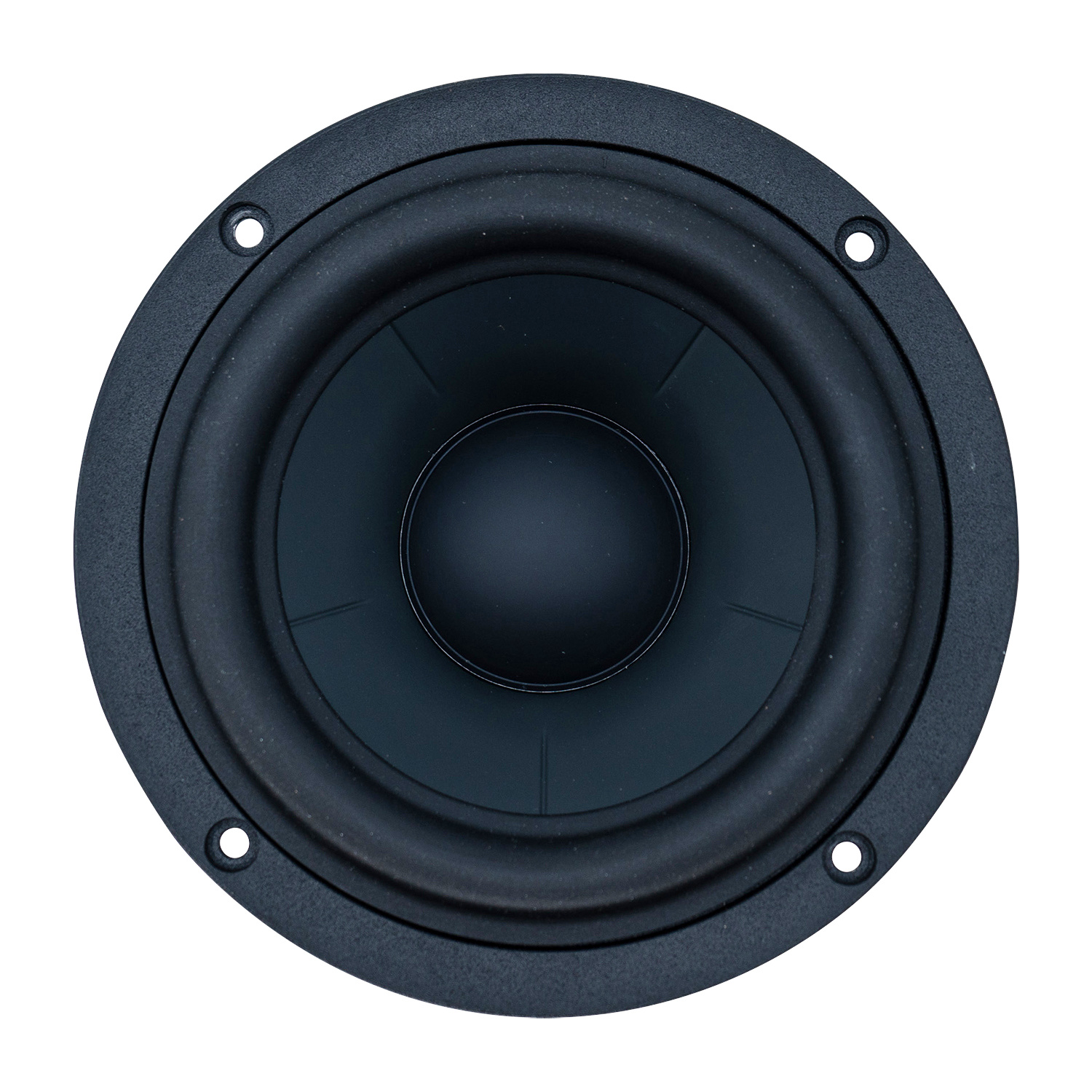

    SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass

    Marke: SB Acoustics
    Alle anzeigen Audio-Komponenten
    5" | 8 Ω
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    € 61,45 Nicht auf Lager: Lieferzeit beträgt 1 Woche
    The SB15NBAC30-8 Black Aluminum Cone Mid-bass features: Rohacell®/Carbon fiber sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression and low damping rubber surround for improved transien... Mehr anzeigen
    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -5% Kauf 4 für nur €58,38 pro stück
    +-
    In den Warenkorb legen
    • Versicherter Versand mit Sendungsverfolgung
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag*
    • Hausinterner technischer Support
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
    SB15NBAC30-8 5" Black Aluminum Cone Mid-bass

    Produktbeschreibung

    Highlights

    • Vented cast aluminum chassis for optimum strength and low compression
    • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
    • Soft low damping rubber surround for improved transient response
    • Non-conducting fiber glass voice coil former for minimum damping
    • Extended copper sleeve on pole piece for low inductance and low distortion
    • CCAW voice coil for reduced moving mass
    • Long life silver lead wires
    • Vented pole piece for reduced compression



    Product details

    SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass



    The SB15NBAC30-8 Black Aluminum Cone Mid-bass features: Rohacell®/Carbon fiber sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression and low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass and long life silver lead wires. Vented pole piece for reduced compression.

    Eigenschaften

    Artikelnummer:
    SB15NBAC30-8
    Woofer Series
    NBAC Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    50 Watts
    Impedance
    8 ohms
    Sensitivity
    85.5 dB 2.83V/1m
    Voice Coil Diameter
    1.2"
    DC Resistance (Re)
    5.7 ohms
    Voice Coil Inductance (Le)
    0.14 mH
    Resonant Frequency (Fs)
    35.5 Hz
    Mechanical Q (Qms)
    4.22
    Electromagnetic Q (Qes)
    0.41
    Total Q (Qts)
    0.37
    Diaphragm Mass Inc. Airload (Mms)
    10 g
    Mechanical Compliance of Suspension (Cms)
    1.81 mm/N
    Surface Area of Cone (Sd)
    82 cm2
    BL Product (BL)
    5.7 Tm
    Compliance Equivalent Volume (Vas)
    0.6 ft.³
    Maximum Linear Excursion (Xmax)
    5 mm
