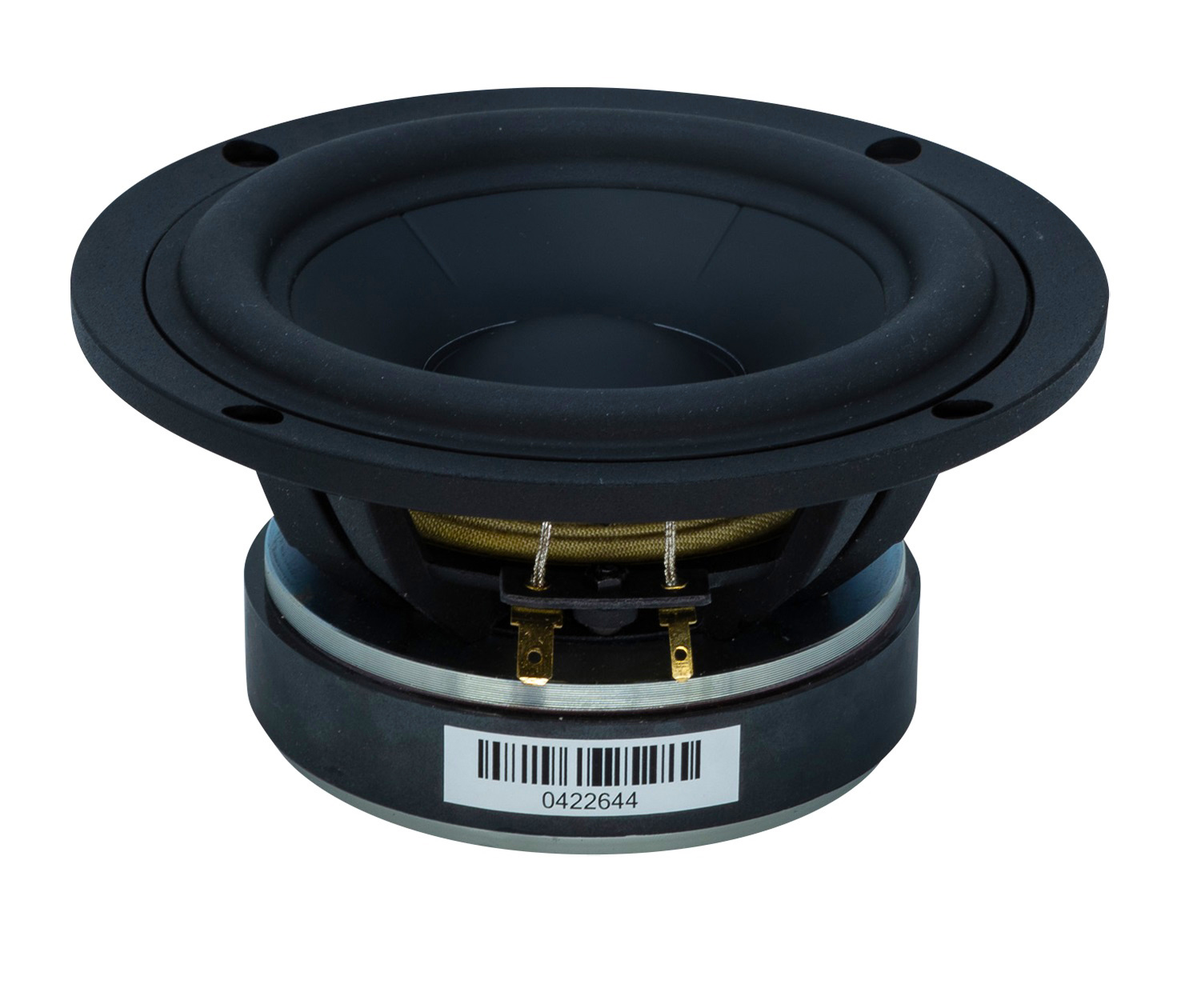

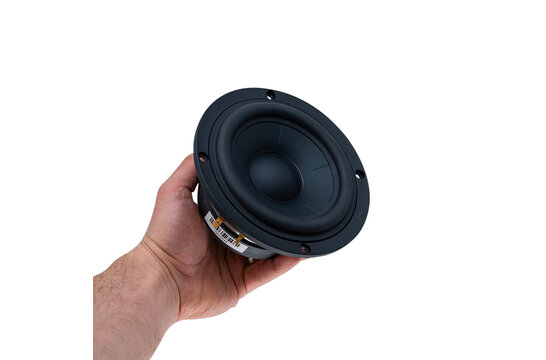

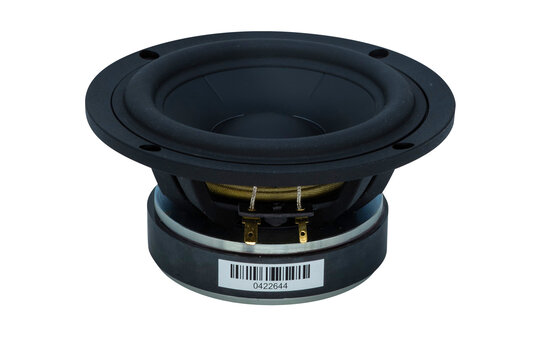

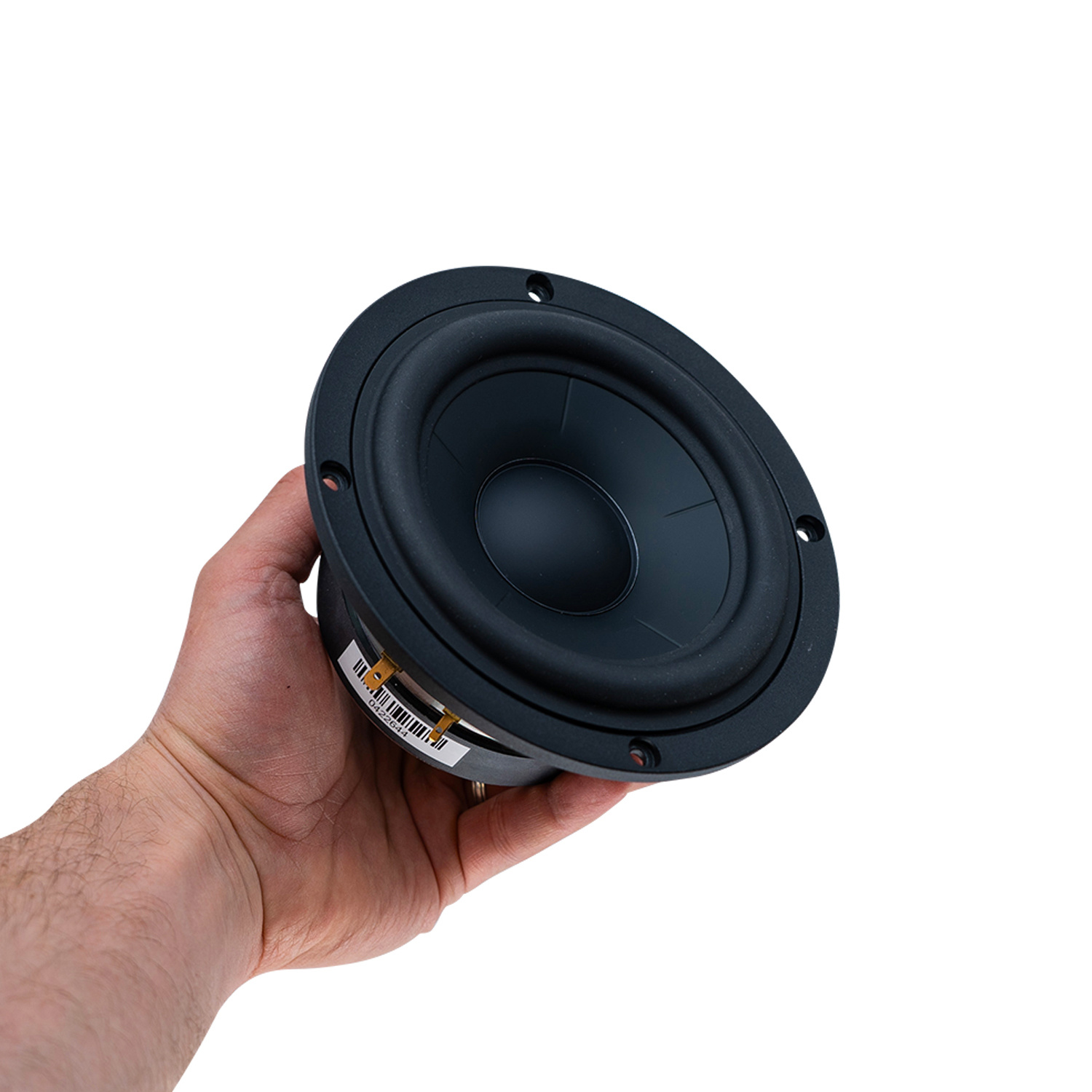

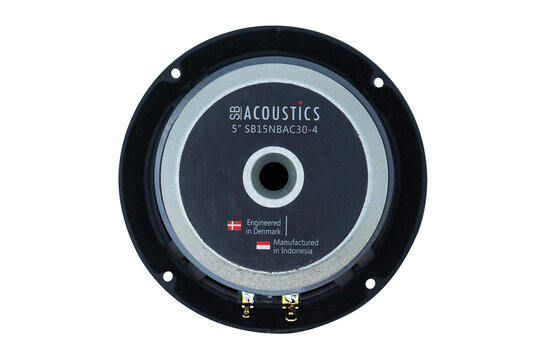

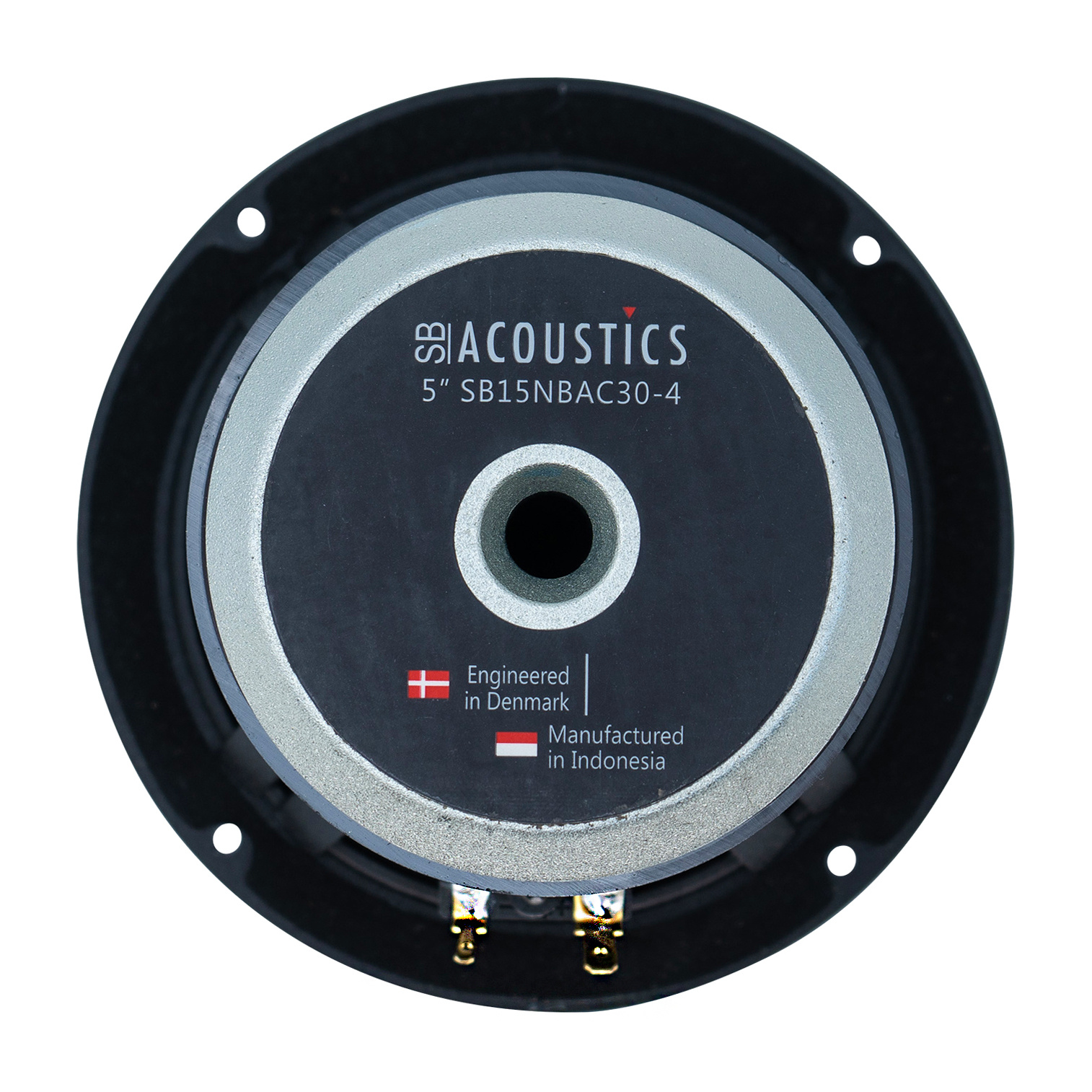

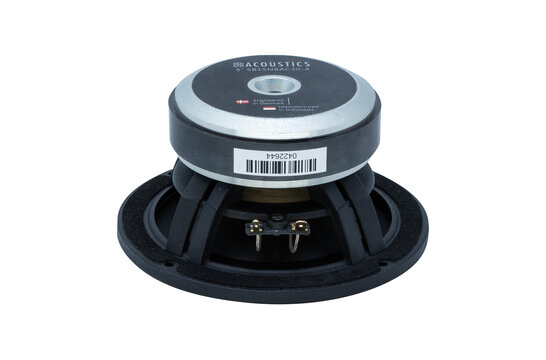

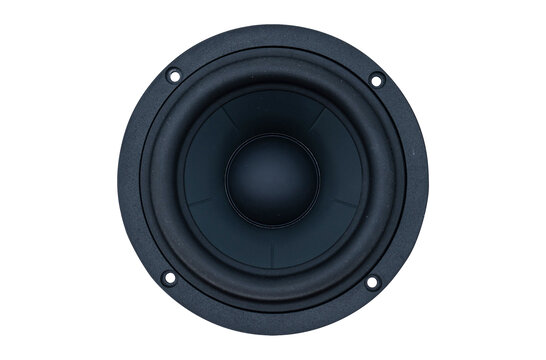

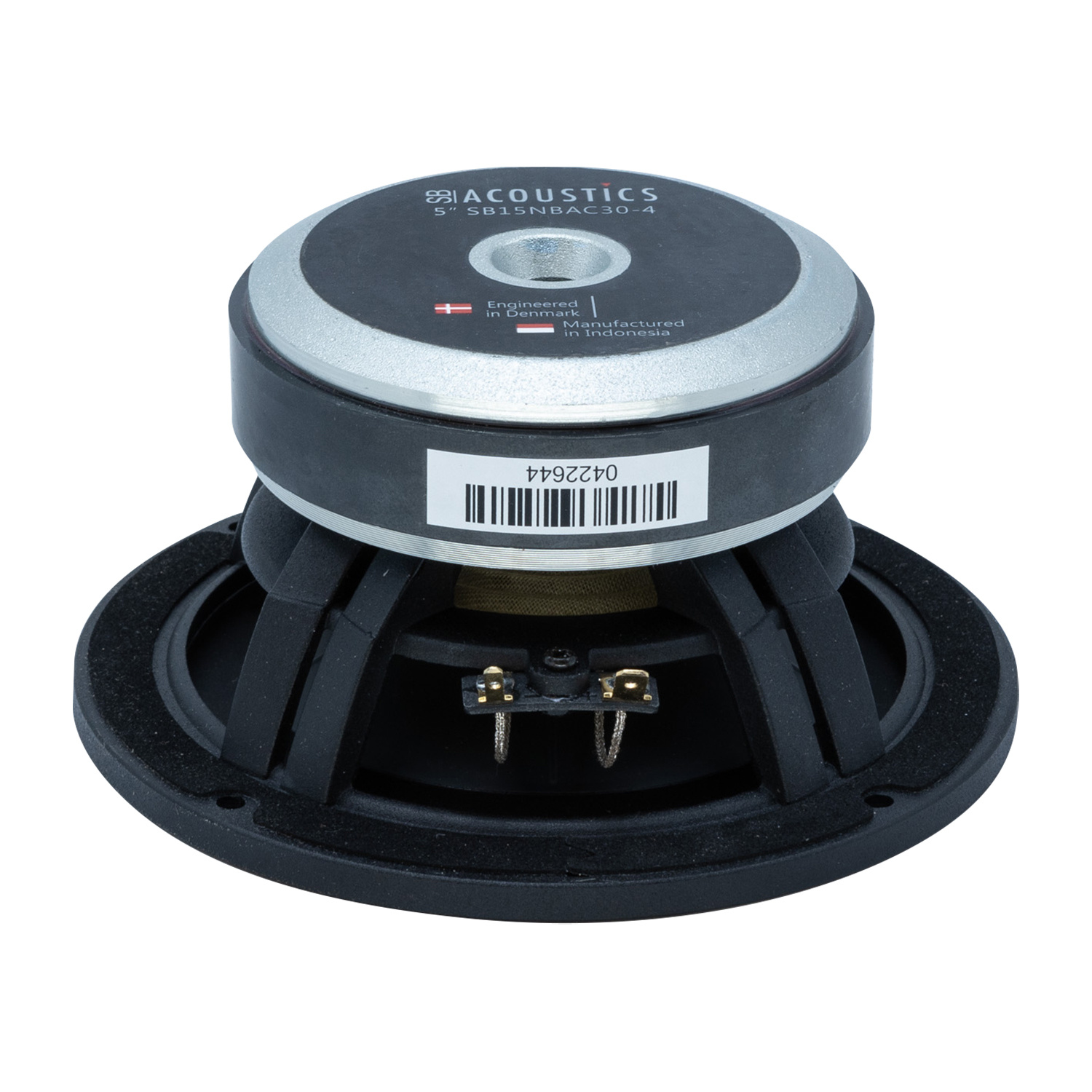

      SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

      0 reviews
      Marke: SB Acoustics
      Alle anzeigen Audio-Komponenten
      5" | 4 Ω
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      € 50,79€ 61,45 2 Auf Lager: Lieferzeit 1-3 Werktage
      The SB Acoustics SB15NBAC30-4 is a powerful 5’’ midwoofer with a vented chassis that provides optimum strength and allows low compression. Its geometrically reinforced aluminum cone gives it an optimum piston operation and a reduced break-up.... Mehr anzeigen
      Bulk discount Genießen Sie diese tollen Rabattangebote
      • -5% Kauf 4 für nur €58,38 pro stück
      +-
      In den Warenkorb legen
      • Versicherter Versand mit Sendungsverfolgung
      • Kostenloser Versand ab 149€ (DE, A)
      • Versand am selben Tag*
      • Hausinterner technischer Support
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass
      SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

      Produktbeschreibung

      Highlights

      • Vented cast aluminum chassis for optimum strength and low compression
      • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass



      The SB Acoustics SB15NBAC30-4 is a powerful 5’’ midwoofer with a vented chassis that provides optimum strength and allows low compression. Its geometrically reinforced aluminum cone gives it an optimum piston operation and a reduced break-up. Minimum damping and low inductance and distortion thanks to its non-conducting fiber glass voice coil former and extended copper sleeve on the pole piece. CCAW voice coil, long life silver lead wires and vented pole piece for a reduced compression.

      Eigenschaften

      Artikelnummer:
      SB15NBAC30-4
      Woofer Series
      NBAC Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      5"
      Power Handling (RMS)
      50 Watts
      Impedance
      4 ohms
      Sensitivity
      88 dB 2.83V/1m
      Voice Coil Diameter
      1.2"
      DC Resistance (Re)
      3.1 ohms
      Voice Coil Inductance (Le)
      0.12 mH
      Resonant Frequency (Fs)
      33 Hz
      Mechanical Q (Qms)
      4.4
      Electromagnetic Q (Qes)
      0.31
      Total Q (Qts)
      0.29
      Diaphragm Mass Inc. Airload (Mms)
      10.6 g
      Mechanical Compliance of Suspension (Cms)
      2.2 mm/N
      Surface Area of Cone (Sd)
      82 cm2
      BL Product (BL)
      4.7 Tm
      Compliance Equivalent Volume (Vas)
      0.74 ft.³
      Maximum Linear Excursion (Xmax)
      5 mm
