      SB15MFC30-8 Polypropylene Tiefmitteltöner

      SB Acoustics SB15MFC30-8 Polypropylene Tiefmitteltöner

      €68,45

      8 Auf Lager

      SB Acoustics SB15MFC30-8 Polypropylene Tiefmitteltöner

      2 klantbeoordelingen
      5 von 5
      2 klantbeoordelingen
      5 Sterne
      100%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      56,57 €68,45 € 8 Auf Lager
      • -5% Bestelle 4 für nur 65,03 € je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Vented cast aluminium chassis for optimum strength and low compression

      Produktbeschreibung SB Acoustics SB15MFC30-8 Tiefmitteltöner

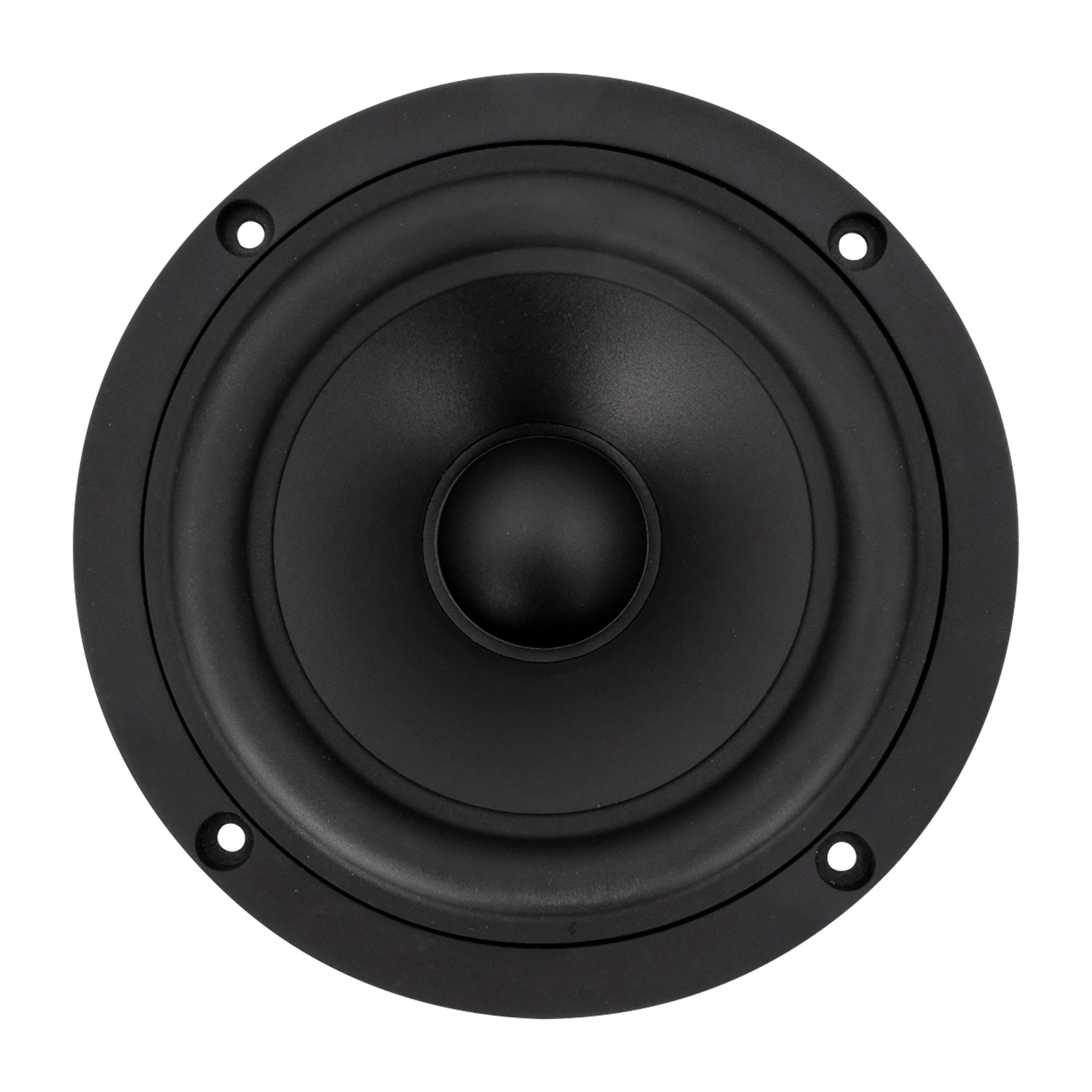

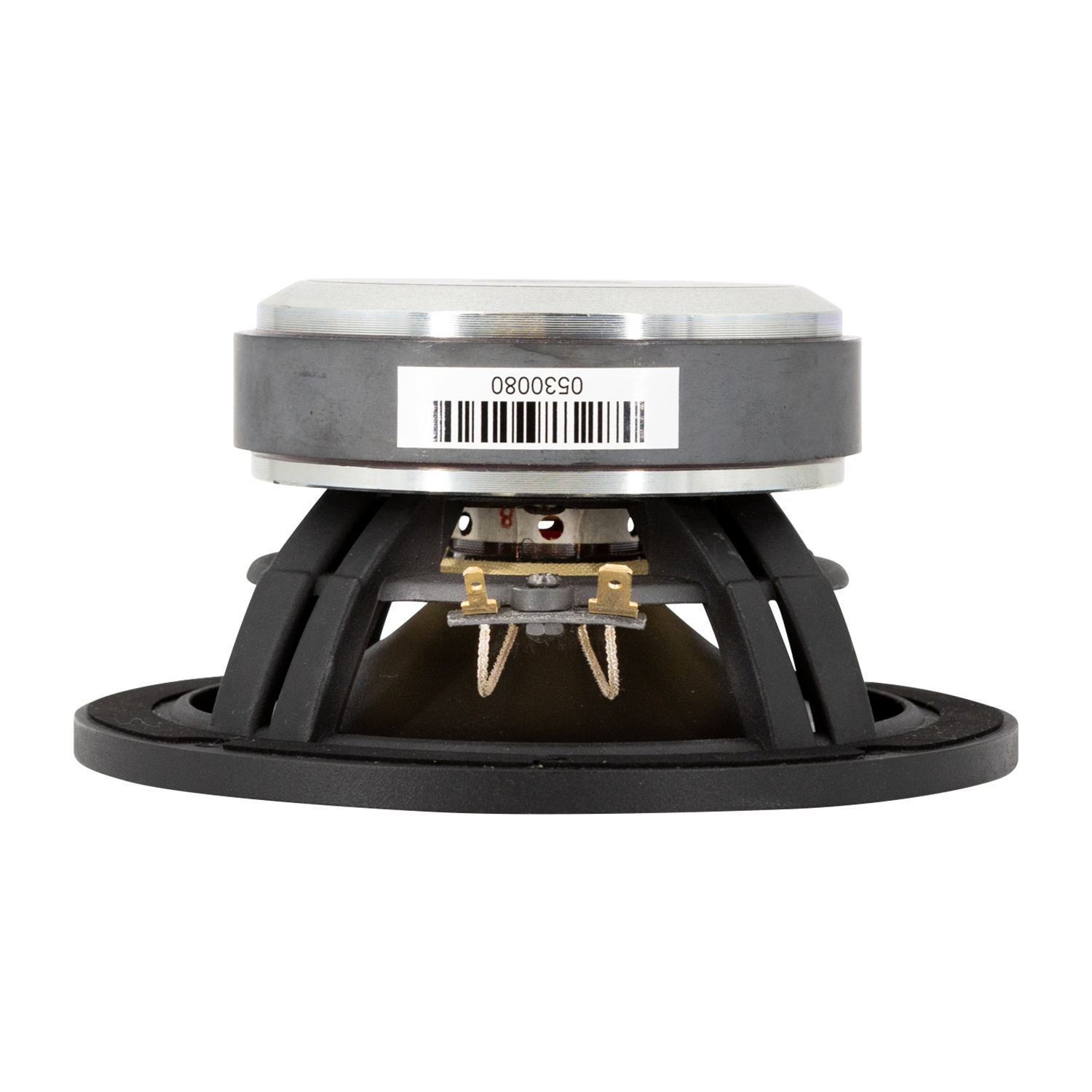

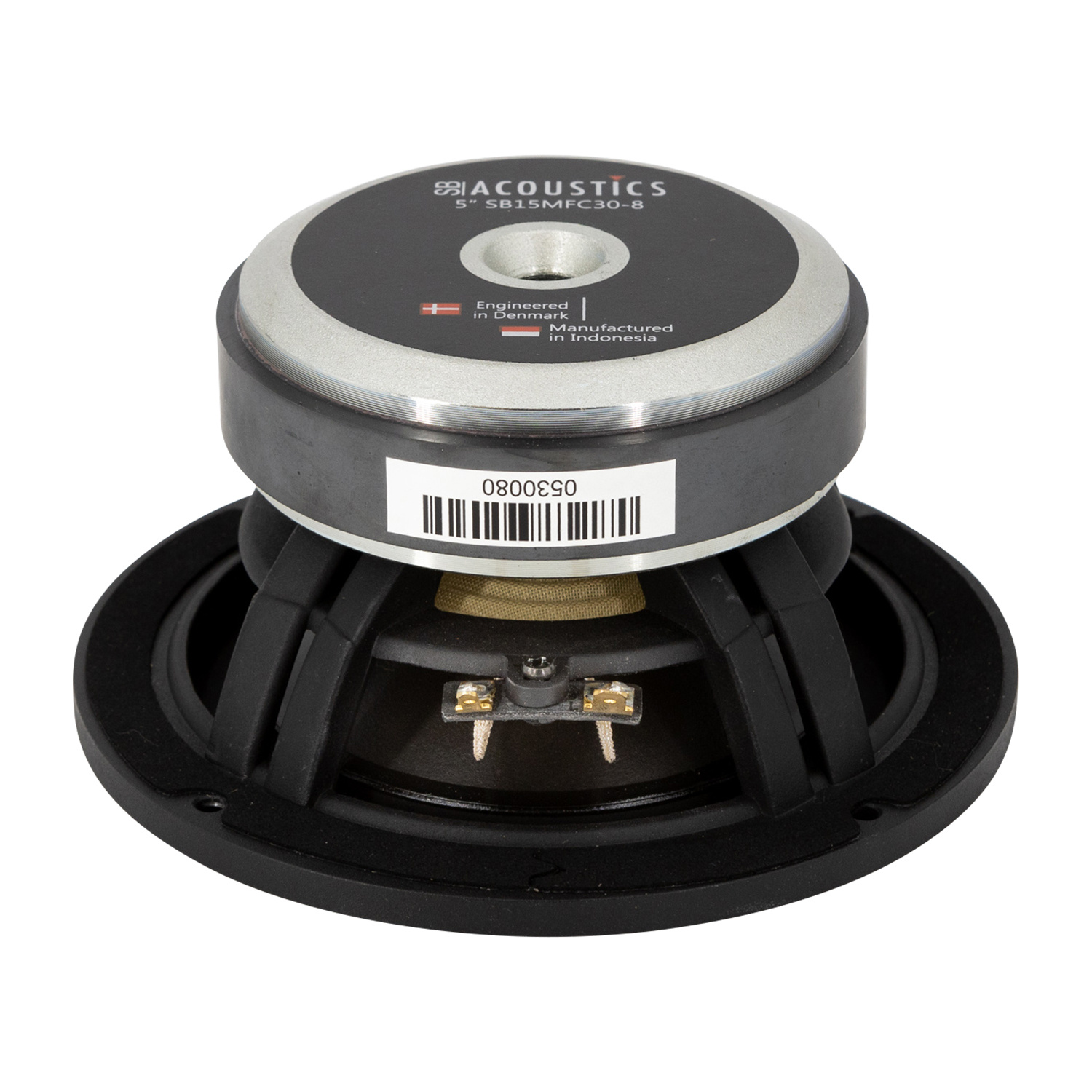

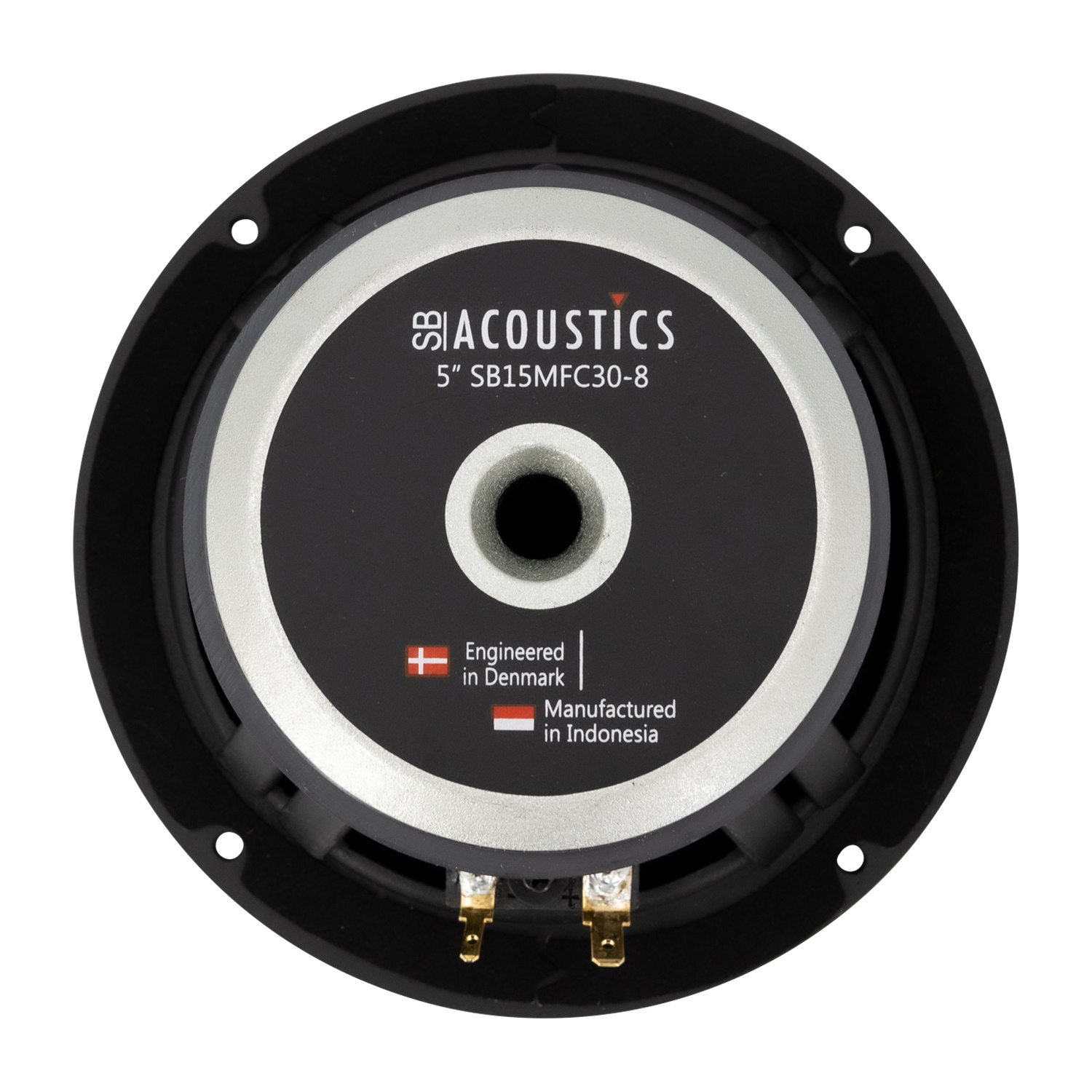

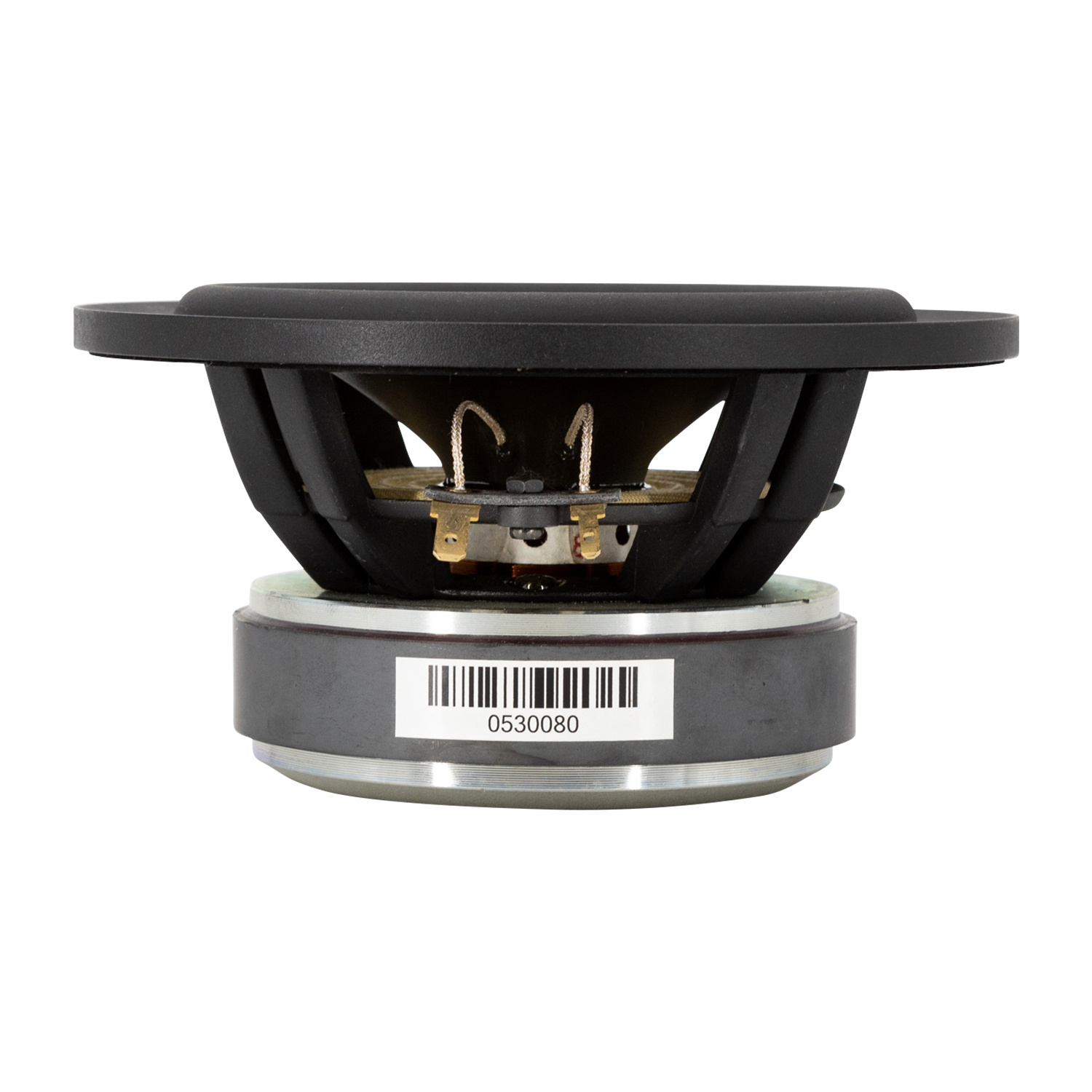

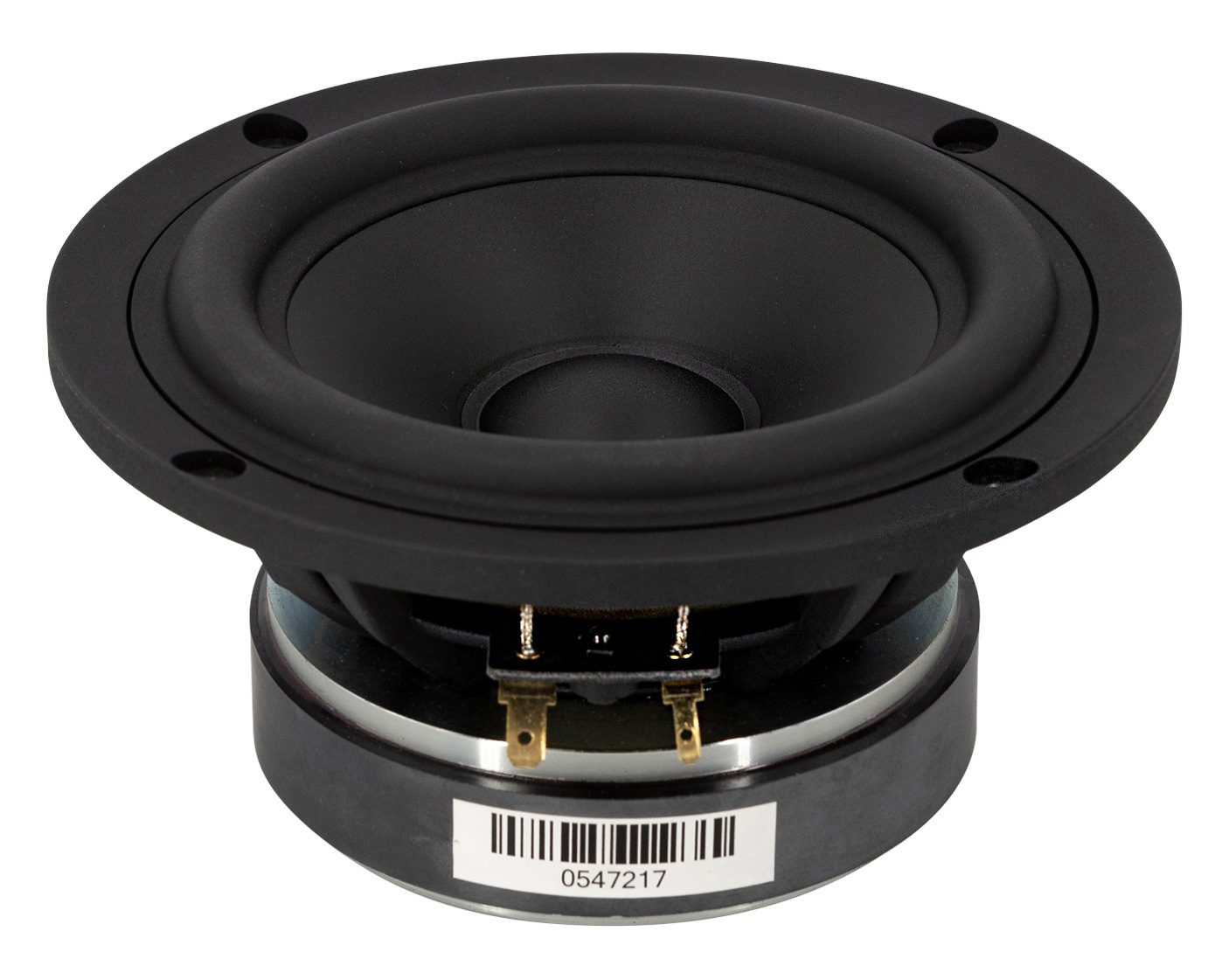

      The SB15MFC30-8 is a 8-ohm 5-inch mid-woofer from SB Acoustics. It has a mineral filled polypropylene (PP) cone, a vented cast aluminum chassis, and a soft low damping rubber surround.



      Highlights

      • Vented cast aluminium chassis for optimum strength and low compression
      • Mineral filled PP-cone made in-house
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fibre glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB15MFC30-8 Polypropylene Bass-midwoofer



      The SB Acoustics SB15MFC30-8 is a well-made and versatile woofer that can be used in a variety of audio applications. It is known for its smooth, accurate sound reproduction and its ability to handle high power levels. It has a frequency response of 35-2000 Hz, a sensitivity of 89 dB, and an impedance of 8 ohms. The woofer is made with a mineral-filled polypropylene cone, a rubber surround, and a CCAW voice coil. It has a vented cast aluminum chassis for strength and low compression.



      The SB Acoustics SB15MFC30-8 is a well-made and versatile woofer that can be used in a variety of audio applications. It is known for its smooth, accurate sound reproduction and its ability to handle high power levels.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SB15MFC30-8
      EAN
      8785256847938
      Tieftönertyp
      Bass-midwoofer
      Nenndurchmesser
      5"
      Belastbarkeit (QMW)
      50 Watt
      Belastbarkeit (max)
      50 Watt
      Impedanz (Z)
      8 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      87 dB
      Frequenzgang
      100 - 2000 Hz
      Schwingspulendurchmesser
      30.5 mm
      Gewicht magnet
      540 g
      Gleichstromwiderstand (Re)
      5.7 Ω
      Schwingspuleninduktion (Le)
      0.14 mH
      Resonanzfrequenz (Fs)
      39 Hz
      Mechanische Güte (Qms)
      4.4
      Elektrische Güte (Qes)
      0.4
      Gesamtgüte (Qts)
      0.37
      Bewegliche Masse (Mms)
      9.0 g
      Nachgiebigkeit der Aufhängung (Cms)
      1.85 mm/N
      Membranfläche (Sd)
      82 cm²
      Kraftfaktor (BL)
      5.6 Tm
      Äquivalentvolumen (Vas)
      17.7 L
      Maximale Auslenkung (Xmax)
      5 mm
      Driver's Mechanical Losses (Rms)
      0.5 Kg/s
      Korb- / Rahmenmaterial
      Vented cast aluminium
      Außendurchmesser
      150 mm
      Gesamttiefe
      79 mm
      # Befestigungsbohrungen
      4
      Durchmesser Befestigungslochs
      4.3 mm

      Mehr anzeigen
