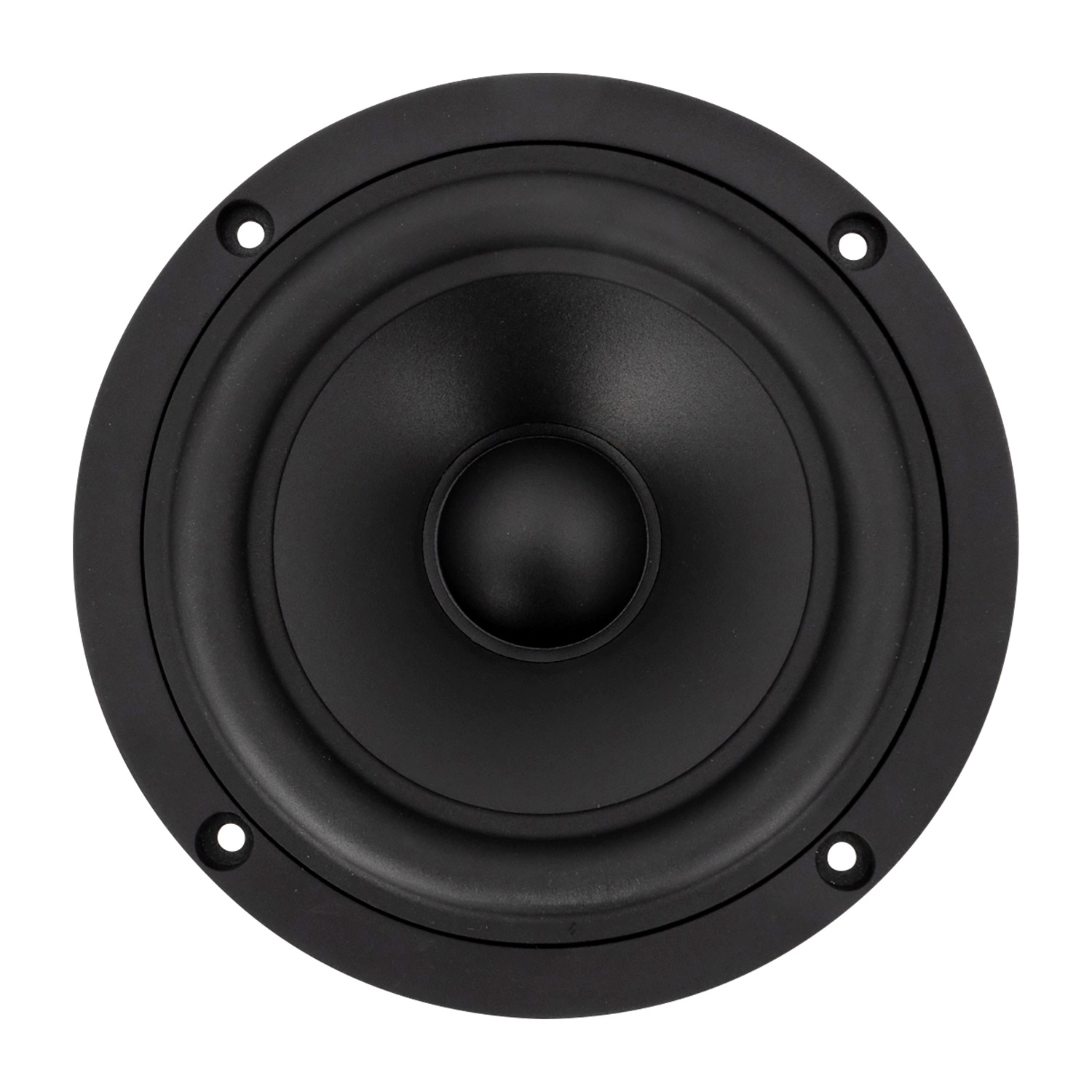

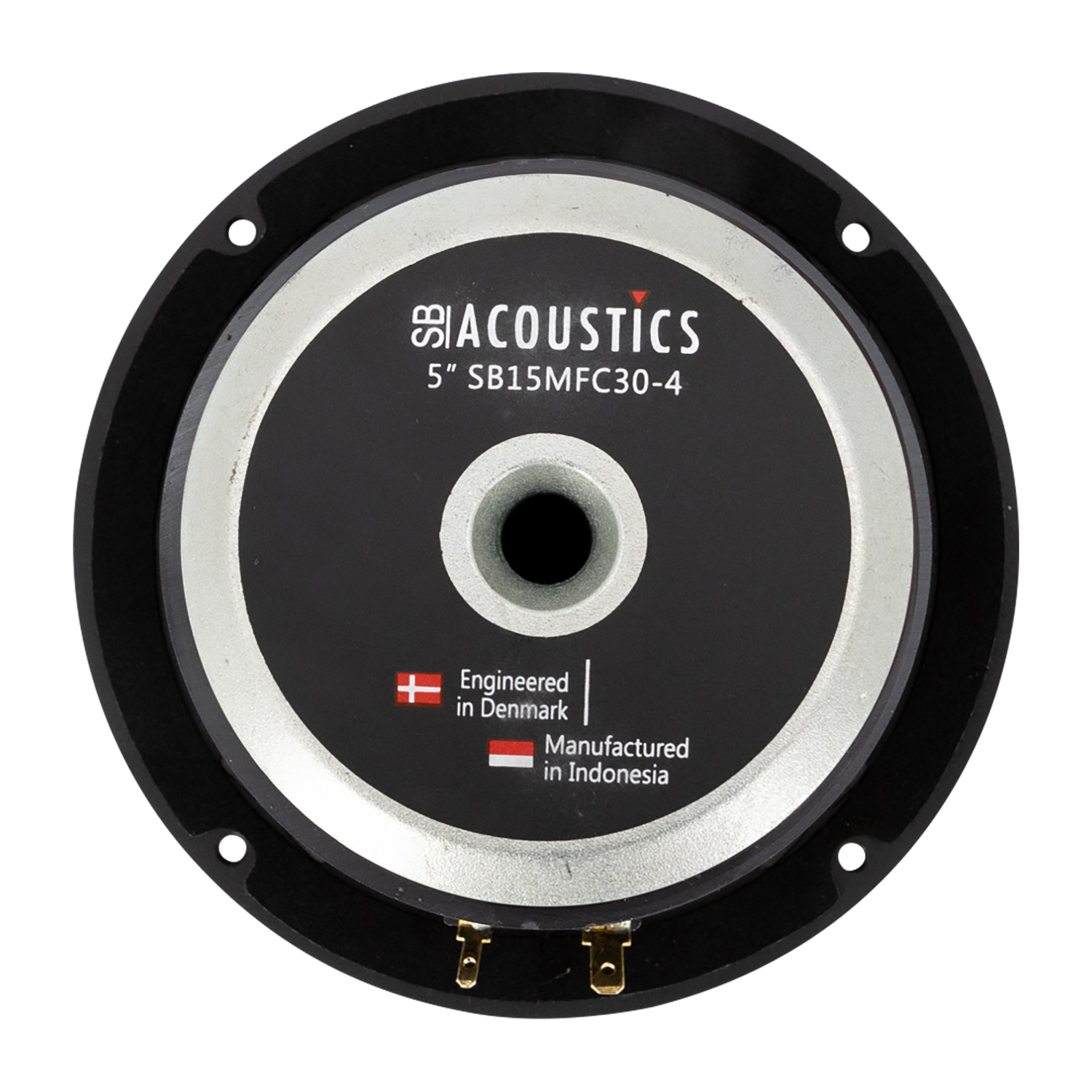

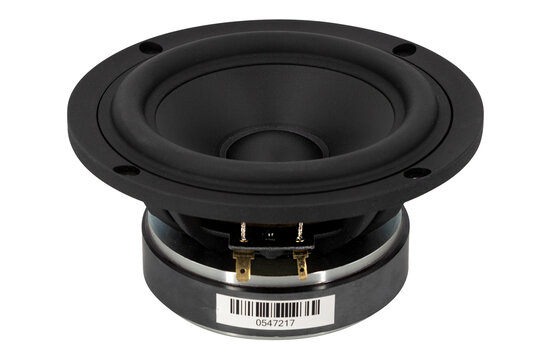

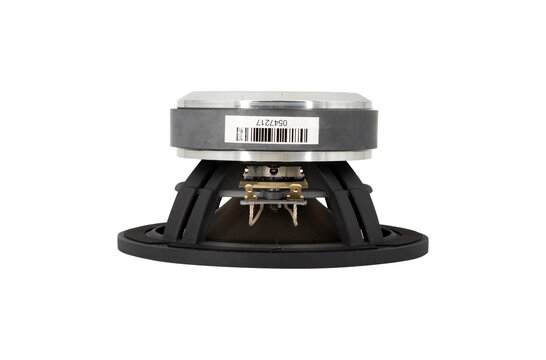

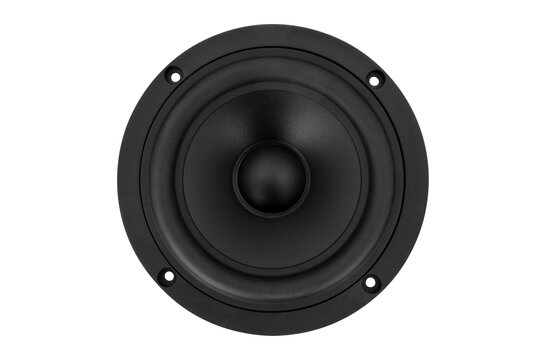

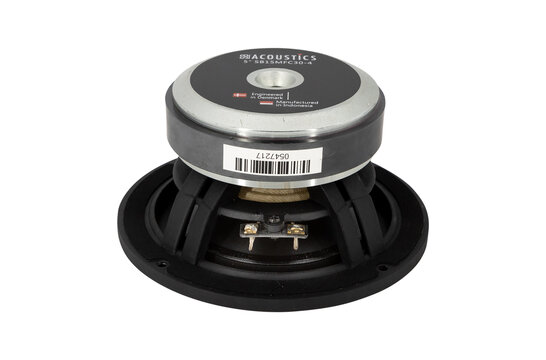

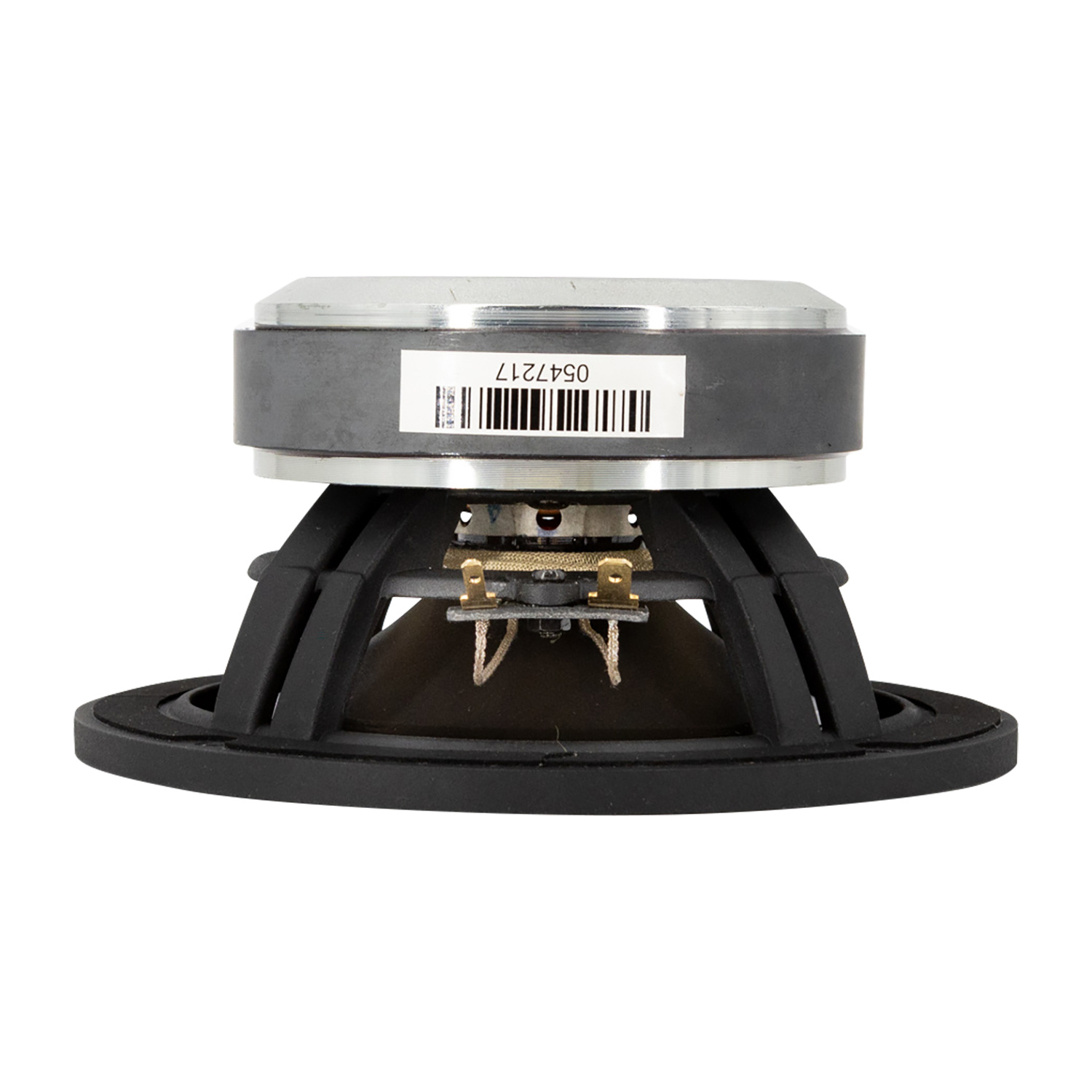

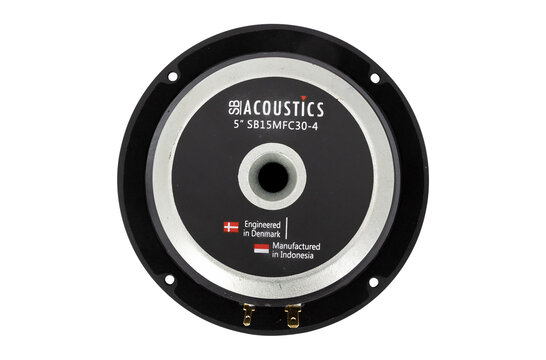

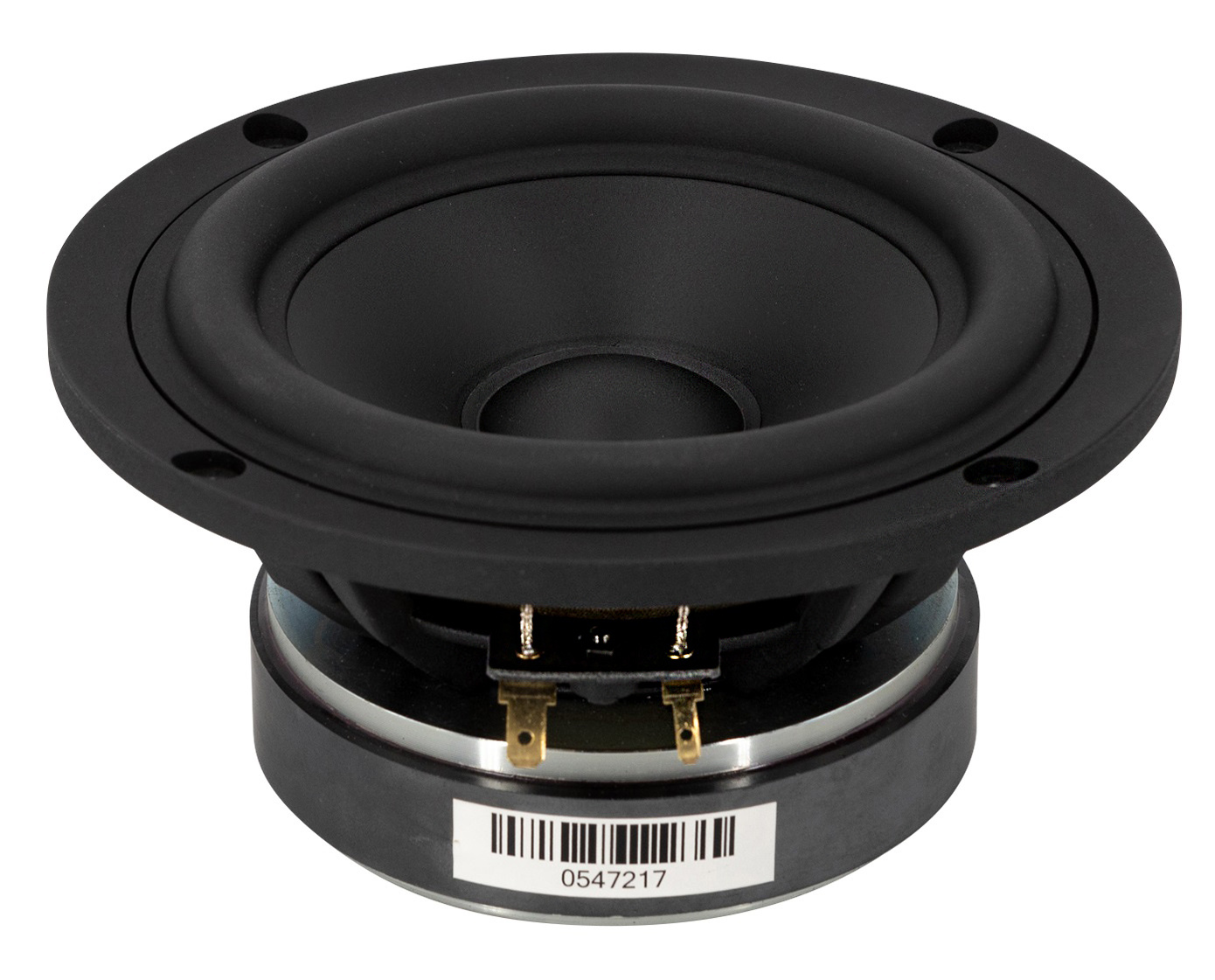

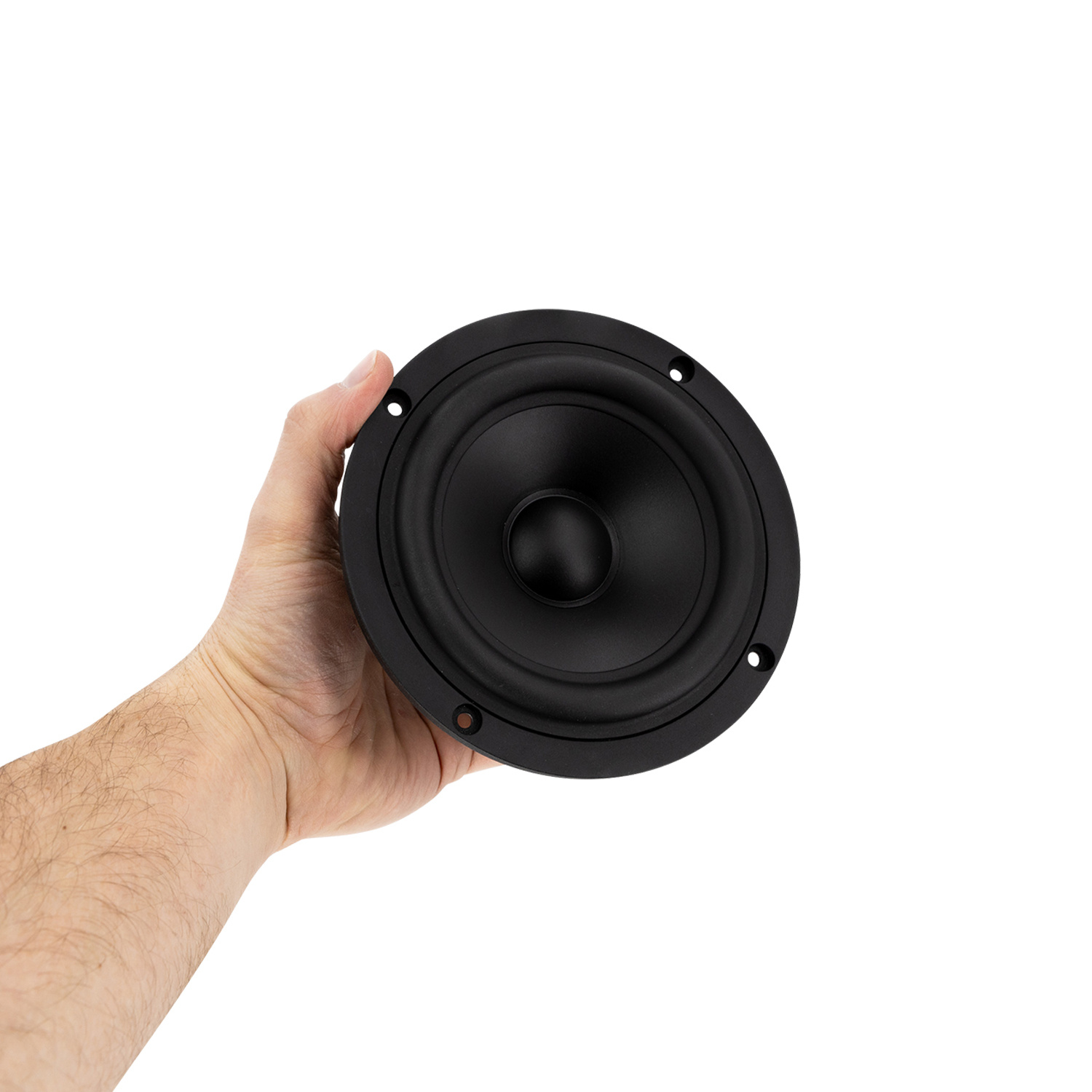

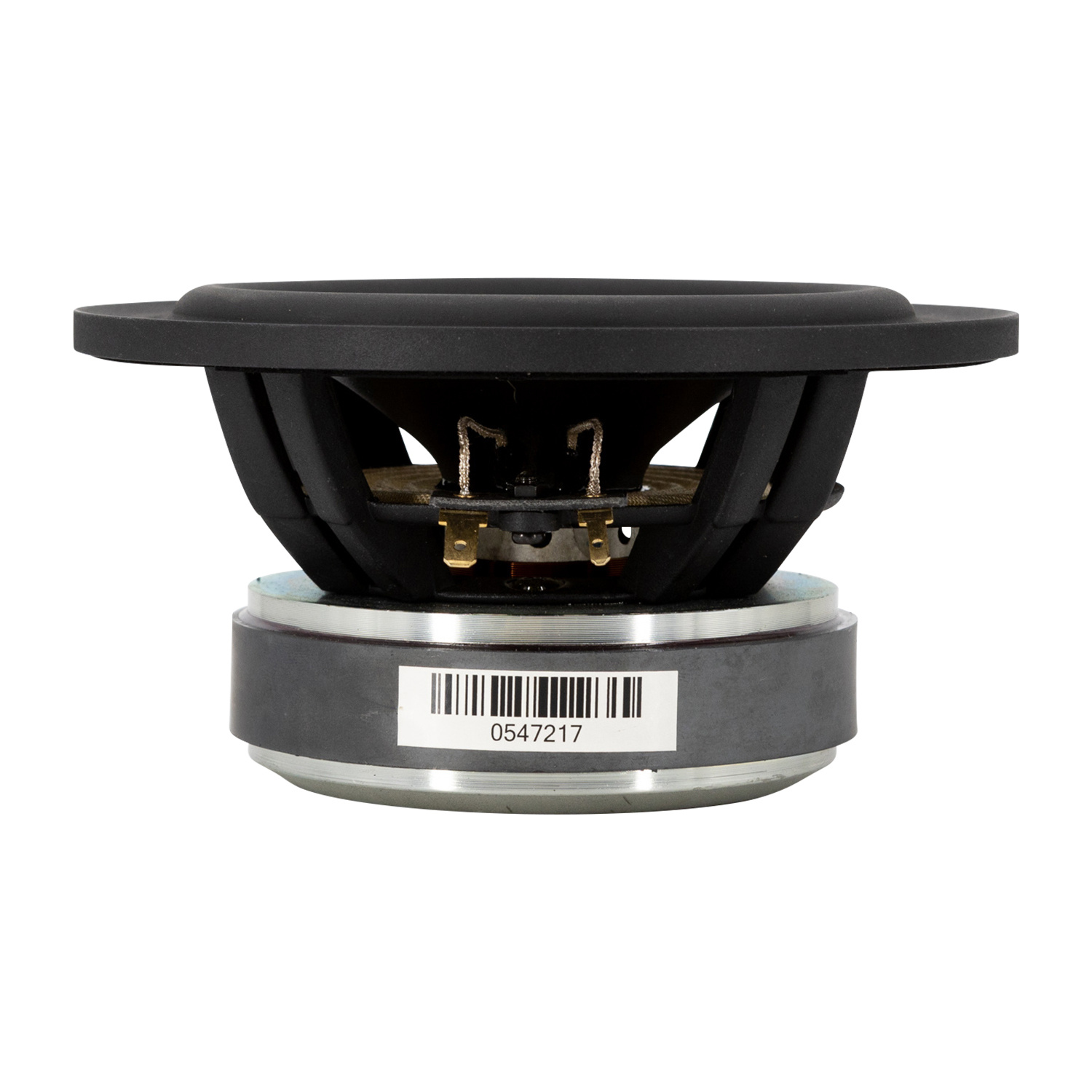

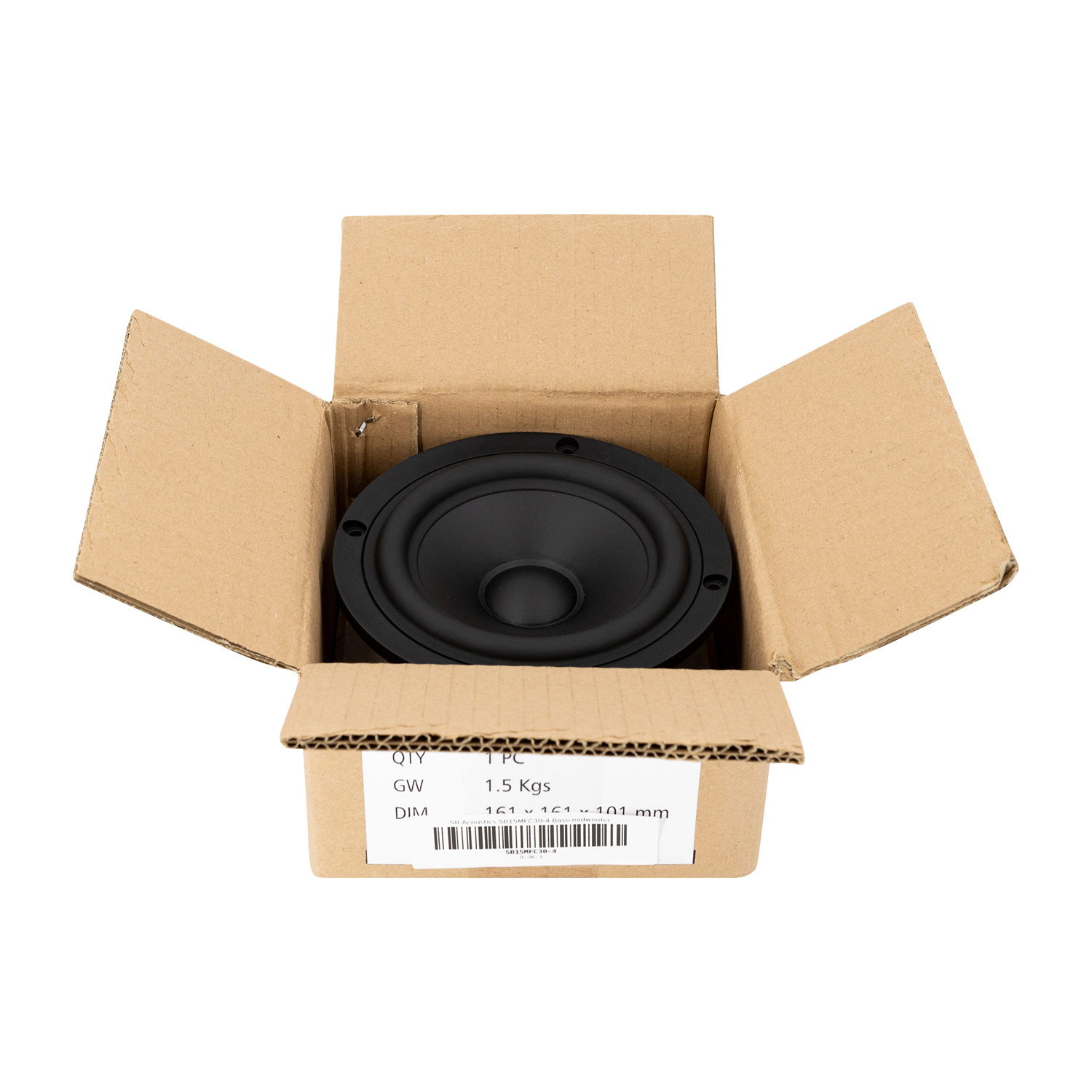

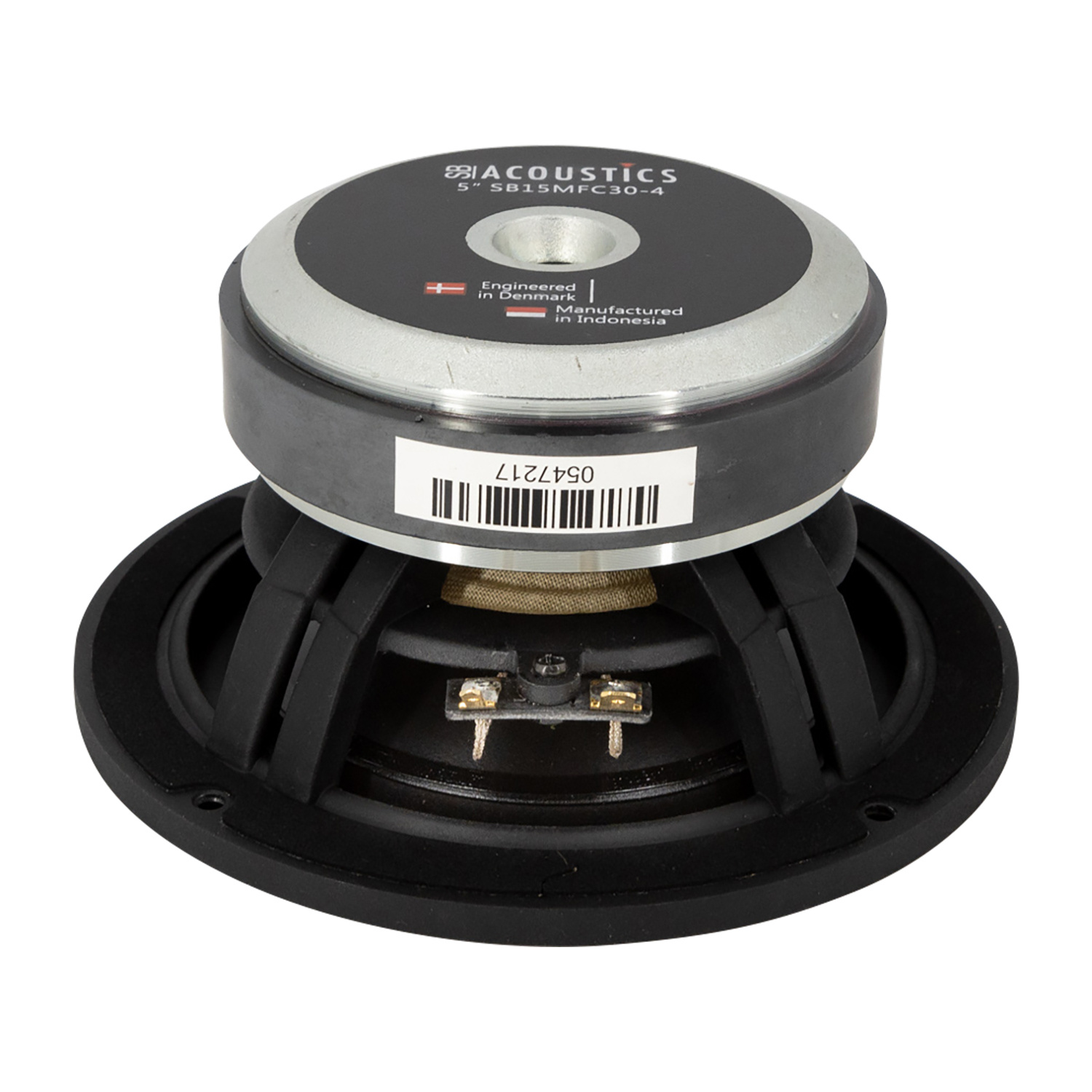

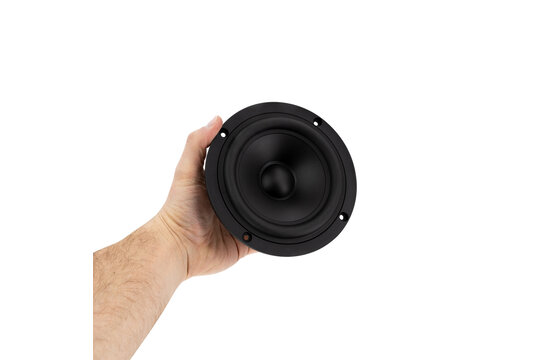

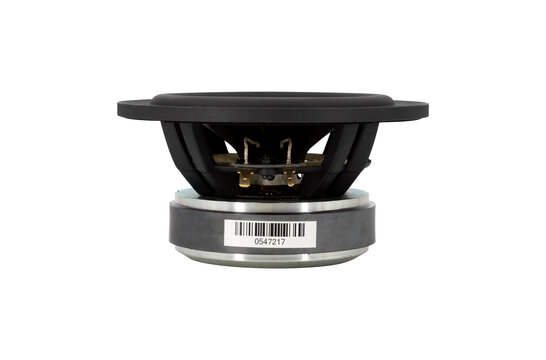

      SB15MFC30-4 Polypropylene Tiefmitteltöner

      SB Acoustics SB15MFC30-4 Polypropylene Tiefmitteltöner

      €68,45

      5 Auf Lager

      SB Acoustics SB15MFC30-4 Polypropylene Tiefmitteltöner

      0 klantbeoordelingen
      0 von 5
      0 klantbeoordelingen
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      56,57 €68,45 € 5 Auf Lager
      • -5% Bestelle 4 für nur 65,03 € je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung SB Acoustics SB15MFC30-4 Tiefmitteltöner

      The SB15MFC30-4 is a 4-ohm 5-inch mid-woofer from SB Acoustics. It has a mineral filled polypropylene (PP) cone, a vented cast aluminum chassis, and a soft low damping rubber surround.



      Highlights

      • Vented cast aluminium chassis for optimum strength and low compression
      • Mineral filled PP-cone made in-house
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fibre glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB15MFC30-4 Polypropylene Bass-midwoofer



      The SB Acoustics SB15MFC30-4 is a well-made and versatile woofer that can be used in a variety of audio applications. It is known for its smooth, accurate sound reproduction and its ability to handle high power levels. It has a frequency response of 35-2000 Hz, a sensitivity of 89 dB, and an impedance of 4 ohms. The woofer is made with a mineral-filled polypropylene cone, a rubber surround, and a CCAW voice coil. It has a vented cast aluminum chassis for strength and low compression.



      The SB Acoustics SB15MFC30-4 is a well-made and versatile woofer that can be used in a variety of audio applications. It is known for its smooth, accurate sound reproduction and its ability to handle high power levels.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SB15MFC30-4
      EAN
      8785256847914
      Tieftönertyp
      Bass-midwoofer
      Nenndurchmesser
      5"
      Belastbarkeit (QMW)
      50 Watt
      Belastbarkeit (max)
      50 Watt
      Impedanz (Z)
      4 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      90 dB
      Frequenzgang
      35 - 2000 Hz
      Schwingspulendurchmesser
      30.5 mm
      Gewicht magnet
      540 g
      Gleichstromwiderstand (Re)
      3.1 Ω
      Schwingspuleninduktion (Le)
      0.12 mH
      Resonanzfrequenz (Fs)
      35.5 Hz
      Mechanische Güte (Qms)
      5.26
      Elektrische Güte (Qes)
      0,30
      Gesamtgüte (Qts)
      0.28
      Bewegliche Masse (Mms)
      9.9 g
      Nachgiebigkeit der Aufhängung (Cms)
      2.03 mm/N
      Membranfläche (Sd)
      82 cm²
      Kraftfaktor (BL)
      4.8 Tm
      Äquivalentvolumen (Vas)
      19.4 L
      Maximale Auslenkung (Xmax)
      5 mm
      Driver's Mechanical Losses (Rms)
      0.42 Kg/s
      Korb- / Rahmenmaterial
      Vented cast aluminium
      Außendurchmesser
      150 mm
      Gesamttiefe
      79 mm
      # Befestigungsbohrungen
      4
      Durchmesser Befestigungslochs
      4.3 mm

      Mehr anzeigen
