SB13PFCR25-8 Paper Tiefmitteltöner

€29,95

Zum Warenkorb hinzufügen

SB Acoustics SB13PFCR25-8 Paper Tiefmitteltöner

Name: SB Acoustics SB13PFCR25-8 Paper Tiefmitteltöner
Brand: SB Acoustics
SKU: SB13PFCR25-8
Price: 29.95 EUR
Availability: InStock

0 reviews

Marke: SB Acoustics

Zeige alle Neue Produkte

4" | 8 Ω

24,75 €29,95 € 5 Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

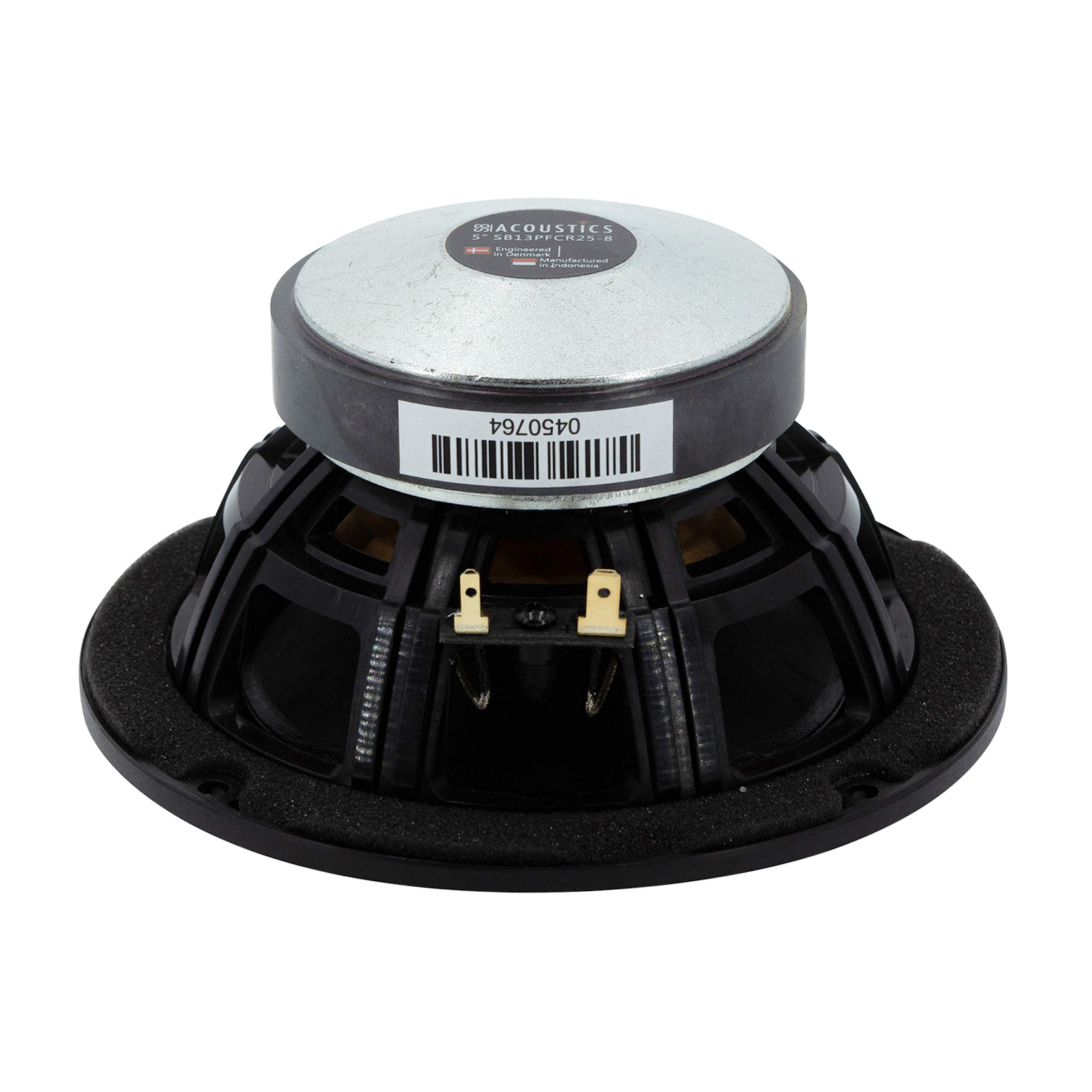

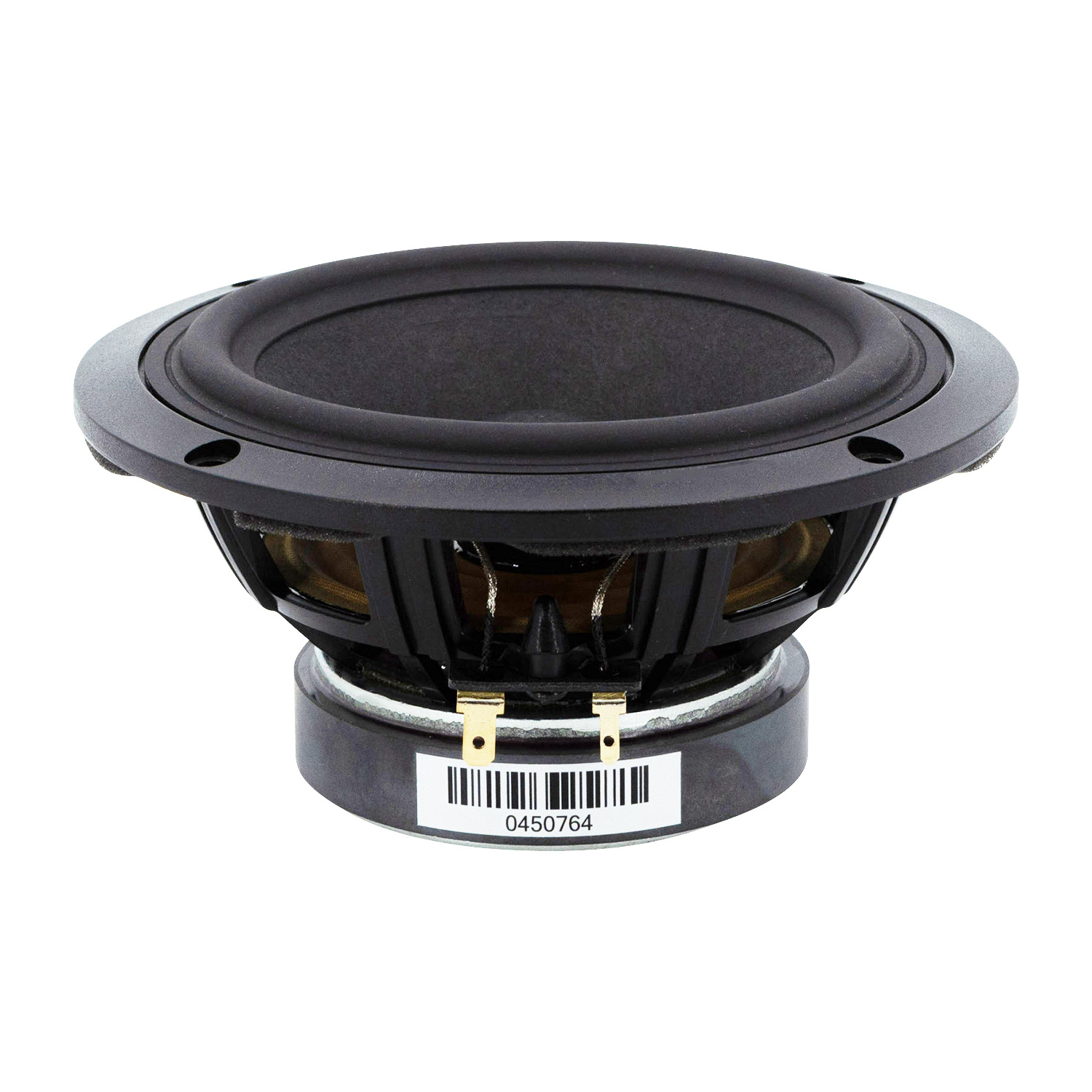

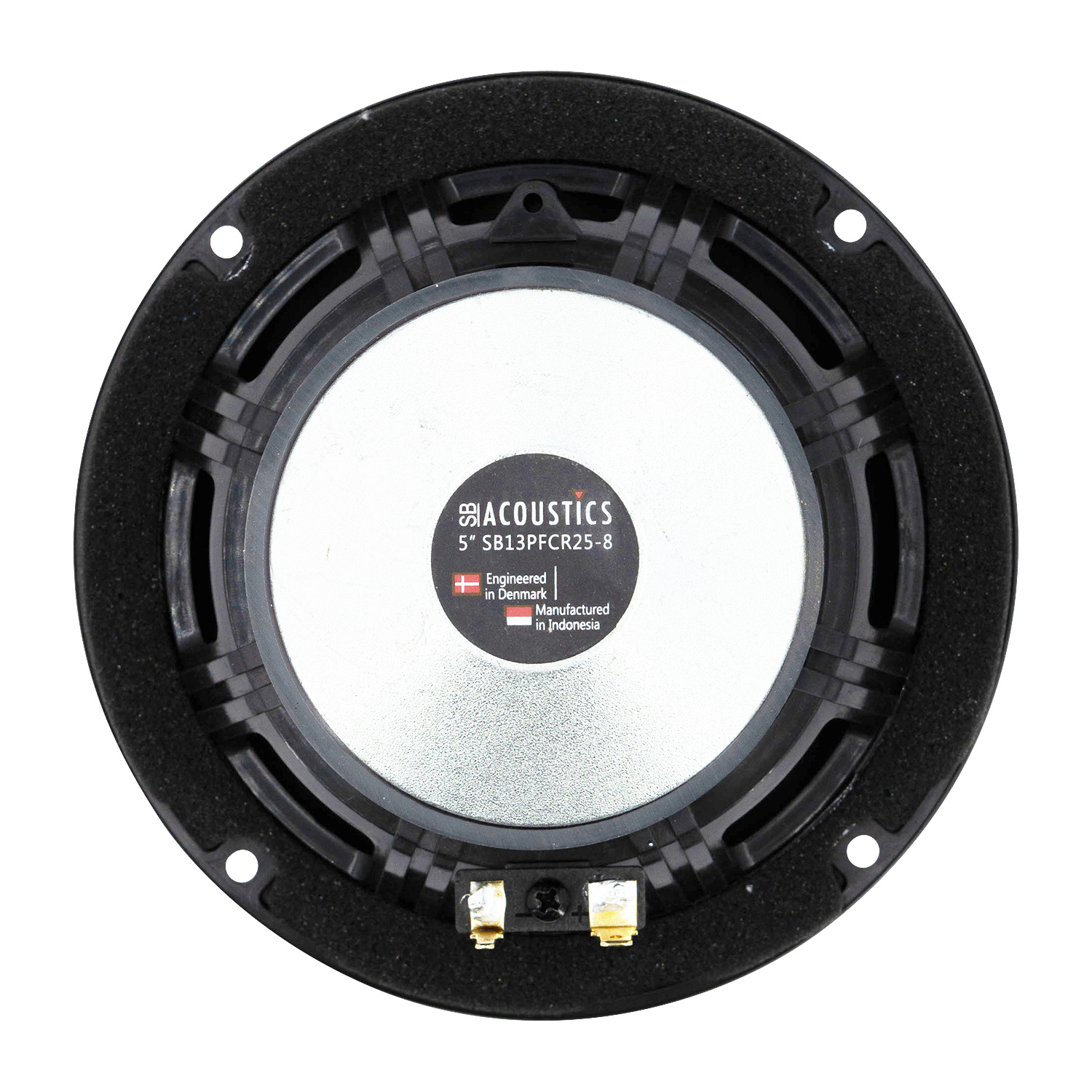

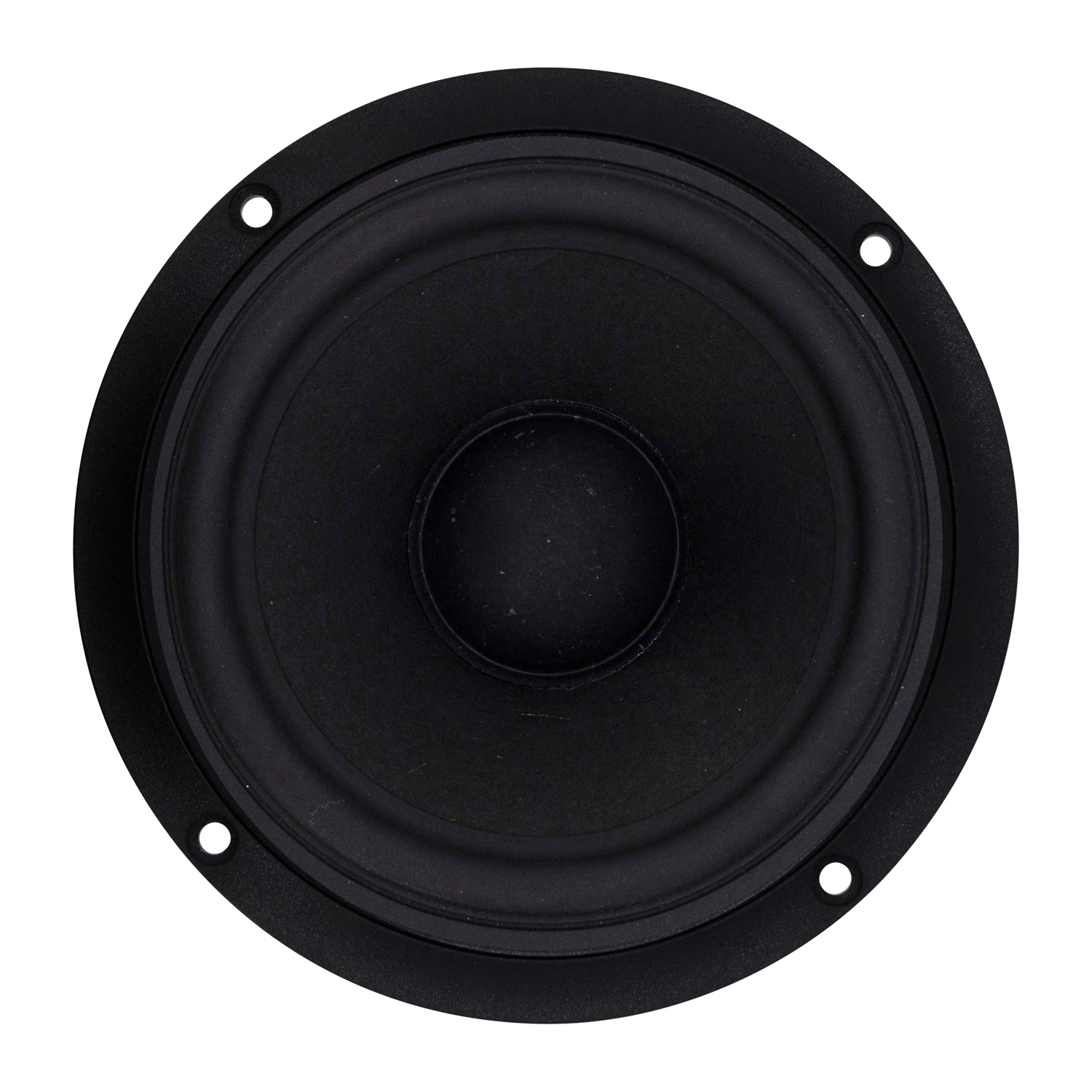

The SB Acoustics SB13PFCR25-8 is a 5-inch bass-midwoofer with a vented reinforced plastic chassis and a proprietary cone material with natural fibers made in-house. It also has a soft low damping rubber surround for improved transient response and an optimized motor system.

Highlights

Unique patented long throw shallow design
Vented cast aluminum chassis for optimum strength and low compression
Dual rigid aluminum cone structure
Non-conducting fiber glass coil former for minimum damping
Shorting ring in motor system for reduced distortion
Copper voice coil for improved power handling
Dual voice coil
Long life insulated silver lead wires
Powerful neodymium motor system

Product Details

SB Acoustics SB13PFCR25-8 Paper Bass-midwoofer

The SB Acoustics SB13PFCR25-8 is a 5-inch bass-midwoofer that is designed to produce high-quality sound. The vented reinforced plastic chassis helps to reduce distortion and improve the overall sound quality. The proprietary cone material with natural fibers made in-house is designed to provide a smooth and accurate response across the frequency range.

The soft low damping rubber surround helps to improve the transient response of the speaker, which means that it can respond more quickly to changes in the music. The optimized motor system helps to provide a more efficient and accurate response from the speaker. The voice coil diameter is 25.4 mm and the voice coil height is 14 mm. The air gap height is 5 mm and the linear coil travel (p-p) is 9 mm. The magnetic flux density is 1.07 T and the magnet weight is 0.36 kg. The net weight of the speaker is 0.91 kg. The free air resonance is 45 Hz and the sensitivity (2.83 V / 1 m) is 87 dB.
