      SB12PFCR25-4 Paper Tiefmitteltöner

      SB12PFCR25-4 Paper Tiefmitteltöner

      €24,95

      SB Acoustics SB12PFCR25-4 Paper Tiefmitteltöner

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      20,62 €24,95 € 5 Auf Lager10+ erwartet auf 24-05-2024
      • -5% Bestelle 4 für nur € 23,70 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Butyl rubber surround for smooth frequency response and Long stroke linear suspension for improved dynamics

      Produktbeschreibung

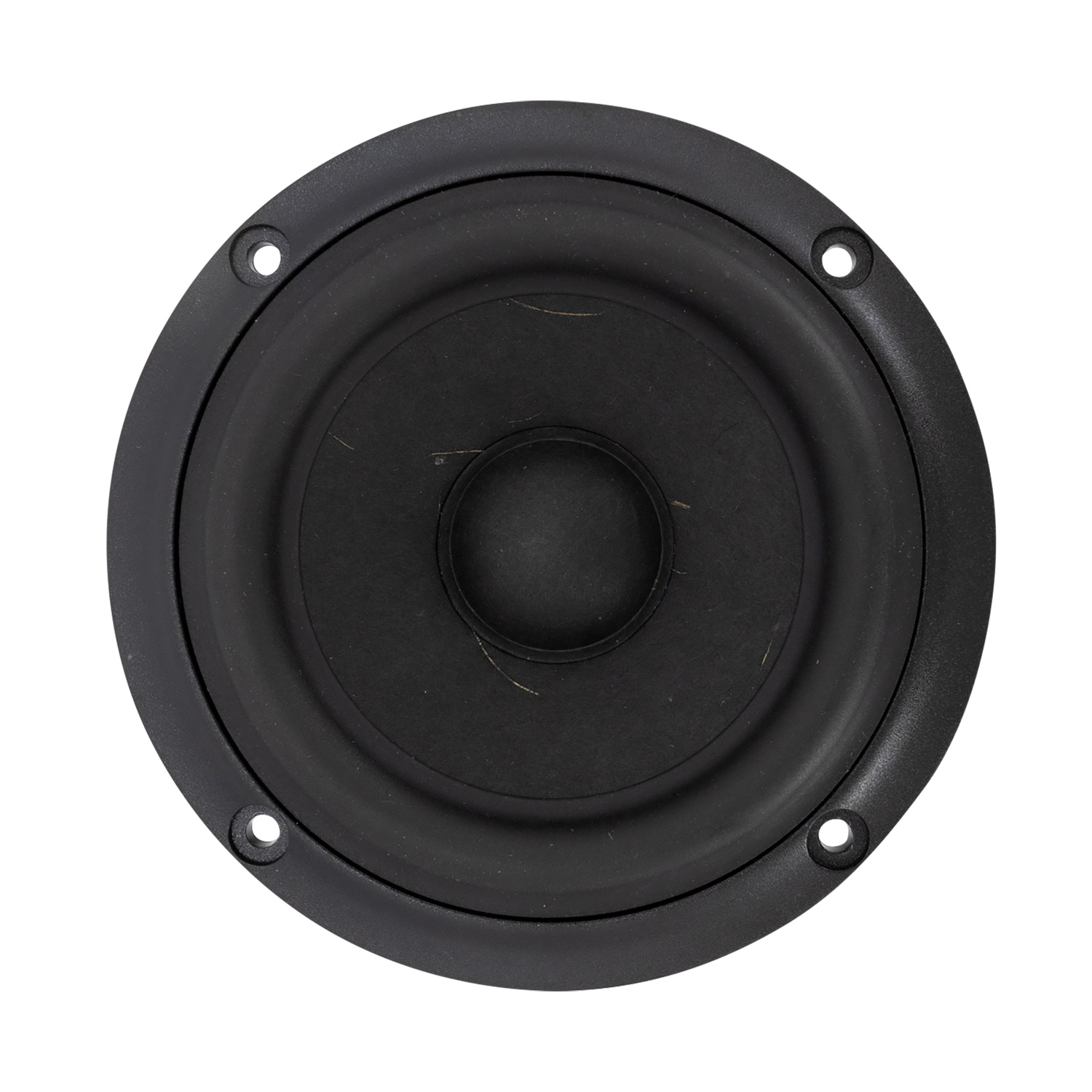

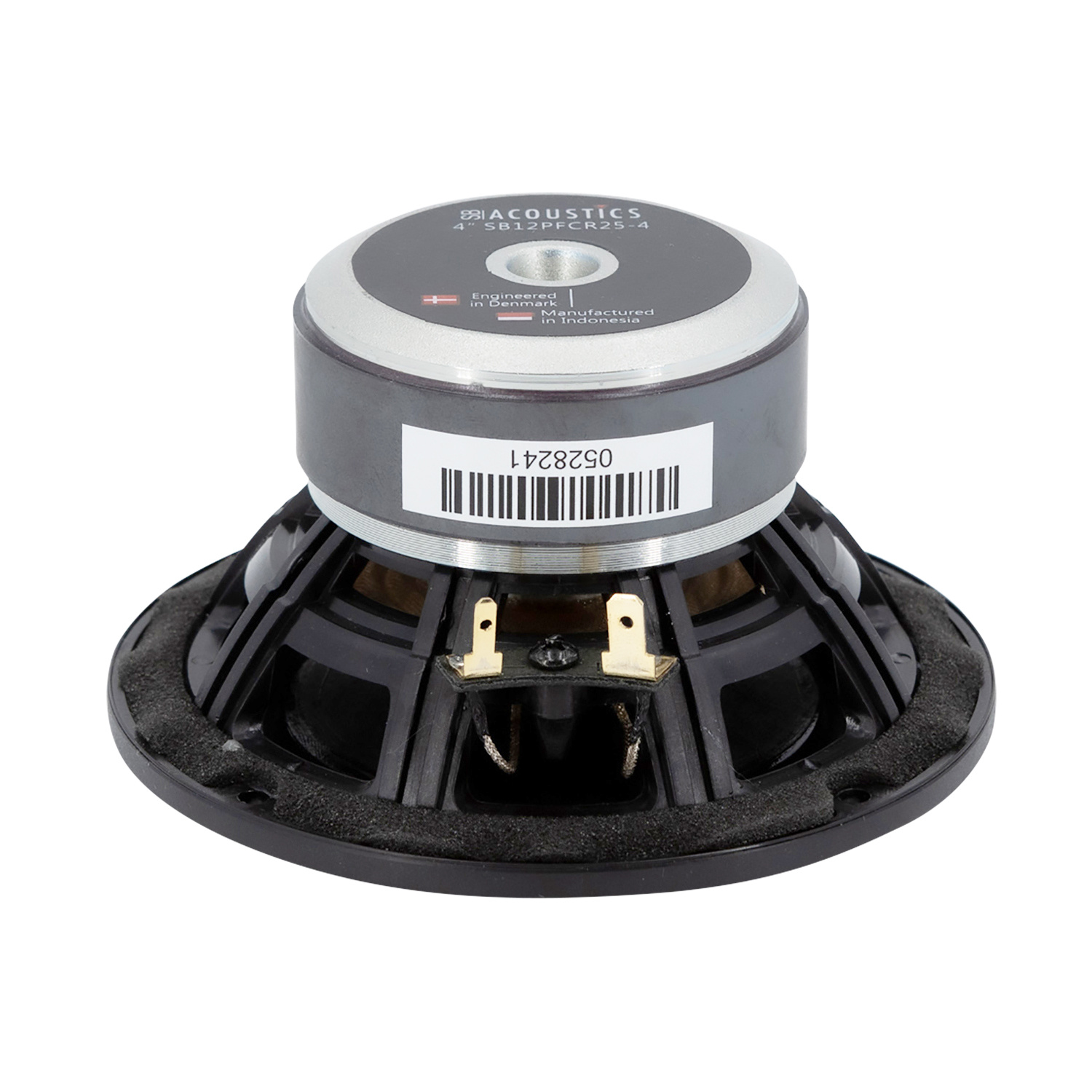

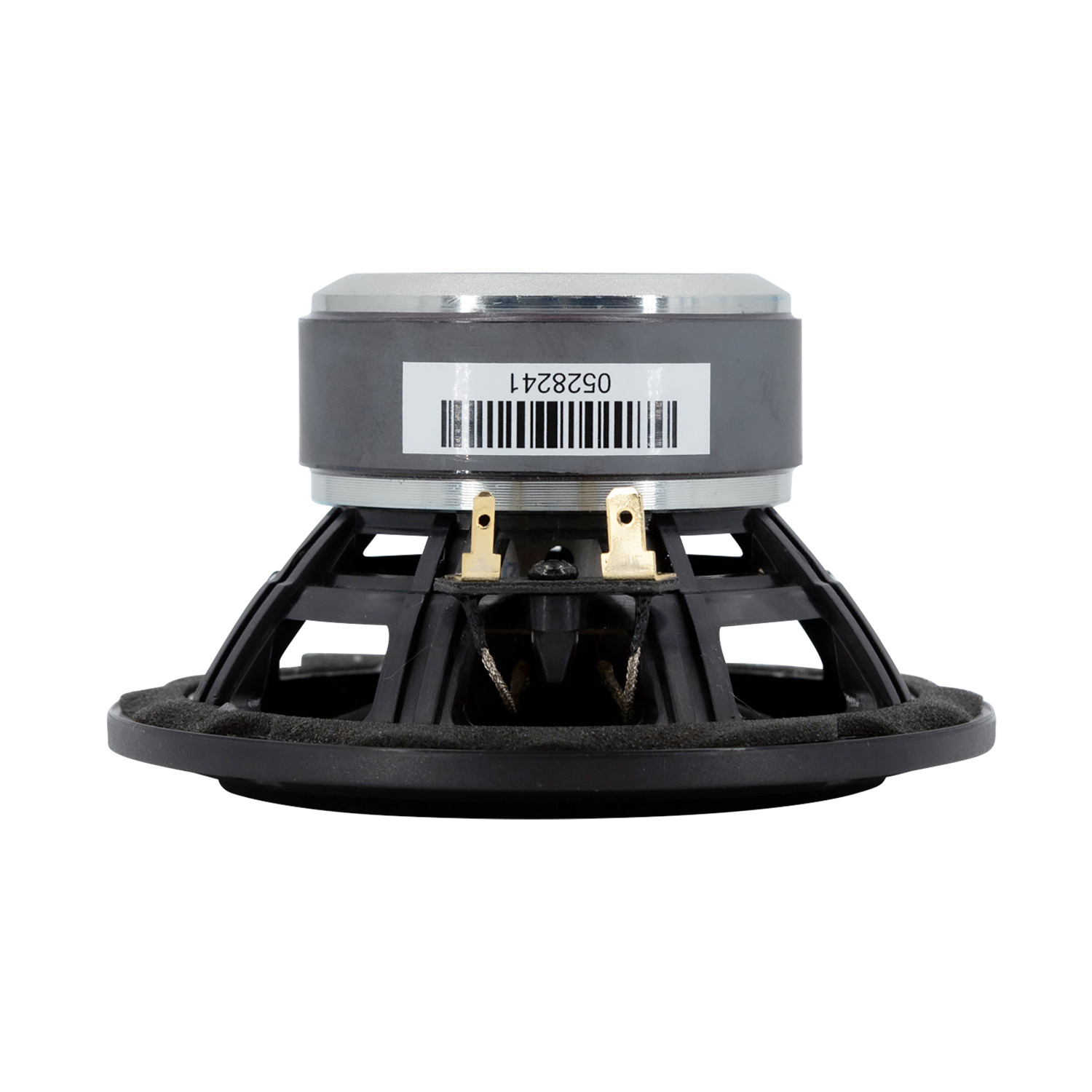

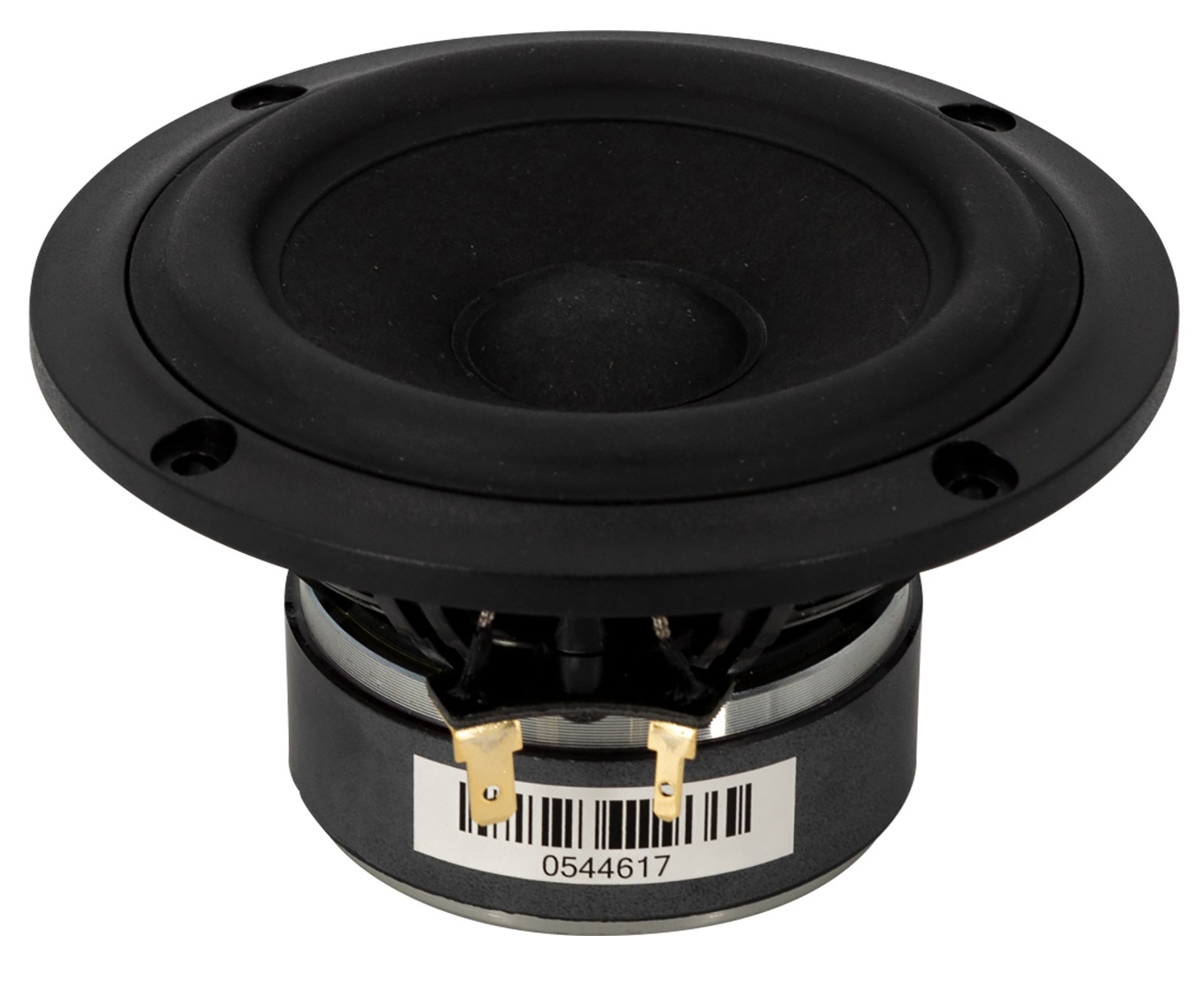

      The SB Acoustics SB12PFCR25-4 is a 4" mid-woofer with a 25mm voice coil and a vented reinforced plastic chassis. It features a proprietary cone material with natural fibers made in-house and a butyl rubber surround for smooth frequency response. The optimized long throw motor system is also noteworthy.



      Highlights

      • Vented reinforced plastic chassis
      • Proprietary cone material with natural fibers made in-house
      • Butyl rubber surround for smooth frequency response
      • Vented motor system for low compression
      • Long stroke linear suspension for improved dynamics
      • Non-resonant long life lead wires



      Product details

      SB Acoustics SB12PFCR25-4 Paper Bass-midwoofer



      The SB Acoustics SB12PFCR25-4 is a mid-woofer that is designed to reproduce frequencies in the range of 50 Hz to 4 kHz. It is suitable for use in a two-way speaker system or as a mid-woofer in a three-way system. The vented reinforced plastic chassis helps to reduce unwanted resonances and the proprietary cone material with natural fibers made in-house provides a good balance between stiffness and damping. The butyl rubber surround helps to provide a smooth frequency response. The optimized long throw motor system helps to reduce distortion and improve power handling.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SB12PFCR25-4
      Tieftöner-Serie
      Bass-midwoofer
      Nenndurchmesser
      122 mm
      Belastbarkeit (QMW)
      30 Watt
      Impedanz (Z)
      4 Ohm
      Empfindlichkeit (SPL bei 1m / 2,83V)
      87 dB
      Frequenzgang
      50 Hz to 4 kHz
      Schwingspulendurchmesser
      25.4 mm
      Gleichstromwiderstand (Re)
      3.1 Ohm
      Schwingspuleninduktion (Le)
      0.26 mH
      Resonanzfrequenz (Fs)
      58 Hz
      Mechanische Güte (Qms)
      3.4
      Elektrische Güte (Qes)
      0.49
      Gesamtgüte (Qts)
      0.43
      Bewegliche Masse (Mms)
      5.3 g
      Nachgiebigkeit der Aufhängung (Cms)
      1.42 mm/N
      Membranfläche (Sd)
      50 cm2
      Kraftfaktor (BL)
      3.5 Tm
      Äquivalentvolumen (Vas)
      5.2 liters
      Driver's Mechanical Losses (Rms)
      0.6 kg/s
      Korb- / Rahmenmaterial
      Vented reinforced plastic
      Außendurchmesser
      122 mm
      Gesamttiefe
      71,3 mm
      # Befestigungsbohrungen
      4
      Durchmesser Befestigungslochs
      4.3 mm

      Mehr anzeigen
