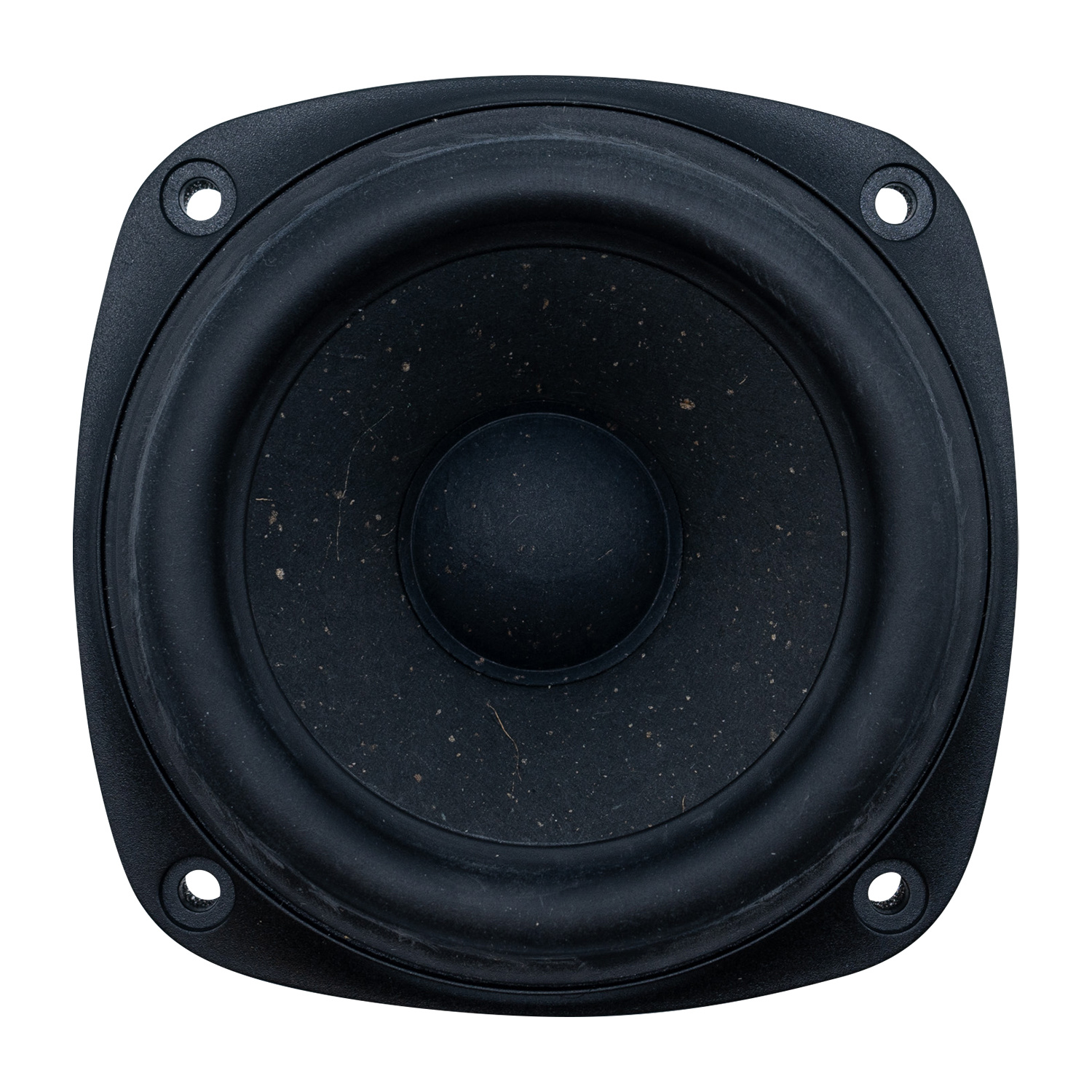

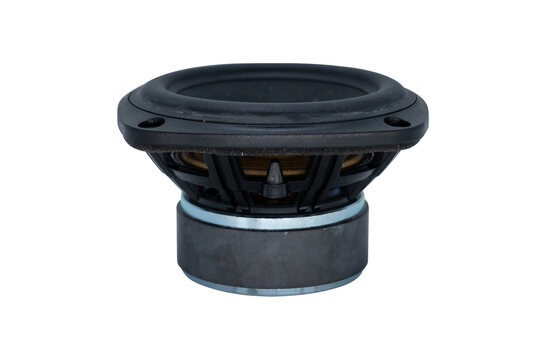

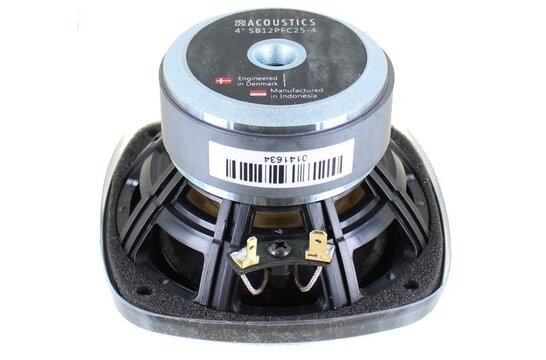

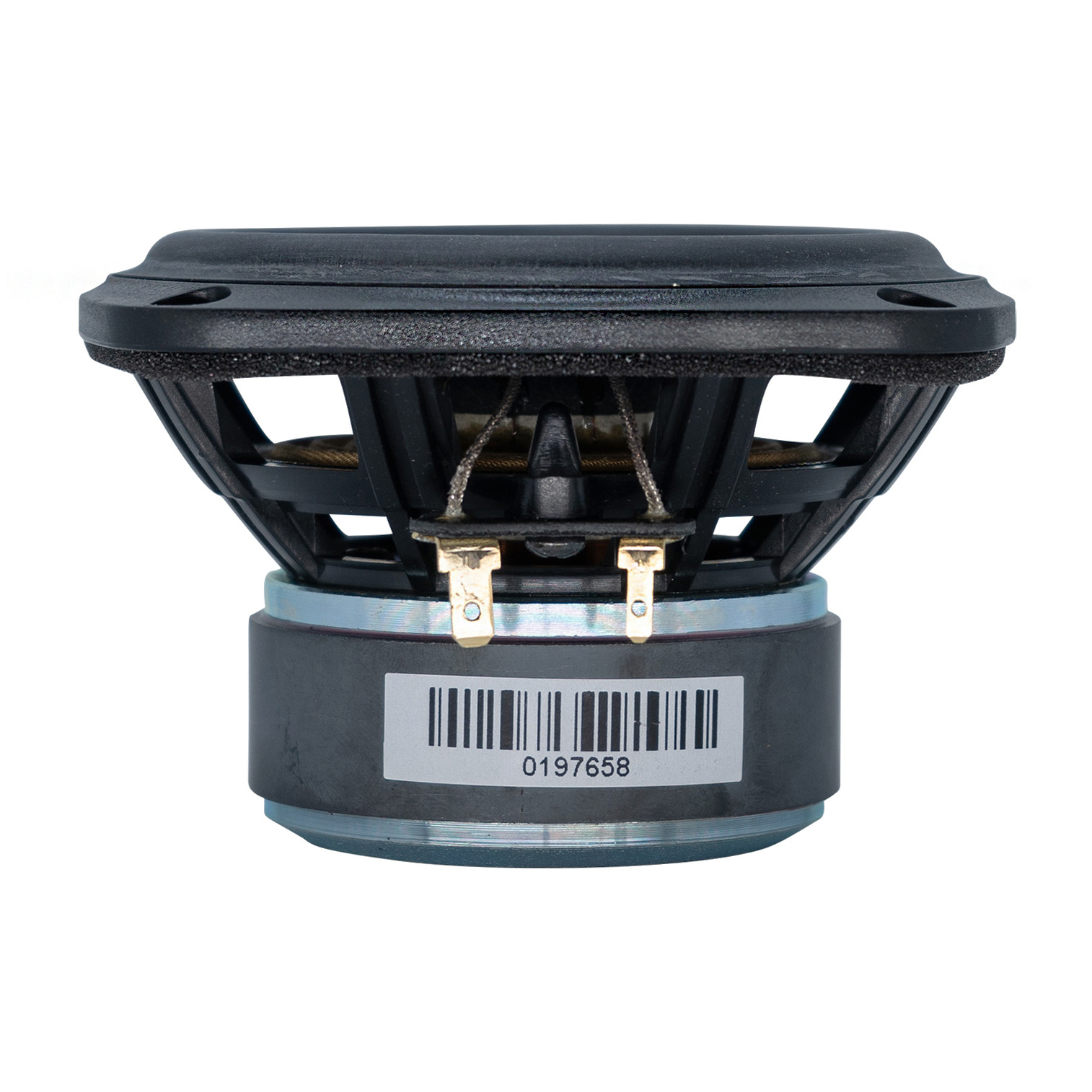

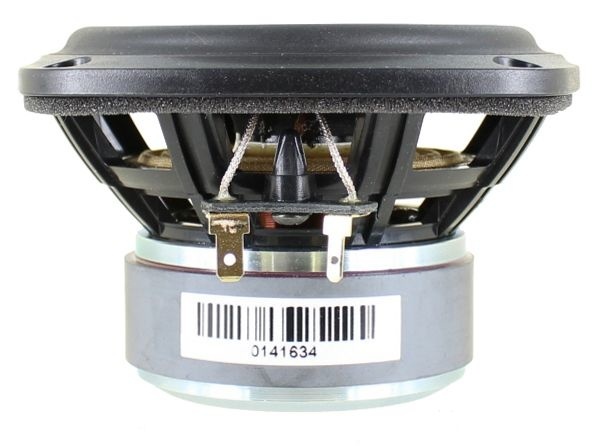

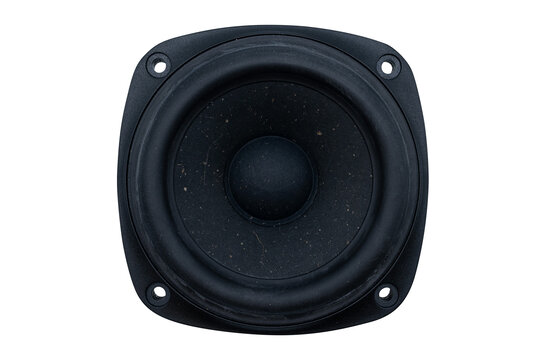

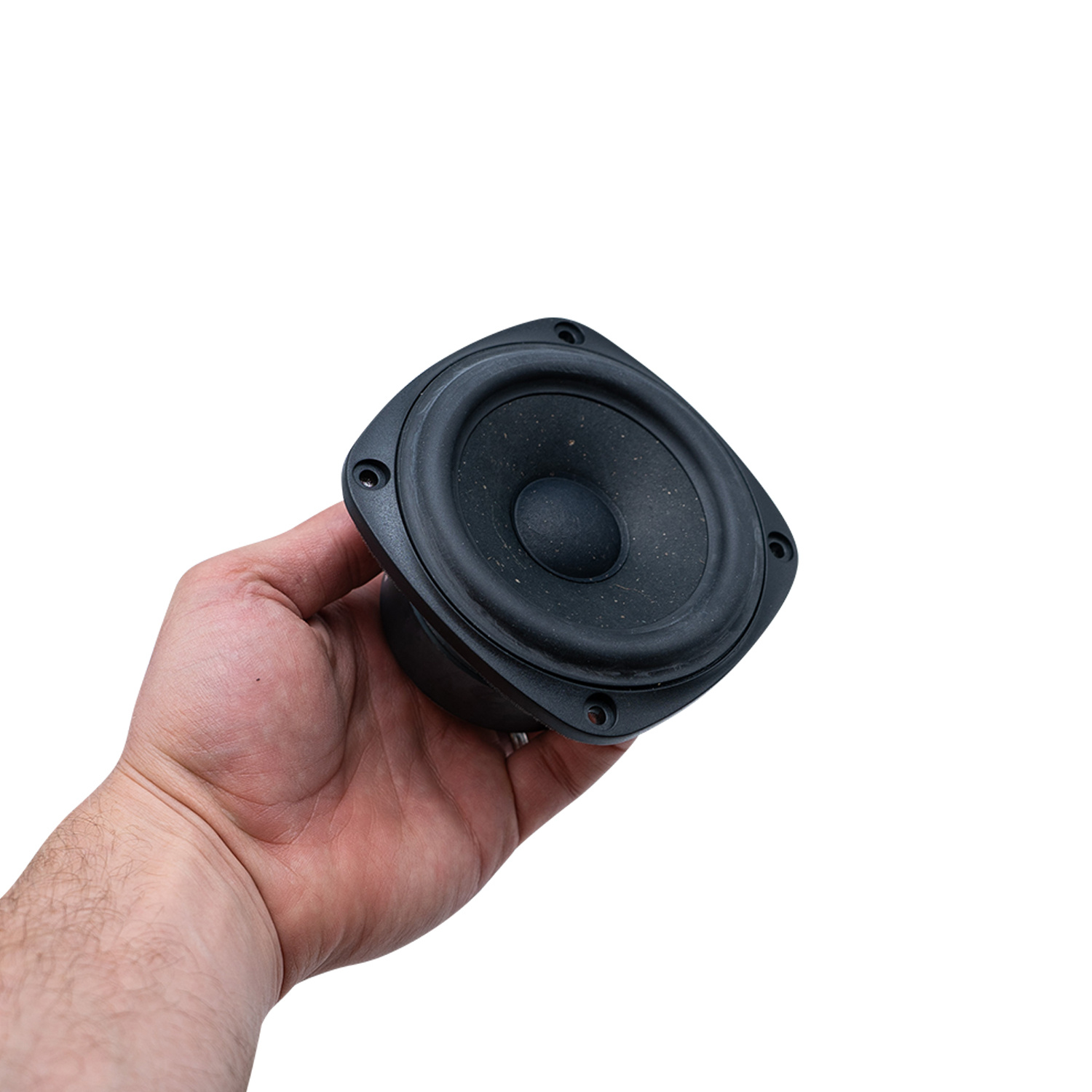

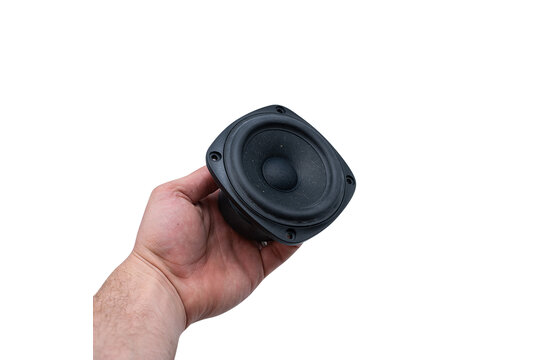

SB Acoustics SB12PFC25-4 4" Reed Cone Mid-Bass

Name: SB Acoustics SB12PFC25-4 4" Reed Cone Mid-Bass
Brand: SB Acoustics
Price: 20.45 EUR
Availability: InStock
Rating: 4 (1 reviews)

1 reviews

Marke: SB Acoustics

Alle anzeigen Audio-Komponenten

Vergleichen

4" | 4 Ω

€ 16,90€ 20,45 4 Auf Lager: Lieferzeit 1-3 Werktage

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Vented reinforced plastic chassis
Proprietary cone material with natural fibers made in-house
Butyl rubber surround for smooth frequency response
Vented motor system for low compression
Long stroke linear suspension for improved dynamics
Non-resonant long life lead wires

Product details

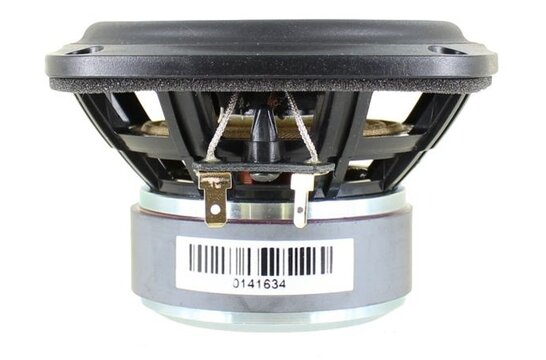

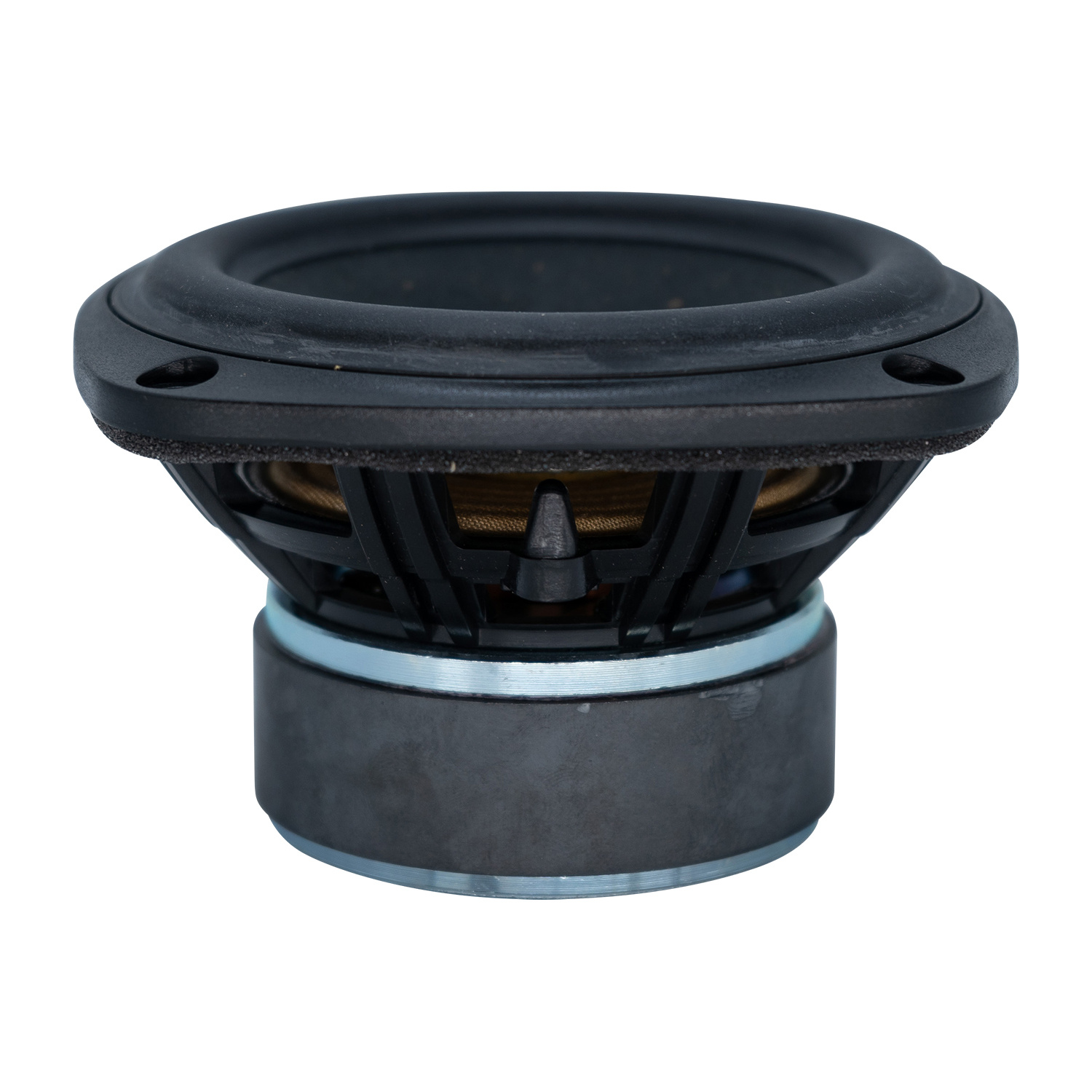

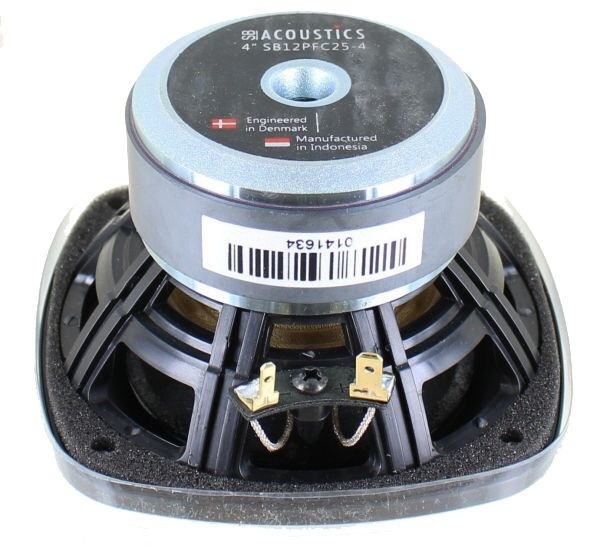

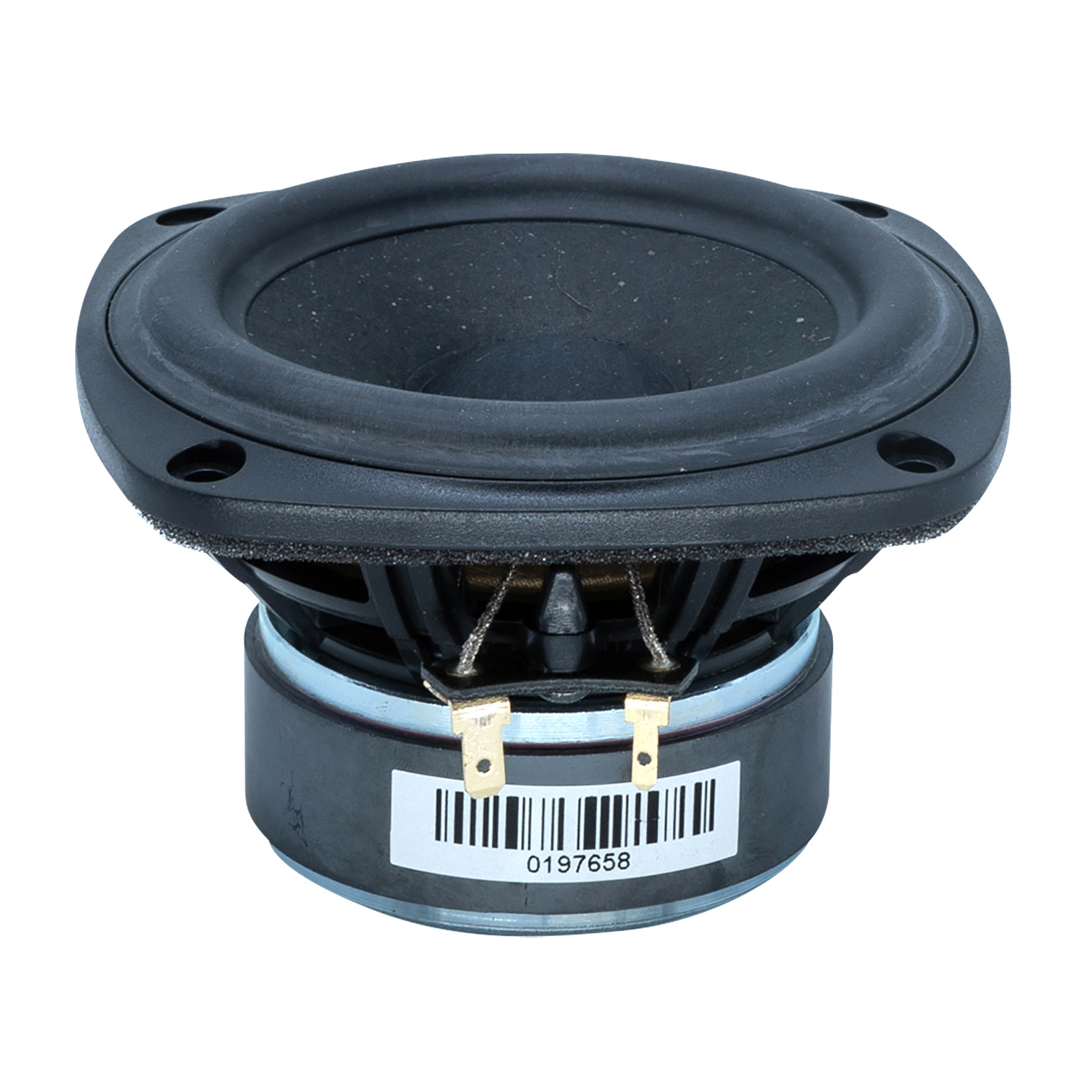

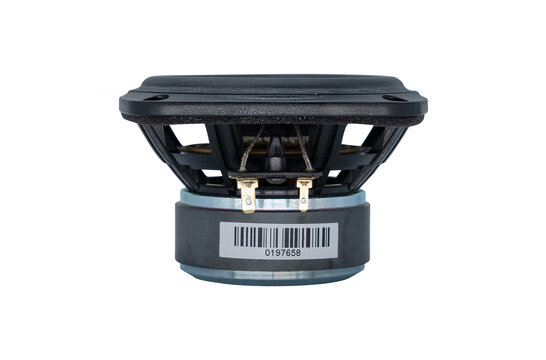

SB Acoustics SB12PFC25-4 4" Reed Cone Mid-Bass

The SB Acoustics SB12PFC25-4 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The butyl rubber surround allows a smooth frequency response while its vented motor system provides low compression. Long stroke linear suspension for improved dynamics and non-resonant long life lead wires.

Eigenschaften

Artikelnummer:: SB12PFC25-4
Tieftöner-Serie: PFC Series
Tieftönertyp: Midwoofer
Nenndurchmesser: 4"
Belastbarkeit (QMW): 30 Watts
Impedanz (Z): 4 ohms
Empfindlichkeit: 87.5 dB 2.83V/1m
Schwingspulendurchmesser: 1"
Gleichstromwiderstand (Re): 3.1 ohms
Schwingspuleninduktion (Le): 0.26 mH
Resonanzfrequenz (Fs): 58 Hz
Mechanische Güte (Qms): 3.4
Elektrische Güte (Qes): 0.49
Gesamtgüte (Qts): 0.43
Bewegliche Masse (Mms): 5.3 g
Nachgiebigkeit der Aufhängung (Cms): 1.42 mm/N
Membranfläche (Sd): 50 cm2
Kraftfaktor (BL): 3.5 Tm
Äquivalentvolumen (Vas): 0.18 ft.³
Maximale Auslenkung (Xmax): 5 mm

Data sheet

Bewertungen

1 reviews

4 from 5Based on 1 reviews

Produkt bewerten

4 van 5

Nette woofer klinkt erg goed. Heb hem als 1e instantie besteld om in een set beovox speakers te zetten (originele woofer was door vorige eigenaar vervangen door goedkope rommel van china) maar de inbouw maat klopte niet.... hij is groter dan de orginele 4 inch driver. Maar heb u 2 mooie drivers voor mn volgend project

Durch Yurian h. on 16 April 2019
