SB Acoustics SB12PFC-00 Passive radiator

Produktbeschreibung

Highlights

Vented reinforced plastic chassis
Proprietary cone material with natural fibers made in-house
Low damping rubber surround
Long stroke linear suspension
Easily adjustable moving mass

Product details

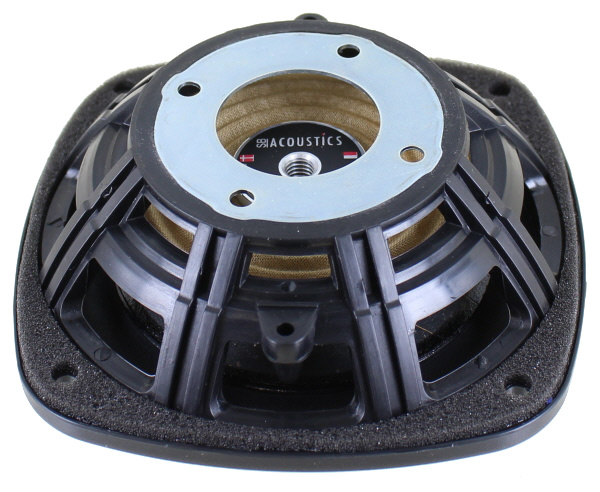

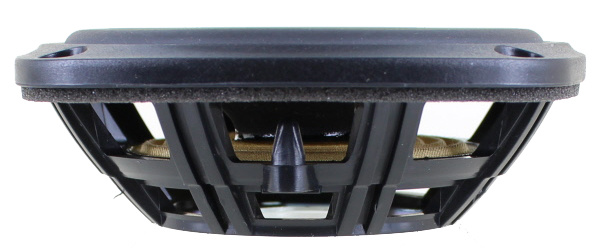

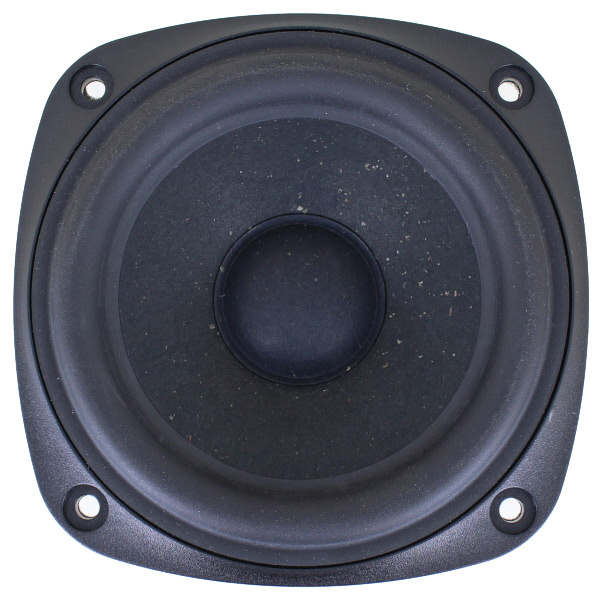

SB Acoustics SB12PFC-00 4'' Passive Radiator

The SB Acoustics SB12PFC-00 is a 4" passive radiator with a reinforced and increased quality vented plastic chassis and a proprietary cone material with made in-house natural fibers. Its components also include a low damping rubber surround, a long stroke linear suspension as well as an easily adjustable moving mass.

Eigenschaften

Artikelnummer:: SB12PFC-00
Tieftöner-Serie: PFC Series
Tieftönertyp: Passive Radiator
Nenndurchmesser: 4"
Resonanzfrequenz (Fs): 34 Hz
Mechanische Güte (Qms): 12.5
Bewegliche Masse (Mms): 18.8g
Nachgiebigkeit der Aufhängung (Cms): 1.2 mm/N
Membranfläche (Sd): 50 cm2
Äquivalentvolumen (Vas): 4.2 liters
Maximale Auslenkung (Xmax): ± 9 mm
Driver's Mechanical Losses (Rms): 0.32 kg/s
Cone / Diaphragm Material: Reed (fiber) Cone
