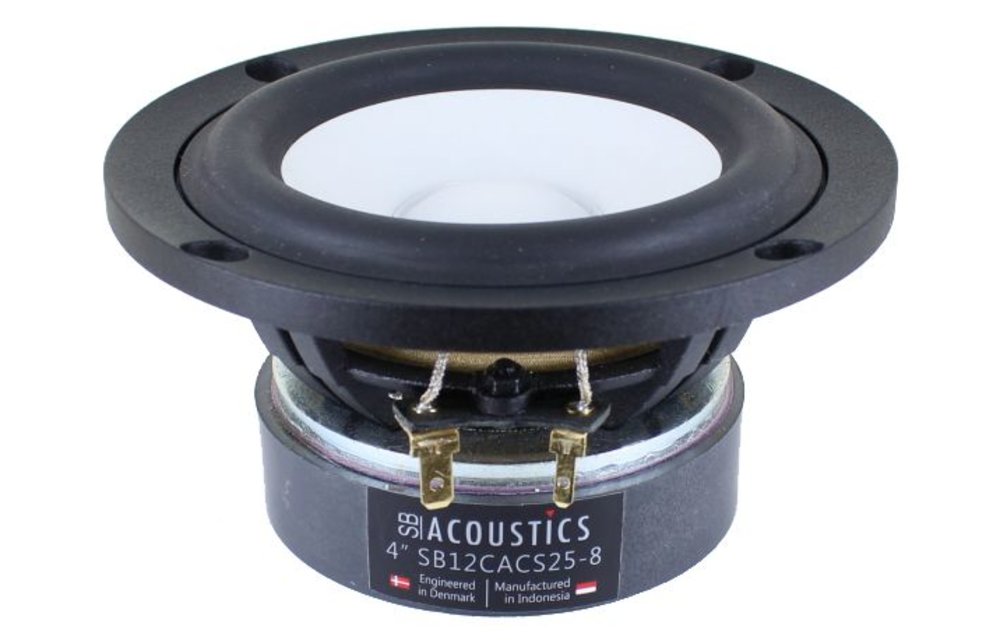

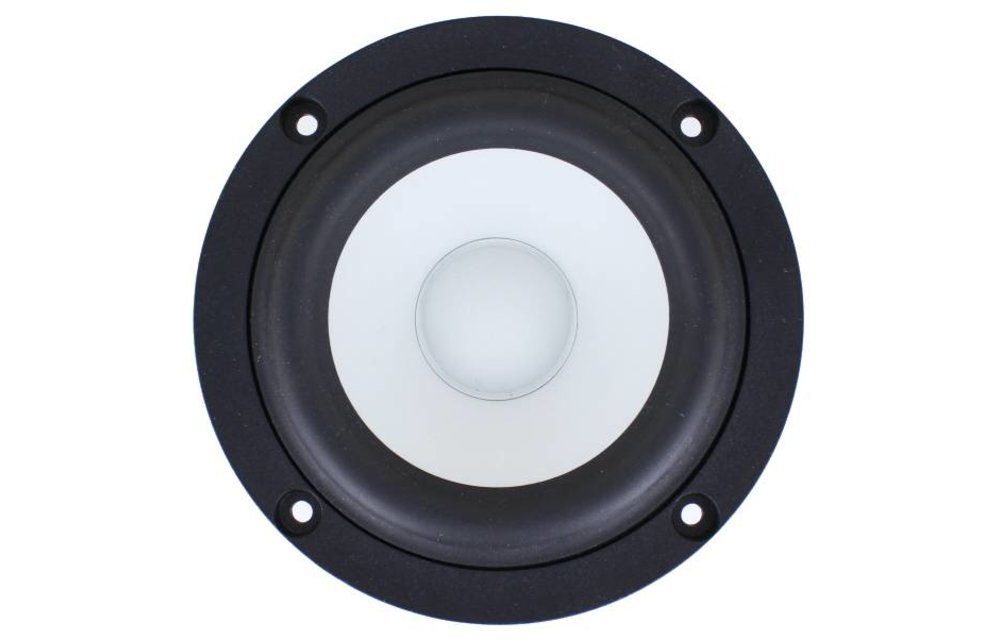

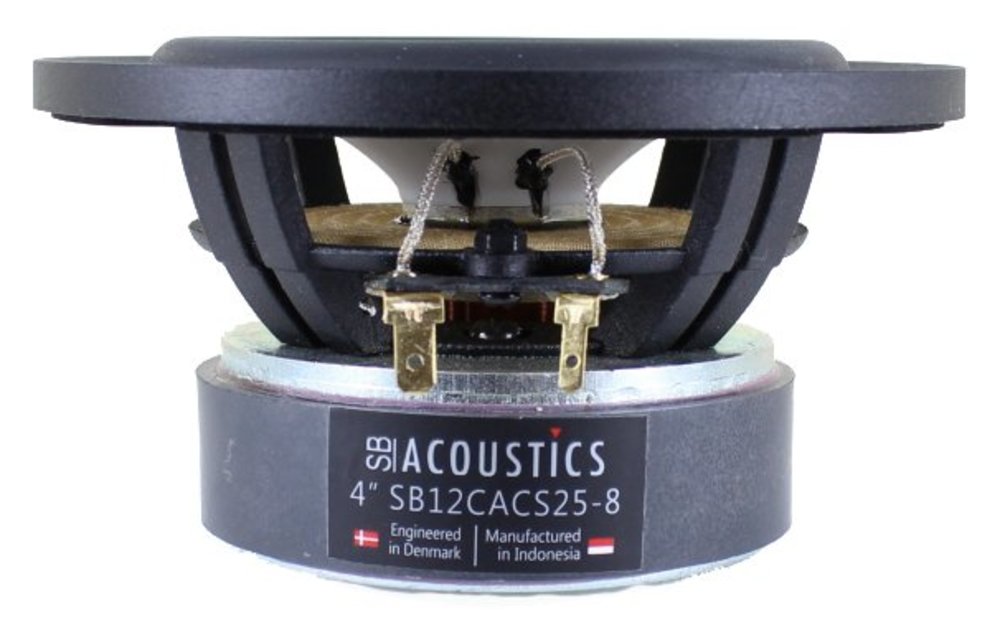

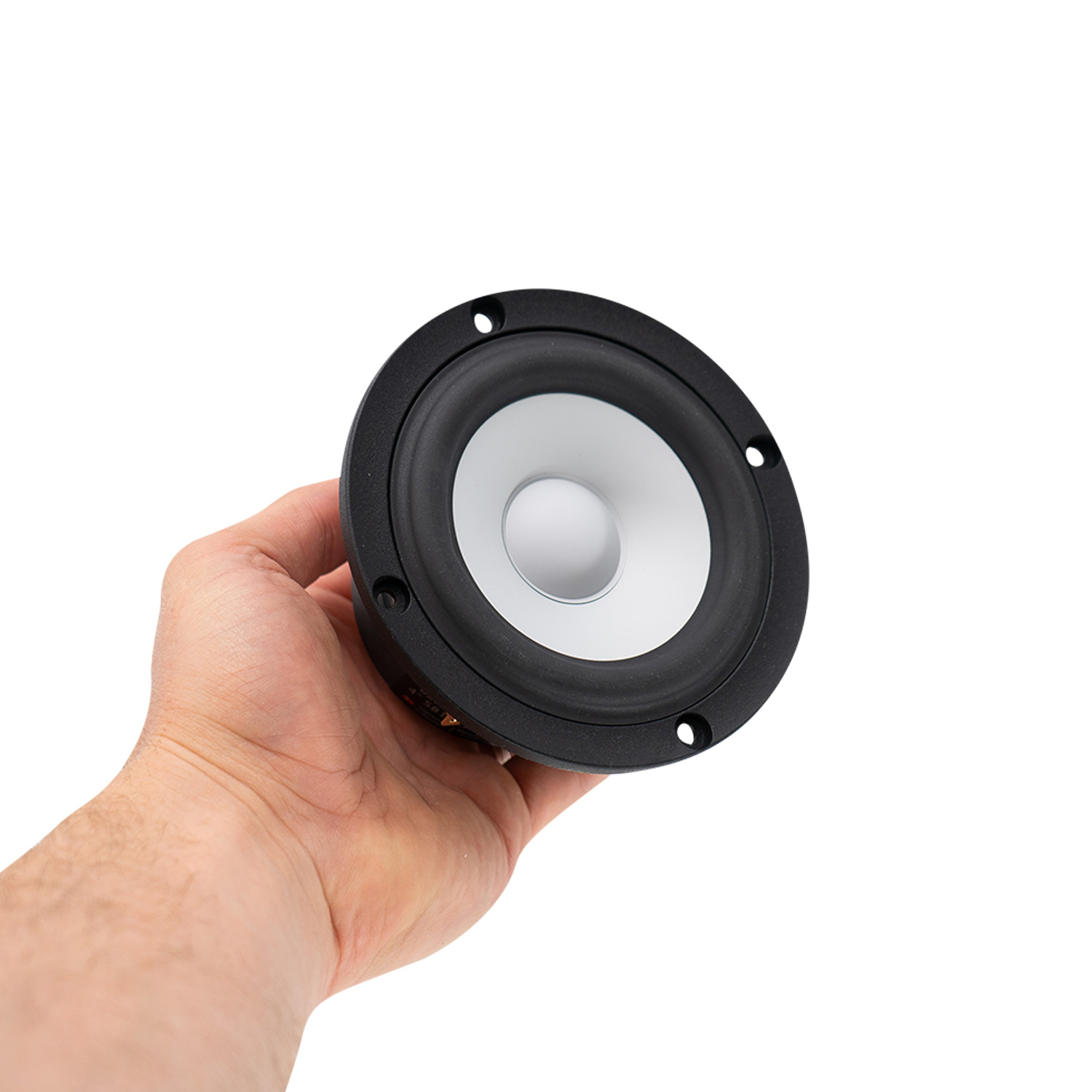

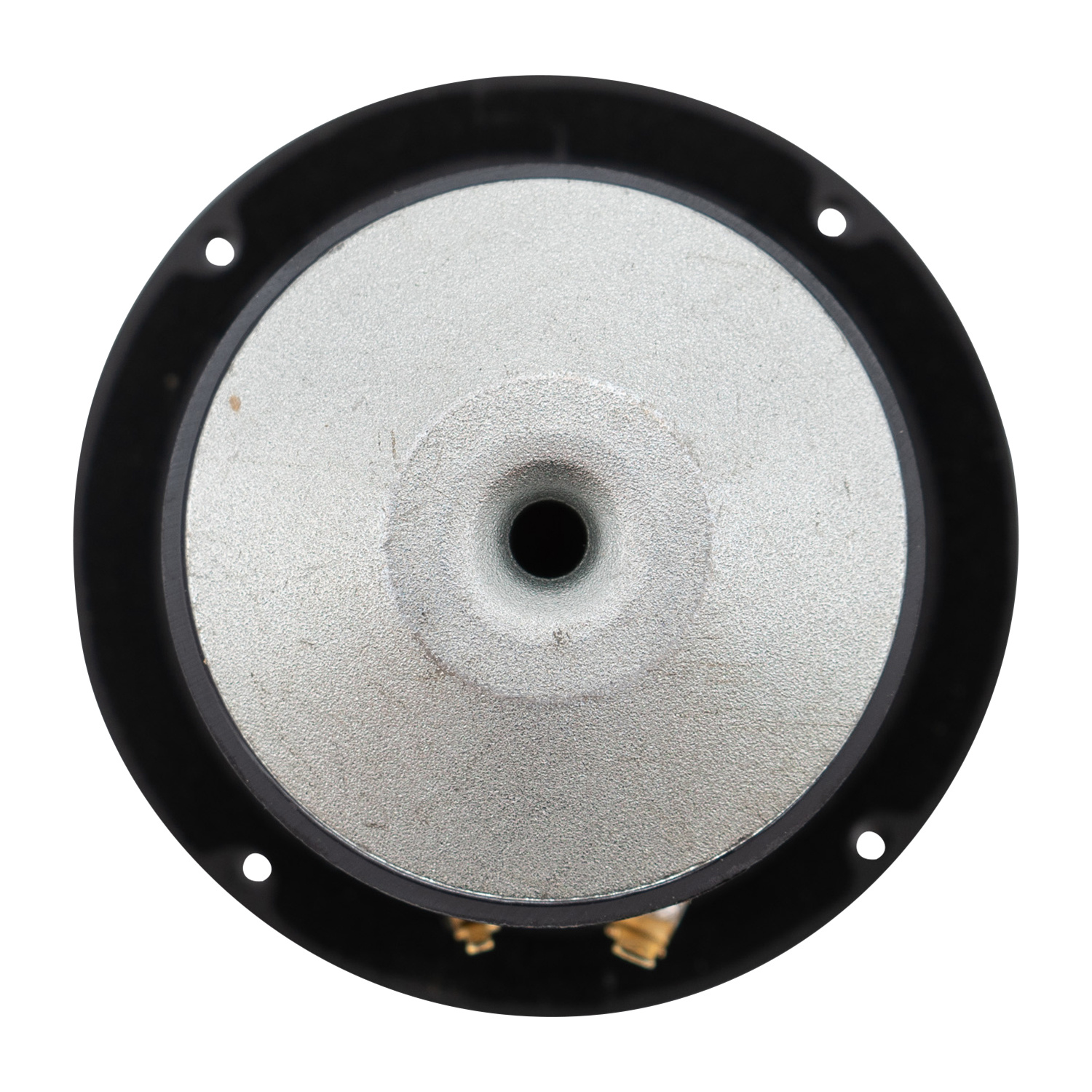

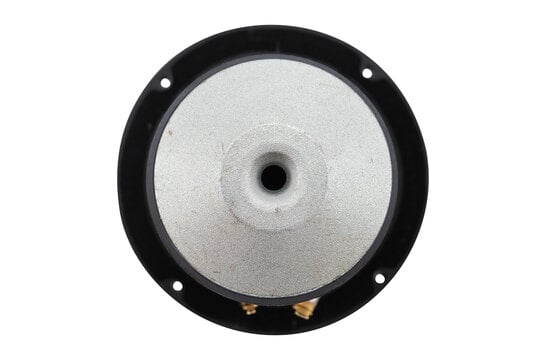

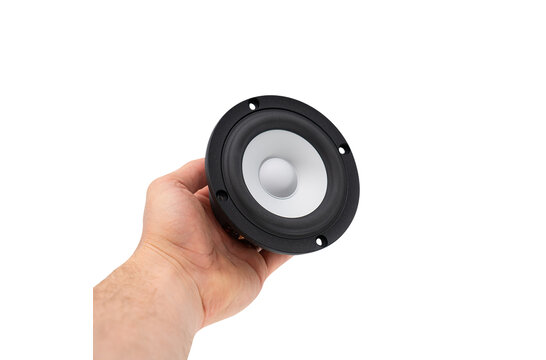

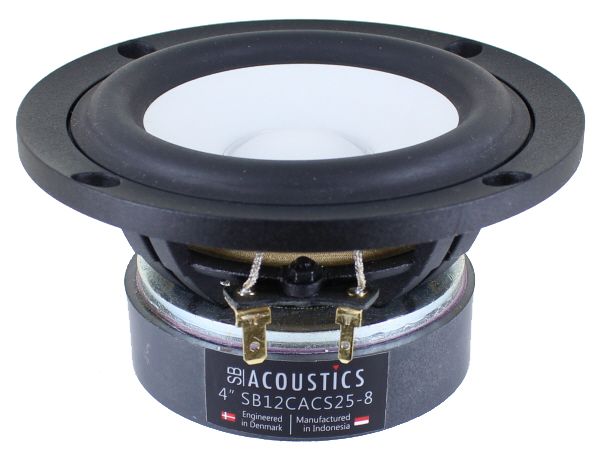

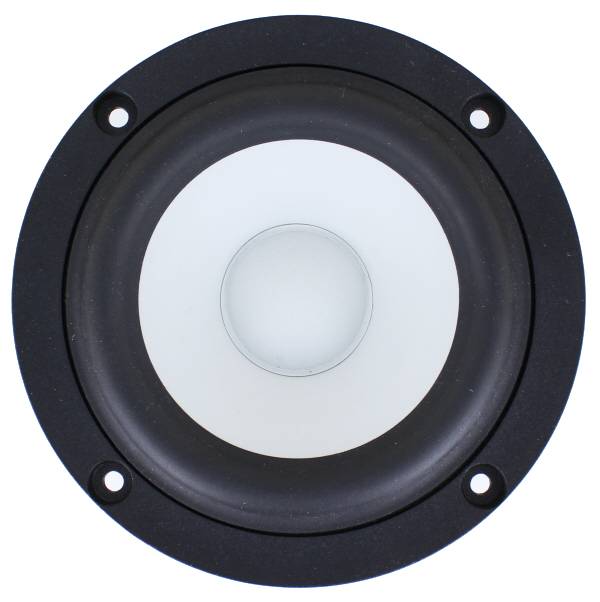

SB Acoustics SB12CACS25-8 4" Ceramic Woofer

€ 47,31€ 57,25 2 Auf Lager: Lieferzeit 1-3 Werktage
Ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminu... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €54,39 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Vented cast aluminum chassis for optimum strength and low compression
  • Ceramic cone
  • Soft low damping rubber surround for improved transient response
  • Shorting ring in motor system for reduced distortion
  • Non-conducting fiber glass voice coil former for minimum damping
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression



Product details

SB Acoustics SB12CACS25-8 4"Ceramic Woofer



Ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

Eigenschaften

Artikelnummer:
SB12CACS25-8
Woofer Series
CAC Series
Woofer Type
Midwoofer
Nominal Diameter
4"
Power Handling (RMS)
30 Watts
Impedance
8 ohms
Sensitivity
85.5 dB 2.83V/1m
Voice Coil Diameter
1"
DC Resistance (Re)
6.4 ohms
Voice Coil Inductance (Le)
0.34 mH
Resonant Frequency (Fs)
51 Hz
Mechanical Q (Qms)
4.85
Electromagnetic Q (Qes)
0.4
Total Q (Qts)
0.37
Diaphragm Mass Inc. Airload (Mms)
5.3 g
Mechanical Compliance of Suspension (Cms)
1.84 mm/N
Surface Area of Cone (Sd)
50 cm2
BL Product (BL)
5.2 Tm
Compliance Equivalent Volume (Vas)
0.22 ft.³
Maximum Linear Excursion (Xmax)
5 mm
