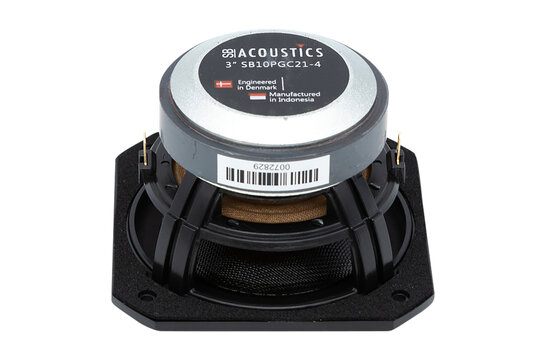

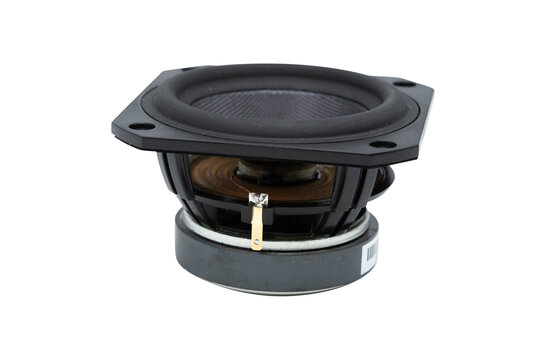

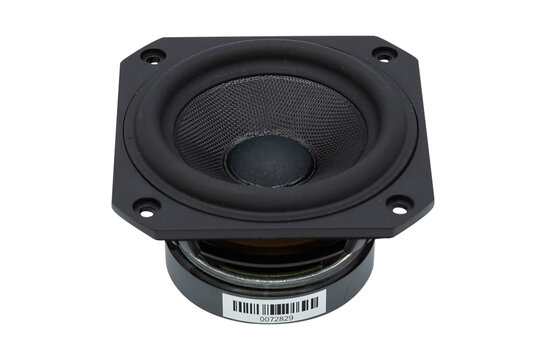

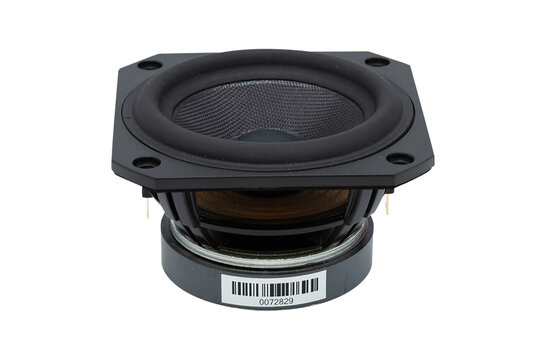

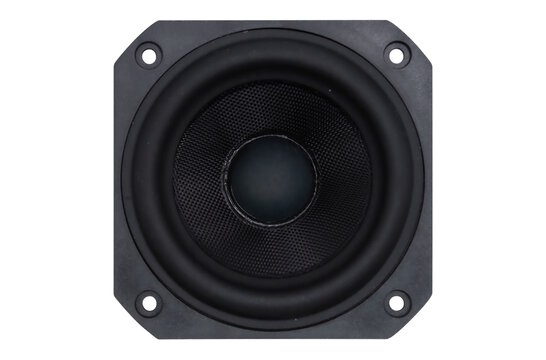

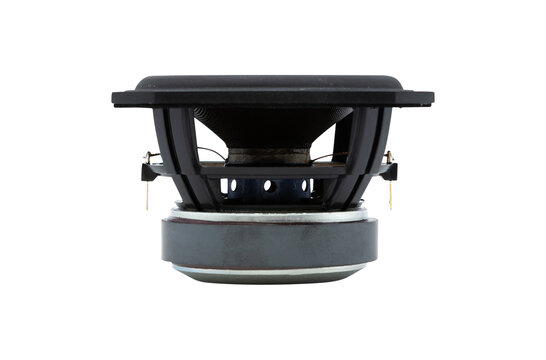

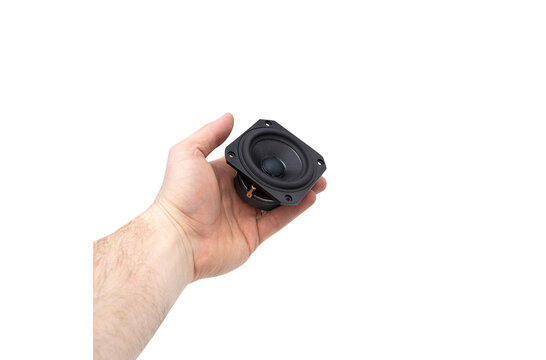

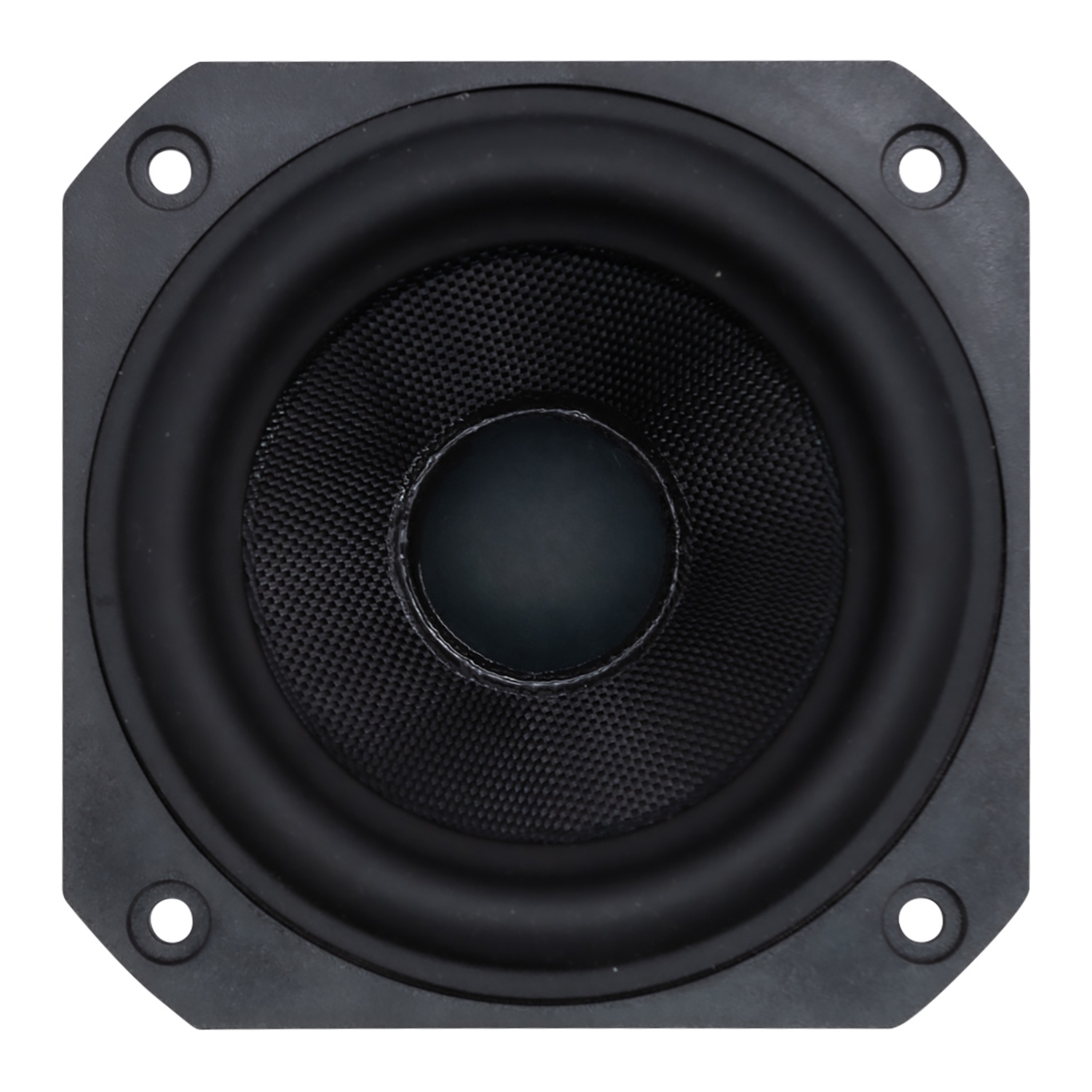

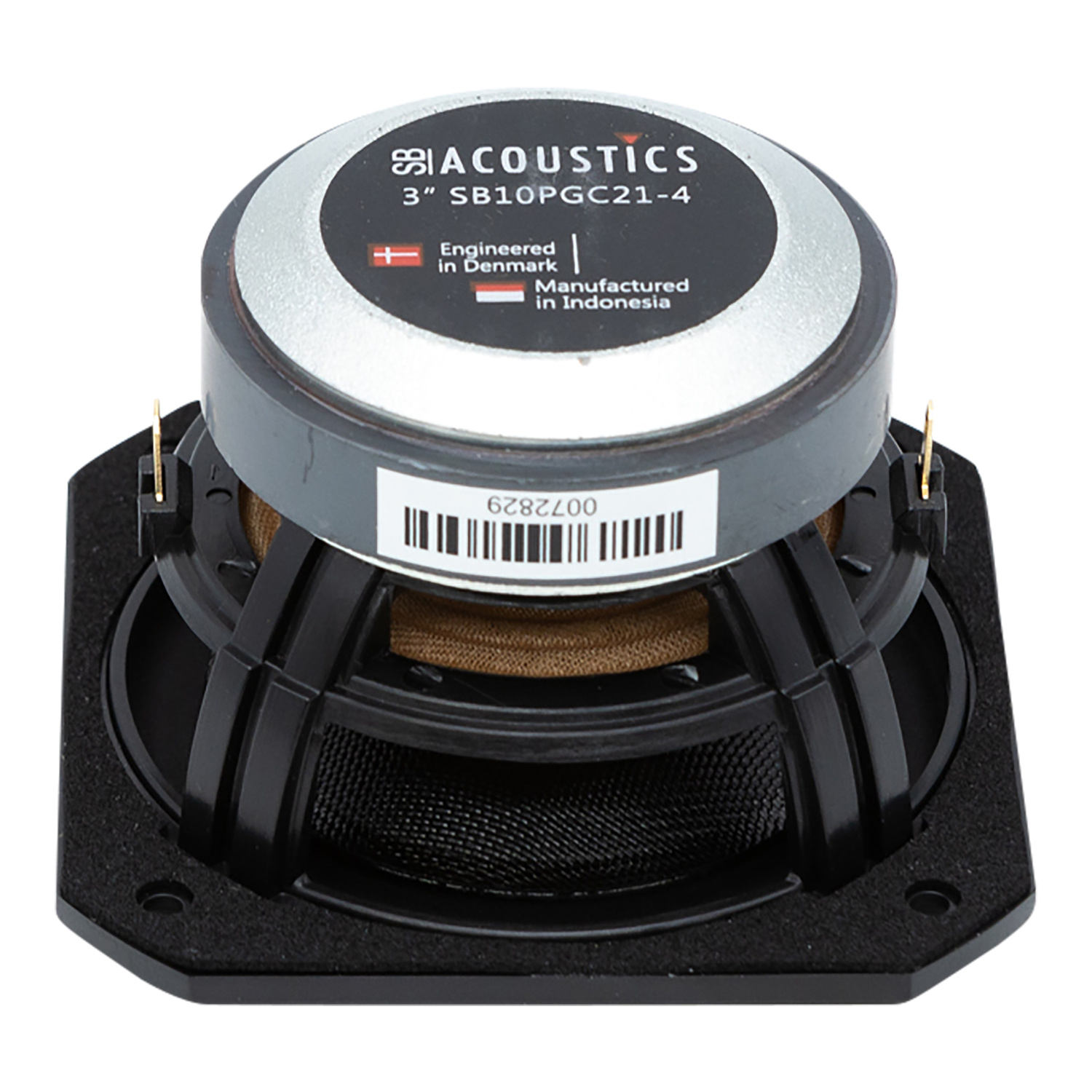

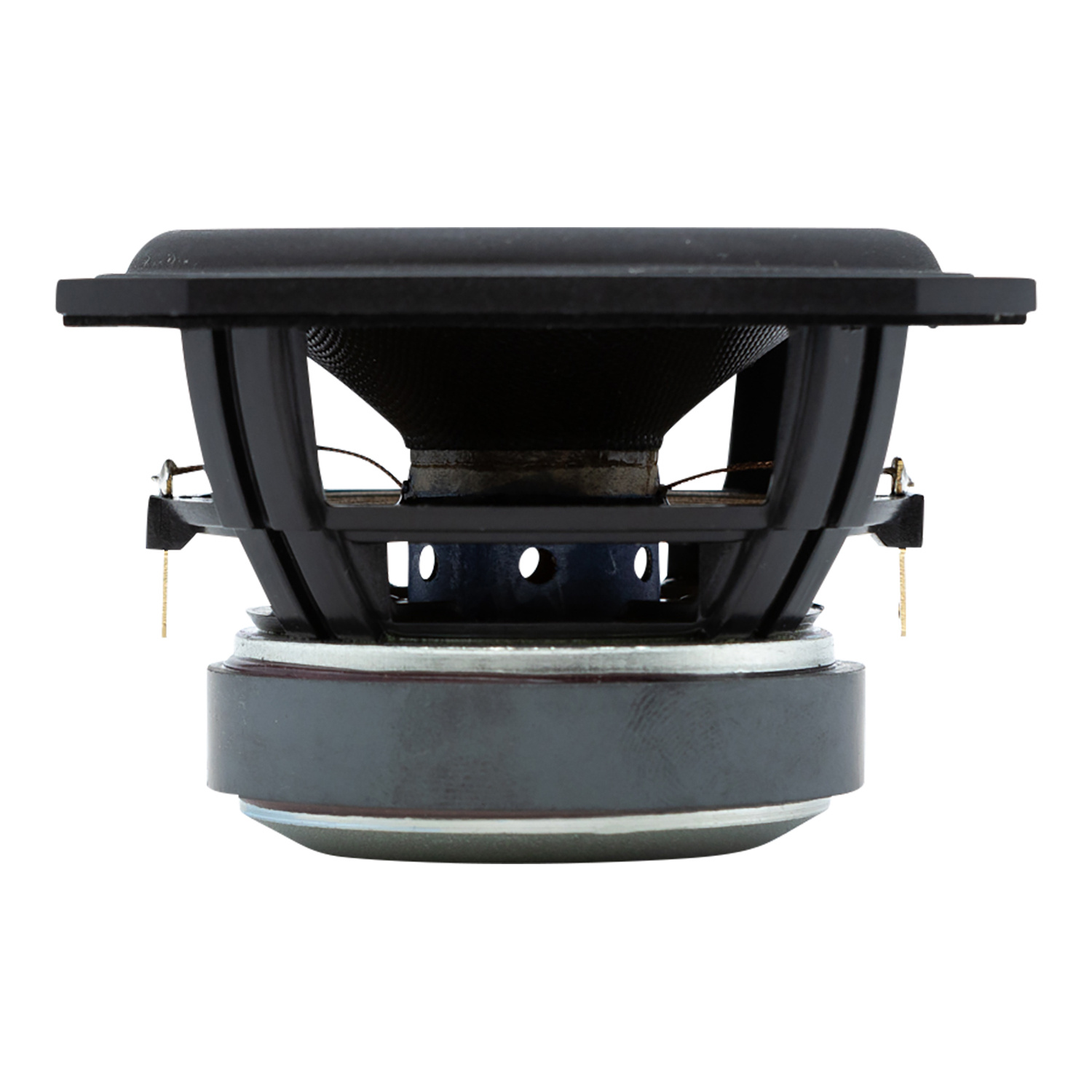

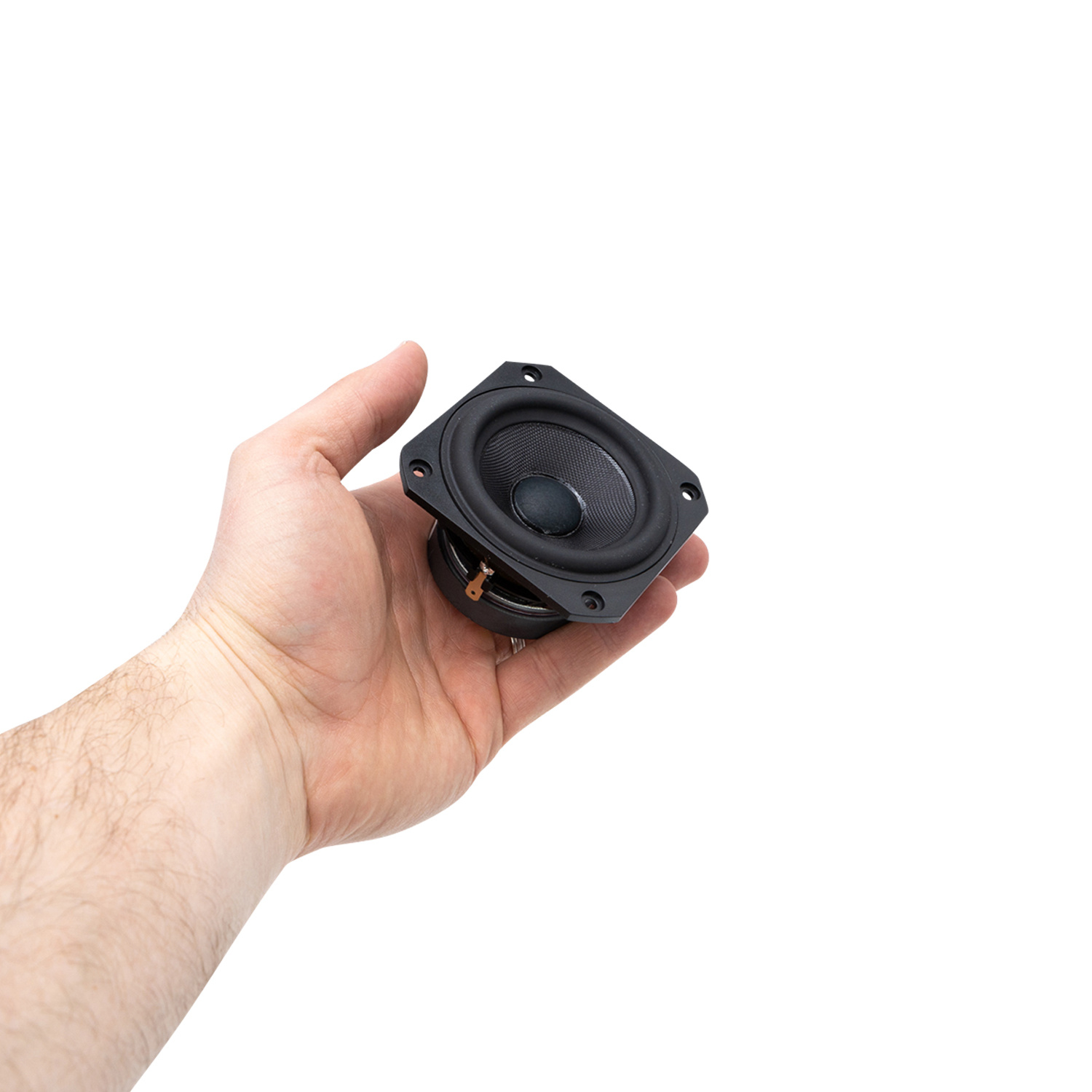

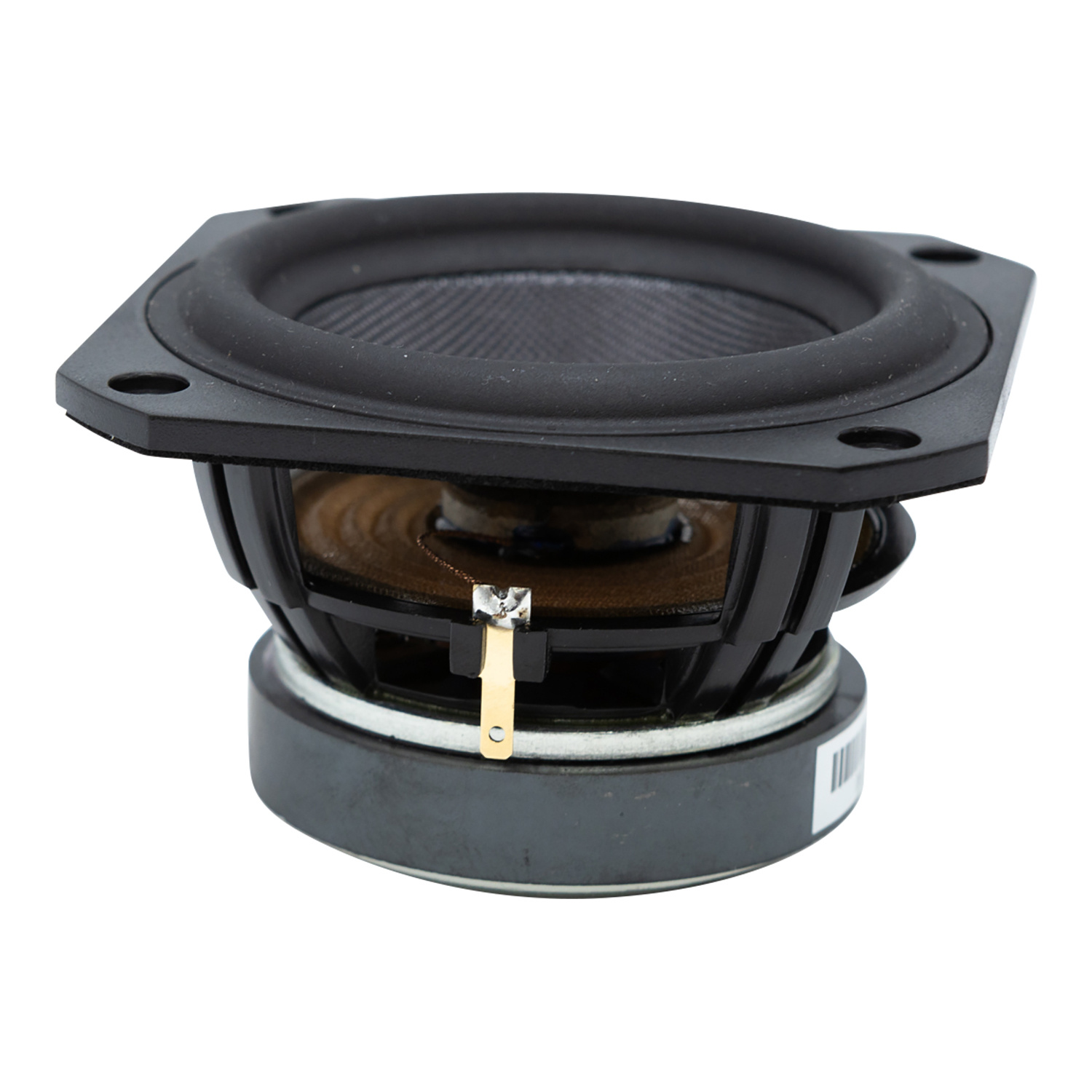

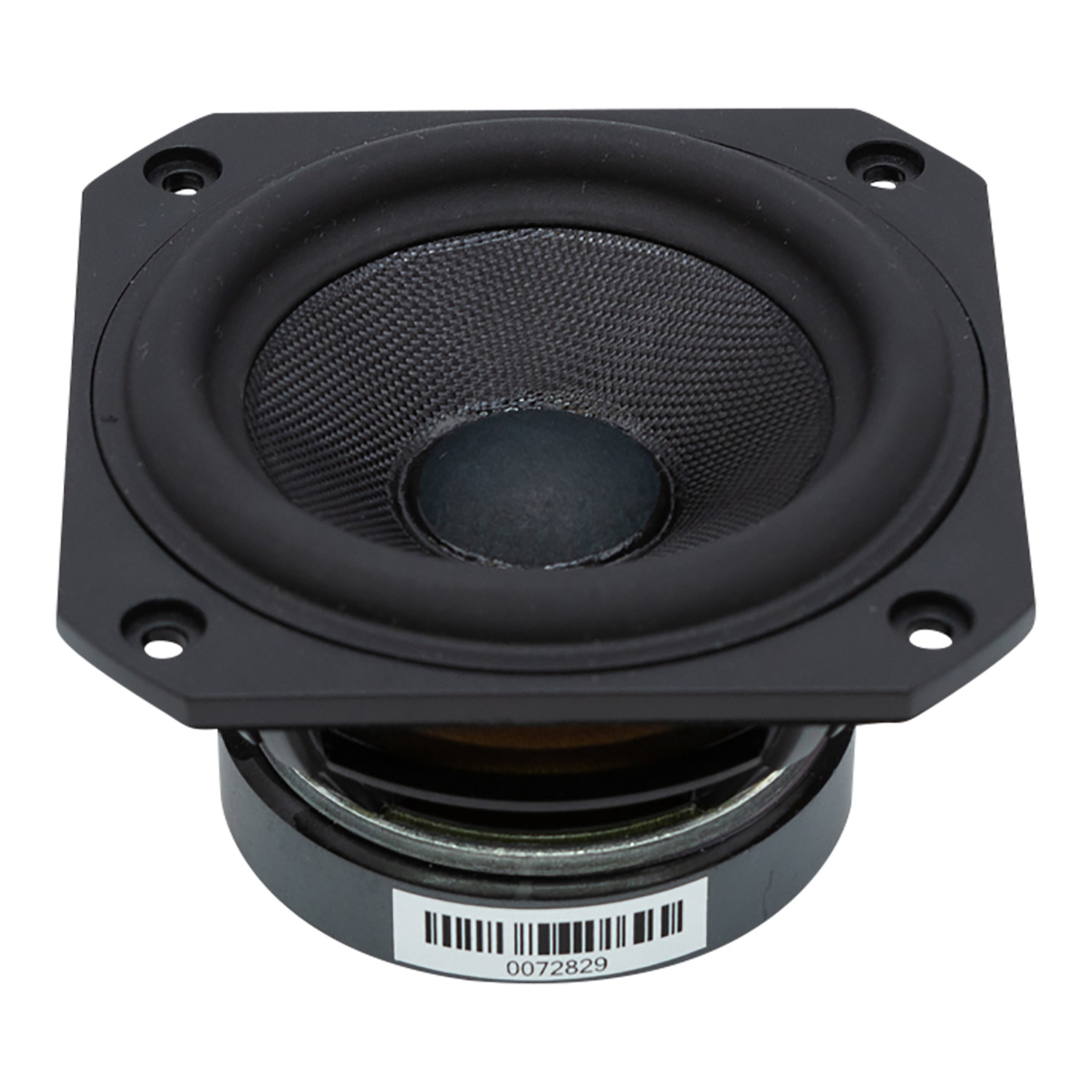

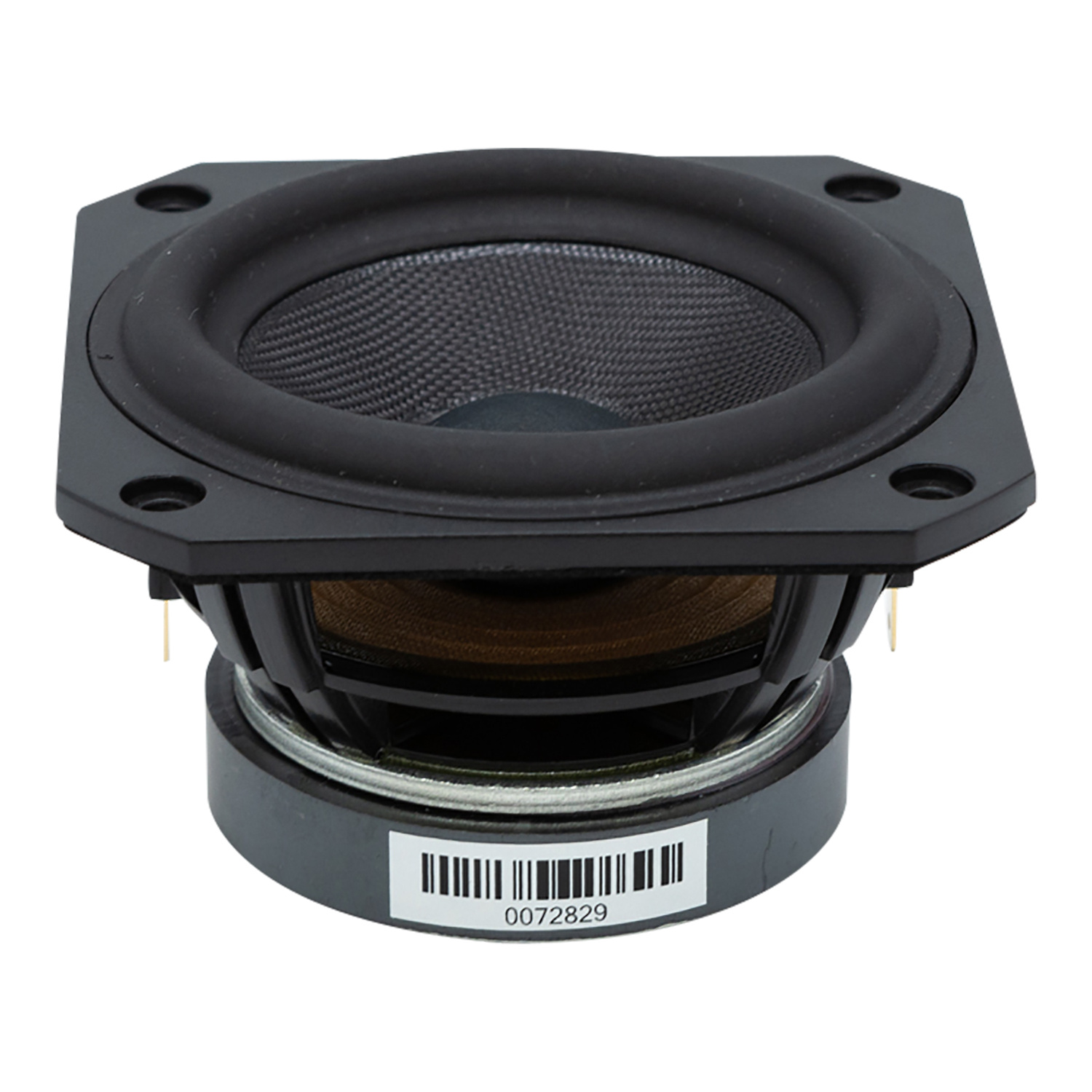

SB Acoustics SB10PGC21-4 3" Full Range Driver

Spezifikationen für: SB10PGC21-4 3" Full Range Driver

• Woofer SeriesSpezielle Woofer- Produktionsreihe des Herstellers. Wideband Series
• Woofer TypeArt des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full-Range
• Nominal DiameterUngefährer Durchmesser des Drivers, gemessen in Inch. 3"
• Power Handling (RMS)Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 20 Watts
• Power Handling (max)Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
• View all specifications
• Continuous Program Power
• Impedance 4 ohms
• Sensitivity 84 dB @ 2.83V/1m
• Frequency Response 90 - 20,000 Hz
• Voice Coil Diameter 20.4 mm
• Magnet Weight 0.09 kg
• DC Resistance (Re) 3.4 ohms
• Voice Coil Inductance (Le) 0.15 mH
• Resonant Frequency (Fs) 89 Hz
• Mechanical Q (Qms) 11.2
• Electromagnetic Q (Qes) 1.01
• Total Q (Qts) 0.92
• Diaphragm Mass Inc. Airload (Mms) 2.8g
• Moving Mass Of Diaphragm (Mmd)
• Mechanical Compliance of Suspension (Cms) 1.14 mm/N
• Surface Area of Cone (Sd) 27 cm2
• Volume of Displacement (Vd)
• BL Product (BL) 2.3 Tm
• Compliance Equivalent Volume (Vas) 1.2 liters
• Maximum Linear Excursion (Xmax) 2.25 mm
• Driver's Mechanical Losses (Rms) 0.14 kg/s
• Cone / Diaphragm Material Fiberglass
• Surround Material
• Voice Coil Wire Material Copper-clad aluminum
• Voice Coil Former
• Dual Voice Coil
• Basket / Frame Material
• Magnet Material
• Shielded
• Overall Outside Diameter 95.5 mm
• Overall Depth 50.8 mm
• Baffle Cutout Diameter 75 mm
• Bolt Circle Diameter 85 mm
• # Mounting Holes 4
• Mounting Hole Diameter 3.3 mm
• Sealed Volume
• Sealed F3
• Vented Volume
• Vented F3
