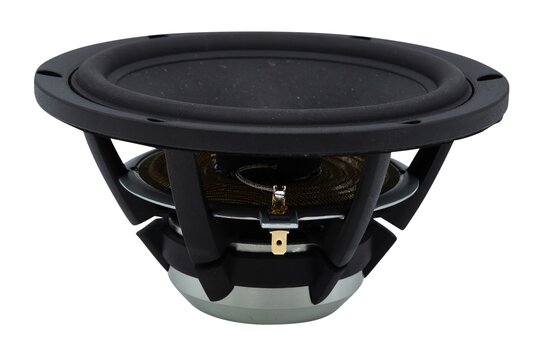

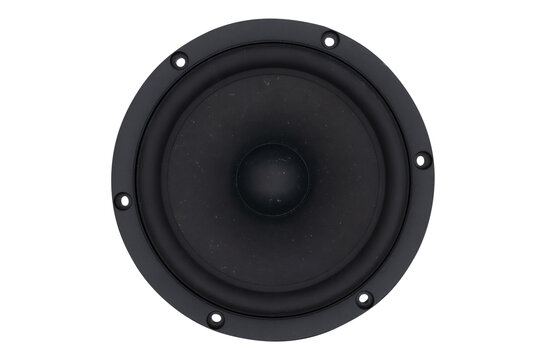

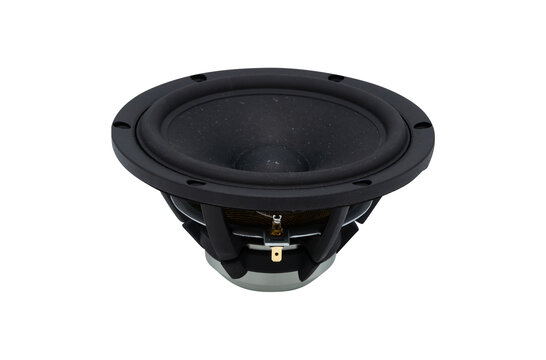

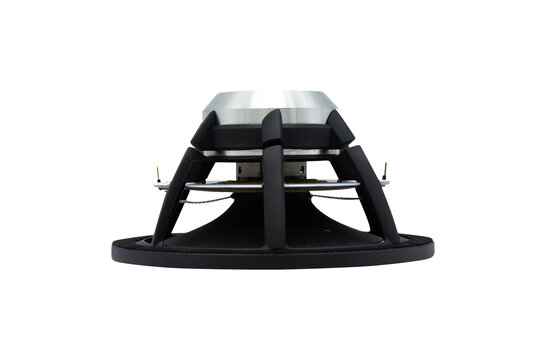

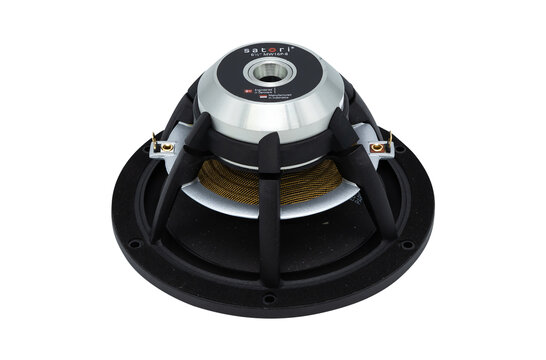

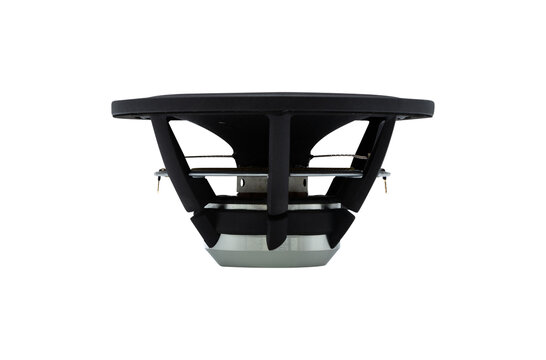

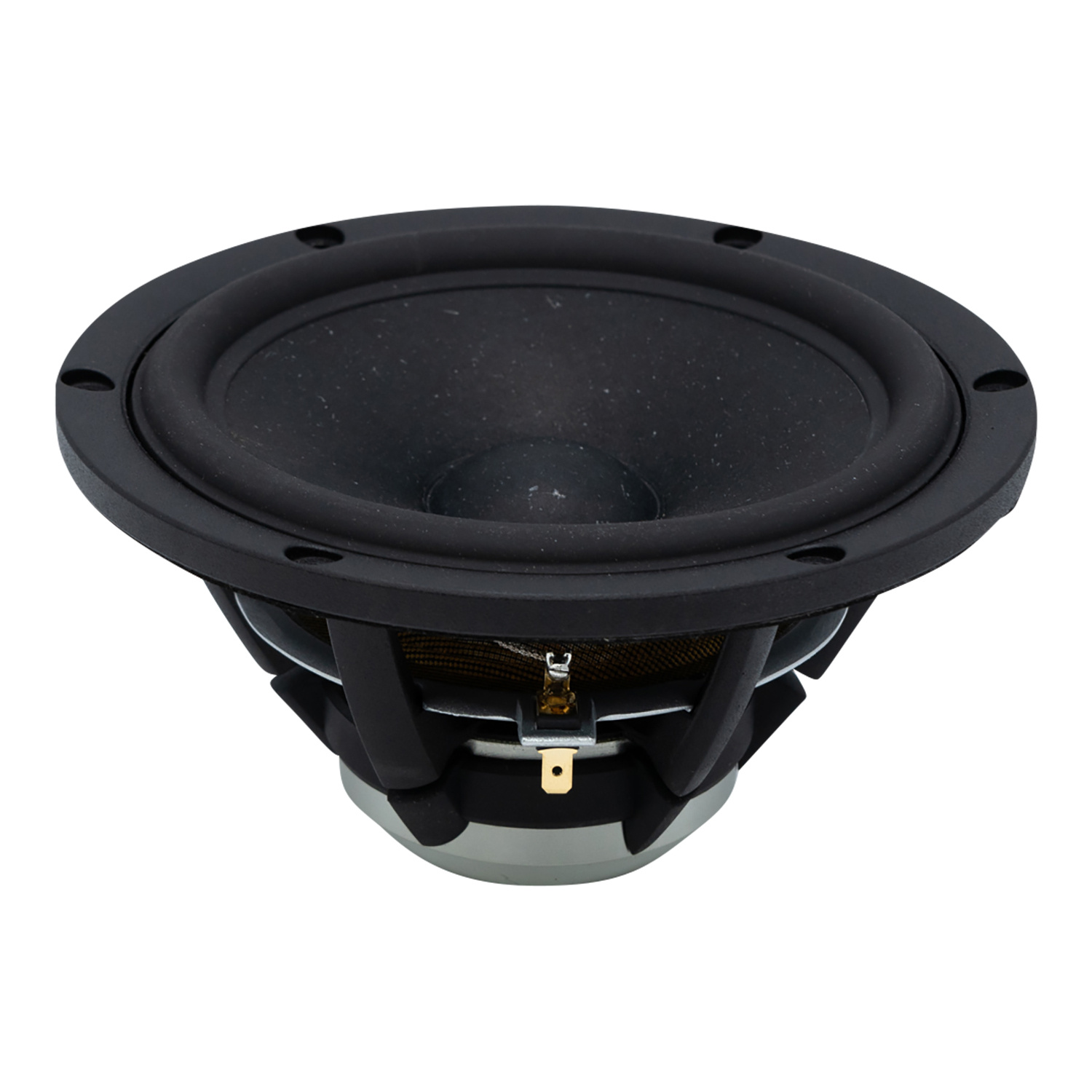

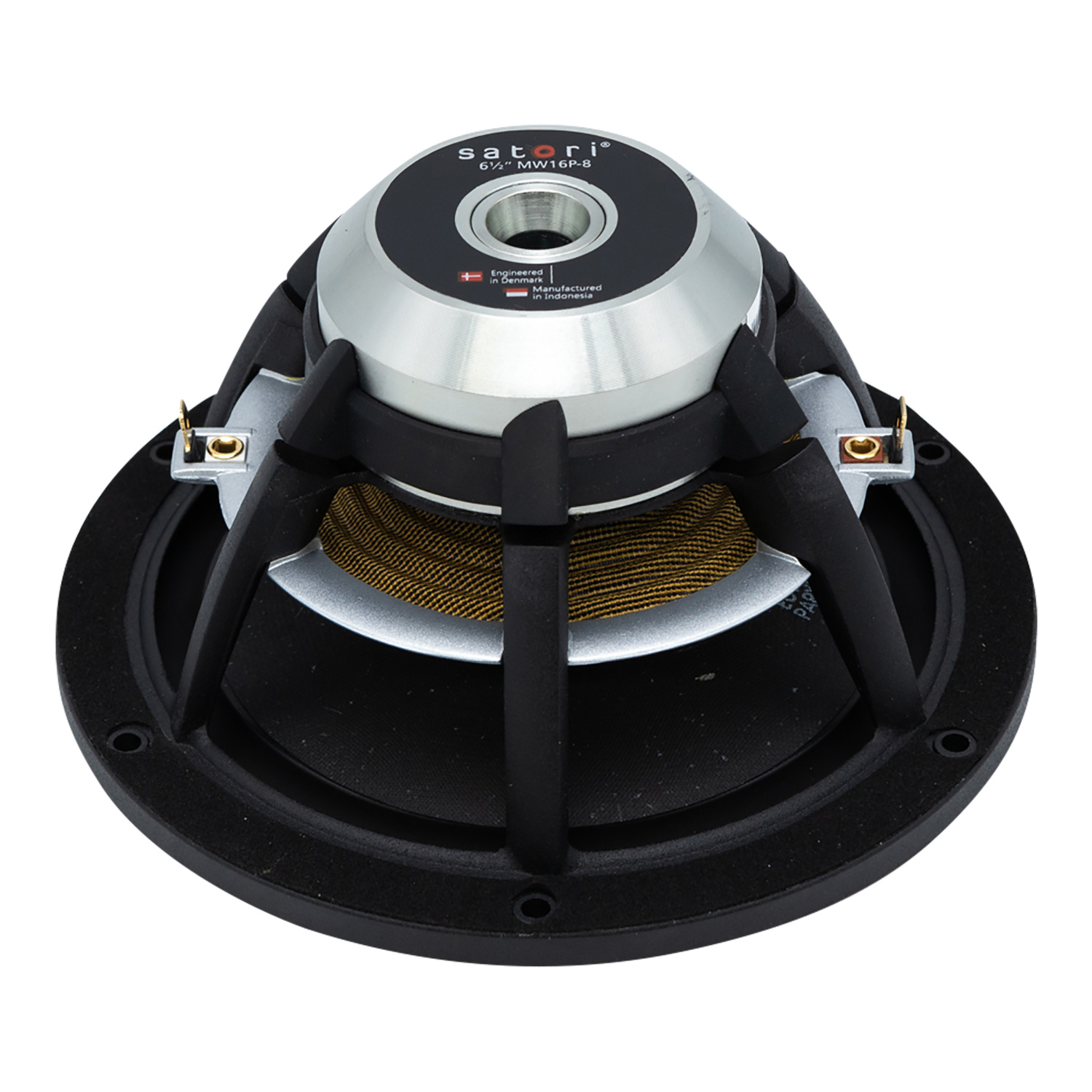

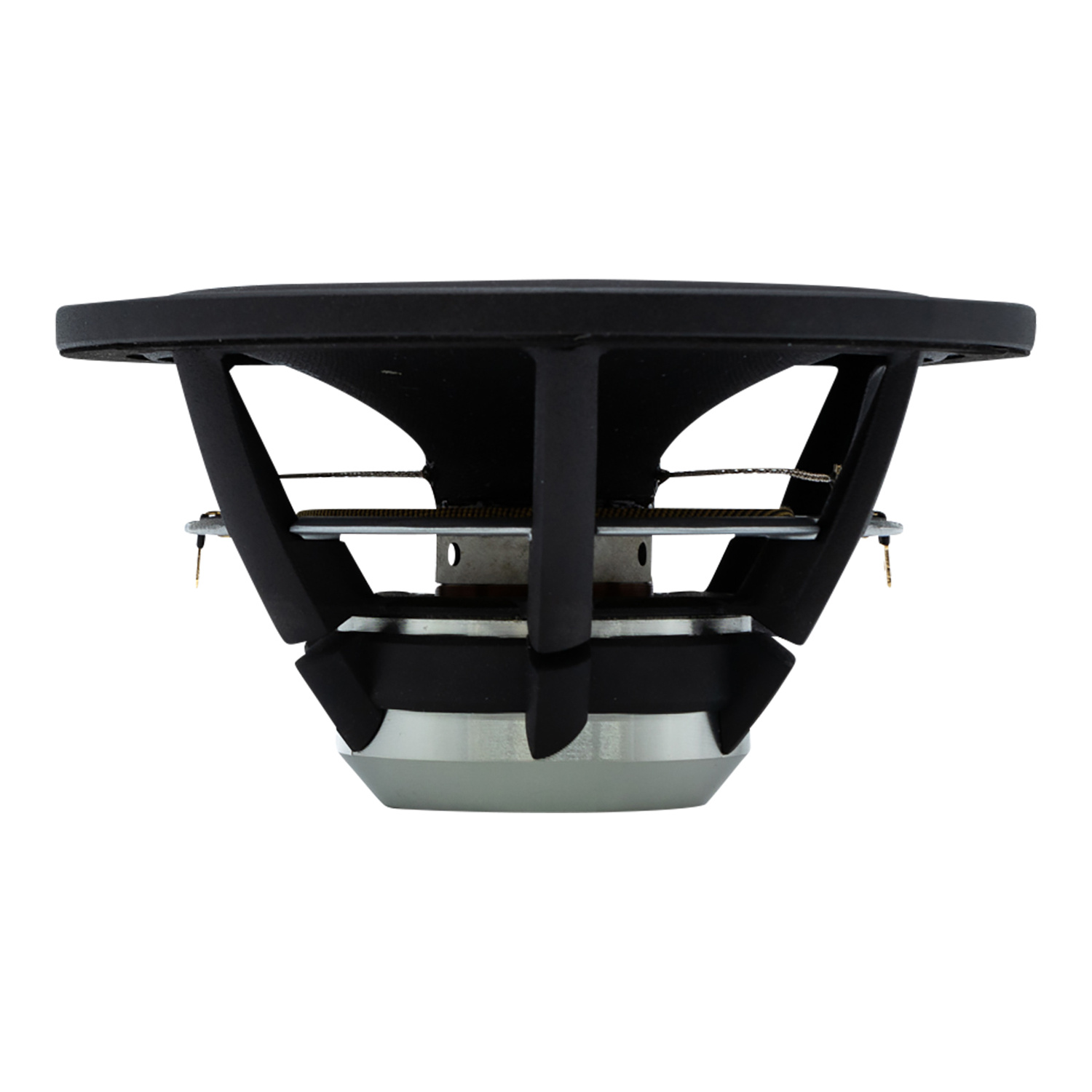

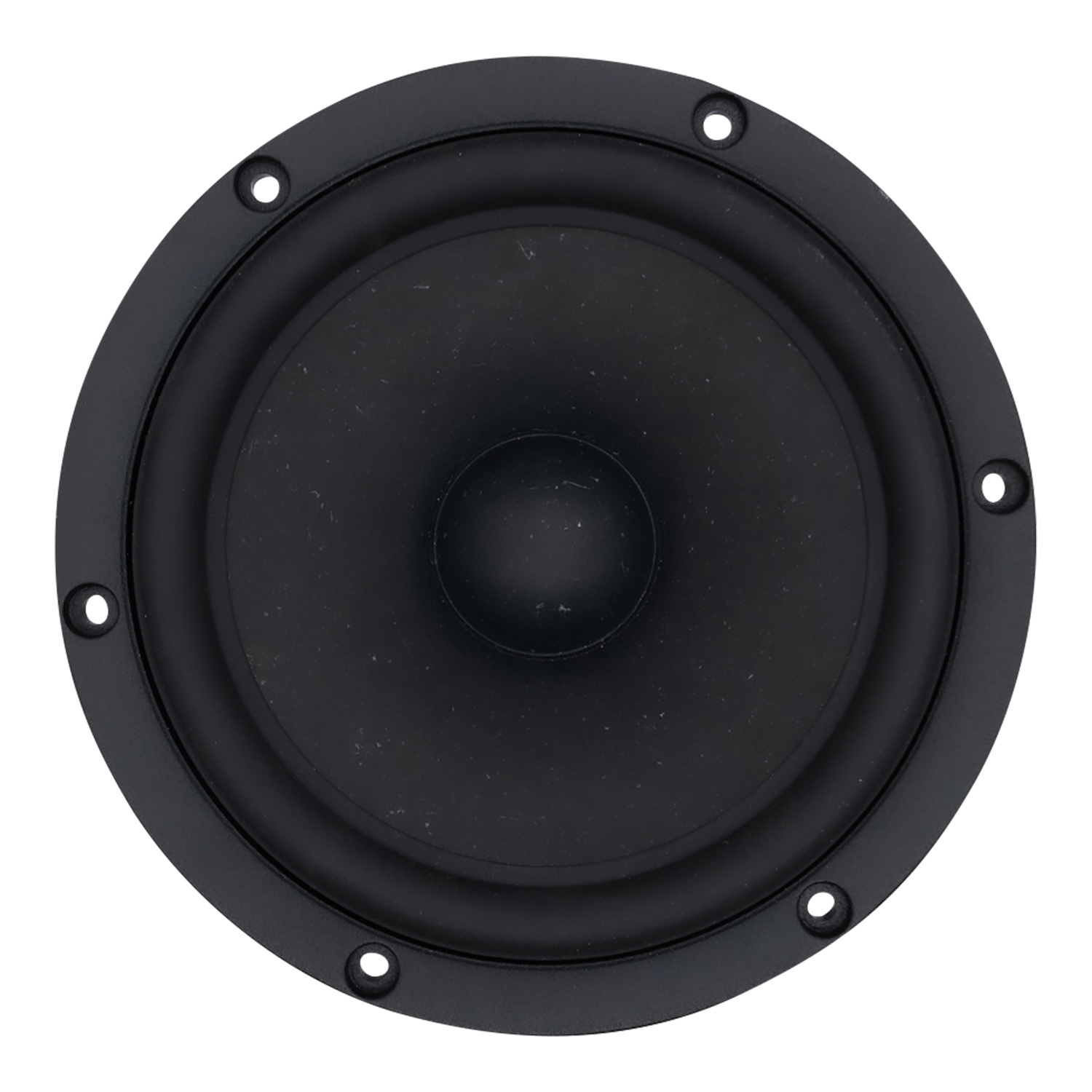

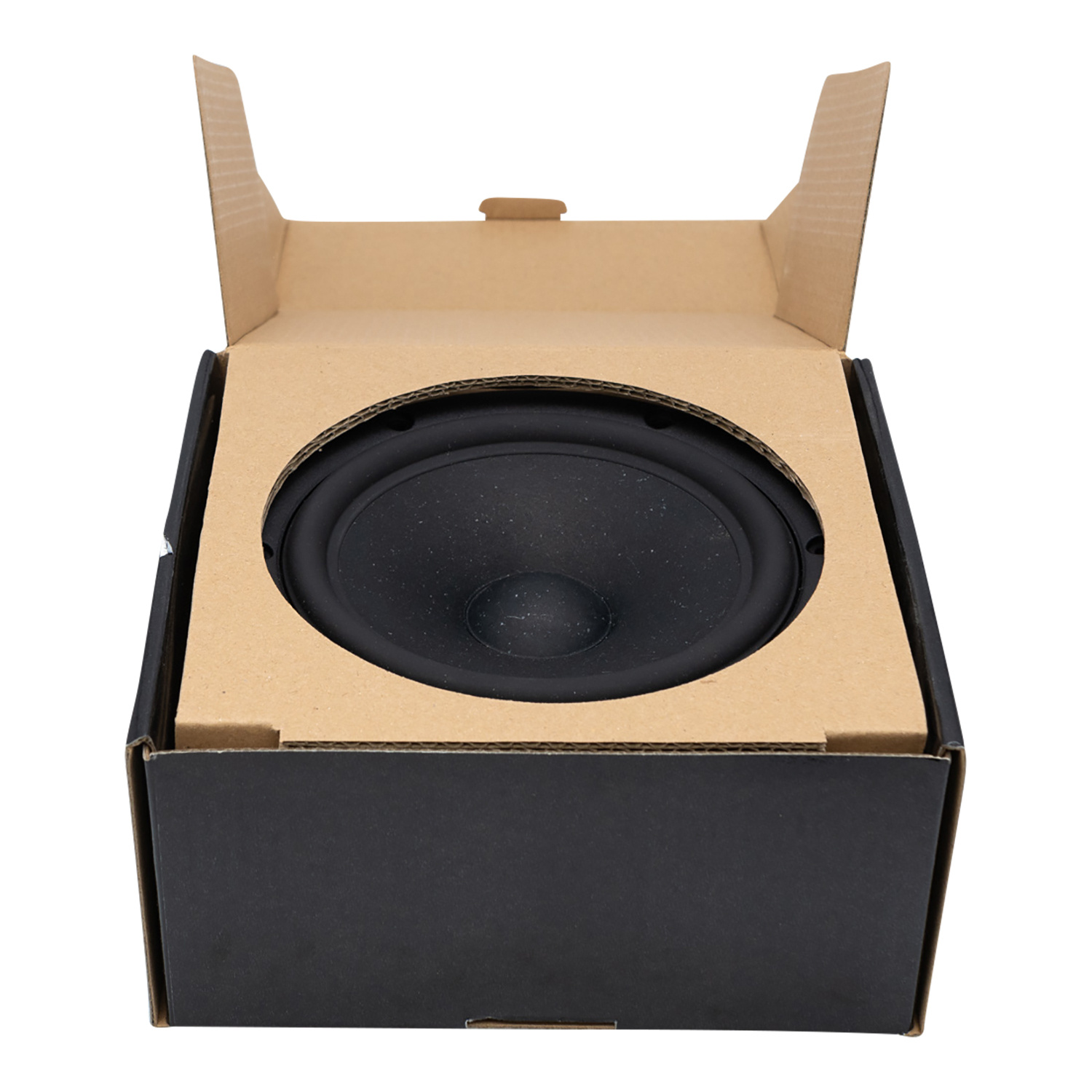

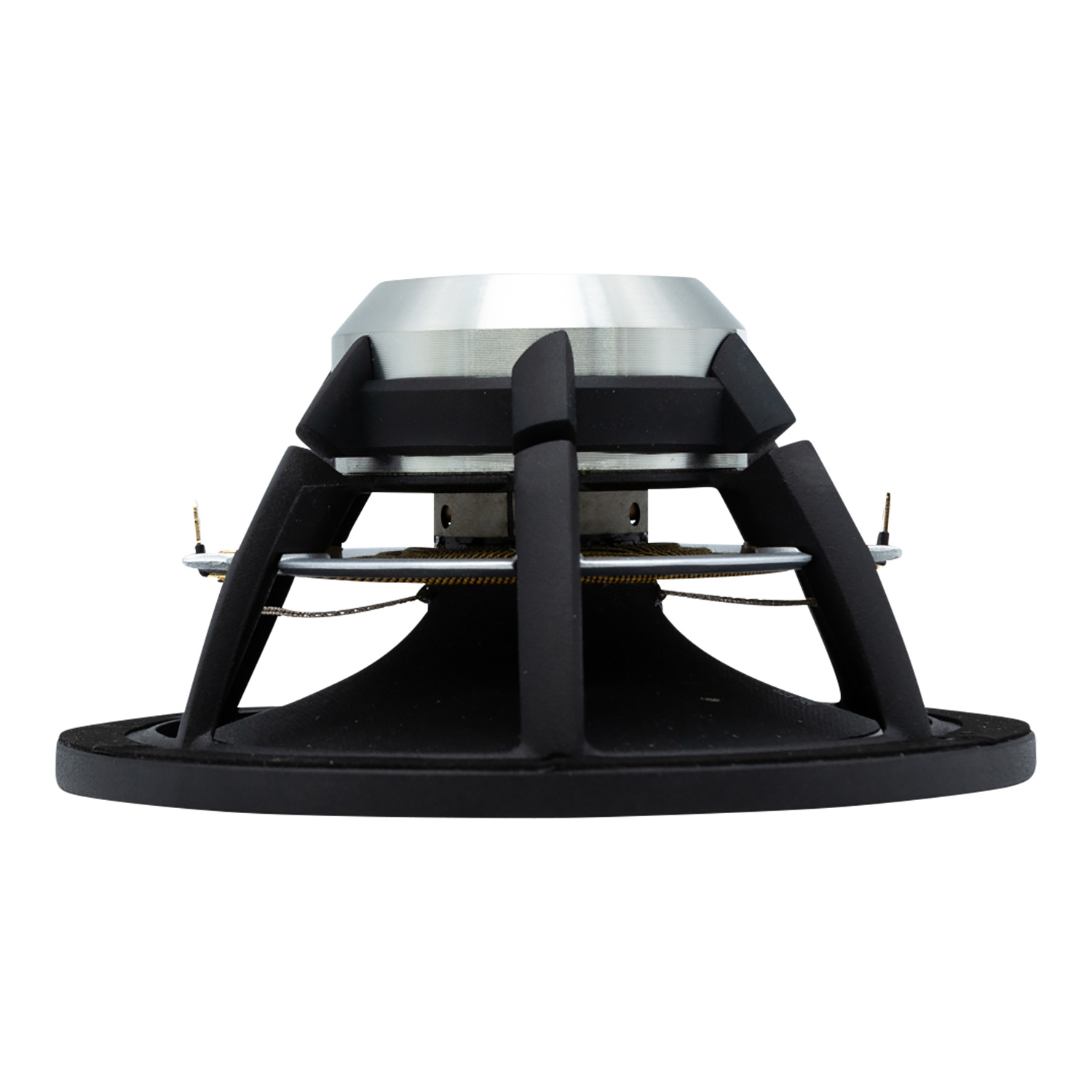

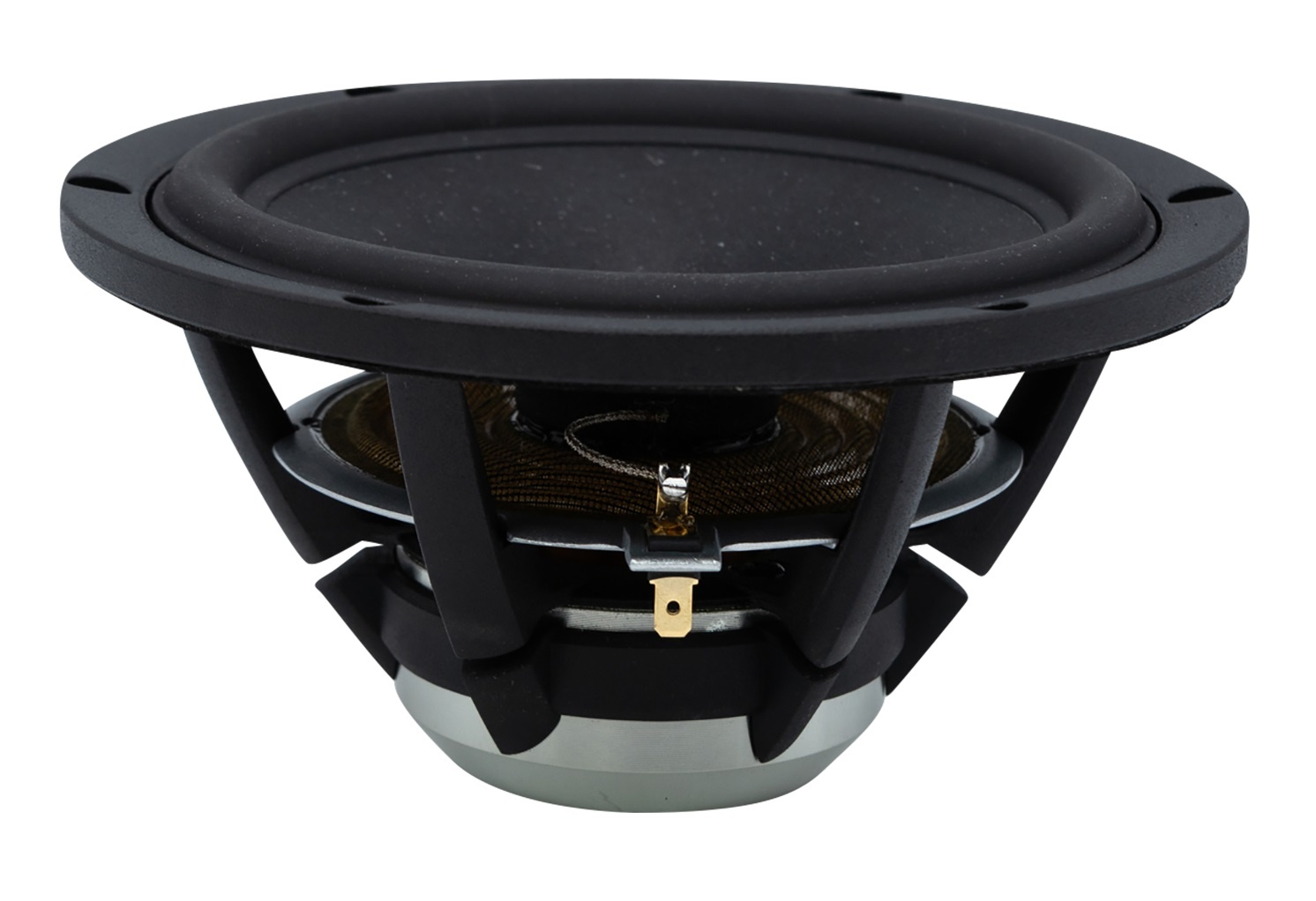

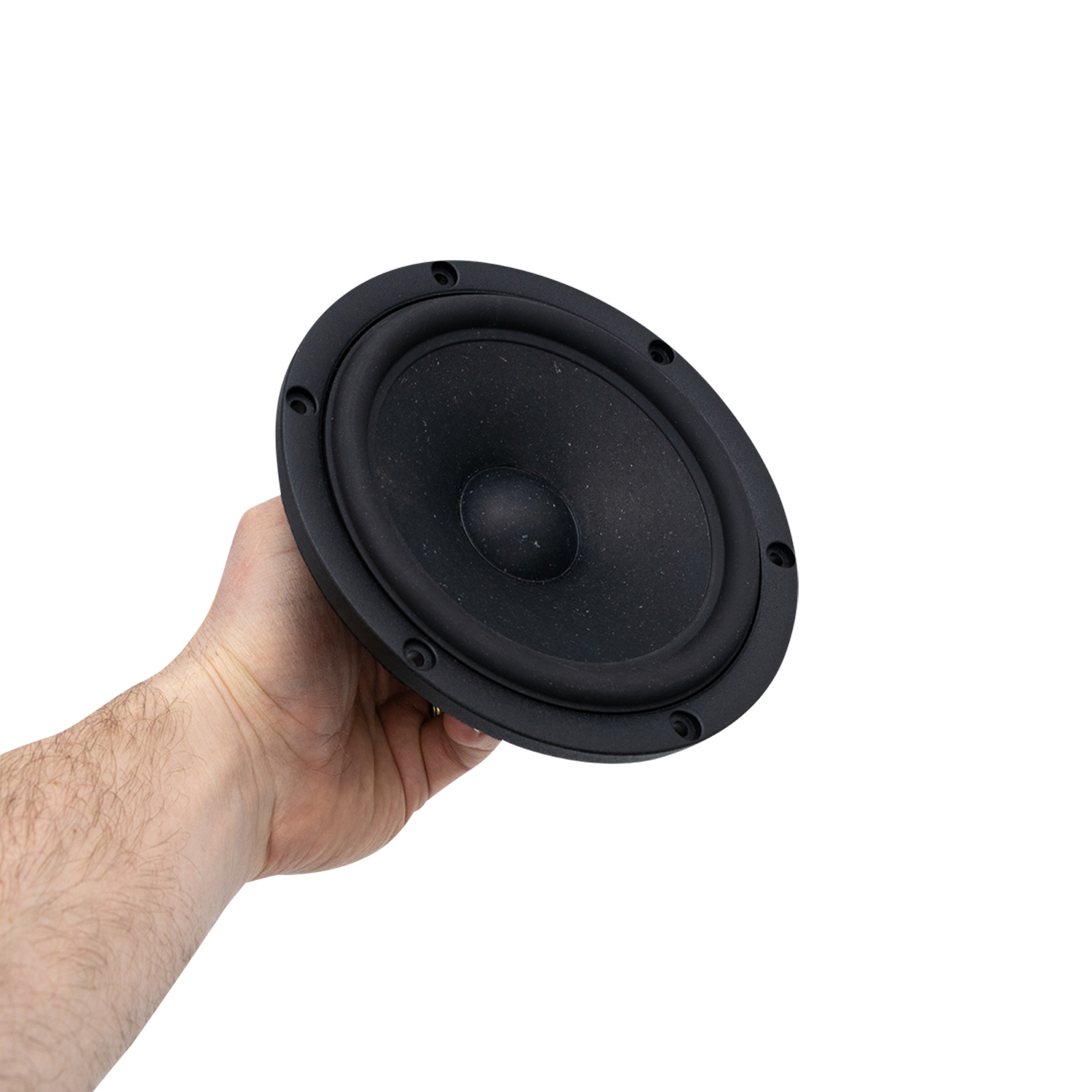

SB Acoustics Satori MW16P-8 6" Egyptian Papyrus Cone Woofer

Name: SB Acoustics Satori MW16P-8 6" Egyptian Papyrus Cone Woofer
Brand: SB Acoustics
Price: 139.95 EUR
Availability: InStock
Rating: 4.5 (2 reviews)

Marke: SB Acoustics

Alle anzeigen Audio-Komponenten

Vergleichen

6" | 8 Ω

Satori MW16P-8 6" Egyptian Papyrus Cone Woofer

€ 139,95 3 Auf Lager: Lieferzeit 1-3 Werktage

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Vented aerodynamic cast aluminum chassis for optimum strength and low compression
Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
Soft low damping rubber surround for optimum transient response
Advanced BIMAX spider for improved linearity
Powerful optimized low distortion neodymium motor system
Non-conducting fiber glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and reduced distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires attached 180° apart for improved stability
Vented pole piece for reduced compression
High piston to chassis diameter ratio
Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

Product details

SB Acoustics Satori MW16P-8 6" Egyptian Papyrus Cone Woofer

The Satori MW16P-8 provides a vented aerodynamic cast aluminum chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass.

Eigenschaften

Artikelnummer:: MW16P-8
Woofer Series: Satori Series
Woofer Type: Midwoofer
Nominal Diameter: 6"
Power Handling (RMS): 60 Watts
Impedance: 8 ohms
Sensitivity: 87.5 dB 2.83V/1m
Voice Coil Diameter: 1.41"
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le): 0.2 mH
Resonant Frequency (Fs): 29 Hz
Mechanical Q (Qms): 4.5
Electromagnetic Q (Qes): 0.35
Total Q (Qts): 0.33
Diaphragm Mass Inc. Airload (Mms): 12.4 g
Mechanical Compliance of Suspension (Cms): 2.4 mm/N
Surface Area of Cone (Sd): 119 cm2
BL Product (BL): 6.3 Tm
Compliance Equivalent Volume (Vas): 1.69 ft.³
Maximum Linear Excursion (Xmax): 6 mm

Data sheet

Bewertungen

5 from 5Based on 2 reviews

Produkt bewerten

4 van 5

As of yet I haven’t had time to install and test the speakers. All I can say so far though is that I’m positively chocked by the delivery time. It was extremely fast! Good on ya!

Durch Jonas T. on 24 Dezember 2020

5 van 5

No description was given

Durch Joerg S. on 31 Juli 2019
