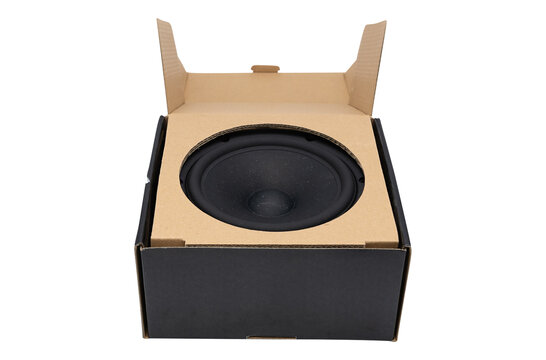

Name: SB Acoustics MW16P-12 Tiefmitteltöner
Brand: SB Acoustics
SKU: MW16P-12
Price: 174.95 EUR
Availability: InStock

6.5" | 12 Ω

144,59 €174,95 € 6 Auf Lager

Kostenloser Versand (DE & A)
Vor 16:00 Uhr bestellt, heute versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung SB Acoustics MW16P-12 Tiefmitteltöner

The SB Acoustics Satori MW16P-12 is a high-end 6.5" midwoofer designed for discerning audiophiles and speaker builders seeking premium performance. With a focus on low distortion, natural tonal balance, and advanced motor design, this 12-ohm driver is ideal for high-fidelity speaker applications where clarity and precision are paramount.

Highlights of the SB Acoustics Satori MW16P-12

6.5" Egyptian Papyrus cone for superior damping and natural sound reproduction

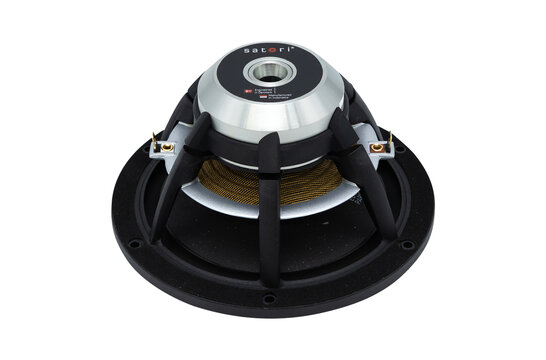

Vented cast aluminum chassis and neodymium motor system for low distortion
Extended copper sleeve on the pole piece to reduce inductance and distortion
CCAW voice coil and advanced Bimax spider for improved linearity and transient response

Product details SB Acoustics Satori MW16P-12

SB Acoustics Satori MW16P-12 6.5" Midwoofer

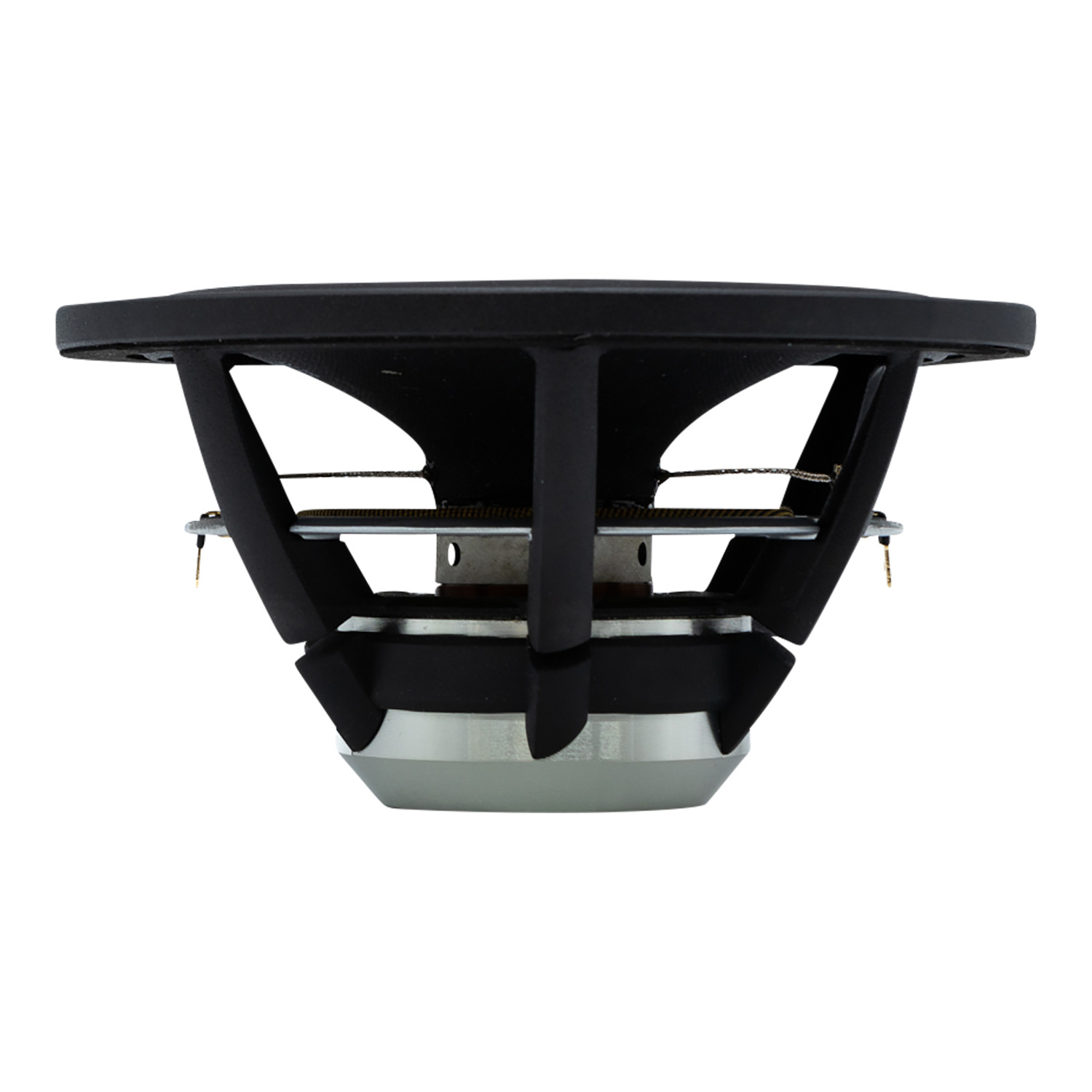

The Satori MW16P-12 by SB Acoustics is part of their flagship line and combines carefully engineered acoustic and mechanical elements to deliver audiophile-grade performance. Featuring a proprietary cone crafted from Egyptian Papyrus™ fibers, the MW16P-12 offers excellent internal damping for a clean and natural midrange. The vented aerodynamic cast aluminum chassis minimizes compression while enhancing structural strength. The powerful low-distortion neodymium motor is optimized with an extended copper sleeve on the pole piece, reducing inductance and minimizing distortion. The non-conductive fiberglass voice coil former, combined with a CCAW (copper-clad aluminum wire) voice coil, results in reduced moving mass and superior transient response. The soft, low-damping rubber surround and advanced Bimax spider further improve linearity and control over cone movement.

With a free-air resonance (Fs) of 30.6 Hz, sensitivity of 85 dB, and a linear excursion of 12.4 mm (p-p), the MW16P-12 is engineered for accurate low-frequency response and dynamic range. It is ideally suited for high-end 2-way and 3-way designs, particularly in applications that require precise detail and low coloration across the midrange spectrum.
