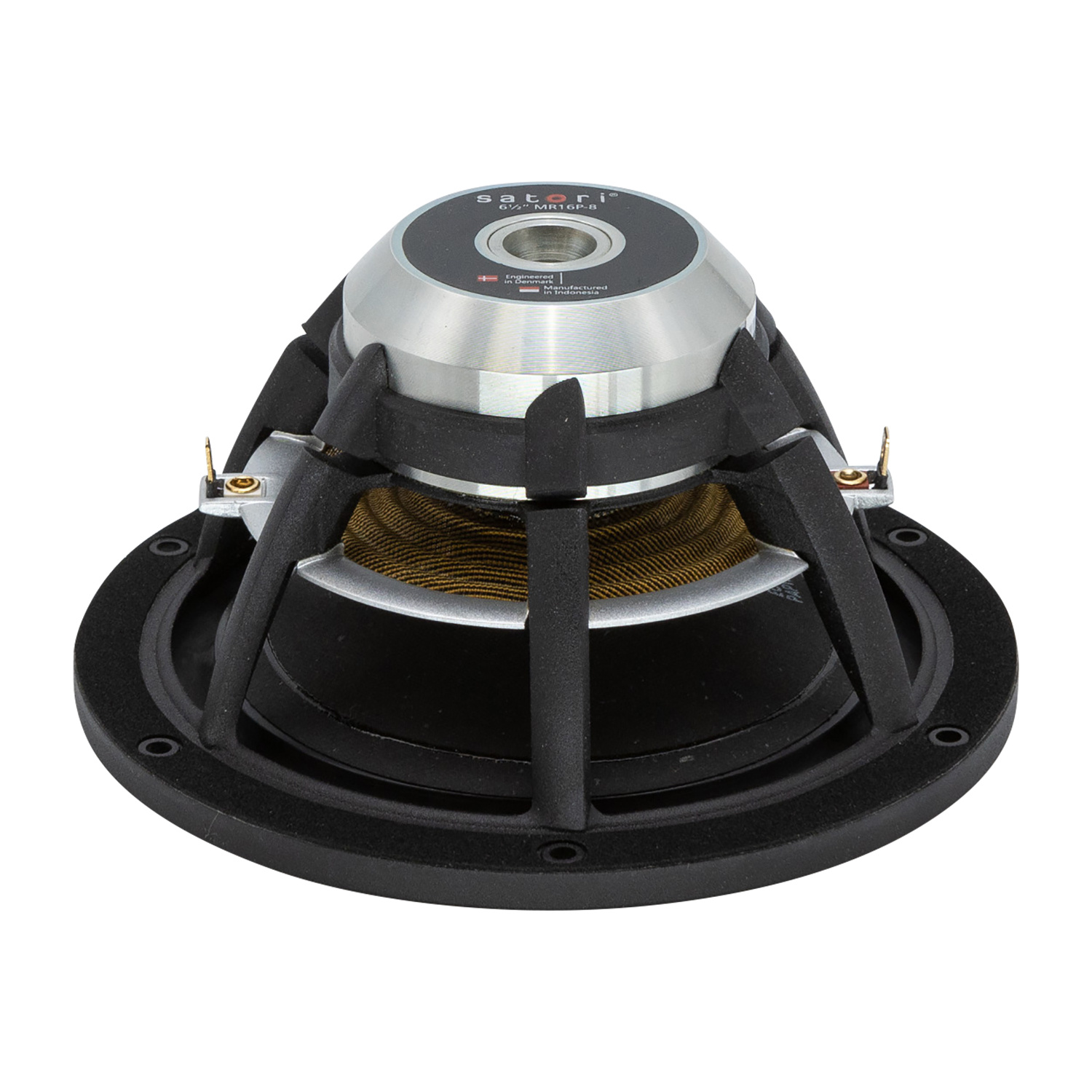

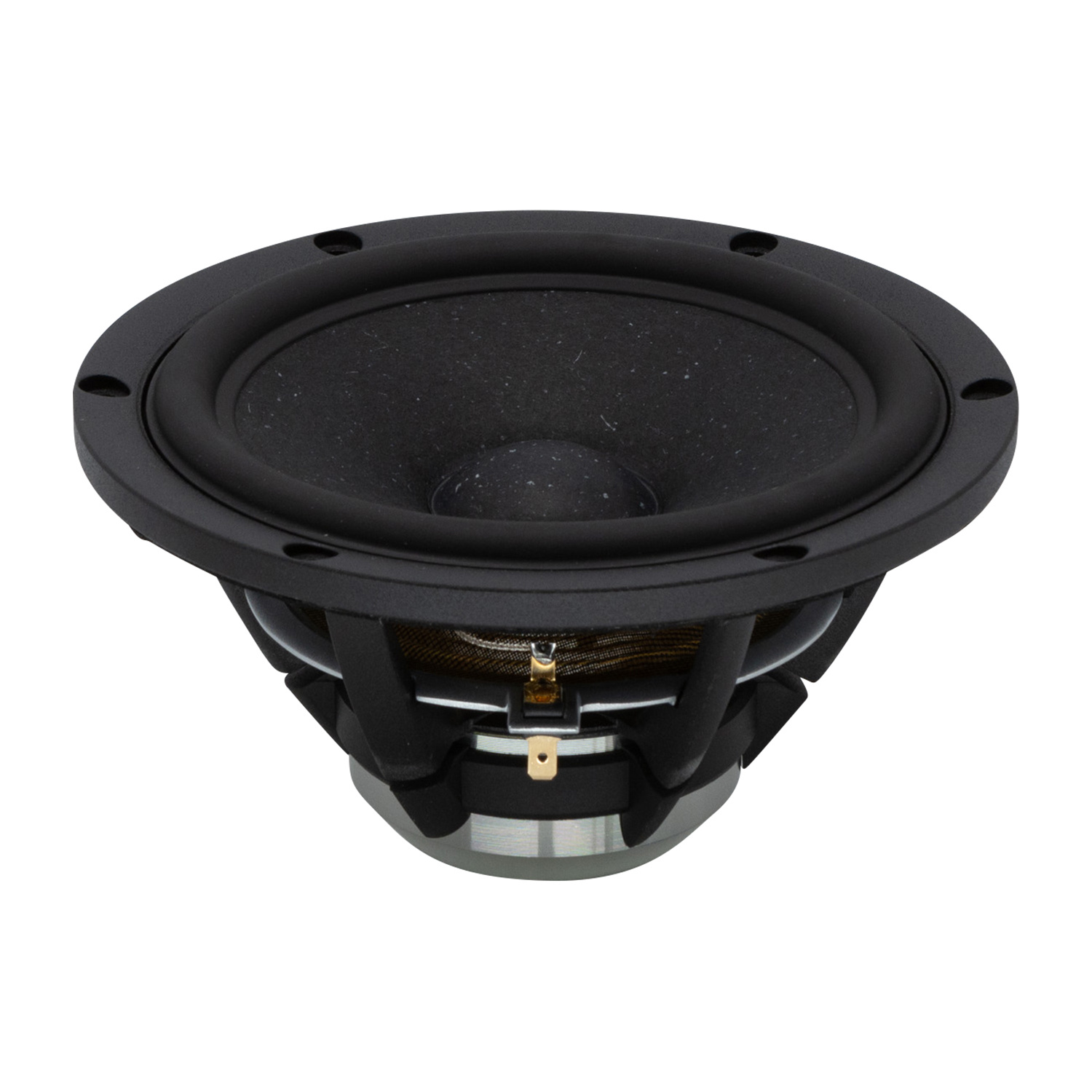

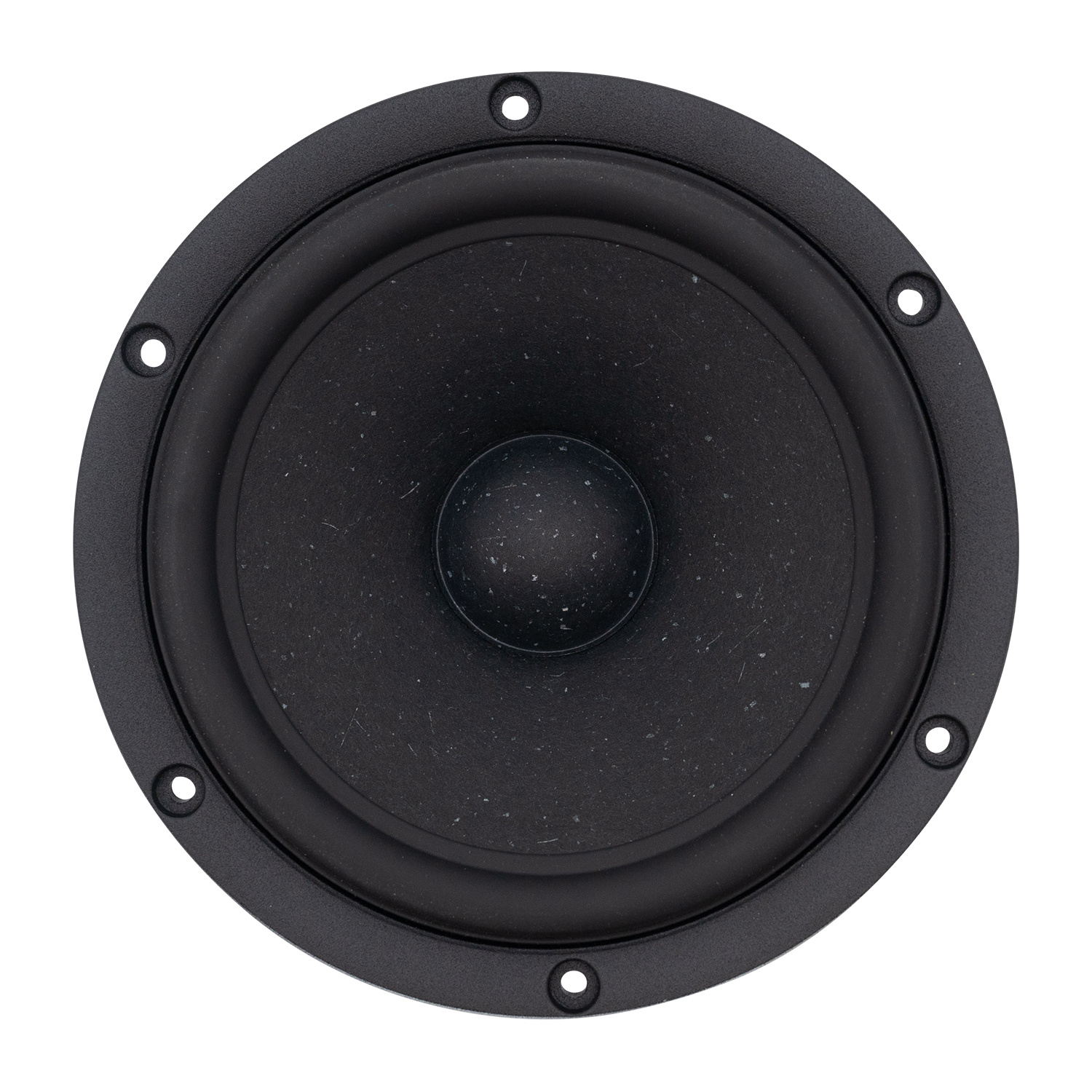

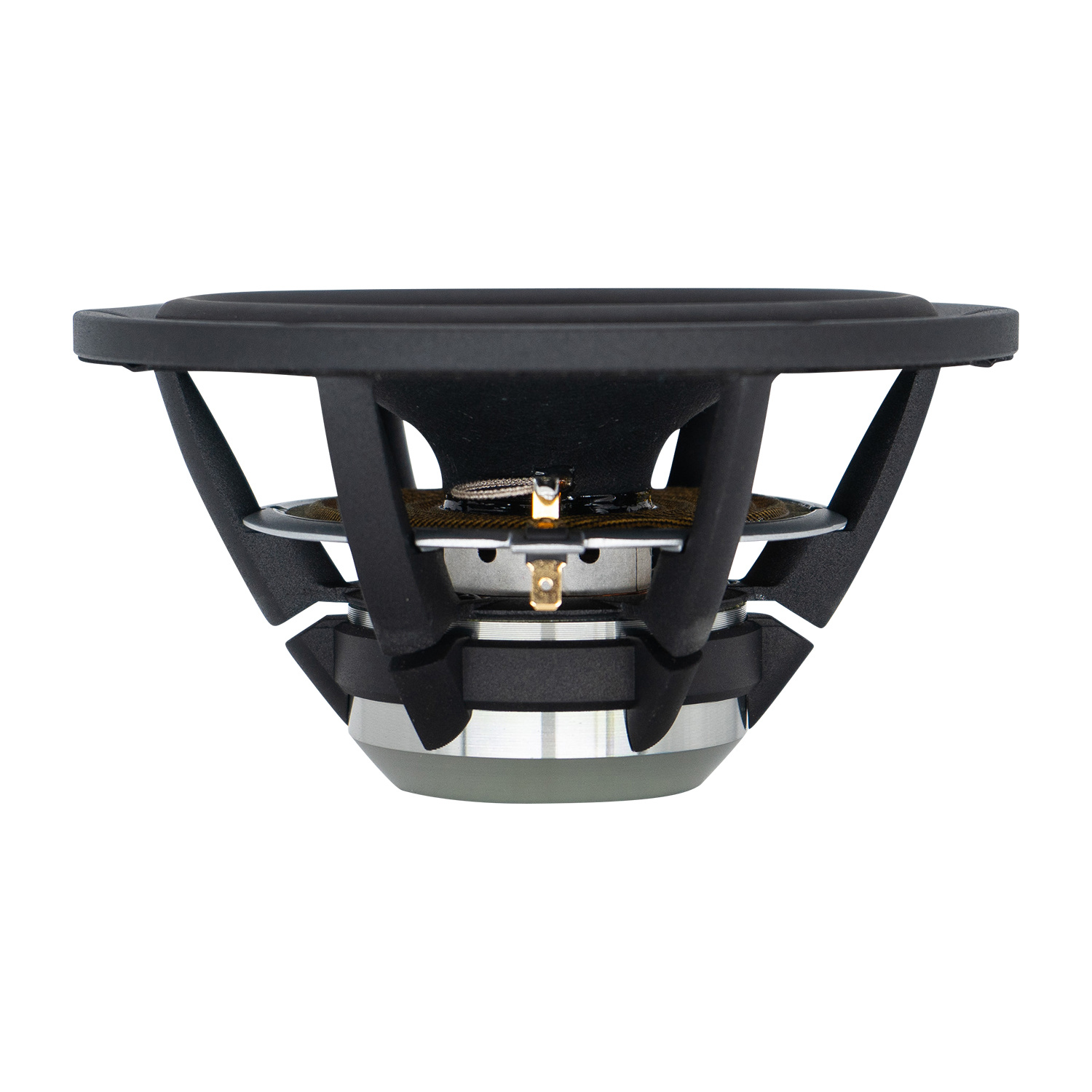

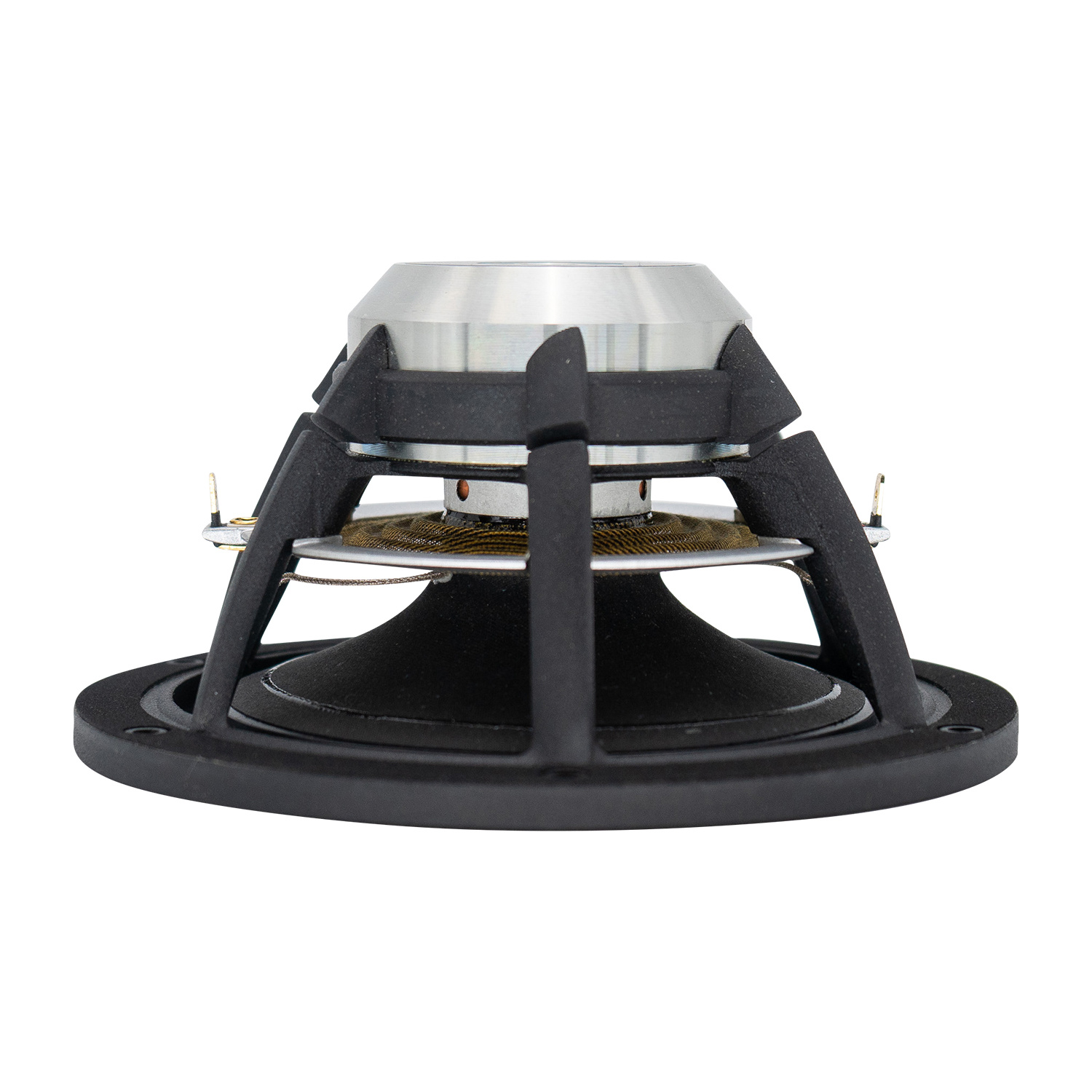

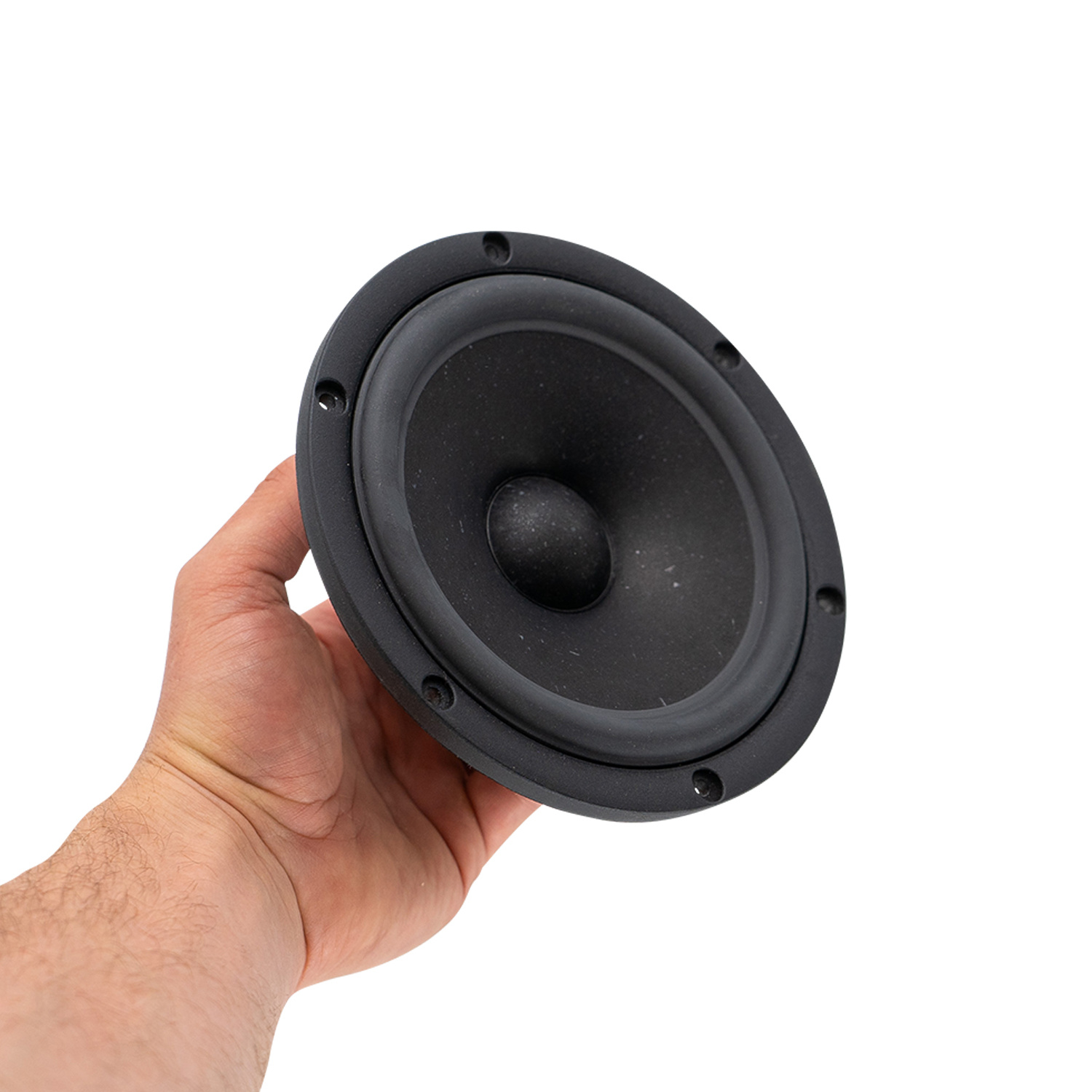

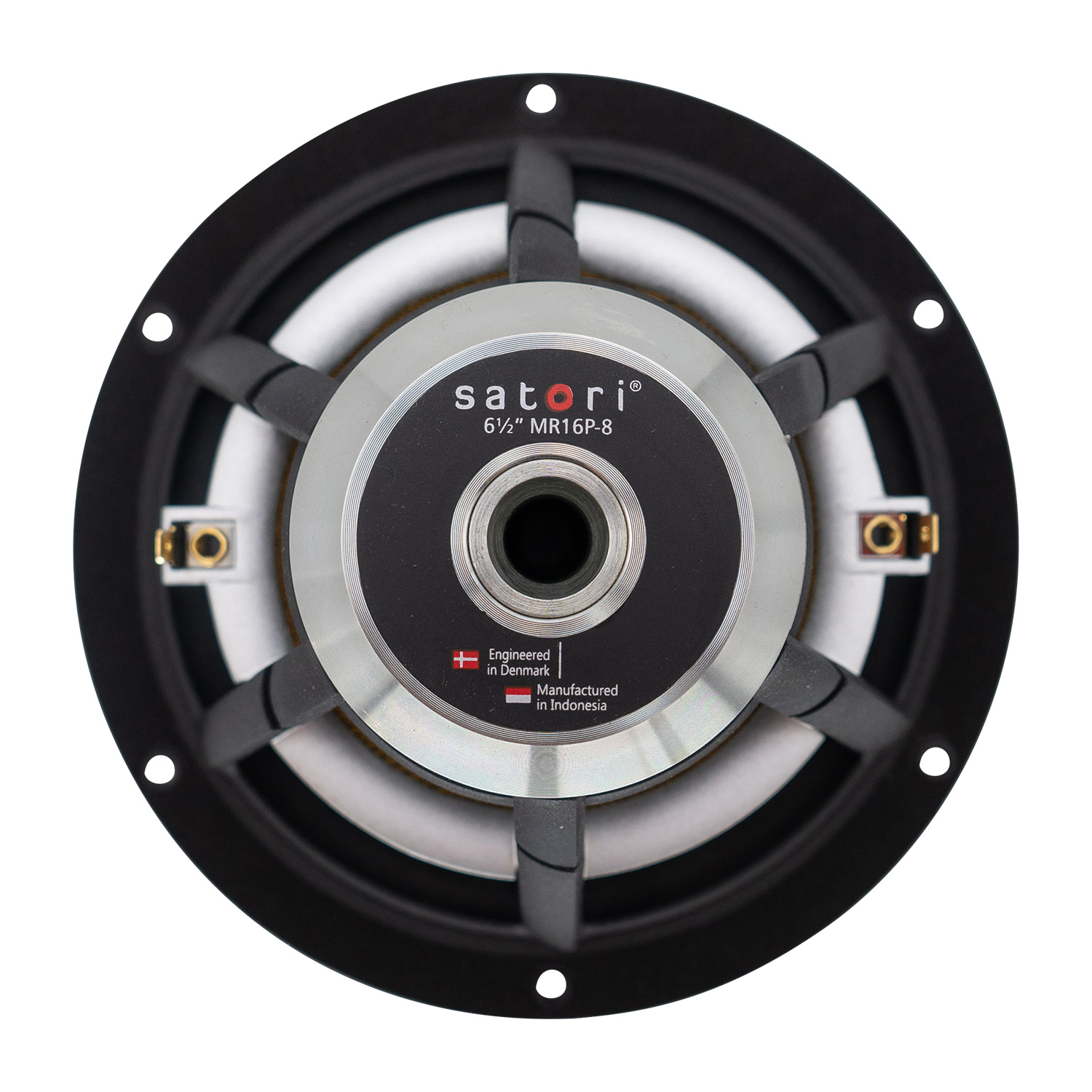

SB Acoustics Satori MR16P-8 6.5'' Midrange

€ 115,66€ 139,95 4 Auf Lager: Lieferzeit 1-3 Werktage
The SB Acoustics Satori MR16P-8 Midwoofer is a State of The Art Neodymium magnet 6.5" 8 ohm midrange, featuring a proprietary Papyrus Paper cone, a soft low damping optimum response rubber surround, BiMax spider, and a glass fiber former with copper sleev... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €132,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fiber glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece and coil former for reduced compression
  • High piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
  • Mode balanced cone for reduced break-up



Product details

SB Acoustics Satori MR16P-8 6.5'' Midrange



The SB Acoustics Satori MR16P-8 Midwoofer is a State of The Art Neodymium magnet 6.5" 8 ohm midrange, featuring a proprietary Papyrus Paper cone, a soft low damping optimum response rubber surround, BiMax spider, and a glass fiber former with copper sleeve pole piece. Mode balanced cone to reduce break-up.



Fitted with a 1.5" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. Fs 32Hz, and a fabulous level wide response curve level midrange response, this is a very flexible unit.

Eigenschaften

Artikelnummer:
MR16P-8
Woofer Series
Satori
Woofer Type
Midwoofer
Nominal Diameter
6.5"
Power Handling (RMS)
30 Watts
Impedance
8 ohms
Sensitivity
88 dB 2.83V/1m
Voice Coil Diameter
1.39"
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
0.11 mH
Resonant Frequency (Fs)
32 Hz
Mechanical Q (Qms)
5.11
Electromagnetic Q (Qes)
0.32
Total Q (Qts)
0.3
Diaphragm Mass Inc. Airload (Mms)
10.6 g
Mechanical Compliance of Suspension (Cms)
2.3 mm/N
Surface Area of Cone (Sd)
119 cm2
BL Product (BL)
6.5 Tm
Compliance Equivalent Volume (Vas)
1.56 ft.³
Maximum Linear Excursion (Xmax)
3.1 mm
