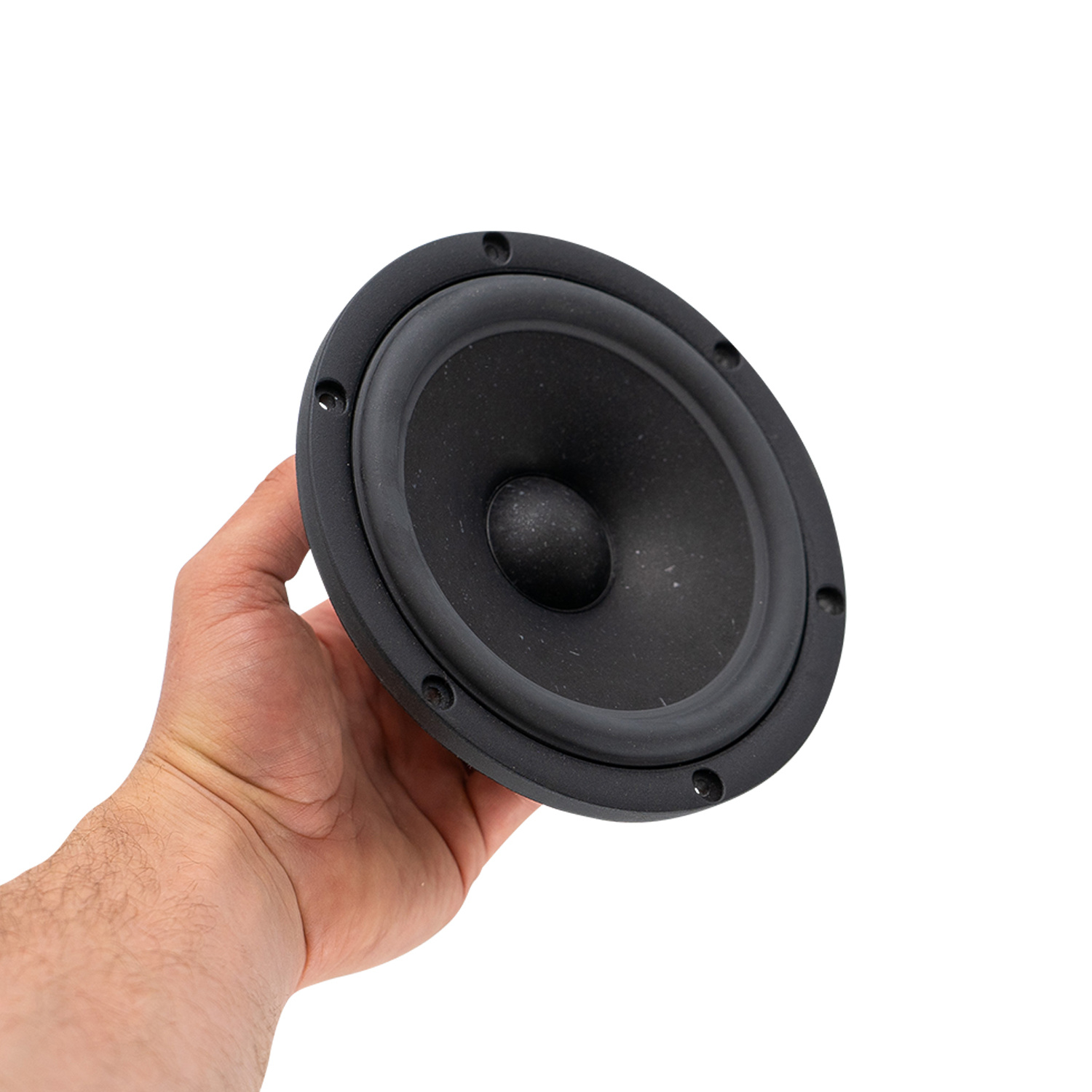

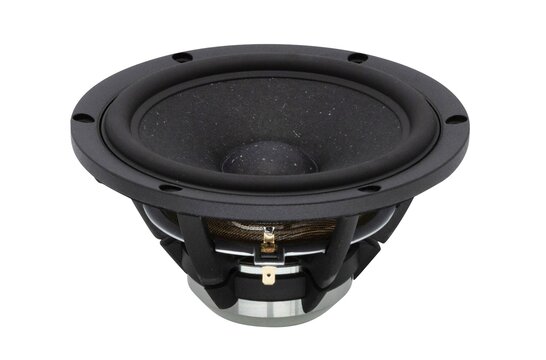

SB Acoustics Satori MR16P-4 6.5" Midrange

€ 139,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The MR16P-4 is built on a cosmetically attractive six-spoke frame that has a minimal reflective footprint behind the cone to reduce reflections and a completely open area beneath the spider mounting shelf for enhanced cooling, both highly desirable attrib... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €132,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fiber glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece and coil former for reduced compression
  • High piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
  • Mode balanced cone for reduced break-up



Product details

SB Acoustics Satori MR16P-4 6.5” Midrange

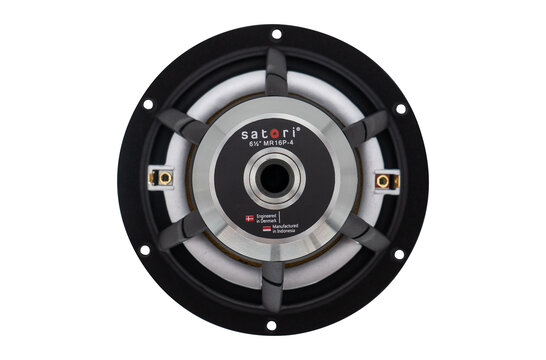

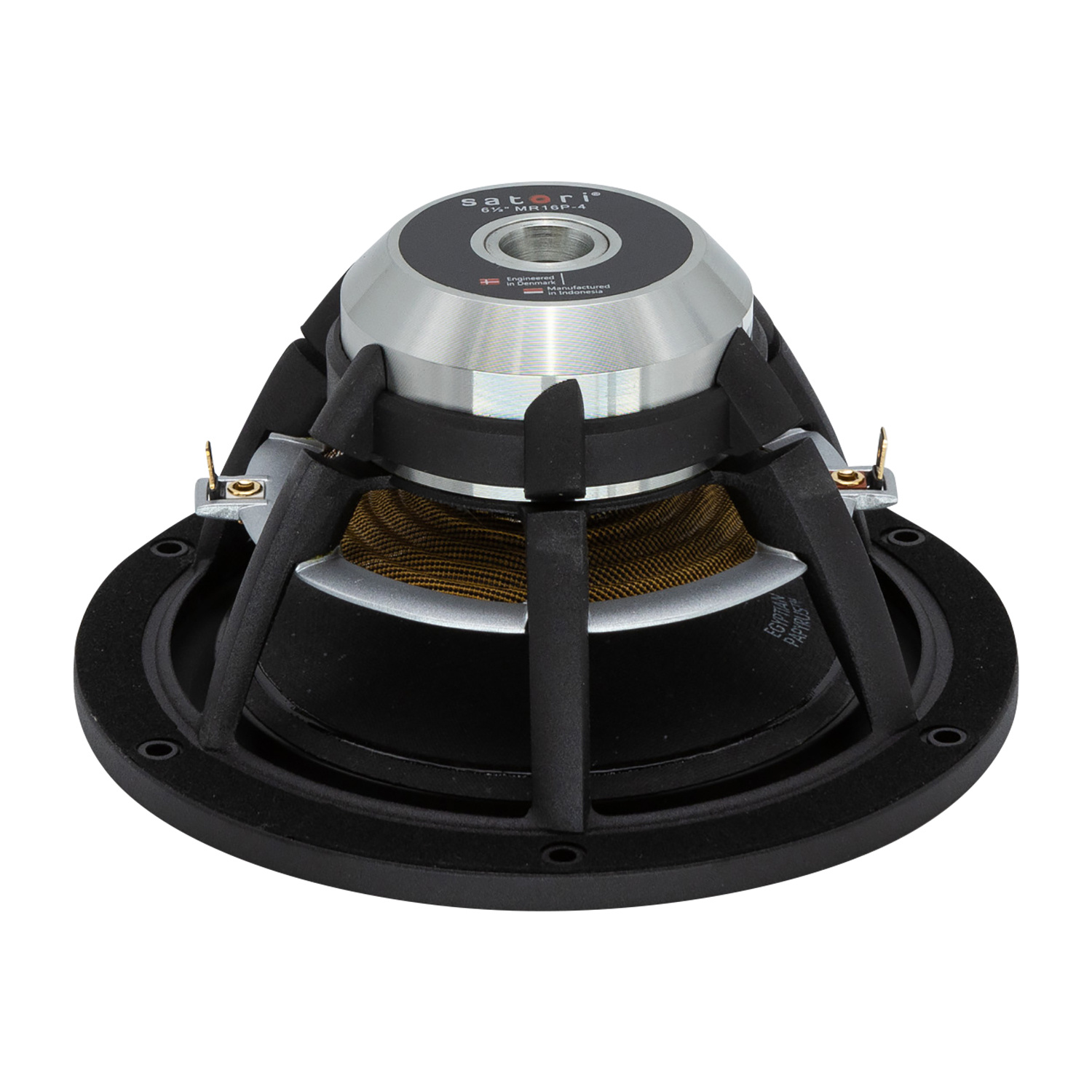

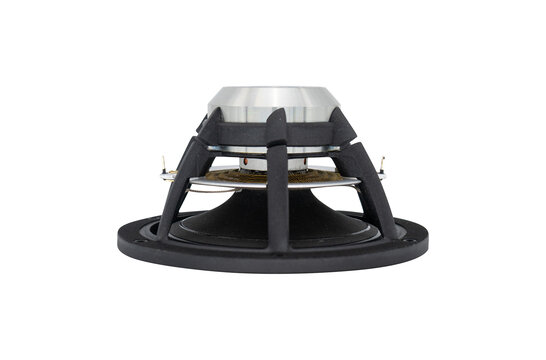

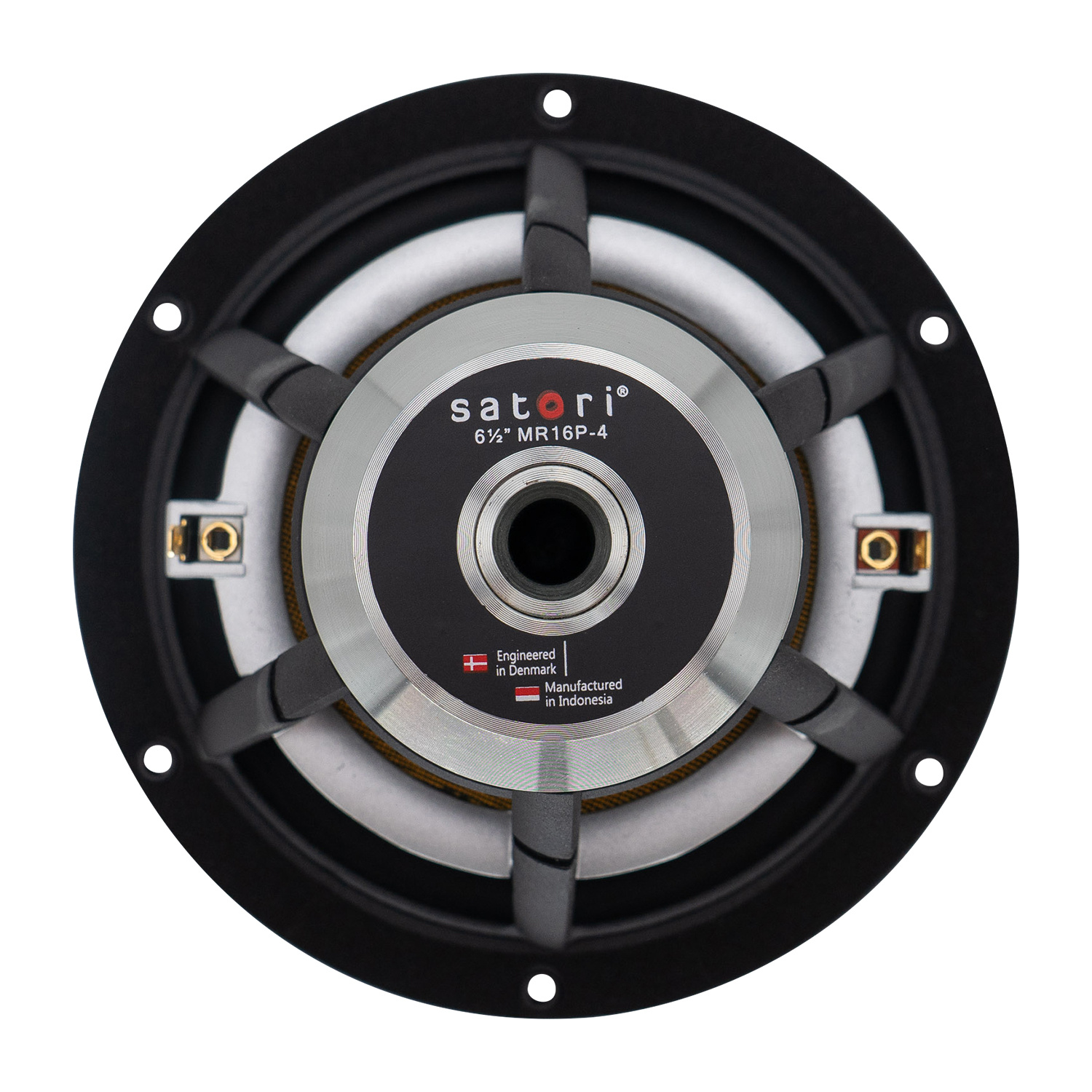

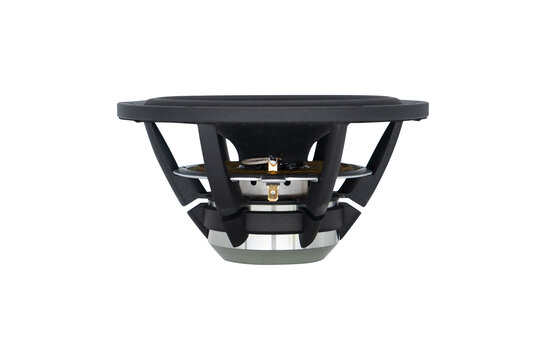

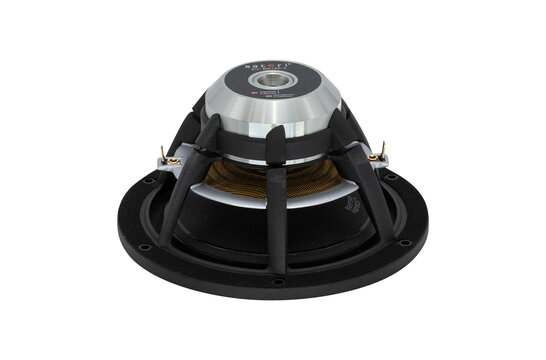

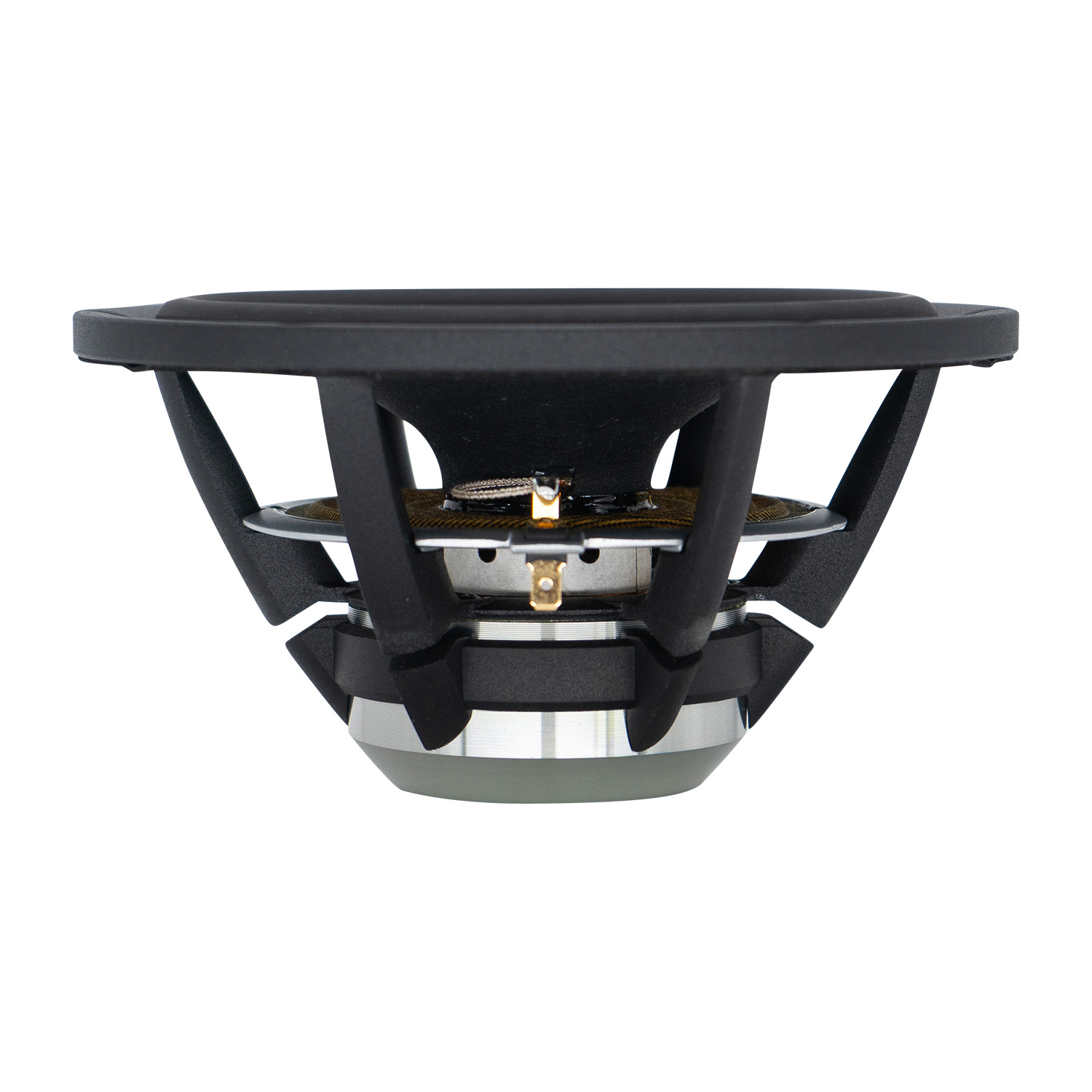

The MR16P-4 is built on a cosmetically attractive six-spoke frame that has a minimal reflective footprint behind the cone to reduce reflections and a completely open area beneath the spider mounting shelf for enhanced cooling, both highly desirable attributes. Additional cooling is provided by venting the voice coil former and a 12 mm diameter pole vent. The spider mounting shelf itself is pinned to the frame to limit vibration transfer from the frame to this part of the suspension system. The neodymium motor cup attaches to the bottom of the frame and has a separate cosmetic/heatsink part that looks like the continuation of the frame attached to the peripheral of the motor.



The motor is comprised of a neodymium ring magnet and the cup that completes the field and forms the gap area. In addition, there is an overhung copper sleeve shorting ring to reduce distortion. The device uses a 36 mm (1.4”) diameter voice coil with a nonconducting fiberglass former wound with round copper-clad aluminum wire (CCAW) and terminated to a pair of gold-plated terminals located on opposite sides of the frame to minimize rocking modes.

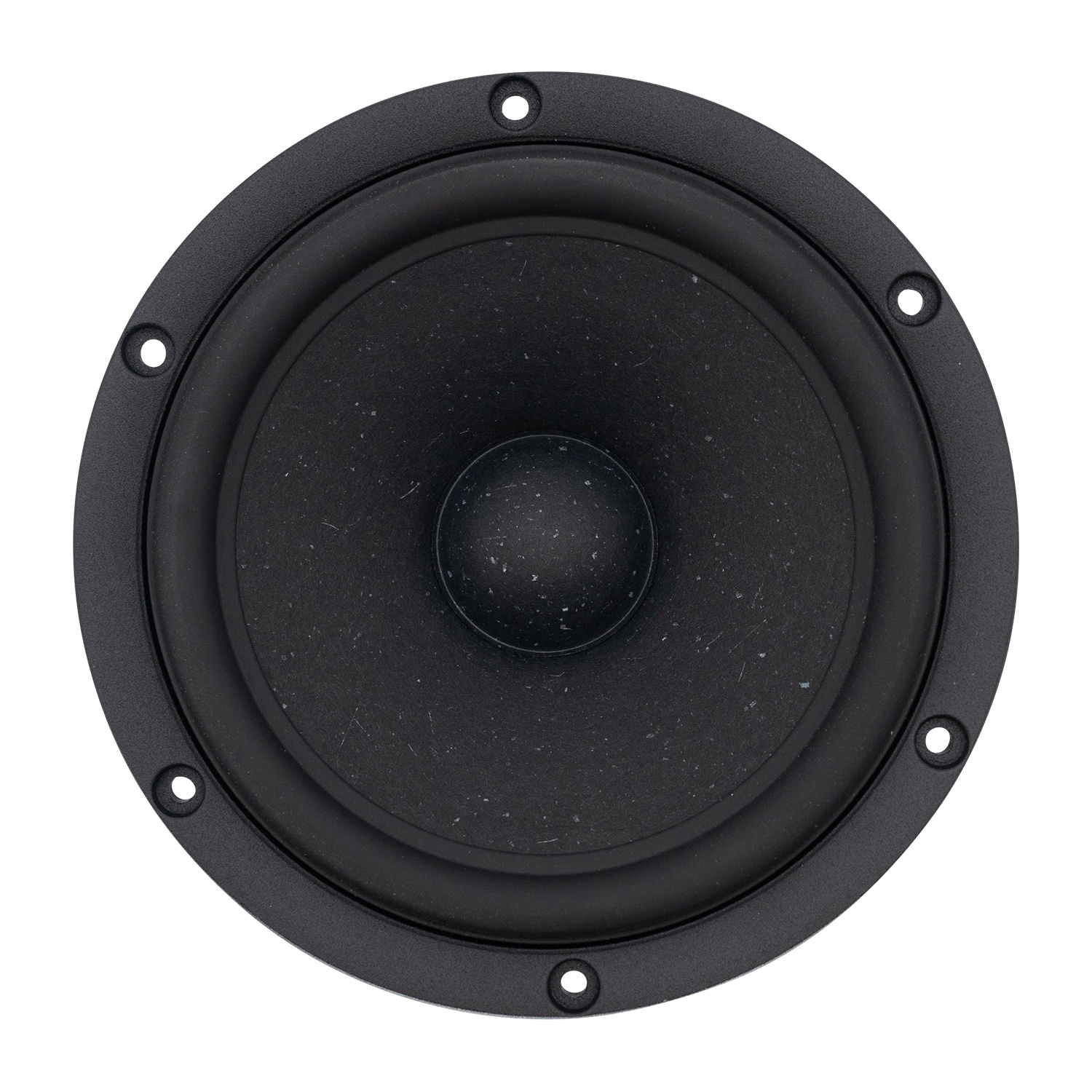

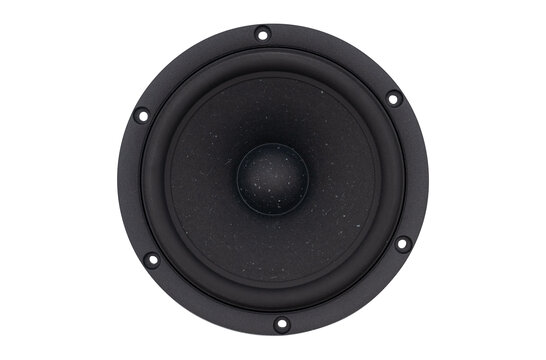

The cone and the dust cap material are also unique and composed of 60% pure Egyptian papyrus parchment fibers, a very expensive but light and stiff material. Suspension is provided by a nitrile butadiene rubber (NBR) surround that uses a special vertical and horizontal attachment process, along with a Dr. Kurt Muller Bimax spider. Bimax is purported to have less twisting tendencies compared to other cloth spider materials.

Eigenschaften

Artikelnummer:
MR16P-4
Woofer Series
Satori
Woofer Type
Midwoofer
Nominal Diameter
6.5"
Power Handling (RMS)
40 Watts
Impedance
4 ohms
Sensitivity
92 dB 2.83V/1m
Voice Coil Diameter
1.39"
DC Resistance (Re)
3.2 ohms
Voice Coil Inductance (Le)
0.11 mH
Resonant Frequency (Fs)
31 Hz
Mechanical Q (Qms)
4.85
Electromagnetic Q (Qes)
0.26
Total Q (Qts)
0.25
Diaphragm Mass Inc. Airload (Mms)
11.2 g
Mechanical Compliance of Suspension (Cms)
2.35 mm/N
Surface Area of Cone (Sd)
119 cm2
BL Product (BL)
5.2 Tm
Compliance Equivalent Volume (Vas)
1.66 ft.³
Maximum Linear Excursion (Xmax)
3.1 mm
