SB Acoustics Satori MR13PNW-8 5" White Egyptian Papyrus Cone Midrange

€ 103,26€ 124,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Vented aerodynamic cast aluminum chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house with soft low damping rubber surround for optimum transient response.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €118,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

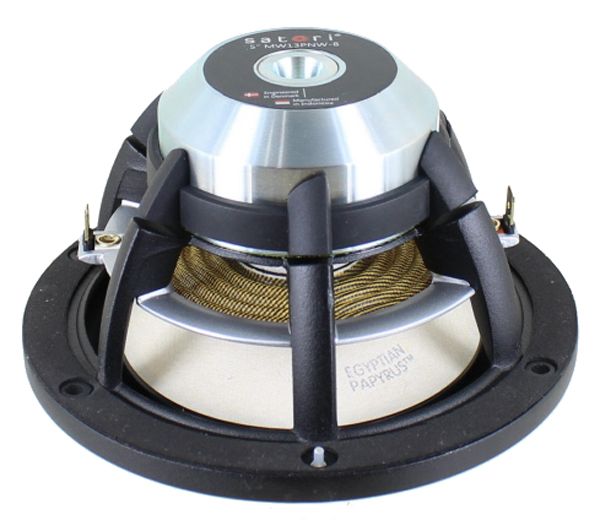

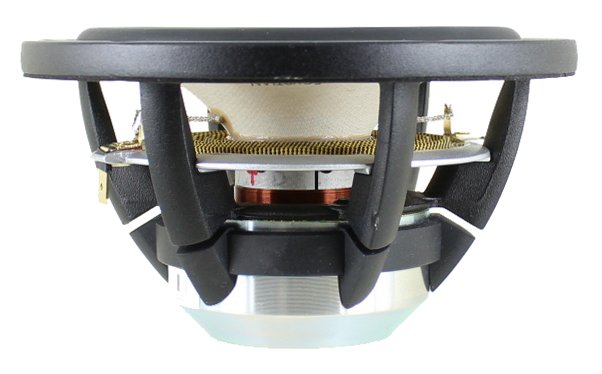

  • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fiber glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece and coil former for reduced compression
  • High piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



Product details

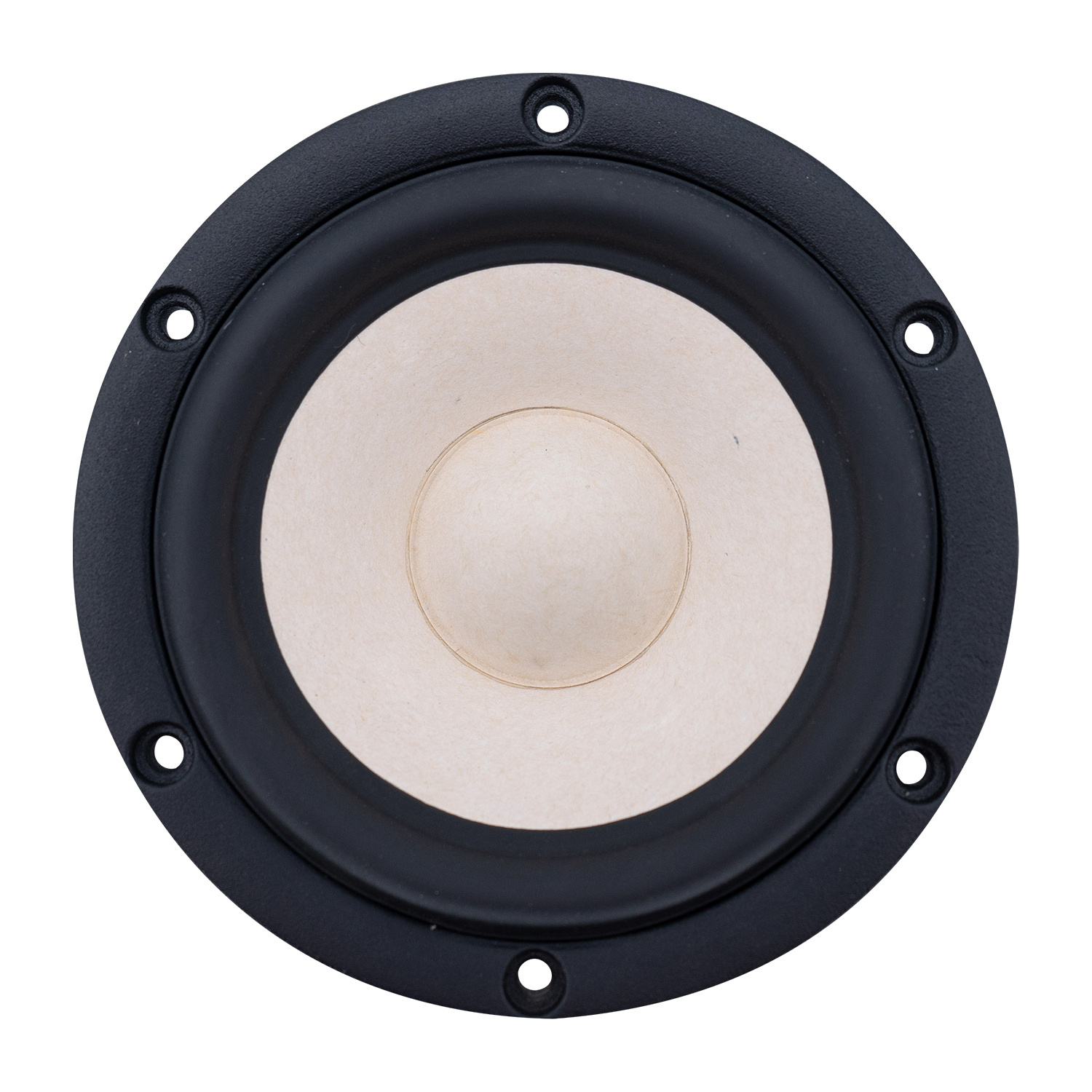

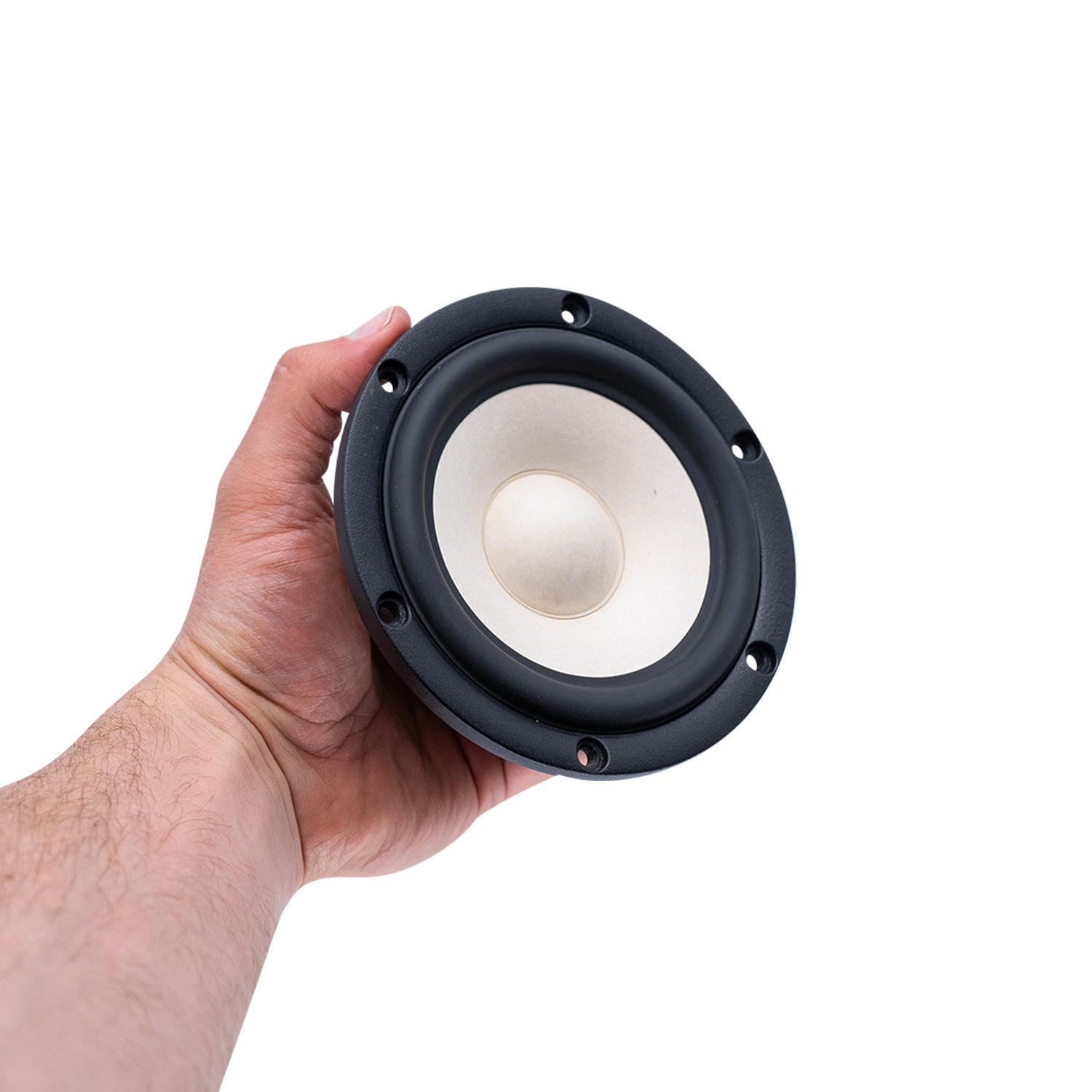

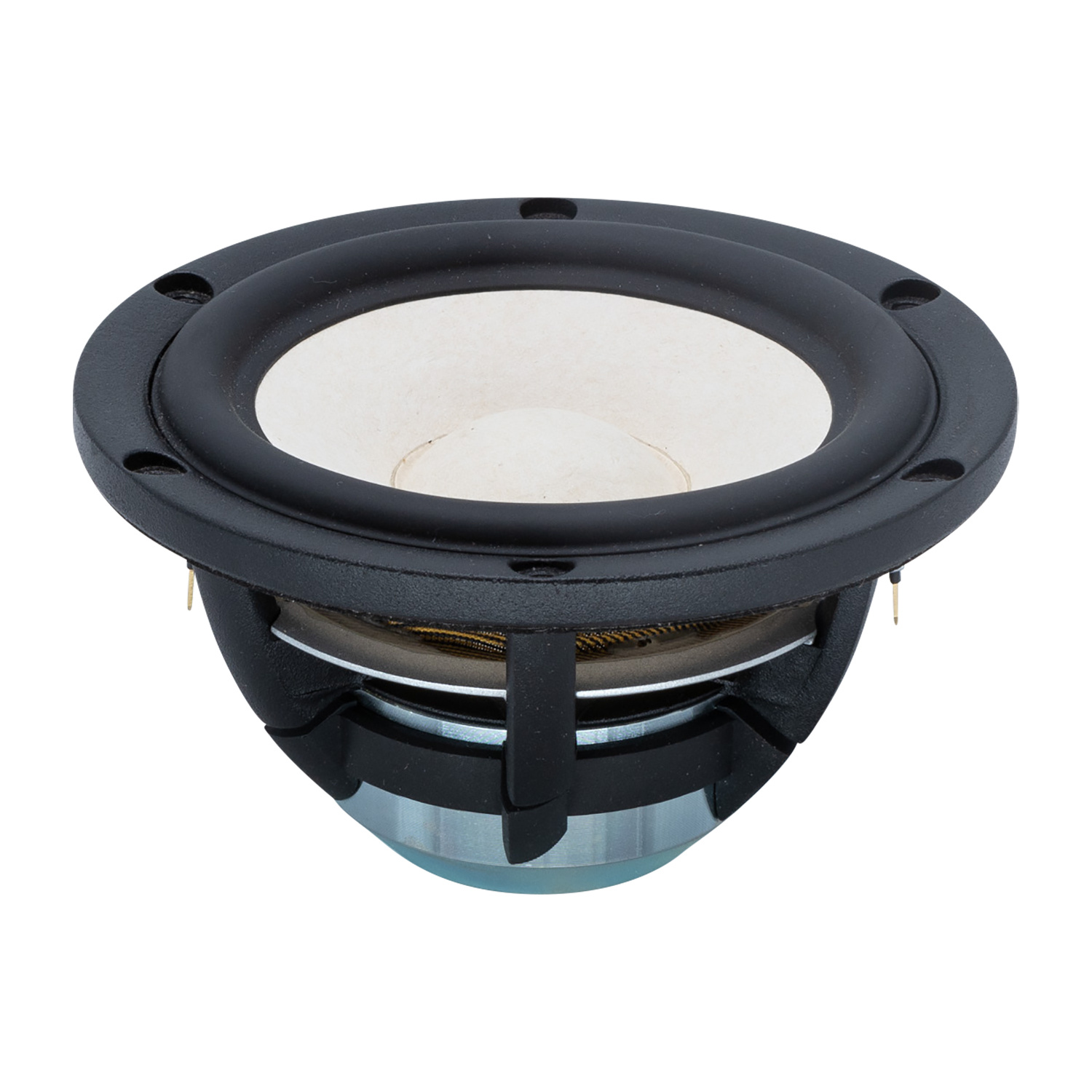

SB Acoustics Satori MR13PNW-8 5" White Egyptian Papyrus Cone Midrange



Vented aerodynamic cast aluminum chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house with soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass.



Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

Eigenschaften

Artikelnummer:
MR13PNW-8
Woofer Series
Satori Series
Woofer Type
Midwoofer
Nominal Diameter
5"
Power Handling (RMS)
30 Watts
Impedance
8 ohms
Sensitivity
88 dB 2.83V/1m
Voice Coil Diameter
1.2"
DC Resistance (Re)
6.8 ohms
Voice Coil Inductance (Le)
0.11 mH
Resonant Frequency (Fs)
47 Hz
Mechanical Q (Qms)
4.58
Electromagnetic Q (Qes)
0.32
Total Q (Qts)
0.30
Diaphragm Mass Inc. Airload (Mms)
6.2 g
Mechanical Compliance of Suspension (Cms)
1.85 mm/N
Surface Area of Cone (Sd)
70 cm2
BL Product (BL)
6.2 Tm
Compliance Equivalent Volume (Vas)
0.45 ft.³
Maximum Linear Excursion (Xmax)
3 mm

Bewertungen

2 from 5Based on 1 reviews
Produkt bewerten
2 van 5
I was not satisfied for my project beautifully made but something is missing
Durch yam c. on 21 April 2021
